Masons Fixed Louver Grille Vent

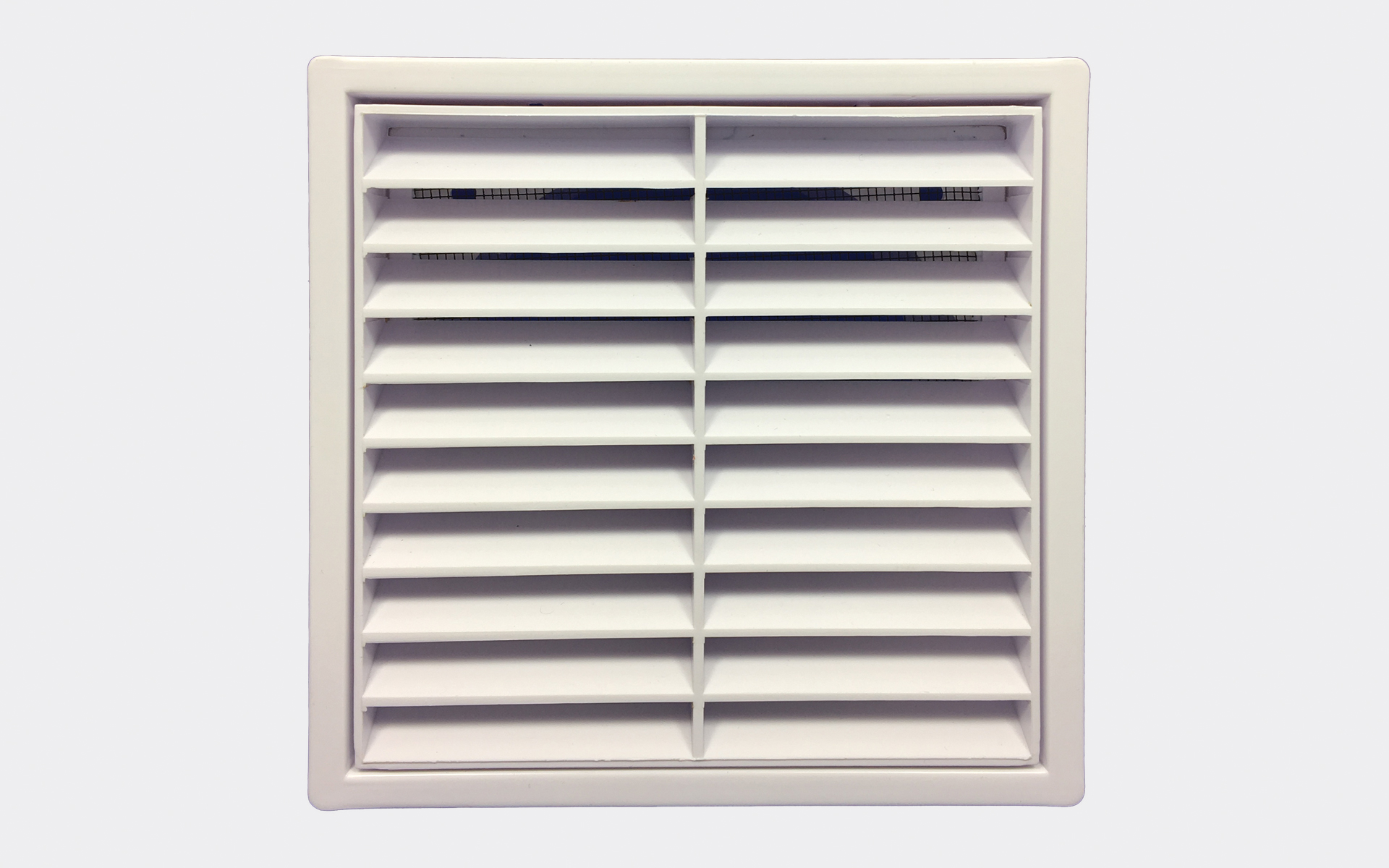

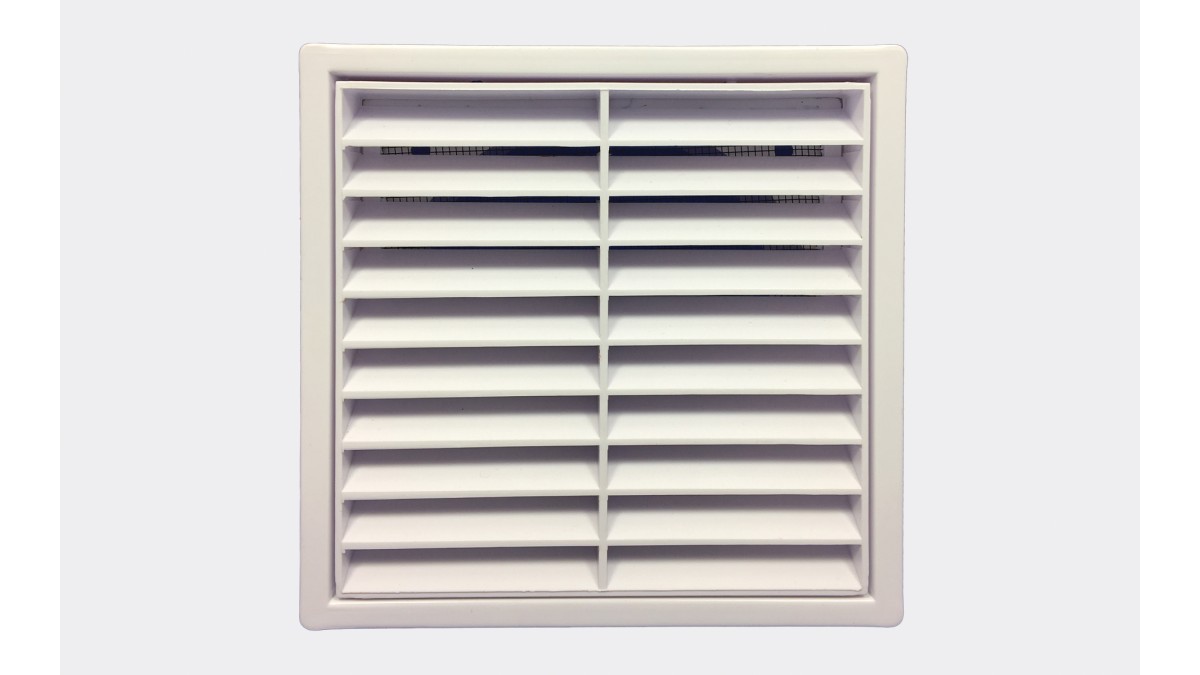

A fixed louvre grille in white plastic, for ceiling or wall mounting. Suitable for external or internal applications.

Key Features

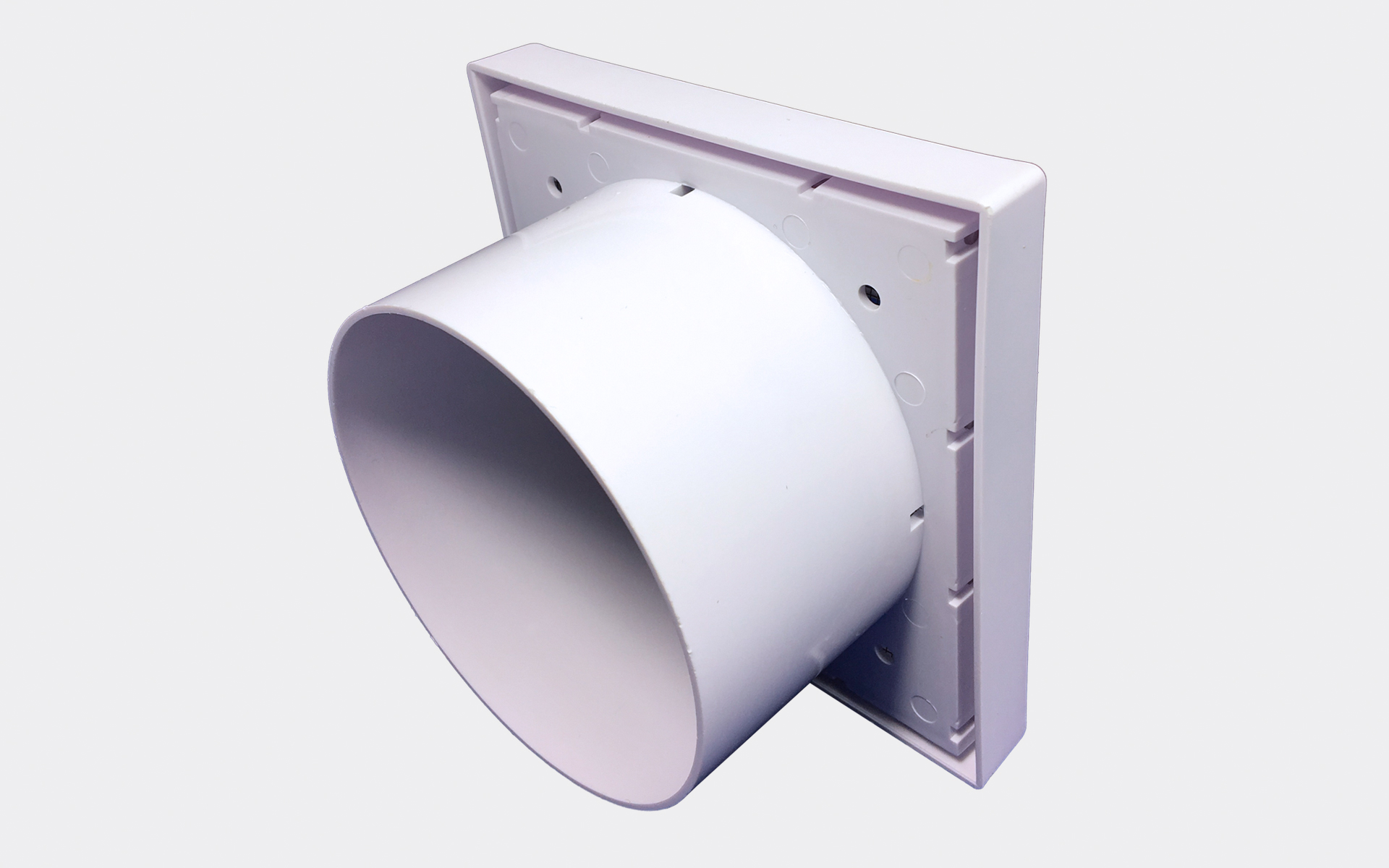

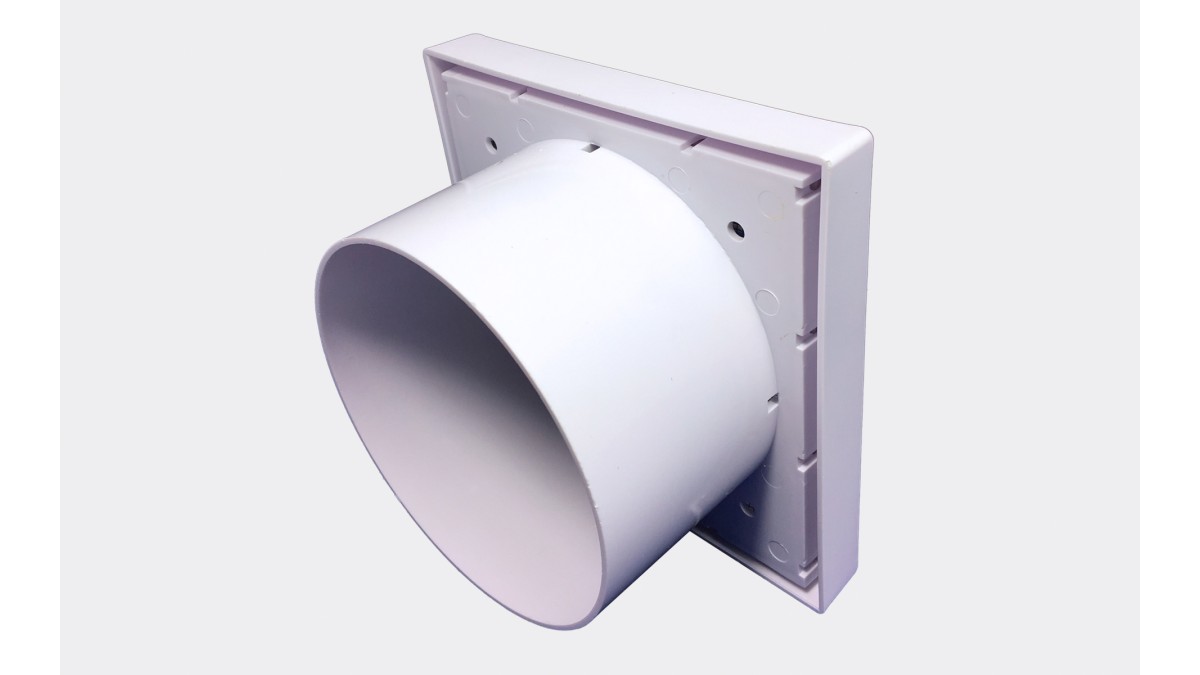

  • Mounts directly to ductwork — because of the tapered neck
  • Scratch resistant surface — made from ABS plastic
  • Easy installation — supplied with 4 screws

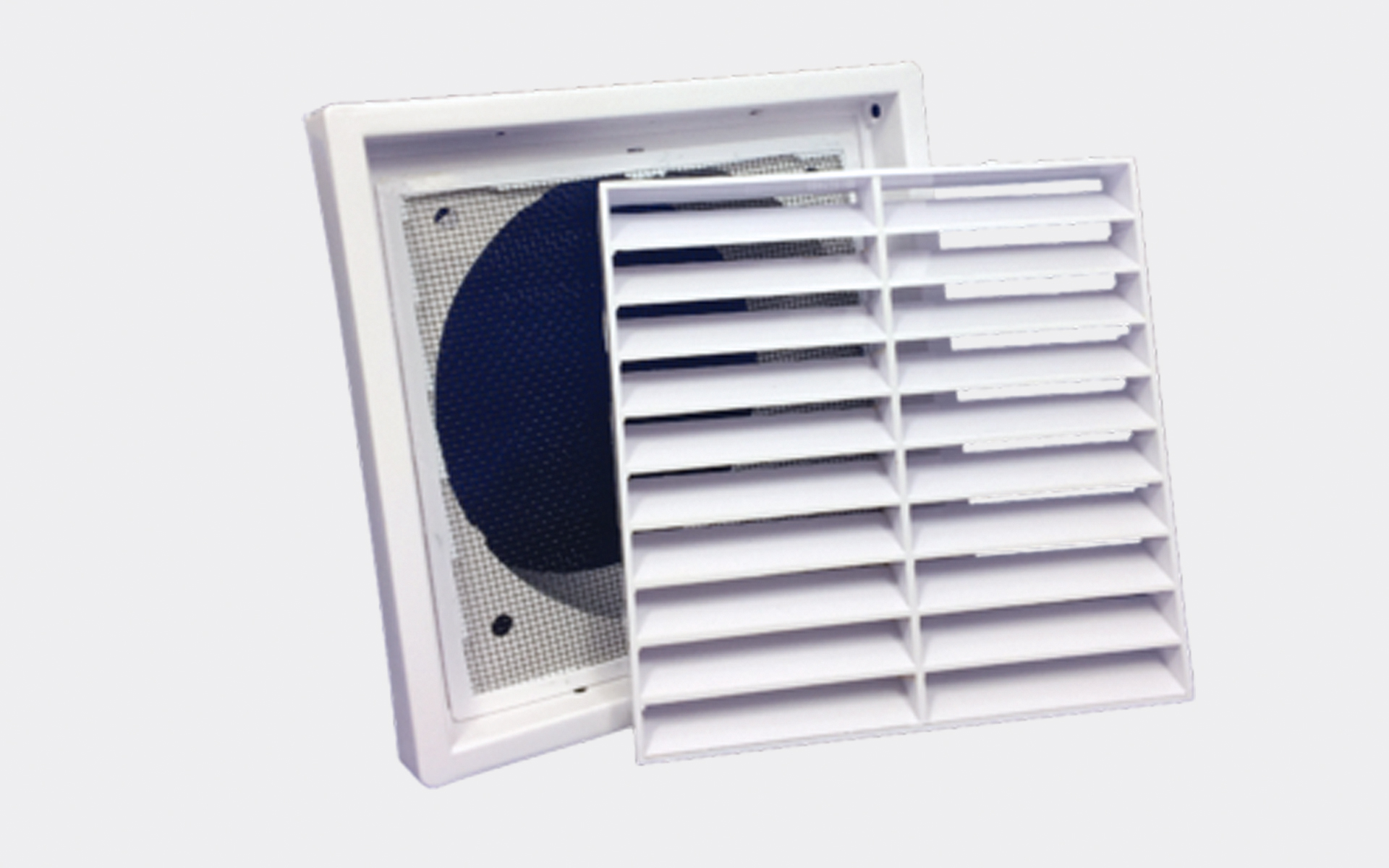

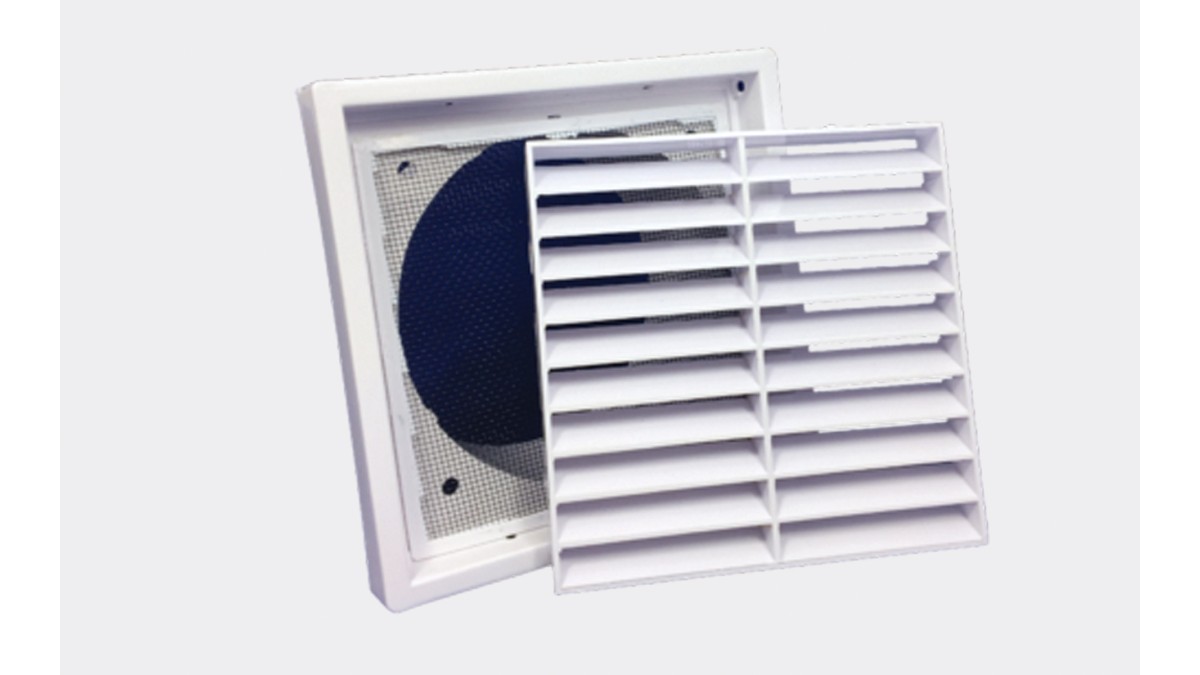

  • With insect mesh screen — made from durable stainless steel


NZ-Owned Business
NZ-Owned Business
Scope of Use

Suitable for both internal and external applications and can be either mounted on ceiling or wall. Duct can be installed onto the neck located at the rear of the grille.

  • Mark and cut out the hole from ceiling or wall
  • Clip out the louvre insert with the assistance of a screwdriver
  • Remove the insect mesh screen
  • Fix flexible duct to the spigot of diffuser
  • Fix grille to wall or ceiling with screws provided
  • Insert the Insect screen and louvre cover back into the unit
Data Sheets: Masons Vents and Gilles Range

Since being established in 1999, Masons has become a key supplier in the New Zealand building industry, offering a variety of quality products and tools for a whole range of building requirements.
