Masons Enviro AAC Panel Cladding System
Description

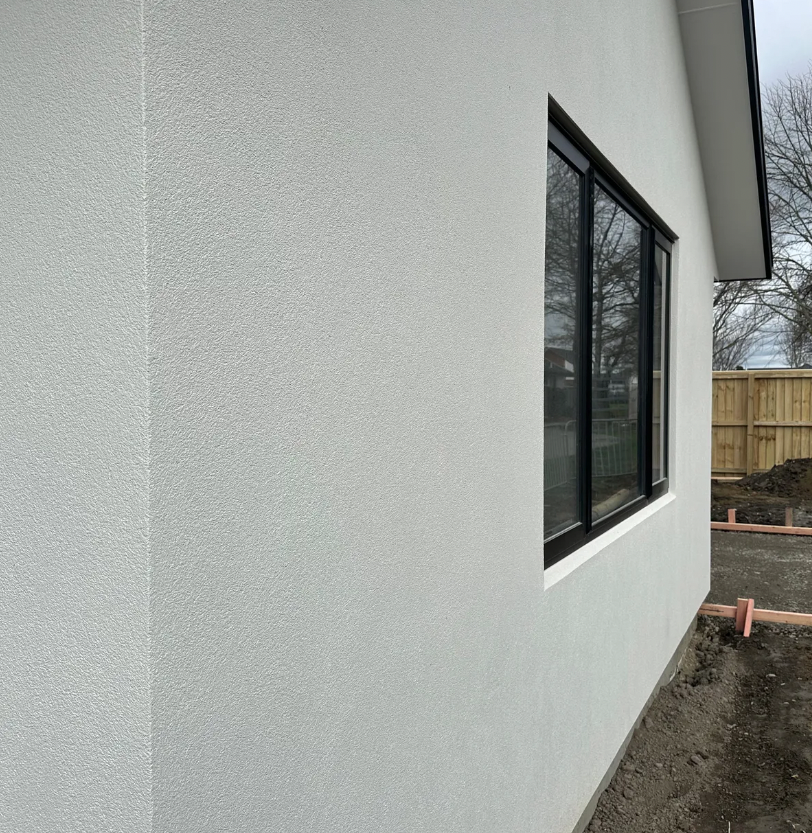

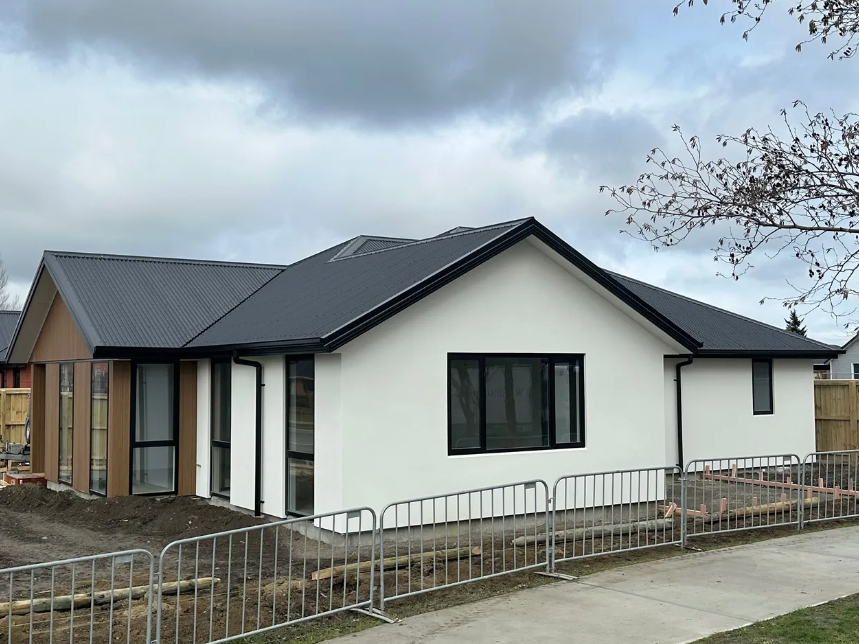

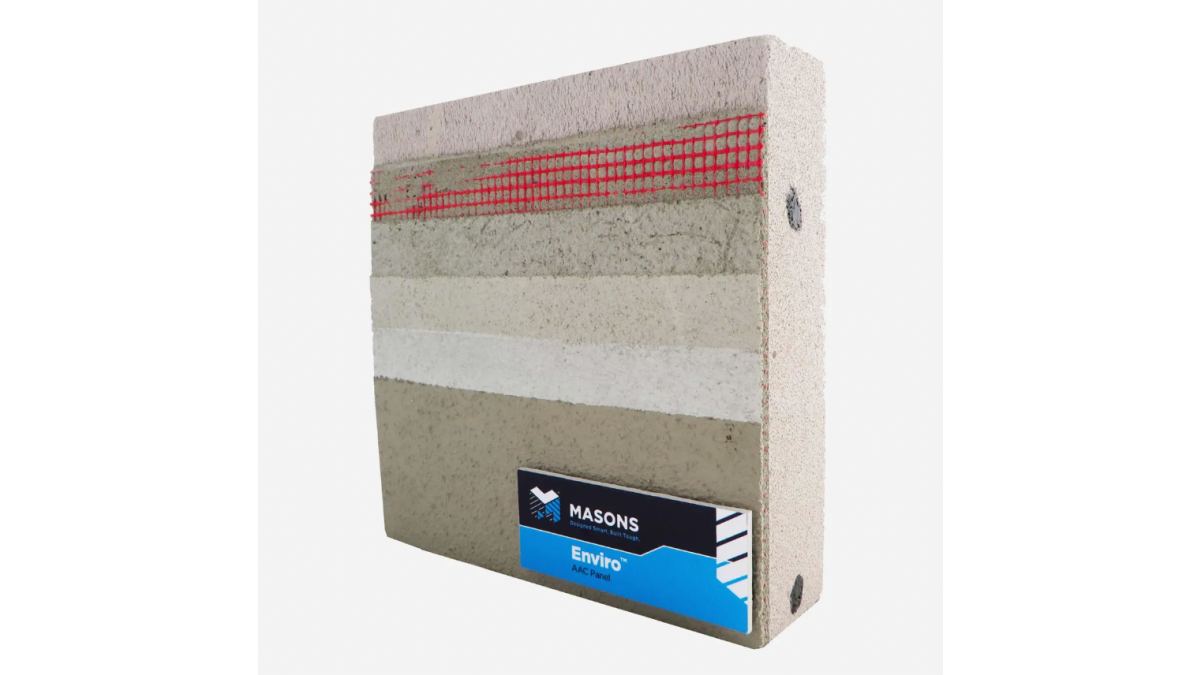

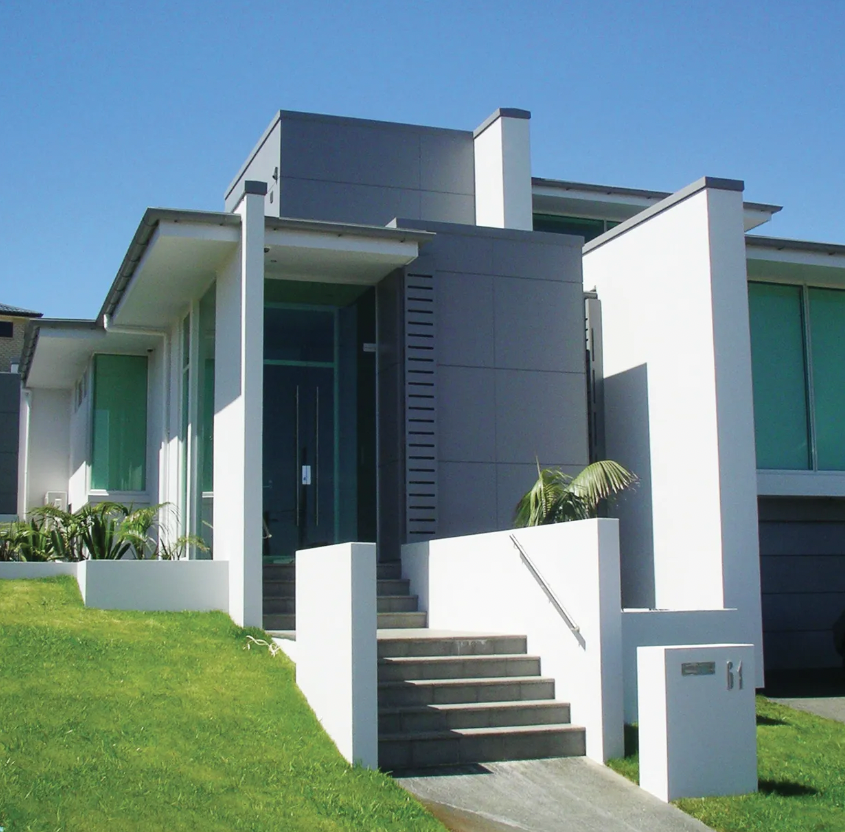

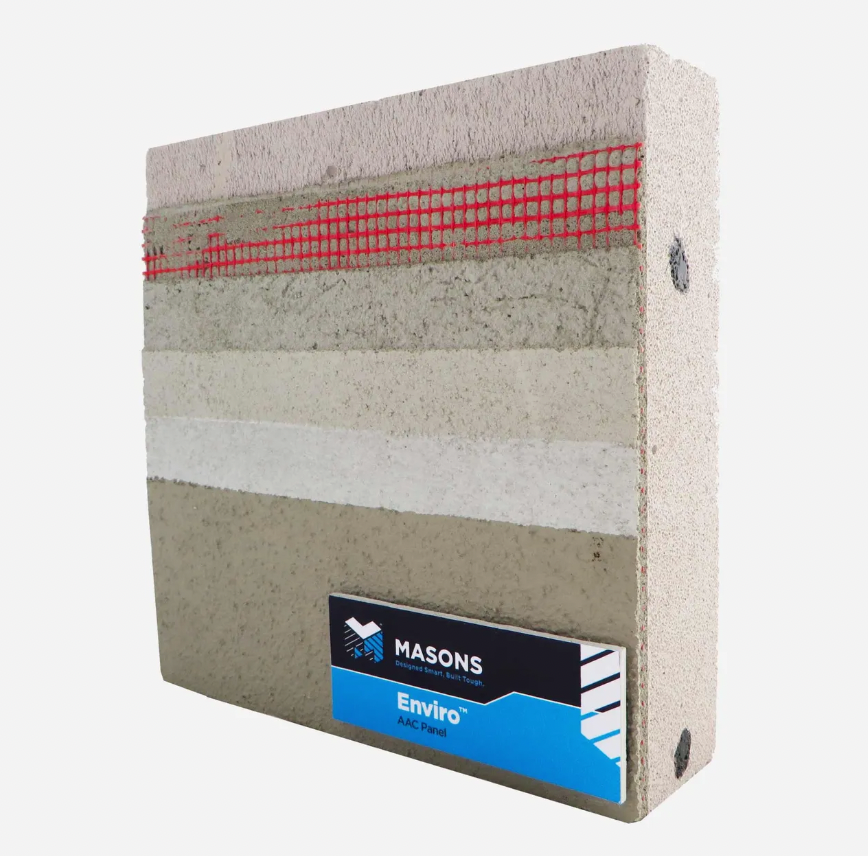

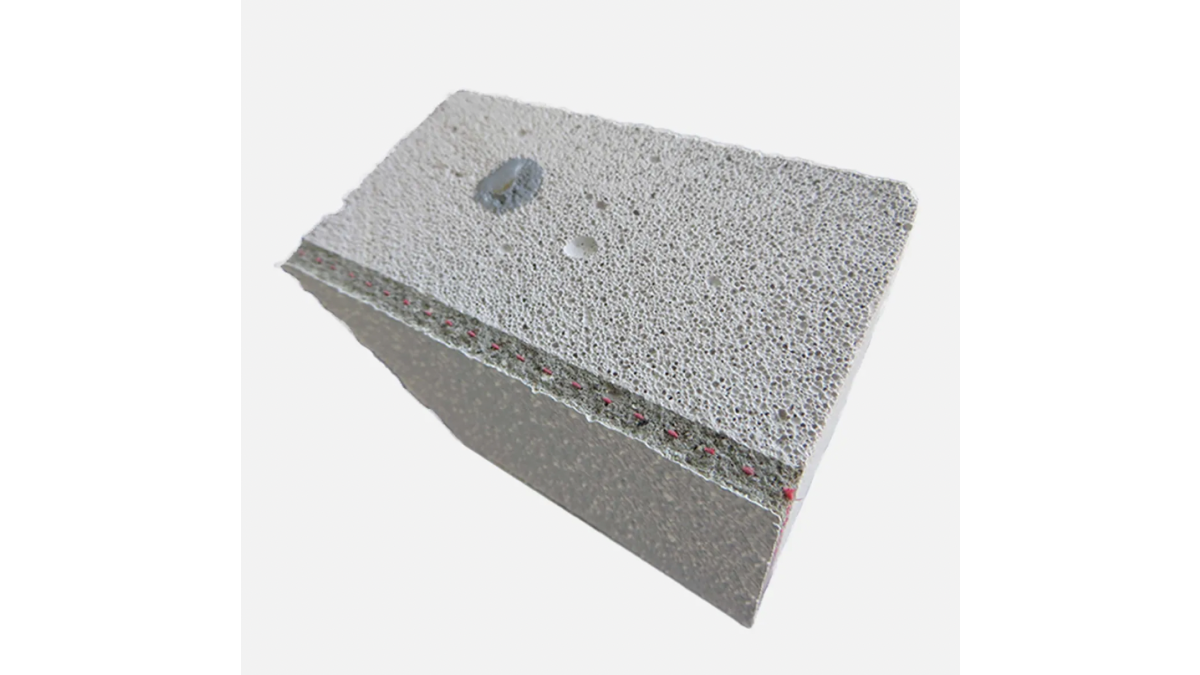

Cost-effective and quick to install, Enviro™ is a strong, lightweight exterior cladding panel for residential and commercial buildings. With an aerated concrete core, Enviro flashings for weathertightness, and Masons' plaster applied over the top, the system provides strength, weather tightness, and timeless design.

  • Panel size: 2000 x 600 x 50mm
Key Features

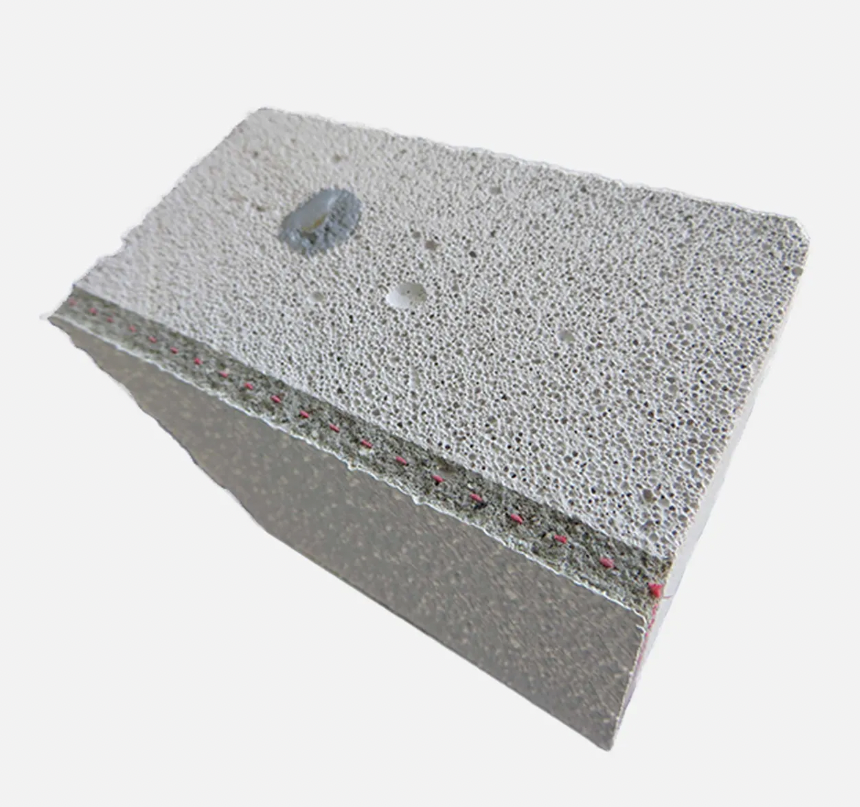

  • Weight: strong, lightweight cladding system — With a working density of 650 kg/m³, Enviro panels are about one-fourth the density of concrete. Panels are easy to cut and quick to install for cost-effective cavity-based construction. The Enviro cladding system is suitable for all seismic and wind loadings around New Zealand when installed in accordance with the manufacturer’s instructions.
  • Acoustics: Noise reduction — Enviro panels are effective at absorbing noise, attaining an STL of 33dB for 1000Hz. The porous structure, combined with the panel’s mass, dampens mechanical vibration energy and sound, assisting with acoustic privacy and quieter spaces inside homes and offices.
  • Thermal: Suitable for NZ's climate — The porous structure of Enviro provides an R-value of R.416. Although this must be derated by .45 for the cavity air gap, this rating helps the designer achieve a good wall thermal performance, making the system suitable for New Zealand climate zones from the warm north to the cool south.

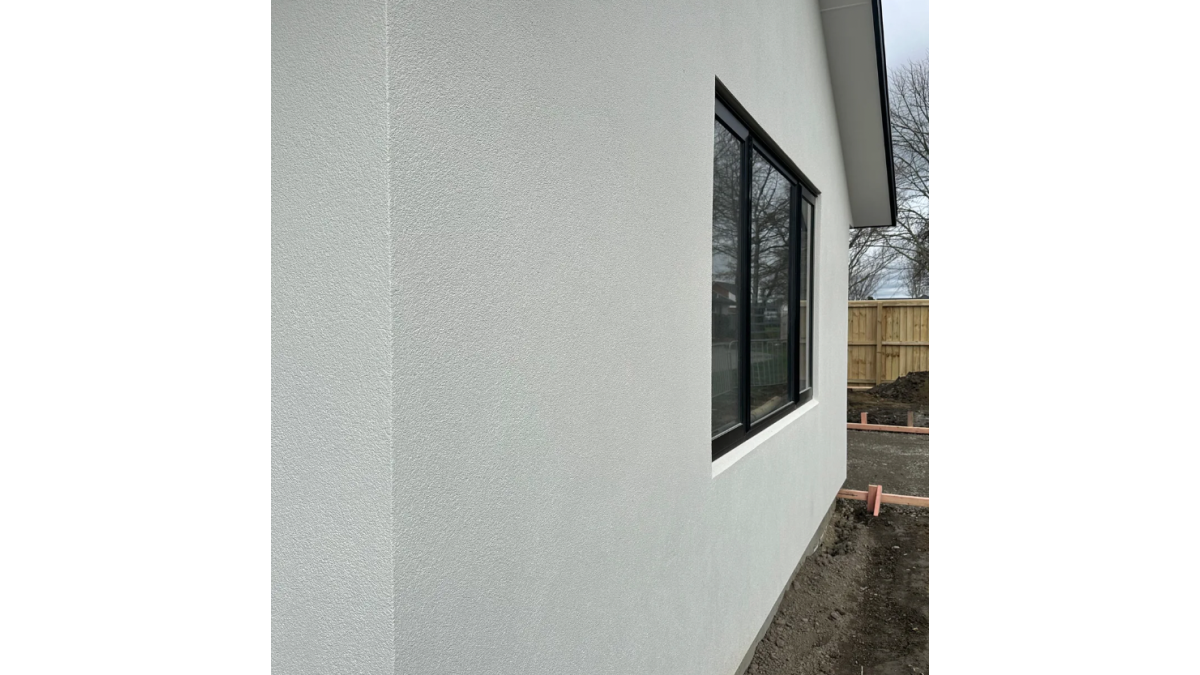

  • Clean Air: Low environmental impact —  Enviro panels are energy-efficient in production, with no pollutants created during manufacturing. The inert material is non-hazardous and does not emit harmful gases or vapours. All waste product at point of manufacture is recycled back into the production process. Mineral plaster at a thickness of 1–3mm is applied after panel installation.
  • Water Management: Flashing & cavity systems —  To prevent water from entering, the Enviro Panel Cladding System comes with a complete flashing system for windows and doors. If water should penetrate, Enviro has a ventilated cavity system to allow moisture to dry out and weep holes for water to drain out.
Scope of Use

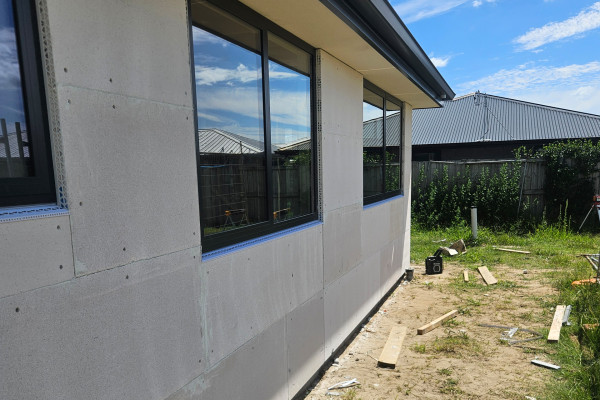

The Enviro Cladding System is a non-load-bearing external wall cladding fixed to battens on an external load-bearing wall.

Limitations on Use
  • Must be installed as per the details shown in the technical literature to ensure the quality of the cladding system.
  • Must not be installed in any situation where it will come into contact with the ground.
  • Cannot be used as retaining walls.
Statement of Building Code Compliance

The Enviro AAC Panel Cladding System, when used in accordance with the technical literature, will meet the requirements and relevant section of the New Zealand Building Code including:

  • B1 Structure: B1.3.1, B1.3.2, B1.3.3(a, f, h, j, q), B1.3.4
  • B2 Durability: B2.3.1(a), B2.3.1(b), B2.3.2
  • C3 Fire affecting areas beyond the fire source: C3.6 (contributes to), C3.7
  • E2 External moisture: E2.3.2 (contributes to), E2.3.5 (contributes to), E2.3.6 (contributes to),
  • E2.3.7 F2 Hazardous building materials: F2.3.1

In terms of NZS 3604:2011 incorporating amendments 1 & 2, AAC Panels as per this manual are able to withstand all earthquakes and wing loadings in all areas of New Zealand.

Other Performance Attributes
  • Fire Resistance: 1.5 hours
  • Sound Transmission Class (STC):33 (50mm bare panel)
CodeMark
CodeMark
Documents
Technical Manual: Enviro AAC Wall Panel

2024

Material Safety Data Sheet: Enviro AAC Cladding Panel

2024

CodeMark: Enviro Cladding System

CMNZ70092 2024

BPIR Product Statement: Masons Enviro AAC Panel Cladding System

2024

CAD: Enviro AAC Panel Cladding System
Product Warranty: Exterior Plaster Coating

2024

Additional Information

Since being established in 1999, Masons has become a key supplier in the New Zealand building industry, offering a variety of quality systems and products for a whole range of building requirements.
