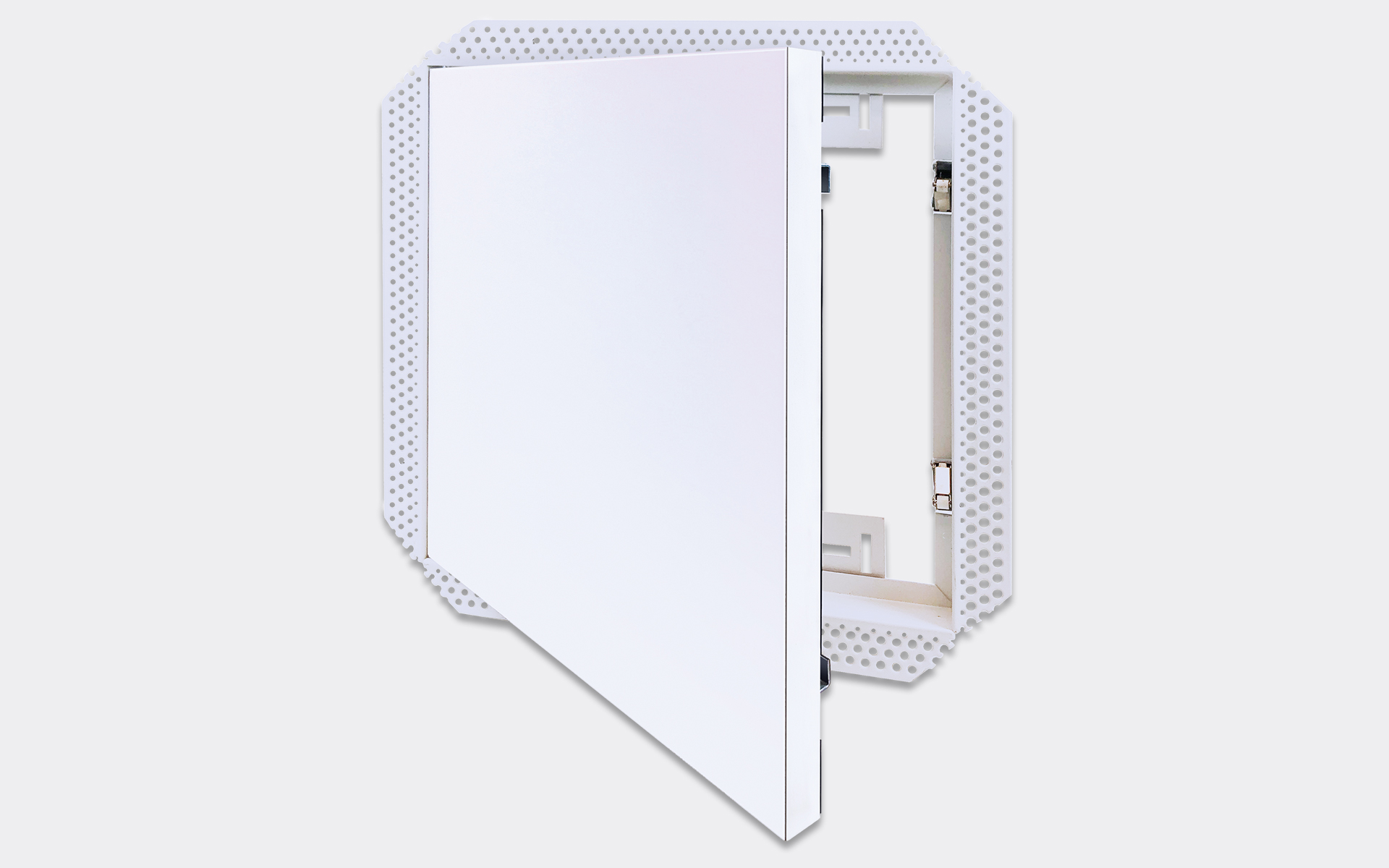

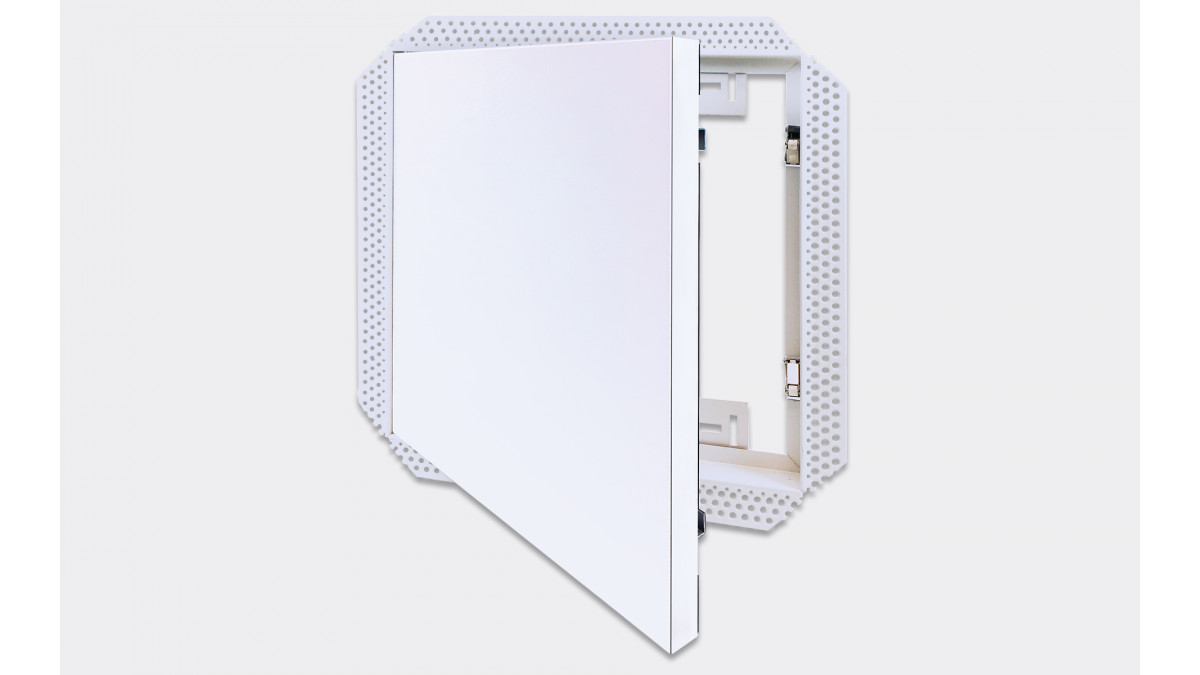

Access Panel — Paintable, Matt. MDF

Masons Paintable Access Panel is pre-primed and paint-ready and provides easy access through non-fire-rated dry-lined walls and ceilings to concealed spaces.

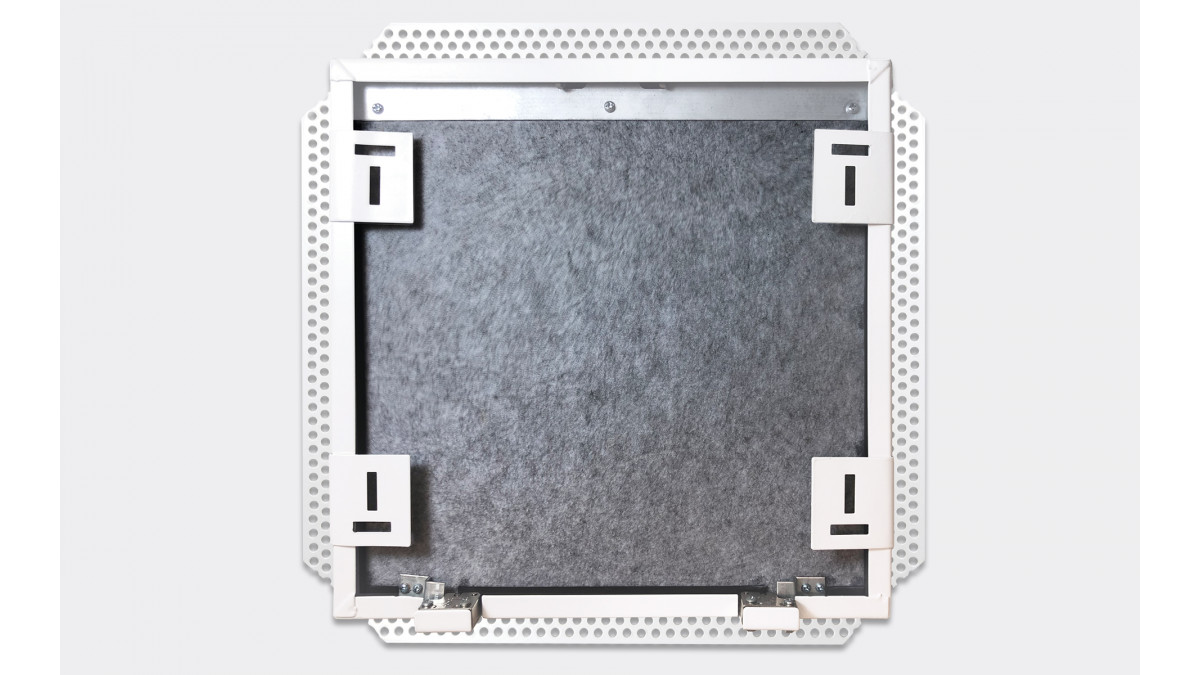

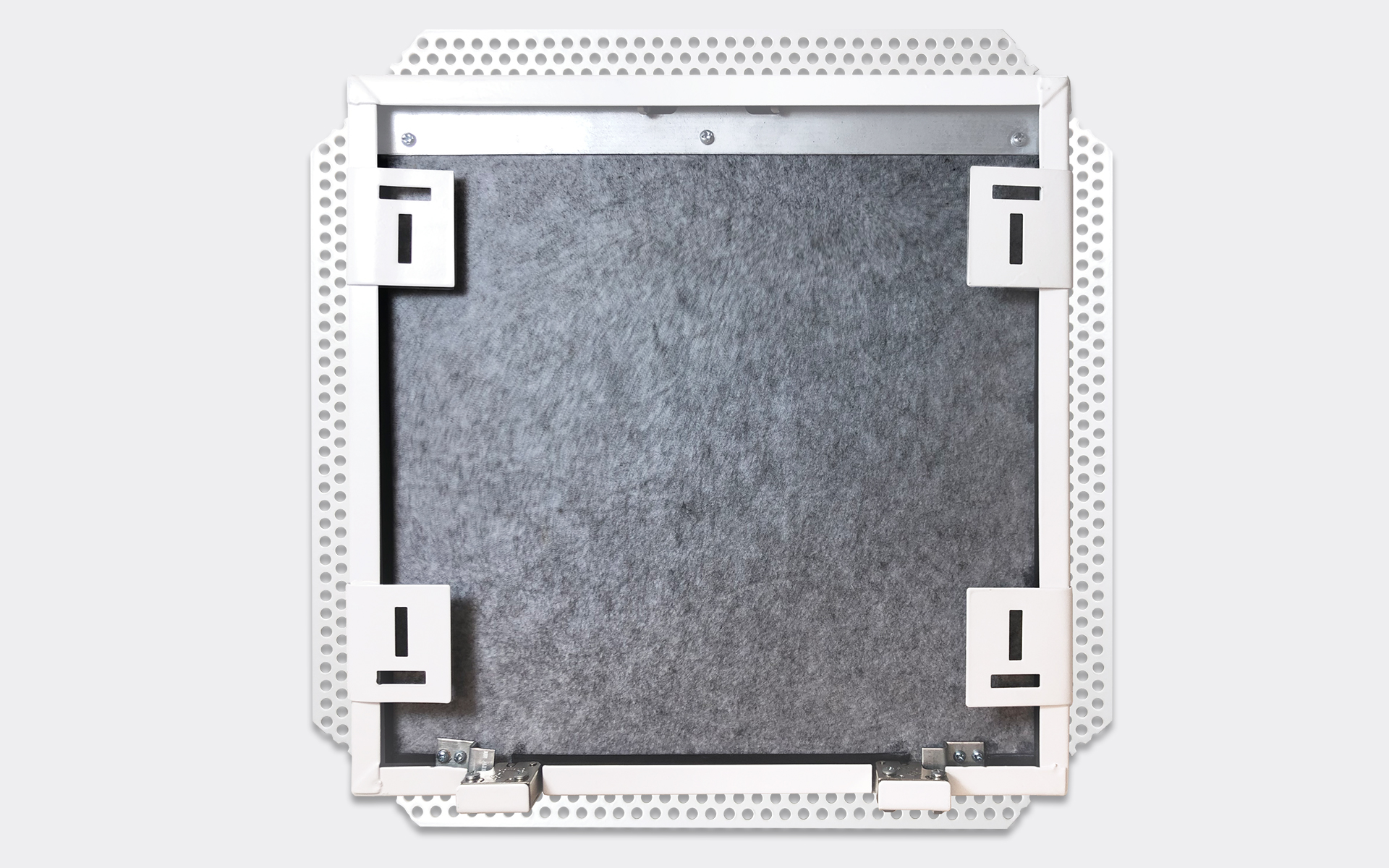

This Panel is made from pre-finished matt MDF with a push catch closing system, a metal frame, beaded plaster-ready trim, and a noise-reducing liner. This hatch is perfect for both residential and commercial buildings.

Key Features
  • Noise-reducing liner
  • Easy access to ceiling spaces and bulkheads, roofing spaces, and framing
  • Pre-finished matt MDF
  • Beaded plaster-ready trim
  • Push catch closing
Scope of Use

Perfect for both residential and commercial buildings.

  • Pre-finished matt MDF
  • Metal frame
  • Beaded plaster-ready trim

Easy access to:

  • Ceiling spaces and bulk heads
  • Roof spaces: Insulation, framing, inspection of underlay and roofing
  • Vermin control
Other Performance Attributes

Installation Guide

  • Measure across the inner flanges for the access panel.
  • Cut a hole in the plaster board to match measured panel size adding 2.5mm each side to allow for clearance (e.g. 605 x 605mm for the 600mm panel).
  • For 600 x 600 mm access panel, frame out the cut opening on the hidden (non visible) side of the plasterboard. Check access panel fit before fixing off the opening framing.
  • Bend the steel tie tags, located around the inside of the frame to the vertical position and slot the hatch (without door for easy installation) into the framed opening.
  • Secure the steel tie tags to the stud or support framing OR fold them over to secure to the plaster board.
  • Fix screws through the access panel frame and tags to the timber supporting framing until the access panel is flush and securely fixed.
  • Insert the door and secure with screws provided.
  • Plaster in the beaded trims surrounding the access panel.
  • Paint the access panel and plastered areas to match.
