Sustainable Waterproofing Membrane & Sheet Vinyl Installation
Mapei Products in New Zealand
All products

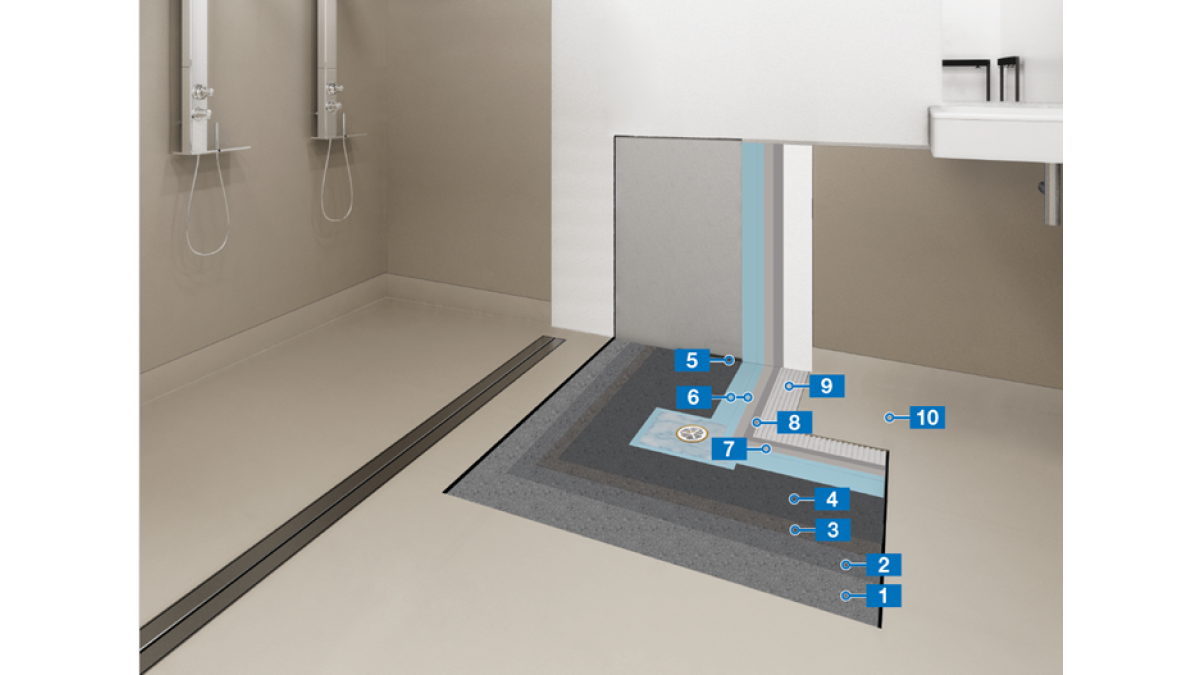

e3 waterproof membrane sheet vinyl installation (1)
Description

This is a complete sustainable system for waterproofing membrane & sheet vinyl installation with rapid-setting and highly resistant properties.

The system consists of a bond slurry, screed, rapid set leveller, waterproof tape, waterproofing membrane, primer, skim coating compound and adhesive; certified with a range of Environmental Product Declarations (EPD), Health Product Declarations (HPD), Volatile Organic Compound (VOC) testing, as well as CO2e Fully Offset products.

Key Features
  • Waterproofing membrane & sheet vinyl installation
  • Ideal for wet areas such as showers, bathrooms, saunas, laundry rooms and other damp envrionments
  • Bonding slurry with excellent adhesion
  • Pre-blended, ready-to-use, quick-setting and drying (24 hours) screed shrinkage mortar
  • Rapid-set leveller with strong mechanical strength
  • Highly-flexible waterproof tape for corners between walls and floors
  • Ready-to-use, ultra quick-drying, flexible and solvent-free waterproofing membrane
  • Primer with excellent bond strength, resistance to water and ageing
  • Rapid-setting, fiber reinforced skim coating compound with high mechanical strength and resistance to abrasion/dents
  • All-in-one adhesive with fast and strong initial tack, plus long open time
  • A range of EPD, HPD, VOC tested and CO2e Fully Offset products
Categories
Underlays and Adhesives Waterproofing Underlays and Systems
Ranges
Sustainable Systems Waterproofing
Scope of Use
  • Waterproofing membrane & sheet vinyl installation
  • PLANICRETE is a synthetic-rubber latex which when combined with MAPECEM, a special hydraulic binder, creates a cementitious bonding slurry with excellent adhesion
  • MAPECEM PRONTO is a pre-blended, ready-to-use, quick-setting and drying (24 hours) controlled-shrinkage mortar for screeds
  • A Mapei waterproofing membrane can be applied after 4 hours of applying screed
  • PRIMER 3296 is used as a surface consolidator before applying waterproofing products, with high-penetration characteristics
  • MAPEBAND EASY is a highly-flexible waterproof tape to seal corners and around edges, with added holes to improve wetting with waterproofing products
  • MAPELASTIC AQUADEFENSE is a ready-to-use, ultra quick-drying, flexible waterproofing membrane. It forms an excellent grip and its flexibility helps it withstand movements caused by expansion and shrinkage of the substrate
  • ECO PRIM GRIP PLUS is a bonding promoter primer with amost no odour and solvent-free. It offers excellent bond strength, resistance to water and ageing
  • PLANIPREP SC is a rapid-setting, fiber reinforced, polymer modified, fine-textured thixotropic cementitious skimming compound. The next phase of floor installation can be carried out after just 2 hours. It hardens without shrinking or cracking, with a high level of mechanical strength and resistance to abrasion/dents
  • ULTRABOND ECO V4 EVOLUTION is a synthetic polymer-based adhesive in water dispersion. It has extended open time, fast and strong initial tack, very high peel strength and good dimensional stability
  • Full details of installation requirements can be found in the product data sheets
Limitations on Use
  • Full details of limitations can be found in the attached individual product data sheets.
Other Performance Attributes
  • EPD certified products include: PLANICRETE, MAPECEM, MAPECEM PRONTO, PRIMER 3296, MAPELASTIC AQUADEFENSE, ECO PRIM GRIP PLUS, ULTRABOND ECO V4 EVOLUTION
  • VOC tested products include: PLANICRETE, MAPECEM, MAPECEM PRONTO, PRIMER 3296, MAPEBAND EASY, MAPELASTIC AQUADEFENSE, ECO PRIM GRIP PLUS, ULTRABOND ECO V4 EVOLUTION
  • HPD certified products include: PRIMER 3296, MAPELASTIC AQUADEFENSE, ULTRABOND ECO V4 EVOLUTION
  • CO2e Fully Offset* products include: MAPELASTIC AQUADEFENSE
  • This system can contribute to LEED credits
  • *Residual GreenHouse Gas emissions measured throughout the life cycle of this product using Life Cycle Assessment (LCA) methodology, verified and certified with EPDs, have been offset for the year 2026 through the acquisition of carbon credits in support of forestry protection projects
  • For more information, visit mpbltd.co.nz
Documents
Procedure
pdf
Technical Data Sheet Planiprep SC
URL
Safety Data Sheet Eco Prim Grip Plus

Version 2 (2025)

URL
Safety Data Sheet Mapecem

Version 2 (2025)

URL
Safety Data Sheet Mapecem Pronto

Version 1 (2023)

URL
Safety Data Sheet Mapelastic Aquadefense

Version 2 (2025)

URL
Safety Data Sheet Planicrete

Version 3 (2025)

URL
Safety Data Sheet Planiprep SC

Version 2 (2025)

URL
Safety Data Sheet Primer 3296

Version 3 (2025)

URL
Safety Data Sheet Ultrabond Eco V4 Evolution

Version 3 (2025)

URL
Technical Data Sheet Eco Prim Grip Plus
URL
Technical Data Sheet Mapeband Easy
URL
Technical Data Sheet Mapecem
URL
Technical Data Sheet Mapecem Pronto
URL
Technical Data Sheet Mapelastic Aquadefense
URL
Technical Data Sheet Planicrete
URL
Technical Data Sheet Primer 3296
URL
Technical Data Sheet Ultrabond Eco V4 Evolution
URL
Volatile Organic Compound Emissions Eco Prim Grip Plus
URL
Environmental Product Declaration Eco Prim Grip Plus
URL
Environmental Product Declaration Mapecem
URL
Environmental Product Declaration Mapecem Pronto
URL
Environmental Product Declaration Mapelastic Aquadefense
URL
Environmental Product Declaration Planicrete
URL
Environmental Product Declaration Primer 3296
URL
Environmental Product Declaration Ultrabond Eco VS90 Plus
URL
Health Product Declaration Mapelastic Aquadefense
URL
Health Product Declaration Primer 3296
URL
Health Product Declaration Ultrabond Eco V4 Evolution
URL
VOC Certification Mapecem
URL
Volatile Organic Compound Content Eco Prim Grip Plus
URL
Volatile Organic Compound Content Mapeband Easy
URL
Volatile Organic Compound Content Mapecem Pronto
URL
Volatile Organic Compound Content Planicrete
URL
Volatile Organic Compound Emissions Mapeband Easy
URL
Volatile Organic Compound Emissions Mapecem Pronto
URL
Volatile Organic Compound Emissions Mapelastic Aquadefense
URL
Volatile Organic Compound Emissions Primer 3296
URL
Volatile Organic Compound Emissions Ultrabond Eco V4 Evolution
URL
Specifications Mapeband Easy
URL

Mapei have over 80 years of experience, with innovative quality adhesives, sealants and chemical products and systems for the building industry.
