Kingspan RW Trapezoidal

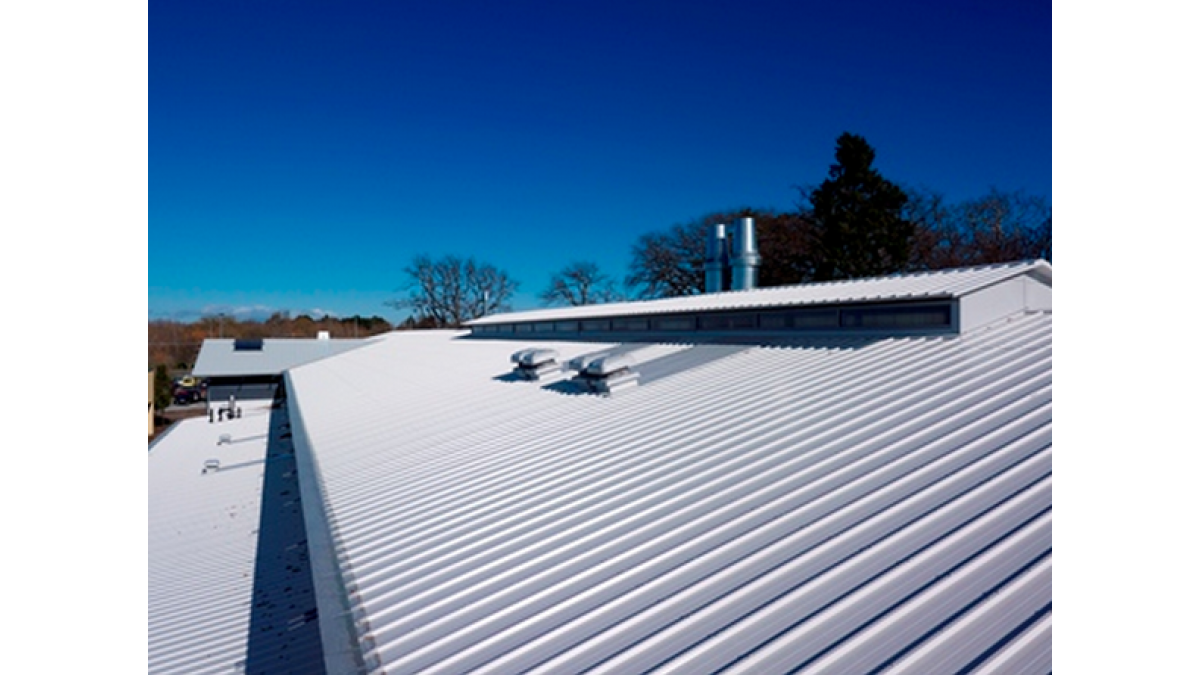

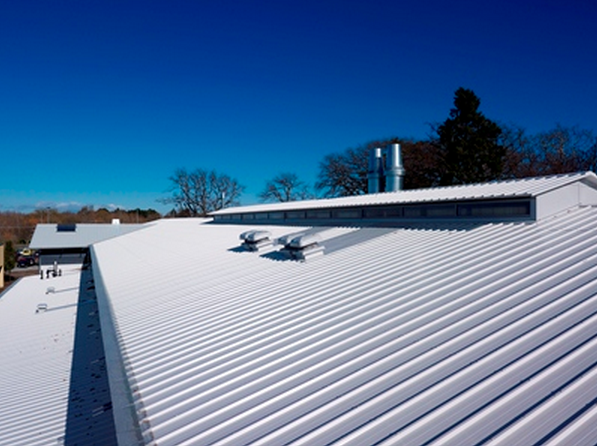

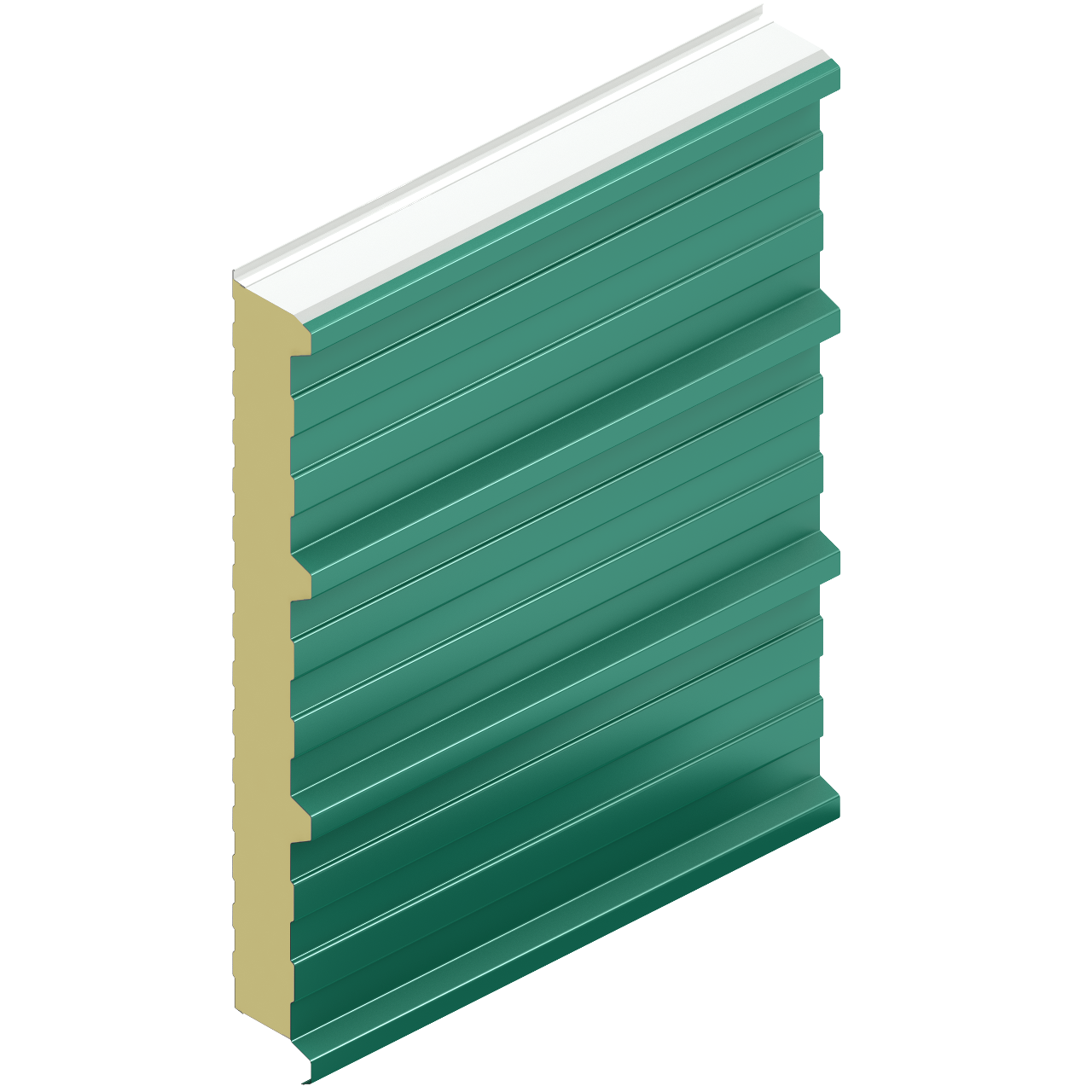

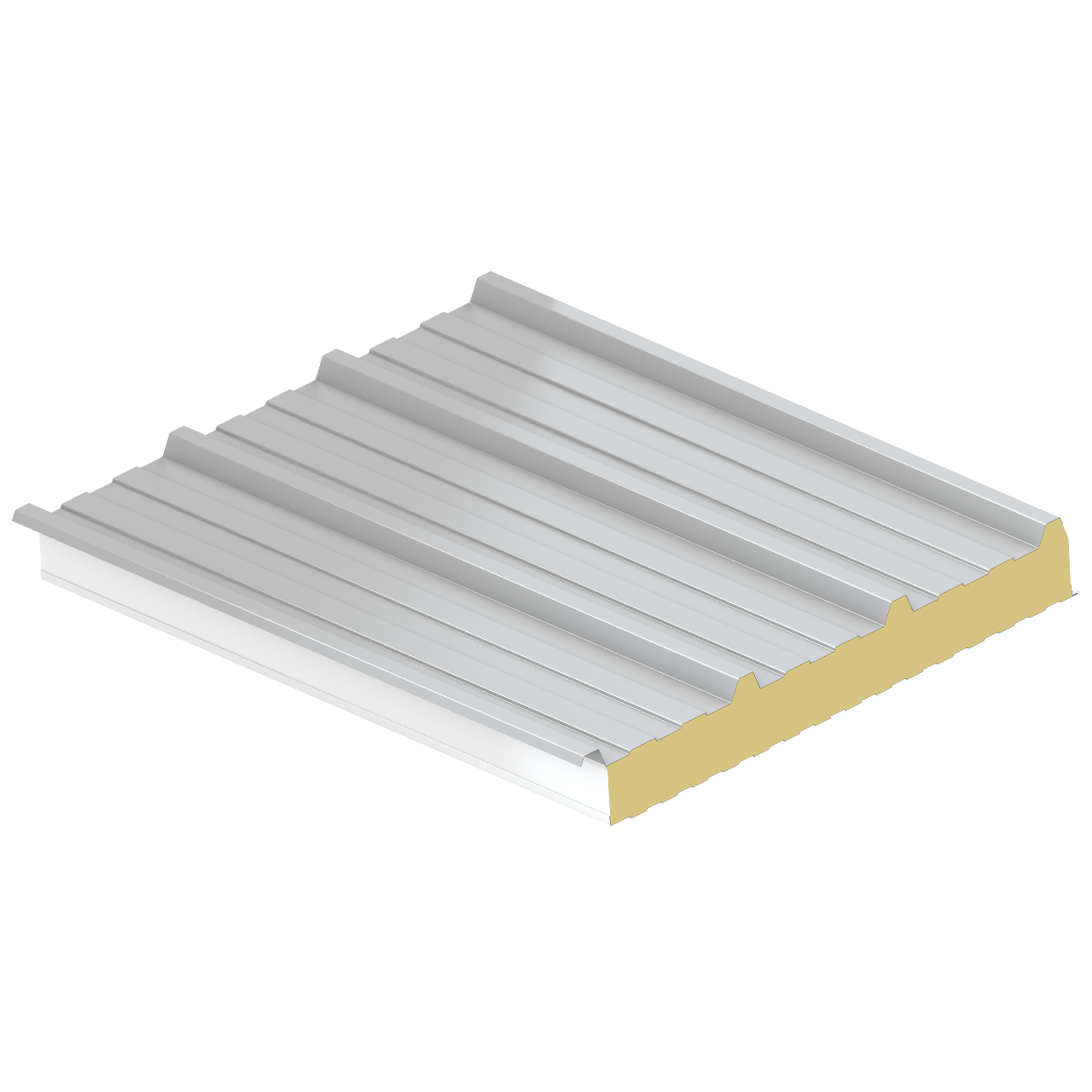

The Kingspan RW Trapezoidal roof and wall panel system products consist of Zincalume sheets that contain a PIR core.

A through-fixed panel which can be installed vertically or horizontally depending on the desired aesthetics, Kingspan's trapezoidal roof and wall panels are quicker to install, require less manual labour than conventional multi-part site-assembled systems and are designed to meet thermal building regulation compliance.

Available in lengths from 2.0m up to 11.8m, Kingspan's trapezoidal roof and wall panels are CodeMark-certified and hold an Environmental Product Declaration (EPD) based on a cradle-to-grave life cycle assessment.

Key Features
  • Superior PIR insulation core — High R values/fire-safe/fibre-free
  • Single component offering accelerated build speed
  • High performance coatings, in a wide range of colours (metal swatches available upon request)
  • Pre-painted exterior

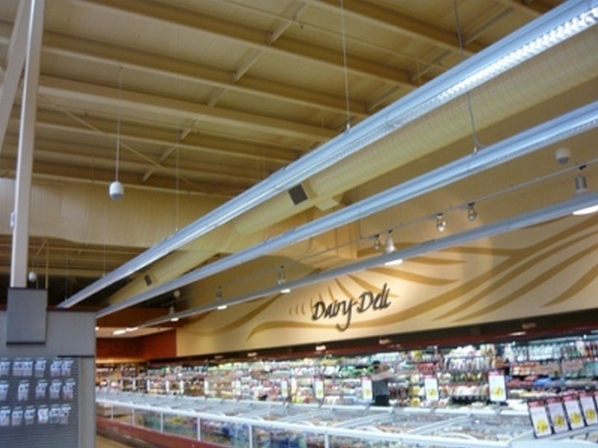

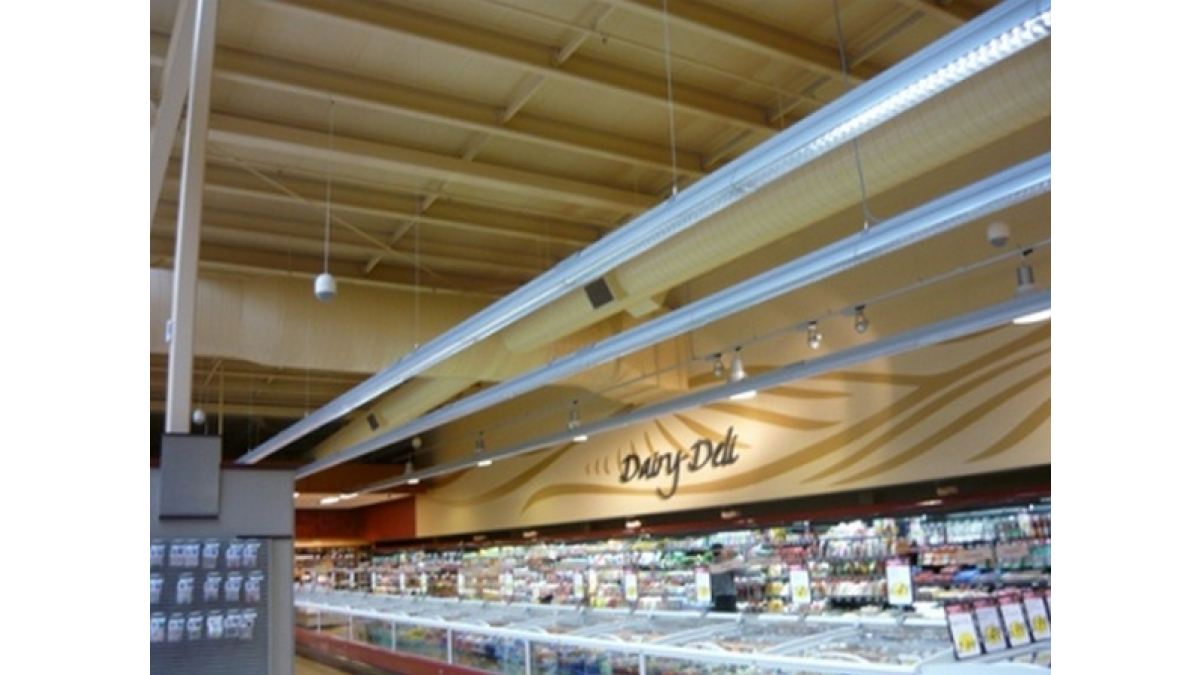

  • Prefinished bright white liner
  • Cyclone tested
  • Compatible daylighting and fabrications systems
  • The exterior metal skin offers a perfect weather barrier
  • Air and water tight
Scope of Use

KS1000 RW is a through-fixed, trapezoidal profiled roof system which can be used for building applications with roof pitches of 4° or more after deflection. For lower pitches, please contact Kingspan.

All Kingspan panels, including the Trapezoidal roof and wall panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, up to and beyond the Extra High wind zones.


NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

KS1000 RW is CodeMark-certified, and therefore, if designed, used, installed and maintained in accordance with the scope of the Certificate, the Trapezoidal RW insulated roof and wall panel will meet the following provisions of the NZBC:

  • B1 Structure: B1.3.1, B1.3.2.
  • B2 Durability: B2.3.1(b),
  • C3 Spread of Fire: C3.4(a),
  • E2 External Moisture: E2.3.1, E2.3.2 , E2.3.6
  • E3 Internal Moisture: E3.3.5
  • H1 Energy Efficiency: H1.3.1
In-Service History

Insulated panels have been used in New Zealand for over 40 years.

Kingspan’s insulated panels have been in use globally for over 50 years and Kingspan has supplied panels for use in NZ for over 15 years.

All Kingspan products and systems are backed by extensive testing and guarantees and supported by five decades of experience.

Other Performance Attributes

Kingspan KS1000 RW panels are approved by FM Global to the following Approval Standards:  FM4880 - Class 1 Internal wall and ceiling panels without height restrictionFM4881 - Class 1 External Wall Panel System without height restriction and FM4471 - Class 1 Roof panel systems (Note:120mm panels are not FM-approved as they are a new variant).

External façade fire tests, eg BS8414 and others.

Independent Assessment
Independent Assessment
Test Results
Test Results
E1 Surface Water compliant
Surface Water
E2 External Moisture compliant
External Moisture
E3 Internal Moisture compliant
Internal Moisture
H1 Energy Efficiency compliant
Energy Efficiency
Data Sheet


Technical Bulletin TB7
CodeMark Certificate
Kingspan Roof Panels EPD
Kingspan Wall Panels EPD

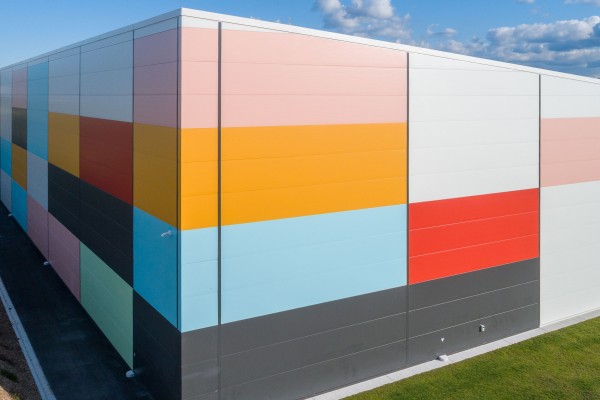

Colour Range
Additional Information
Real Fire Case Studies
Request Sample

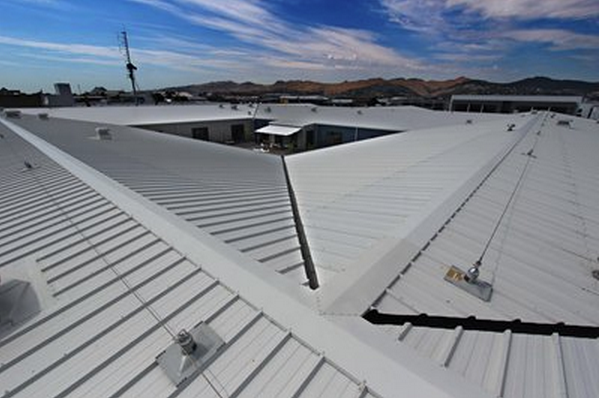

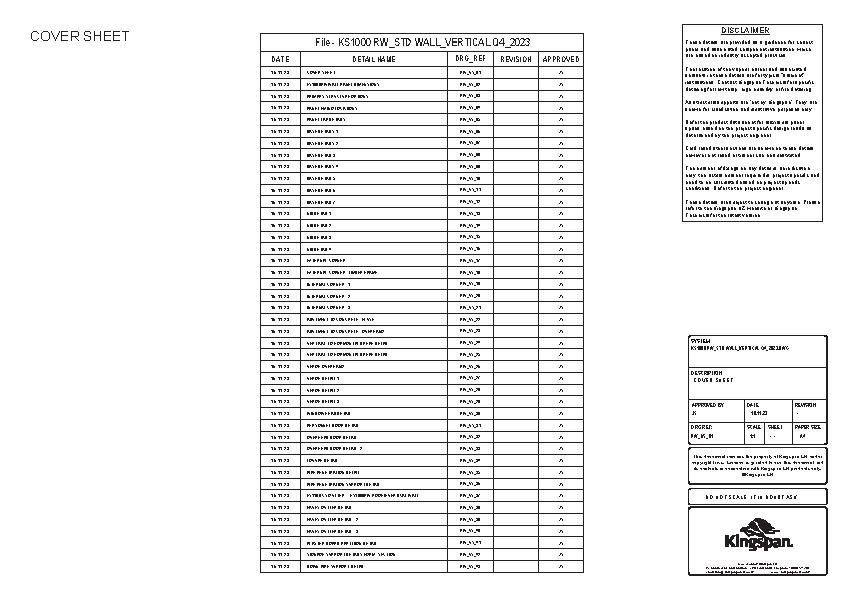

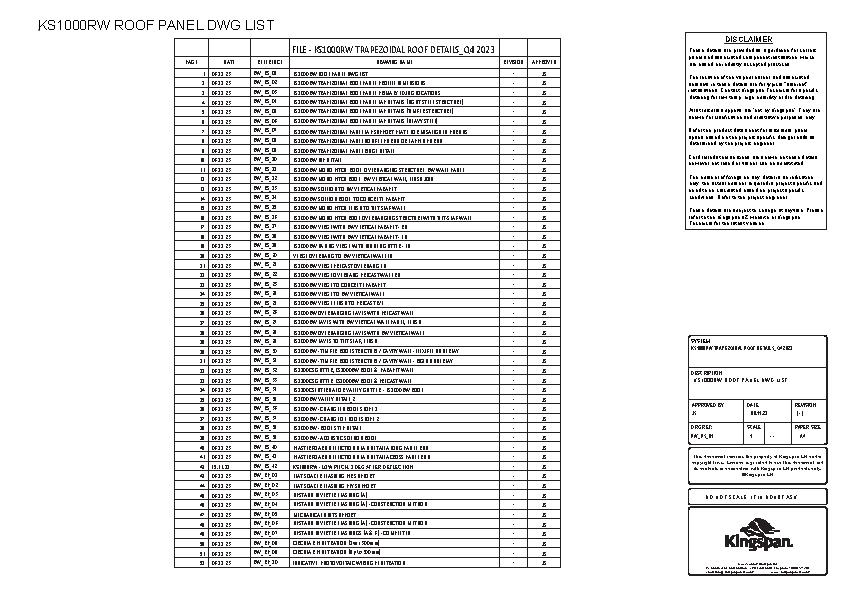

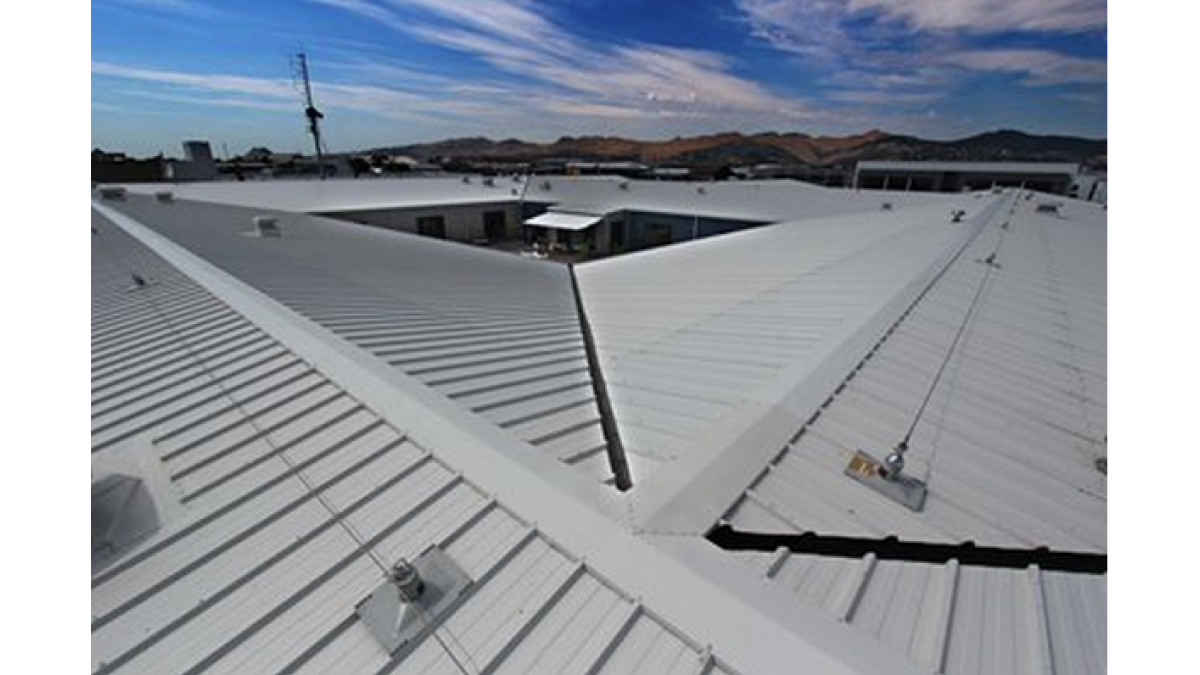

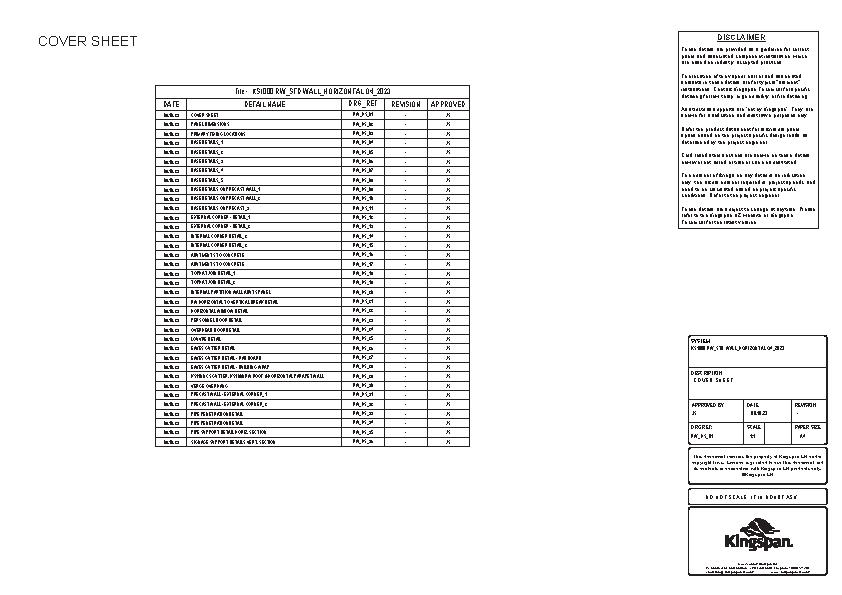

CAD/PDF Details
KS1000 RW Roof Penetration Details
KS1000 RW Std Roof
KS1000 RW Std Wall Horizontal
KS1000 RW Std Wall Vertical
Installation Details
KS1000 RW Wall Installation Guide - HORIZONTALLY laid
KS1000 RW Wall Installation Guide - VERTICALLY laid
Trapezoidal RW Roof Panel Installation Guide
