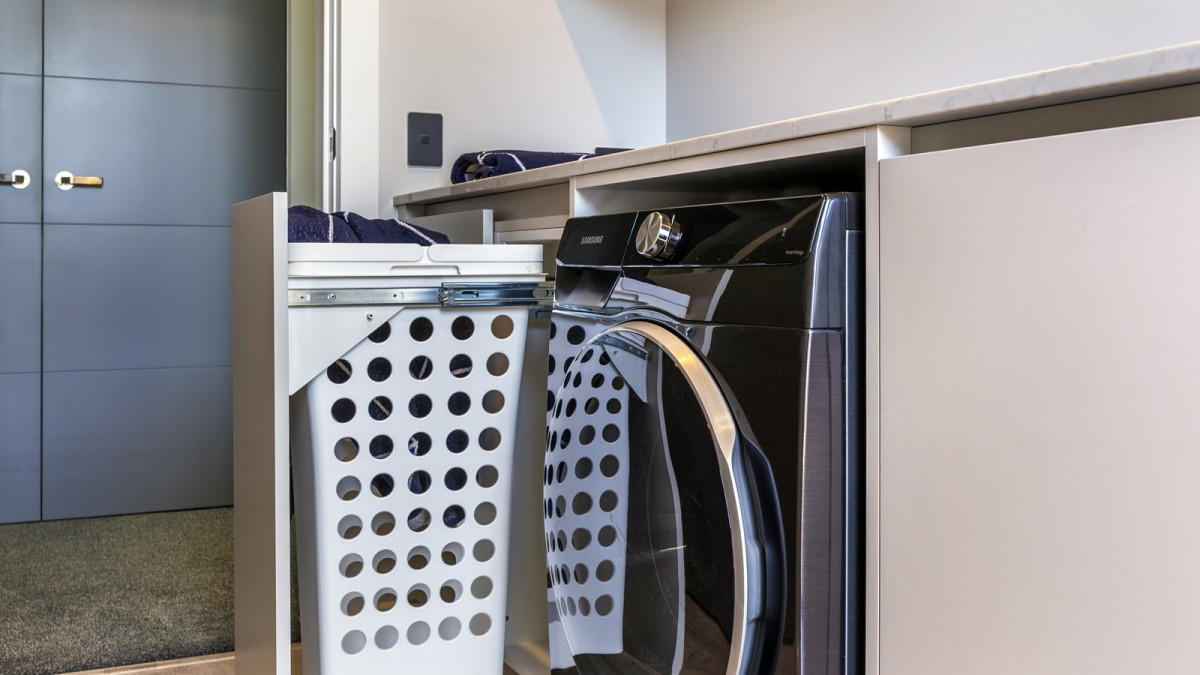

Tanova Simplex Laundry Hamper Systems
Description

FIT’s range of Tanova pull out laundry hampers are space-efficient and practical, staying out of sight, yet easily accessed when needed. The Simplex pull out laundry hamper range features soft close medium weight runners that are sturdy and reliable for residential situations.

Powder coated electro-galv steel frames and baskets are fabricated in Auckland by FIT’s partners at FEL Group. Plastic hampers are made in Christchurch at Talbot. For laundry cabinets from 300mm to 450mm, the Simplex pull out laundry hamper includes some options to attach to a fixed ‘drawer’ front, some to install behind a hinged door and some ‘frame and basket’ options.

Baskets – some powder coated steel and some plastic – are vented to facilitate airflow, helping to avoid musty odours. In addition, there are Simplex Plus options for 400mm and 450mm cabinets plus models designed for compatibility with Legrabox drawers (500mm and 600mm cabinets).

Tanova Simplex and Simplex Plus laundry hampers carry the official NZ Made licence.

Key Features
  • Frames in electro galv-steel, powder coated white.

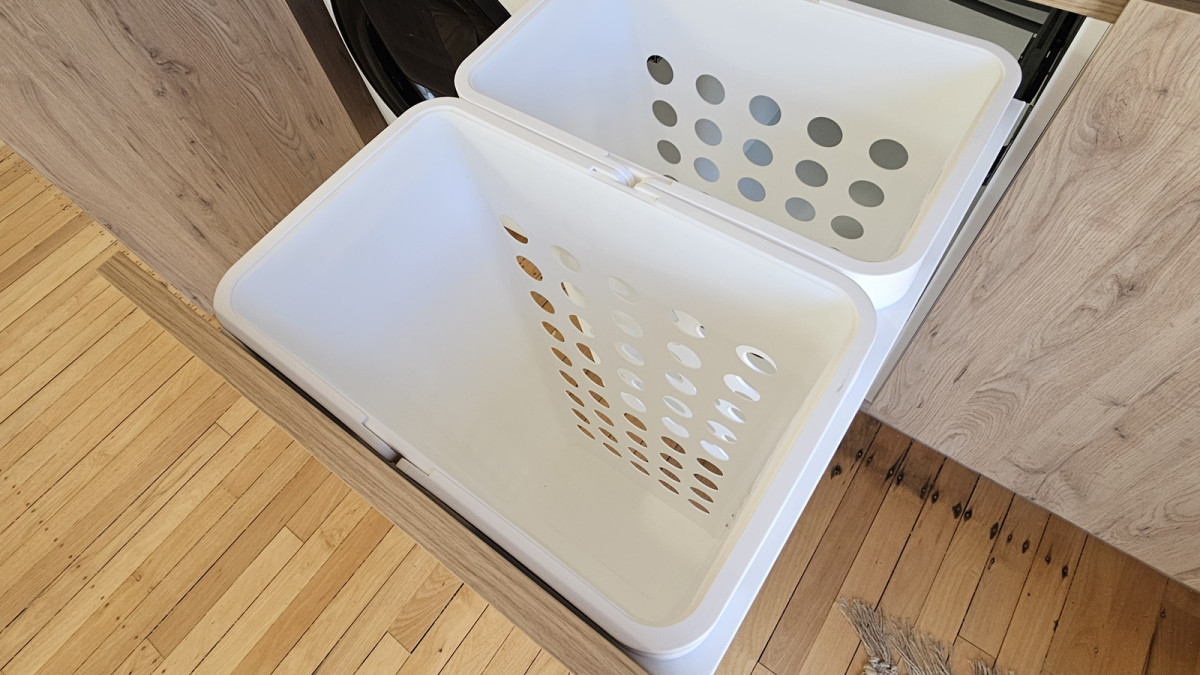

  • Powder coated steel and plastic baskets in white.
  • All baskets, whether powder coated steel or plastic, are air vented to enable airflow and breathability, thus reducing mustiness, but with solid bases to ensure no drips into the cabinetry.

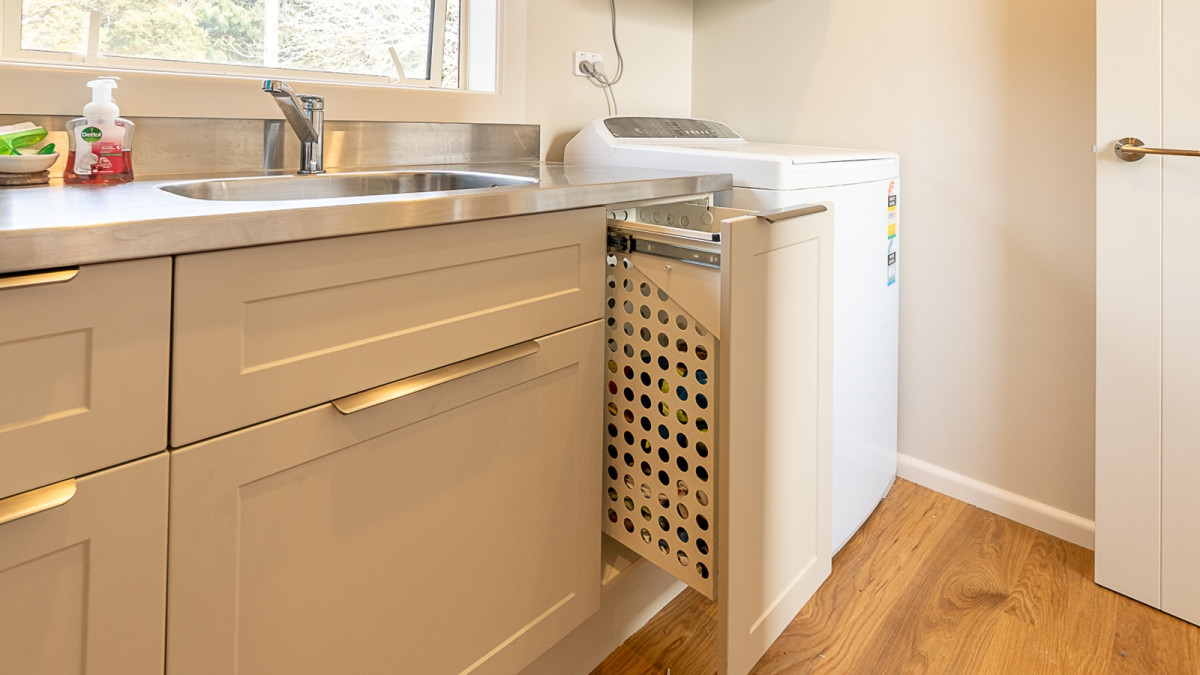

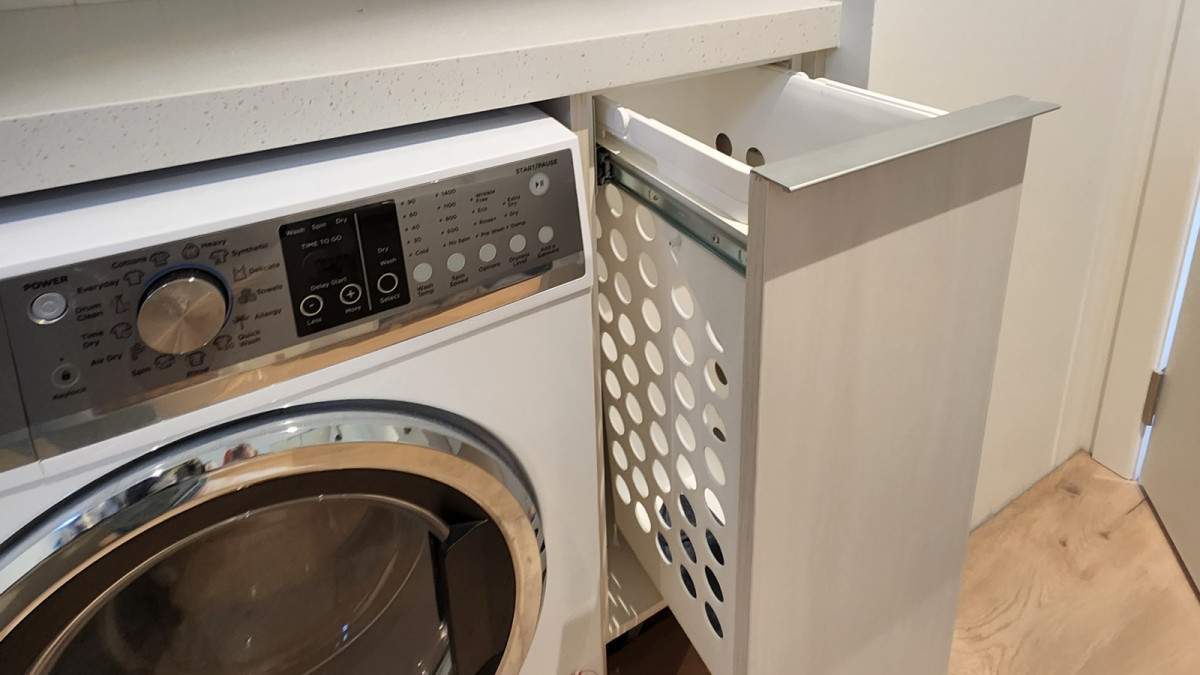

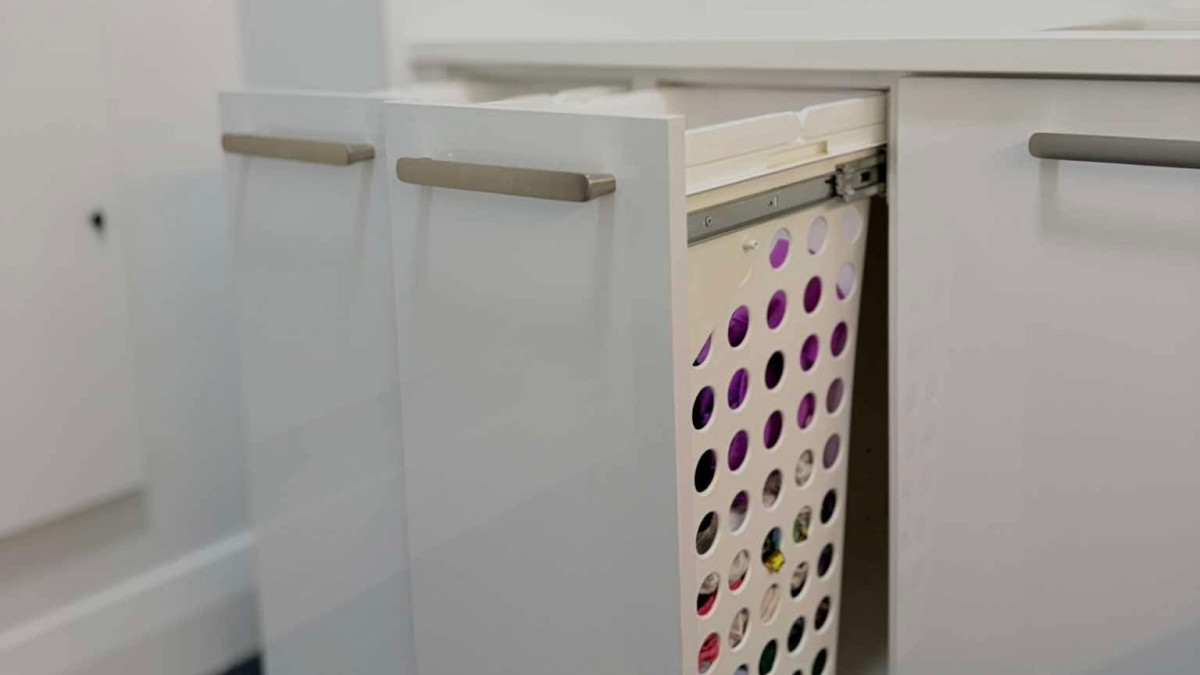

Simplex:

  • 300mm – 450mm cabinets (external width using 16mm board)

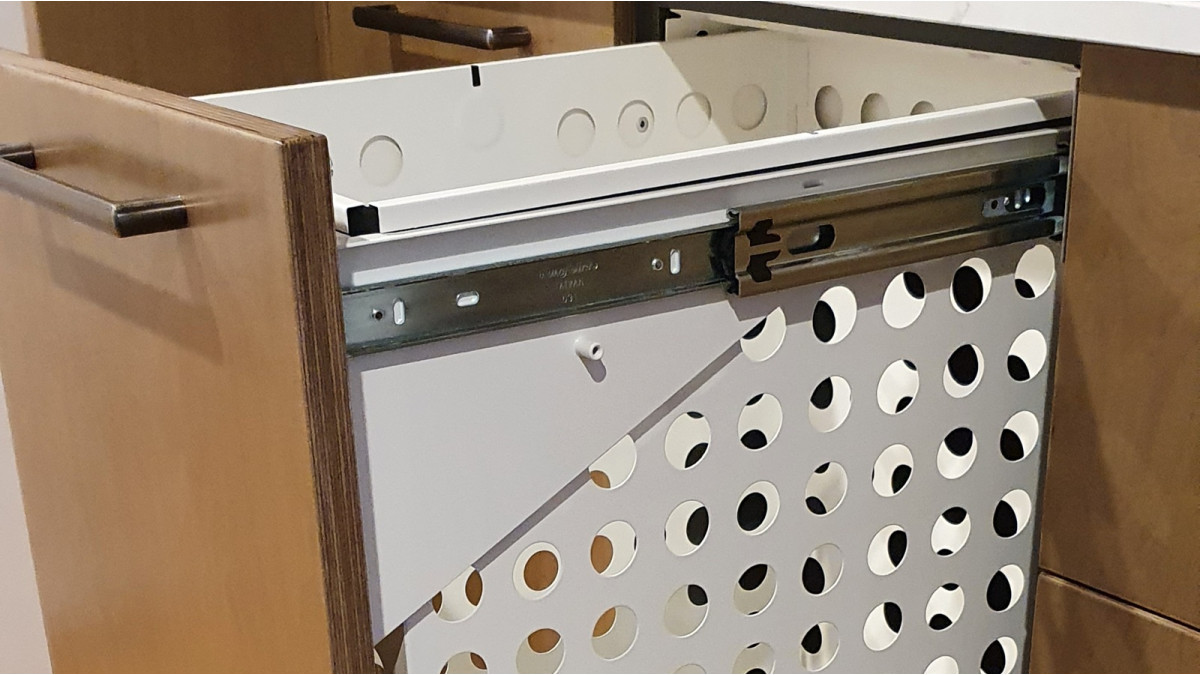

  • Fully integrated slides with cushioning system for consistently quiet soft closing
  • Super smooth-running drawer slides for effortless opening and closing
  • Full extension past any normal bench overhang, allowing for effortless removal of hampers
  • 45kg carrying capacity
  • Very quick and easy installation in modular cabinets
  • Top and side screw fixing points for snug fit in standard cabinet sizes, maximising stability
  • Slotted screw holes for extra adjustment when fitting drawer front
  • Large cutouts in front mount bracket for easy fitting of handles

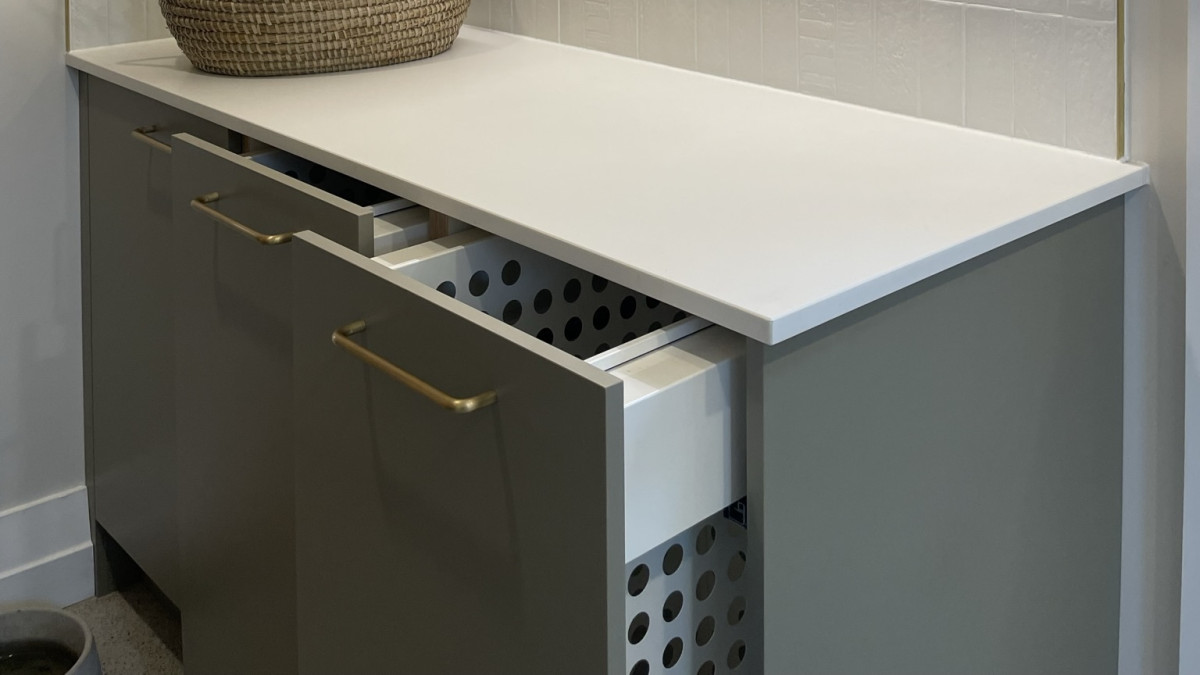

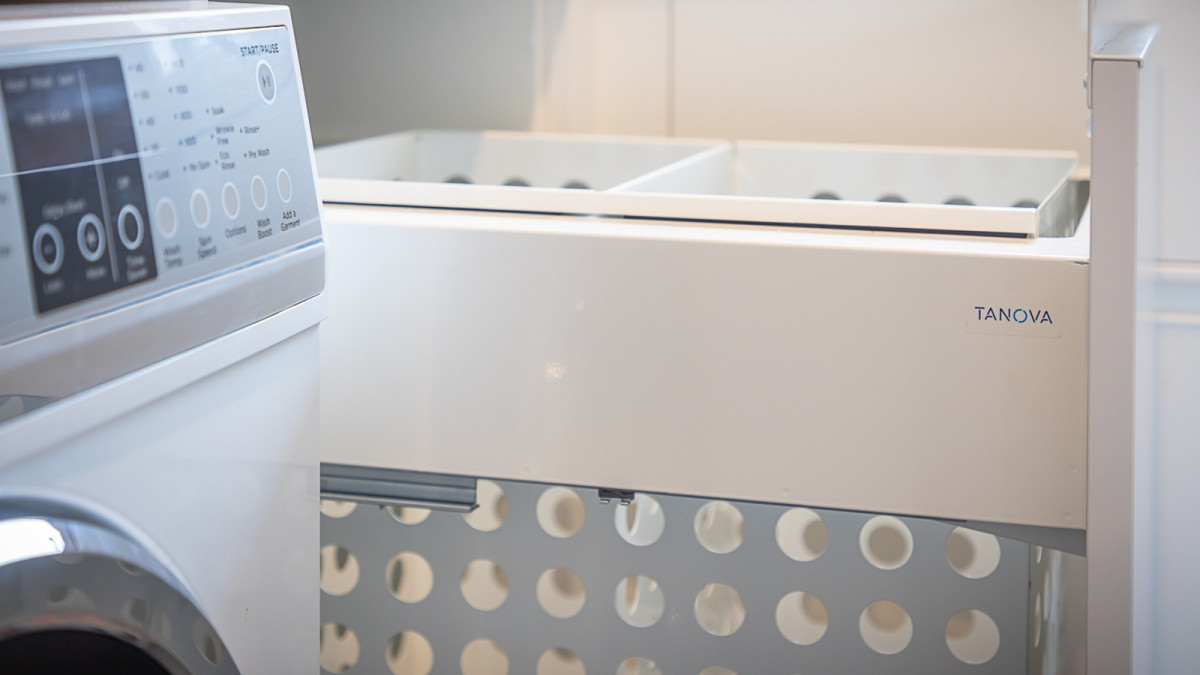

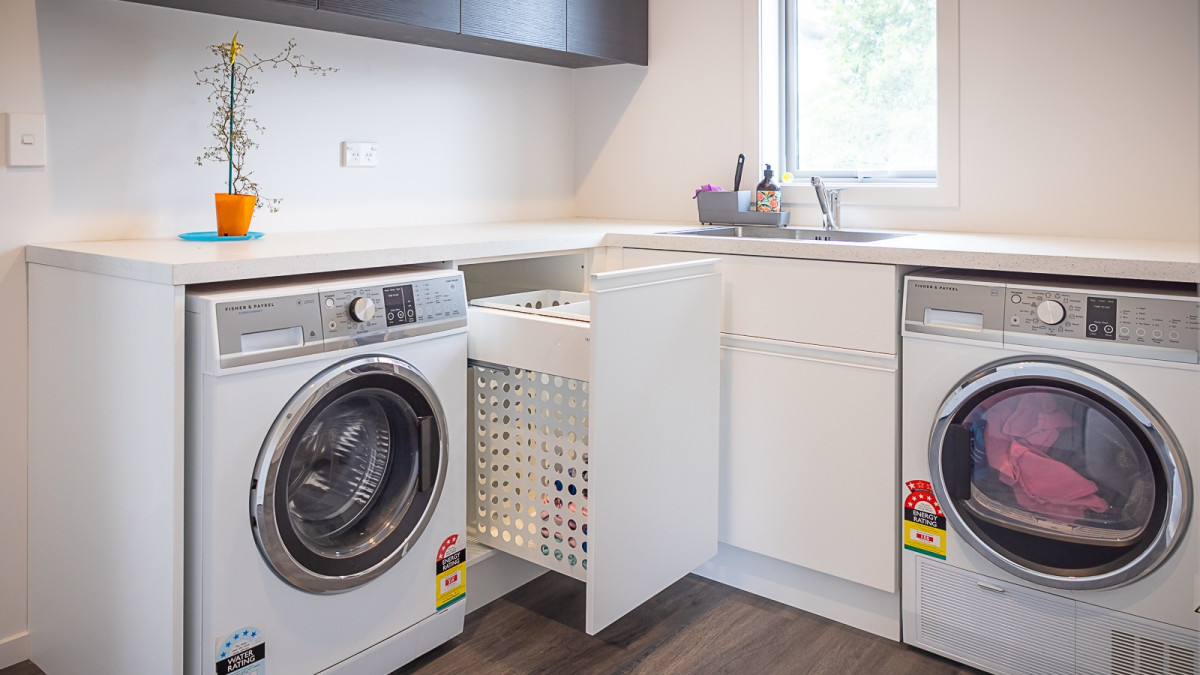

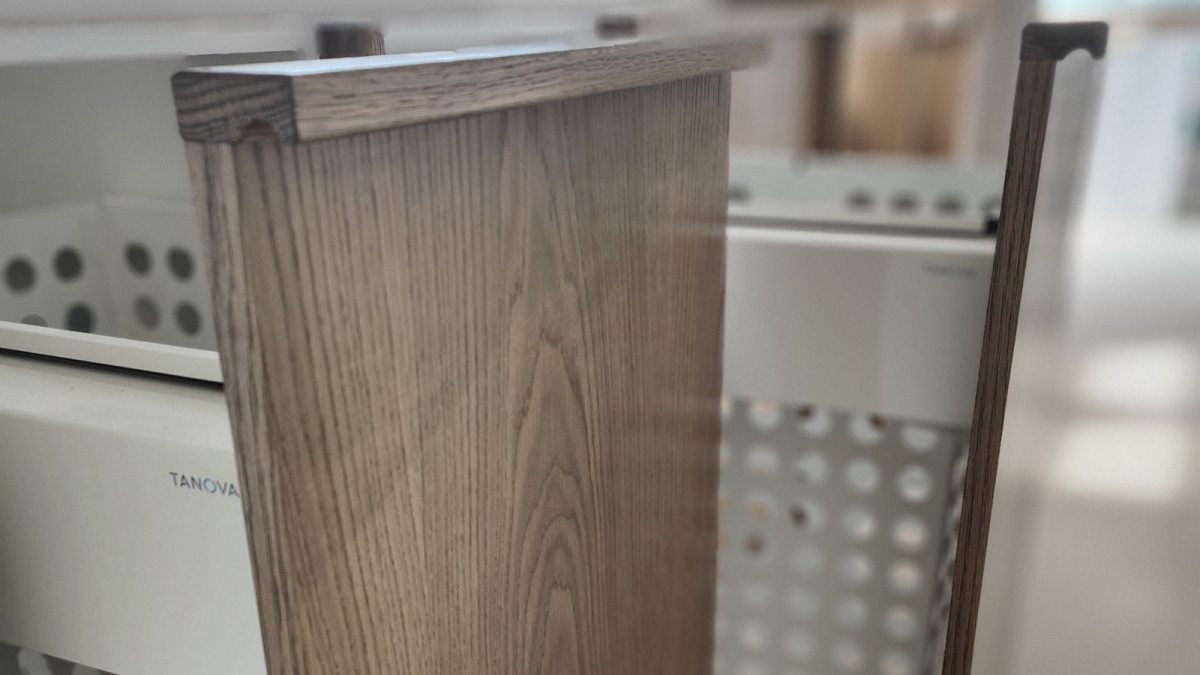

Simplex Plus:

  • 400mm-450mm cabinets (external width using 16mm board)
  • Super smooth-running drawer slides
  • Runners extend beyond edge of benchtop to allow for easy removal of rear bucket
  • Soft close
  • 30kg carrying capacity
  • Economical, solid and simple bin frame manufactured from 1.0mm gauge steel for added strength and durability
  • Very quick and easy installation into modular cabinets
  • Designed for 400mm cabinet size (external width using 16mm board)
  • Drawer front connection with 6-way adjustment
  • Compact size maximises space efficiency and its snug fit ensures stability
NZ Made
NZ Made
Scope of Use
  • For residential use in laundries, bathrooms and wardrobes
  • Made for installation into cabinet
  • Simplex:
    • 45kg load capacity on runners
    • 300mm – 450mm cabinets (external width using 16mm board)
  • Simplex Plus:
    • 30kg load capacity on runners
    • Designed for 400mm cabinet size (external width using 16mm board)
  • Single or double basket options
Limitations on Use

Suitable for residential use, taking into account the following:

  • Be familiar with the load capacity of the unit and do not exceed it.
  • When opening and closing the hamper or when putting items into it, do not apply strong downward force as this may damage the runners.
  • Do not use caustic cleaners on any part of the hamper.
  • Some laundry powders are particularly caustic. If they spill onto or into the drawers, remove the powder promptly with a vacuum cleaner, soft brush or damp cloth taking care to re-wipe the surface clean after rinsing cloth free of substance and ensure it is dried well.
  • Refer to the Care & Maintenance document for further detail.
In-Service History

FIT released their first Tanova laundry hamper range in February 2012 and believe this to be a world first. Since then a number of innovations have occurred within the range, including the Simplex range, the Simplex Plus sub-range for wider cabinets, frame and hamper models to sit within an existing base mounted drawer, a Designer series and ‘frame and hamper’ options to be compatible with Legrabox drawers.



Other Performance Attributes
  • 45kg carrying capacity — Simplex
  • 30kg carrying capacity — Simplex Plus

Warranty

FIT warrants the original purchaser of products against manufacturing defects for as long as the original purchaser owns the product. This warranty applies to all non-electrical products sold by FIT in New Zealand and Australia.

The warranty covers replacements for faulty goods only. Replacements will be supplied to the original purchaser only. If the identical item is no longer available, FIT will replace with the closest item from their current product selection. The warranty does not include any labour or other associated expense that may be involved in removal or installation of the product. The warranty does not apply if products have been incorrectly installed, have been subjected to loads in excess of specifications and/or have been subjected to uses/purposes for which they are not expressly intended. FIT’s liability is limited to the goods themselves and does not cover any consequential or incidental damages contributed to or resulting from the use, installation, performance or failure of products.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).

Documents
Product Guides: Tanova Simplex Laundry System

2021

Care & Maintenance: Tanova Kitchen Bins & Laundry Units

2024

FIT Warranty

2024

Tanova Out of Sight by Design Project Book

2026
