ALUNAN T Soft Close Drawers
Description

Created with versatility in mind, ALUNAN T’s modular design allows for every possibility. Create a wide variety of drawer heights using just three standard drawers and a thoughtfully designed selection of components. (To make things easy, FIT have set up one code kits for all the popular options.)

ALUNAN T features slim walls to both embrace modern design and to optimise storage space within the drawer. ALUNAN T runs smoothly and quietly on a Sylent integrated cushioning soft close system that ensures a perfectly controlled drawer movement through its load-adaptive dampening action. An integrated lateral stabiliser prevents wide drawers from skewing during movement.

For a perfect fit, ALUNAN T offers easily accessed, effortless adjustment options in three dimensions – height, side and tilt – making it easy to keep cabinet fronts aligned.

ALUNAN T features a new surface finishing with a silky soft touch. Drawers, side extension panels, railings and internal drawers are available in classic Silk White Matte and contemporary Umbra Grey colour options.

Key Features
  • ALUNAN T provides a heavy duty 35kg load capacity and, for 500mm and 550mm models, an up-specced option with an extra heavy duty 60kg

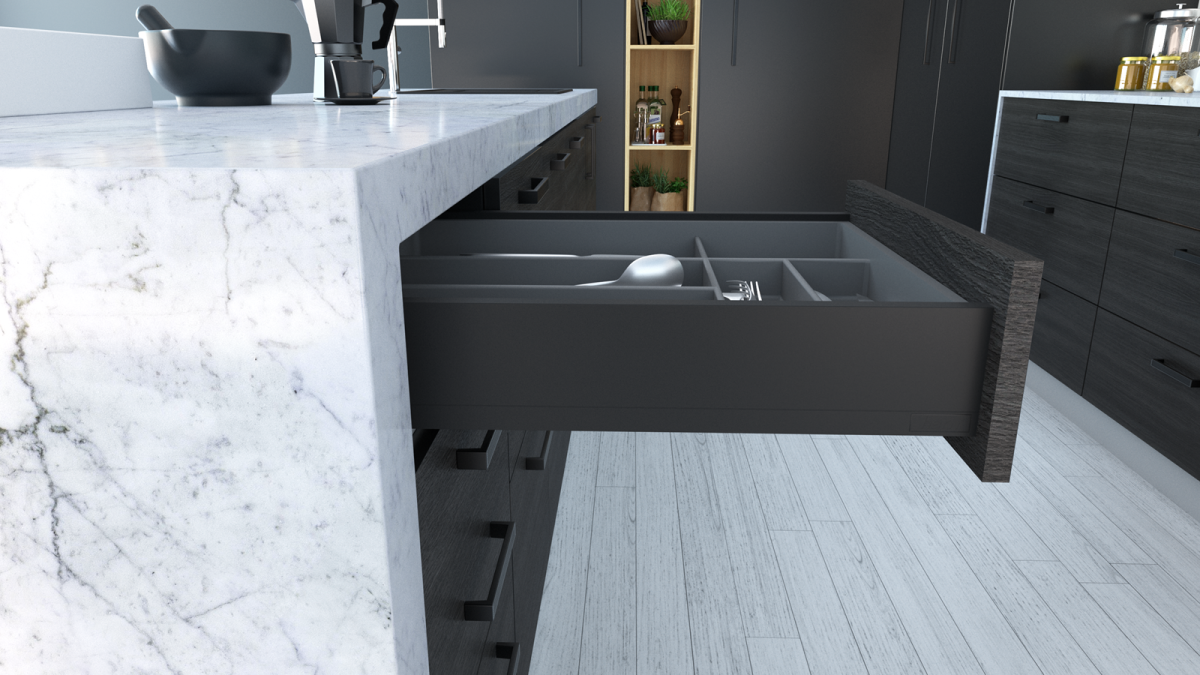

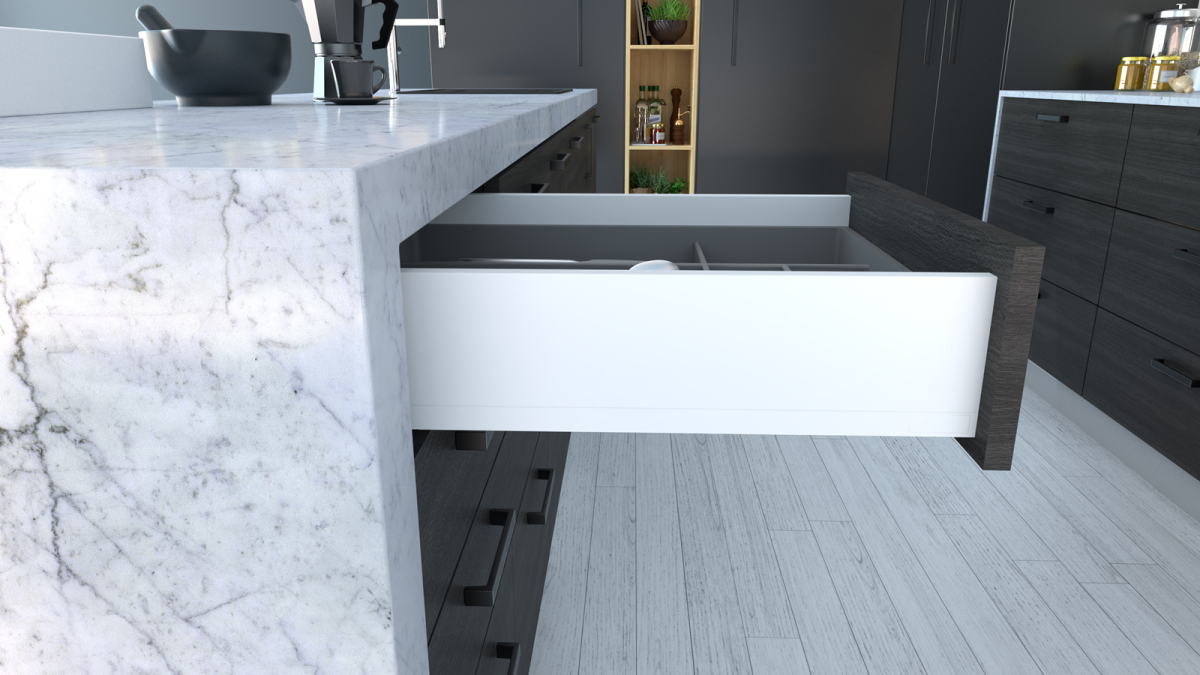

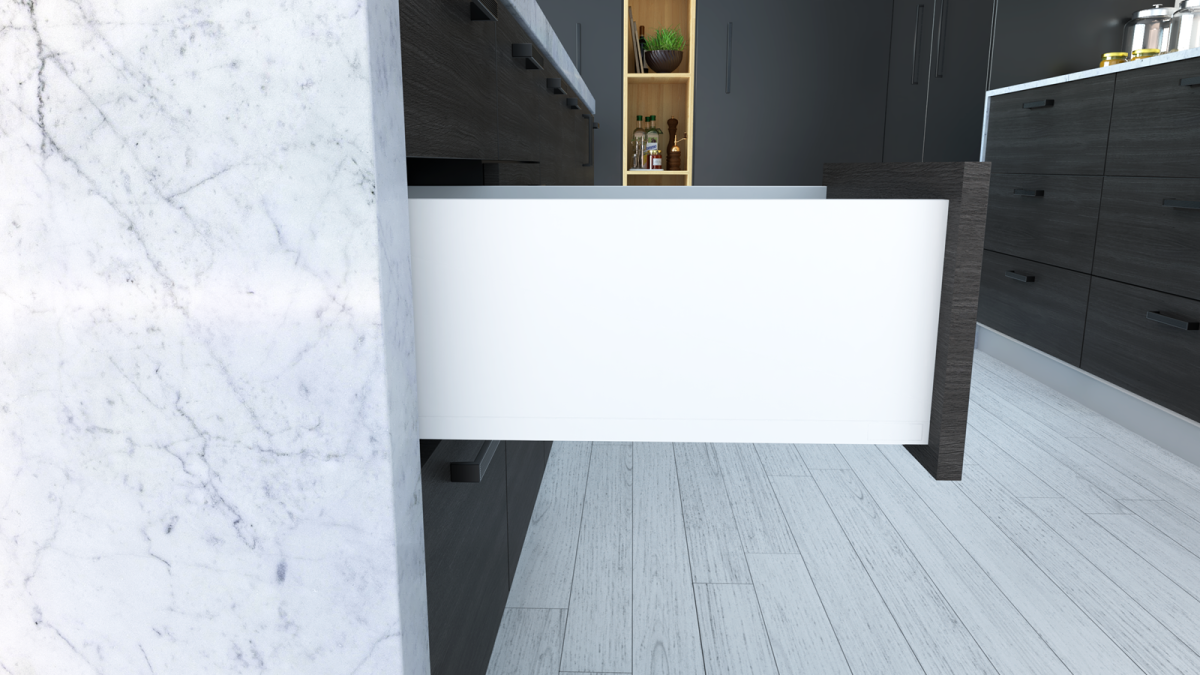

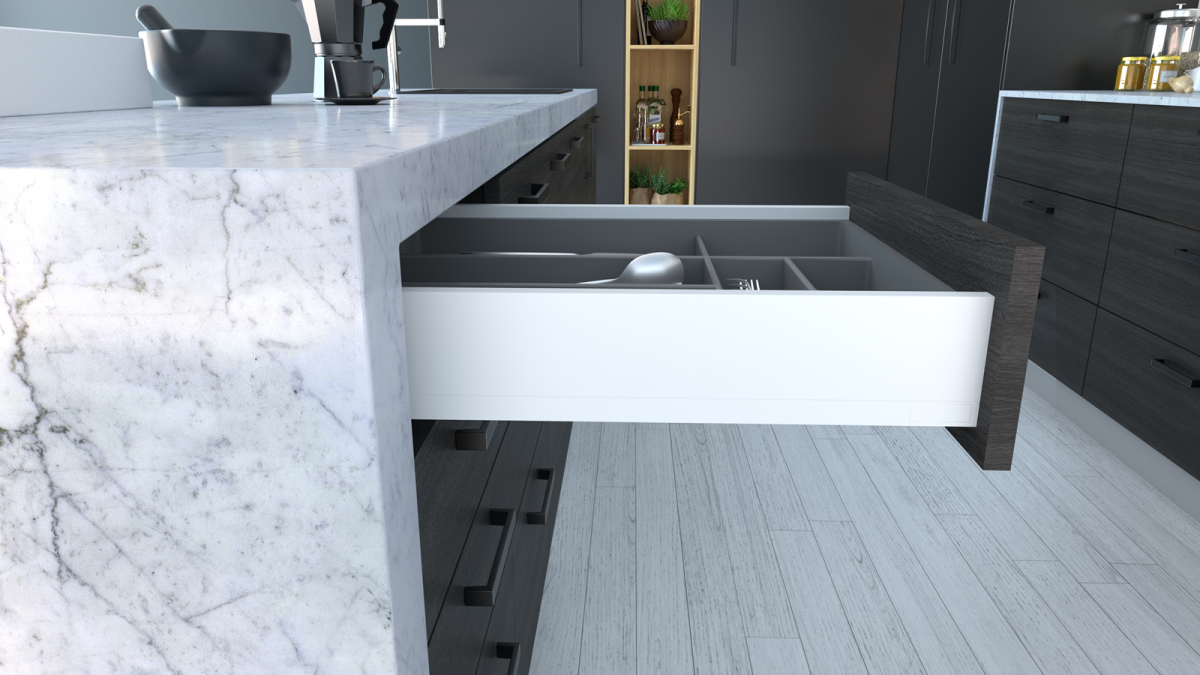

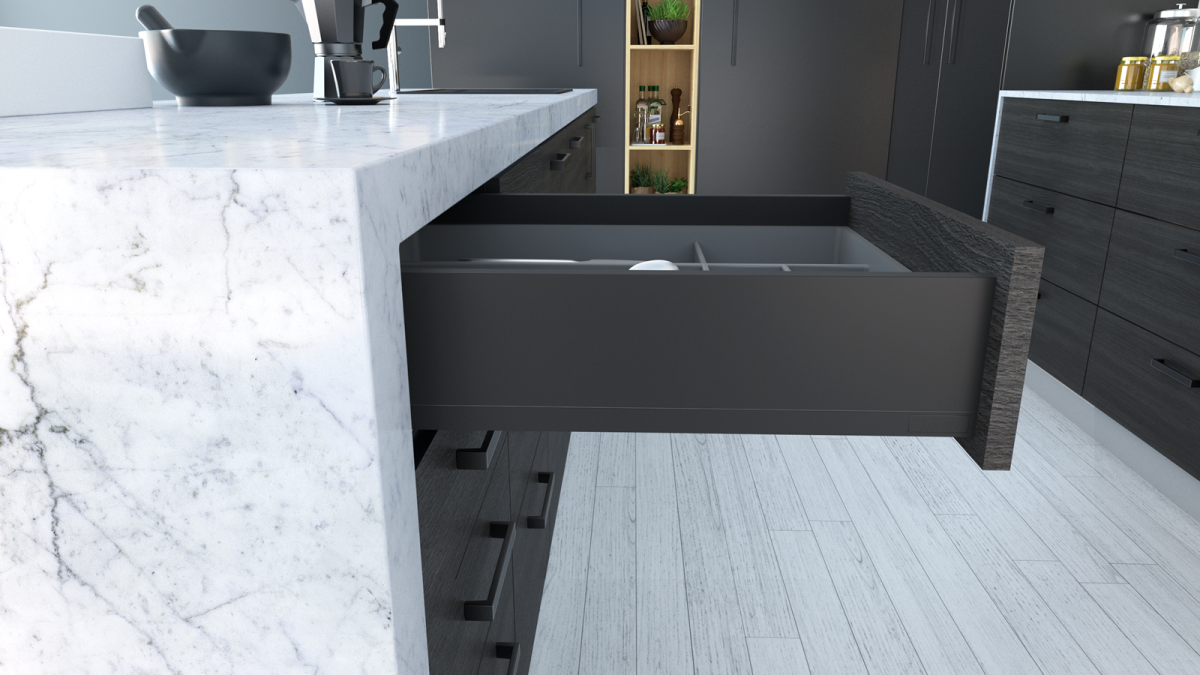

  • ALUNAN T offers three standard drawer side heights: the S range at 88mm; the T range at 120mm and the K range at 175mm

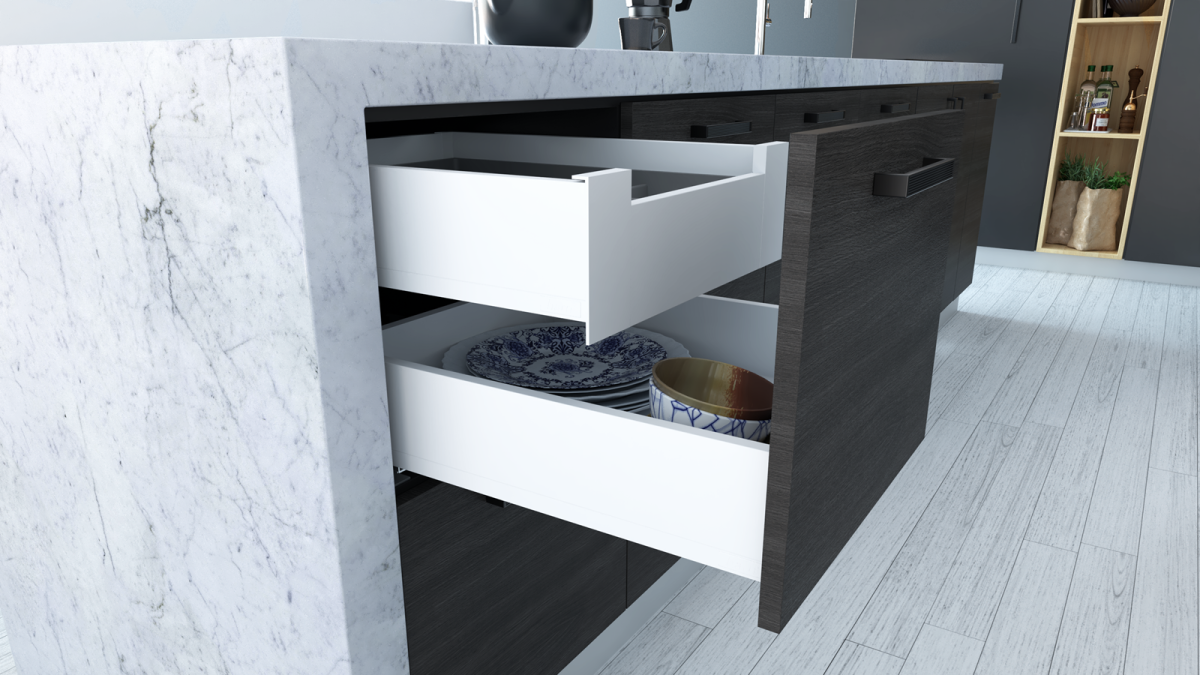

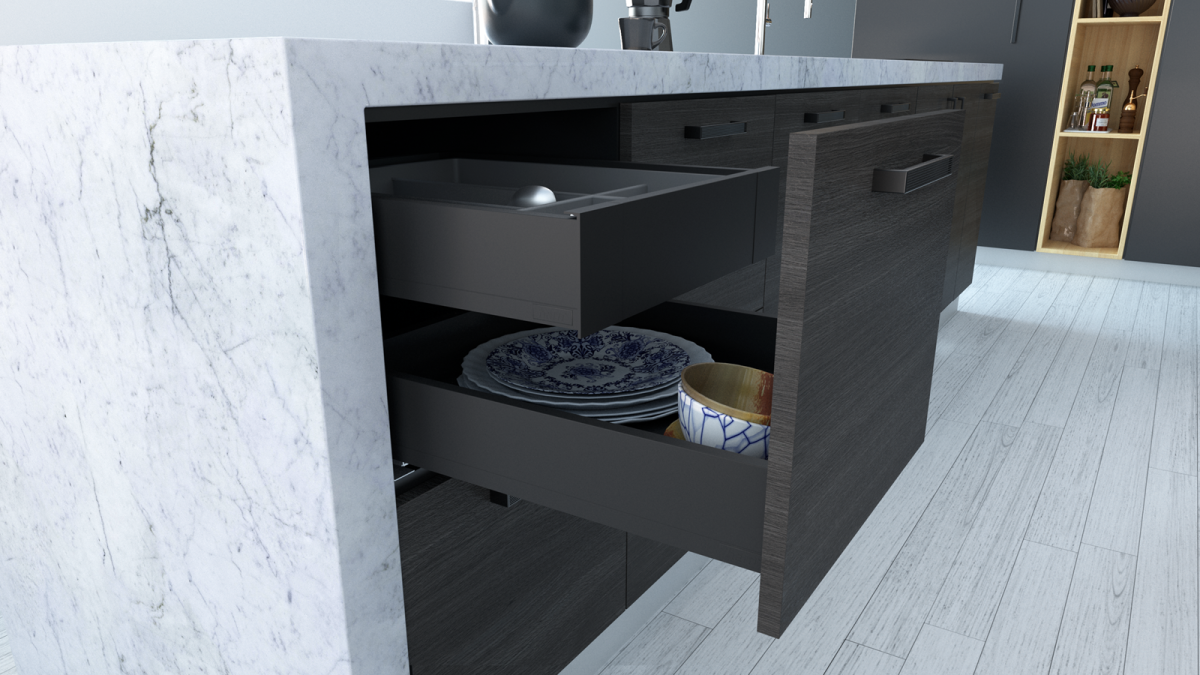

  • Each of these 3 standard drawers has a matching internal drawer counterpart

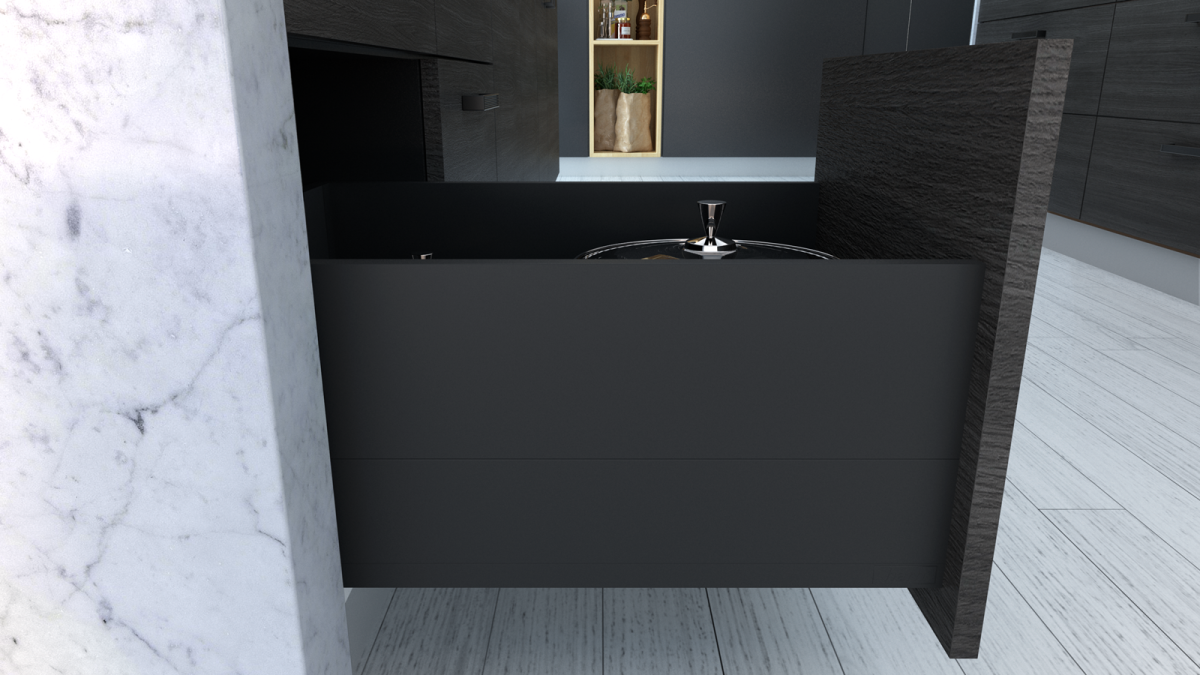

  • The addition of a 120mm side extension to a standard S drawer creates the HS model at a total side height of 208mm

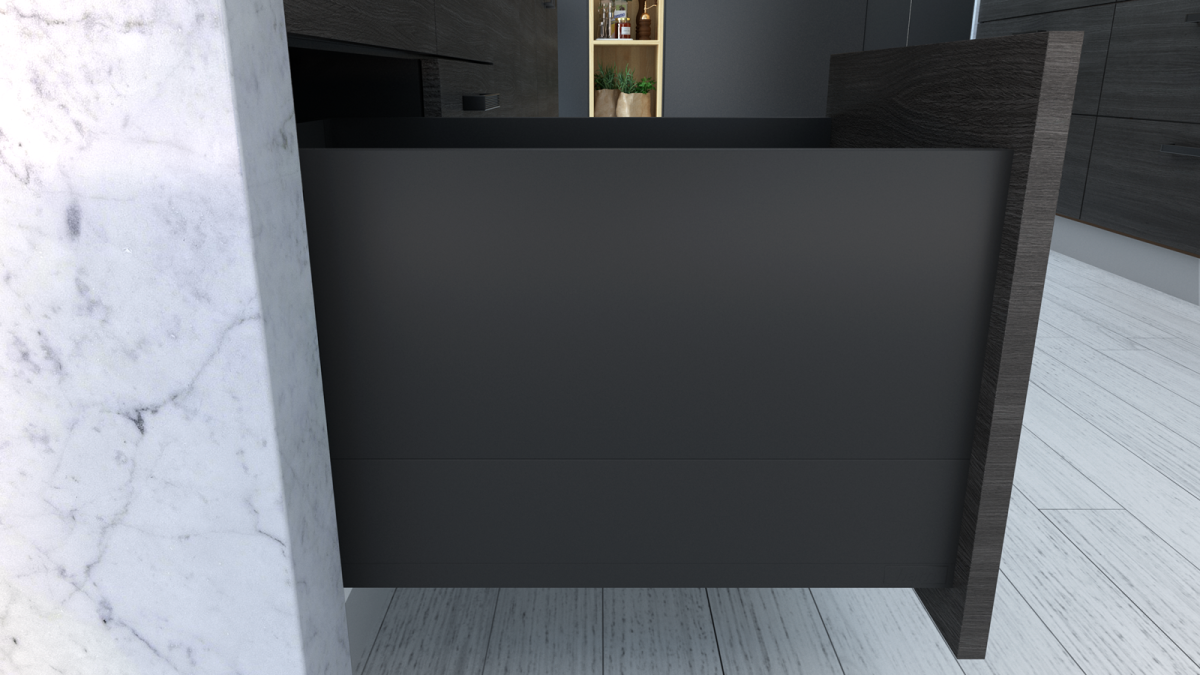

  • The addition of a 184mm side extension to a standard S drawer creates the FS model at a total side height of 272mm

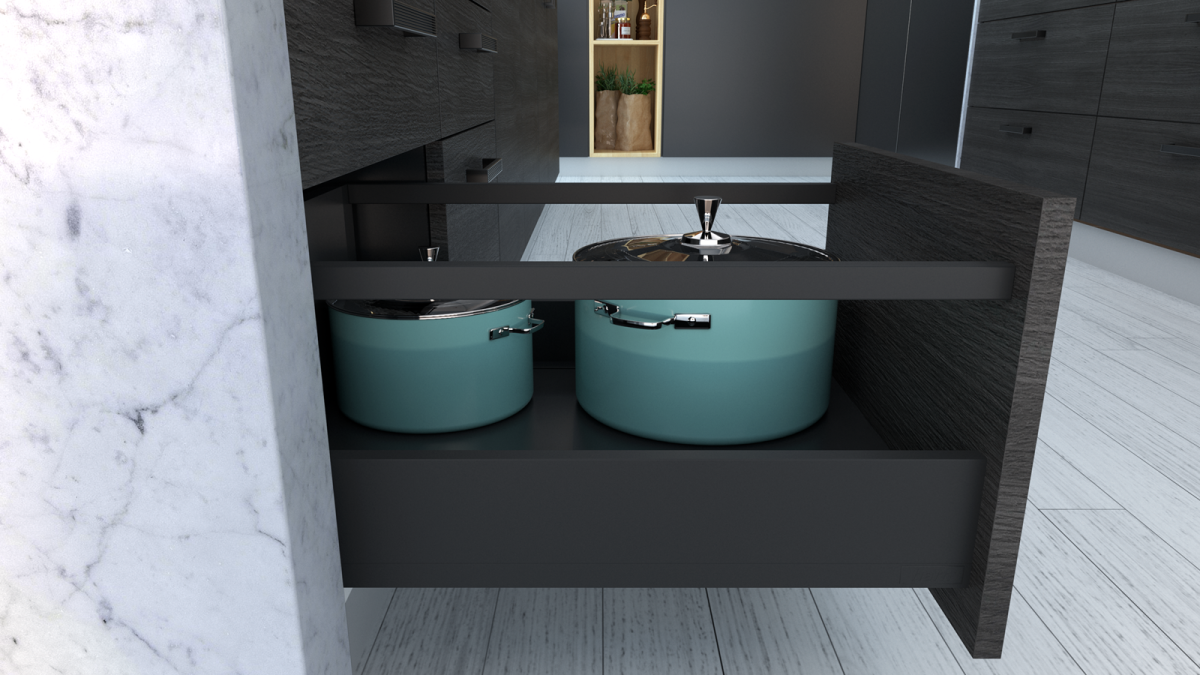

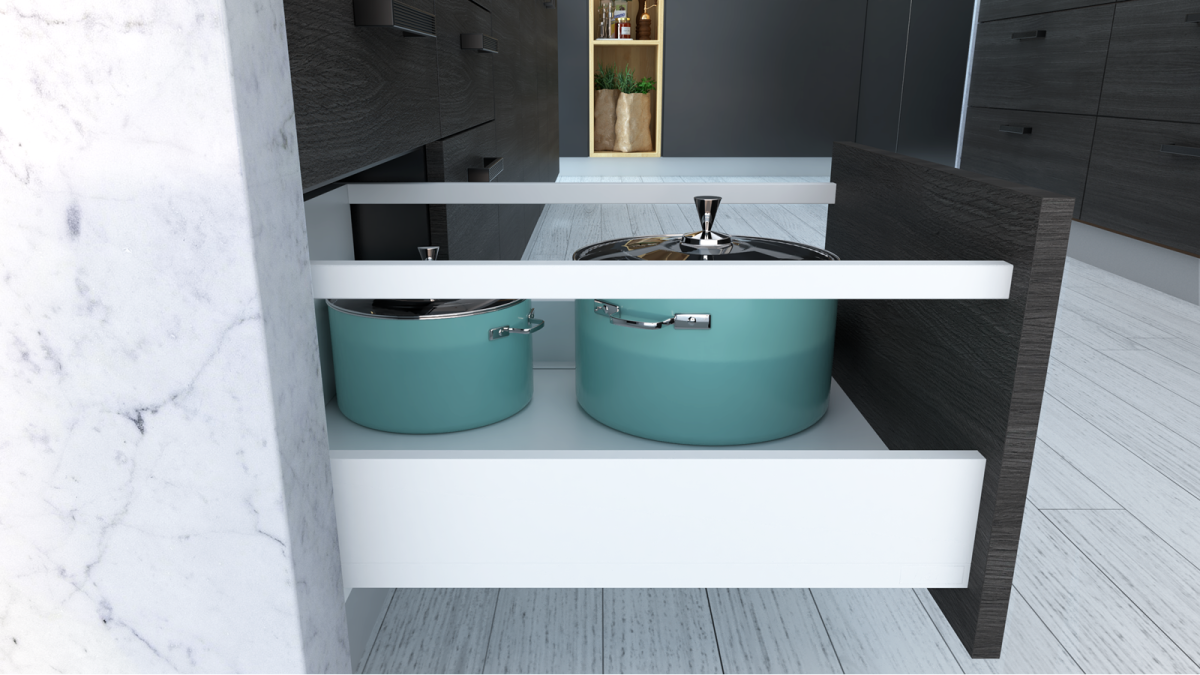

  • Plus there's an HR model which is a standard S drawer and a high side rail at 208mm

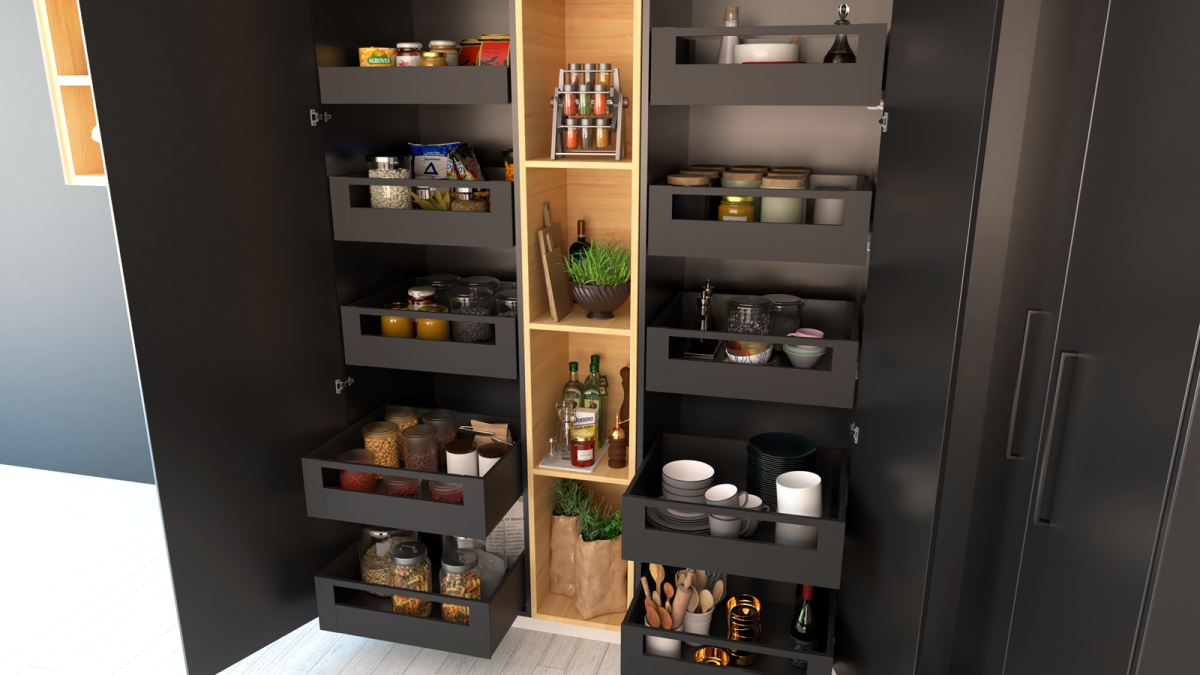

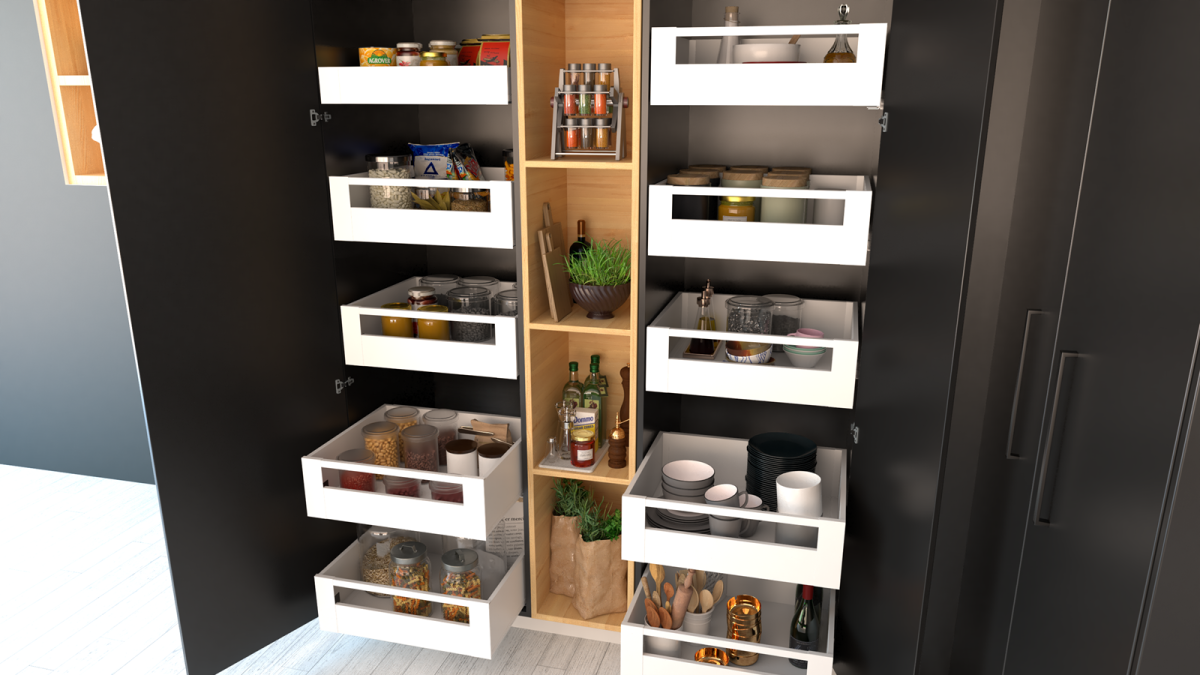

  • Two 5-internal drawer pantry kit variants are available, made up with 450mm, 500mm or 550mm runner lengths. One variant comprises 1 x internal S drawer and 4 x internal K drawer. The second variant comprises 5 x internal K drawers
  • For all internal drawers, a trimmable front panel is available separately (1035mm long to suit drawer widths of up to 1200mm)
  • For those running large projects, 5 key ALUNAN T drawer models are available in ‘industrial packs’ with bulk-packed components for 24 individual drawers (Silk White Matte only)
  • One code ordering for standard soft close drawers
  • Kits attach to own drawer fronts, bases and backs. Kits contain runners, drawer sides, cover caps, front-fixing and rear-fixing brackets
  • Slim, straight sides — with no wasted edges or corners — optimising storage space
  • Roller bearing concealed runners
  • Full extension with synchro control
  • Sylent integrated cushioning system with load-adaptive dampening action for perfectly controlled drawer movement
  • Integrated lateral stabiliser prevents skewing
  • 3-dimensional adjustment of front panel:
    • Patented and easily accessed tilt adjustment +2mm/-1mm
    • Height +/-2mm
    • Side +/-1.5mm
  • Available in Silk White Matte and Umbra Grey
  • Available in 300mm – 550mm lengths
  • Available in Screw On and Fast Fix (Expansion) fixing types
Scope of Use

ALUNAN T drawers are suitable for residential use throughout the home; kitchens, pantries, sculleries, laundries, bathrooms, wardrobes, home offices, kids’ rooms and furniture.

For those looking for a drawer / kitchen waste bin match, Tanova’s FLEX drawer insert kitchen waste bin options are tailormade to sit on ALUNAN T drawers.

  • ALUNAN T provides a heavy duty 35kg load capacity and, for 500mm and 550mm models, an up-specced option with an extra heavy duty 60kg
  • ALUNAN T offers three standard drawer side heights: the S range at 88mm; the T range at 120mm and the K range at 175mm
  • 3-dimensional adjustment of front panel:
    • Patented and easily accessed tilt adjustment +2mm/-1mm
    • Height +/-2mm
    • Side +/-1.5mm
  • Available in Silk White Matte and Umbra Grey
  • Available in 300mm – 550mm lengths
  • Available in Screw On and Fast Fix (Expansion) fixing types
Limitations on Use

Suitable for residential use, taking into account the following:

  • Load capacity 35kg or 60kg depending on model
  • Be familiar with the load capacity of the drawers and do not exceed it.
  • When opening and closing your drawers or when putting items into them, do not apply strong downward force as this may damage the runners.
  • Do not use caustic cleaners on any part of the drawer.
  • Some dishwasher powders and laundry powders are particularly caustic, as are dry salt, salt water and any citrus juice. If they spill onto or into your drawers, remove the powder promptly with a vacuum cleaner, soft brush or damp cloth taking care to re-wipe the surface clean after rinsing cloth free of substance and ensure it is dried well.
  • Refer to the Care & Maintenance document for further detail.



In-Service History

FIT first brought ALUNAN T soft close drawers to the market in June 2024.

Other Performance Attributes
  • Load capacity 35kg or 60kg depending on model

Warranty

FIT warrants the original purchaser of products against manufacturing defects for as long as the original purchaser owns the product. This warranty applies to all non-electrical products sold by FIT in New Zealand and Australia.

The warranty covers replacements for faulty goods only. Replacements will be supplied to the original purchaser only. If the identical item is no longer available, FIT will replace with the closest item from their current product selection. The warranty does not include any labour or other associated expense that may be involved in removal or installation of the product. The warranty does not apply if products have been incorrectly installed, have been subjected to loads in excess of specifications and/or have been subjected to uses/purposes for which they are not expressly intended. FIT’s liability is limited to the goods themselves and does not cover any consequential or incidental damages contributed to or resulting from the use, installation, performance or failure of products.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).

Documents
ALUNAN T Catalogue Including Installation Dimensions
ALUNAN T Soft Close Drawers - Assembly, Adjustment & Removal
FIT Warranty
