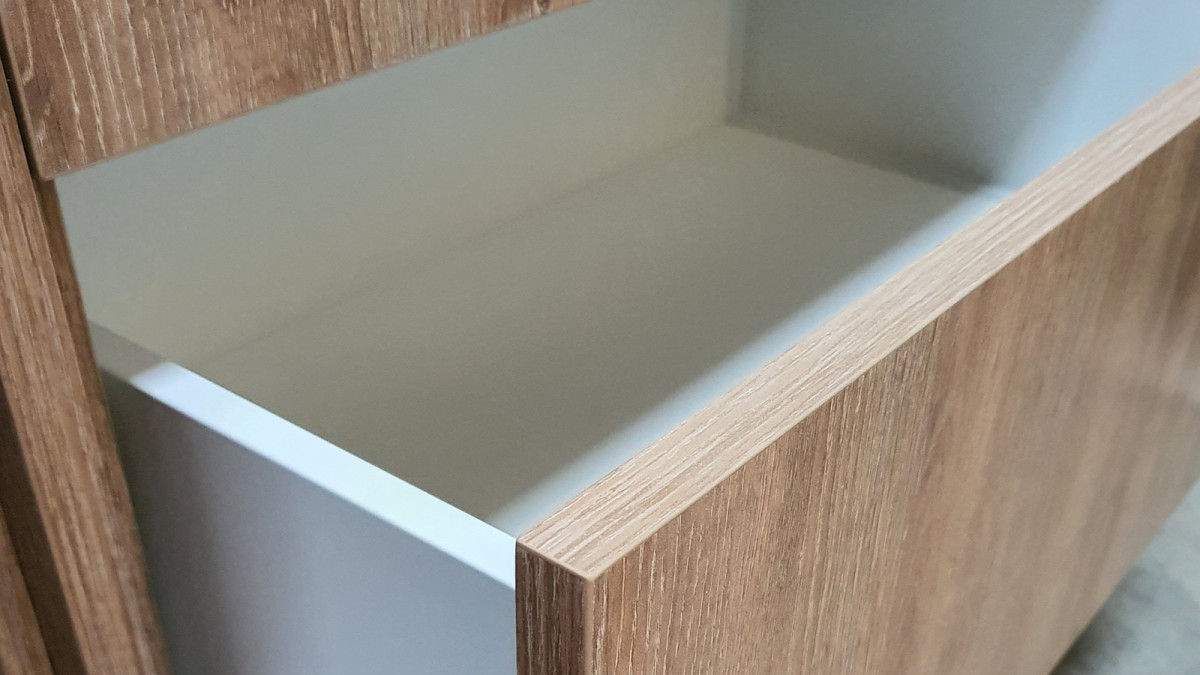

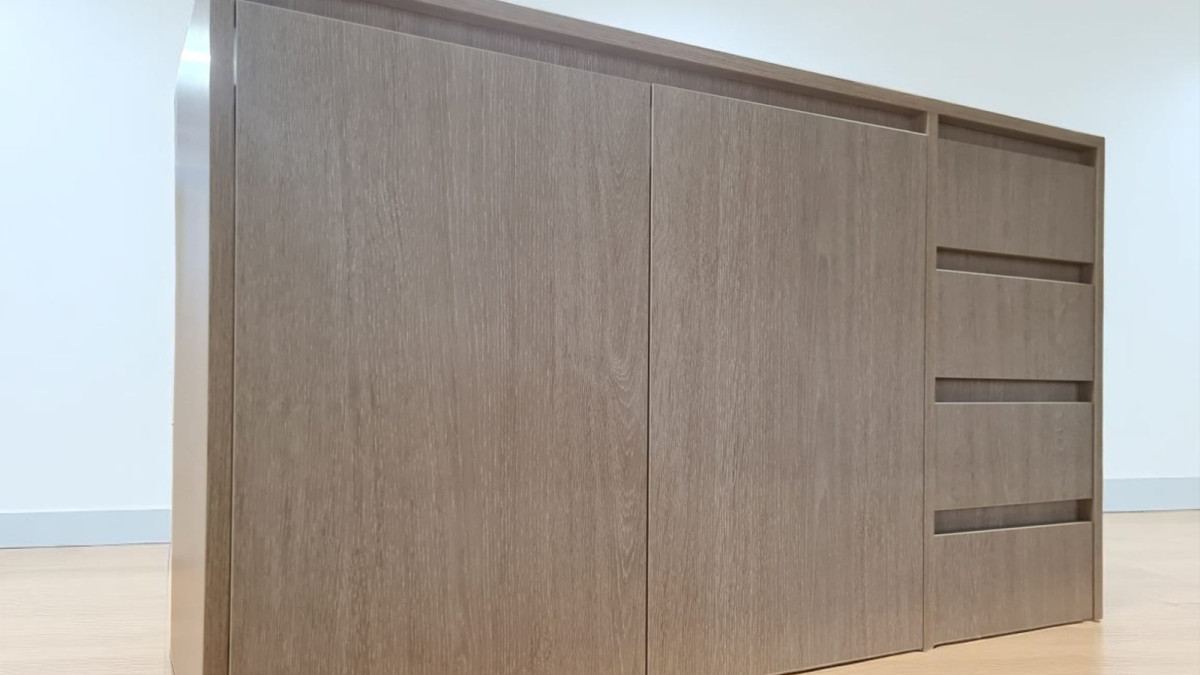

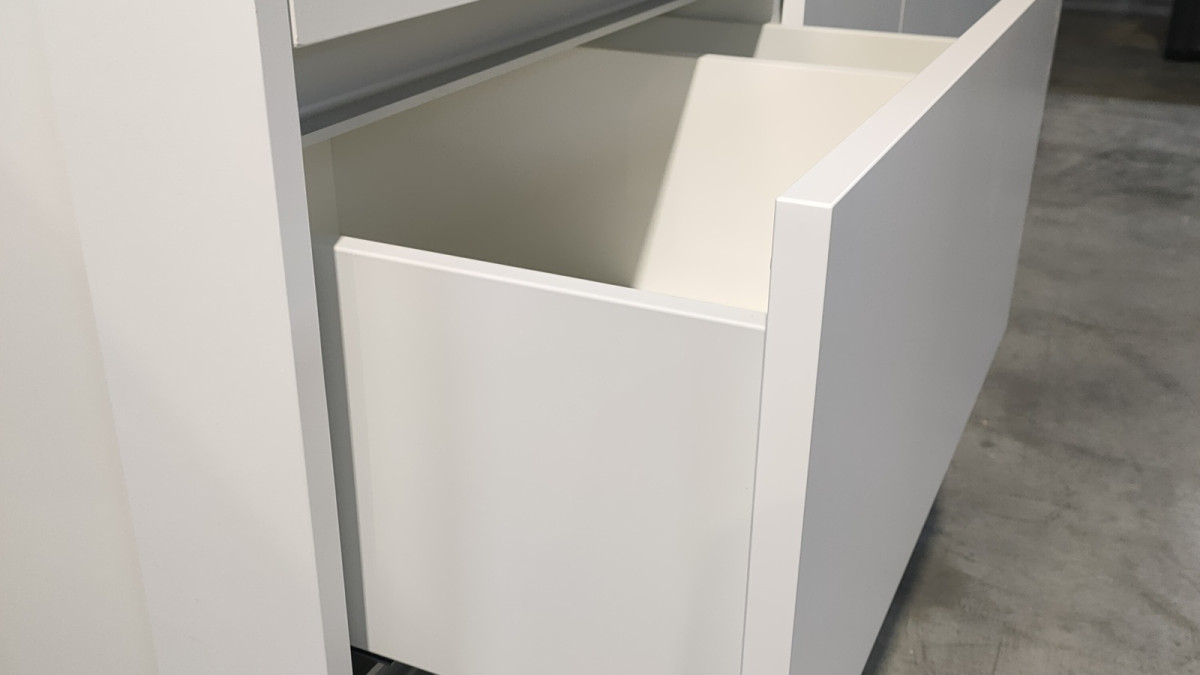

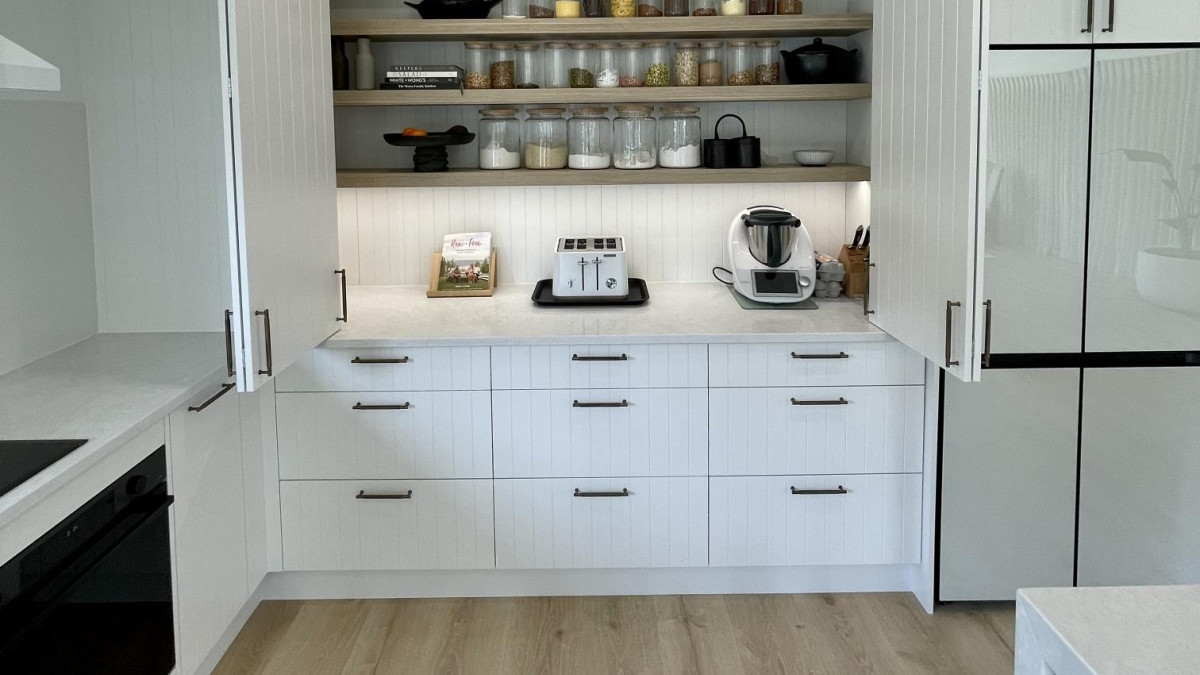

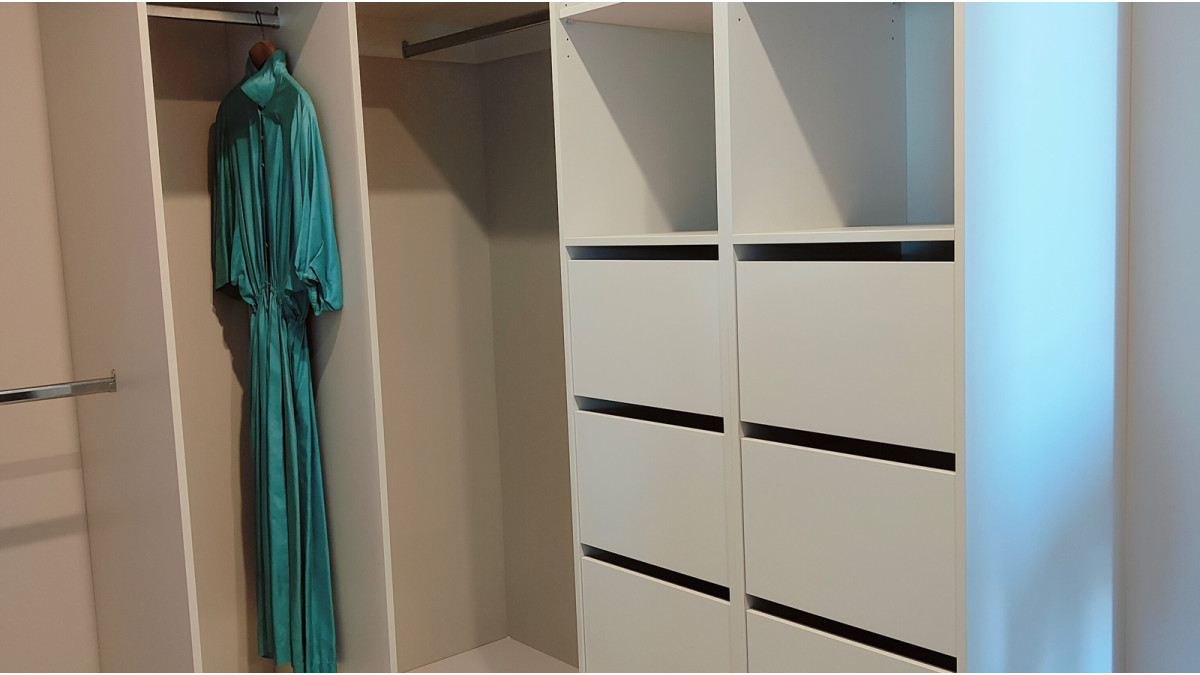

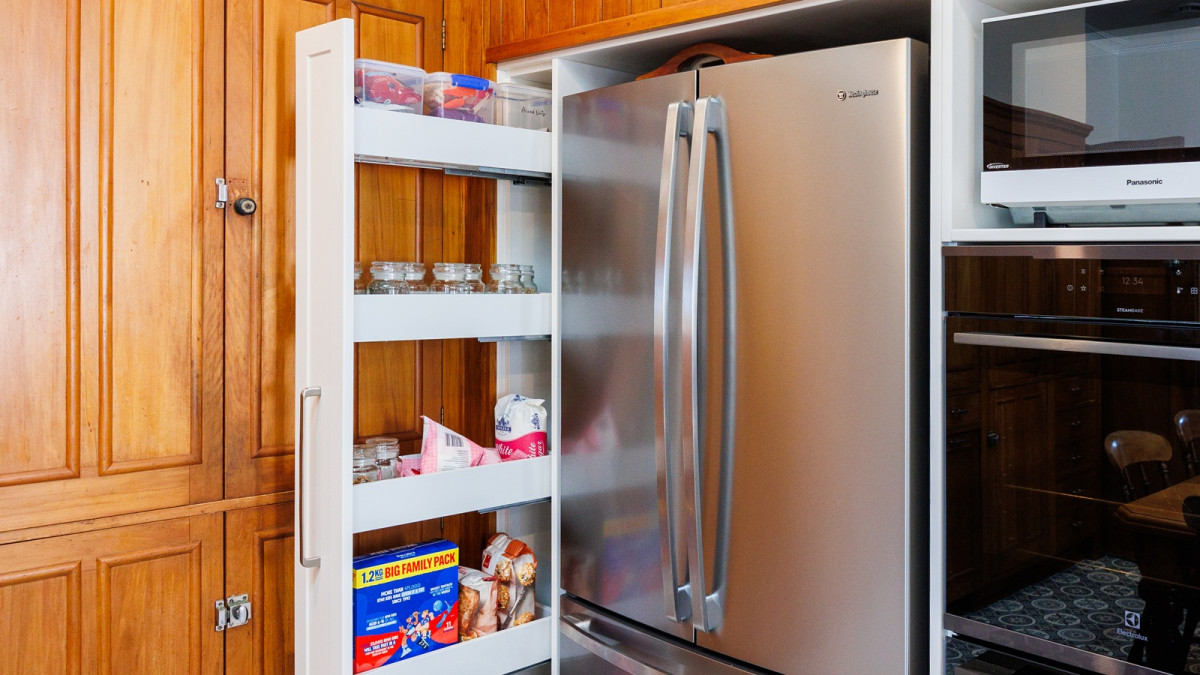

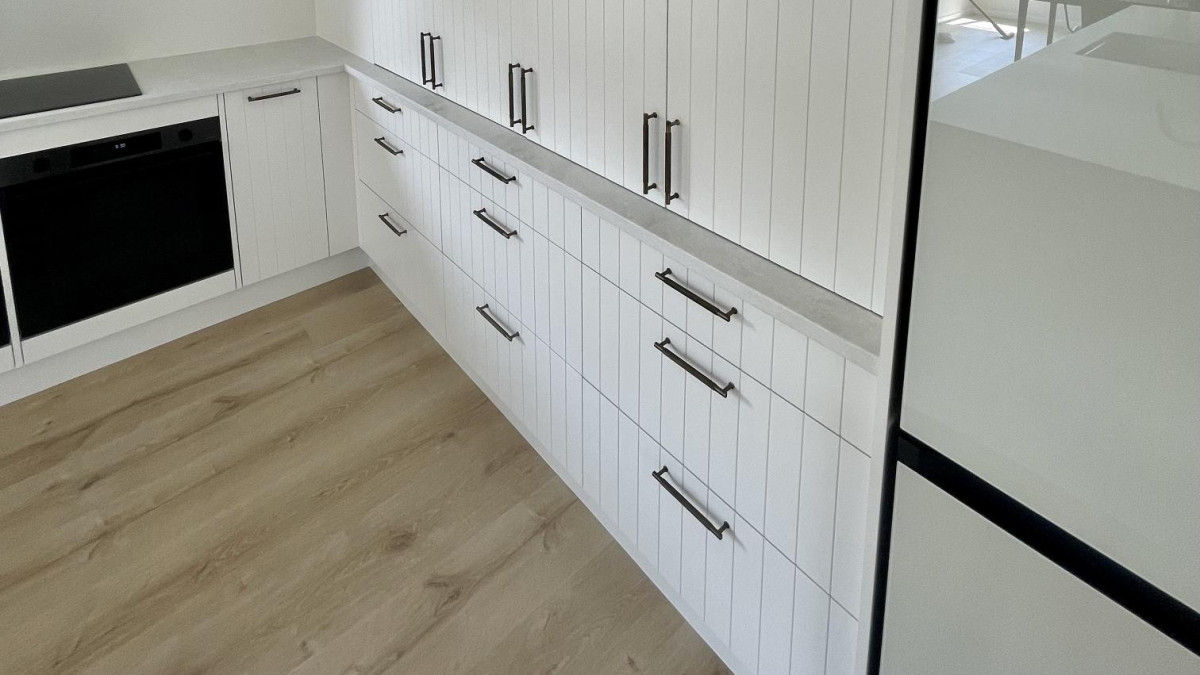

SlimFIT drawers are suitable for residential use throughout the home; kitchens, pantries, sculleries, laundries, bathrooms, wardrobes, home offices, kids’ rooms and furniture.

• 35kg load capacity, generous for most domestic use, making them ideal for kitchens and wardrobes
• For more heavy duty requirements there are some models with a 50kg load capacity.

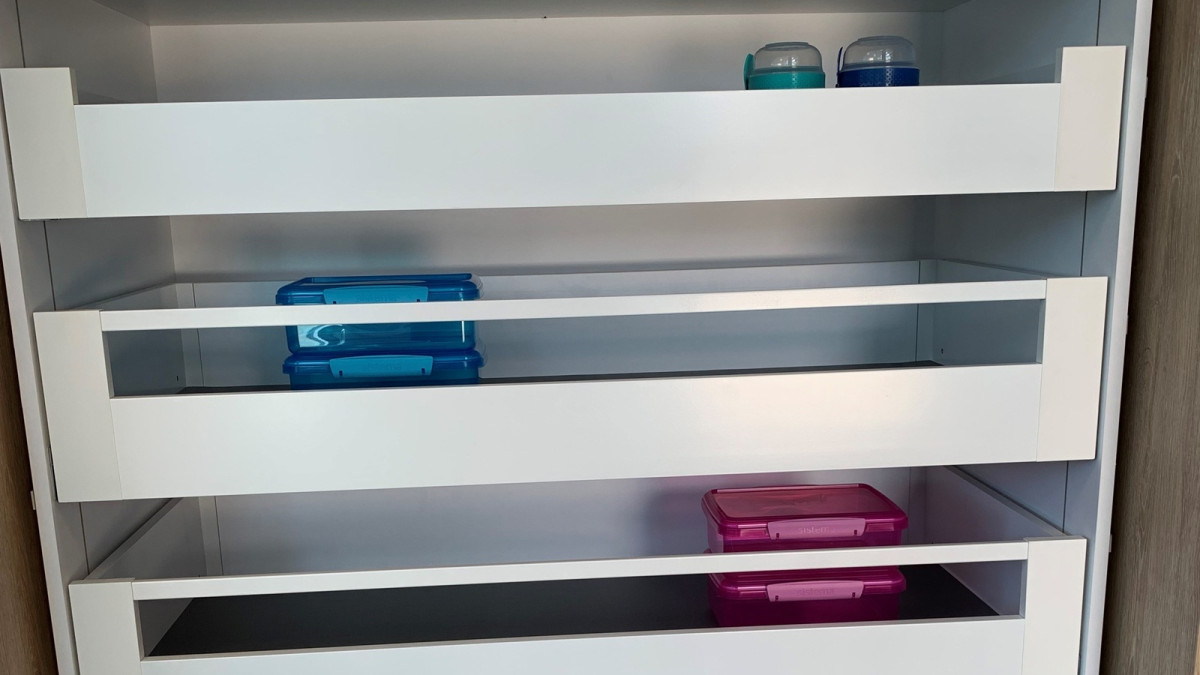

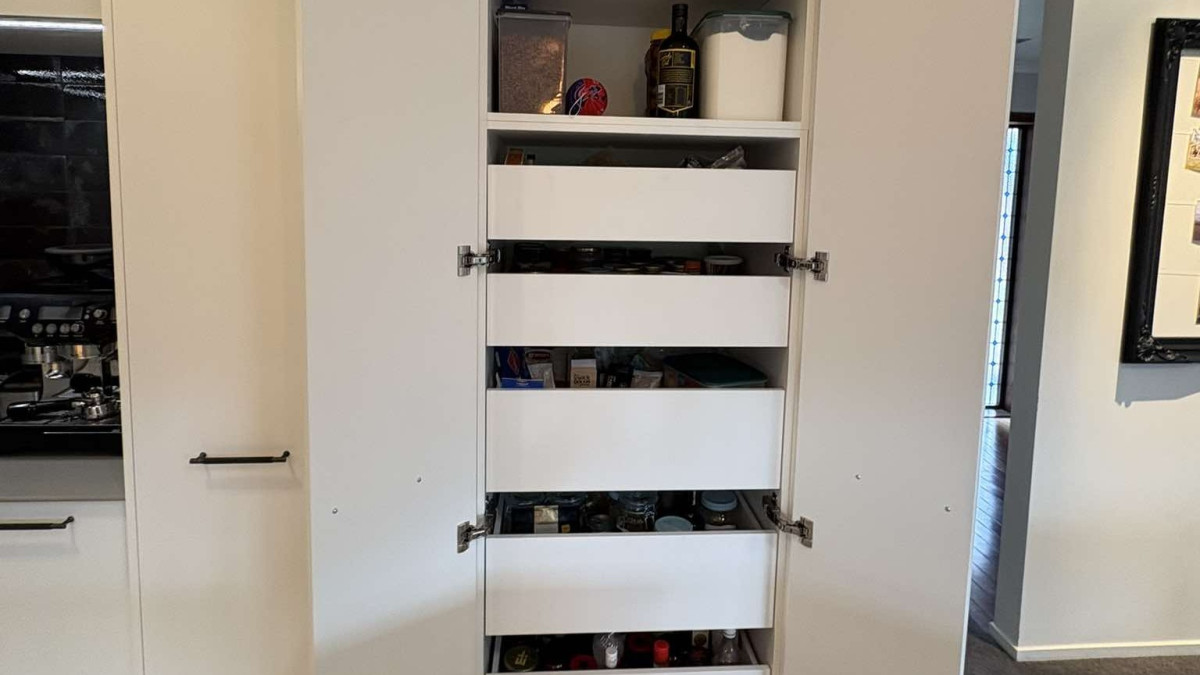

• Supplementary kits are available to convert SlimFIT standard drawers into inner drawers for use in projects such as pantries installed behind hinged doors or to add a second drawer layer behind a single cabinet front.
• Suits 16mm board
• Slimline 13mm drawer sides in white
• 6 runner length options: 300mm, 350mm, 400mm, 450mm, 500mm, 550mm
• Available with screw on and expansion bracket fixings
• 4 drawer side height options:
  • 88mm — for min. internal cabinet height of 112mm
  • 120mm — for min. internal cabinet height of 144mm
  • 171mm — for min. internal cabinet height of 195mm
  • 203mm — for min. internal cabinet height of 227mm
• Recommended maximum drawer width: 1000mm
• Recommended maximum drawer front panel height: 360mm
• Front bracket marker jigs also available

• Recommended maximum drawer width: 1000mm
• Recommended maximum drawer front panel height: 360mm
• Be familiar with the load capacity of the drawers and do not exceed it.
• When opening and closing drawers or when putting items into them, do not apply strong downward force as this may damage the runners.
• Do not use caustic cleaners on any part of the drawer.
• Some dishwasher powders and laundry powders are particularly caustic, as are dry salt, salt water and any citrus juice. If they spill onto or into the drawers, remove the powder promptly with a vacuum cleaner, soft brush or damp cloth taking care to re-wipe the surface clean after rinsing cloth free of substance and ensure it is dried well.
• Refer to the Care & Maintenance document for further detail.

FIT first brought SlimFIT soft close drawers to the market in December 2021

• 35kg/50kg load capacity depending on model

Warranty

FIT warrants the original purchaser of products against manufacturing defects for as long as the original purchaser owns the product. This warranty applies to all non-electrical products sold by FIT in New Zealand and Australia.

The warranty covers replacements for faulty goods only. Replacements will be supplied to the original purchaser only. If the identical item is no longer available, FIT will replace with the closest item from their current product selection. The warranty does not include any labour or other associated expense that may be involved in removal or installation of the product. The warranty does not apply if products have been incorrectly installed, have been subjected to loads in excess of specifications and/or have been subjected to uses/purposes for which they are not expressly intended. FIT’s liability is limited to the goods themselves and does not cover any consequential or incidental damages contributed to or resulting from the use, installation, performance or failure of products.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
