Domus Line LED Lighting — HE6B High Emission LED Strip
Description

Designed in Italy to comply with NZ/Australian standards, HE6B is a super flexible LED strip light designed for use within micro profiles with a removable diffuser such as Domus Line’s Nexus and Apex Dark profiles.

HE6B consists of ultra high emission LEDs on a slim 6mm flexible linear module with adhesive backing strip.

  • Standard HE6B Pro is available in Natural White and Warm White light colours.
  • UHE6B CSP (Chip Scale Package) D-Motion Dual Colour provides both Natural White and Warm White light colours in one luminaire.
Key Features
  • Surface mounted installation — may also be applied to a surface using the adhesive backing tape that forms part of the strip. High adherence tape allows for installation without complicated soldering.
  • Installation in profiles – suitable for use in micro profiles such as Domus Line’s Nexus and Apex Dark, leaving the adhesive tape’s backing intact and sliding it into the profile.
  • Standard HE6B LED strips are available in lengths of 2m, 3m and 5m and are supplied pre-wired at both ends with 2000mm power cables and Micro24 male connectors.
  • Double wiring allows for the strip to be trimmed to fit and for offcuts to be used, minimising waste and cost.
  • Unwired Standard HE6B Pro 10m rolls and unwired UHE6B CSP 20m rolls are also available
  • Maximum continuous run length: 5m per any one strip.
  • Standard HE6B Pro strips may be cut at 50mm increments.
  • UHE6B CSP (Chip Scale Package) Pro D-Motion Dual Colour may be cut at 26.3mm
  • Power supply (LED driver) must be ordered separately.
  • Standard HE6B is available in Natural White and Warm White light colours
  • UHE6B CSP (Chip Scale Package) Pro D-Motion Dual Colour provides both Natural White and Warm White light colours in one luminaire. This allows end users to trial and select light colour after installation rather than trying to predict how the various light tones will look in their environment. Light colour can also be altered at any time to suit their mood.
  • 24Vdc
  • IP20 rated
  • HE6B Pro – 9.6W/m
  • UHE6B CSP – 10W/m
Scope of Use

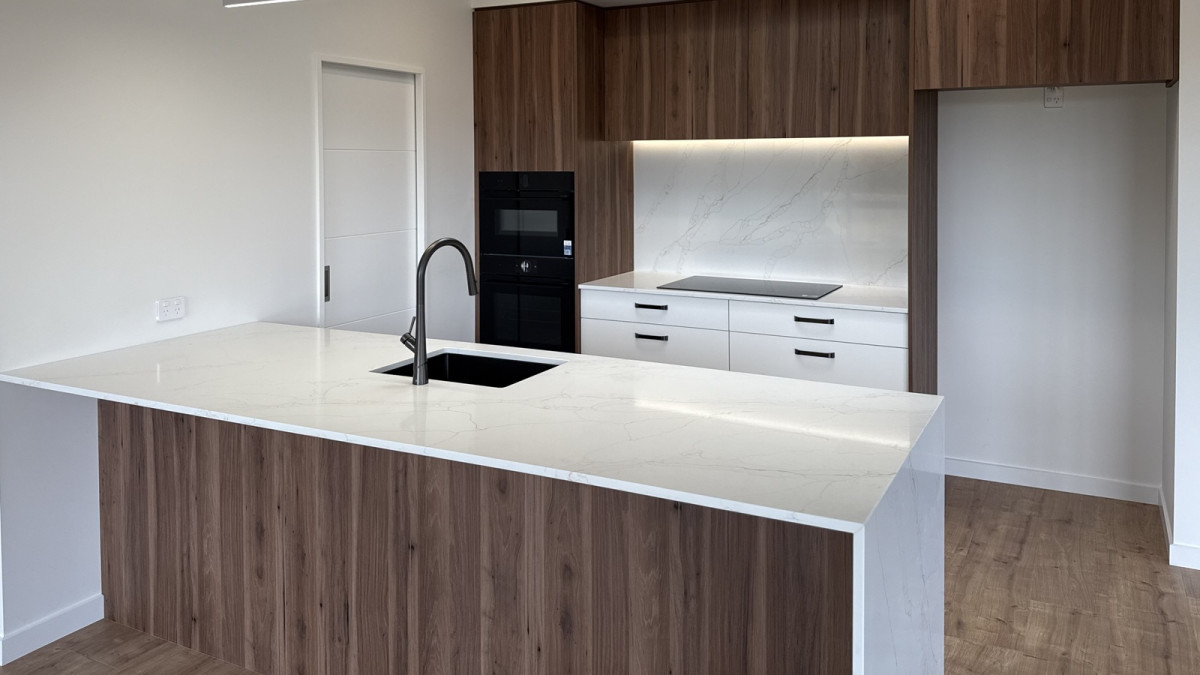

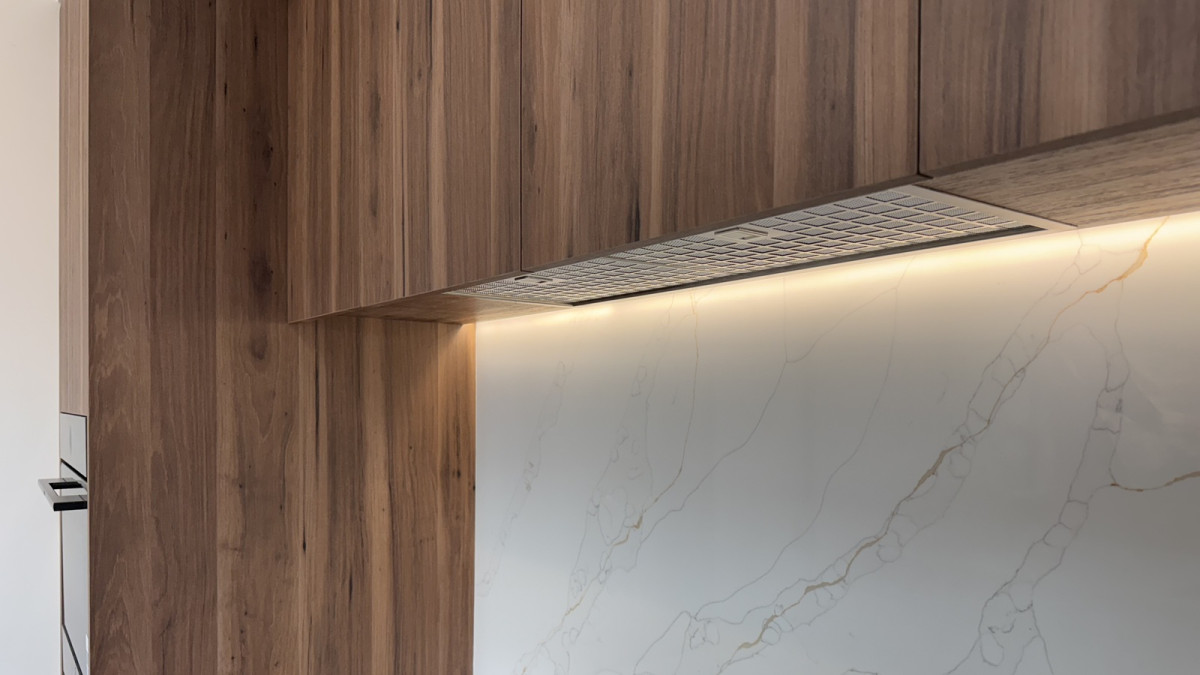

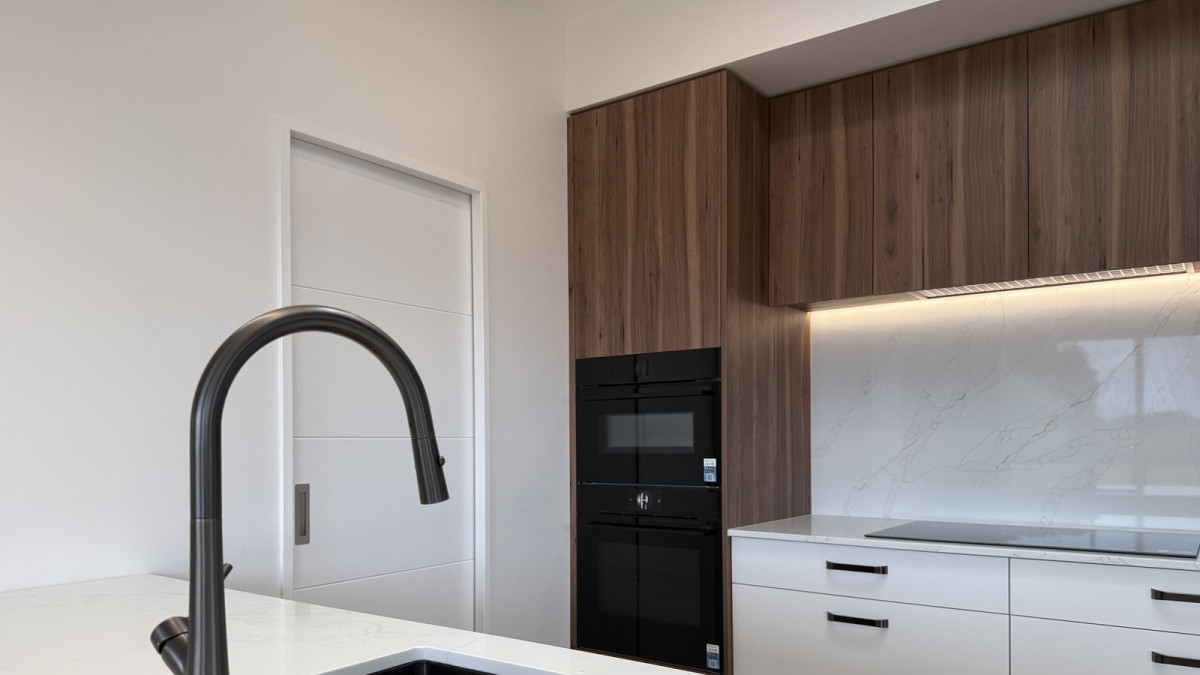

  • HE6B LED strips are IP20 rated and are therefore suitable for interior use in kitchens, cupboards and pantries, wardrobes, furniture and cabinetry. They are not protected against water or moisture or high levels of dust.
  • Surface installation options — supplied with high seal 3M adhesive backing.
  • Profile installation — leave the backing on the adhesive tape and slide into micro profiles such as Domus Line’s Nexus and Apex Dark
  • Continuous run length: up to 5m per any one strip.
  • Available in lengths of 2m, 3m and 5m pre-wired at both ends with 2000mm power cables and Micro24 male connectors.
  • Also available in unwired rolls
  • Standard HE6B Pro strips may be cut at 50mm increments.
  • UHE6B CSP (Chip Scale Package) Pro D-Motion Dual Colour may be cut at 26.3mm
Limitations on Use
  • Not suitable for use in areas with moisture, steam or high dust.
  • Maximum continuous run length: 5m per any one strip.
  • Power supply (LED driver) must be ordered separately.
Statement of Building Code Compliance
  • SDoC available upon request.
  • Manufactured in accordance with ISO/IEC 17050-1:2004
Other Performance Attributes
  • IP20 rated
  • HE6B Pro – 9.6W/m
  • UHE6B CSP – 10W/m
  • 24Vdc

Domus Line’s Integrated Management System is compliant with ISO 9001:2015, ISO 14001:2015 and ISO45001:2018.

The system is certified and supervised by the Swiss Association for Quality and Management Systems (SQS), an independent body accredited by The International Certification Network (IQNet).

Warranty

FIT warrants the original purchaser of electrical products against manufacturing defects for the length of the manufacturer’s warranty. DOMUS LINE warrants their lighting products for 2 years from date of purchase.

The warranty covers replacements for faulty goods only. Replacements will be supplied to the original purchaser only. If the identical item is no longer available, FIT will replace with the closest item from their current product selection. The warranty does not include any labour or other associated expense that may be involved in removal or installation of the product. The warranty does not apply if products have been incorrectly installed, have been subjected to loads in excess of specifications and/or have been subjected to uses/purposes for which they are not expressly intended. FIT’s liability is limited to the goods themselves and does not cover any consequential or incidental damages contributed to or resulting from the use, installation, performance or failure of products.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).

Documents
Product Guide: HE 6B Pro
Product Guide: UHE6B CSP
Installation Instructions: HE6B
Brochure
Consumer Catalogue
