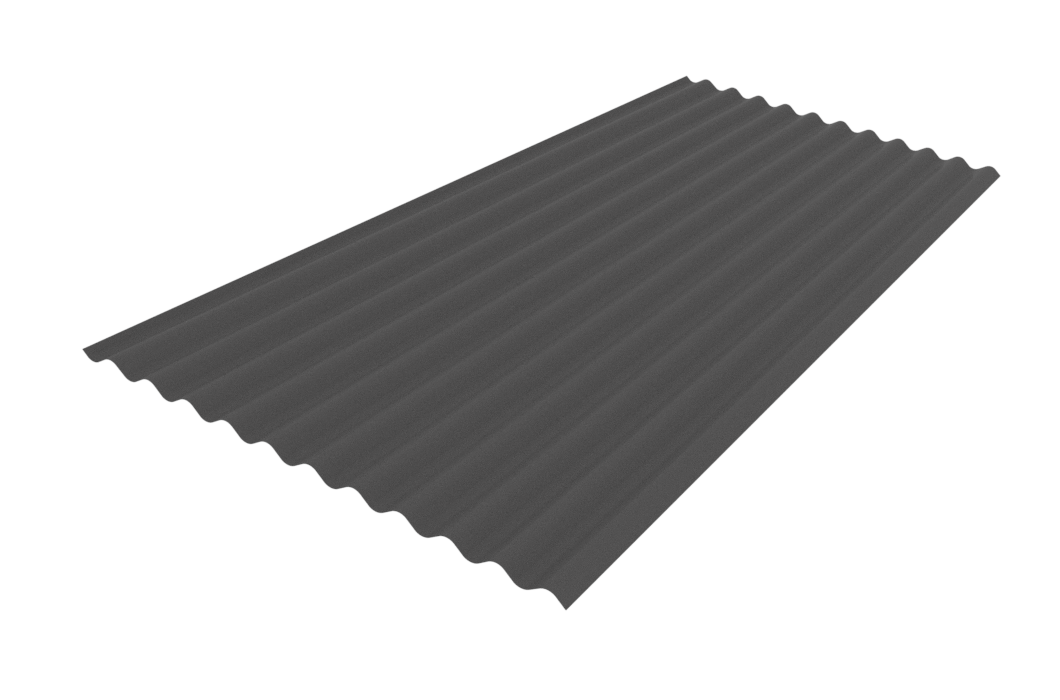

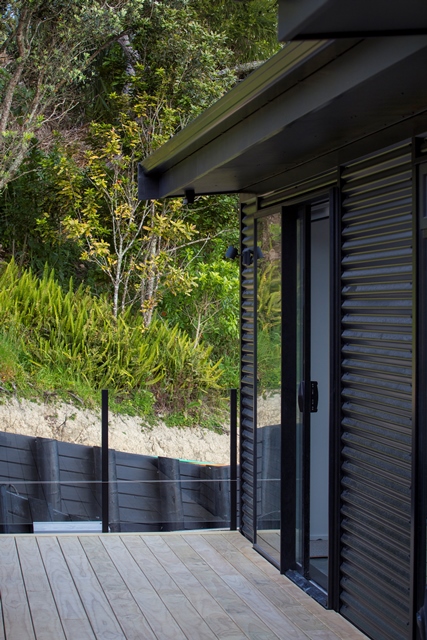

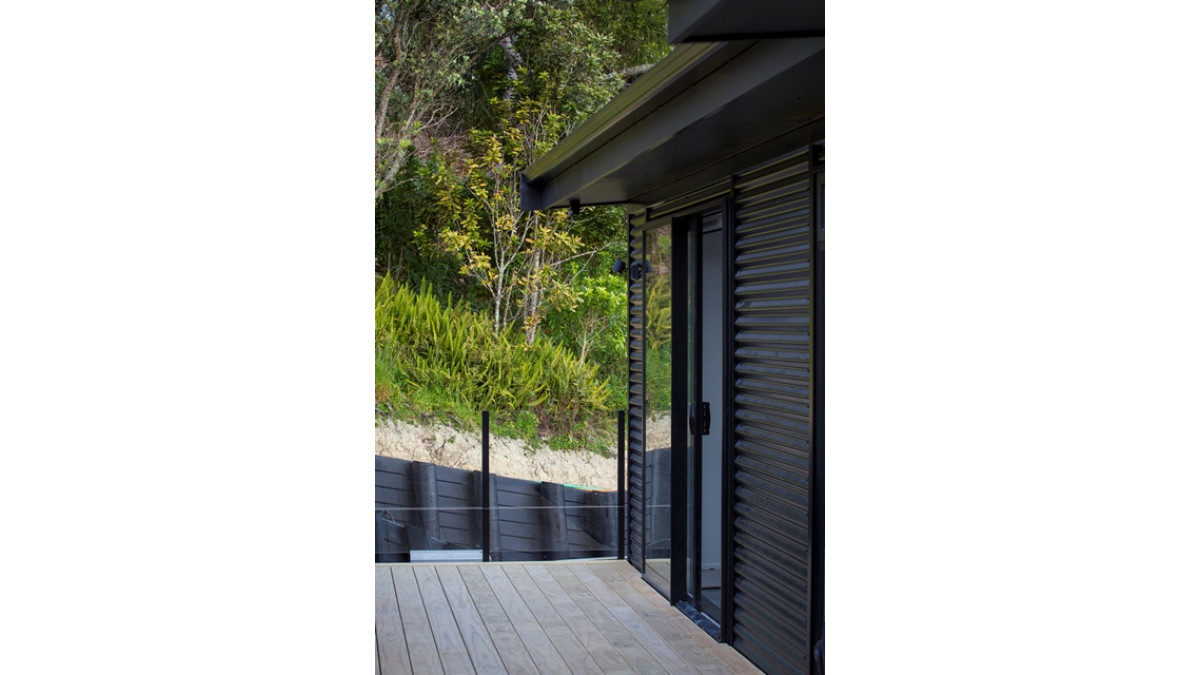

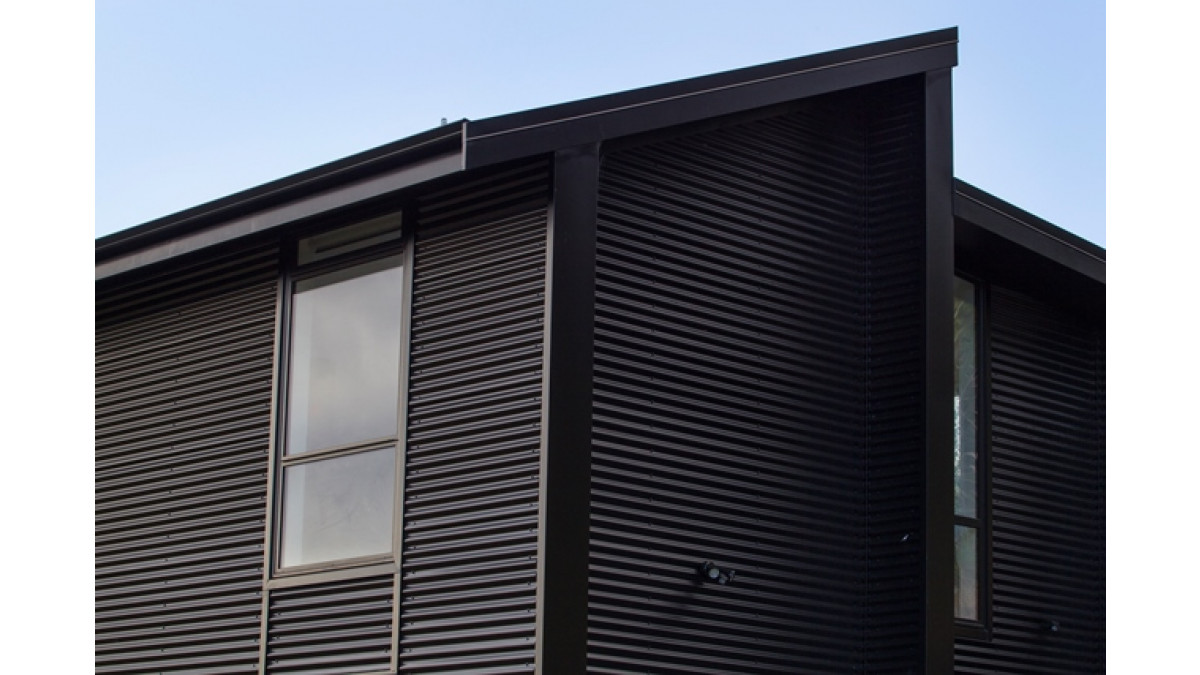

Dimond Corrugate
Description

Corrugate’s wide sheet cover, rapid fixing and low material cost make it an economical choice of roof and wall cladding material.  It lends its graceful appearance and economy of fixing to almost any type of building structure.

Key Features
  • Cover: 762mm
  • Sheet width: 851mm
Scope of Use
  • Minimum Pitch: 8° (approx 1:7)

Dimond long run metal roofing and cladding is intended for use in constructing the building envelope for commercial buildings and residential buildings subject to the limitations listed below.

Attention to the following details is required to ensure the expected system performance is achieved:

  • The selection of the type and grade of sheeting material and fasteners must be based on the life expectancy required and the severity of the external and internal environments.
  • Correct choice of breather type or vapour barrier underlay to suit the building environment.
  • Site storage that keeps product dry and protected from damage.
  • Sheeting handling that prevents surface damage.
  • Avoidance of excessive spans or insufficient fasteners for the expected loads.
  • Correct placement and flashing of penetrations through the roof.
  • Correct layout and installation of the sheeting, underlay and netting.
  • Allowance for thermal expansion and contraction.
  • Sufficient roof pitch to permit complete surface water drainage.
  • Control of allowable contact with dissimilar materials.
  • Awareness and implementation of maintenance requirements, particularly for surfaces not washed by natural rainfall.
  • Correct choice of material for collection of drinking water from a Zincalume or colour finished roof is required.
Limitations on Use

If the need arises to use Dimond long run roofing & cladding outside the limitations and procedures given in the Performance Statements or other referenced literature, or if any doubt exists on product handling or use, written approval for use must be obtained from Dimond before the project commences.

Statement of Building Code Compliance

Test information available from Pacific Coilcoaters and BHP NZ Steel, and past history of use of long run metal roofing and cladding products in New Zealand indicate that, provided the product use and maintenance is in line with the guidelines contained in the current literature referenced, Dimond long run metal roofing & wall cladding systems can be expected to meet the performance criteria in clause B2 and E2 of the New Zealand Building Code, for a period of not less than 15 years.

In-Service History

Dimond is New Zealand's largest manufacturer of steel roofing, cladding, structural and rainwater goods.

Corrugate has been successfully used on a wide variety of projects such as the Auckland City Acute Mental Health Care Unit.

Other Performance Attributes

Roofing span capacity chart

Thickness  End span  Internal span
0.40mm 0.80m* 1.20m*
0.55mm 1.00m* 1.50m*

*To suit ultimate wind loads up to 3.0 kPa

Cladding span capacity chart

Thickness  End span  Internal span
0.40mm 1.10m 1.50m
0.55mm 1.20m 1.90m

*To suit ultimate wind loads up to 2 kPa

B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
Literature
Product Assurance
Dimond Roofing & Cladding Technical Manual
Installation Instructions
Product Technical Statement
Span Tables
Specification Clause (Masterspec)
Warranty
Other Literature
Brochure
Colour Range
Dimond Homeowners Brochure
Product Page on Supplier Website
CAD/PDF Details
Corrugate General System Design and General CAD Details
Corrugate Pipe Penetration
Corrugate Revit File
Corrugate commercial external corner for vertical cladding, non-cavity

10

Corrugate commercial internal corner for vertical cladding, non-cavity

11

Corrugate residential window on vertical wall cladding, non-cavity

12

Corrugate residential window on vertical wall cladding, on a cavity

13

Corrugate commercial external corner for horizontal wall cladding, non-cavity

14

Corrugate commercial sheet butt joint for horizontal wall cladding, non-cavity

15

Corrugate residential window on horizontal wall cladding, non-cavity

16

Corrugate commercial roof barge to horizontal wall, on a cavity

17

Corrugate commercial external corner for horizontal wall cladding, on a cavity

18

Corrugate commercial internal corner for horizontal wall cladding, on a cavity

19

Corrugate commercial roof parapet detail

2

Corrugate commercial sheet butt joint for horizontal wall cladding, on a cavity

20

Corrugate residential window on horizontal wall cladding, on a cavity

21

Corrugate commercial roof to horizontal wall junction, on a cavity

22

Corrugate commercial 90° roof to horizontal wall junction, on a cavity

23

Corrugate commercial roof barge to vertical wall

3

Corrugate commercial box gutter to eave detail

4

Corrugate commercial roof step joint

5

Corrugate vertical upper wall to lower roof junction

6

Corrugate commercial apron vertical wall cladding to a lower 90° roof

7

Corrugate commercial ridge mono-slope roof to vertical wall cladding

8

Residential barge raking end

8_226

Corrugate commercial penetration larger than 600mm square

9

BIM Objects
Corrugate REVIT

Dimond Roofing are a manufacturer of steel roofing, cladding and rainwater products.

Product Enquiries

News from Dimond Roofing

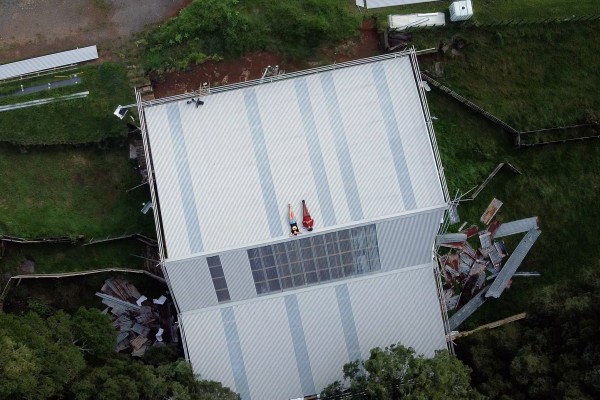

Dimond Roofing Offers a Wide Range of Natural Lighting Profiles
Eco-Friendly and Cost-Effective Cladding for Christchurch Rebuild

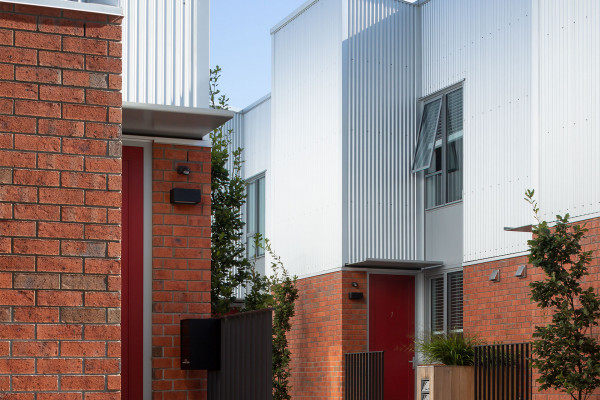

Dimond Roofing and High Density Developments
