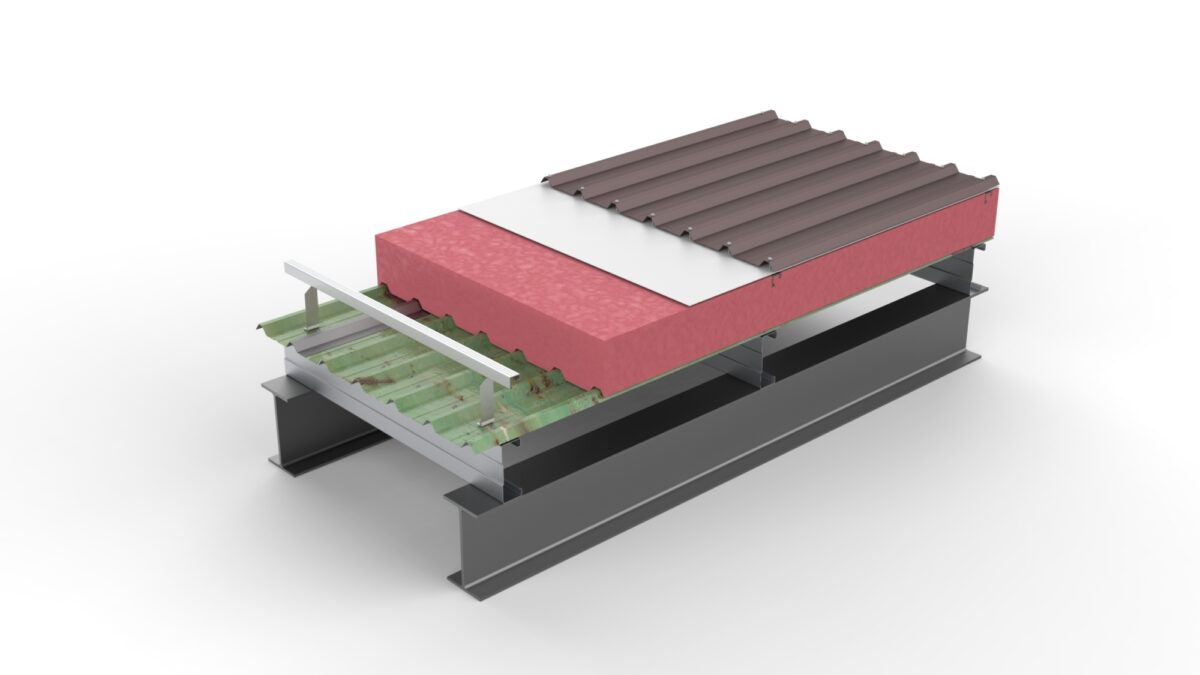

Advanced Standard RetroFit System is intended to be installed over existing roof structure.

• Dimond BIB Insulation is available in a range of thicknesses to achieve thermal insulation R values up to R7.
• The control of moisture and condensation is achieved with Dimond Lap Seal Tape on the existing roof and a layer of breathable Dimond Underlay laid over the Dimond Post & Rail System covering the Dimond BIB Insulation ensuring no build-up of moisture within the system.
• The Dimond Top Sheet covering can be selected from Dimond's range of long-run roof profiles and coated metal materials to match performance to the environment. This includes the scope to use site-rolled, clip fastened decking profiles to achieve a continuous roof covering sheet in lengths up to 90m from ridge to gutter.
• Multi-layer skylights can be incorporated to achieve the required balance between natural lighting levels and thermal insulation.

Ideal Projects:

• Aged commercial buildings with corrugate or trapezoidal profiles
• Schools and hospitals undergoing refurb
• Cool stores or temperature-sensitive environments
• Industrial facilities requiring insulation upgrades

The existing roof profile may not be compatible with the new metal roofing system. Specifically, Dimond’s post feet may not fit within the pan of the existing profile, leading to difficulties in securing the new roof properly.

Adding a new metal roof over an existing one increases the overall weight on the building’s structure. The load bearing capacity of the existing structure must be assessed to ensure it can support the additional weight without compromising safety.

Over time, the original roof structure may have weakened due to weathering, corrosion, or other factors. This could make it unsuitable for supporting an additional roof layer without reinforcement

• B1 Structure: Performance clauses B1.3.1, B1.3.2, B1.3.3 (a) (b) (c) (g) (h), B1.3.4 (b) (d): Dimond long run roofing and wall cladding has been tested in accordance with the NZMRM code of practice Section 17.1.
• B2 Durability: Performance clauses B2.3.1(b): Dimond long run roofing and wall cladding conforms to AS/NZS 2728 as stated in NZMRM code of practice section 17.4.
• C3 Fire affecting areas beyond the fire source: Buildings C3.4(a): Testing has been carried out material suppliers in accordance with the relevant standards stated in C3.4(a).
• E2 External moisture: Performance E2.3.1, E2.3.2: Is suitable for installation in accordance with Acceptable Solution E2/ AS1, NZMRM code of practice, RANZ installation guides and Dimond installation Details/Technical Manual. Installation details provided by other parties such as architects and engineers may also be suitable.
• F2 Hazardous building materials: Performance F2.3.1: The quantities solid particles emitted by Dimond long run roofing and cladding, shall not give rise to harmful concentrations at the surface of the material where the material is exposed, or in the atmosphere.
• G6 Airborne and Impact Sound: Performance clause G6.3. Specific design required using Dimond technical literature and Advanced Vented System details to reasonably meet the requires of NZBC clause G6.3.
• H1 Energy Efficiency: Performance clause H1.3.1 (a). Contributes to meeting this requirement.
