CS SpaceMaker Cavity Slider
Description

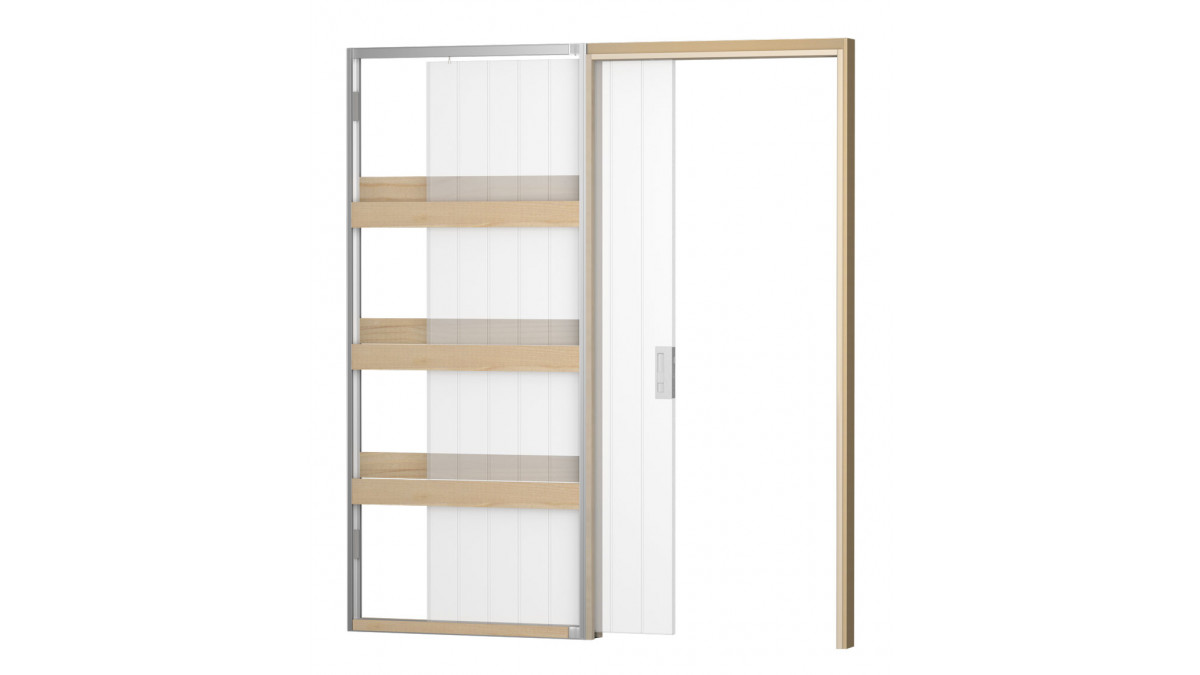

CS SpaceMaker is a residential grade cavity slider designed to suit standard sized doors typically found in today's modern residential homes. Supplied fully assembled, with or without a door fitted, its jambs are finished in either Pine or Rimu, grooved for wall linings or flat for architraves.

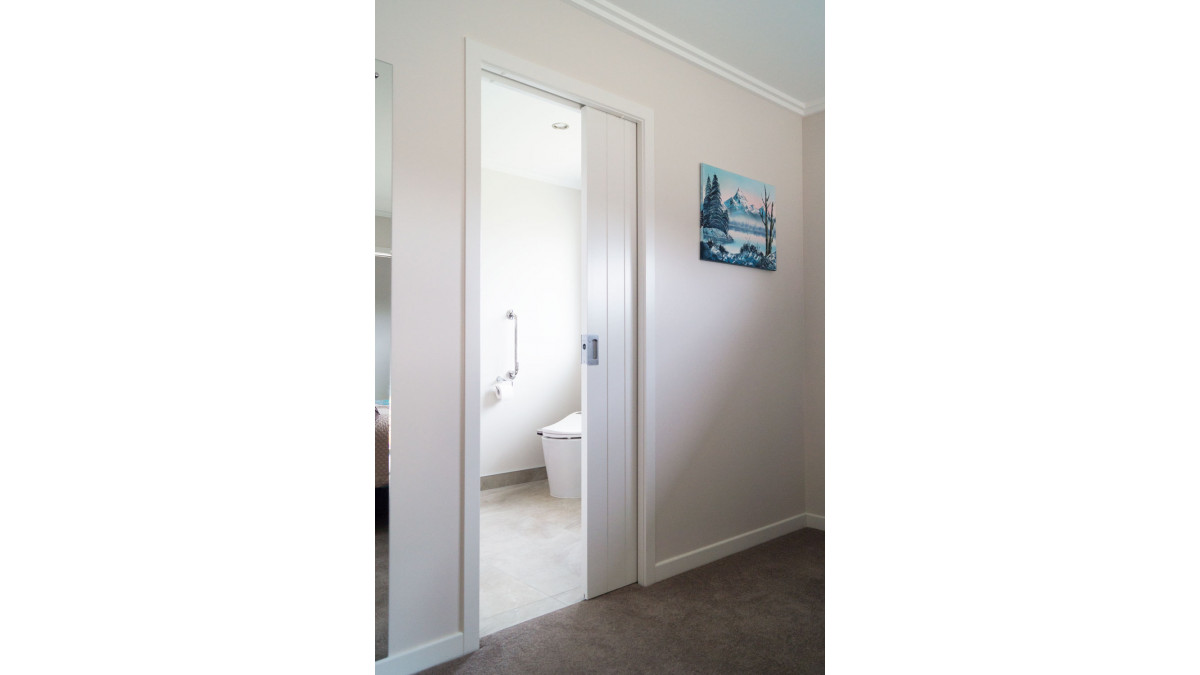

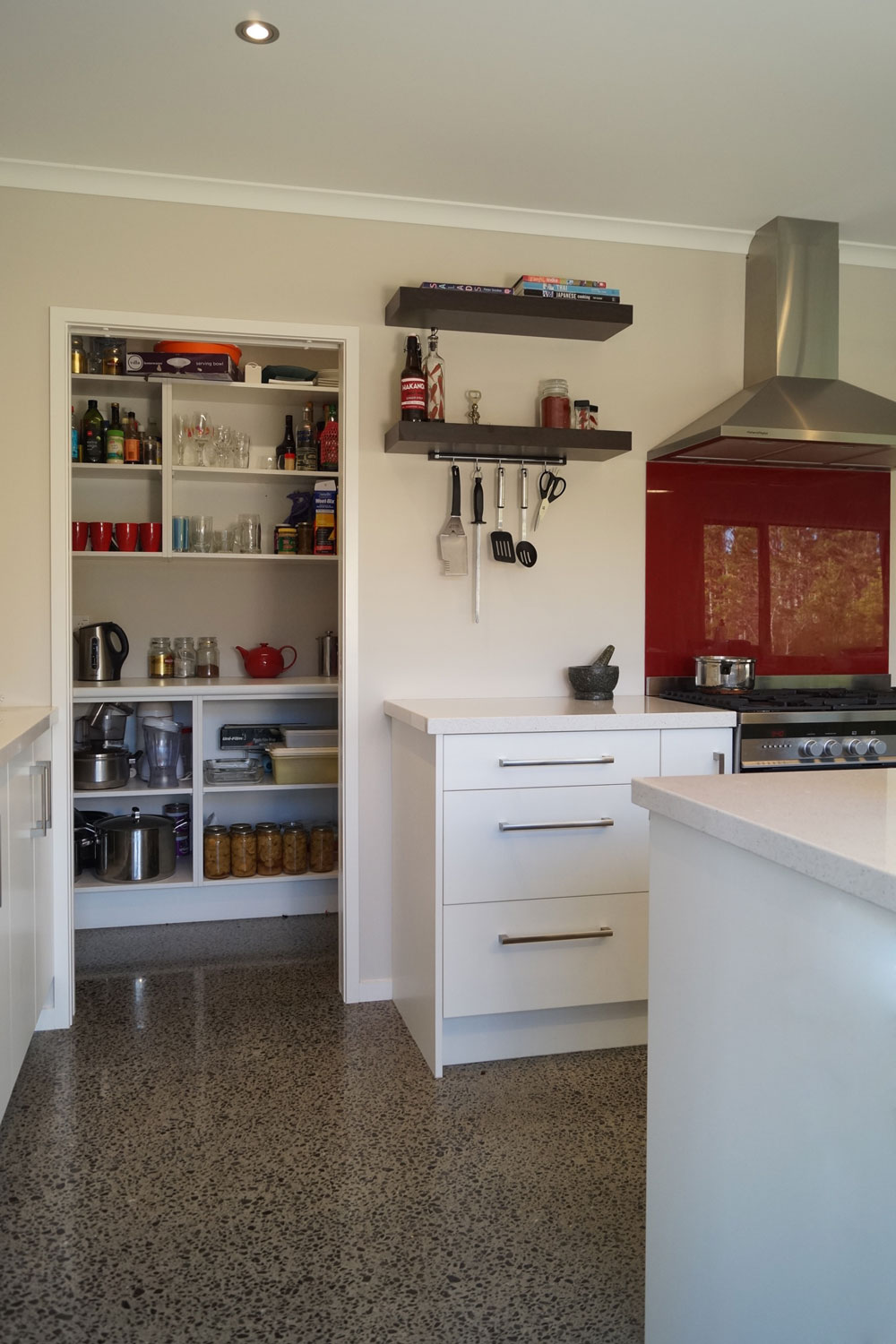

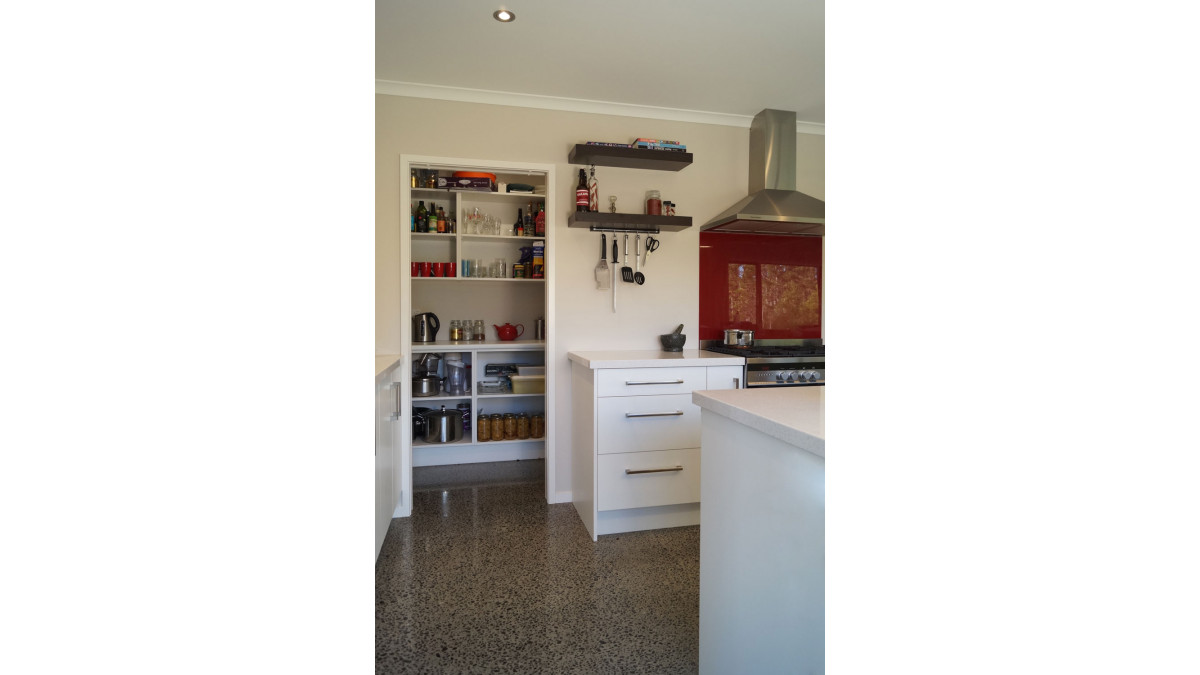

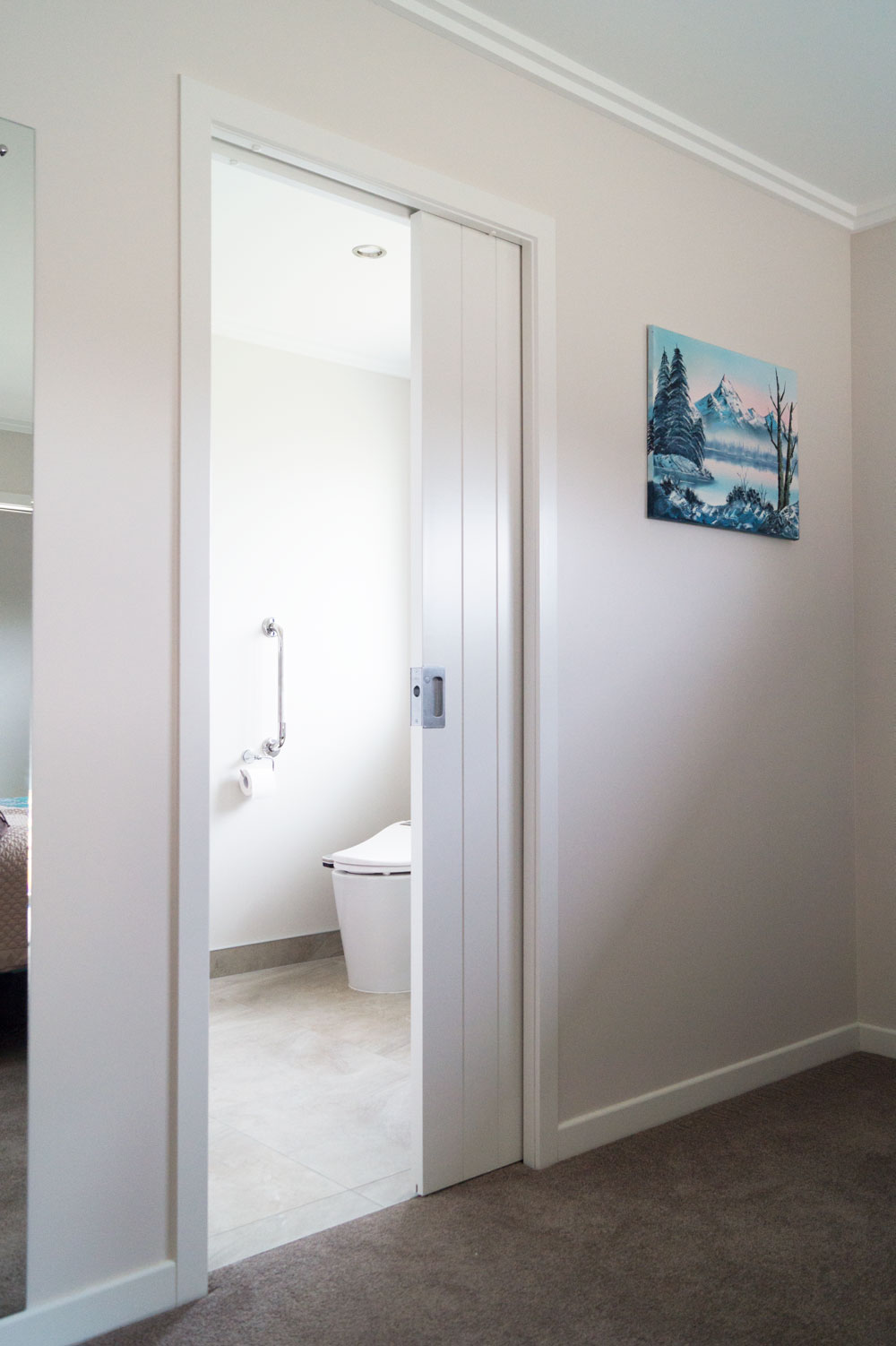

The CS SpaceMaker is a practical solution for those areas where there is not enough space for a pre-hung door, such as en suites, wardrobes and hallway cupboards.

As this is CS For Doors' most common cavity slider model, this unit is kept in stock at all times for convenience. The CS SpaceMaker is ready made in stock standard sizes (1980mm high x 610, 660, 710, 760, 810, 860 and 910mm wide) or made to measure up to 2100 x 1000mm.

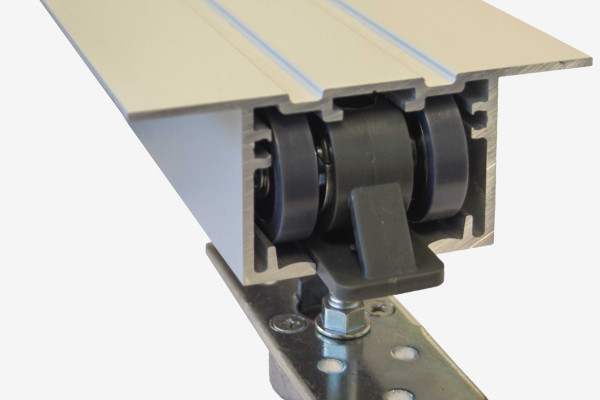

Operation: Choose from standard M6 (120kg) carriages, SofStop Single soft close (100kg) or SofStop Twin soft open and close (50kg)

Key Features

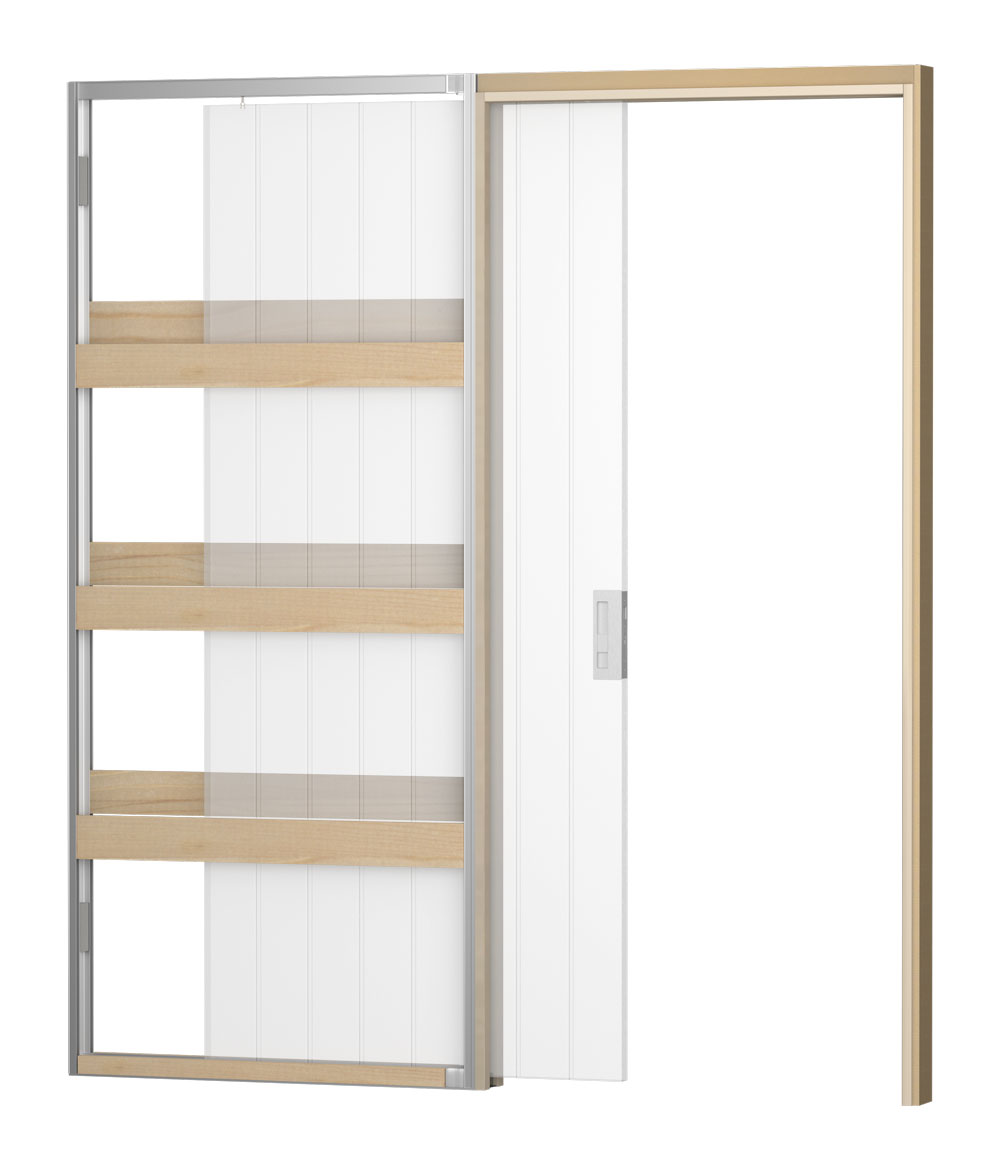

  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door and carriages can be removed without removing wall linings

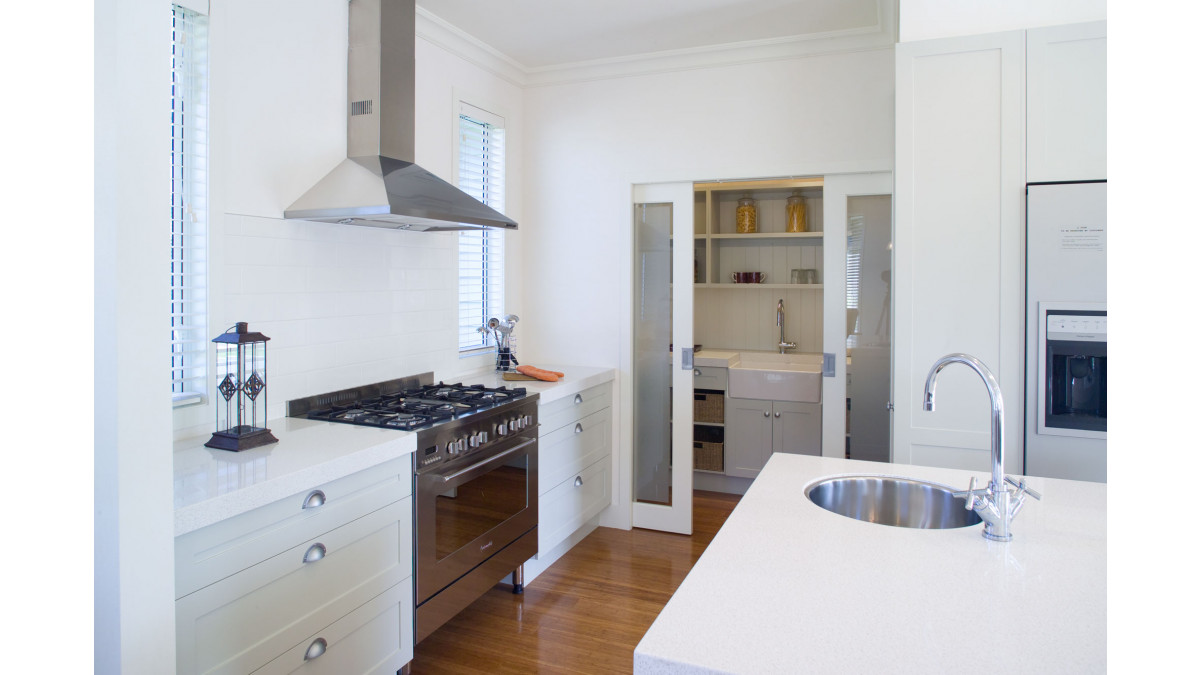

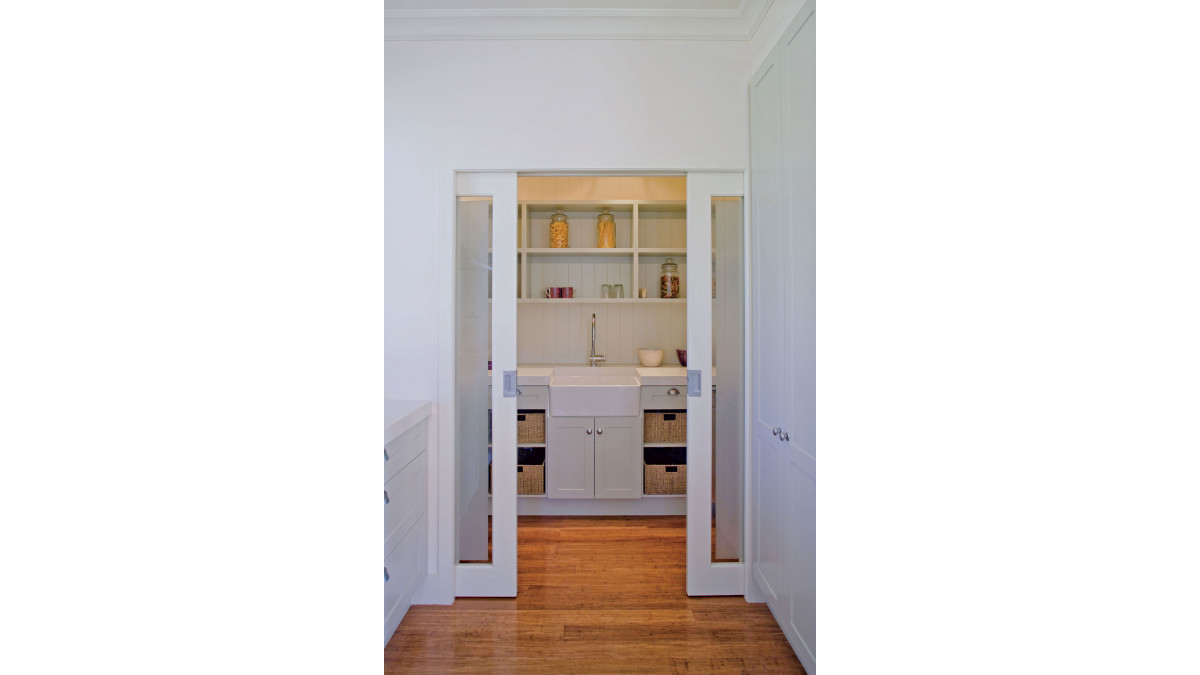

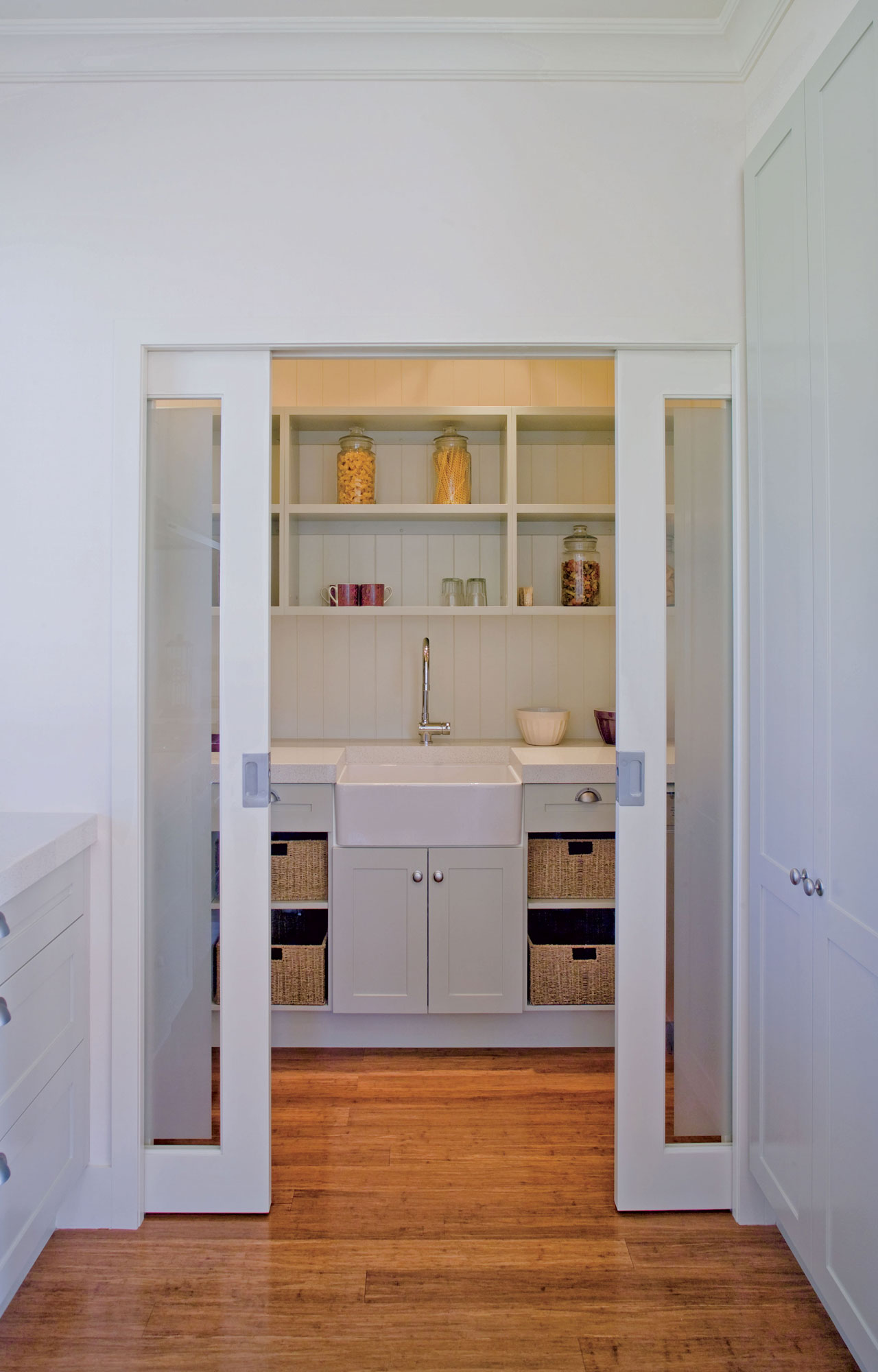

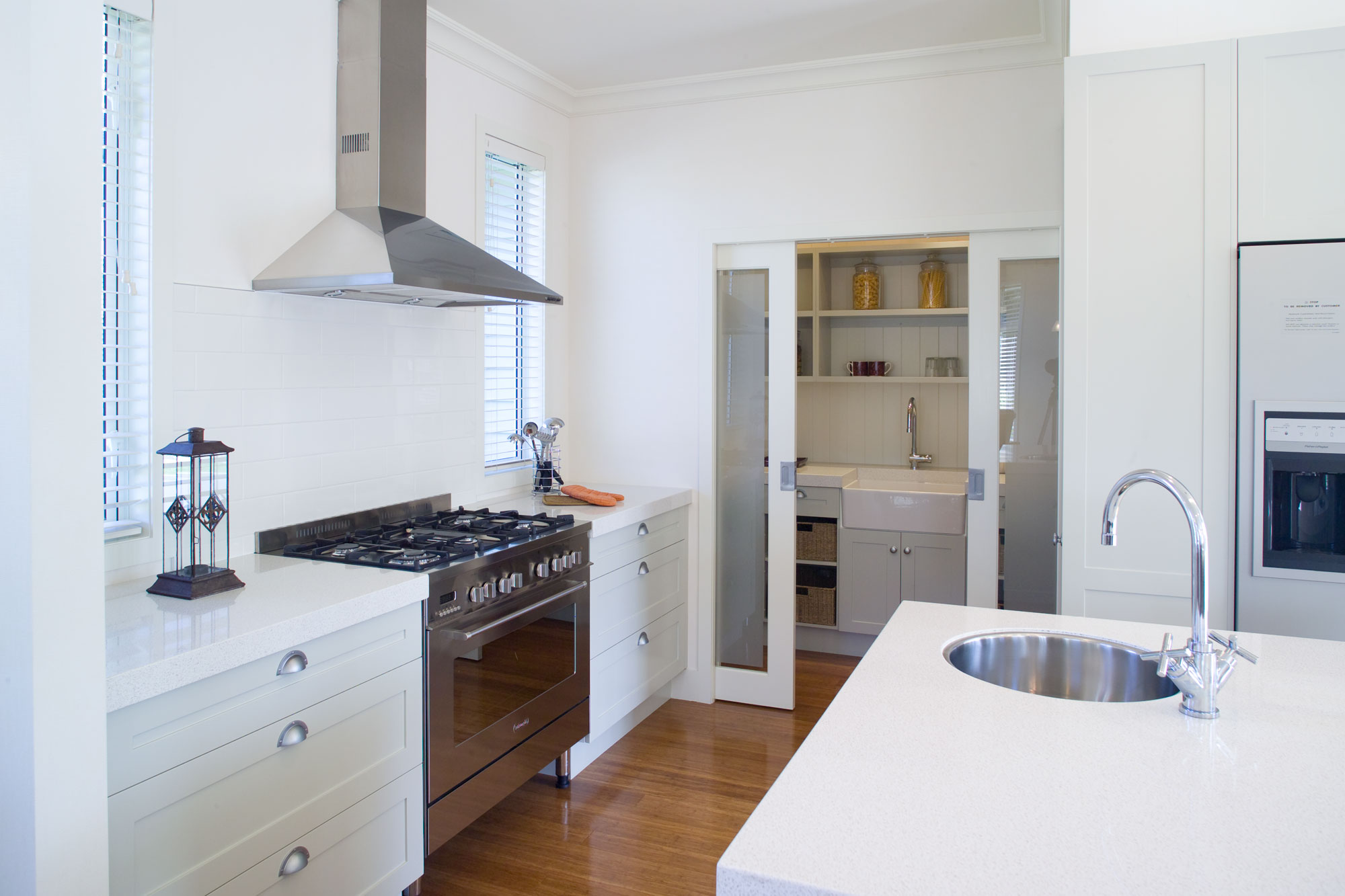

  • Available as single or bi-parting (double) units
  • Door cannot jump off the track
  • Fits into a standard thickness wall (90 x 45 framing)
  • Supplied fully assembled for on-site installation
  • No visible floor guides
Categories
Cavity Sliders
NZ Made
NZ Made
Scope of Use
  • CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings
  • A practical solution for those areas where there is not enough space for a pre-hung door, such as en suites, wardrobes and hallway cupboards
  • Standard sizes (1980mm high x 610, 660, 710, 760, 810, 860 and 910mm wide) or made to measure up to 2100 x 1000mm
Limitations on Use
  • CS Cavity Sliders are not suitable for use with fire doors or smoke control doors
  • CS Cavity Sliders are suitable for use in single detached dwellings (SH purpose groups). In all other purpose groups, CS Cavity Sliders are not permitted within or for providing access to exit-ways
Statement of Building Code Compliance

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]].
  • Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements.
  • Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people.
In-Service History

CS Cavity Sliders have been successfully used in commercial, residential and institutional projects in New Zealand and Australia since 1986.

Other Performance Attributes
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door cannot jump off the track
  • CS Cavity Sliders are backed by a 10 year written guarantee
B1 Structure compliant
Structure
B2 Durability compliant
Durability
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Data Sheet
BRANZ Appraisal

900 [2020]

Maintenance Instructions
Warranty
Additional Information

CS For Doors are a manufacturer of cavity sliding door systems and related products.
