TitanPanel Laminate Panels
Description

Compac Panels TitanPanel is a pre-finished decorative panel solution manufactured in Dargaville, and engineered for interior environments requiring impact resistance and surface durability, TitanPanel consists of a 0.2mm thick melamine-impregnated Continuous Pressure Laminate (CPL) overlay factory-pressed onto an MDF or plywood substrate.

TitanPanel combines scratch, abrasion, and moisture resistance with decorative styling options, including woodgrain textures, matte embossed surfaces, and solid colours. Supplied pre-finished with matching edge tape options available, panels are pressed to order on specified substrates with a standard production lead time of one week.

Substrate options and sizes include:

  • MDF (Medium Density Fibreboard): 2440 x 1220mm sheets available in 4.75mm, 6mm, 9mm, 12mm, 16mm, 18mm, and 25mm thicknesses.
  • HMR-MDF (Highly Moisture Resistant): 2440 x 1220mm sheets available in 18mm thickness.
  • INDO Ply: 2440 x 1220mm sheets available in 12mm, 16mm, and 18mm thicknesses.
  • Birch Ply: 2440 x 1220mm sheets.
Key Features
  • CPL Surface Technology: Laminated with a 0.2mm melamine-impregnated Continuous Pressure Laminate (CPL) overlay providing scratch, abrasion, and impact resistance.
  • Moisture & Stain Resistant Surface: Formulated to resist moisture and common household stains, enabling easy cleaning and long-term performance in joinery applications.
  • Screw-Holding Stability: Sourced from fast-growing New Zealand radiata pine forests, long wood fibres provide substrate stability that resists warping and supports strong screw retention.
  • Decorative Options: Offered in solid colours and authentic woodgrain finishes with matte embossed surface textures.
  • Efficient Workshop Fabrication: Prefabricated to allow cutting, edge-banding, and routing using standard woodworking and CNC machinery.
NZ Made
NZ Made
Scope of Use
  • Commercial and Retail Interiors: Suitable for retail shopfitting, display systems, feature wall linings, and commercial furniture.

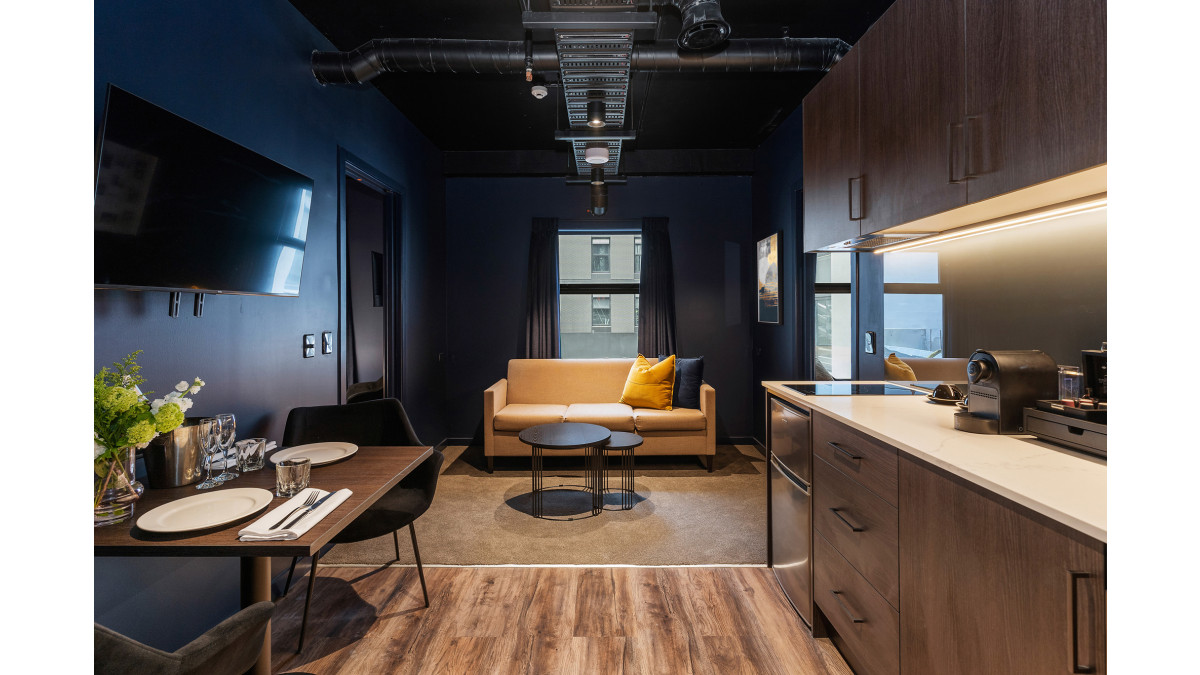

  • Hospitality Fit-outs: Suitable for reception desks, fitted joinery, and interior wall linings in restaurant and hotel environments.
  • Residential Cabinetry: Recommended for interior cabinetry across kitchens, bathrooms, laundries, and wardrobes.

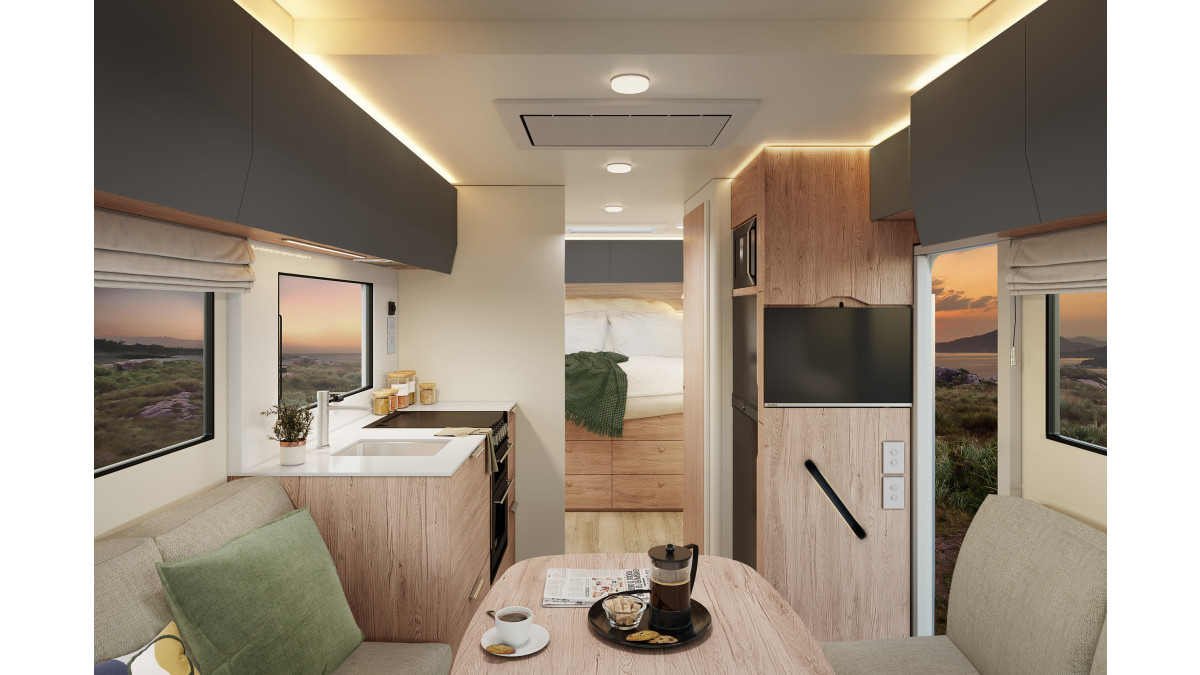

  • Mobile and Automotive Joinery: Suitable for internal wall linings and fitted joinery in motorhomes, caravans, and commercial vehicle fit-outs.
Limitations on Use
  • Interior Use Only: Designed exclusively for internal applications and controlled interior environments.
  • Non-Structural: Cannot be used as structural load-bearing components in wall or ceiling construction.
  • Moisture Exposure Limits: Panels are water and stain resistant but not fully waterproof. They must not be used in continuous wet-area applications (such as direct shower enclosures) or exposed to prolonged pooling water or extreme humidity.
Statement of Building Code Compliance

Compac Panels TitanPanel, if designed, used, installed, and maintained in accordance with the conditions of Compac Panels' technical documents, will comply with, or contribute to compliance with, the following performance provisions of the NZ Building Code:

  • Clause B2 DURABILITY: Performance B2.3.1(c) 5 years.
  • E3 Internal Moisture: E3.3.5
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.
In-Service History

TitanPanel is made in Dargaville and has been used in projects around the country since 2010.

Other Performance Attributes
  • The MDF substrate used in TitanPanel has been tested to NZBC VM2 / C/VM2 and achieved a Fire Classification Group Number 3 rating.
    The HPL surface laminate complies with standard BS EN 438-3.
  • New Zealand made MDF substrates meets ultra-low formaldehyde emission criteria — E0 (< 0.5 mg/L).
  • Wood fibers are sourced from FSC-certified New Zealand radiata pine forests and processed through FSC/PEFC accredited mills.
  • Non-Toxic Manufacturing: Lamination processes are completed without harsh or toxic chemicals, using eco-friendly European wood-product laminate paper rather than plastics. No rainforest timber products are used.
  • 100% Electrical Energy: Produced in a state-of-the-art facility operating 100% on electricity drawn from New Zealand's grid (82% renewable).
  • Resource Recycling: Cardboard packaging materials are recycled locally, and clean timber waste is diverted to agricultural composting.

Warranty & Maintenance:

  • Supported by a 10 year manufacturer's guarantee against faulty materials or defective manufacturing workmanship when handled and specified correctly.
  • Clean using a warm, damp microfibre cloth (well-wrung) and dry immediately with a clean cloth. Standard streak-free glass cleaner or mild dishwashing liquid can be used for stubborn marks.
  • Do not use abrasive powders, bleach, scouring pads, sandpaper, wire wool, or solvent thinners as these will permanently damage the surface finish and void the warranty.
Documents
Specifications Sheet: TitanPanel
Material Safety Data Sheet: TitanPanel
Warranty: TitanPanel
Colour Range & Product Page: TitanPanel
