Description

Compac Panels PanelLam is a resilient, pre-finished high-pressure laminate (HPL) panel solution manufactured in Dargaville, and designed as a high-durability surface option for versatile commercial and residential applications. PanelLam consists of 0.8–1mm thick HPL sheets factory-pressed onto an MDF or plywood substrate.

The PanelLam surface is engineered to withstand demanding high-wear environments while offering heat-resistant, decorative qualities in woodgrain, mineral, and plain colour options. Stocked directly as raw laminate sheets, panels are pressed to order on specified substrates with a standard lead time of one week. Matching edge tape is available to complete joinery fabrication.

Substrate options include:

  • MDF (Medium Density Fibreboard): 2440 x 1220mm sheets available in 4.75mm, 6mm, 9mm, 12mm, 16mm, 18mm, and 25mm thicknesses.
  • HMR-MDF (Highly Moisture Resistant): 2440 x 1220mm sheets available in 18mm thickness.
  • INDO Ply: 2440 x 1220mm sheets available in 12mm, 16mm, and 18mm thicknesses.
  • Birch Ply: 2440 x 1220mm sheets.
Key Features
  • High-Wear Surface: Engineered with an 0.8–1mm HPL layer to deliver high impact, stain, and moisture resistance across high-use areas.
  • Thermal and Moisture Resistance: Designed to withstand heat and steam, making it suitable for demanding kitchen, laundry, and bathroom applications.
  • Superior Screw-Holding Stability: Sourced from fast-growing New Zealand radiata pine, long wood fibers provide structural substrate stability that resists panel warping.
  • Extensive Palette: Available in 36 stocked color options featuring natural woodgrain, mineral, and plain decorative finishes.
  • Fabrication Versatility: Supplied prefabricated and ready for custom cutting, routing, and processing into doors, cabinetry, and commercial fit-outs.
NZ Made
NZ Made
Scope of Use
  • Commercial and Retail Interiors: Ideal for heavy-wear retail shopfitting, display systems, counter tops, tabletops, and commercial-grade furniture.
  • Hospitality and Public Spaces: Suitable for wall linings, feature panels, reception desks, and high-traffic hospitality furniture.
  • Residential Joinery: Recommended for high-use cabinetry across kitchens, bathrooms, laundries, and internal doors.
  • Automotive and Mobile Fit-outs: Suitable for internal wall linings and furniture in motorhomes, caravans, and commercial vehicle joinery.
Limitations on Use
  • Interior Use Only: Designed exclusively for internal applications and interior environmental conditions.
  • Non-Structural: Cannot be utilised as structural load-bearing elements in wall or ceiling construction.
  • Moisture Limits: Panels are water and stain resistant but not fully waterproof. They must not be exposed to standing water, continuous saturation, or excessive ambient moisture/humidity.
Statement of Building Code Compliance

Compac Panels PanelLam, if designed, used, installed, and maintained in accordance with the conditions of Compac Panels' technical documents, will comply with, or contribute to compliance with, the following performance provisions of the NZ Building Code:

  • Clause B2 DURABILITY: Performance B2.3.1(c) 5 years.
  • E3 Internal Moisture: E3.3.5
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.
Other Performance Attributes
  • The MDF substrate used in PanelLam has been tested to NZBC VM2 / C/VM2 and achieved a Fire Classification Group Number 3 rating. Additionally, the HPL surface laminate complies with standard BS EN 438-3.
  • New Zealand made MDF substrates meets ultra-low formaldehyde emission criteria — E0 (< 0.5 mg/L).
  • Wood fibres are harvested from FSC-certified New Zealand radiata pine forests and processed through FSC/PEFC accredited timber mills.
  • Non-Toxic Lamination: Factory lamination uses eco-friendly European paper laminates without harsh toxic chemicals or rainforest-derived timber products.
  • Renewable Energy Manufacturing: Produced in a facility running on 100% electricity sourced from New Zealand's grid (82% renewable).
  • Waste Minimisation: Cardboard packaging is processed via local recycling, and wood offcuts/waste are diverted to agricultural composting.

Warranty & Maintenance

  • Supported by a 10-year manufacturer's warranty against material defect or faulty workmanship when specified and installed in accordance with technical recommendations.
  • Clean with a warm, damp microfibre cloth and wipe dry immediately. Mild household surface cleaner or dishwashing liquid can be used for persistent marks.
  • Do not clean with abrasive powders, bleach, scouring pads, sandpaper, or harsh solvent thinners as these will permanently damage the surface and void the warranty.
Documents
Specifications Sheet: PaneLam
Material Safety Data Sheet: PanelLam
Warranty: PanelLam
Colour Range & Product Page: PanelLam
Sustainability Compac Panels

Compac Panels are a specialist manufacturer of inspiring, sustainable, laminated MDF and plywood panels for processing into fit-for-purpose final products.

Product Enquiries

News from Compac Panels

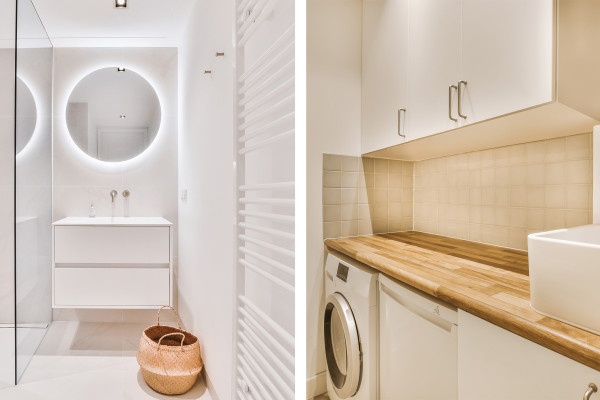

Designing Bathroom and Laundry Cabinetry for Moisture, Durability and Finish
