Swiftliner Prefinished Wall Linings
Description

Compac Panels SwiftLiner is a pre-finished interior wall lining system manufactured in Dargaville, New Zealand. Designed to streamline internal fit-outs, SwiftLiner serves as a direct, decorative replacement for traditional plasterboard on timber or steel-framed walls, eliminating the need for stopping, sanding, and site painting.

The panels feature an E0 rated, FSC-certified MDF substrate overlaid with a durable melamine-impregnated Continuous Pressure Laminate (CPL) finish, with the edges sealed using impact-resistant edge tape. Engineered with a tongue-and-groove joint profile, SwiftLiner supports hidden fixing methods to achieve clean, uninterrupted interior wall surfaces.

Available panel dimensions and configurations include:

  • Lengths: Available in 2400mm and 2700mm heights to suit standard floor-to-ceiling stud dimensions.
  • Substrate: E0 formaldehyde emission-rated MDF core.
  • Colour Palette: Designer options including White Elm, Coastal Elm, Mid Elm, Dark Elm, Aurora Oak, Northern Oak, Sinatra Oak, Valentina Teak, and Black White.
Key Features
  • Accelerated On-Site Installation: Pre-finished surface replaces traditional plasterboard installation, stopping, and painting steps, reducing construction timelines and site trade overlap.

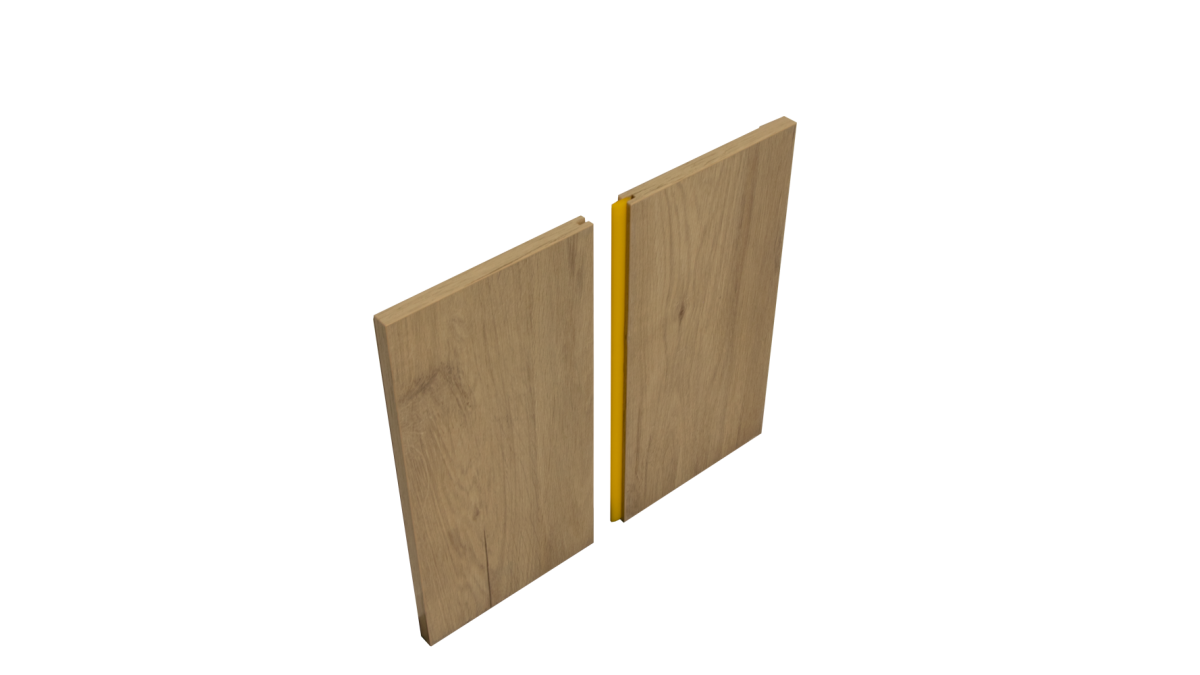

  • Concealed Fixing System: Tongue-and-groove edge profile enables hidden mechanical and adhesive fixing methods for a clean aesthetic.
  • Impact-Resistant Edging: Factory-sealed panel edges using impact-resistant tape protect joinery edges from daily wear during and after installation.
  • Single-Person Handling: Designed for systematic installation starting from one corner of a room, allowing single-trade handling.
  • Durable CPL Surface: Continuous Pressure Laminate (CPL) facing delivers a hard-wearing, cleanable interior finish for everyday commercial and residential use.
NZ Made
NZ Made
Scope of Use
  • Commercial and Retail Fit-outs: Suitable for fast-track commercial office linings, retail store walls, feature corridors, and interior partitions.
  • Multi-Unit and Residential Housing: Recommended for internal room linings, hallway walls, and wardrobe interiors in place of standard painted plasterboard.
  • Educational and Institutional Facilities: Suitable for interior wall areas where durable, low-maintenance pre-finished wall paneling is specified.
Limitations on Use
  • Interior Applications Only: Restricted exclusively to dry, climate-controlled interior wall applications.Non-Structural: Cannot be used as a structural bracing panel or load-bearing wall lining.
  • Wet Area Limits: Not suitable for direct wet-area wall linings (such as inside shower enclosures or areas subject to standing water).
  • Substrate Clearance: Panels must be installed with a 10mm clearance maintained from finished floor and ceiling surfaces during installation.
Statement of Building Code Compliance

Compac Panels SwiftLiner, if designed, used, installed, and maintained in accordance with the conditions of Compac Panels' technical literature, will comply with, or contribute to compliance with, the following performance provisions of the NZ Building Code:

  • Clause B2 DURABILITY: Performance B2.3.1(c) 5 years.
  • E3 Internal Moisture: E3.3.5
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.
In-Service History

SwiftLiner is made in Dargaville and has been used in projects around the country since 2023.

Other Performance Attributes
  • New Zealand made MDF substrates meets ultra-low formaldehyde emission criteria — E0 (< 0.5 mg/L).
  • Core wood fibre is sourced from FSC-certified New Zealand radiata pine forests.
  • Renewable Energy Manufacturing: Manufactured in a facility running on 100% electricity sourced from New Zealand's grid (82% renewable).
  • Waste Minimisation: Cardboard packaging materials are recycled locally, and clean wood waste is diverted to agricultural composting

Warranty

  • Supported by a 10-year manufacturer's warranty against faulty materials or lamination defects when handled, stored, and installed in accordance with Compac Panels' specification guidelines



Documents
Specifications Sheet: SwiftLiner
Material Safety Data Sheet: SwiftLiner
Warranty: SwiftLiner
Important Information: SwiftLiner
Sustainability Compac Panels
SwiftLiner Product Page

Compac Panels are a specialist manufacturer of inspiring, sustainable, laminated MDF and plywood panels for processing into fit-for-purpose final products.
