ColorCote AlumiGard (formerly AR8)
Description

AlumiGard is a pre-painted aluminium product, using a marine grade aluminium alloy substrate, for all roofing and cladding environments.

AlumiGard is suitable for use in ‘very severe’ marine environments, right up to the waterline, as well as chemical or acidic exposure in harsh industrial or geothermal areas.

For industrial environments where chemicals in the atmosphere may impact durability, AlumiGard X with 70% Polyvinylidene Flouride (PVDF) topcoat provides additional protection from chemicals along with the corrosion resistance of an aluminium substrate.

Key Features
  • Superior protection in the most extreme environments.
  • Marine grade aluminium alloy, as used in boat building.

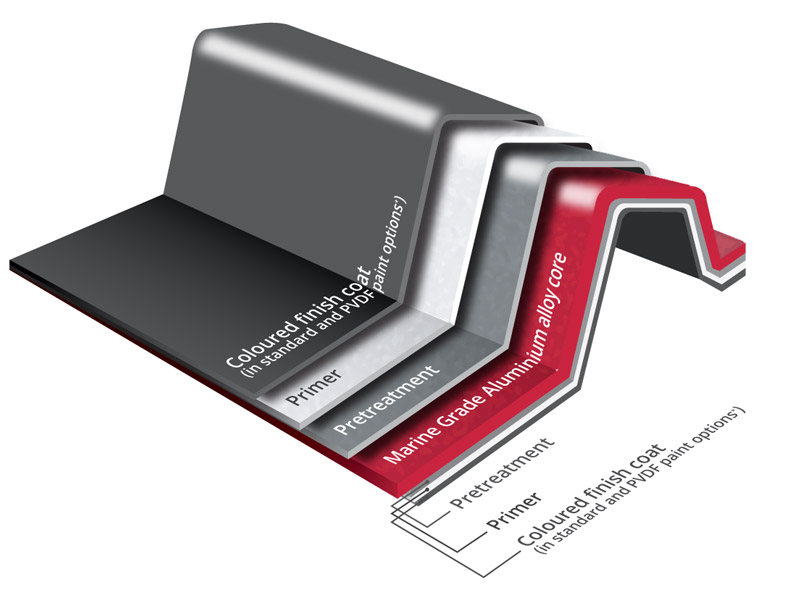

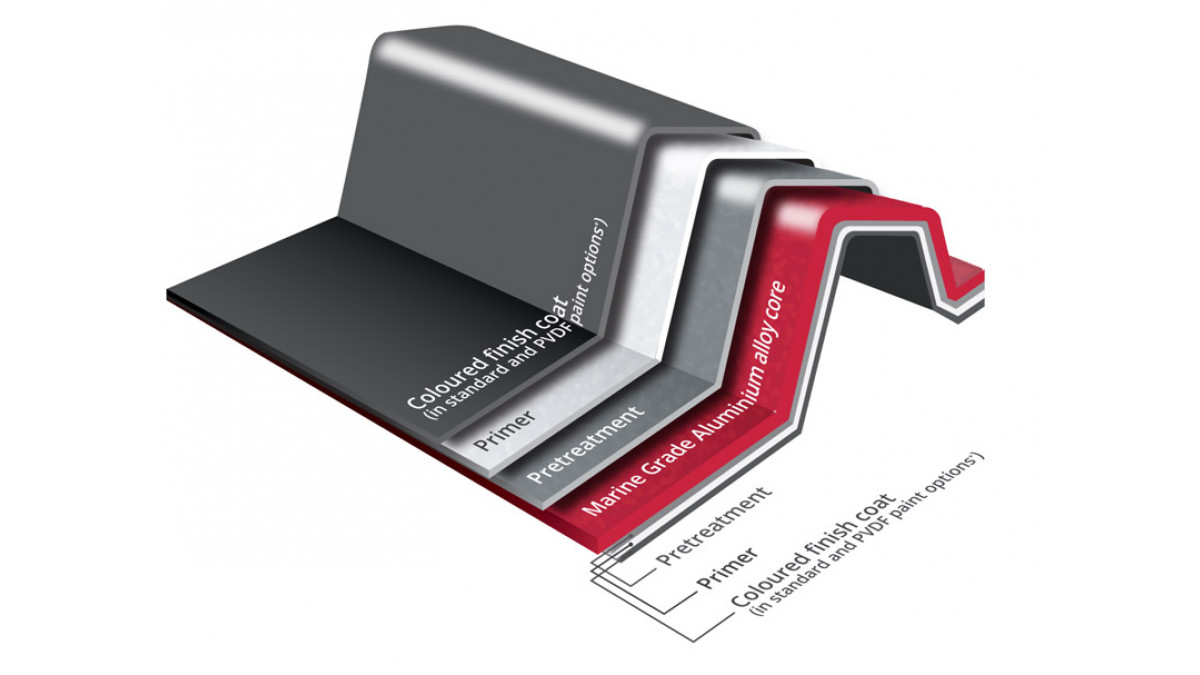

  • Acrylic or polyester top coat baked on a polyester primer, giving an extremely durable paint system.
  • Provides excellent gloss and colour retention and resists UV damage.
  • Option of 70% PVDF top coat, for greater paint protection in industrial environments where corrosive chemicals are present.
  • Available in over 40 colours.
Categories / Ranges
Aluminium Cladding Metal Roofing
Scope of Use

AlumiGard and AlumiGard X have outstanding colour and gloss retention and are suitable for roofing, cladding, and rainwater goods.

AlumiGard is ideal for interior and exterior applications, including ‘very severe marine’ and industrial sites where there is a very high risk of deterioration from corrosive elements in the environment. These include salt-laden, geothermal and heavy industrial environments (particularly acidic/low ph).

Where there are corrosive chemicals present in the atmosphere (such as airports, gas stations or loading bays), it is advisable to use AlumiGard X, with a 70% PVDF topcoat.

If users are unsure about which substrate and paint system is right for the build, ColorCote provide an online warranty enquiry form to give you a recommendation and warranty timing.





Limitations on Use

Do not use a pitch less than three degrees (eight degrees for standard corrugated profile) to avoid ponding and premature degradation of the coating system.

Buildings which have a highly alkaline (high ph) environment such as dairy factories and abbatoirs which use caustic cleaners, as well as fertiliser processing and storage facilities, may be better suited to ColorCote MagnaFlow.

Please contact ColorCote if unsure which product to use.

3° Minimum Roof Pitch Required
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
Statement of Building Code Compliance

ColorCote AlumiGard and AlumiGard X, under normal well washed conditions of exposure, can be expected to show no cracking (other than that which may occur during forming), flaking or peeling of the paint film for 15 years from the date of installation.

In-Service History

ColorCote has been leading New Zealand’s innovation of pre-painted steel and aluminium roofing and cladding products in NZ since 1973. They are proudly part of Fletcher Steel, a division of Fletcher Building Limited, New Zealand’s largest and most trusted construction and building supplies company.

Other Performance Attributes
  • Scratch resistance - ASTM D5178-13 - Good scratch resistance
  • Impact resistance - AS/NZS2728:2013 Table 2.2 and Appendix E - No loss of paint adhesion after testing
  • Bend test - AS/NZS2728:2013 section 2.6.1 and Appendix F – No loss of adhesion or paint cracking
  • Heat resistance - Suitable for continuous service up to 100ºC
  • Salt spray - Meets the requirements of AS/NZS2728:2013 Sections 2.8 and 2.10
  • Humidity resistance - Meets the requirements of AS/NZS2728:2013 Sections 2.8 and 2.9
  • QUV resistance (durability of coating system) - Meets the requirements of AS/NZS2728:2013 section 2.8 and Table 2.4
B2 Durability compliant
Durability
Test Results
Test Results
Documents
Data Sheet
Reflectivity Values
Accreditation
Environmental Information
Environmental Information
Potable Water Compliance
Warranty
Warranty
Brochure
Colour Range
Colour Range
Additional Information

ColorCote offers a unique three tier product range of prepainted steel or aluminium for roofing and cladding.
