ColorCote ZinaCore (formerly known as ZR8)
Description

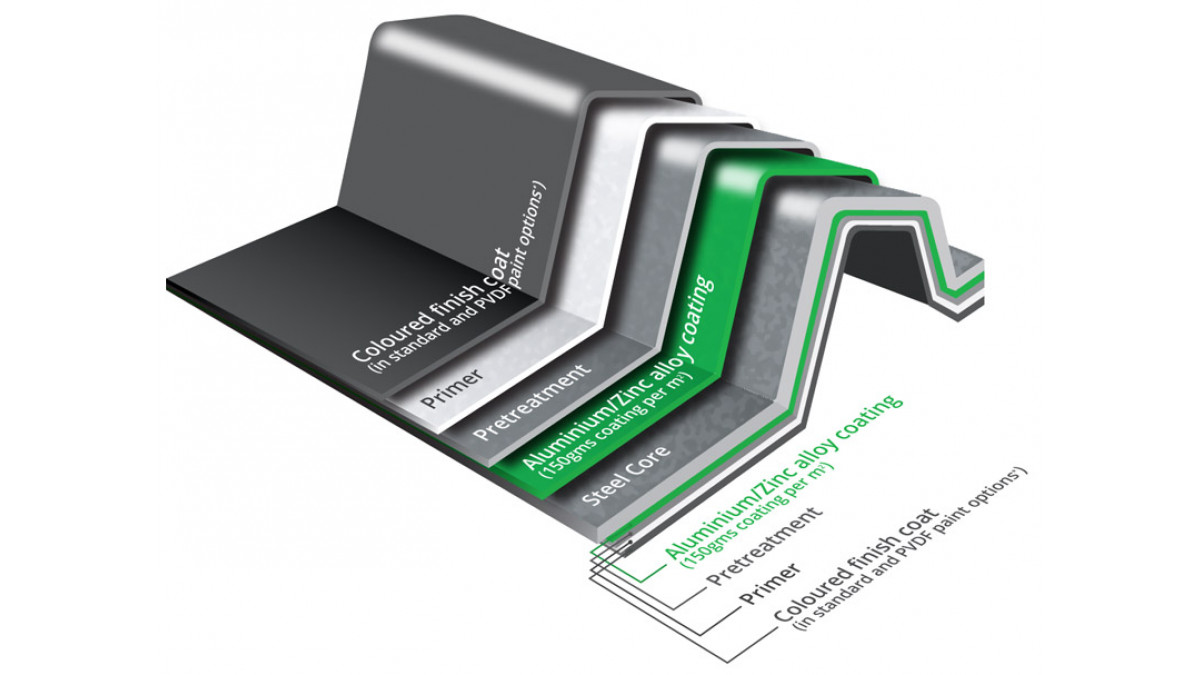

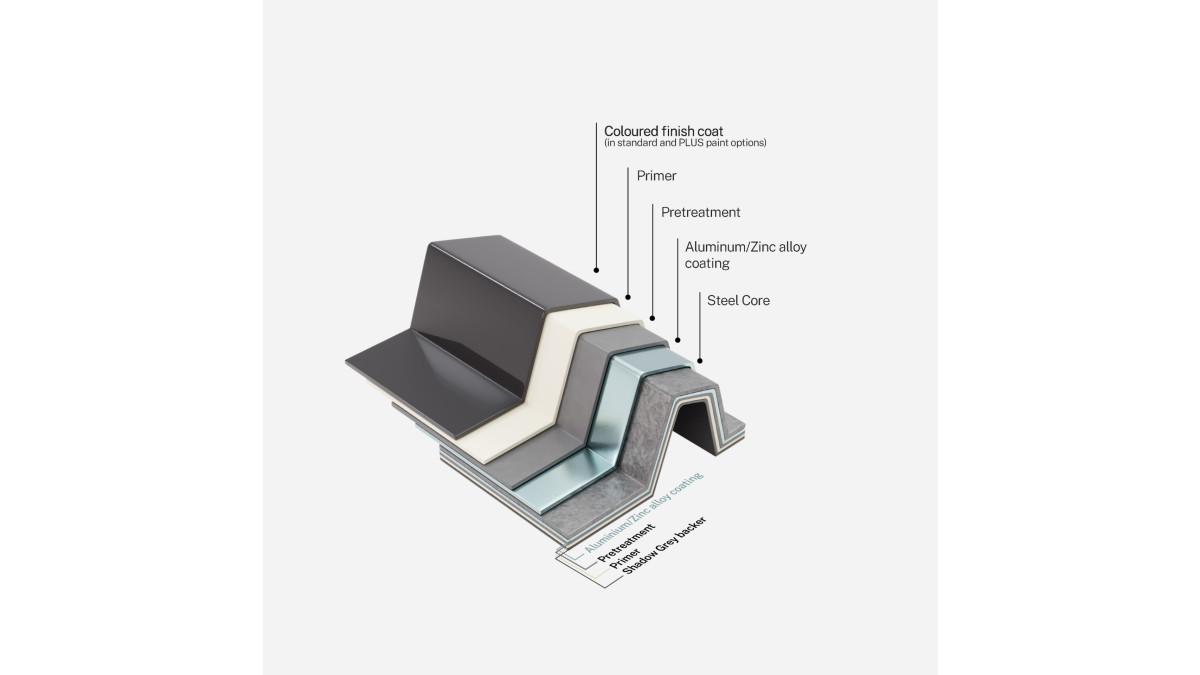

ColorCote ZinaCore is pre-painted steel with hot-dipped aluminium and zinc alloy, designed for excellent durability, colour retention and formability.

It is the innate ability to be easily re-formed offers profile options to suit any overall design aesthetic, all at an affordable price.

Option of 70% PVDF top coat, for greater paint protection in industrial environments where corrosive chemicals are present.

Key Features
  • Baked on colour will give many years of vibrant life without any signs of fading, cracking or peeling, under normal conditions.
  • Can be pliably roll-formed to the profile of user's choice.
  • Only a fraction of the weight of concrete, meaning it is safer in the event of an earthquake, and also lowers labour, infrastructure and material costs of installation.
  • Provides excellent gloss and colour retention.
  • Option of 70% PVDF top coat, for when you need greater paint protection.
  • Available in over 40 colours.
Scope of Use

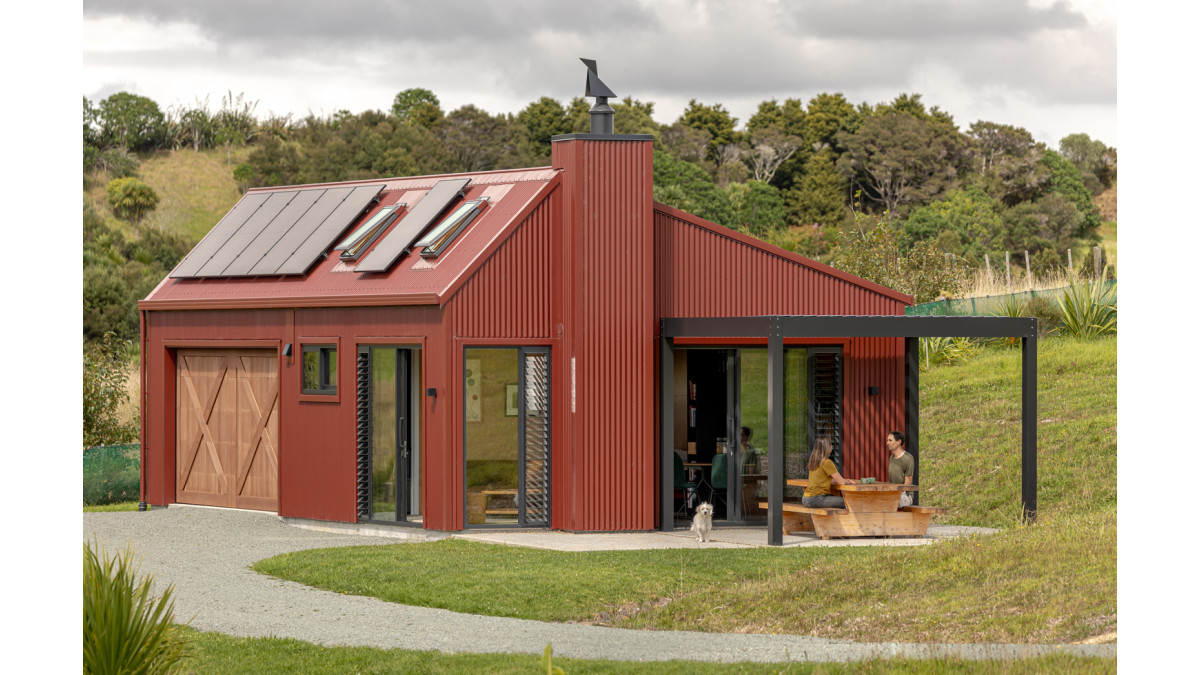

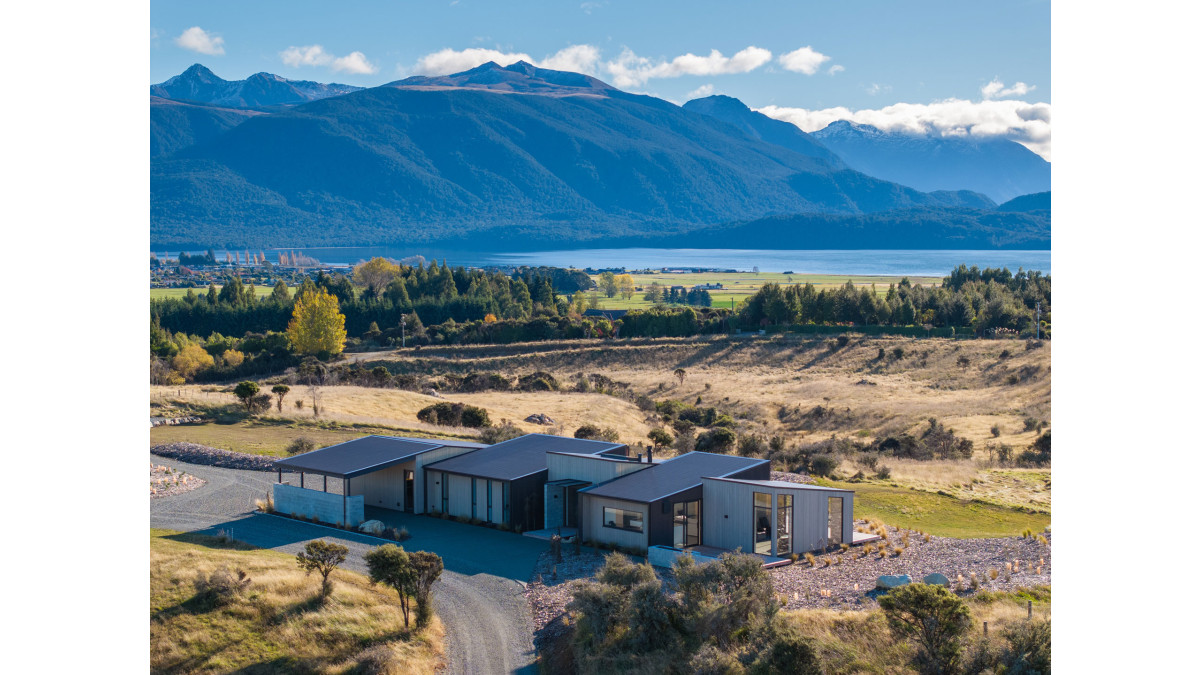

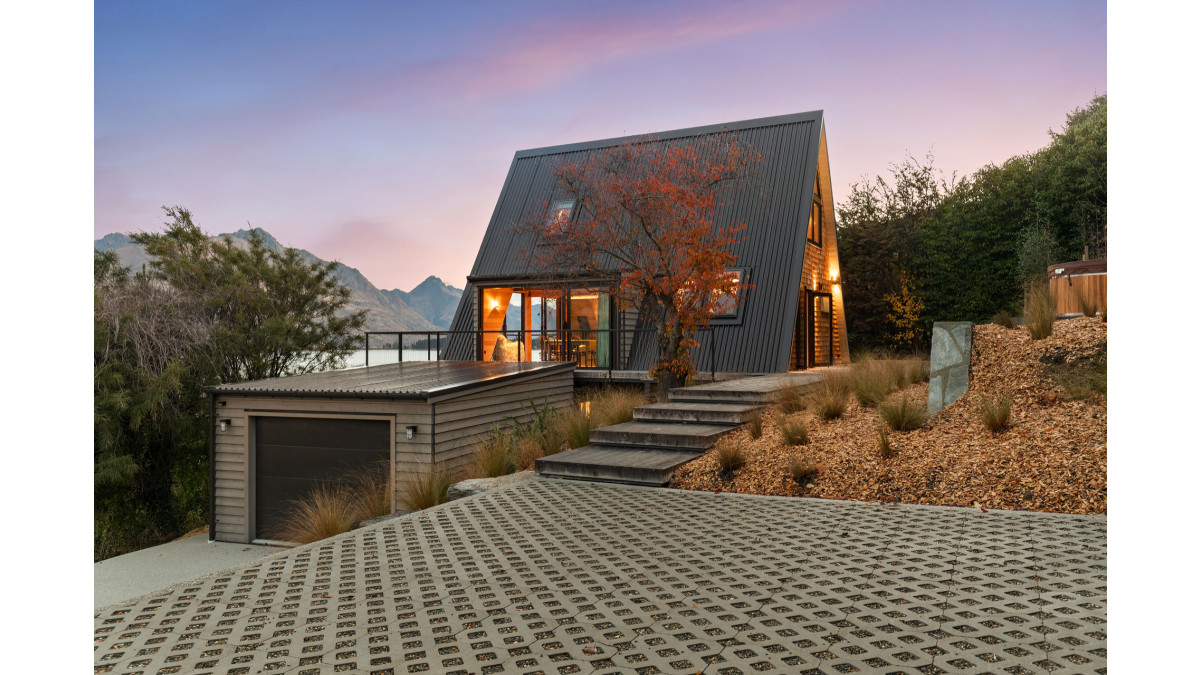

ZinaCore has very good colour and gloss retention and is suitable for roofing, cladding, and rainwater goods. It is ideal for interior uses and exterior environments where corrosion levels are moderate. It is also suitable for fencing applications.

ColorCote ZinaCore X is ideal for industrial sites where there is a high risk of deterioration from corrosive elements in the environment.

Limitations on Use

ColorCote ZinaCore and ZinaCore X are not suitable for use in the following situations:

  • Animal shelters where excessive ammonia fumes can accumulate due to inadequate venting, or where direct contact with animal effluent can occur.
  • Water tanks or areas where a constantly wet environment is maintained.
  • In direct contact with concrete or where lime deposits are evident.
  • In contact with soil (allow a 75mm run off below cladding sheets to ground level).
  • Roofs with pitches less than three degrees (eight degrees for standard corrugated profile).

ColorCote no longer warrant ZinaCore for rainwater goods and fascia, as MagnaFlow or AlumiGard products are more durable for these uses.

3° Minimum Roof Pitch Required
Statement of Building Code Compliance

ColorCote ZinaCore and ZinaCore X, under normal well washed conditions of exposure, can be expected to show no cracking (other than that which may occur during forming), flaking or peeling of the paint film for 15 years from the date of installation.

In-Service History

ColorCote has been leading New Zealand’s innovation of pre-painted steel and aluminium roofing and cladding products in NZ since 1973. They are proudly part of Fletcher Steel, a division of Fletcher Building Limited, New Zealand’s largest and most trusted construction and building supplies company.

Other Performance Attributes
Adhesion
Reverse Impact AS/NZS 2728:2013 (App. E) ≥ 7 Joules
T-Bend AS/NZS 2728:2013 (App. F) Maximum 6T
Specular Gloss
60' Meter ASTM D523-14 nominal 25 ±10 units, Low gloss option avalibale on some colours
Painted Film Hardness
Pencil AS/NZS 1580.405.1 HB or harder
Solvent Resistance ASTM D5402-15 Exceeds 50 double rubs
Scratch Resistance ASTM D5178-13 Needle carrying 2000g. No marking evident
Resistance to corrosion
Salt spray AS/NZS 1580.481.1.9, AS/NZS 2728:2013 Meets the requirements of Sections2.10, and Table 2.6 of AS/NZS 2728:2013
Outdoor Exposure (Rainfall Washed) AS/NZS 1580.481.1.9, AS/NZS 2728:2013 Meets the requirements of Sections2.8, and Table 2.3 of AS/NZS 2728:2013
Resistance to colour fade
QUV (2000hrs) AS/NZS 1580.601.4, AS/NZS 2728:2013 Meets the requirements of Sections2.8, and Table 2.4 of AS/NZS 2728:2013
Outdoor Exposure (Rainfall Washed) AS/NZS 1580.601.4, AS/NZS 2728:2013 Meets the requirements of Sections2.8, and Table 2.4 of AS/NZS 2728:2013
Resistance to humidity
Cleveland (500 hours) AS/NZS 1580.408.4, AS/NZS 1580.481.1.9 Meets the requirements of Sections2.9, and Table 2.5 of AS/NZS 2728:2013
Resistance to fire
Resistance to fire ISO 5660:2002 Group 1-S. Complies with the the NZBC paragraph A1.3
Documents
Data Sheet
Reflectivity Values
Accreditation
Environmental Information
Environmental Information
Potable Water Compliance
Warranty
Warranty
Brochure
Colour Range
Colour Range

ColorCote offers a unique three tier product range of prepainted steel or aluminium for roofing and cladding.
