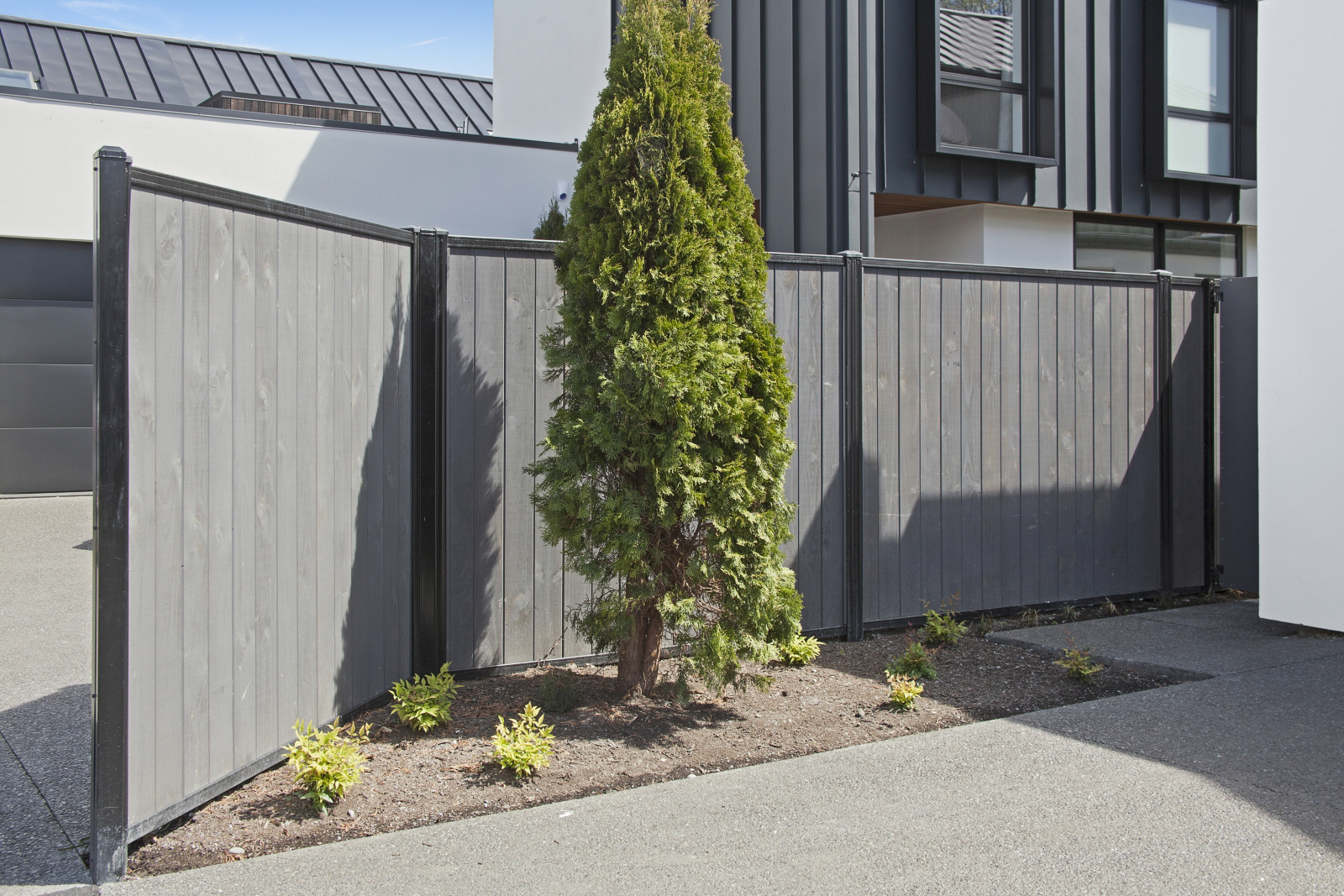

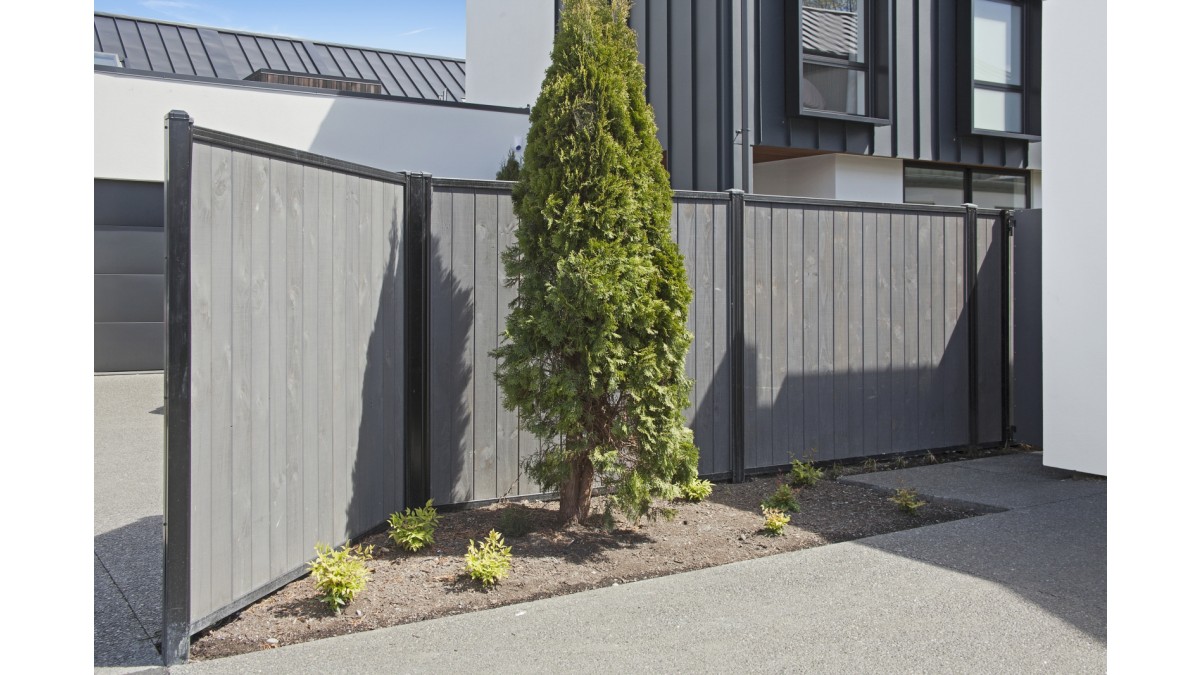

SmartWall Vertical Fencing System

SmartWall combines the strength of steel posts and rails with cross-laminated timber planks made from micro-pro treated radiata pine.

SmartWall has acoustic properties while also having a 65mm wide footprint making it ideal for tight boundaries with close neighbours and/or busy areas.

Available in Vertical or Horizontal, and with Slat-Top option.

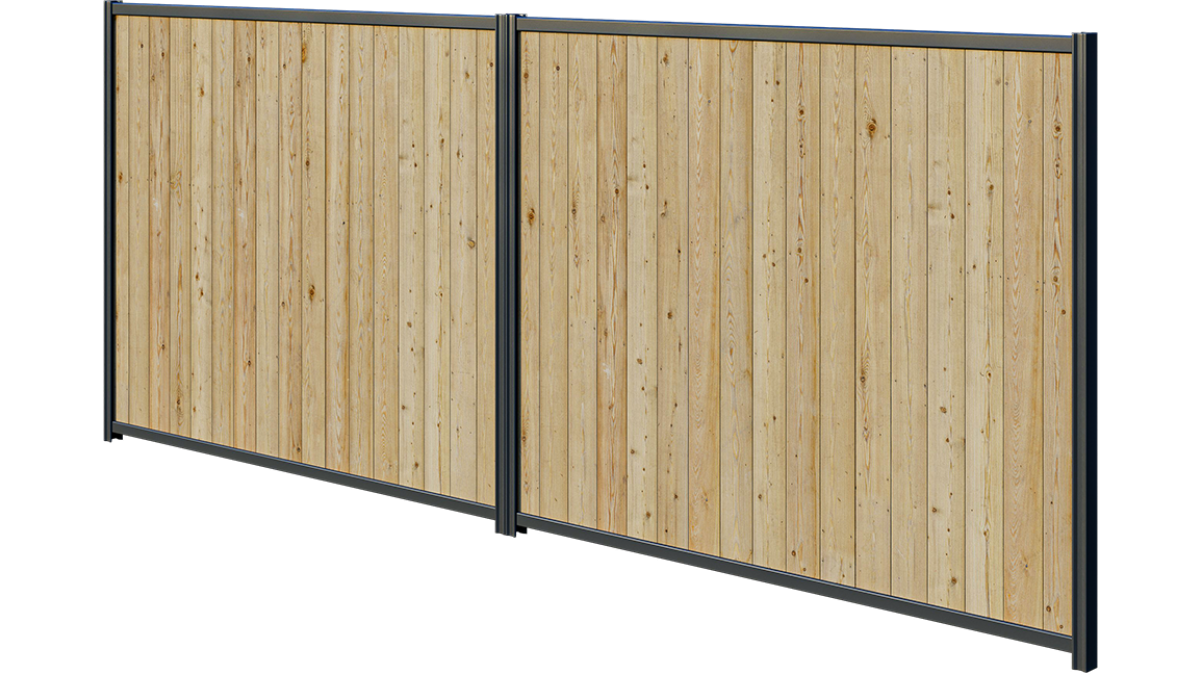

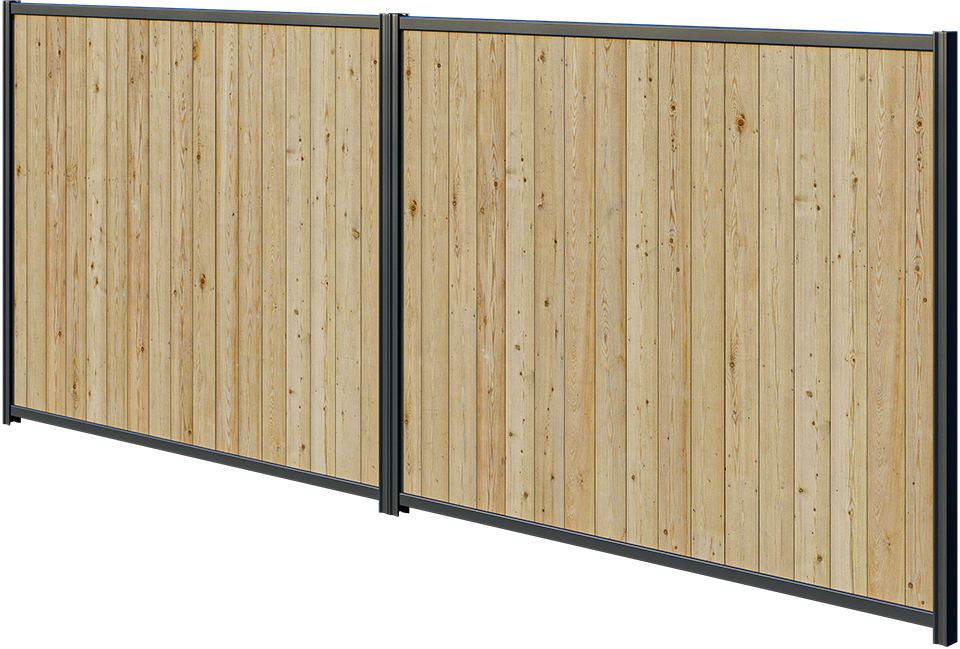

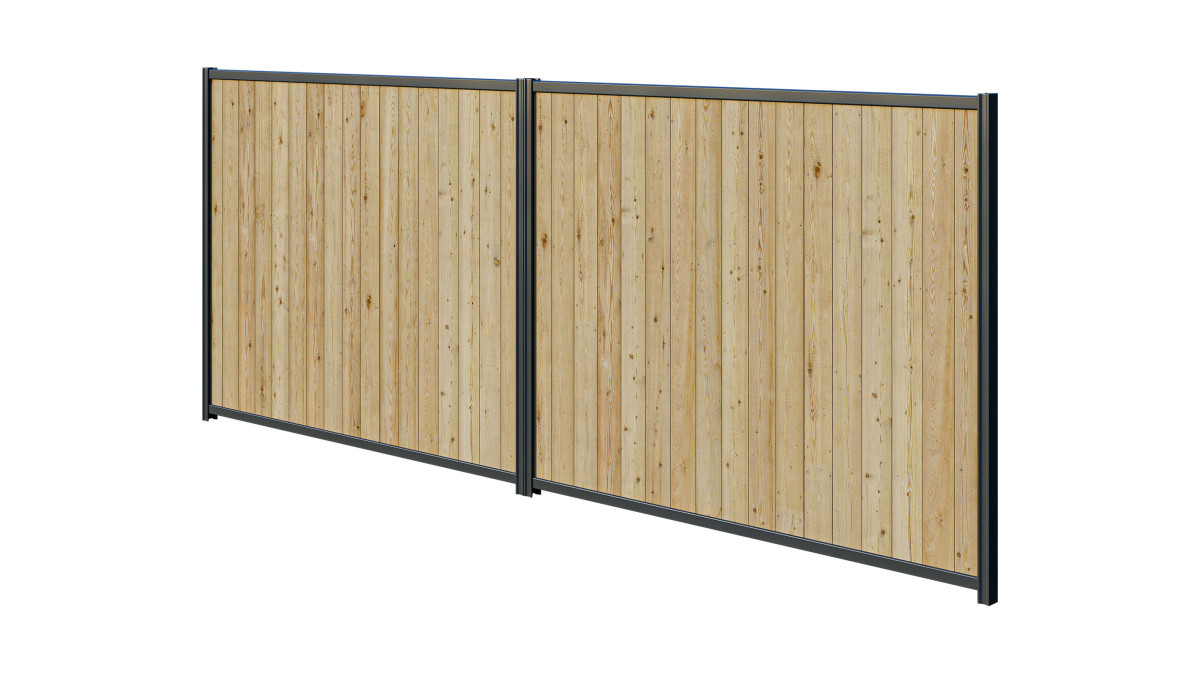

SmartWall Vertical:

  • Panel Heights: 1800mm
  • Post Centres: 2250mm
Key Features
  • Powder coated steel posts and rails — 3 colours
  • Cross laminated micro-pro treated radiata pine timber palings
  • Steel posts and rails with CLT laminated palings prevent twisting and warping over time
  • Tongue and Groove palings — prevent twisting, warping and buckling, and contribute to acoustic performance
  • Acoustic properties to reduce noise, acoustic report available
  • Narrow 65mm wide footprint
  • Both sides get same tidy, elegant finish
  • Customisable — horizontal or vertical infill and 300mm slat top option
Scope of Use
  • Ideal for applications where maximum privacy and noise reduction is desired, and for tight boundaries:

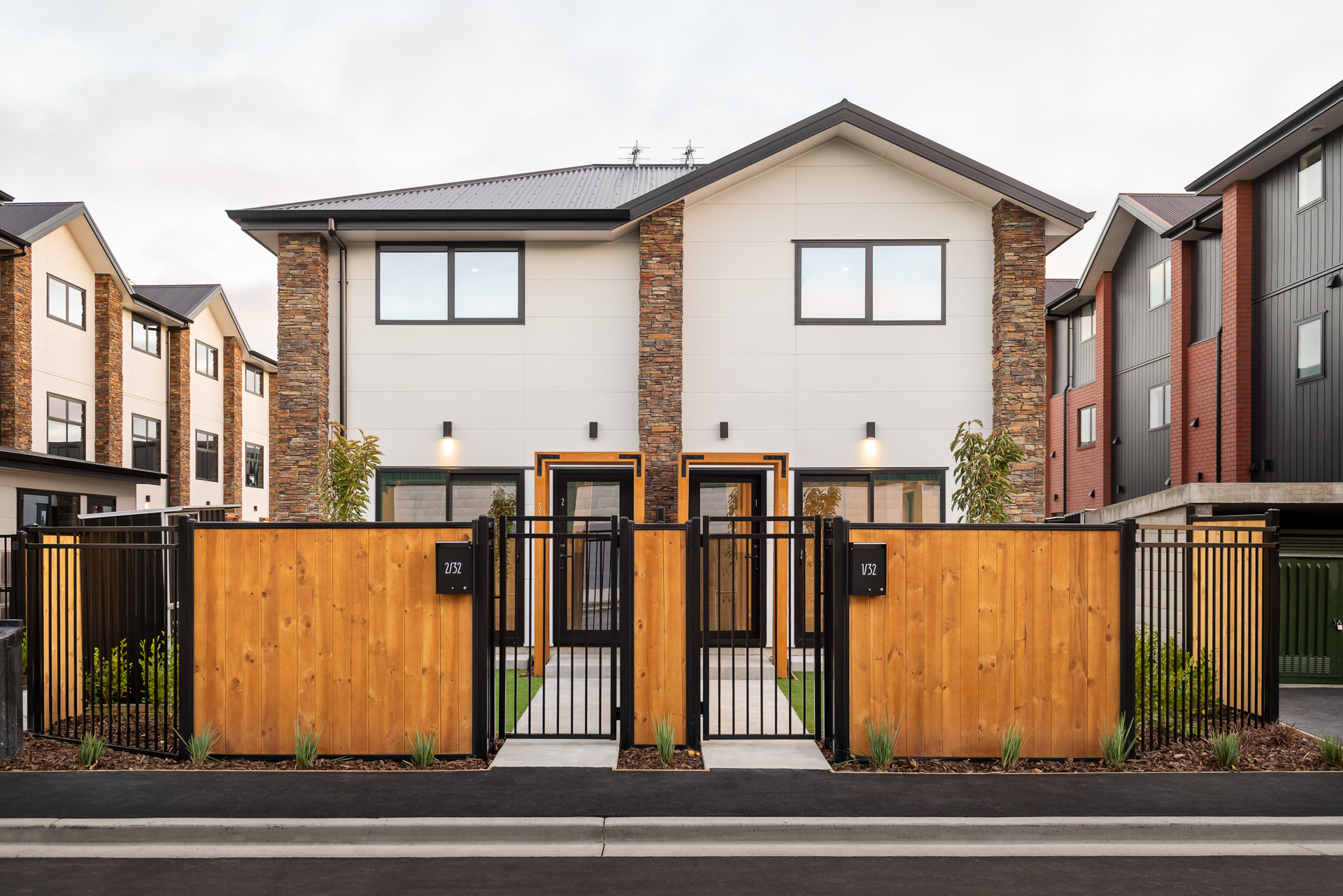

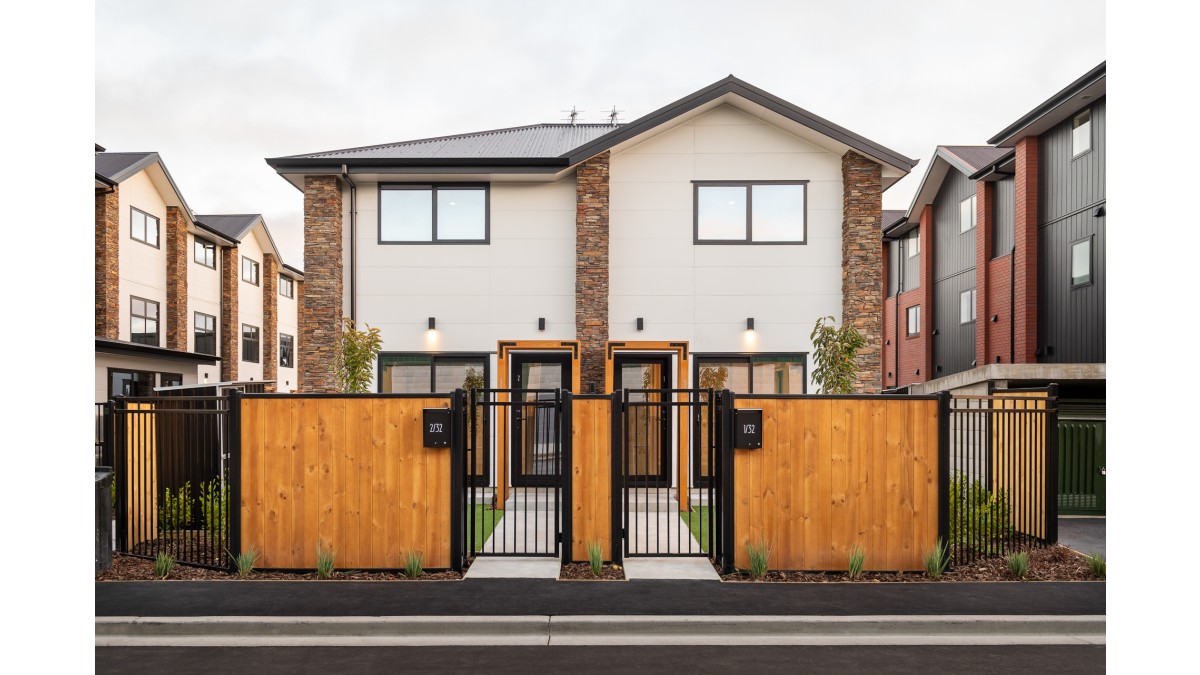

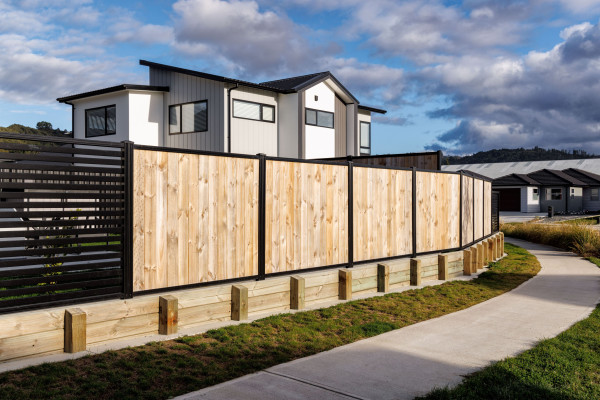

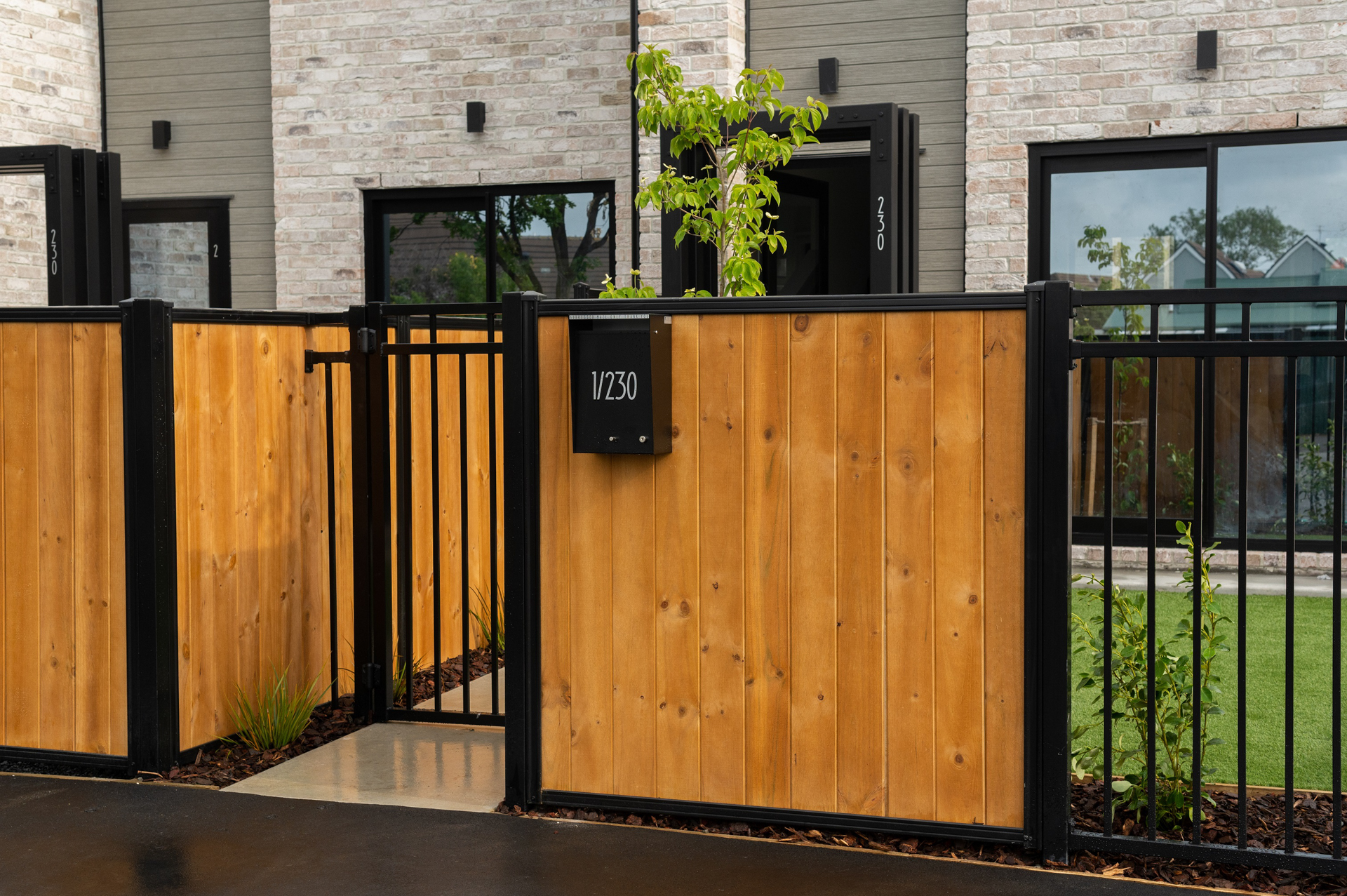

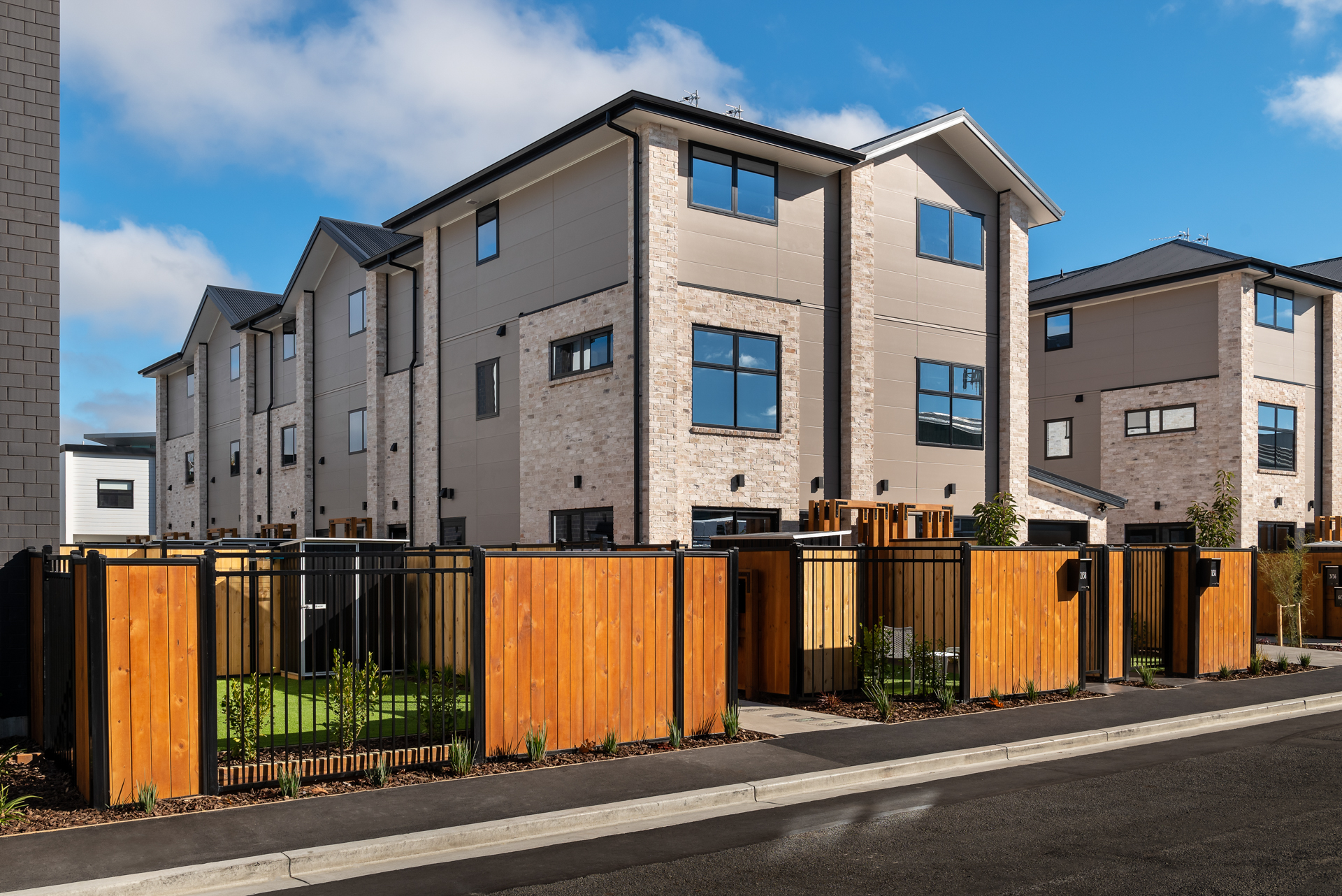

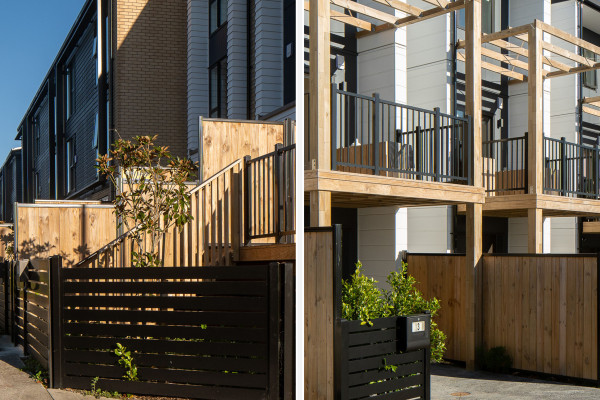

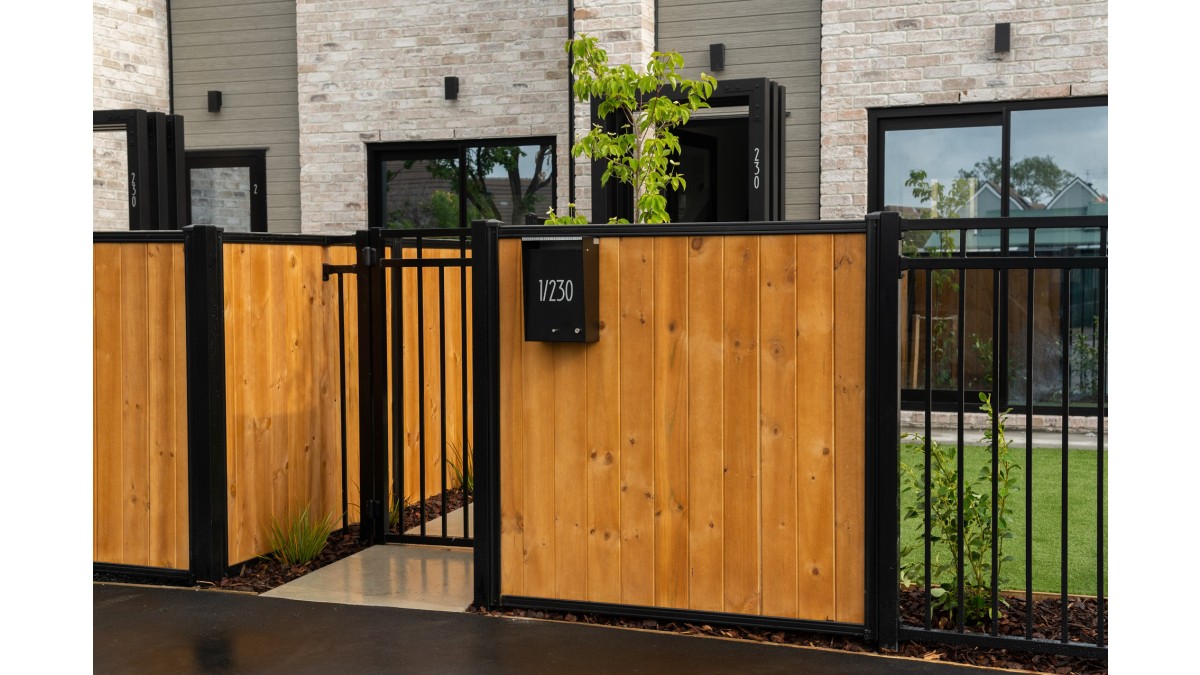

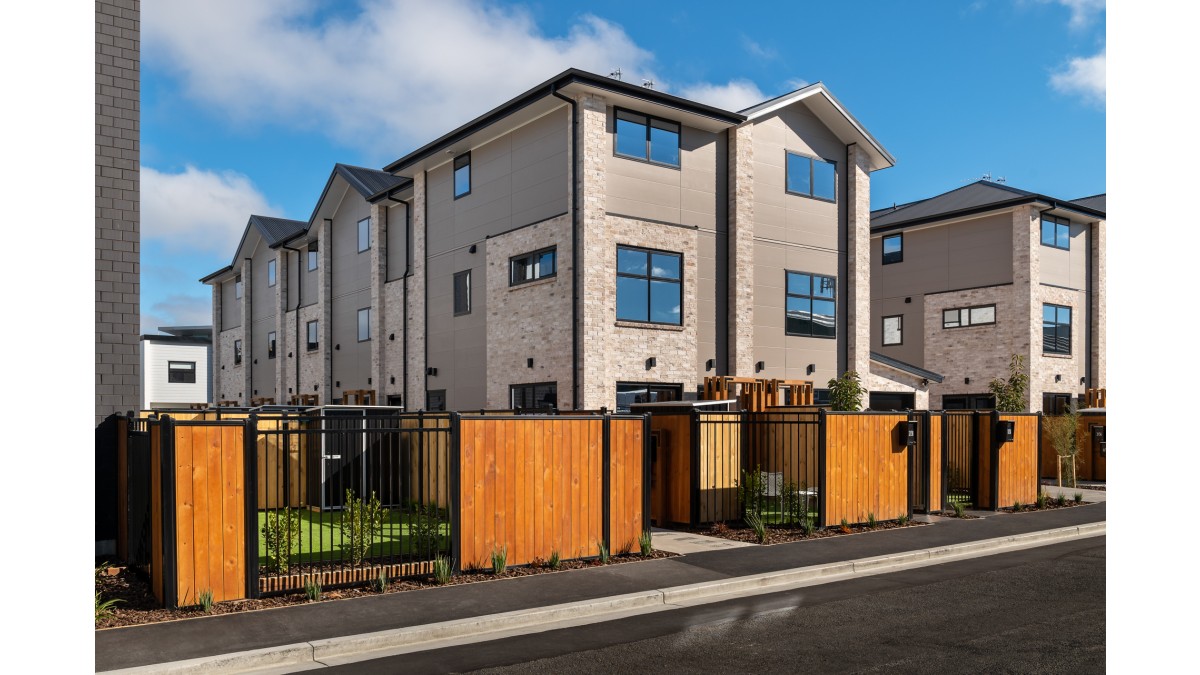

    • Residential boundary fencing and subdivisions
    • Medium density and intertenancy

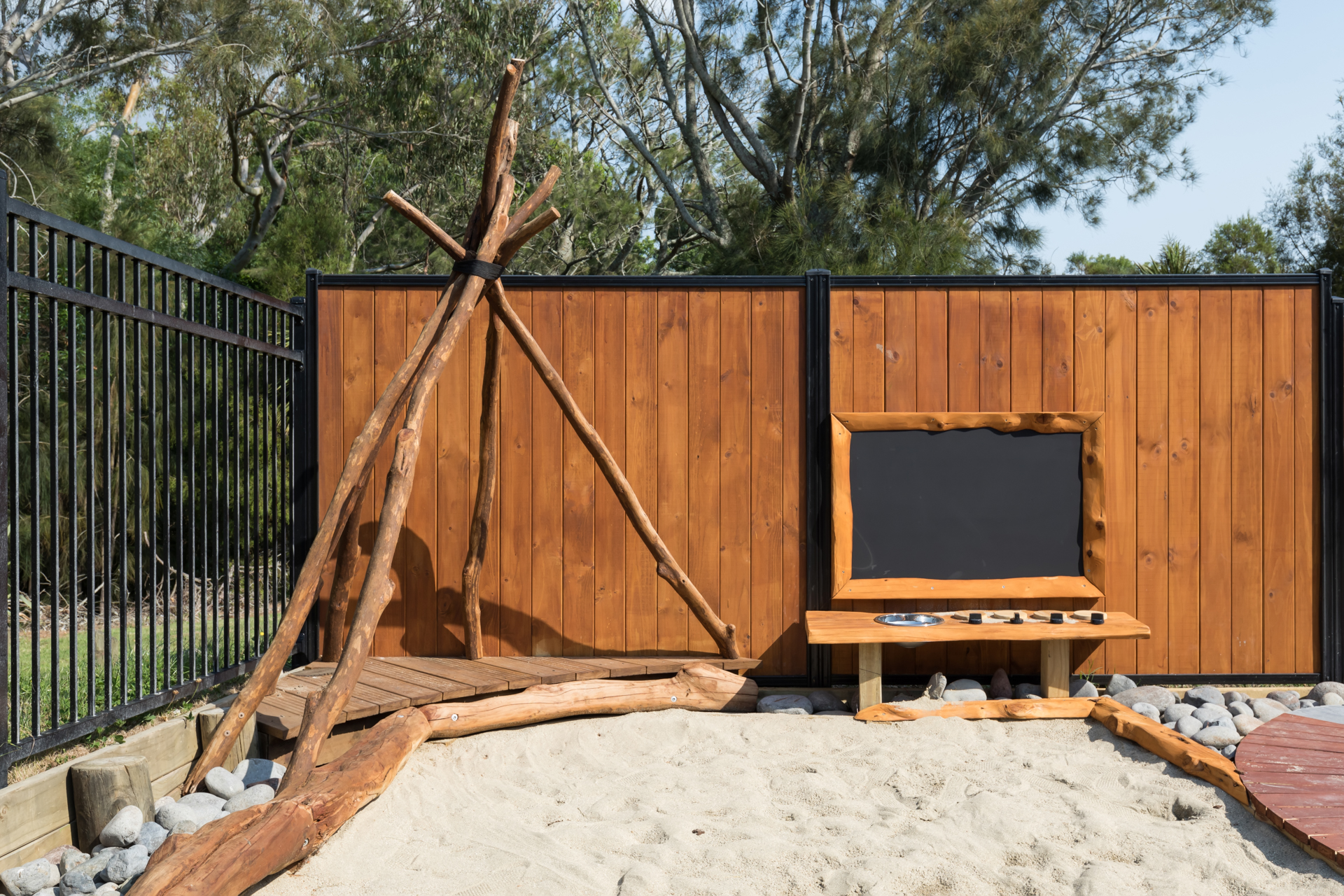

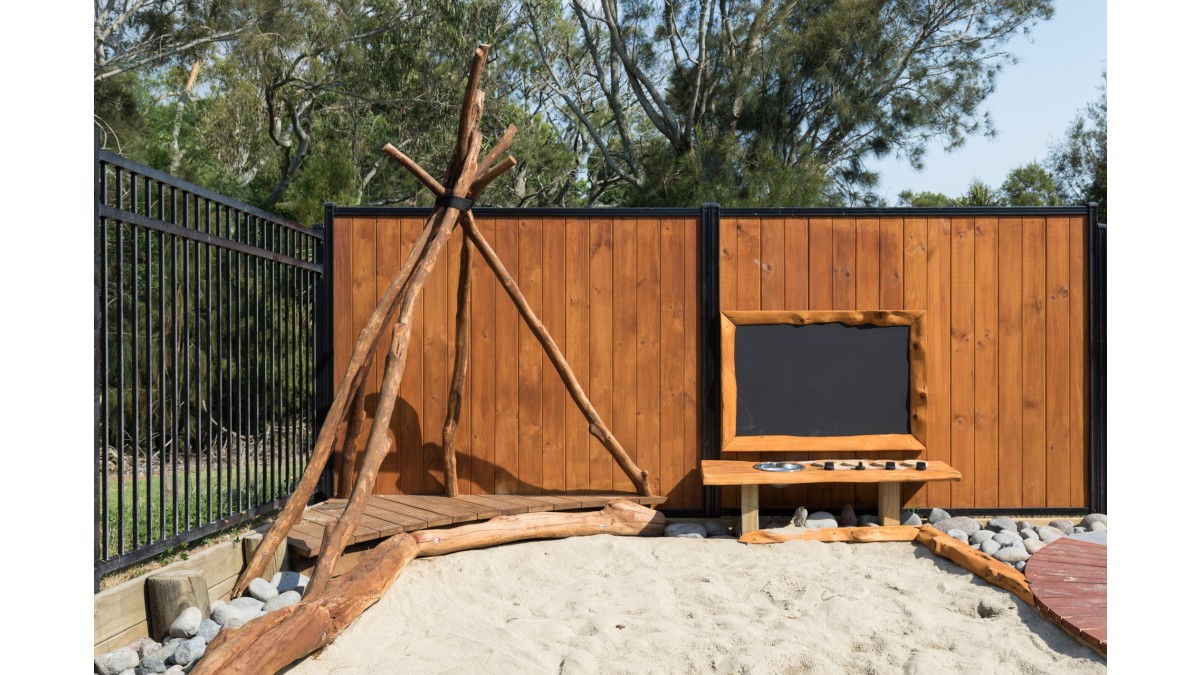

    • Childcare and aged-care fencing
    • Pool Fencing (see limitations)
  • Narrow 65mm wide footprint — ideal for small spaces and tight boundaries
  • Integrates with ColourPanel and ColourSlat Fencing with C-Posts
  • Tongue & Groove installation
  • Suitable for sloped ground
Limitations on Use
  • Must be installed in accordance with Boundaryline's PS1 when being use for F4 or F9 applications
  • Staining or painting is not required, but it is recommend to ensure longevity and even product appearance
  • Suitable for Low to High wind zones — for Very High or Extra High please talk to the Boundaryline technical team
Statement of Building Code Compliance

When designed and installed in accordance with the Boundaryline installation instructions and PS1:

  • Compliant with NZ Building Code F4 Safety from falling
  • Compliant with NZ Building Code F9 Restricted access to residential pools

Site-specific PS1 available on request.

Other Performance Attributes
  • 10 year warranty on metal components
  • 50 year warranty on timber treatment
  • 40 year warranty on glue lamination
  • Steel posts and rails with CLT laminated palings prevent twisting and warping over time
  • Acoustic properties to reduce noise, acoustic report available
Drawings (hosted outside of EBOSS)
CAD Library & Technical Support
Installation and Operation
Install Guide: SmartWall


Boundaryline Warranty & Maintenance
Brochure: Boundaryline Fence Book
Brochure: Pool Fence Book
Brochure: SmartWall
Acoustic Report

Boundaryline are New Zealand’s largest manufacturer and supplier of fencing, screening, and gate solutions.
