Lockwood Door Closers: ST8011SSS Floor Closer
ASSA ABLOY
All products

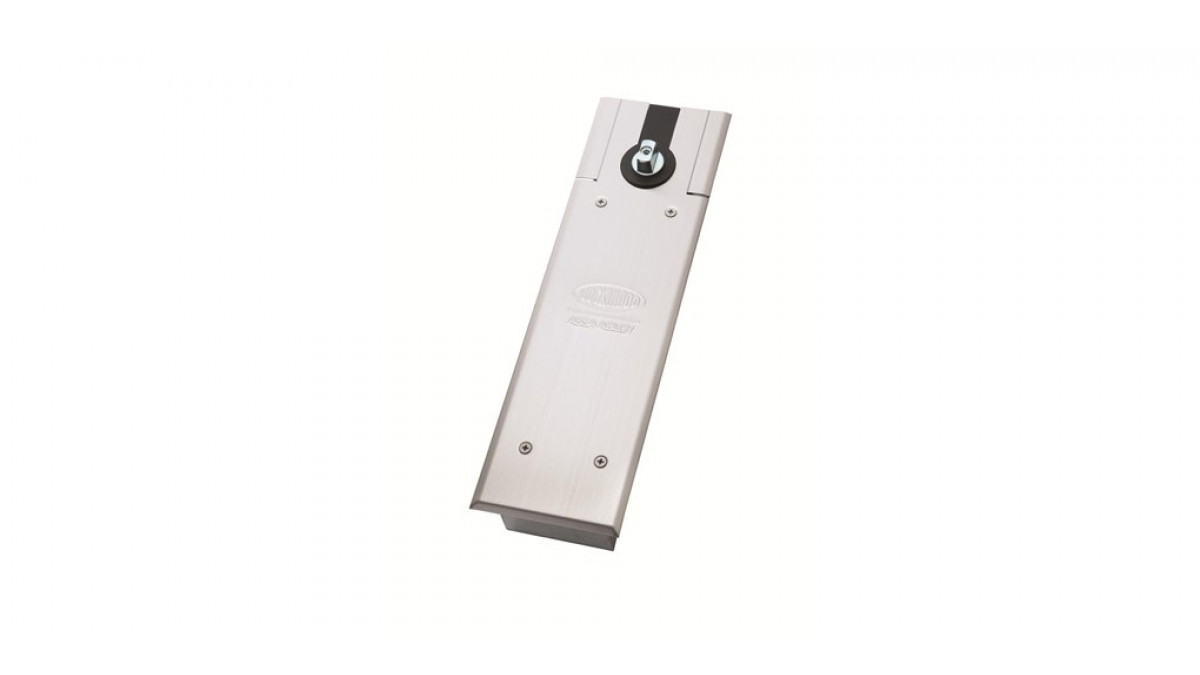

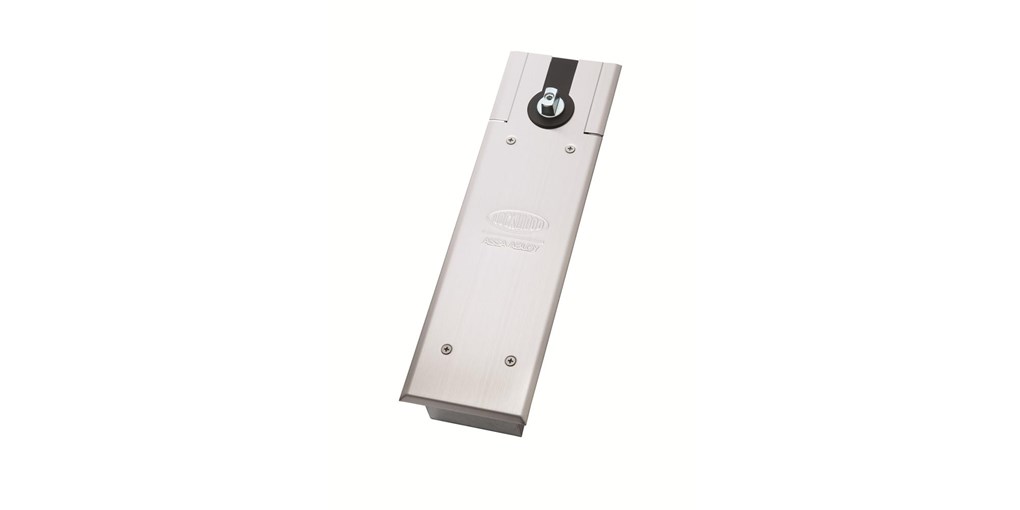

8011

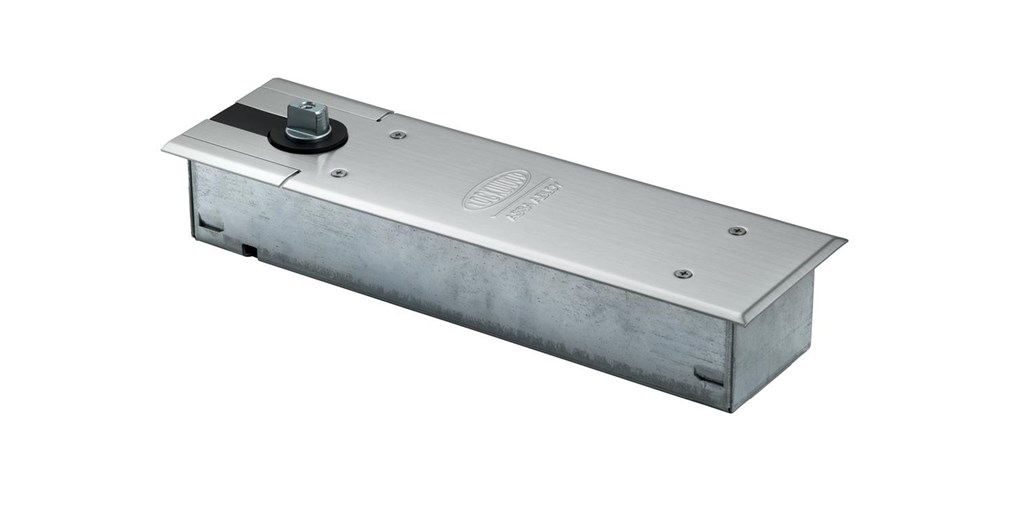

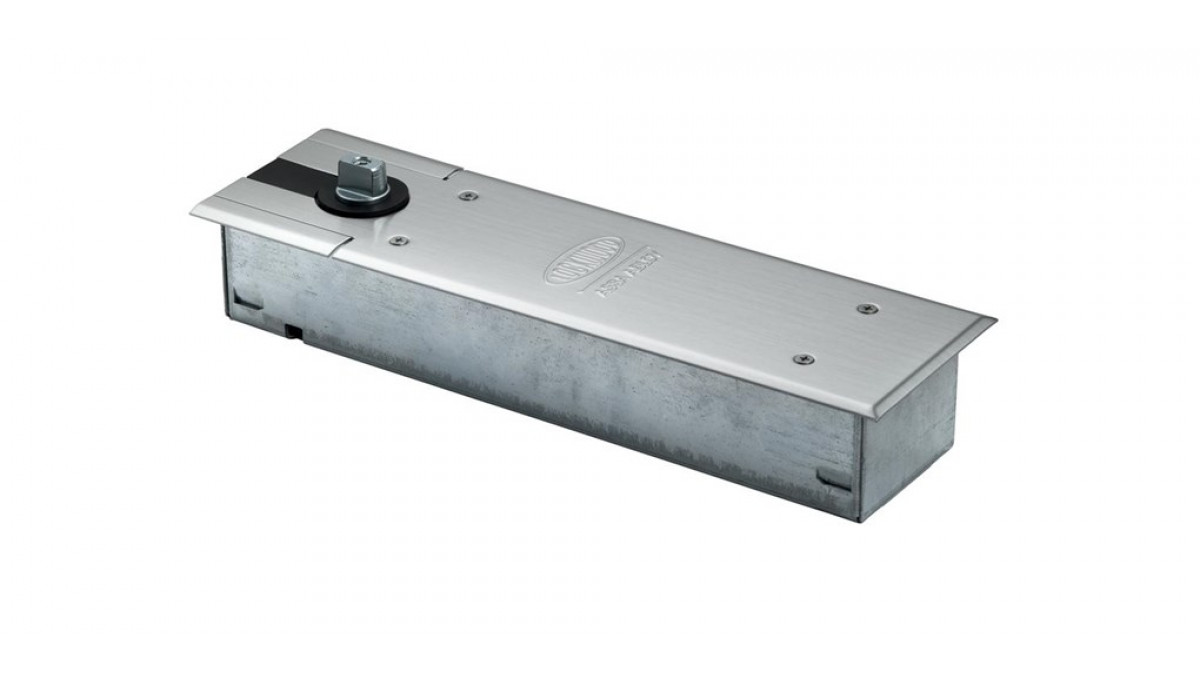

80111

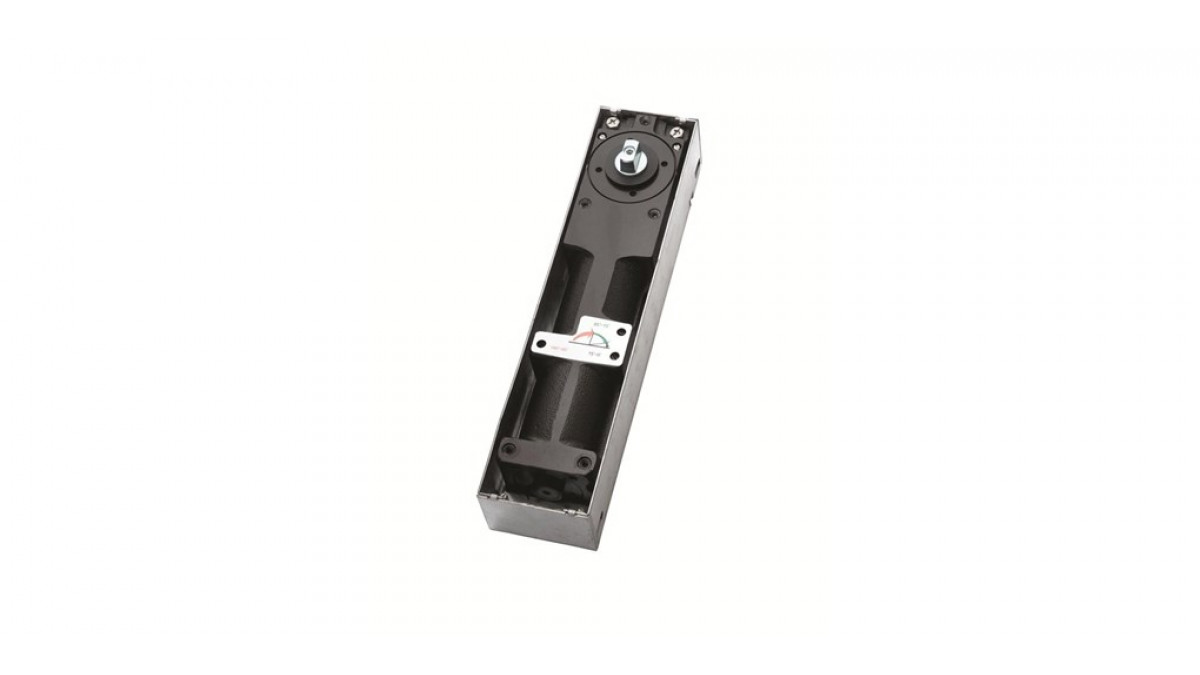

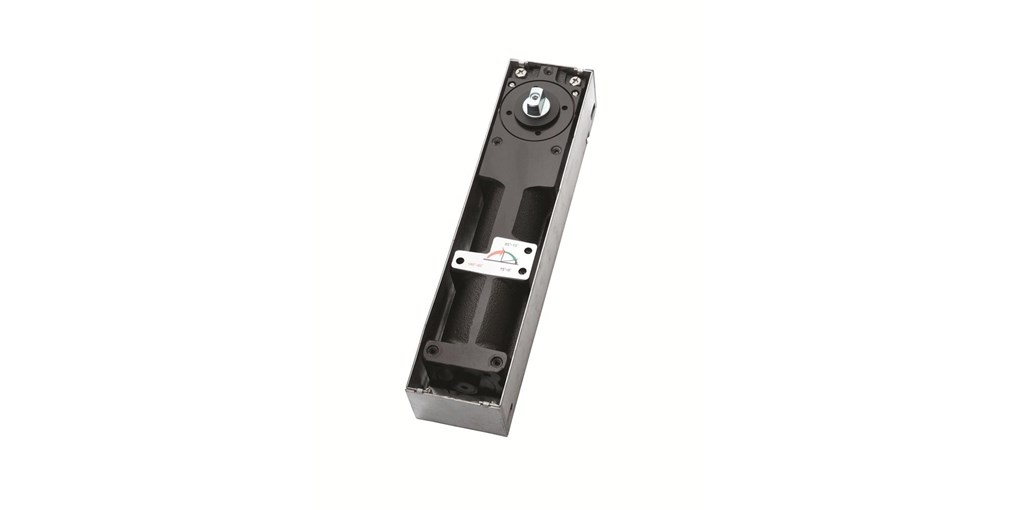

8011 Top Cover Removed

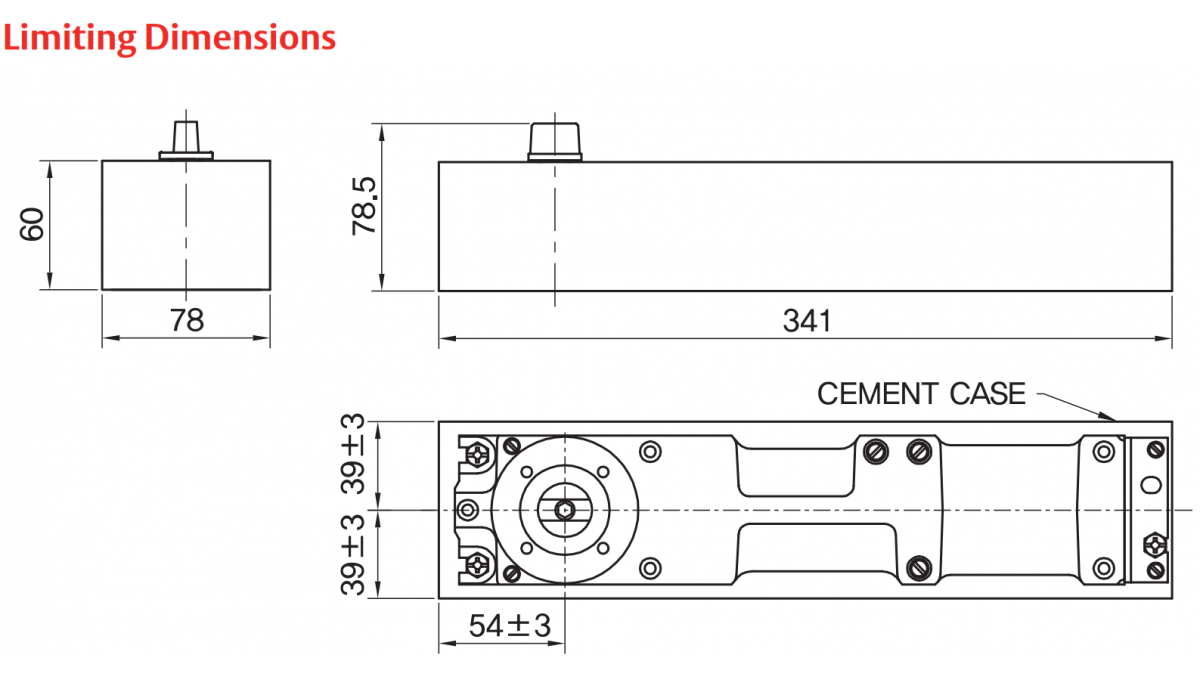

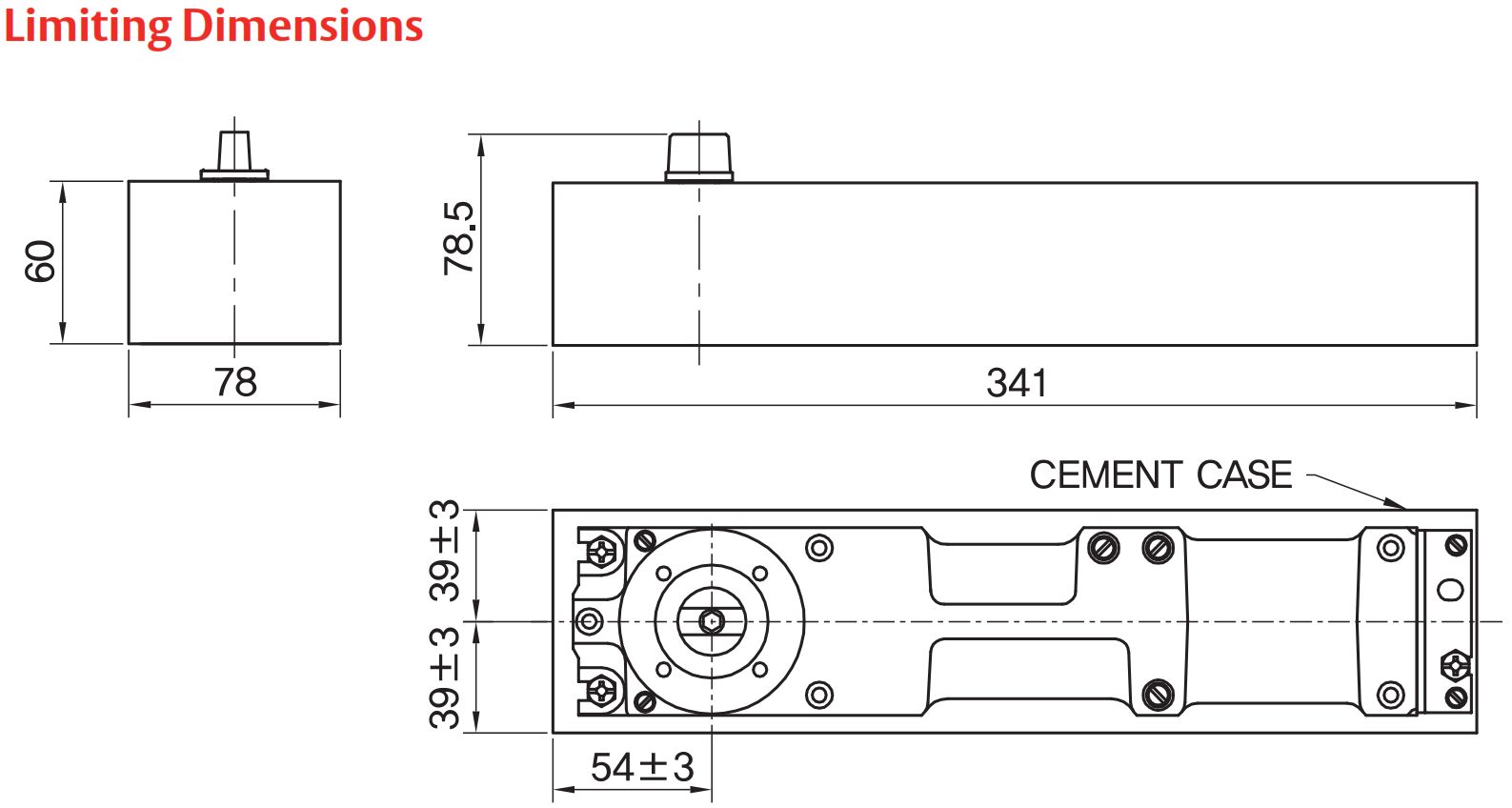

Limiting Dimensions
Description

The Lockwood ST8011SSS double action Floor Closer has been specifically designed to meet the exacting requirements of double or single action pivoted doors with a door leaf weight up to 300kgs. Innovative design enables onsite flexibility over a wide range of applications.

Key Features
  • Adjustable closing speed: Adjustable Closing Speed: Closing 175˚-15˚, Latching speed 15˚-0˚
  • Back Check (BC): The integrated mechanical back check function offers optimum protection for doors and walls. With these standard features built into one product this means there is only one model to specify and stock to cover a wide range of applications.
  • Construction: Cast iron body — Three thermodynamic valves for consistent performance. Built in pressure relief valve. Cement box hot zinc plated steel. Universal cover plate
  • Delayed action: Adjusting this valve controls the closing time of the door between 170˚-85˚
  • Door specifications: Suitable for door weights up to 300kgs / Leaf widths from 950mm-1400mm / Max opening angle 175˚
  • Hold-open: By setting the HO valve the door can be set to hold open the door at any angle from 85˚ to 170˚ opening, to release door manually pull door closed
  • Power adjustment: Turning the screw valve the power can be adjusted from EN size 3-6; closing force ranges from 24Nm to 60Nm
Categories
Door Closers
Ranges
Door Closers
Scope of Use
  • For heavy duty applications
Limitations on Use
  • Suitable for door weights up to 300kgs
  • Leaf widths from 950mm-1400mm
  • Max opening angle 175°
Documents
Data Sheet
pdf
Additional Information
URL

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
