ASSA ABLOY ML5000 Series - Cabinet Locks

ASSA ABLOY's new cabinet lock range, the ML5000 Series has been developed for the most demanding government, commercial and institutional organisations.

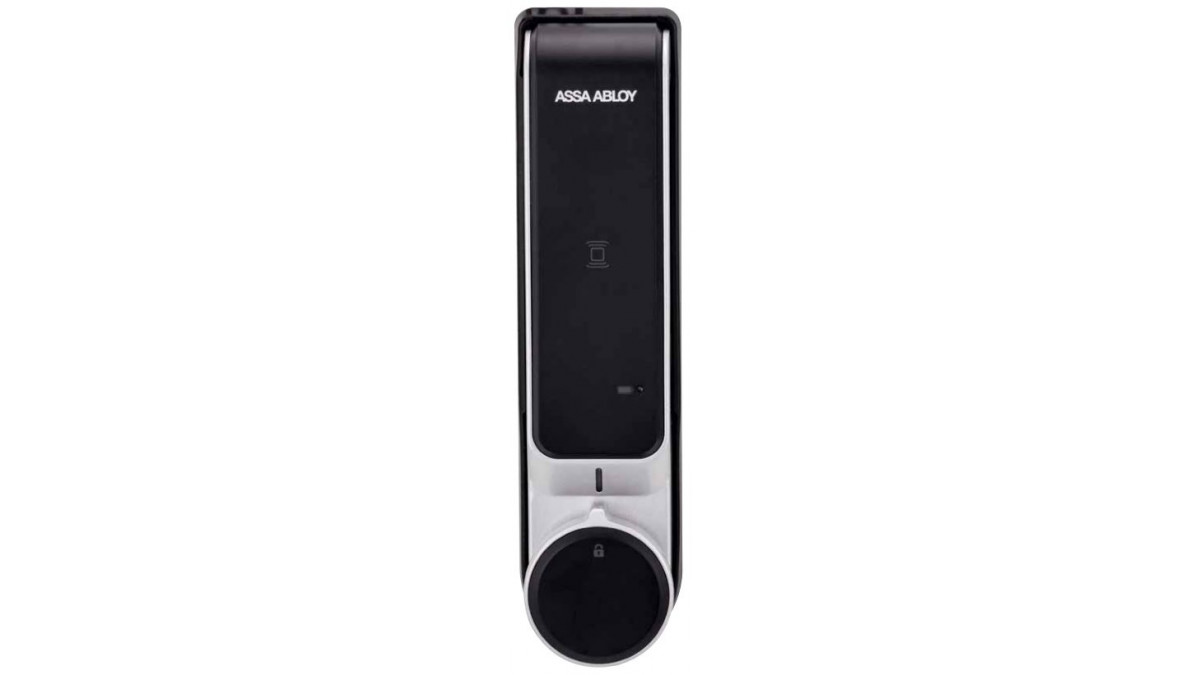

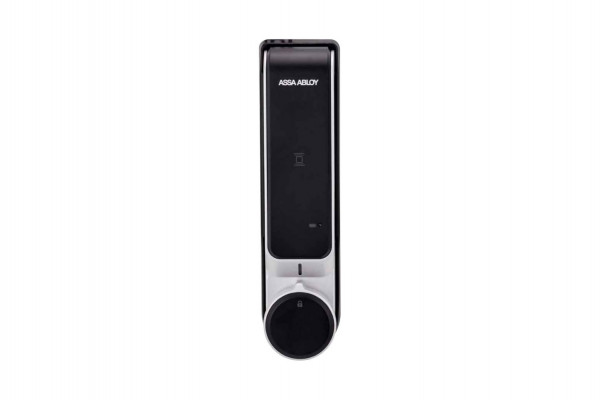

There are two variations to choose from, Digital PIN Keypad or RFID, offering a range of features in both that meet the requirements of lockers in a range of applications such as:

  • Schools
  • Offices
  • Leisure centres
  • Sports clubs
  • Health clubs

Both Digital PIN Keypad and RFID variants are available in models that can be easily mounted; vertically or horizontally to suit the locker design. ASSA ABLOY's cabinet locks offer safety security and convenience for locker users and their contents.

Key Features

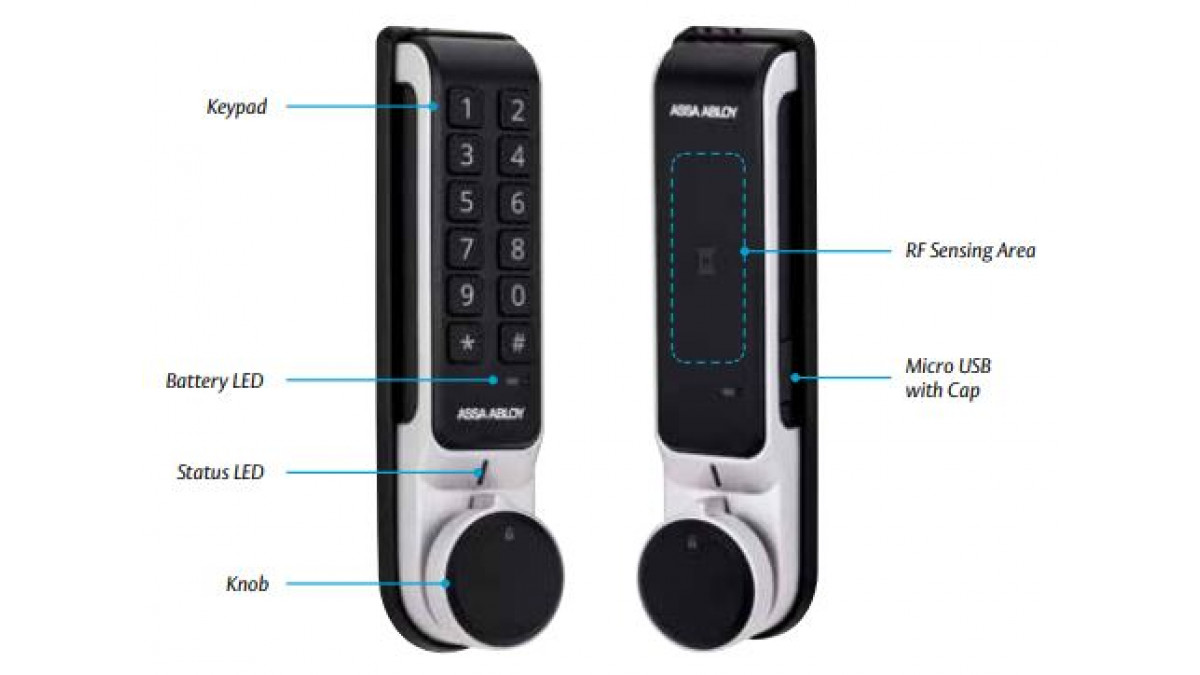

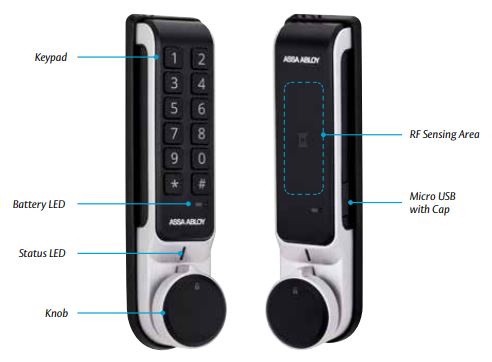

ML5000 Lock:

  • Attractive slim line design
  • Battery status LED
  • Lock status LED
  • Standard alkaline batteries, 3 x AAA
  • Micro USB battery back up
  • Suits doors up to 23mm thick
  • 3mm thick stainless steel cam

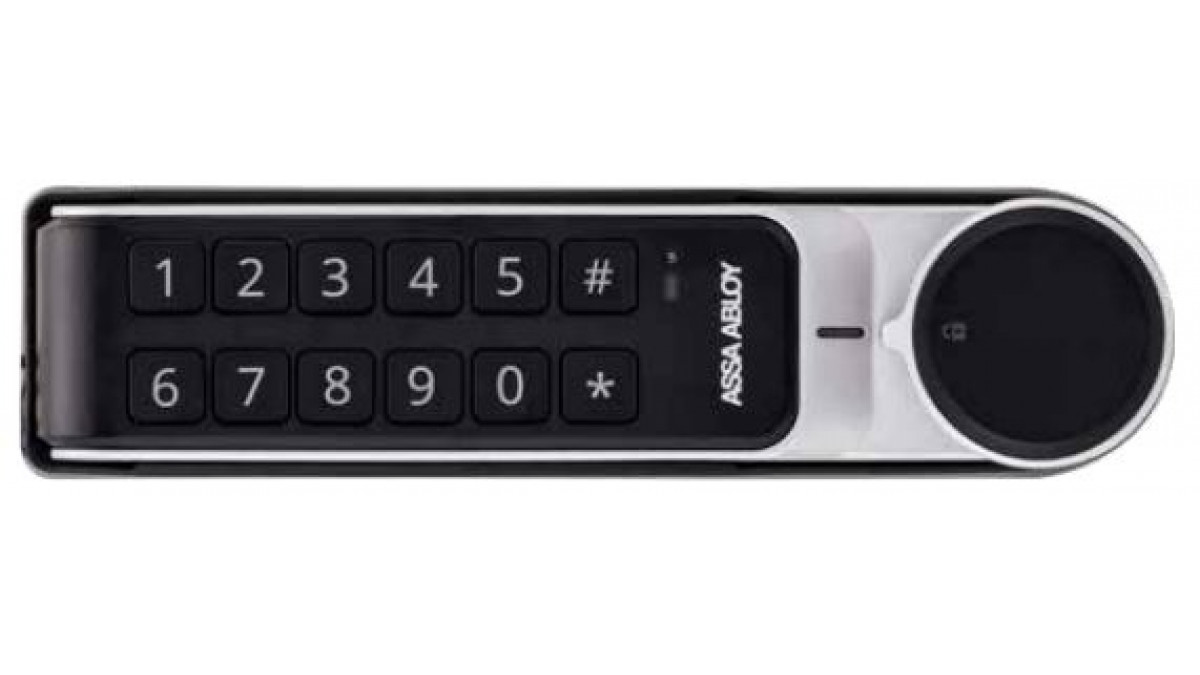

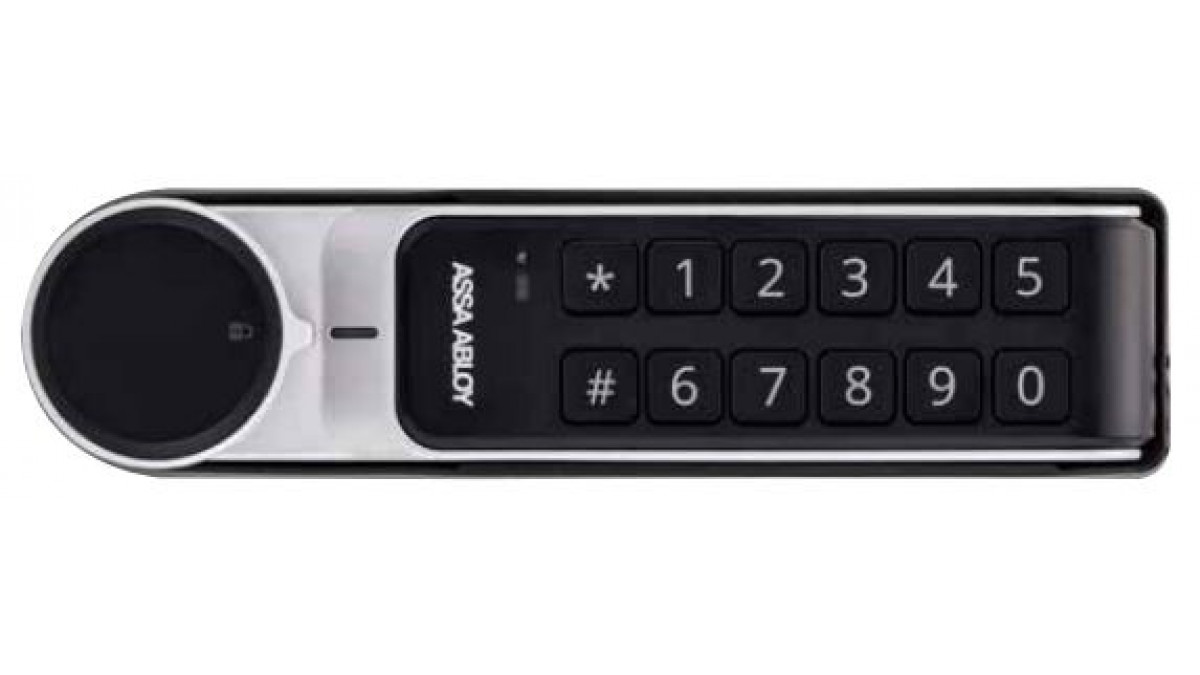

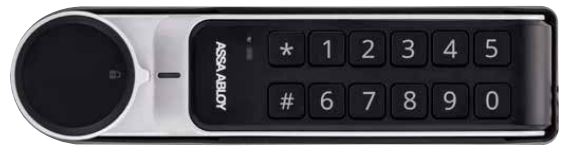

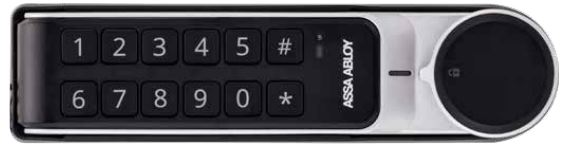

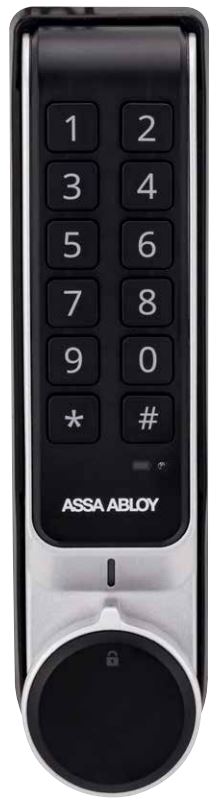

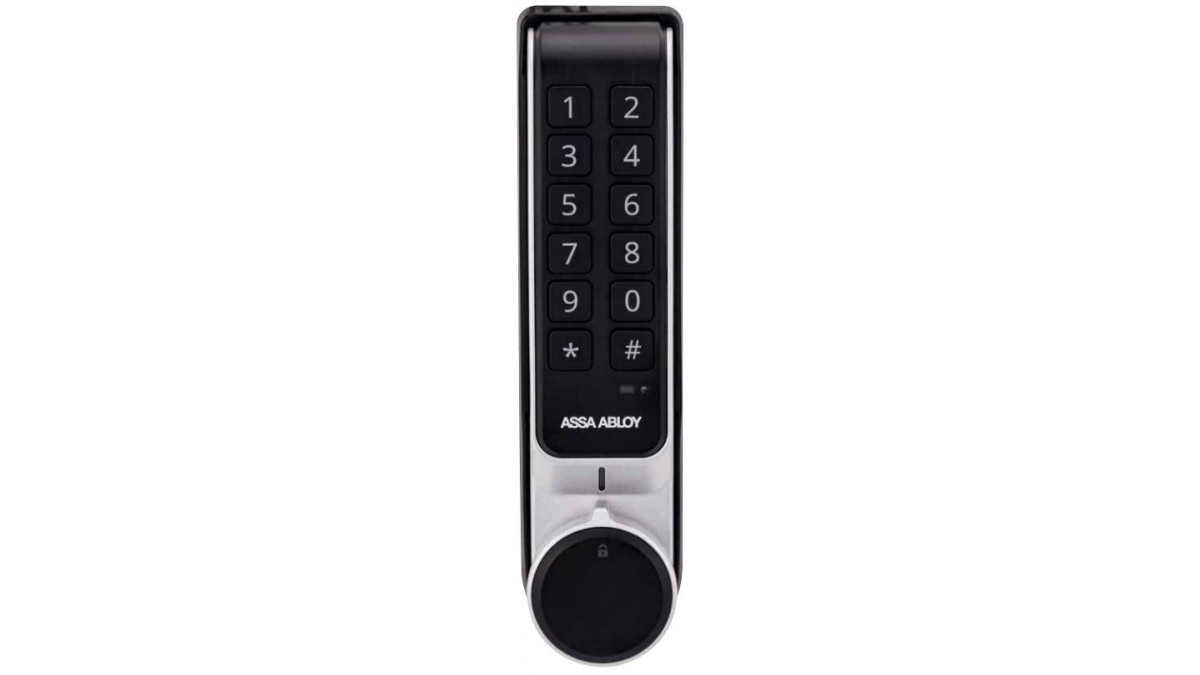

Digital PIN Keypad:

  • 4-12 digit master PIN
  • 4-12 digit user PIN
  • Private Code or Public Change Code Mode (similar to hotel safe)
  • Sound Mode — on or off
  • Temporary wrong code lockout


  • Supported RF type: 13.56MHz ISO14443A MIFARE Classic, Ultralight, DESFireEV1
  • Accepts up to 20 Administration Cards, 20 Master Cards and 20 User Cards per lock
Scope of Use
  • Security for commercial, governmental, institutional use
  • Vertical or horizontal mounting
  • Materials: Die-cast (Body & Knob), ABS (Front)
  • Operating: Temperature: -20˚C ~ + 70˚C / Humidity: 0~90%
  • Salt Spray: Tested to 96 hours

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
