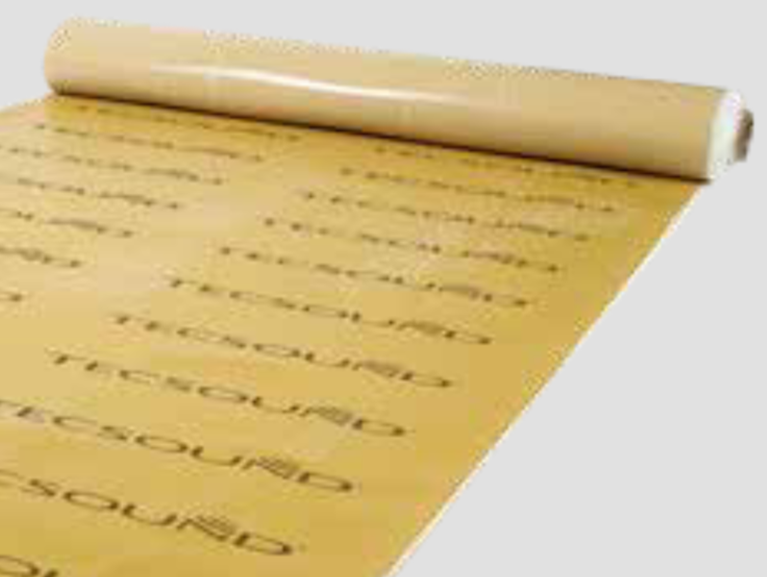

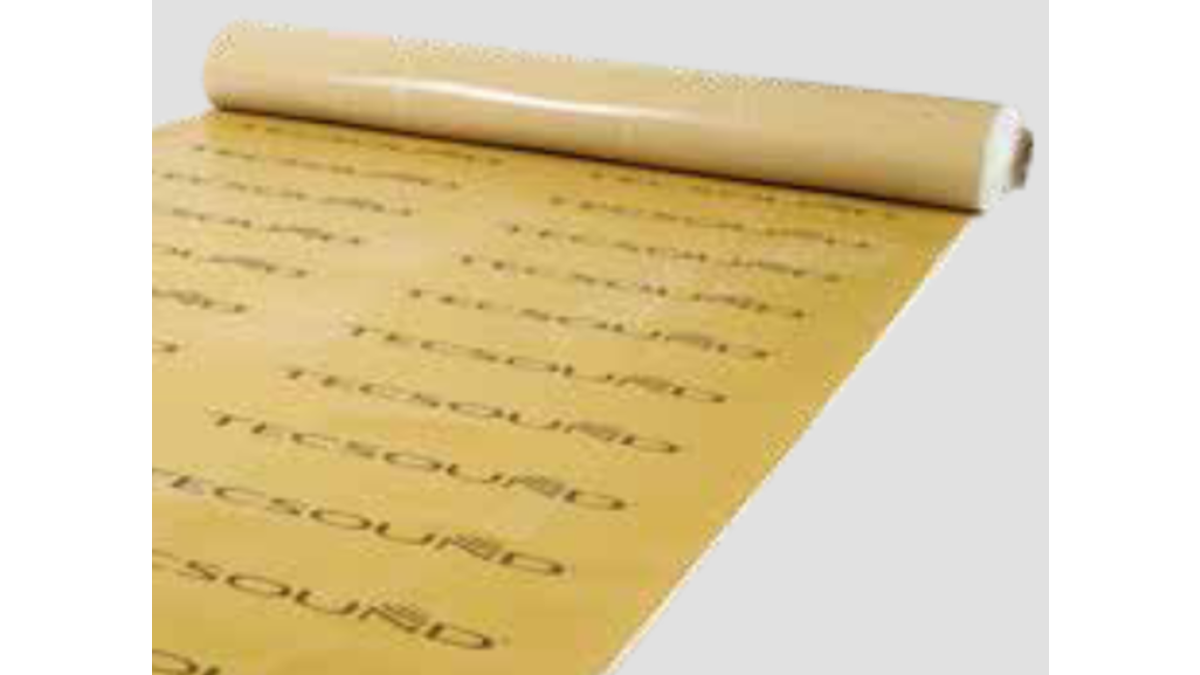

Tecsound SY
Description

Tecsound® SY by Soprema, is a mass loaded sound proofing barrier suitable for lightweight construction with convenient peel and stick application.

Due to its high density, TECSOUND® allows architects and builders to add mass to traditional building design by taking up almost no additional space. TECSOUND® can reach high indexes of insulation with minimum thickness.

Key Features
  • Self adhesive backing for peel and stick convenience.
  • High acoustic insulation, combined with soft, flexible elements.
  • Its self-adhesive layer on one side allows its direct application on most building surfaces
  • Self-extinguishing. Fire Group 1-S
  • Self seals by overlapping edges
  • Excellent ageing resistance
  • Rot-proof
  • Cold and heat resistance
  • No water absorption.
  • Easy to cut.
  • Special dimensions for laminated plasterboard.
  • Acts as a vapour control layer.
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Soundproofing against airborne noise in vertical walls with a low surface density (lightweight partition walls or boards made of different materials)
  • Soundproofing against airborne and rain noise in ceilings and lightweight roofs
  • Reduction of impact noise level in all types of floors, sandwiched between floor slabs and loose laid flooring.
Limitations on Use
  • For interior use only.
  • Shall not commence until the building is water tight and dry
  • Operating service temperature shall be between -10° up to 70°C
  • Substrate must be even, clean and dry. Plasterboard joints shall be sealed to avoid adherence problems
  • Horizontal application must be on the back of linings. Do not attach underneath horizontal surfaces.
Statement of Building Code Compliance

NZ Building Act

  • This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

  • B2 Durability – Clause B2.3.1 (b) (i): Soprema Tecsound SY will have a minimum durability of at least 15 years when installed in accordance with manufacturer’s installation requirements.
  • C3 Fire – Clause C/AS2 4.12.1: Soprema Tecsound SY has a Fire Material Group Number 1-S (B-s1/s2) by NZBC Building Product Specification Parts 8.5.3.1 a), based on classification from BS EN 13501-1:2018.
In-Service History

Soprema LLC, for more than 100 years, is an international company specialising in developing high end sound proofing solutions and products for the building industry.

Other Performance Attributes
  • Tecsound SY50 has a Sound Reduction Index of STC/Rw 26
