Metro Series ThermalHEART® with Centrafix™ Sliding Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

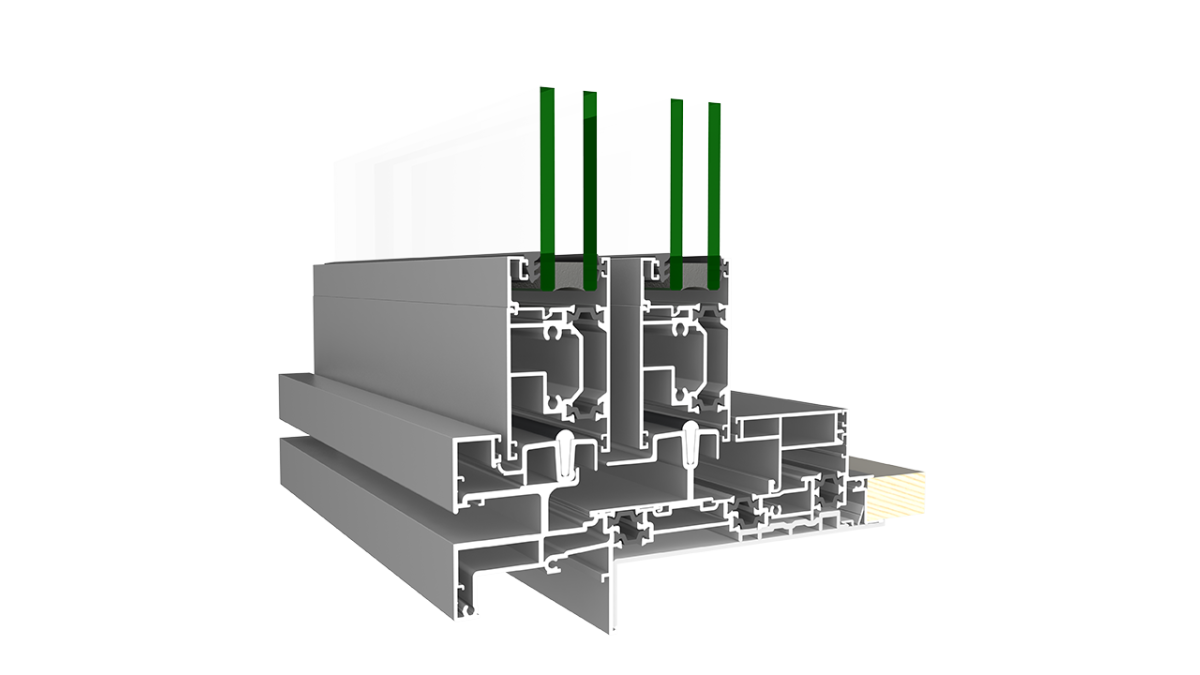

Metro Series ThermalHEART® sliding doors have a flushline sill track with smooth sliding panels. They slide on an external track with fixed or sashed sidelight and are rated to 2.7m high. For higher doors consider using APL Architectural Series ThermalHEART®. Interlocker stiles and mullions are flush in the closed position.

Key Features
  • An exterior sliding track as standard

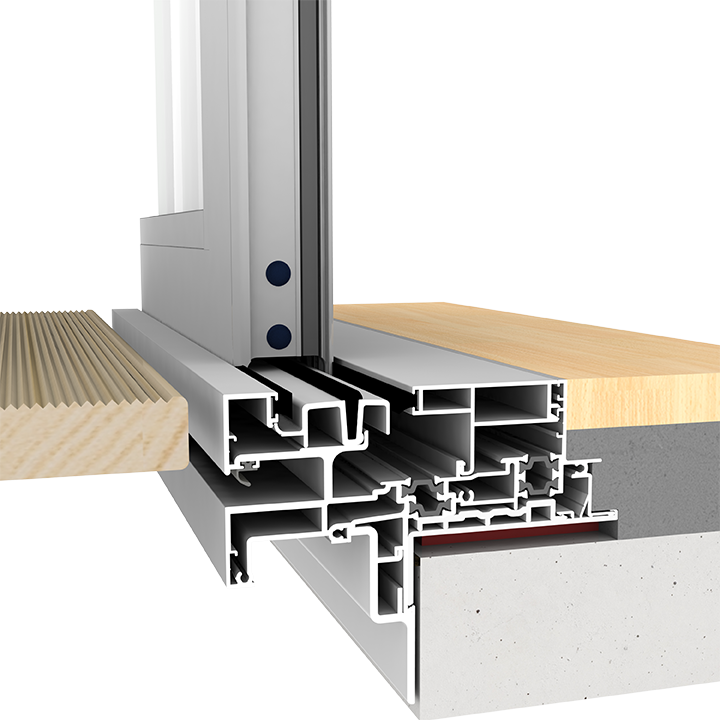

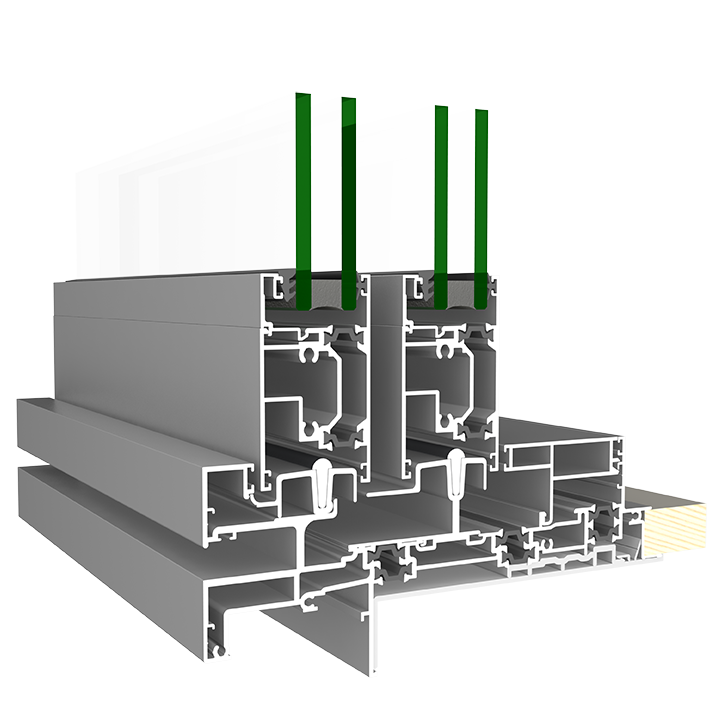

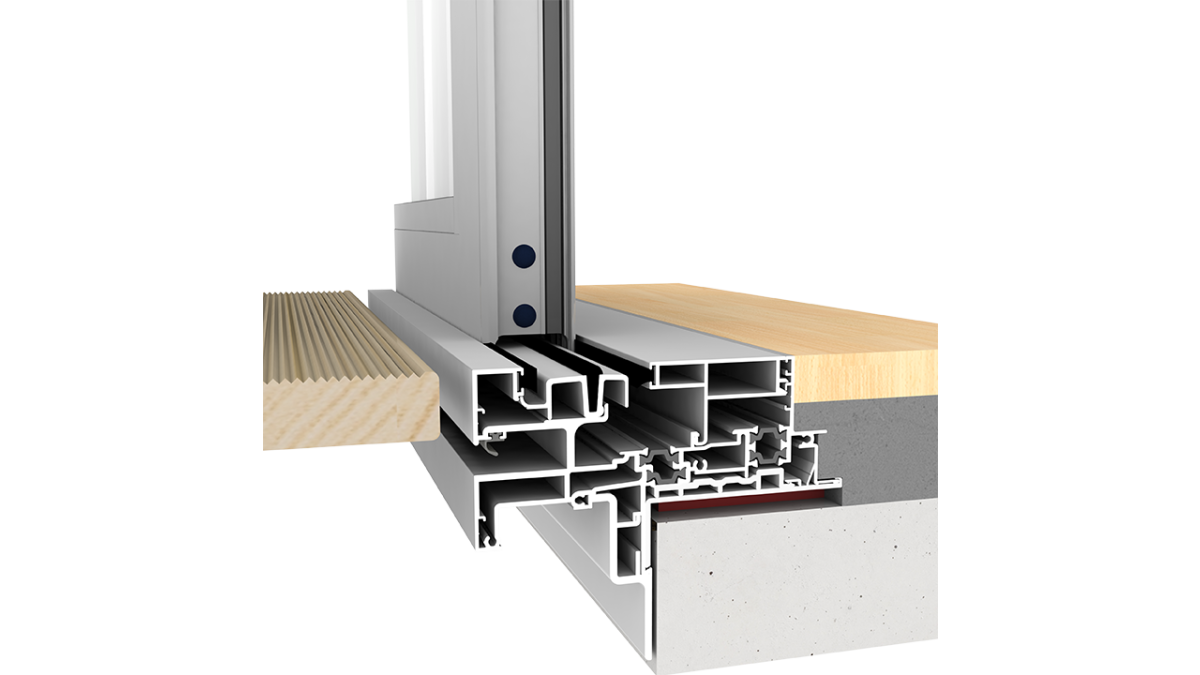

  • The sill frame has a flush track to optimise inside-to-outside plane

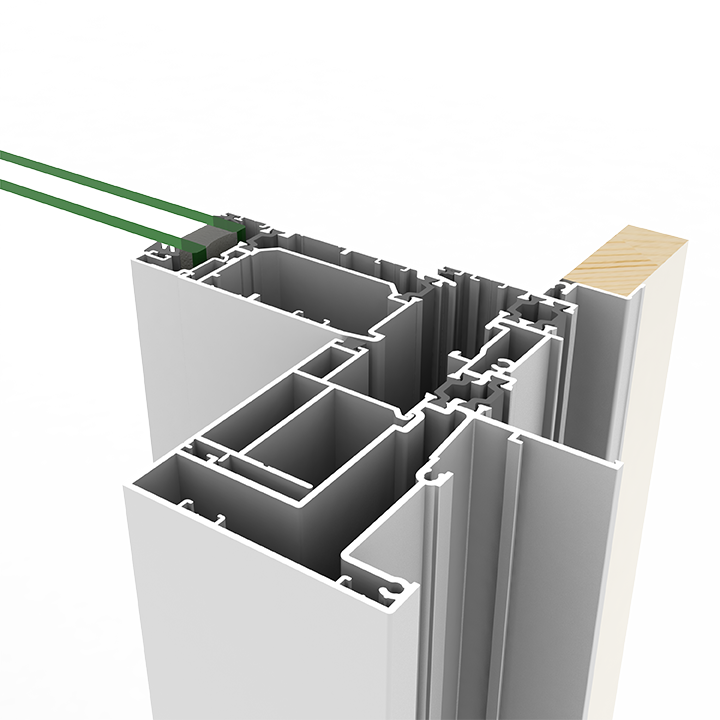

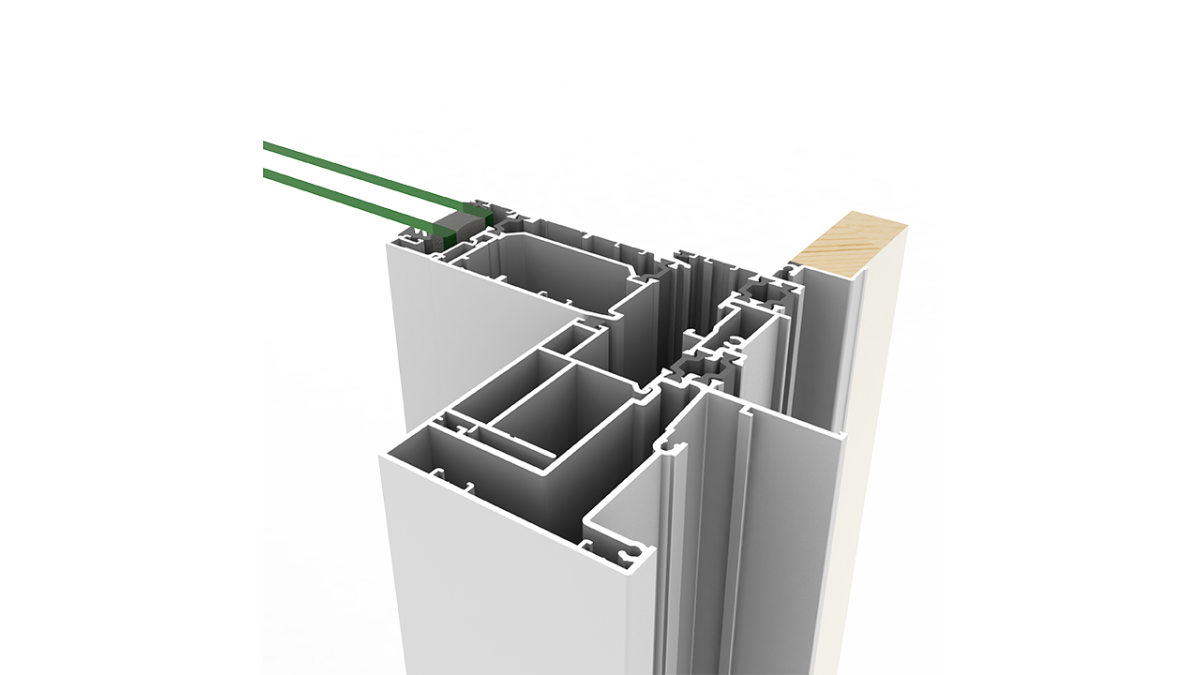

  • Glazing is deeply set within the building wall, delivering a strong appearance

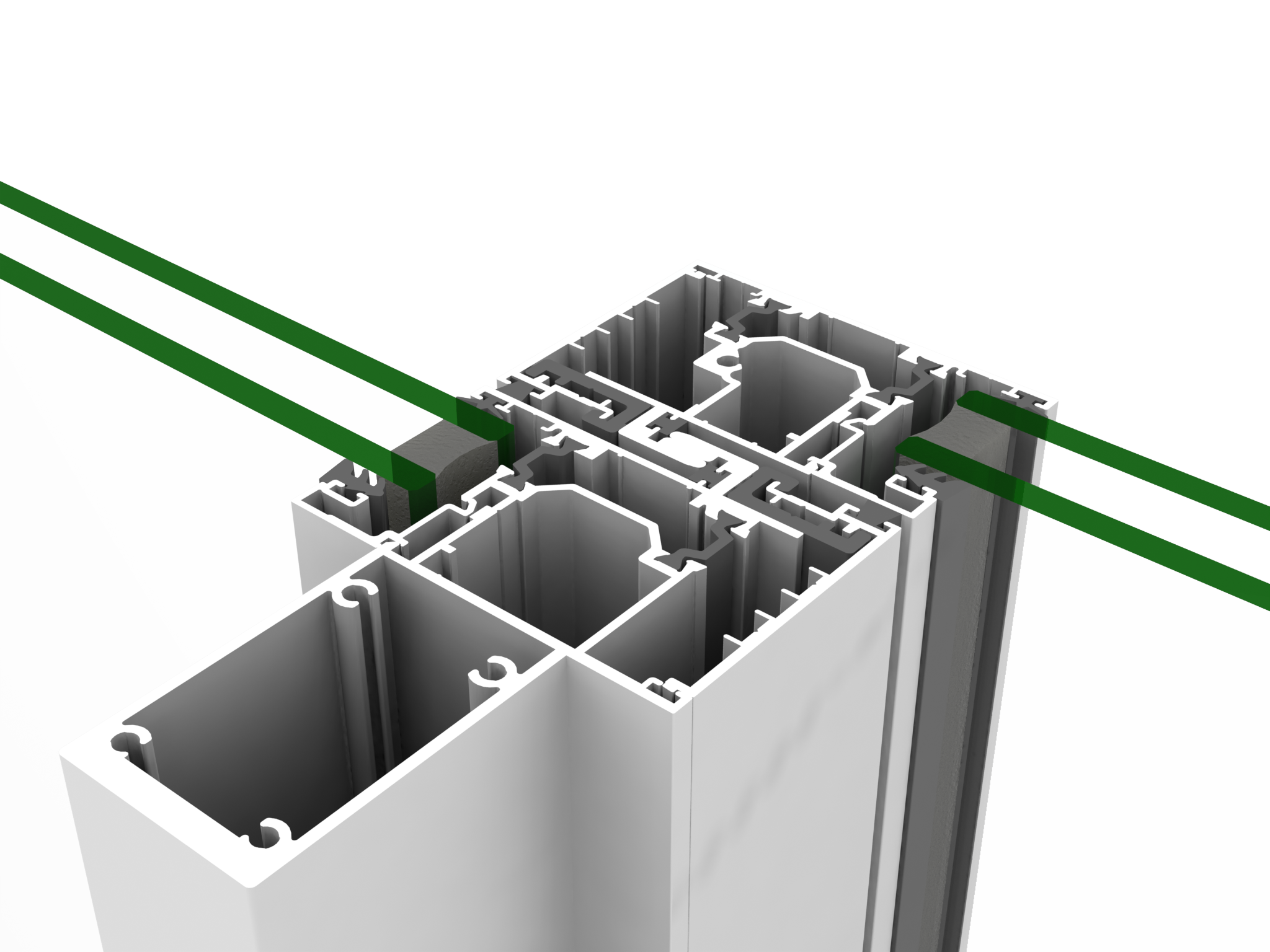

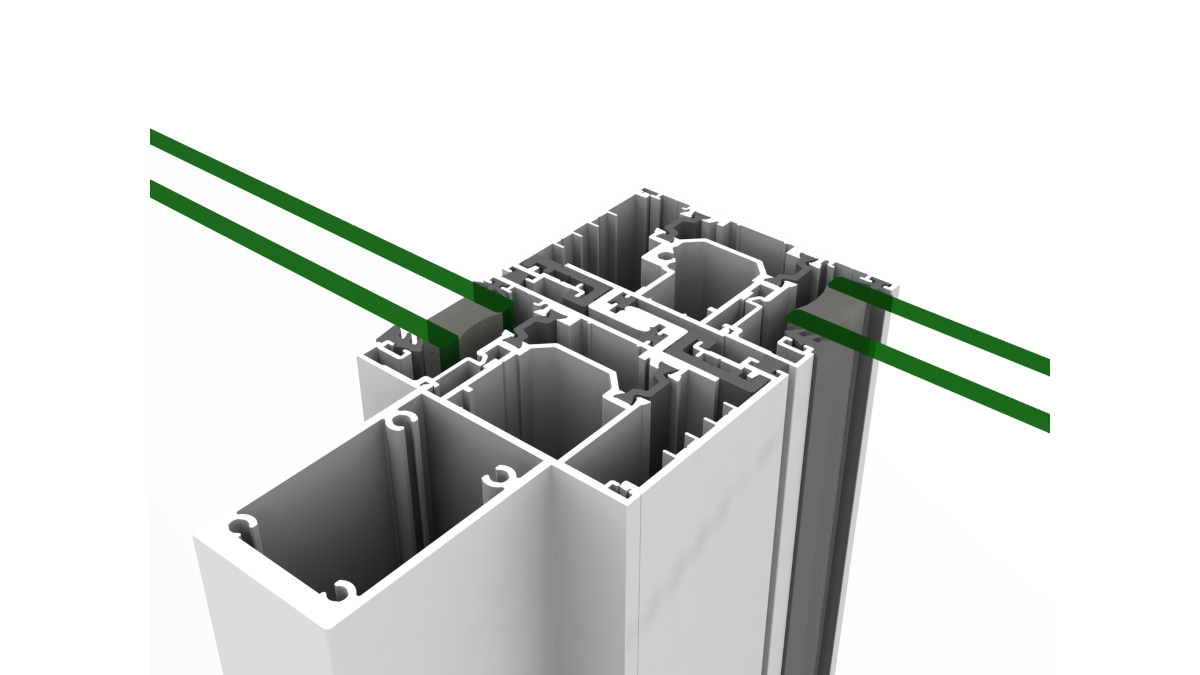

  • Interlocker stiles and mullions are flush in the closed position
  • Door stiles and rails feature slender sightlines
  • Interlockers vary in depth according to height, width and wind pressure requirements
  • Corner sliding doors (90°) are available with no corner post (exterior and interior corners)
  • Innovative sill frame design improves weather and water resistance – door height of 2700mm possible in demanding wind zones. For larger sizes consider using APL Architectural Series ThermalHEART®
  • Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Scope of Use
  • Suitable for broad residential use, including in apartments and buildings over 10m in height
  • Available in defined maximum sizes
Limitations on Use
  • For true, flush indoor-outdoor levels consider recessing the sill into the floor pad to minimise or eliminate upstand
  • Recommended maximum 2700mm high doors in Very High wind zones — for larger sizes consider using APL Architectural Series ThermalHEART®
  • Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
  • Conforms to all relevant NZ Building Code clauses
In-Service History
  • Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Centrafix™ System Guide

2023

QR Code: Centrafix™ on Working Spec
Data Sheet: Metro Series ThermalHEART® with Centrafix™ Doors

2023

Span Tables: Metro Series ThermalHEART® with Centrafix™ Sliding Doors

2023

Specifier Guide
Altherm on Masterspec
Full Specification Guide: Metro Series ThermalHEART® with Centrafix™

2023

Specification Guide: Metro Series ThermalHEART® with Centrafix™ Sliding Doors

2023

Declare Label

2023

Manufacturer Contact List
AGP Cleaning & Maintenance

2021

Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Altherm Design Brochure

2020

AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability
CAD/PDF Details

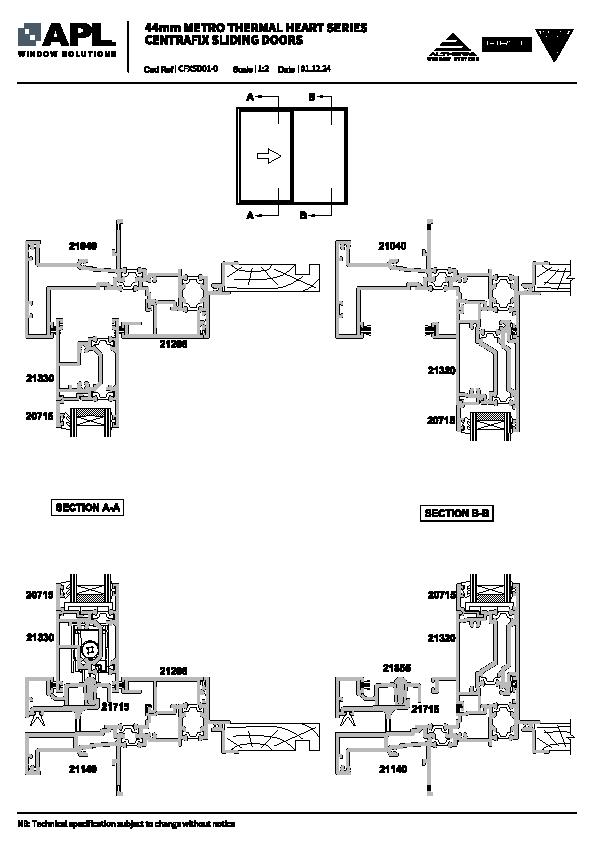

Metro Series ThermalHEART® with Centrafix™ Sliding Doors

FULL SET

PDF and ZIP (contains all DWGs)

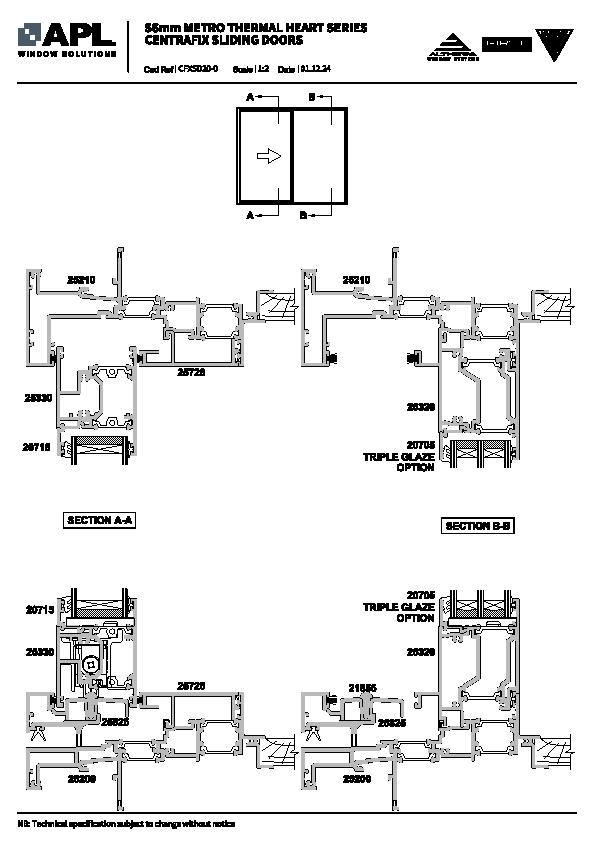

Metro Series ThermalHEART® with Centrafix™ Sliding Doors with Centrafix™ Frame

TMSD13

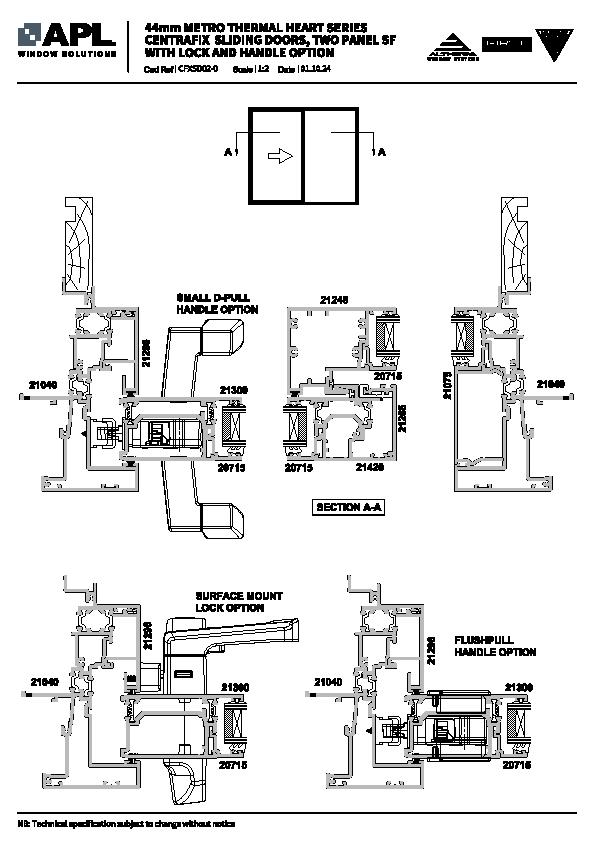

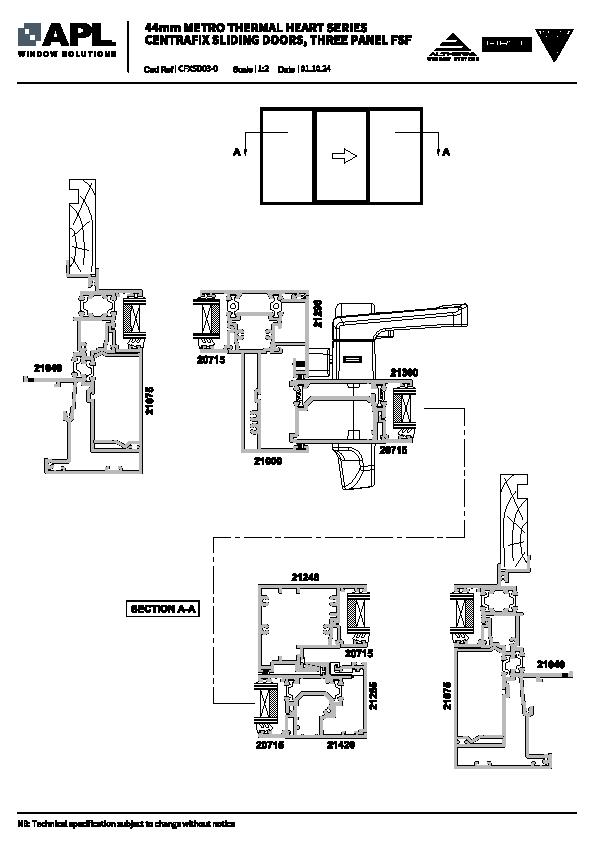

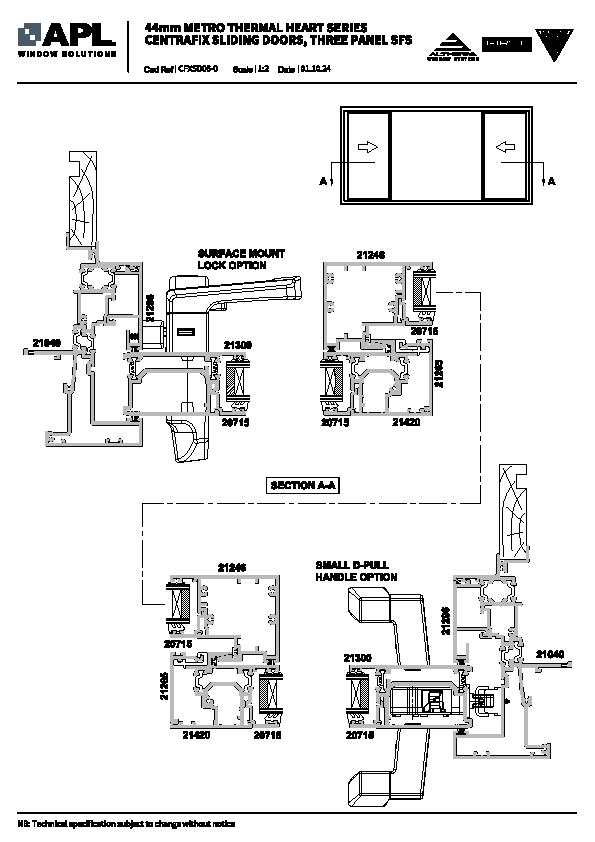

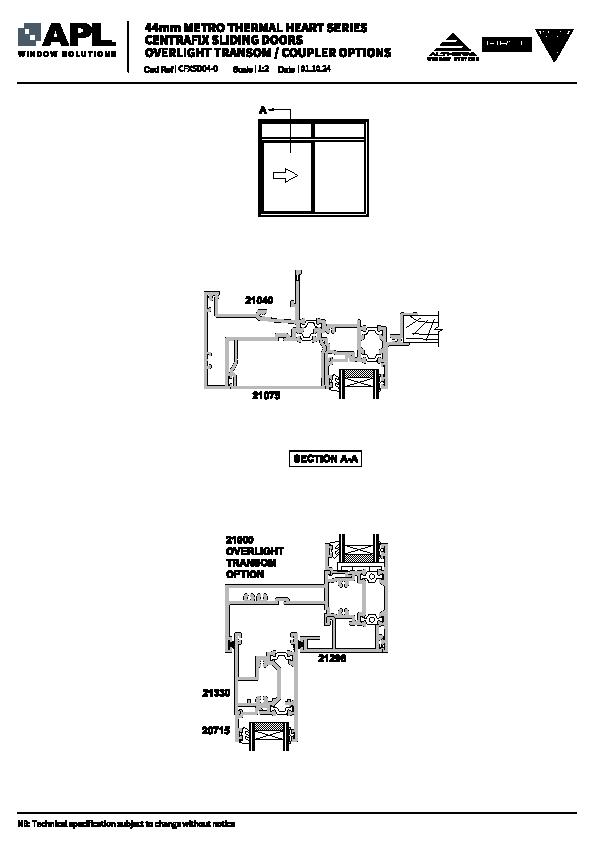

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Two Panel SF Centrafix™ Frame

TMSD14

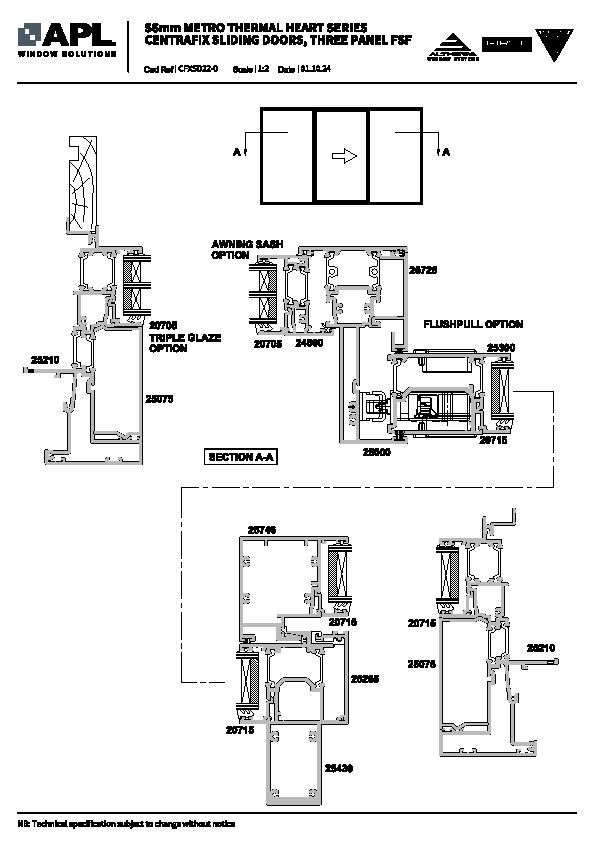

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Three Panel FSF Centrafix™ Frame

TMSD15

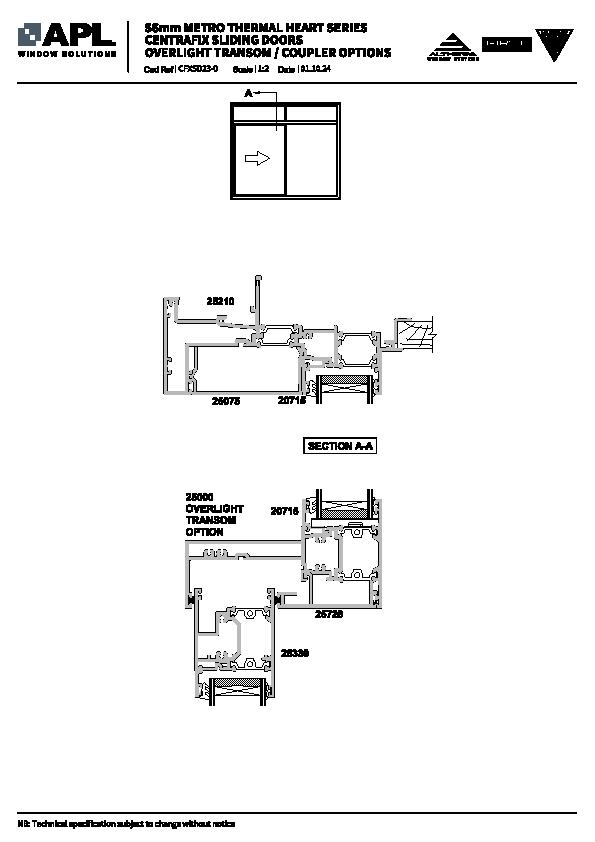

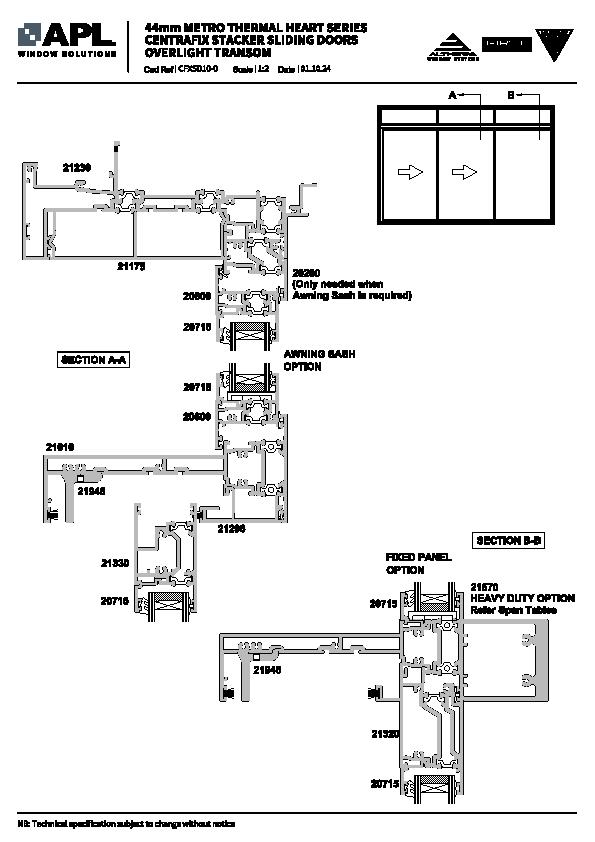

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Overlight Transom Centrafix™ Frame

TMSD16

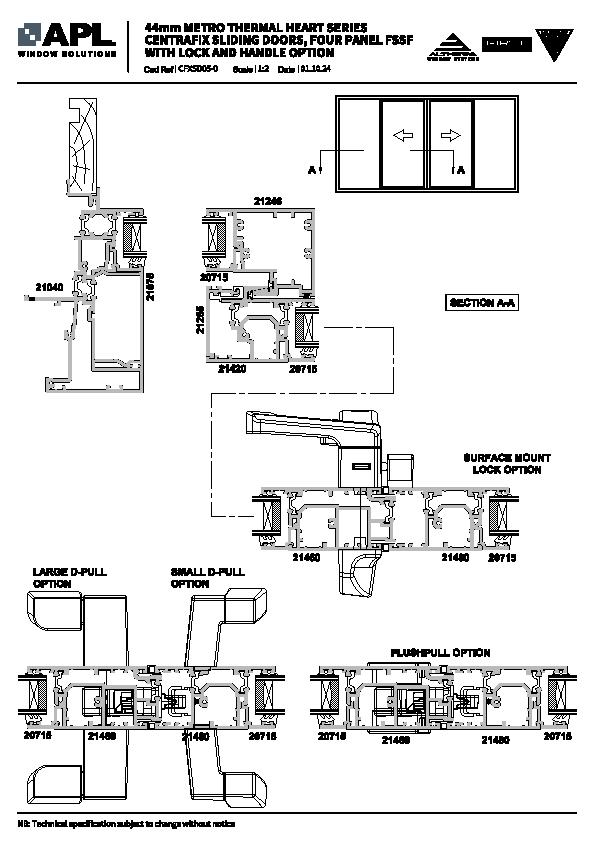

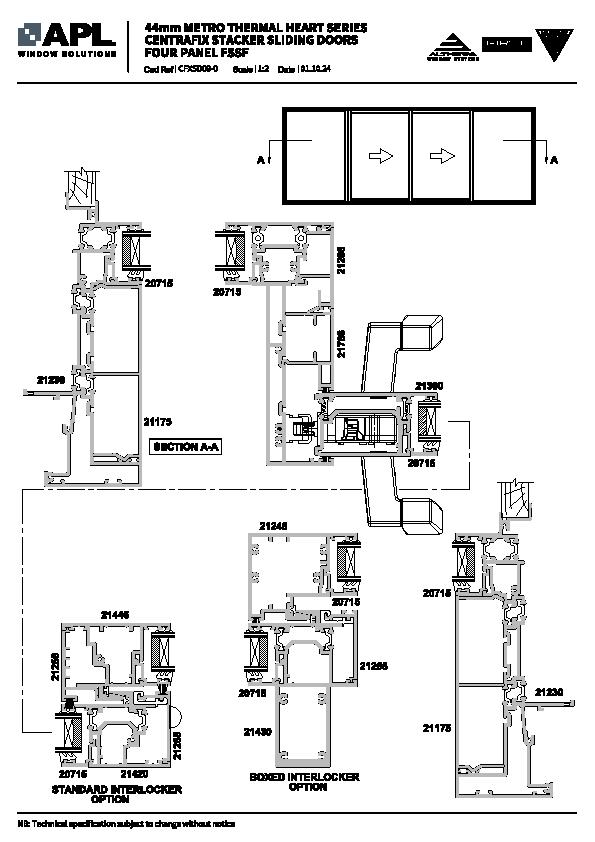

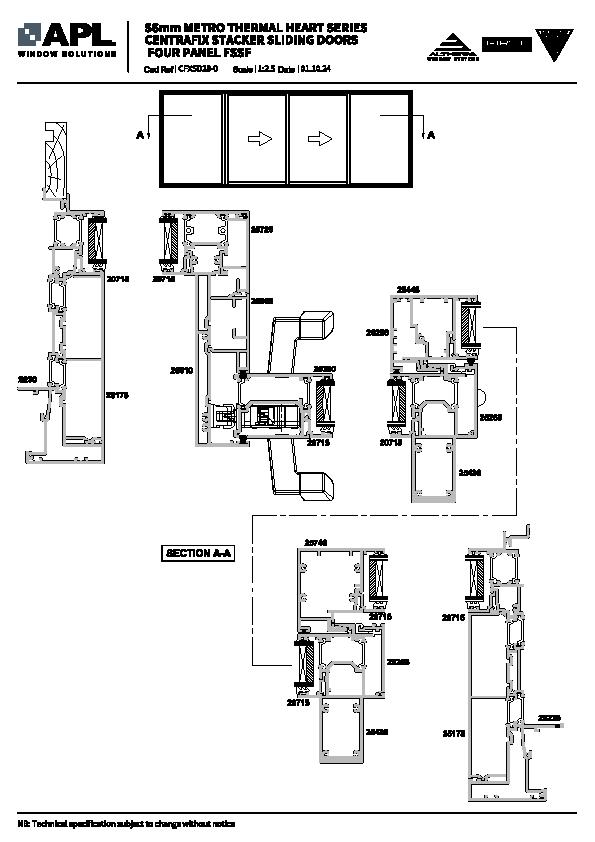

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Four Panel FSSF Centrafix™ Frame

TMSD17

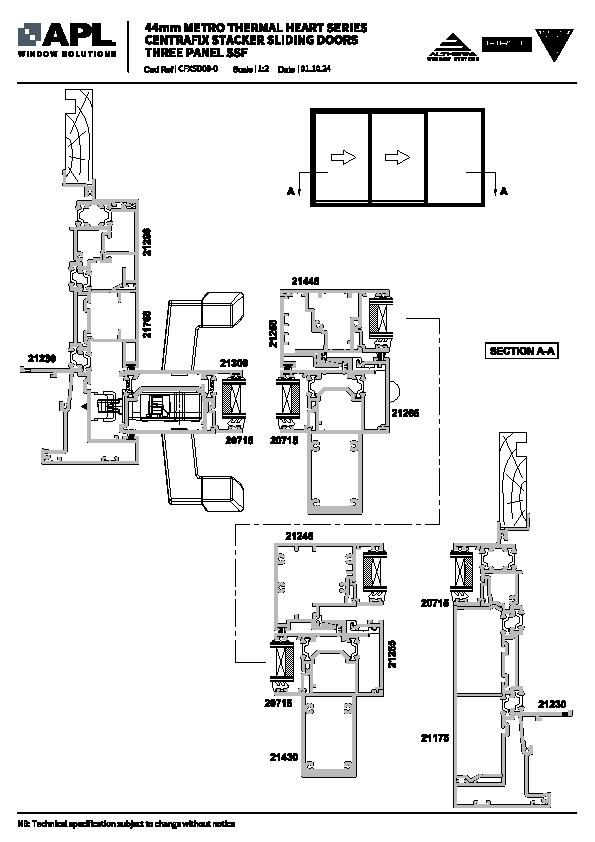

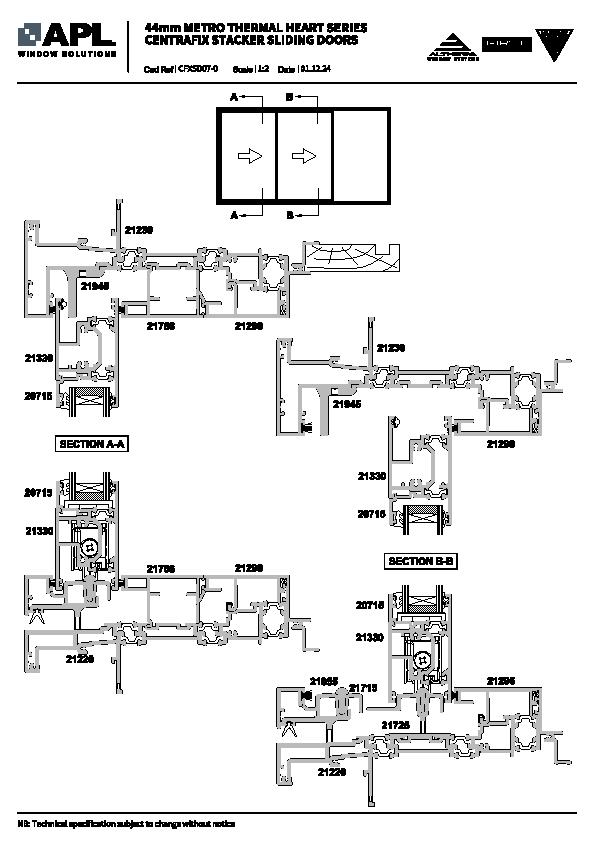

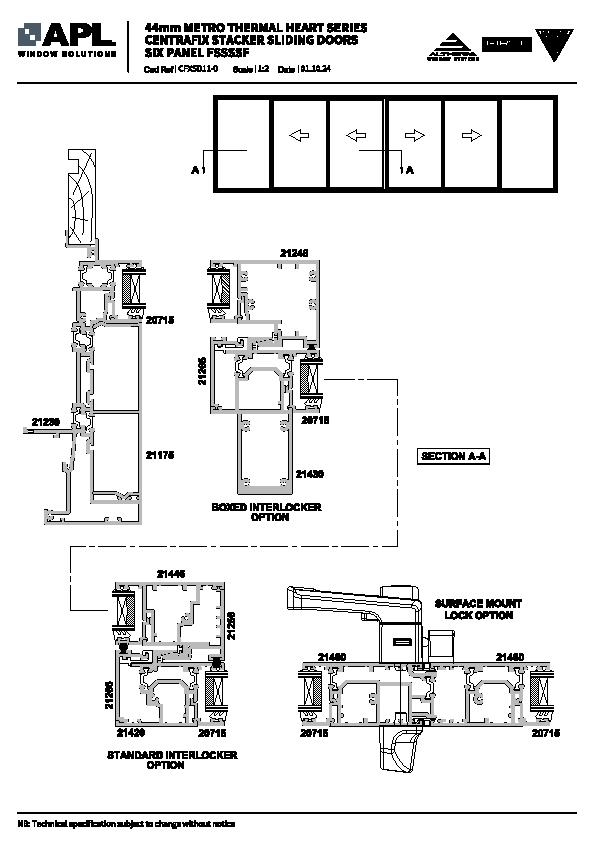

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors Centrafix™ Frame

TMSD18

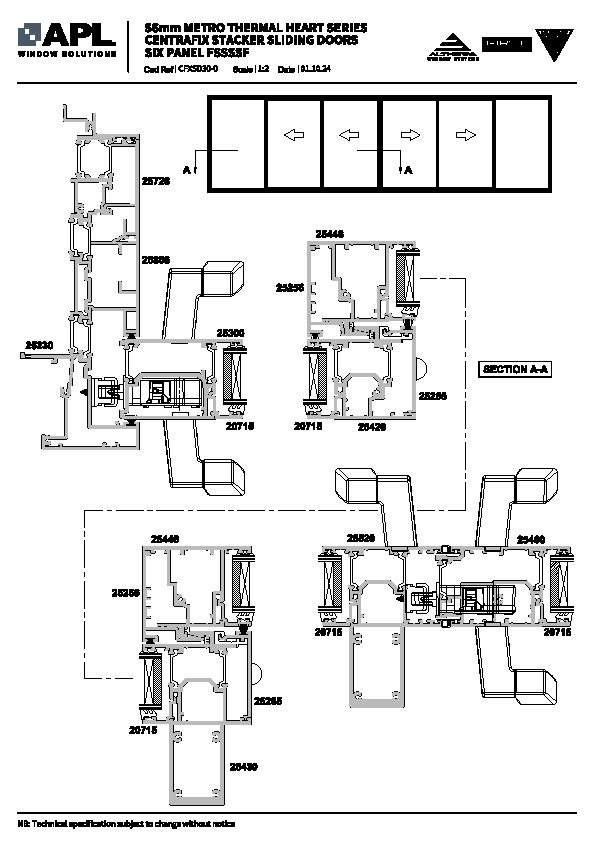

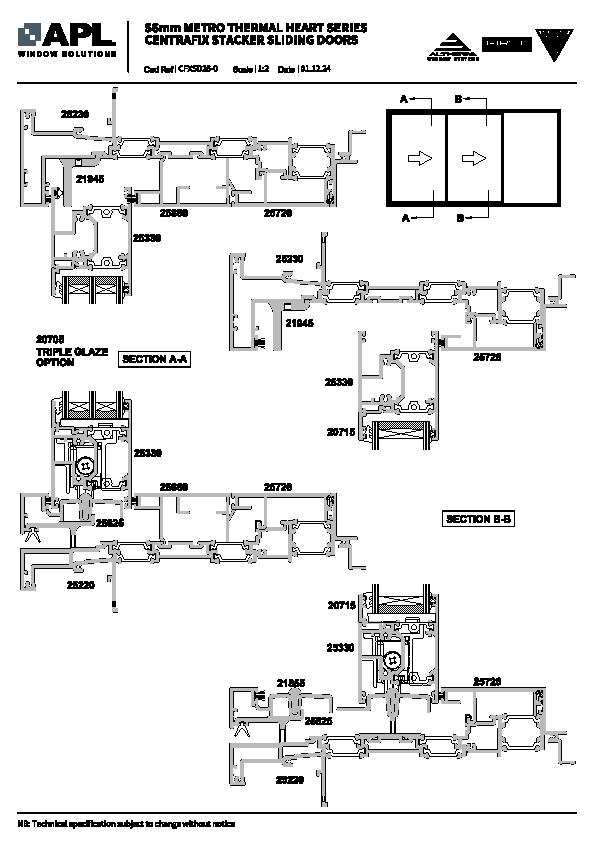

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Three Panel SSF

TMSD19

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Four Panel FSSF

TMSD20

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Overlight Transom

TMSD21

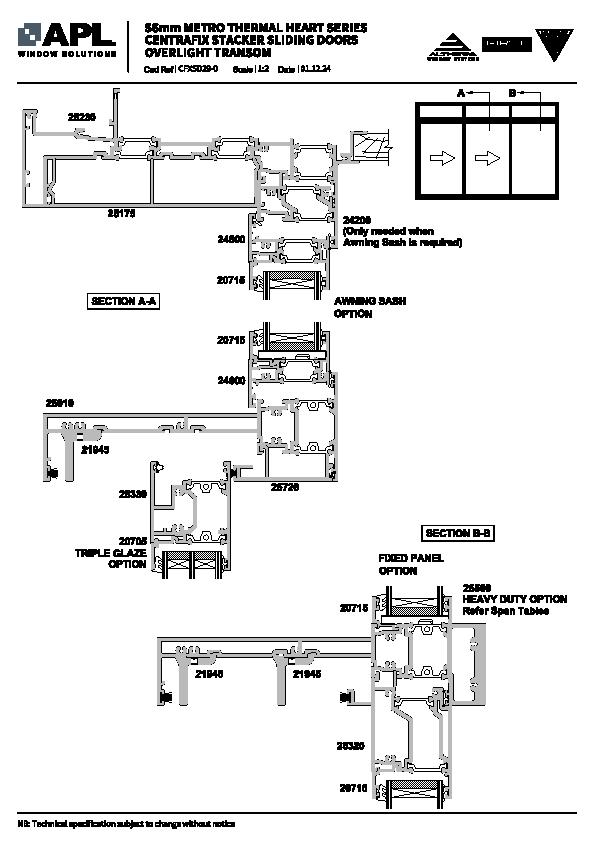

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Six Panel FSSSSF

TMSD22

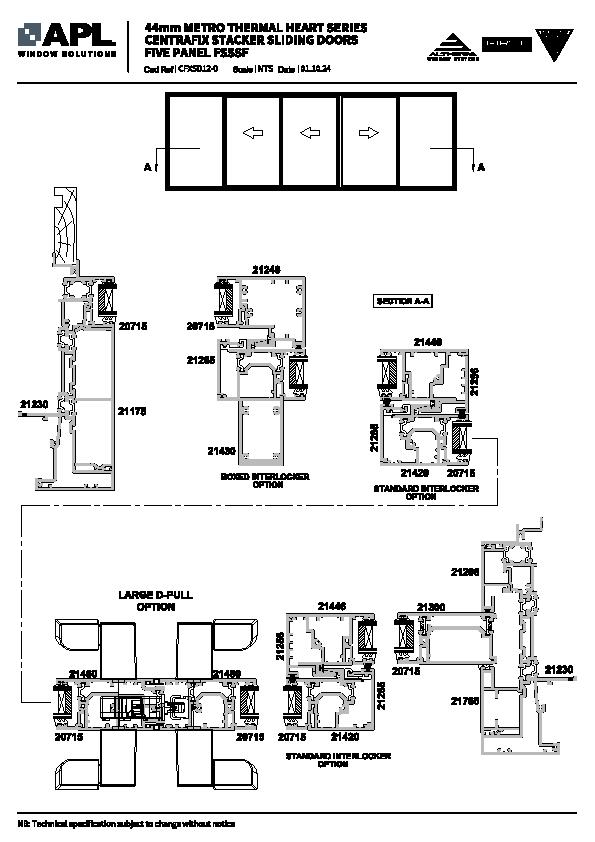

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Five Panel FSSSF

TMSD23

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — 90° Corners

TMSD24

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Centrafix™ Frame (56mm)

TMSD37

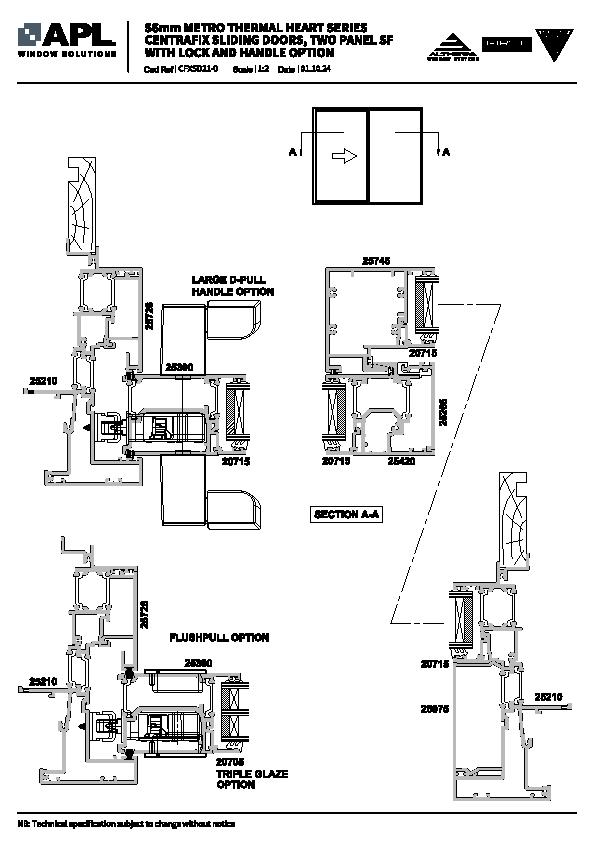

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Two Panel SF Centrafix™ Frame (56mm)

TMSD38

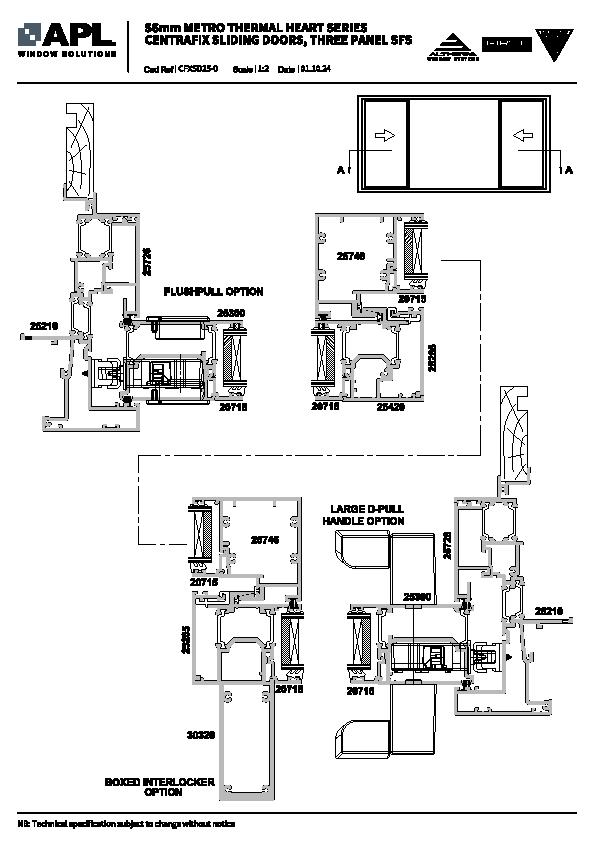

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Three Panel SFS (56mm)

TMSD39

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Overlight Transom Centrafix™ Frame (56mm)

TMSD40

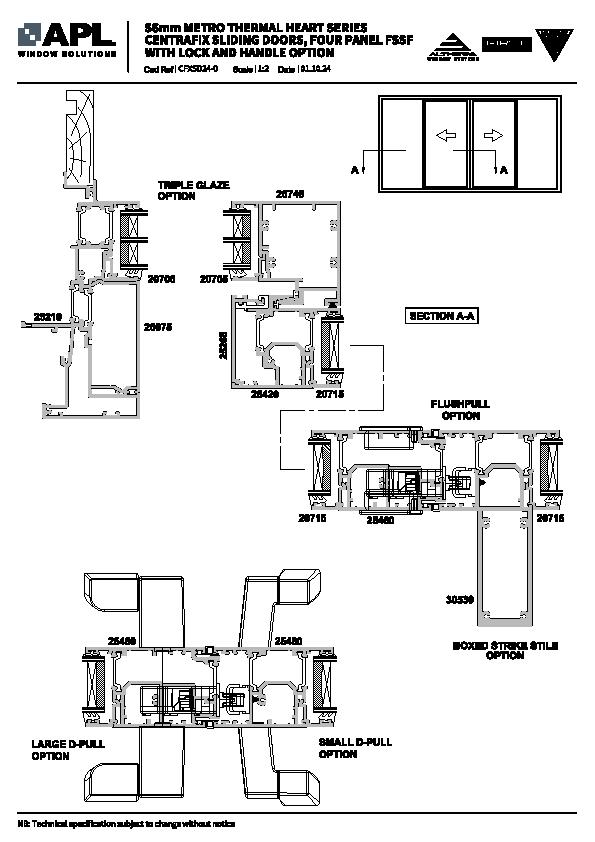

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Four Panel FSSF, Centrafix™ Frame (56mm)

TMSD41

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — Three Panel SFS, Centrafix™ Frame (56mm)

TMSD42

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors Centrafix™ Frame (56mm)

TMSD43

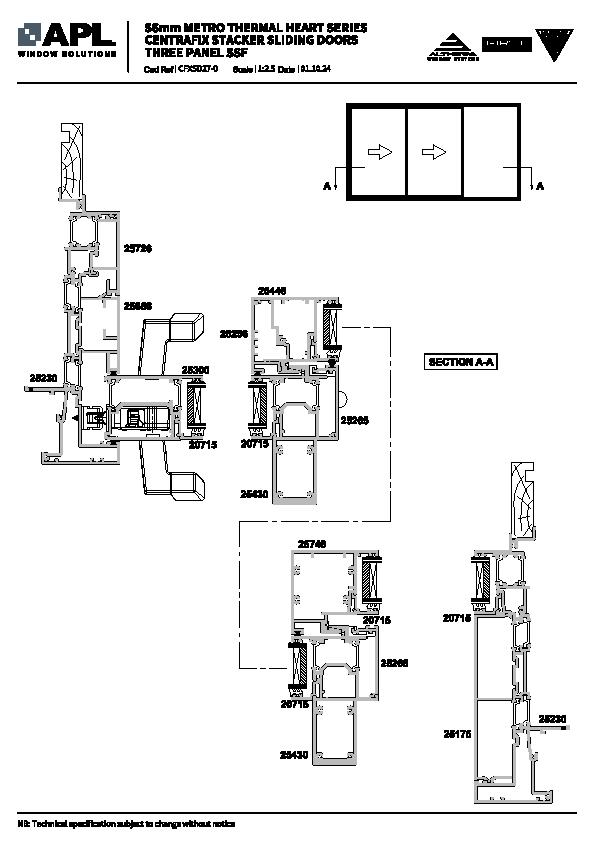

Metro Series ThermalHEART® with Centrafix™ Stacking Sliding Doors — Centrafix™ Frame, Three Panel SSF (56mm)

TMSD44

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Four Panel FSSF (56mm)

TMSD45

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Overlight Transom (56mm)

TMSD46

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Doors — Centrafix™ Frame, Six Panel FSSSSF (56mm)

TMSD47

Metro Series ThermalHEART® with Centrafix™ Sliding Doors — 90° Corners

TMSD48

Installation Details
The Installation Details must be used in conjunction with this Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE
Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Board & Batten

CFX44MDBB

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Brick Veneer

CFX44MDBV

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Bevelback Weatherboard

CFX44MDBW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Flat Sheet

CFX44MDFS

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Profile Metal

CFX44MDPM

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Rusticated Weatherboard

CFX44MDRW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Stucco

CFX44MDST

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Board & Batten

CFX44SDBB

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Brick Veneer

CFX44SDBV

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Bevelback Weatherboard

CFX44SDBW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Flat Sheet

CFX44SDFS

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Profile Metal

CFX44SDPM

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Rusticated Weatherboard

CFX44SDRW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Stucco

CFX44SDST

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Board & Batten (56mm)

CFX56MDBB

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Brick Veneer (56mm)

CFX56MDBV

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Bevelback Weatherboard (56mm)

CFX56MDBW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Flat Sheet (56mm)

CFX56MDFS

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Profile Metal (56mm)

CFX56MDPM

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Rusticated Weatherboard (56mm)

CFX56MDRW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Multislider Door on Stucco (56mm)

CFX56MDST

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Board & Batten (56mm)

CFX56SDBB

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Brick Veneer (56mm)

CFX56SDBV

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Bevelback Weatherboard (56mm)

CFX56SDBW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Flat Sheet (56mm)

CFX56SDFS

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Profile Metal (56mm)

CFX56SDPM

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Rusticated Weatherboard (56mm)

CFX56SDRW

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

Altherm Metro Series ThermalHEART® with Centrafix™ Sliding Door on Stucco (56mm)

CFX56SDST

The Installation Details must be used in conjunction with the Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE
