APL Architectural Series Awning & Casement Windows
ALTHERM Window Systems
All products
Complete your window system with AGP glass, New Zealand's leading double-glazing technology Explore

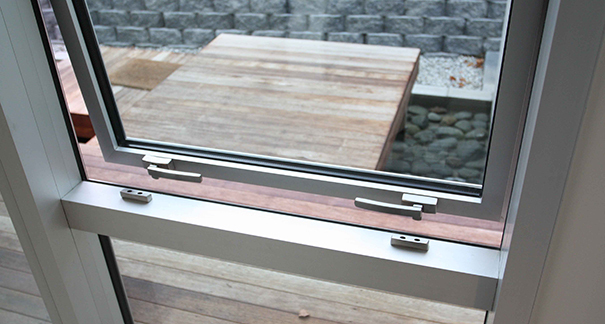

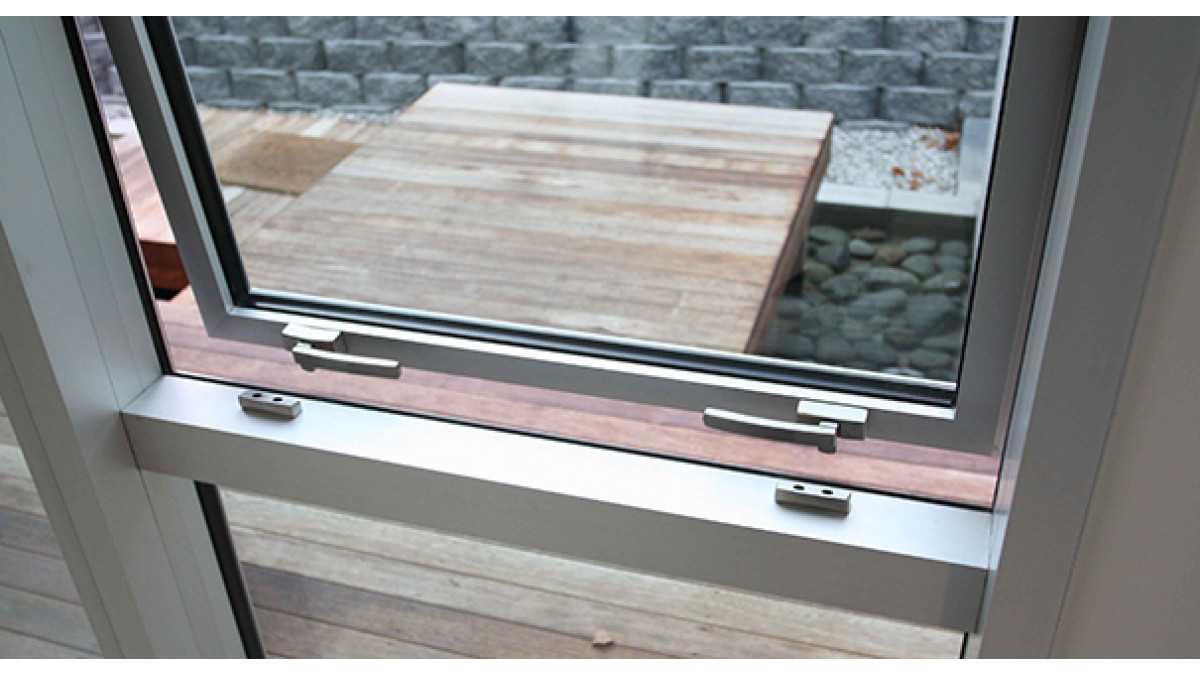

Archi Awning Window

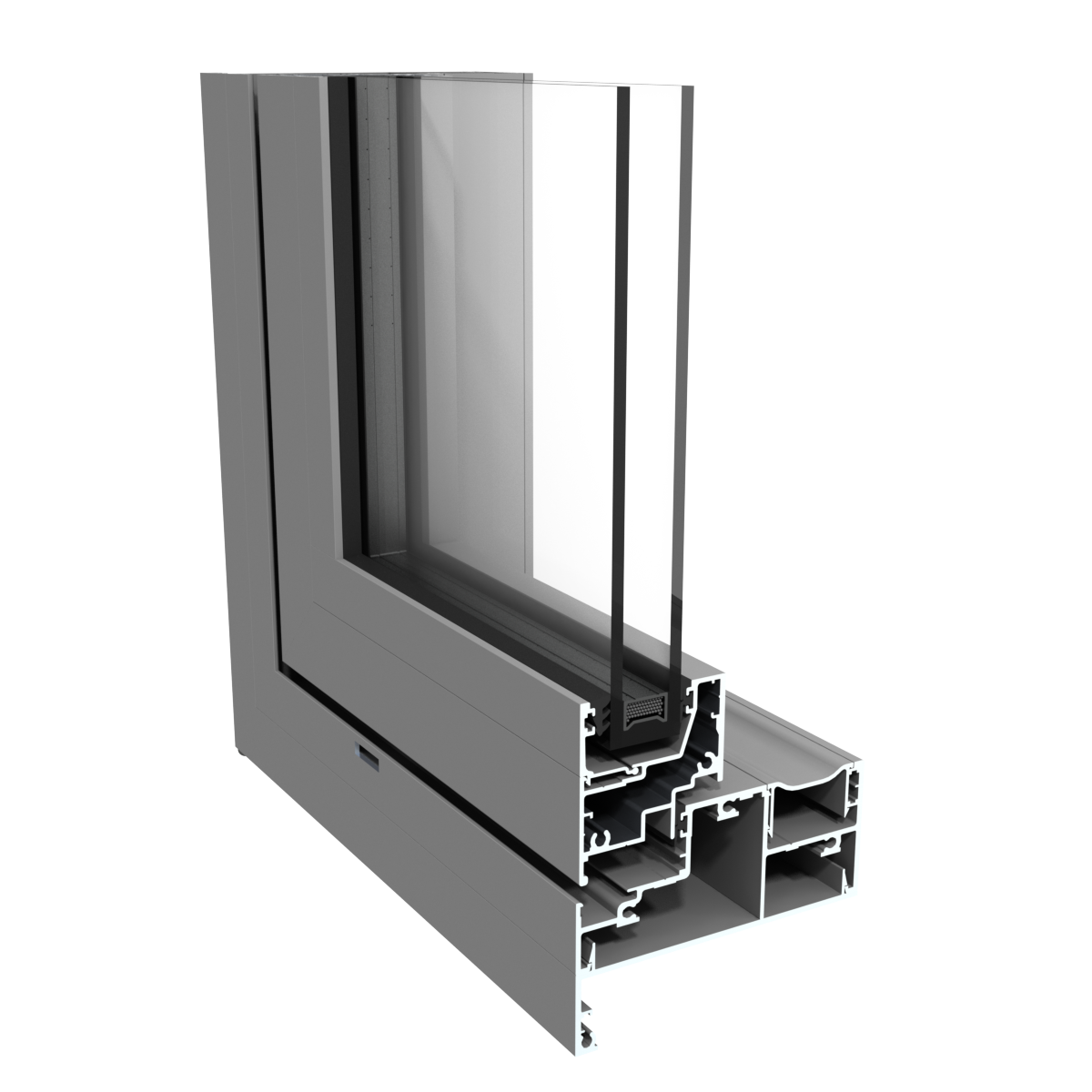

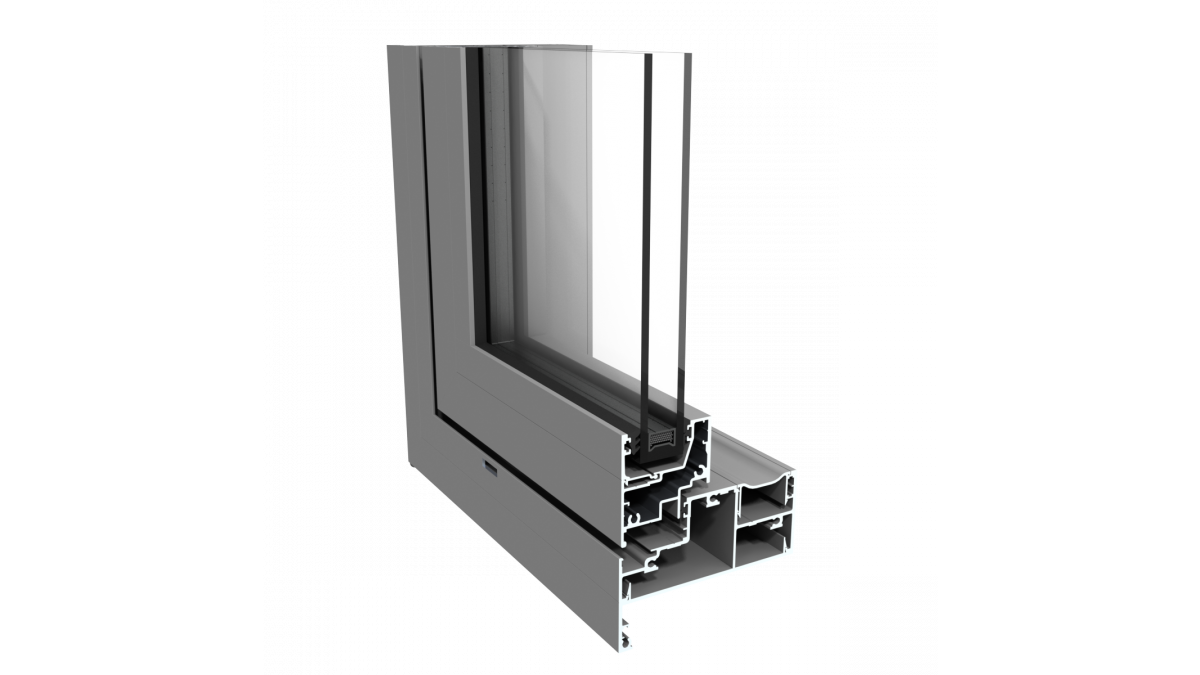

167A Arch 106mm AW + Sash Corner
Standard window frame (106mm option) and awing sash

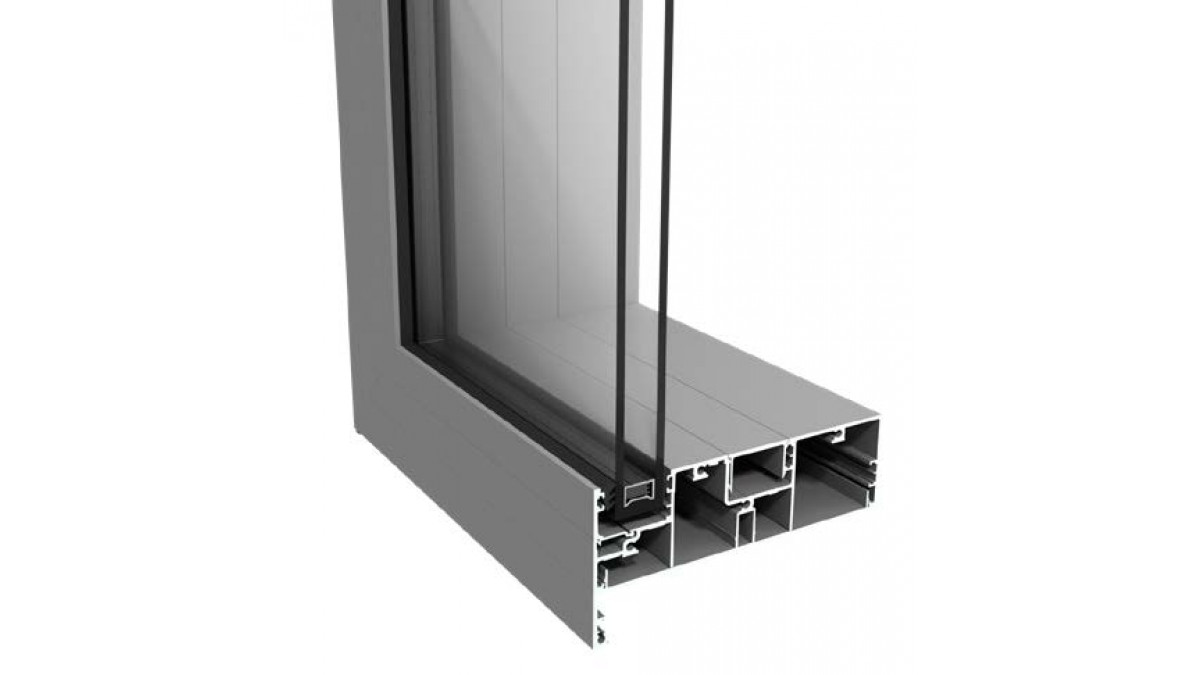

Fixed light 158mm frame

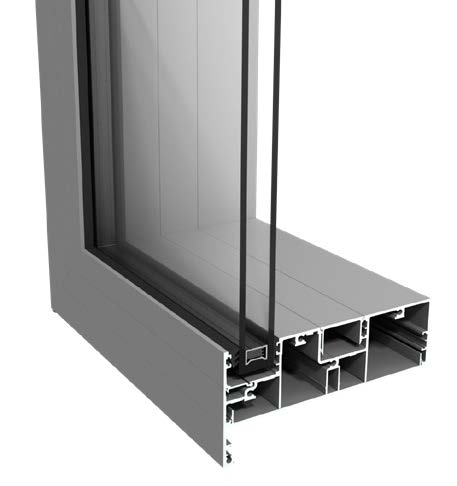

Fixed light – 158mm frame

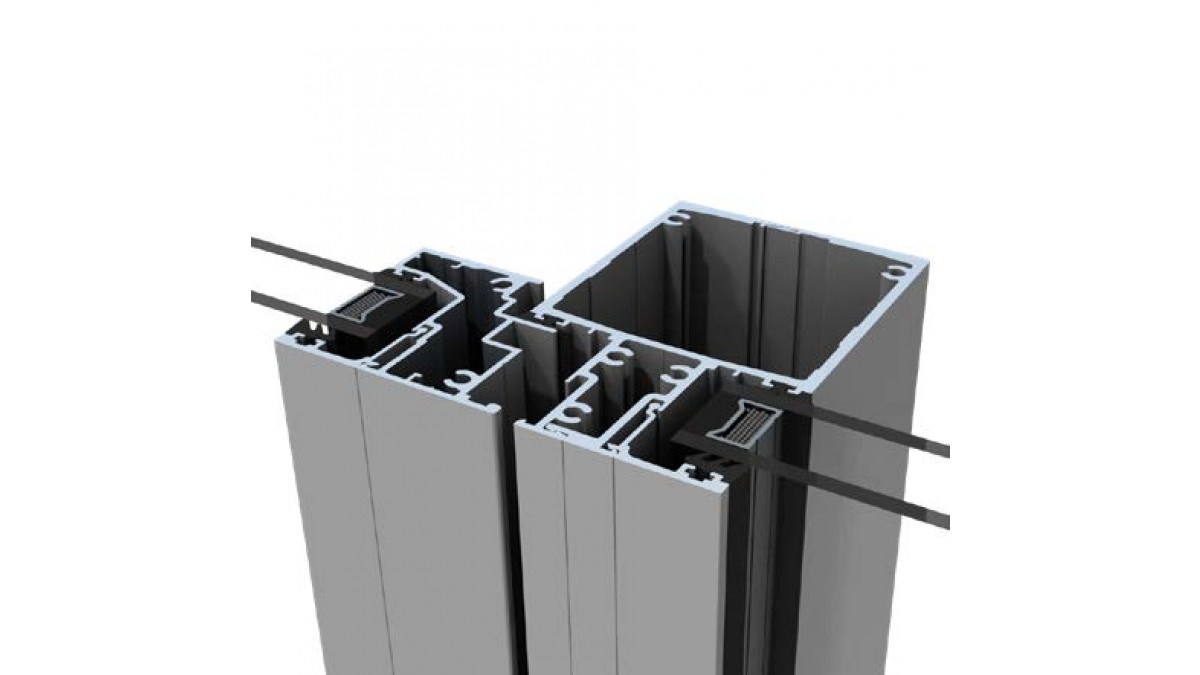

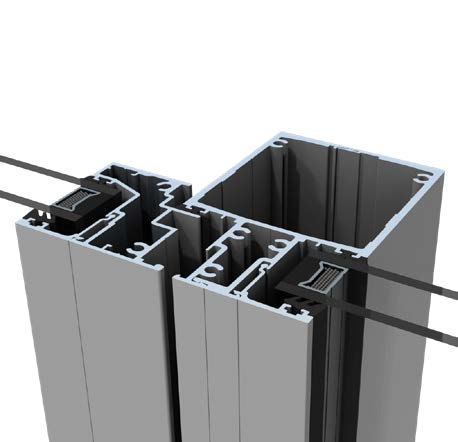

Internal box mullion sash on left
Internal box mullion – sash on left

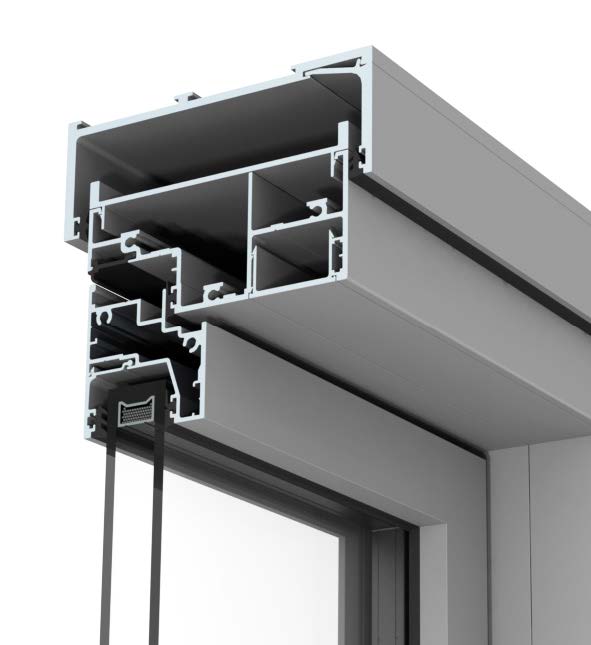

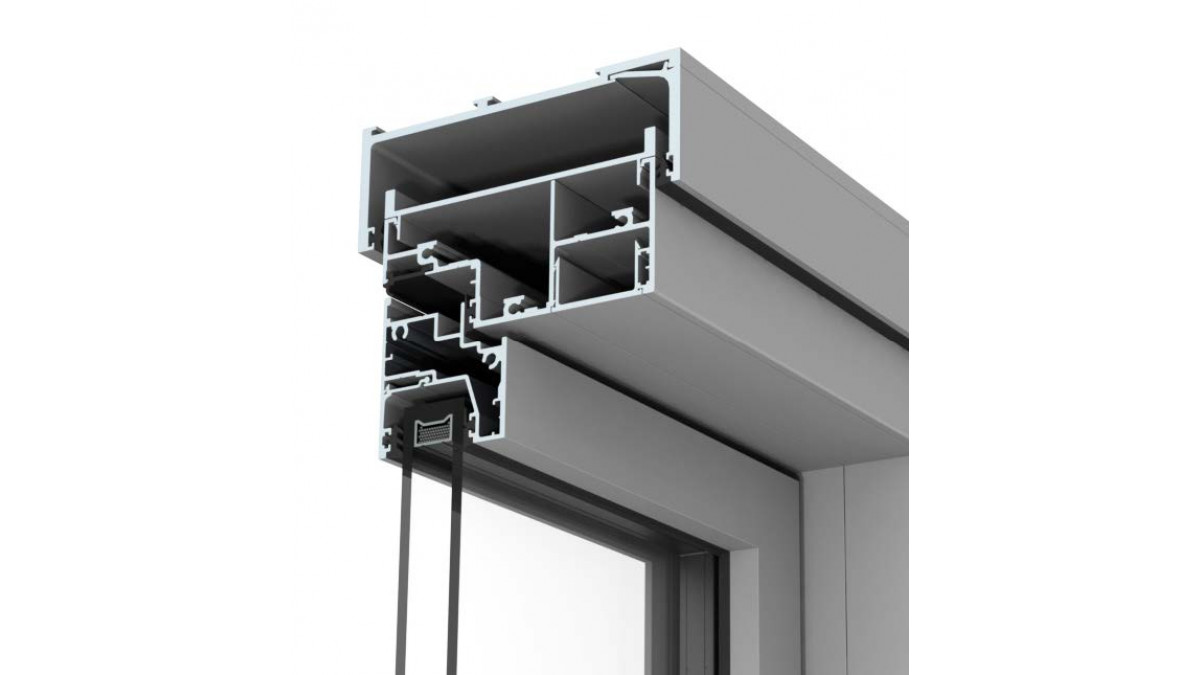

Seismic frame option at head
Seismic frame option at head
Description

Opening sashes are non-facing, lying flush with the frame for enhanced aesthetics. Matching depth window frames and hinged and sliding door frames allow a continuous edge on the inside when products are coupled together.

Sashes and fixed lights are bead glazed externally on all sides for glass thicknesses of 4-28mm.

For best overall performance, pair with The AGP System® with Solux-E® or Solux Ultra® low-e glass.

Key Features
  • A high performance series of windows and doors ideal for architecturally designed houses and apartments
  • Can achieve tall heights and wide spans and has been designed for suitability for Extra High wind zones and Specific Design applications
  • The window frame is available in two options, 106mm and 158mm, which couple with adjoining door frames for a continuous interior edge
  • Awning and casement sashes have a flush, non-facing sash
  • Frames have facing adaptors which allow 25mm of weather cover if desired
  • Mullions and transoms have stiffening boxes which project to the interior
  • Two–point espagnolette locking available
Categories
Awning and Casement Windows
Ranges
APL Architectural Series
Scope of Use
  • Suitable for the full spectrum of residential environments in standard or large formats. Awning windows provide versatile ventilation with a good degree of weather protection
  • Casements can direct breezes inside and have a traditional aesthetic
  • Need to be used in defined maximum sizes according to the wind exposure
  • Designed for suitability for Extra High wind zones and Specific Design applications
  • Can achieve tall heights and wide spans
Limitations on Use
  • Care needed if projecting on to walkways and decks. Restrictor stays can limit opening in such situations
  • Restrictors will be needed to conform to NZBC F4 'Safety from falling' if windows open on to a drop of 1m or more
  • Consider a horizontal sliding window to protect walkways
  • Caution is required for the use of casements which open directly into prevailing winds
  • Casements beyond benches may have top fasteners that are hard to reach.
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2004
  • Design upgrades regularly released
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
Documents
Data Sheet
pdf
Span Tables
pdf
Declare Label

2025

pdf
AGP Care & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
Altherm on Masterspec
URL
Calculate R-Value and Ug-Value
pdf
Full Specification
docx
Specification Clause
docx
Specifier Guide
pdf
WGANZ Guide to E2/AS1
pdf
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
AGP State of the Art Glass Brochure
URL
Altherm Design Brochure

2020

URL
Sound Solutions Brochure

2020

URL
APL and Sustainability

2019

URL
Manufacturer Contact List
URL
CAD/PDF Details
View full
Full Set of Drawings
pdf

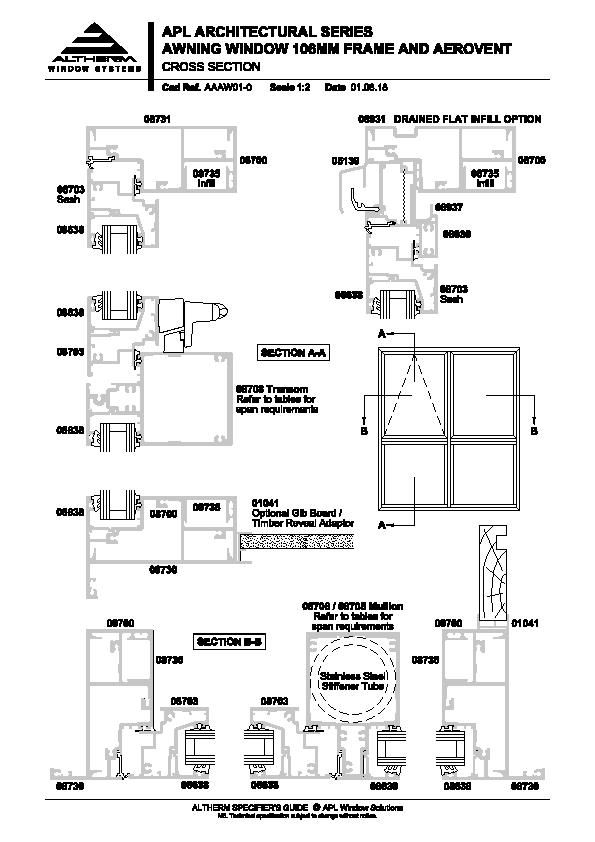

Altherm APL Architectural Series Awning Window 106mm Frame

AAAW01-0

dwf
dwg
dxf
pdf

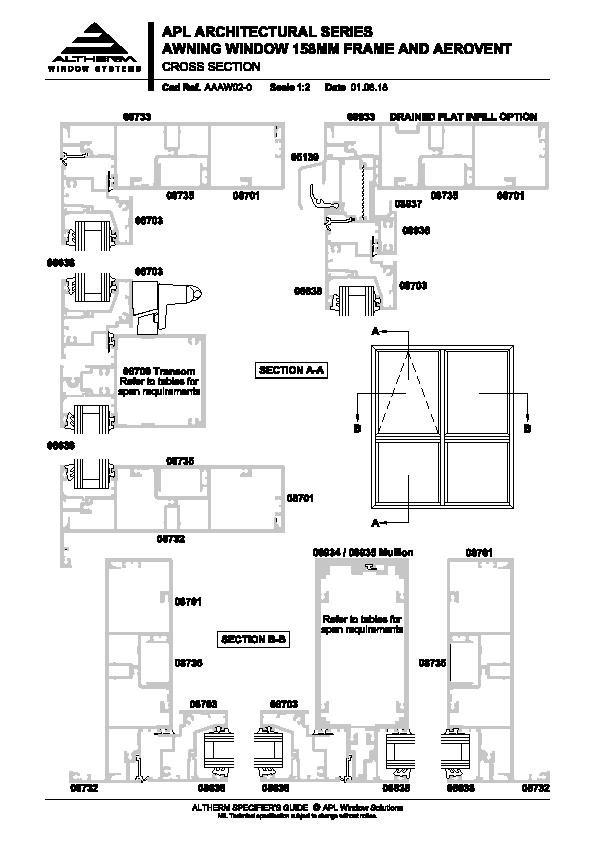

Altherm APL Architectural Series Awning Window 158mm Frame

AAAW02-0

dwf
dwg
dxf
pdf

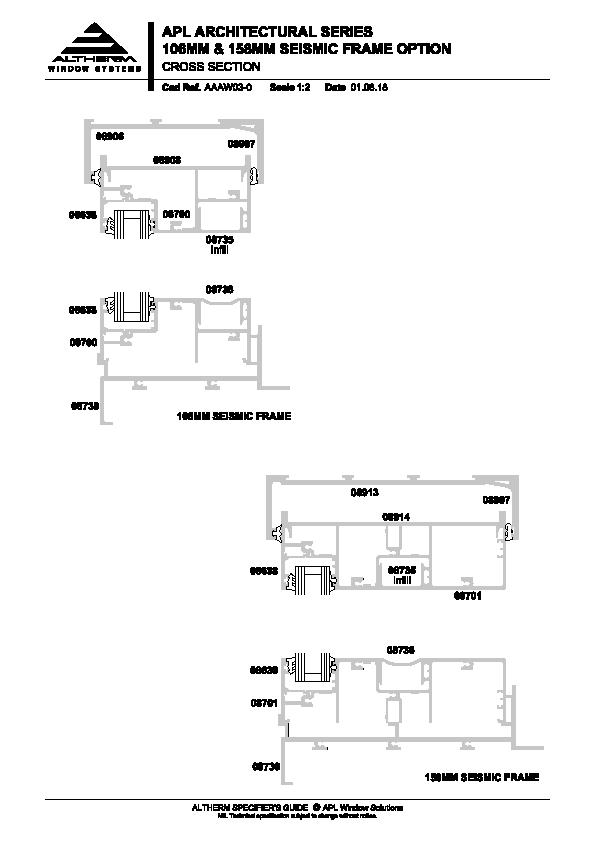

APL Architectural Series 106mm & 158mm Seismic Frame Option

AAAW03-0

dwf
dwg
dxf
pdf

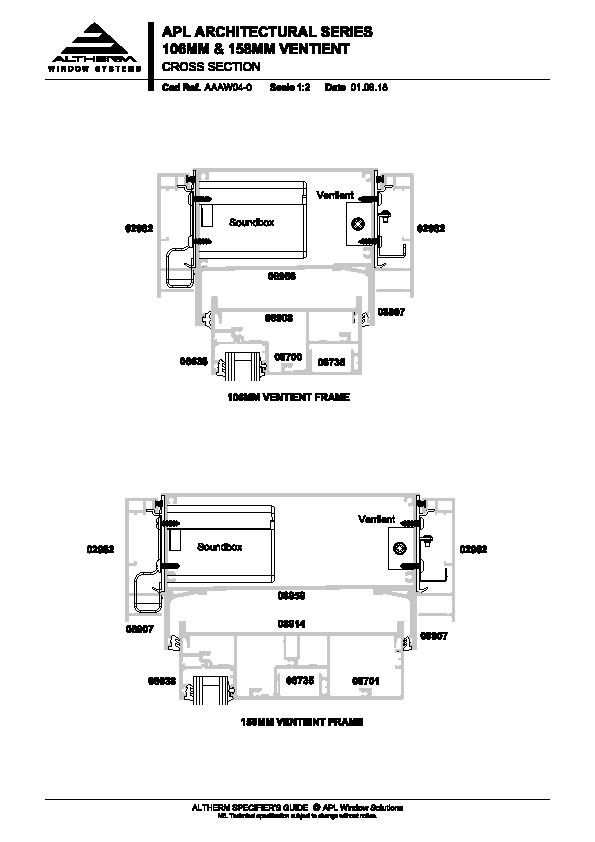

Altherm Architectural Series Ventient

AAAW04-0

dwf
dwg
dxf
pdf
Installation Details
View full

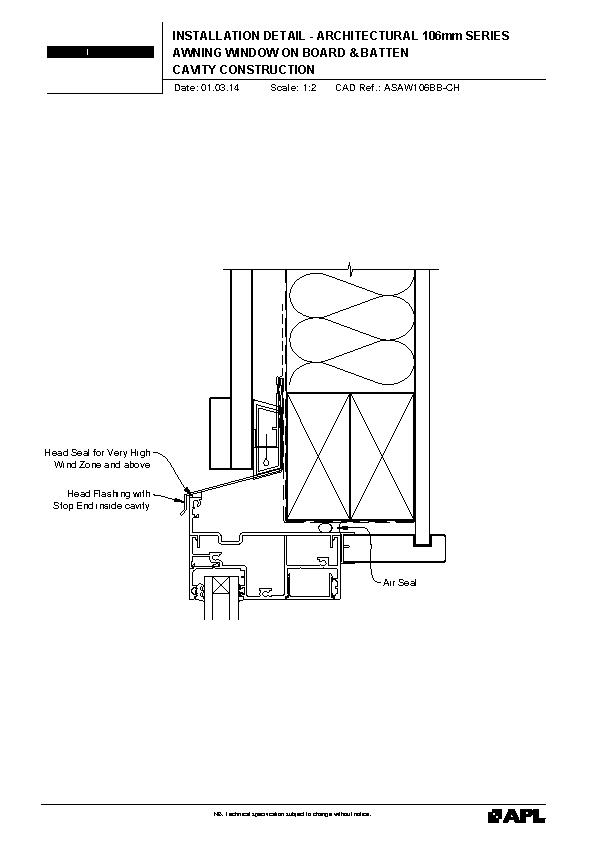

Altherm APL Architectural Series 106mm Awning Window on Board & Batten

ASAW106BB

dwg
pdf

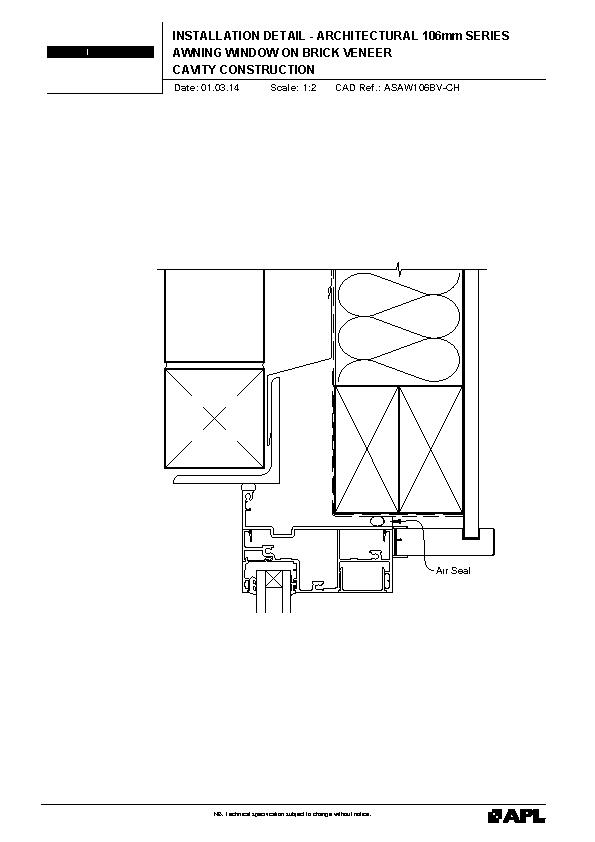

Altherm APL Architectural Series 106mm Awning Window on Brick Veneer

ASAW106BV

dwg
pdf

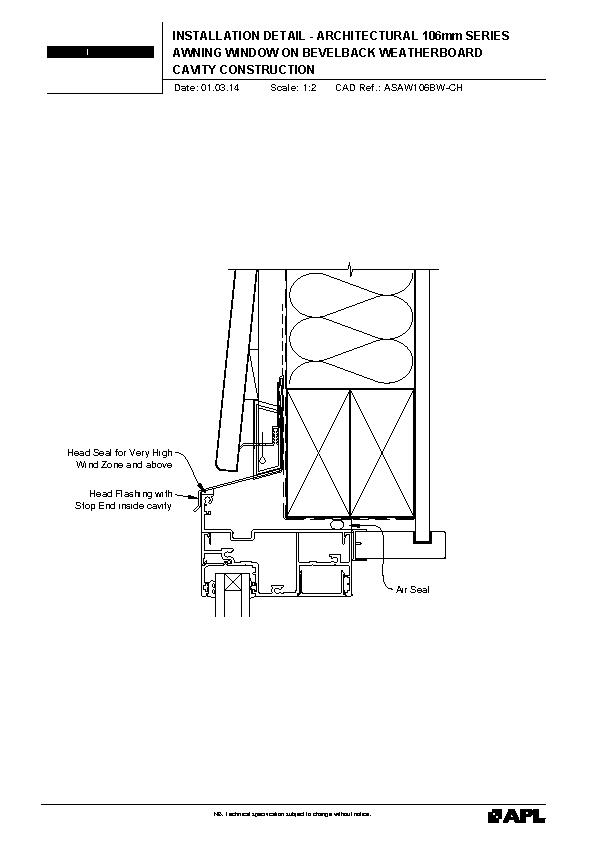

Altherm APL Architectural Series 106mm Awning Window on Bevelback Weatherboard

ASAW106BW

dwg
pdf

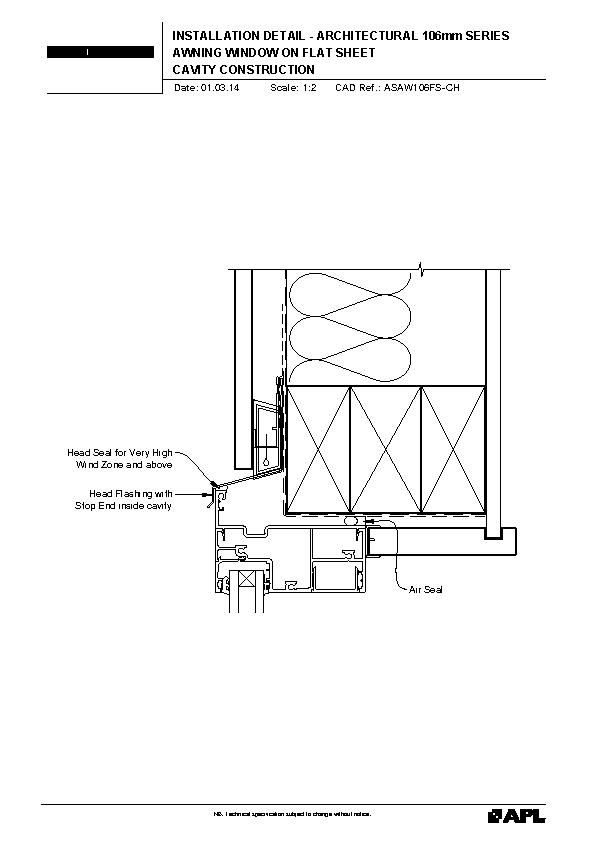

Altherm APL Architectural Series 106mm Awning Window on Flat Sheet

ASAW106FS

dwg
pdf

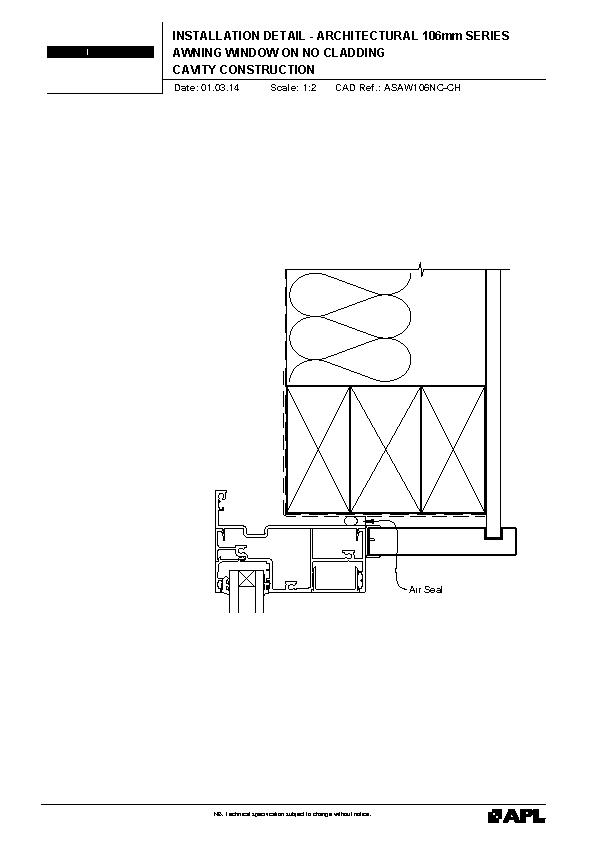

Altherm APL Architectural Series 106mm Awning Window on No Cladding

ASAW106NC

dwg
pdf

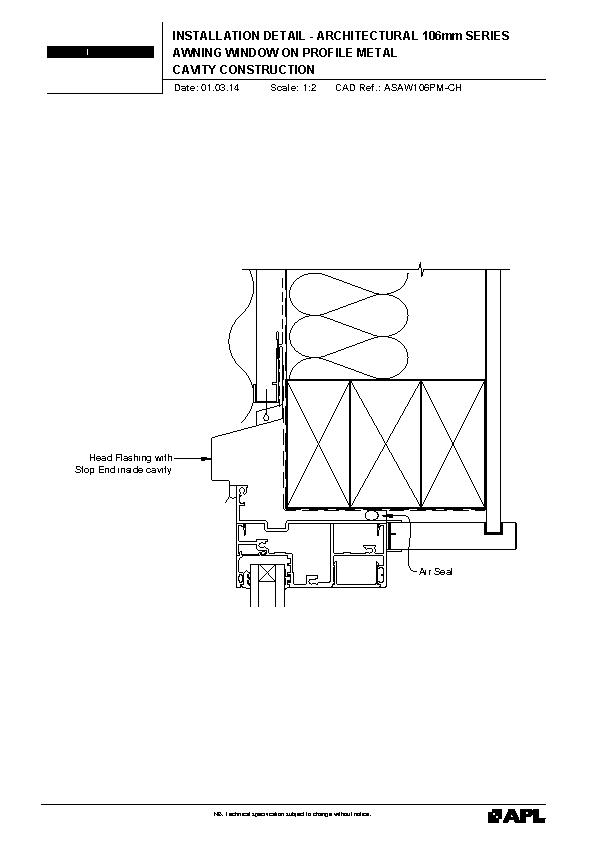

Altherm APL Architectural Series 106mm Awning Window on Profile Metal

ASAW106PM

dwg
pdf

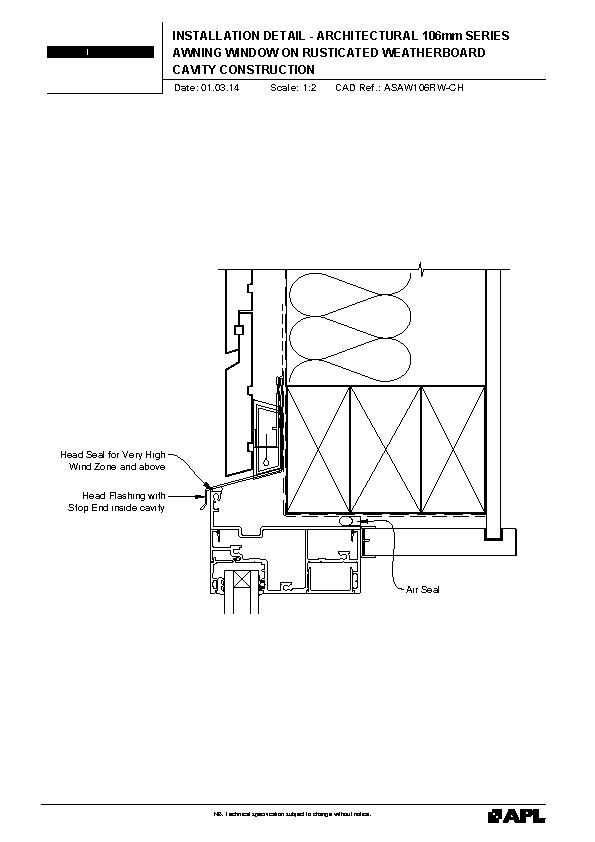

Altherm APL Architectural Series 106mm Awning Window on Rusticated Weatherboard

ASAW106RW

dwg
pdf

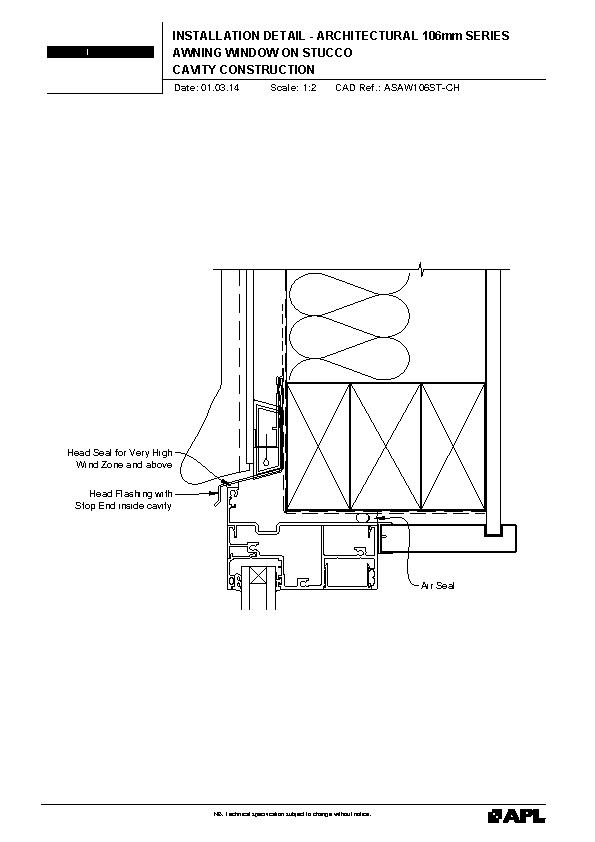

Altherm APL Architectural Series 106mm Awning Window on Stucco

ASAW106ST

dwg
pdf

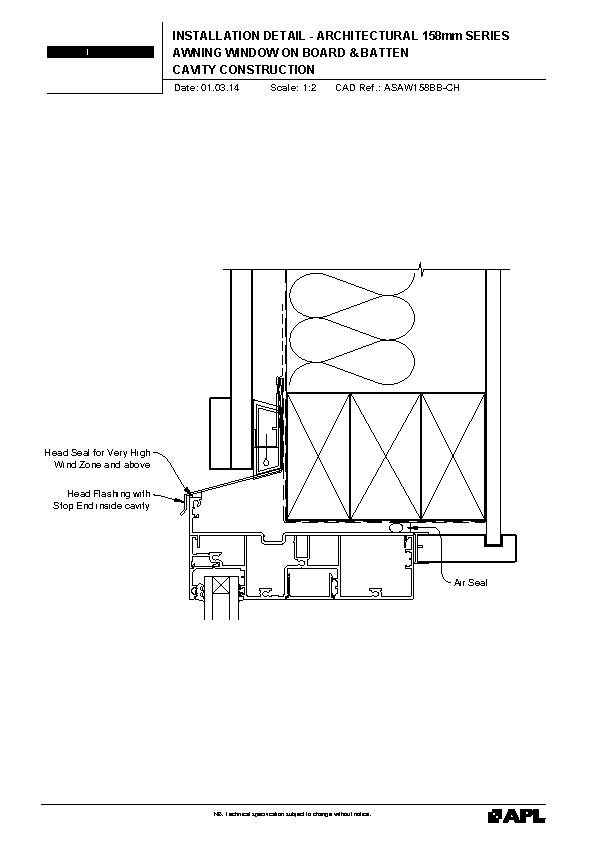

Altherm APL Architectural Series 158mm Awning Window on Board & Batten

ASAW158BB

dwg
pdf

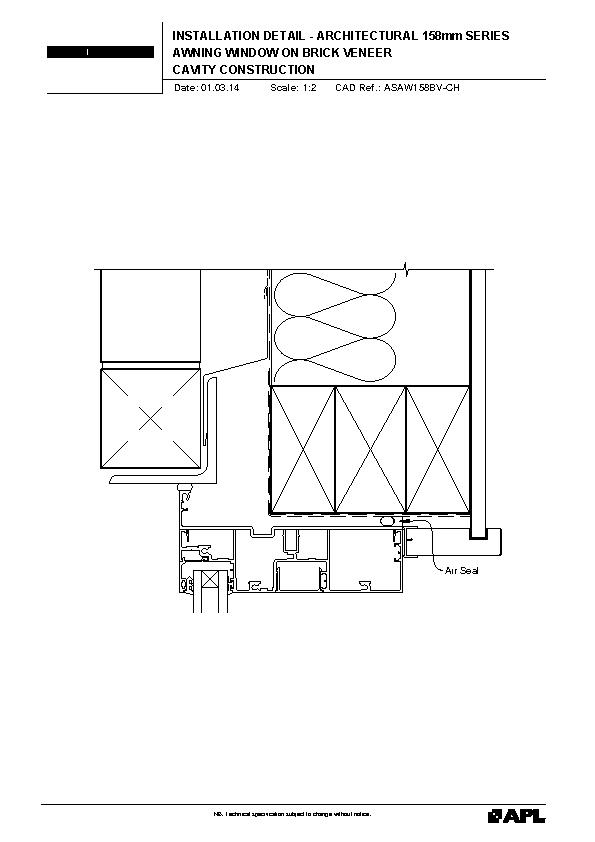

Altherm APL Architectural Series 158mm Awning Window on Brick Veneer

ASAW158BV

dwg
pdf

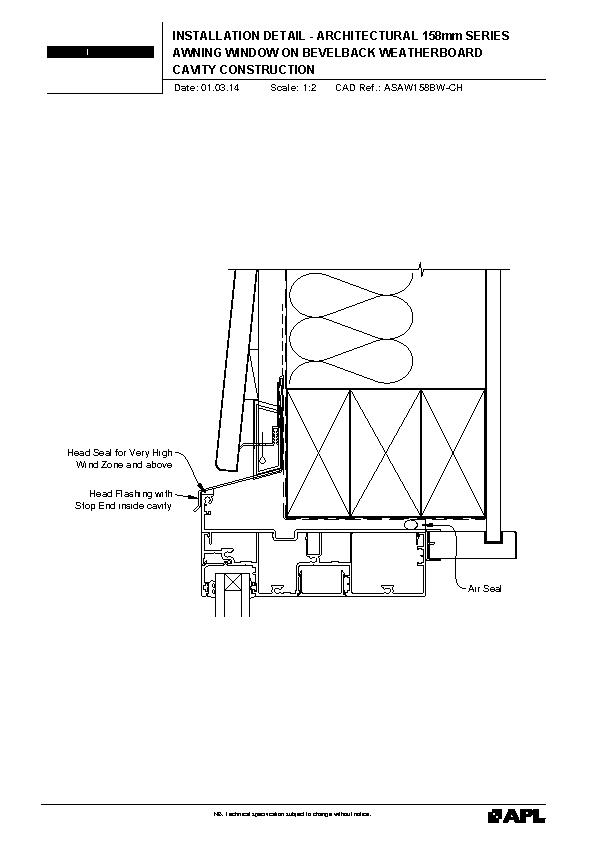

Altherm APL Architectural Series 158mm Awning Window on Bevelback Weatherboard

ASAW158BW

dwg
pdf

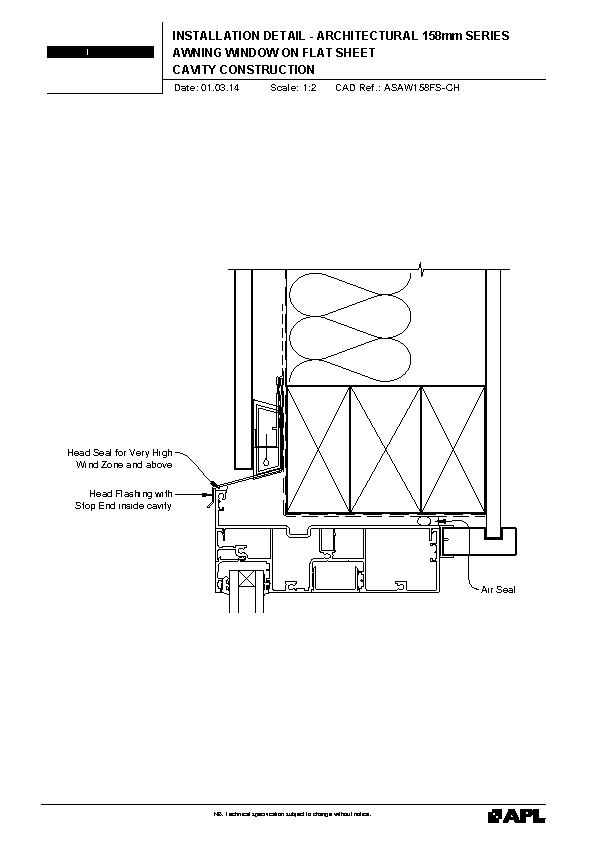

Altherm APL Architectural Series 158mm Awning Window on Flat Sheet

ASAW158FS

dwg
pdf

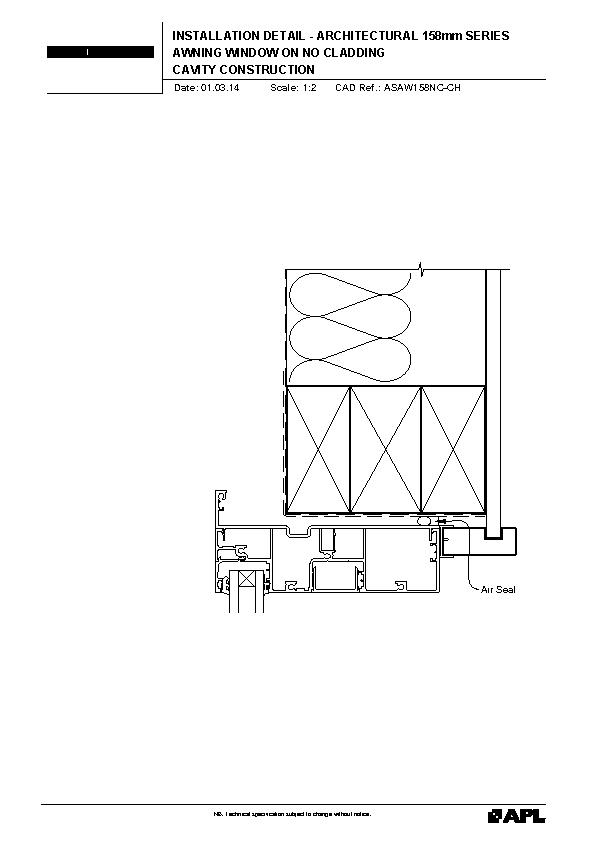

Altherm APL Architectural Series 158mm Awning Window on No Cladding

ASAW158NC

dwg
pdf

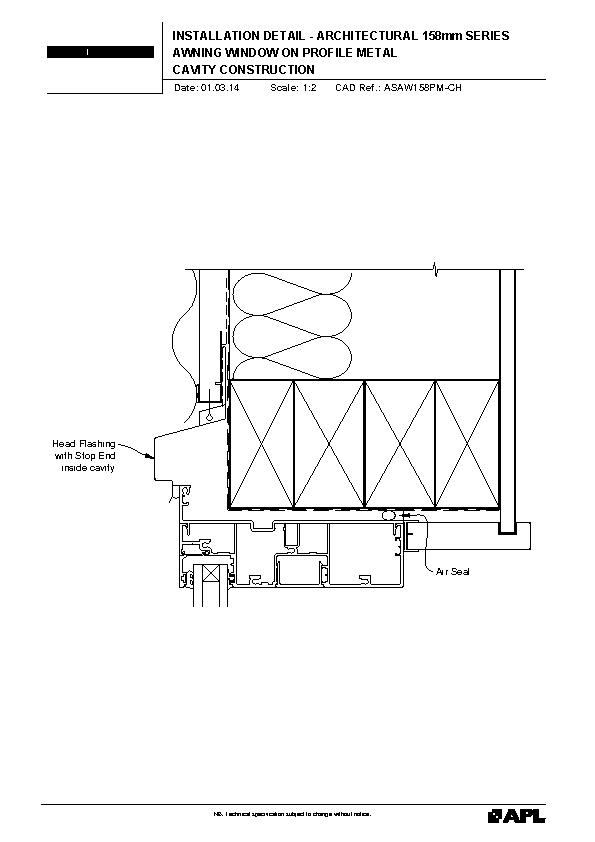

Altherm APL Architectural Series 158mm Awning Window on Profile Metal

ASAW158PM

dwg
pdf

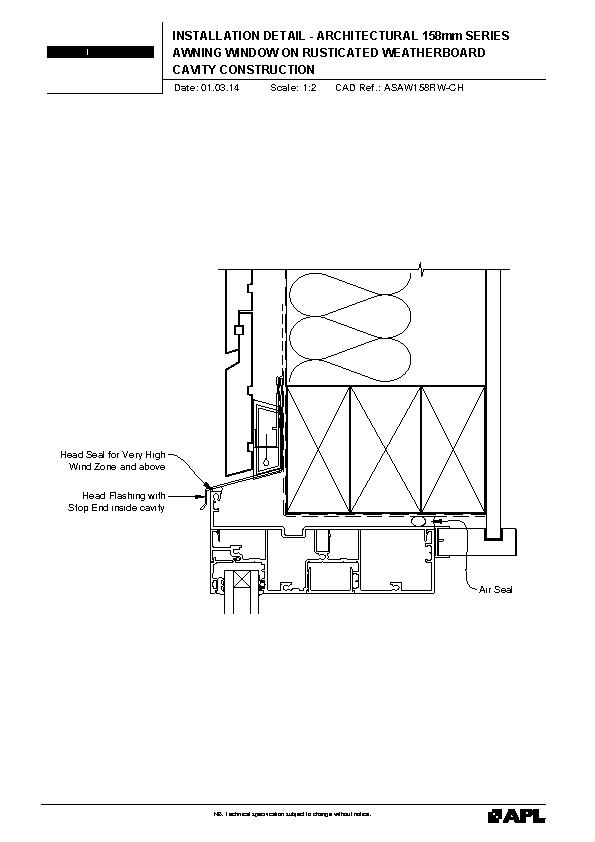

Altherm APL Architectural Series 158mm Awning Window on Rusticated Weatherboard

ASAW158RW

dwg
pdf

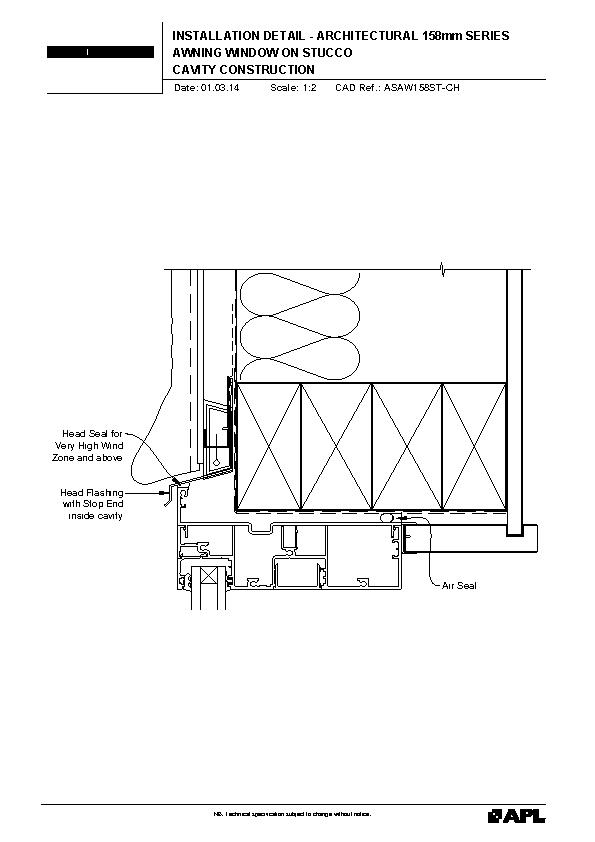

Altherm APL Architectural Series 158mm Awning Window on Stucco

ASAW158ST

dwg
pdf
BIM
View full

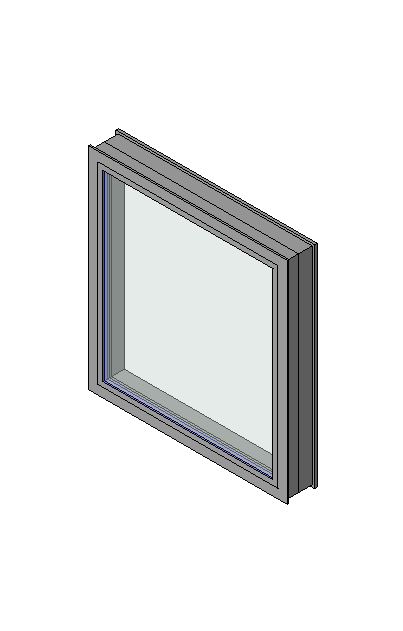

One Panel
Altherm APL 106mm Architectural Series Awning Window
zip

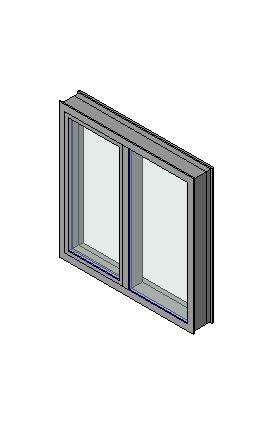

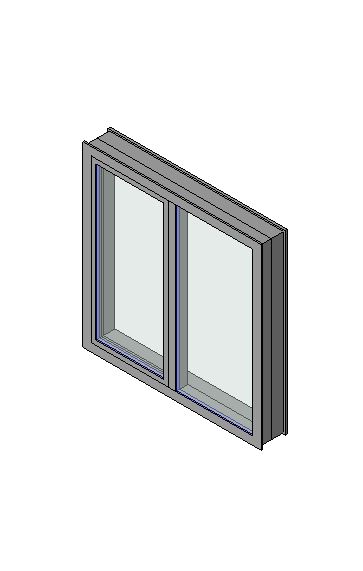

Awn Fixed
Altherm APL 106mm Architectural Series Awning Window with Sidelight
zip

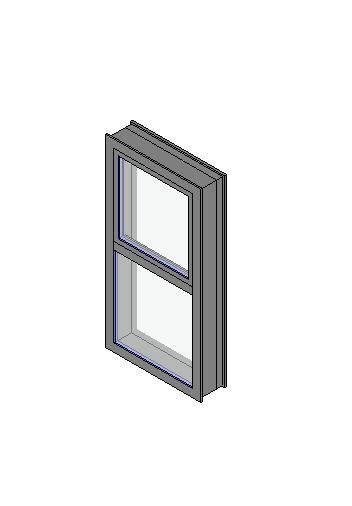

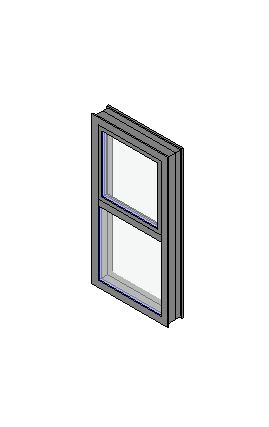

Awning Top
Altherm APL 106mm Architectural Series Awning Window, Sash with Underlight
zip

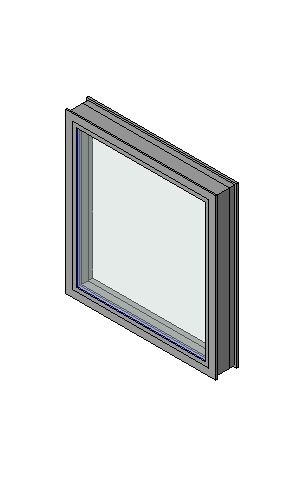

one panel
Altherm APL 158mm Architectural Series Awning Window
zip
Awning Fixed
Altherm APL 158mm Architectural Series Awning Window, Sash / Fixed
zip
Awning Top
Altherm APL 158mm Architectural Series Awning Window, Sash with Underlight
zip

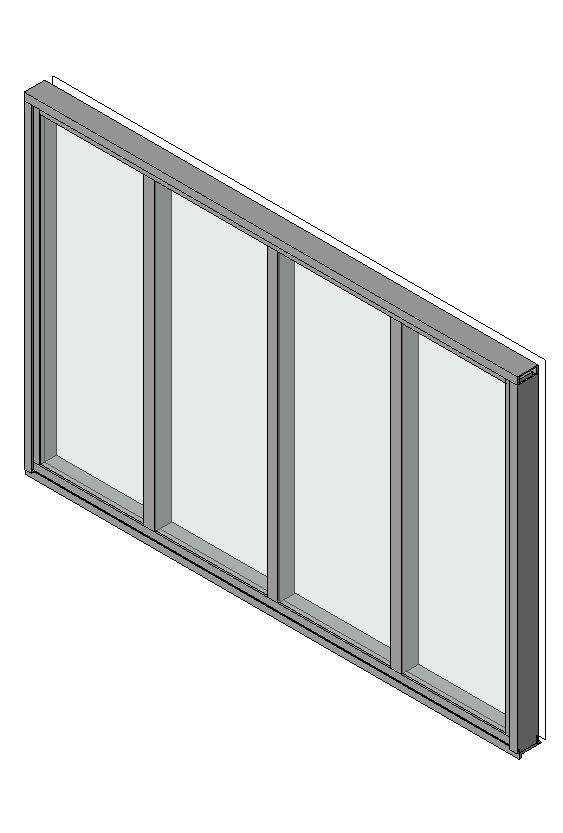

106
APL Architectural Series 106mm Seismic Awning Window

Revit LT 2020

zip
zip
158
APL Architectural Series 158mm Seismic Awning Window

Revit LT 2020

zip
zip

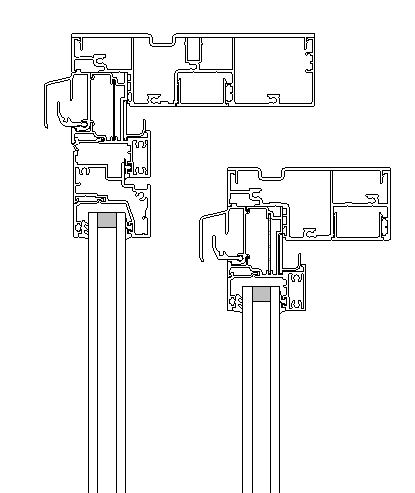

Arch Aerovent
Architectural Series 106mm and 158mm Awning Window with Aerovent

Revit LT 2020

zip

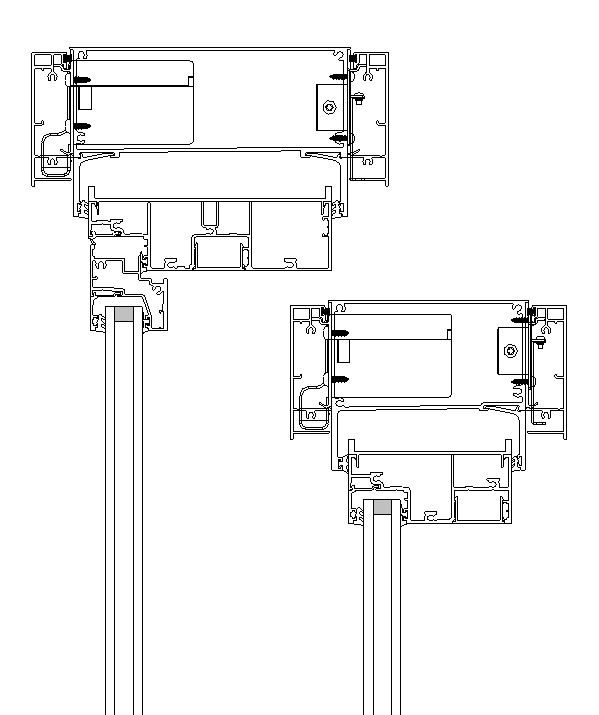

Arch Ventient
Architectural Series 106mm and 158mm Awning Window with Ventient

Revit LT 2020

zip
