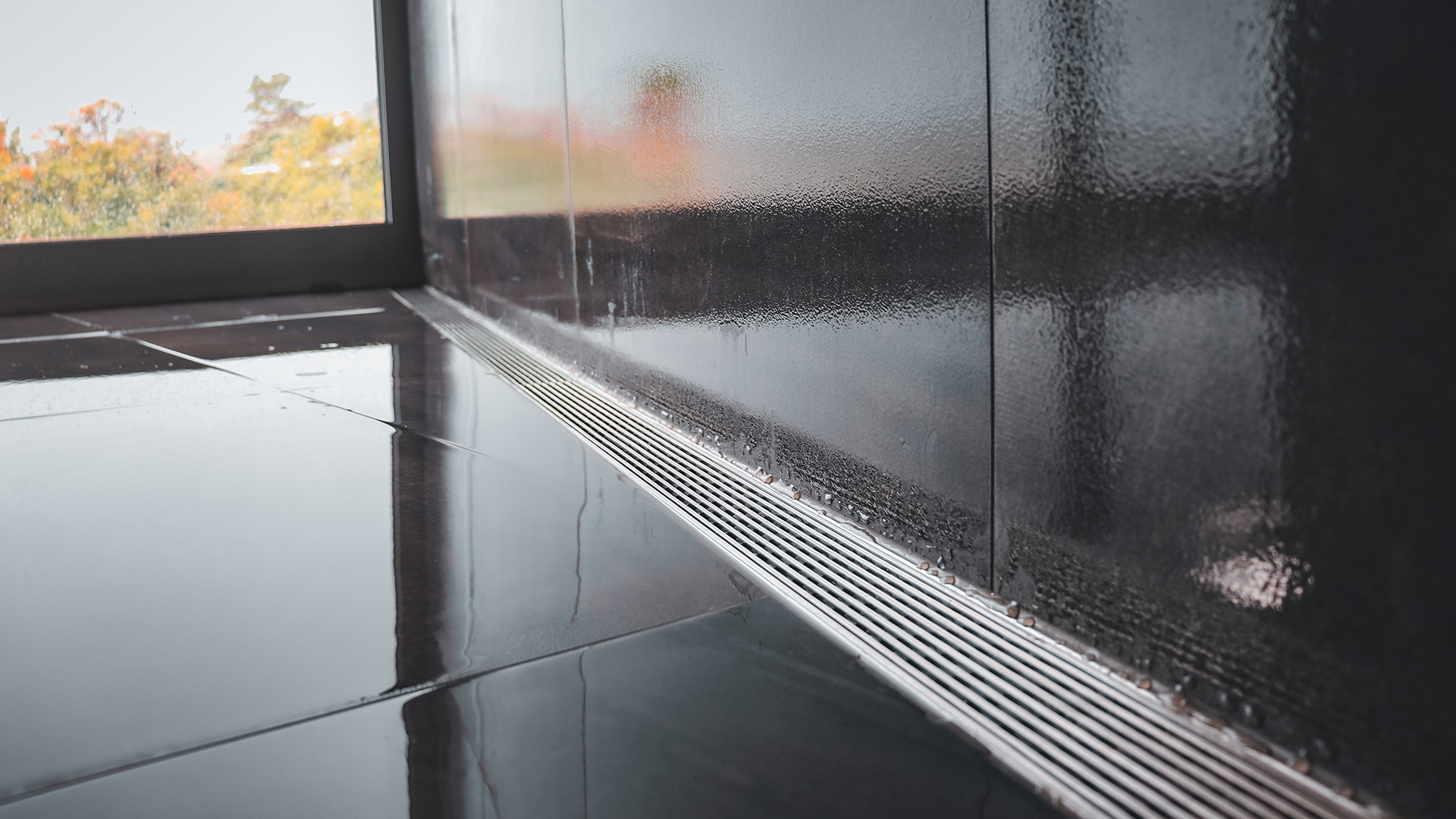

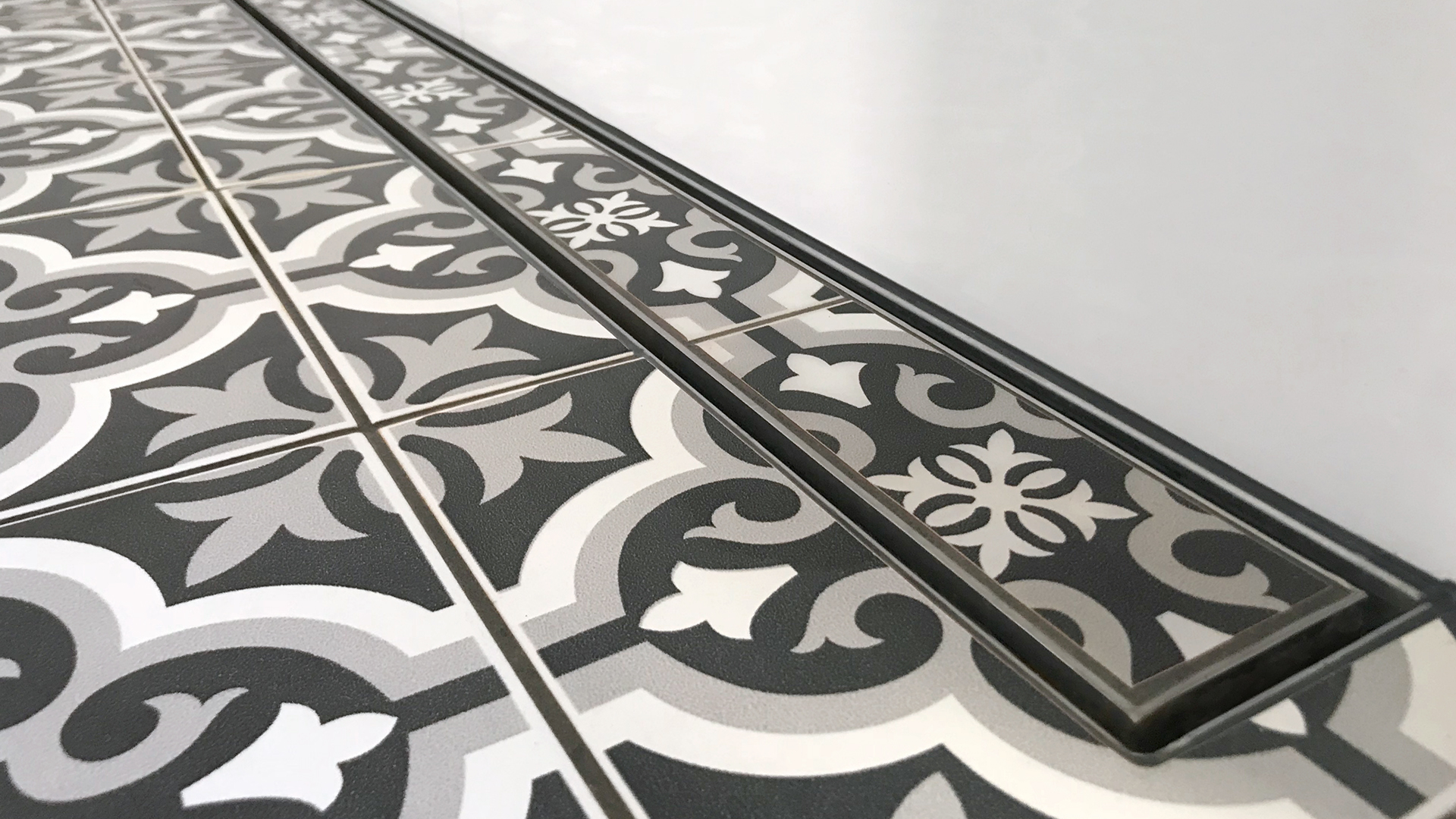

Vision Stainless Steel Shower Channels

The Vision series is an all stainless steel shower channel and grate system with a centre outlet, available off the shelf from Allproof. Vision shower channel kits include a choice of stainless steel grate and channel, a VF80 leak control flange and floor waste gully.

The Vision series is available in four stock lengths: 800, 900, 1000 and 1200mm. Custom sizes are also available.

Key Features
  • All stainless steel construction
  • Standardised lengths
  • 50mm centre outlet

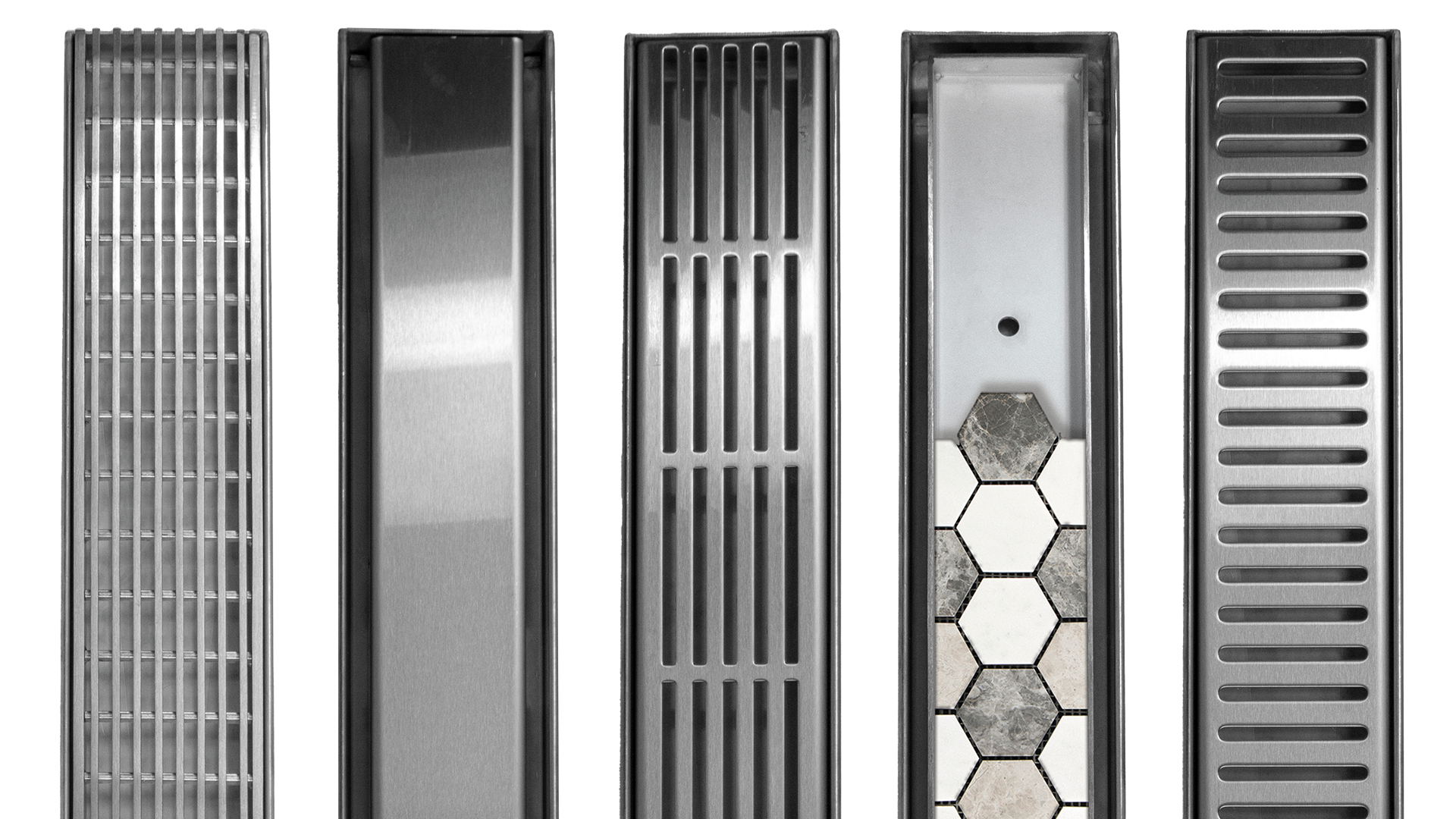

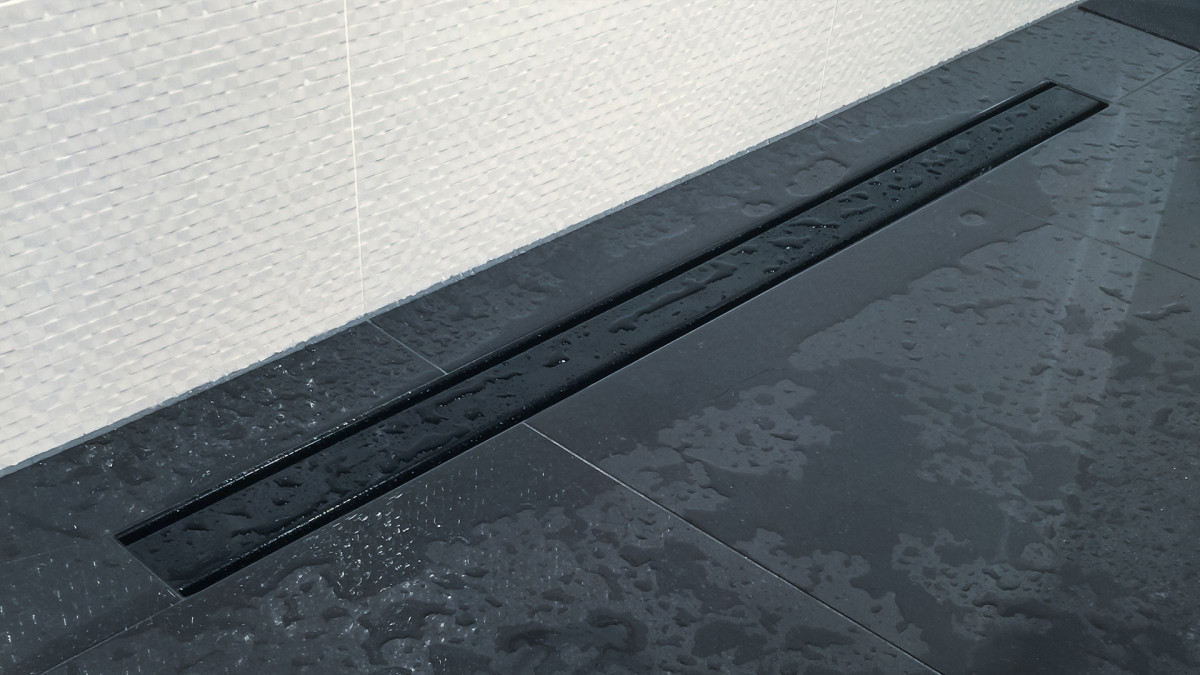

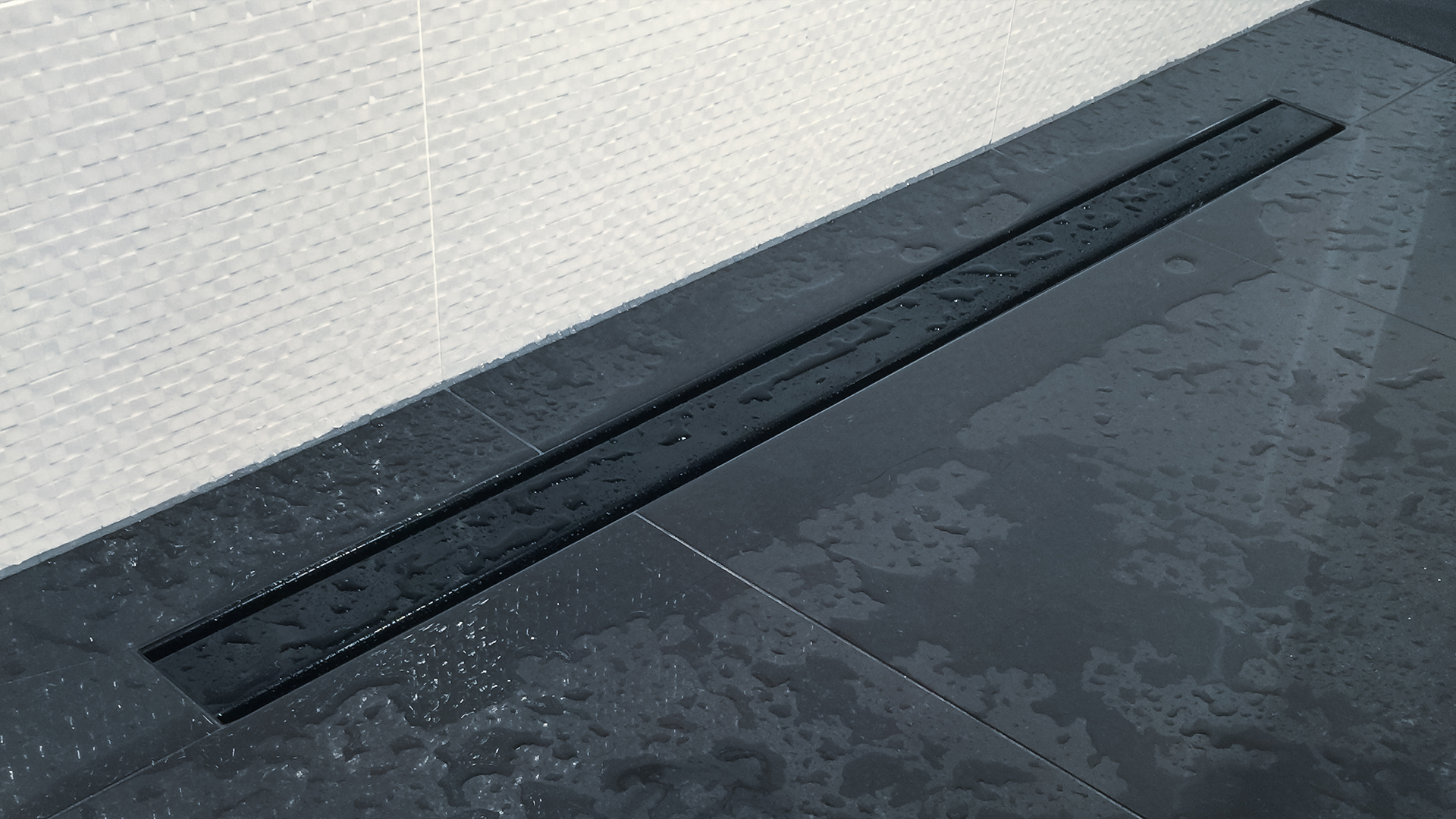

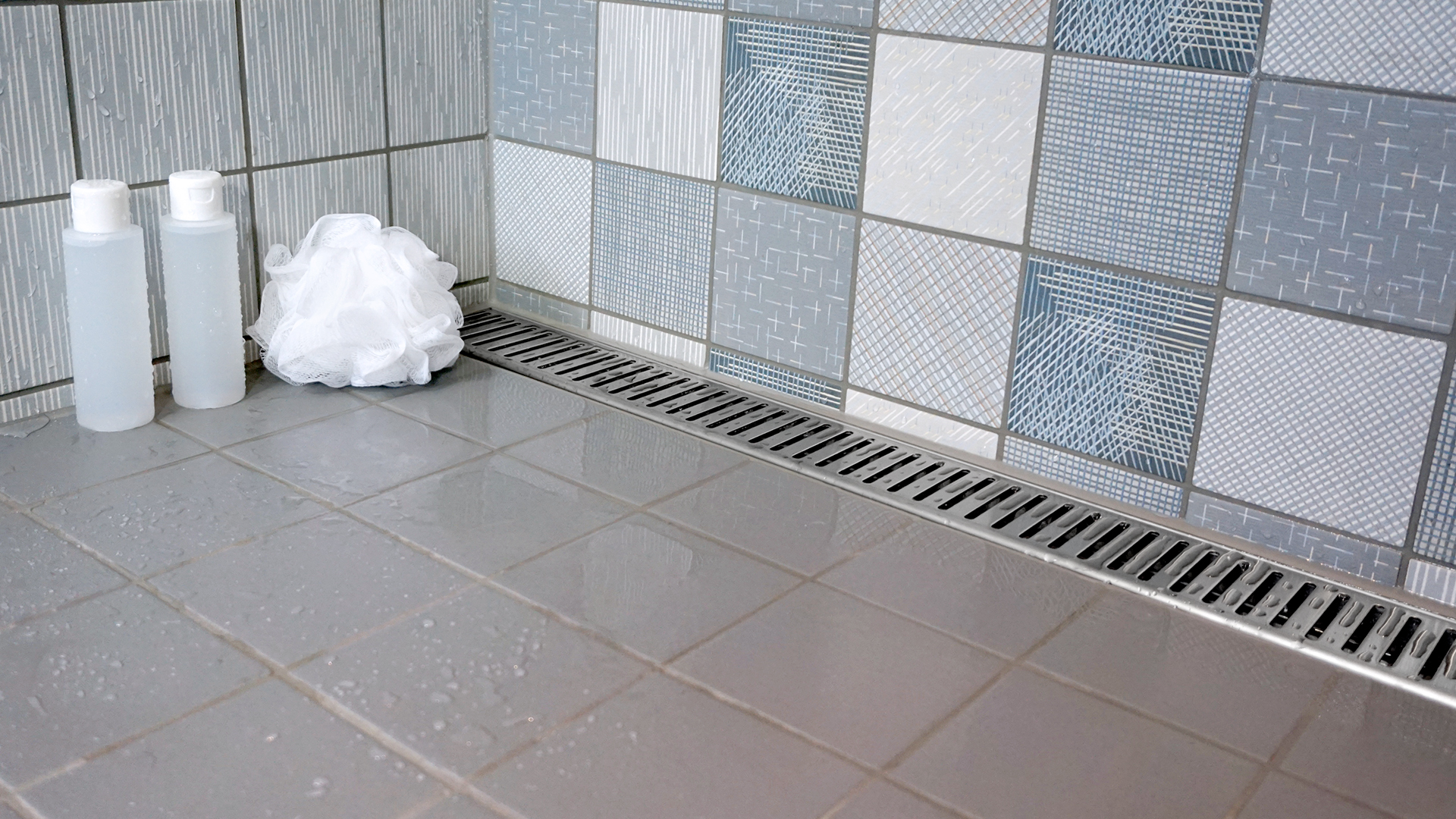

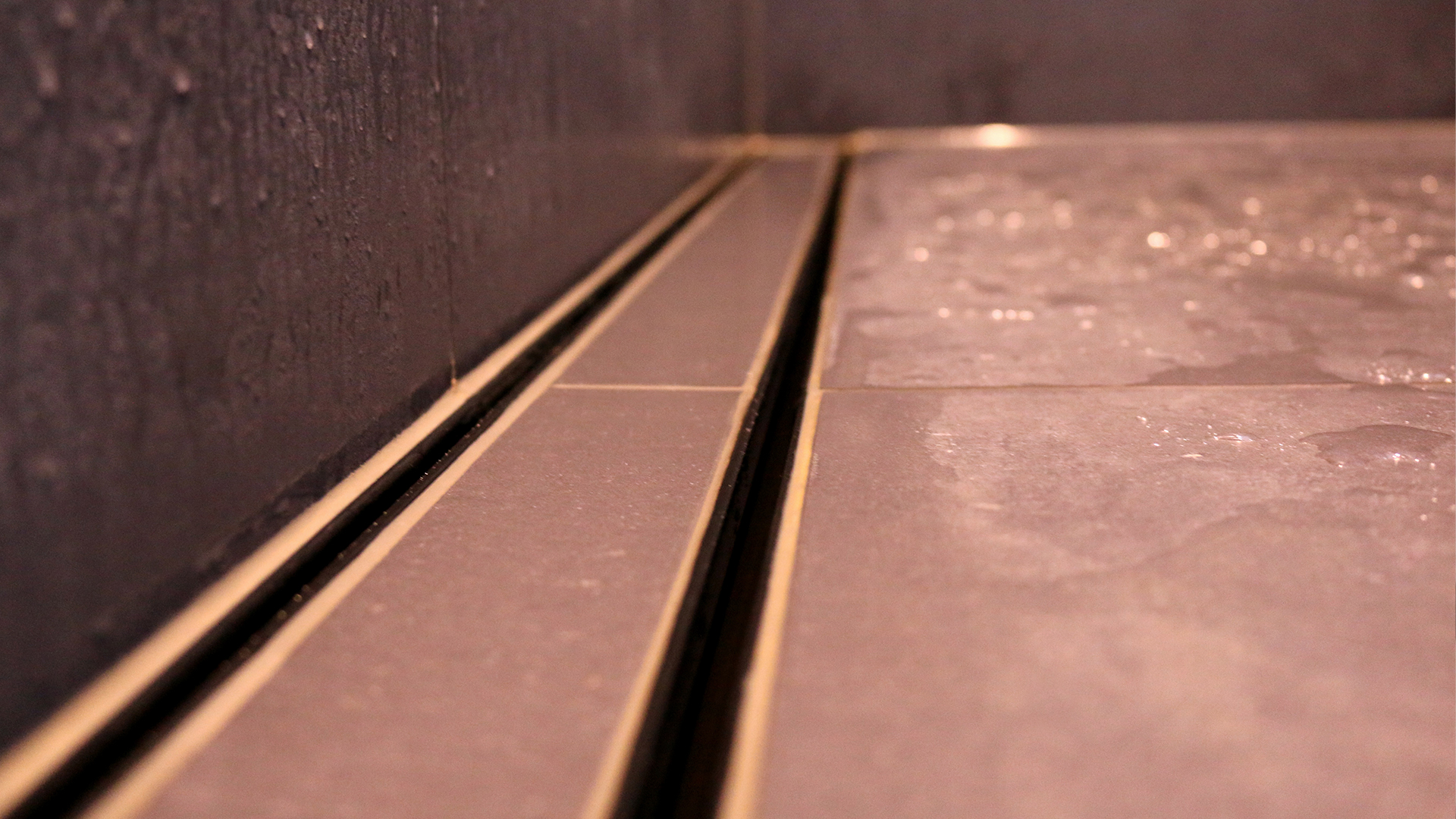

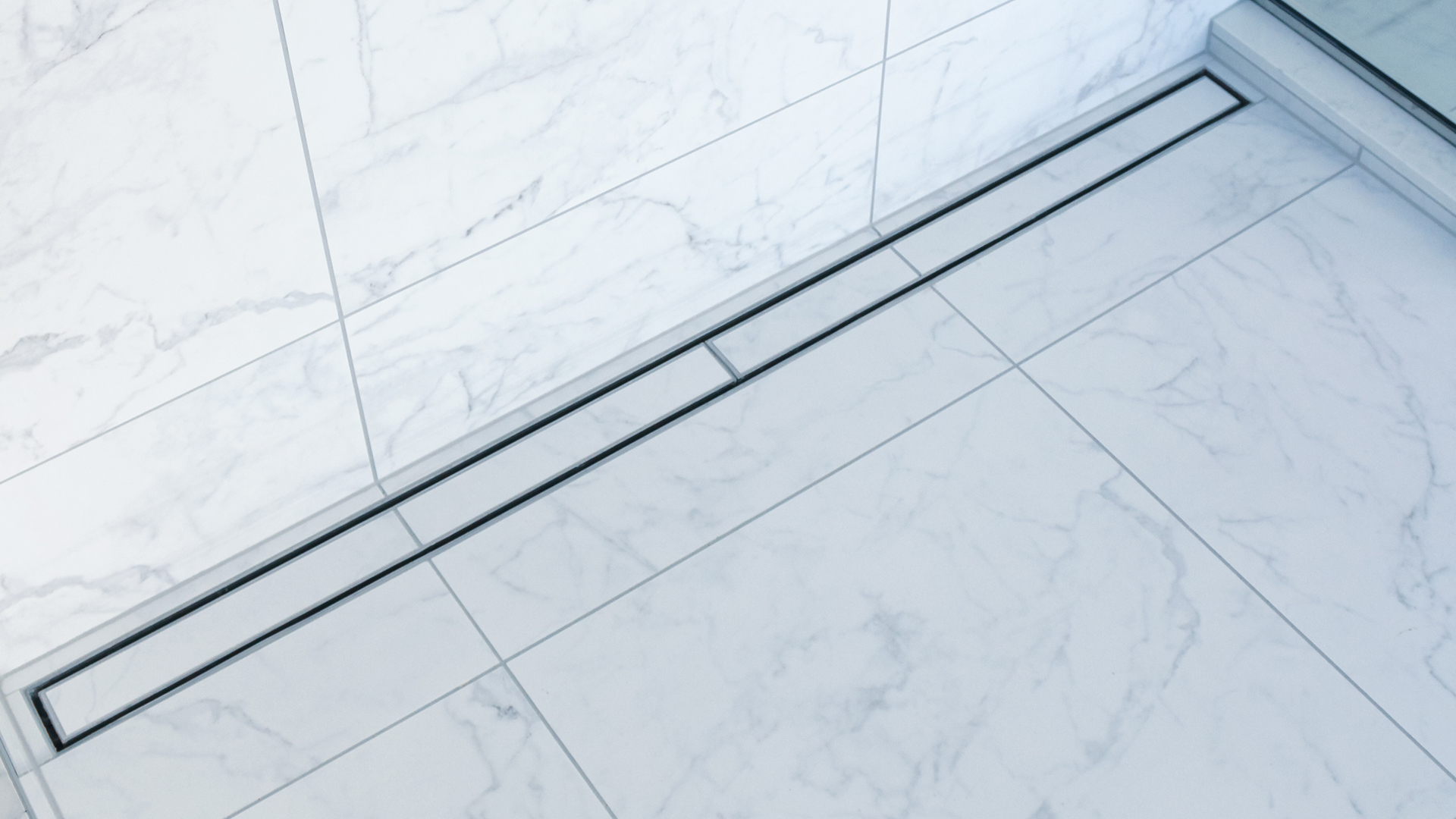

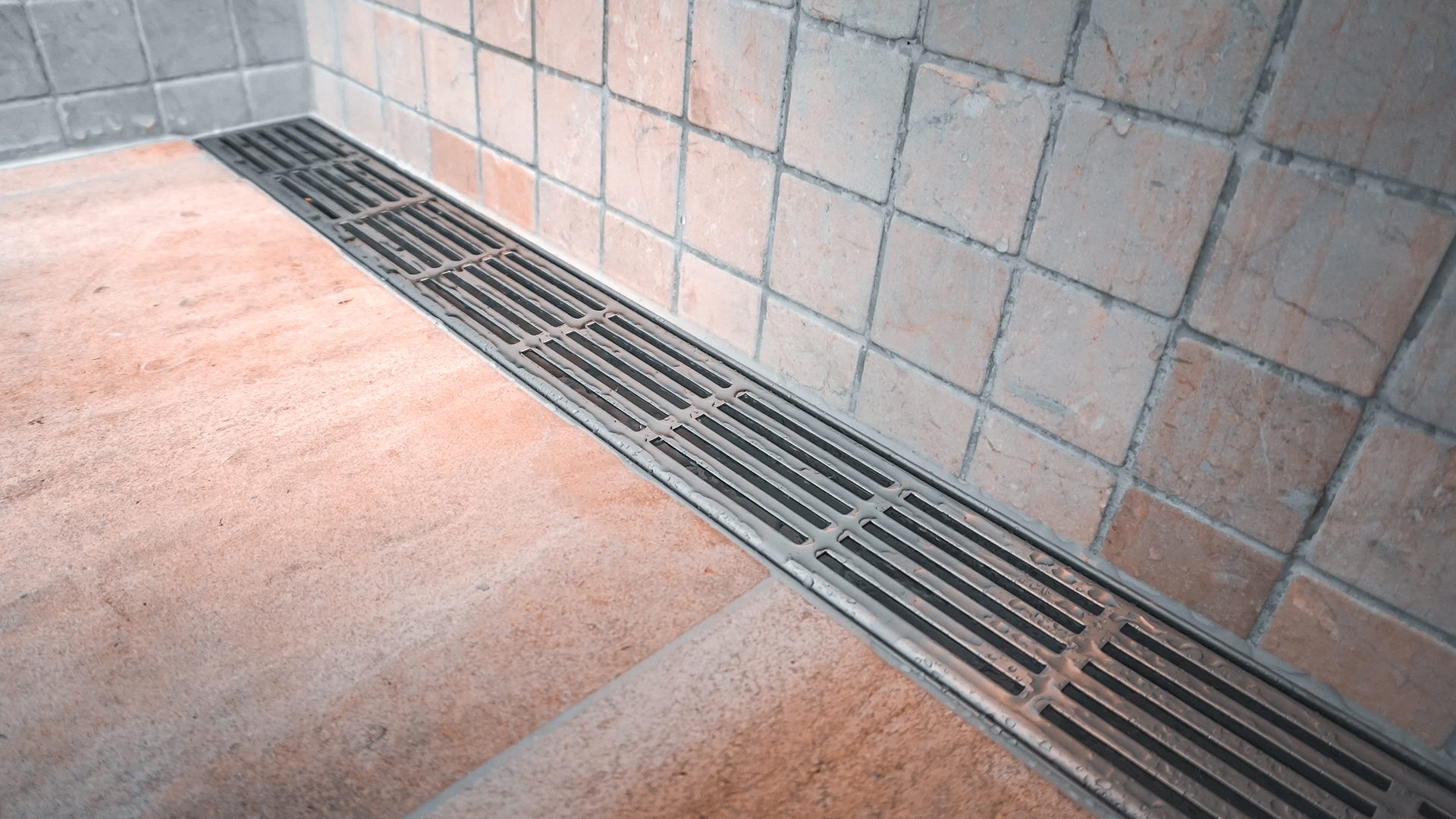

  • Variety of grates available
  • Custom sizes and finishes available
  • Available powdercoated, or in a variety of metal finishes
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • The Allproof Vision Shower Channel has been designed to provide an aesthetic look for tiled floor showers utilising a waterproof membrane layer below the finished tile surface
  • The system utilises a specially designed VF80 flange that is recessed flush into the base of a channel created on site, the waterproofing membrane is then dressed into the recess and onto the flange completely tanking the wet area
  • Membrane is dressed onto the Allproof specially designed VF80 flange allowing for subsurface moisture to be drained

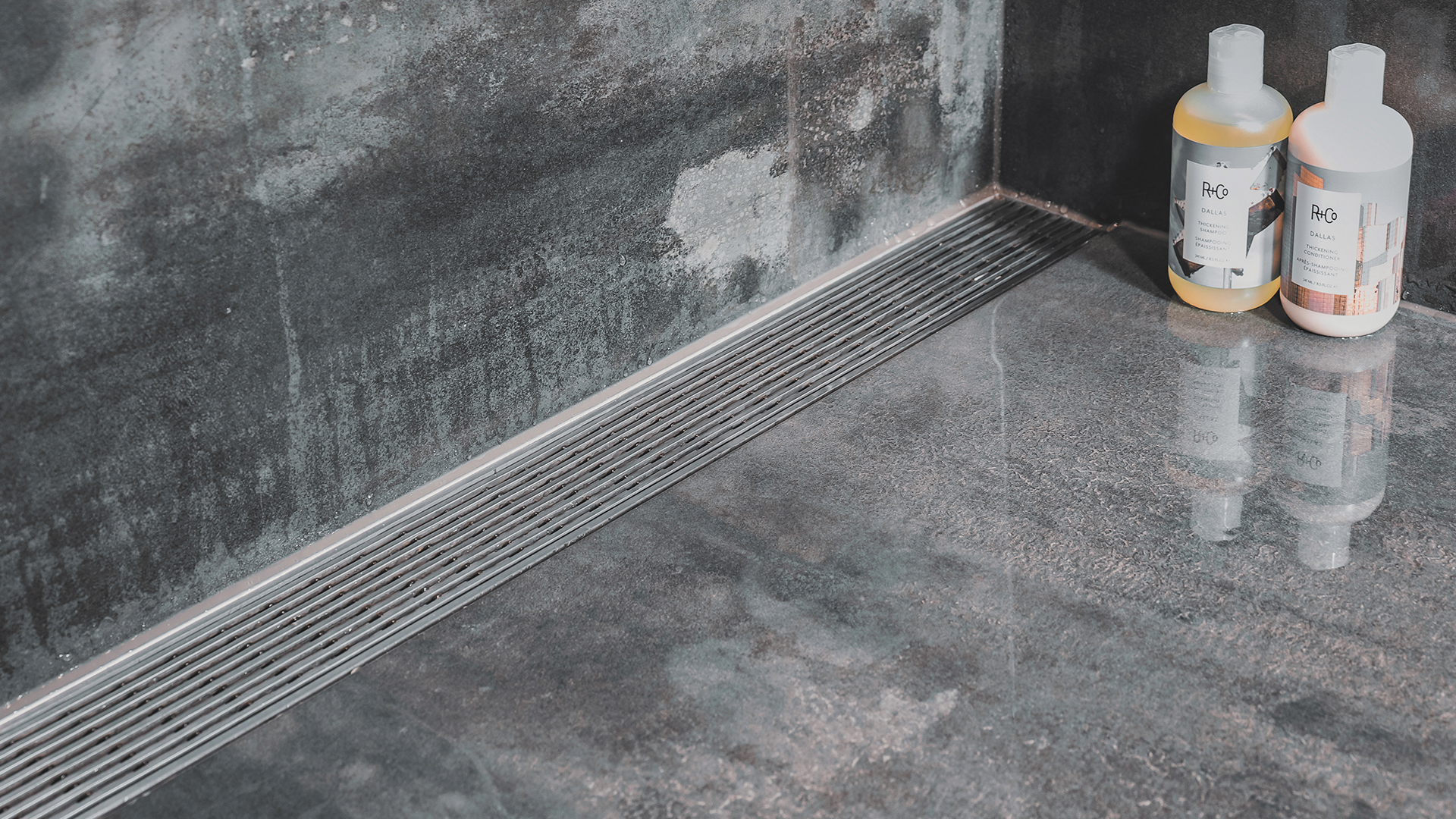

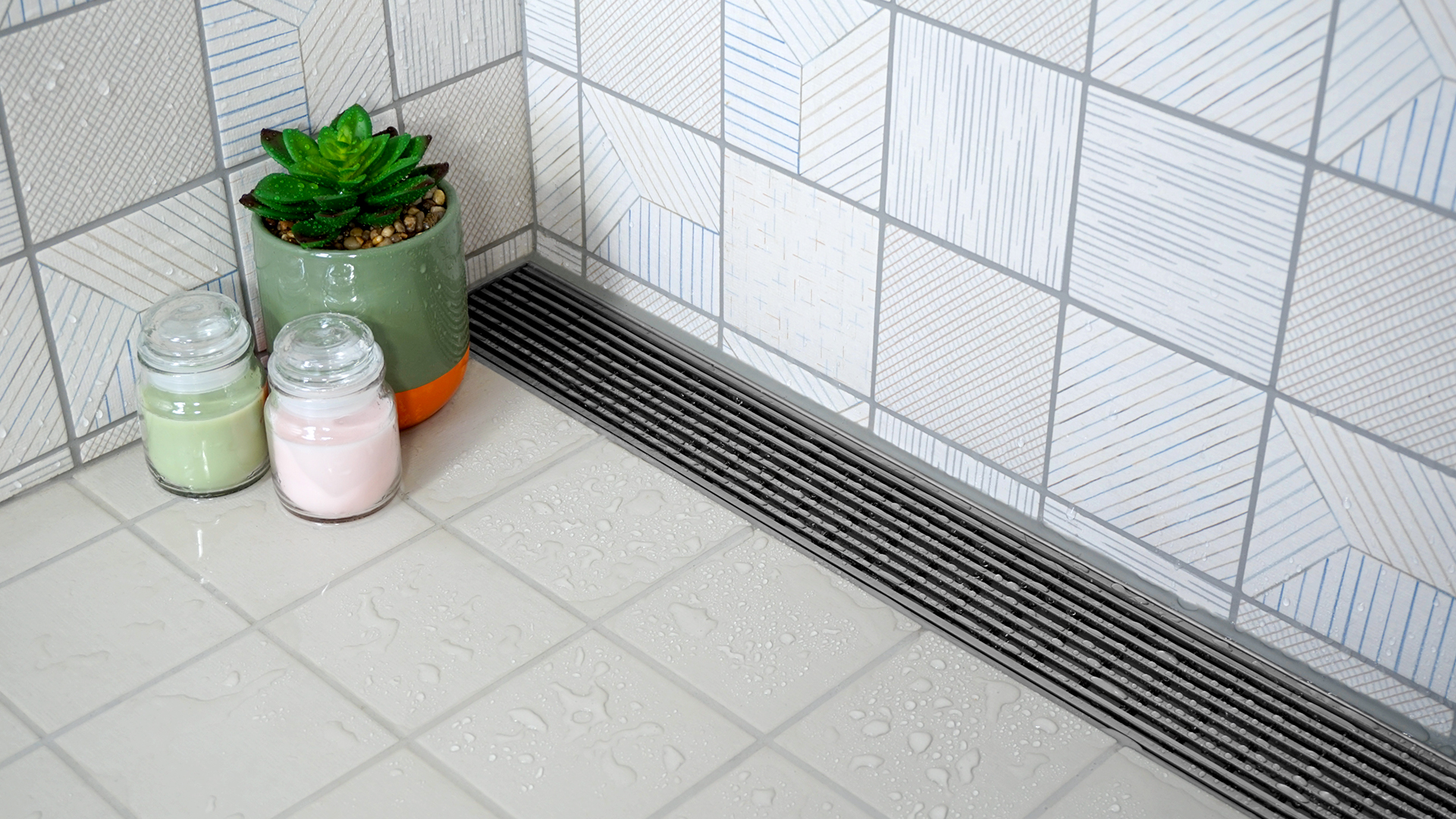

  • The channel can be used against a wall with a fall created towards the channel and/or a level threshold channel on entrance to a walk-in shower
  • The stainless steel channel is set into the recess, levelled and secured using a porous compound before being tiled up against with a bead of silicon applied between the tile and channel edge


  • 'Off the Shelf' sizes available in 800, 900, 1000 and 1200mm all coming with an Allproof floor waste gully system and VF80 flange
  • The channel can be customised to specific lengths and extra outlets included for areas requiring higher drainage capacity
  • The Vision series can be further customised with powder coated colours or electroplated metal collection finishes to create continuity and consistency with other fittings within the bathroom design
Limitations on Use
  • Channels can be manufactured to any desired length within reason of logistical requirements
  • Maximum distance to outlet of 1500mm in any direction before additional outlets are required. It is recommended that there is at least one outlet for every shower head
  • To be used in conjunction with tiled floors
Statement of Building Code Compliance

The product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause E2 External Moisture: Performance E2.3.6
  • Clause E3 Internal Moisture: Performance E3.3.3, E3.3.6
  • Clause G13 Foul Water: Performance G13.3.1, G13.3.1(a), G13.3.1(b), G13.3.1(c), G13.3.1(d), G13.3.2, G13.3.2(a), G13.3.2(b), G13.3.2(c), G13.3.2(d), G13.3.2(e), G13.3.2(f)
In-Service History

Allproof Industries have installed this system on multiple high profile situations including Hobson Street Hotel, 30 Madden Apartments Wynyard Central and also government buildings, residential and commercial facilities.

Other Performance Attributes
  • The Allproof Vision Series is constructed from high grade stainless steel in New Zealand

Maintenance requirements:

  • The grate has been designed to be easily removable for access to the outlet for any maintenance requirements and cleaning of the channel
  • Allproof would like to clarify that stainless steel is considered low maintenance and not no maintenance. Some discolouration and tea-staining may occur if not maintained properly, please note this is for aesthetic purposes and does not effect the performance or lifetime of the product in any way
  • Please see Allproof Stainless Steel maintenance guide for the cleaning and treatment of the product


E3 Internal Moisture compliant
Internal Moisture
G13 Foul Water compliant
Foul Water
