Axis Entrance Mat
Description

As part of the Architectural Series of Entrance Matting Systems, Axis is an interlocking modular Entrance Mat System designed to handle heavy rolling loads besides removing dirt and water from all directions. The modular polymer tiles are easy to cut to shape and size in-situ for easy installation.

Key Features

Safe:

  • Innovative design to eliminate heel traps
  • Anti-slip in all conditions
  • Compliant: Exceeds New Zealand fire regulations (the New Zealand Building Code Clauses C1-C6 Protection from Fire requires floor surfaces in exitways to achieve a minimum of 2.2 kW/m²)

High performance:

  • Suitable for heavy rolling loads  or wheeled traffic
  • Polyamide inserts trap more dirt, saving on cleaning costs
  • Functions best when used indoors or in weather protected areas

Attractive:

  • Stylish modular system that can be easily cut to any size and shape
  • Carpet inserts can be supplied in a variety of colours
  • Extendable modular system, providing flexibility

Easy to install and maintain:

  • Modular tiles are easy to assemble saving installation costs
  • Closed surface for quick and easy maintenance
  • Specially designed dirt collection zones make cleaning quick and easy
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Scope of Use
  • Protected outdoor and interior applications
  • Heavy use applications such as transport hubs and shopping centres
  • Suitable for heavy rolling loads or wheeled traffic (with Advance Flooring's proprietary matwell system)
Statement of Building Code Compliance
  • The Axis system is compliant and exceeds the minimum of 2.2 kW/m² CRF required for exits in all buildings excluding non-sprinkled buildings for detention or care, C/VM2, Verification Method: Framework for Fire Safety Design (the New Zealand Building Code Clauses C1-C6 Protection from Fire requires floor surfaces in exitways to achieve a minimum of 2.2 kW/m²).
  • Test Certificates available upon request
  • The New Zealand Code recommends that a mat should have a minimum dimension of 1.8 metres from front to back which allows for 2 contacts of each foot. Refer Acceptable Solution D1/AS1 Access Routes.
In-Service History

Axis has been used extensively with a total of more than 5000m² delivered and installed in numerous projects right across New Zealand over 10 years.

C Protection from Fire compliant
Protection from Fire
D1 Access Routes compliant
Access Routes
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Data Sheet
Test Results
Product Brochure
Colour Range
CAD/PDF Details

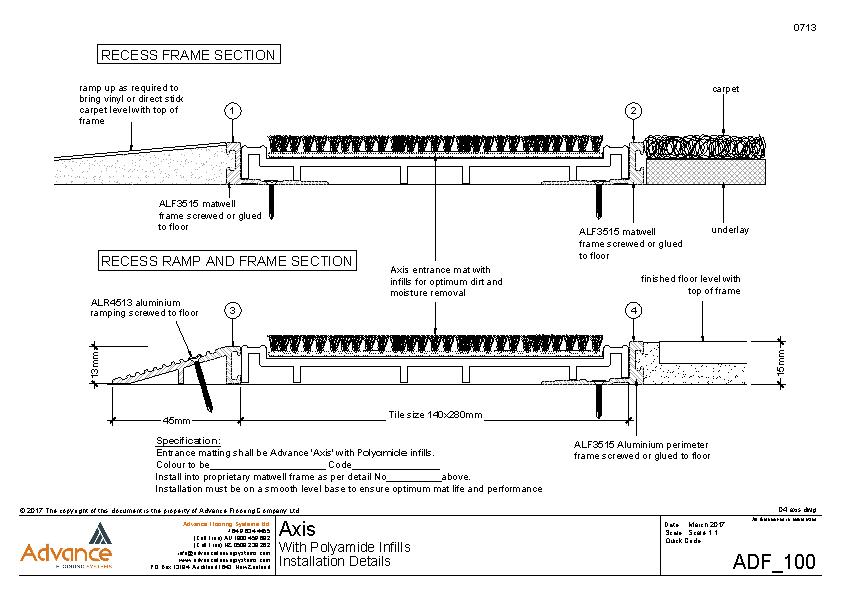

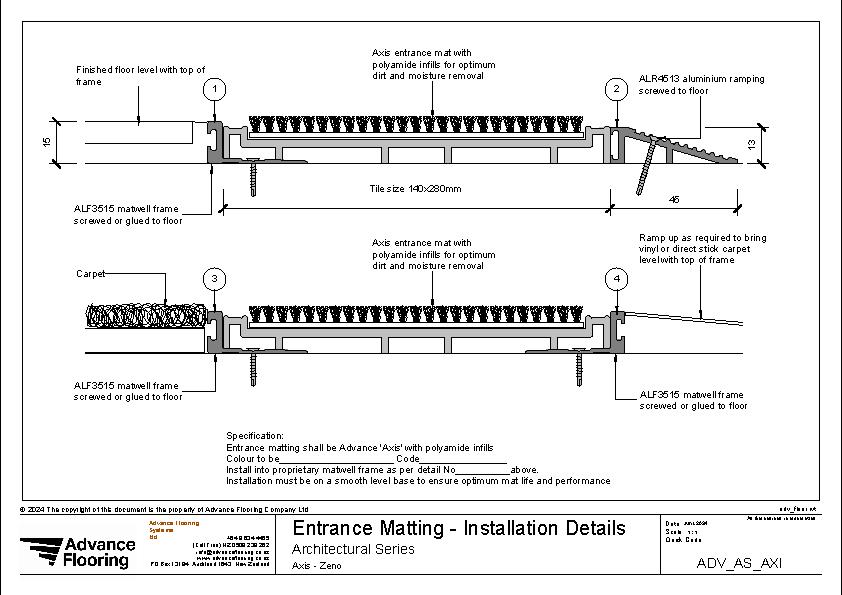

Axis Installation Details
