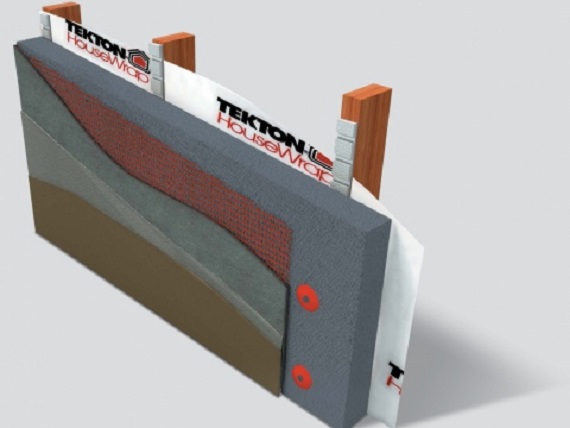

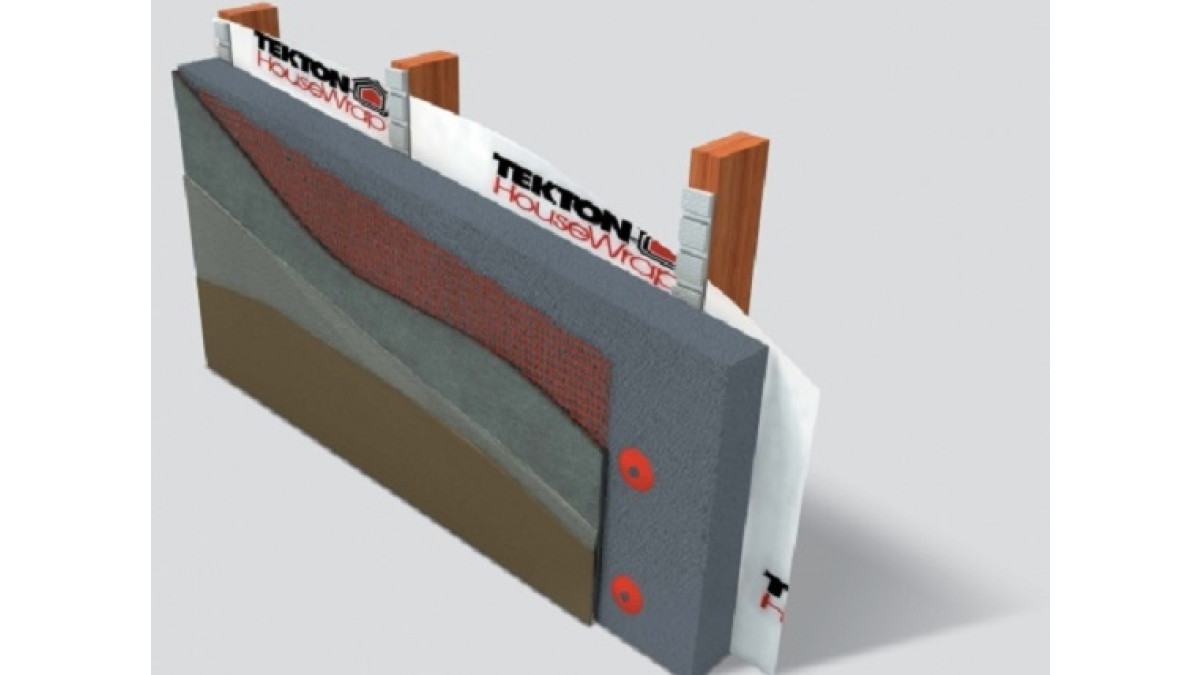

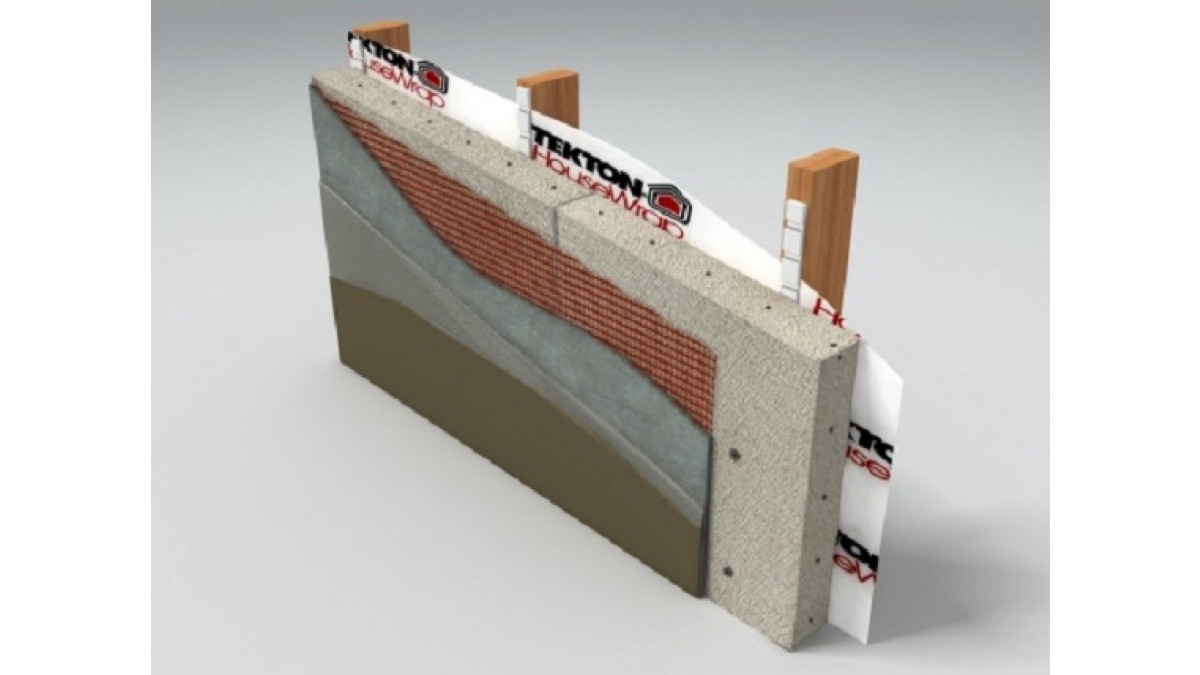

The EZpanel Cavity System has been appraised (BRANZ Appraisal 649) as an external wall cladding system for buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
• with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/ AS1, Table 2; and,
• situated in NZS 3604 Wind Zones up to, and including Extra High

The EZpanel Cavity System has also been appraised for weathertightness and structural wind loading when used as an external wall cladding system for buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
• constructed with timber and steel framing subject to specific engineering design; and,
• situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

The EZpanel Cavity System is finished with either a cement-based option or an acrylic-based option.

• The cement-based option consists of a base coat of MLC plaster followed by either a cementbased finishing plaster or an acrylic-based finishing plaster

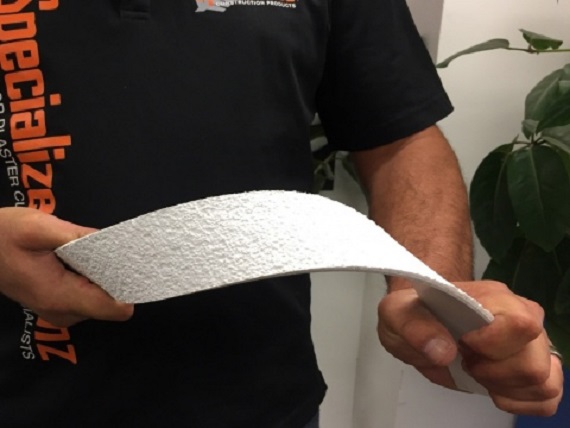

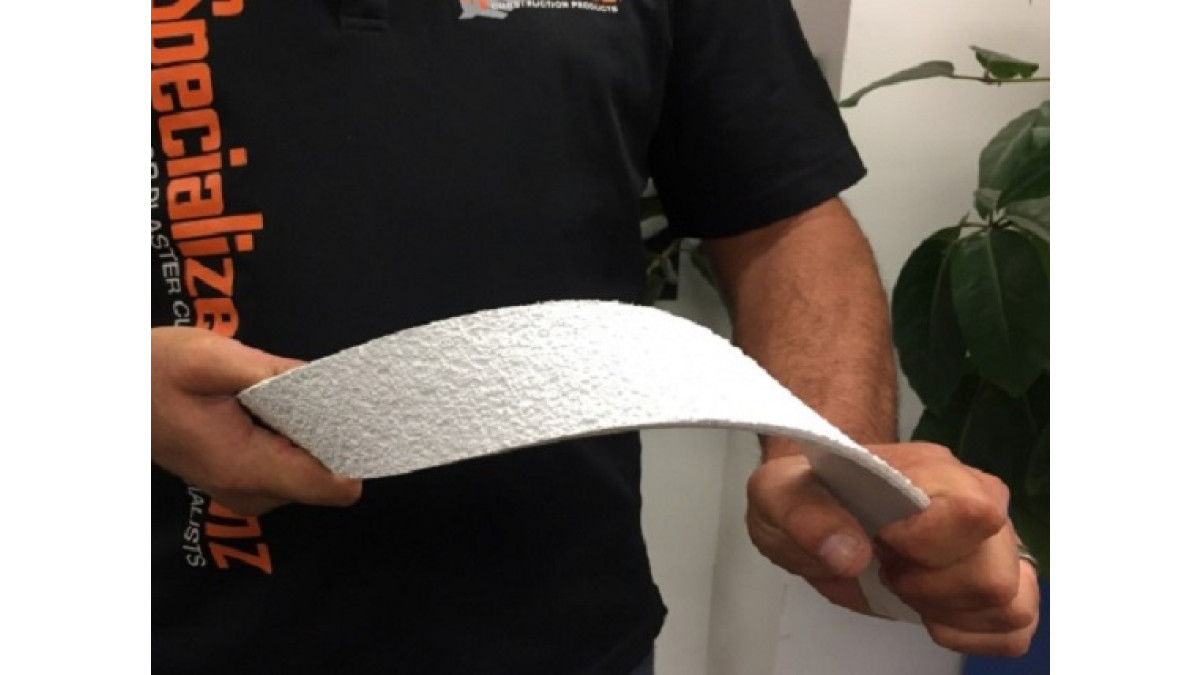

• The acrylic-based option consists of a flanking coat of MLC plaster followed by a mesh coat of Powaflex acrylic plaster and an acrylicbased finishing plaster.

Both base coat options are finished with an acrylic exterior paint system.

Show more

In the opinion of BRANZ, the EZpanel Cavity System if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. The EZpanel Cavity System meets the requirements for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)]. See Paragraphs 10.1 - 10.5
• Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years, B2.3.1 (c), 5 years, and B2.3.2. The EZpanel Cavity System meets these requirements. See Paragraphs 11.1 - 11.3
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. The EZpanel Cavity System meets this requirement. See Paragraphs 17.1 - 17.5
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The EZpanel Cavity System meets this requirement and will not present a health hazard to people

Show more

BRANZ Appraised

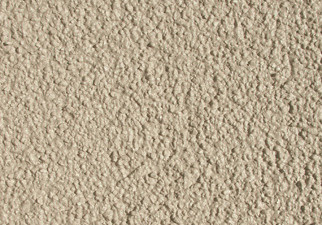

Dulux AcraTex products are easy to apply and are suitable for all masonry substrates, concrete and lightweight cladding. With a wide range of profiles available there is a texture that will suit most types of architectural design. See product description for different textures and uses.

Show more

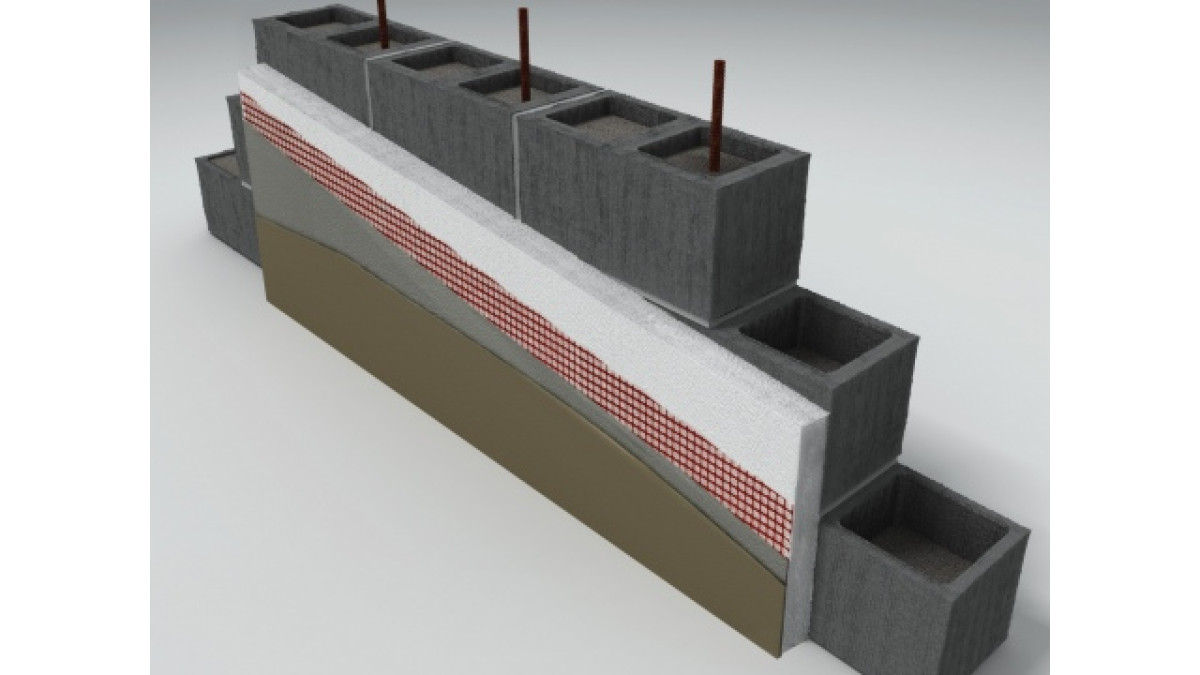

The Exsulite Thermal Façade System by Dulux AcraTex is a cavity system for new residential and light commercial construction. It can also be used as a façade remedial system for rectification and rejuvenation projects when used as a direct fix system.

Show more

The Dulux AcraTex Exsulite EIFS Cladding System when installed, applied and maintained in accordance with the written instructions, recommended installation details and maintenance instructions from Dulux AcraTex will meet or contribute to meeting the relevant provisions of the New Zealand Building Code, in accordance with Codemark Certificate 40069:

• Structure: B1.3.1, B1.3.2 and B1.3.4.
• Durability: B2.3.1 (b).
• Protection from Fire: C3.4 (a) Walls, C3.5 Spread of Fire, C3.6 (buildings within one meter of a shared boundary).
• External Moisture: E2.3.2, E2.3.3, E2.3.5, (as applicable to concrete wall systems).
• Hazardous Building Materials: F2.3.1.

Show more

CodeMark

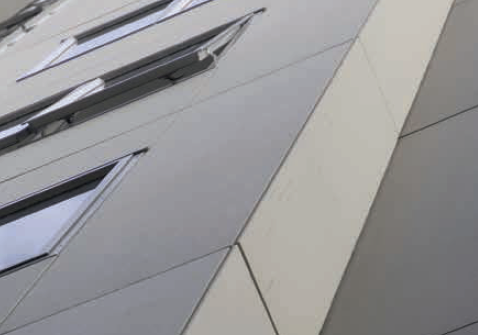

Used as an external lining fixed to timber or a metal cavity framing system, in most cases using an expressed joint between the sheets backed with a neoprene weather strip.

Ensure that the CFC sheet is clean, sound, dry and free of any dirt, dust, mould, fungi, grease or any other contaminants.

Any screw or fixing holes should be filled with the filler that has been specified by the CFC sheet manufacturer.

Dulux AcraTex recommends that all CFC sheeting is primed prior to any Dulux AcraTex texture or high build coatings being applied, even though some CFC sheeting may be supplied pre-primed.

Show more

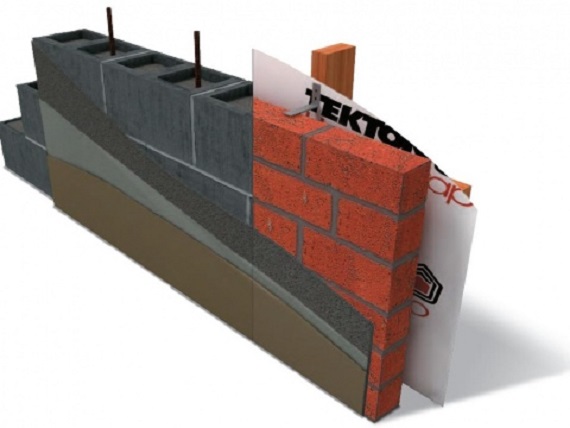

• Dulux AcraTex Masonry Render is a pre mixed flanking render for use over general masonry or concrete substrates. Masonry Render is a coarse grained render ideal for fast application to a true and durable surface.
• Dulux AcraTex Detail Render is a pre mixed meshing render for use over lightweight substrates in conjunction with alkali resistant fibreglass mesh. Used to apply mesh tape to window reveals and corners etc on EIFS constructions.
• Dulux AcraTex Renderwall P400 is a pre mixed meshing render for use over lightweight substrates in conjunction with alkali resistant fibreglass mesh. Used to apply mesh tape to window reveals and corners etc on EIFS constructions. Coarse Render will cure to form a strong crack resistant background which will accept a textured finish.

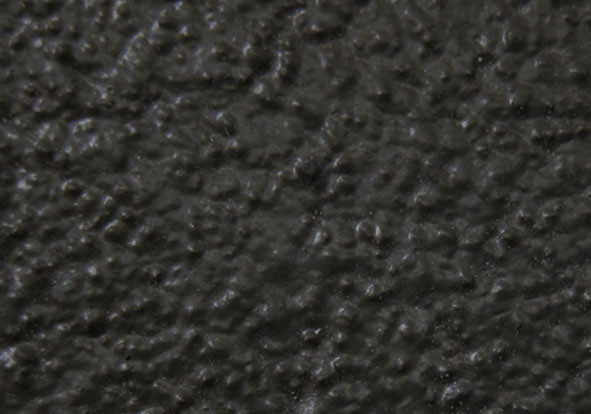

• Dulux AcraTex Renderwall Float Finish Medium is a pre-mixed leveling plaster for use over plaster flanking coats or meshed coats on a variety of substrates both interior and exterior.

Show more

Venetian Plaster Marmorino Naturale is particularly suited to the preservative restoration of old historical buildings such as churches, palaces or villas interior's; to create surfaces of elevated aesthetic value in all settings whether modern or classic: halls, stairways, bathrooms, living rooms; to add a touch of elegance to the most refined public places such as hotels, restaurants, and shops.

Venetian Plaster Marmorino Naturale can also be used as a base for Venetian Plaster Marmorino Fine or to create specialist translucent marble effects.
