Scyon Stria Cladding Modernises Dance Studios

Architect Alan Walker of designgroup architects h+k says a contemporary structure was required, something that would match the forward-thinking ideology of the school and its trustees, which had to fund the project themselves.

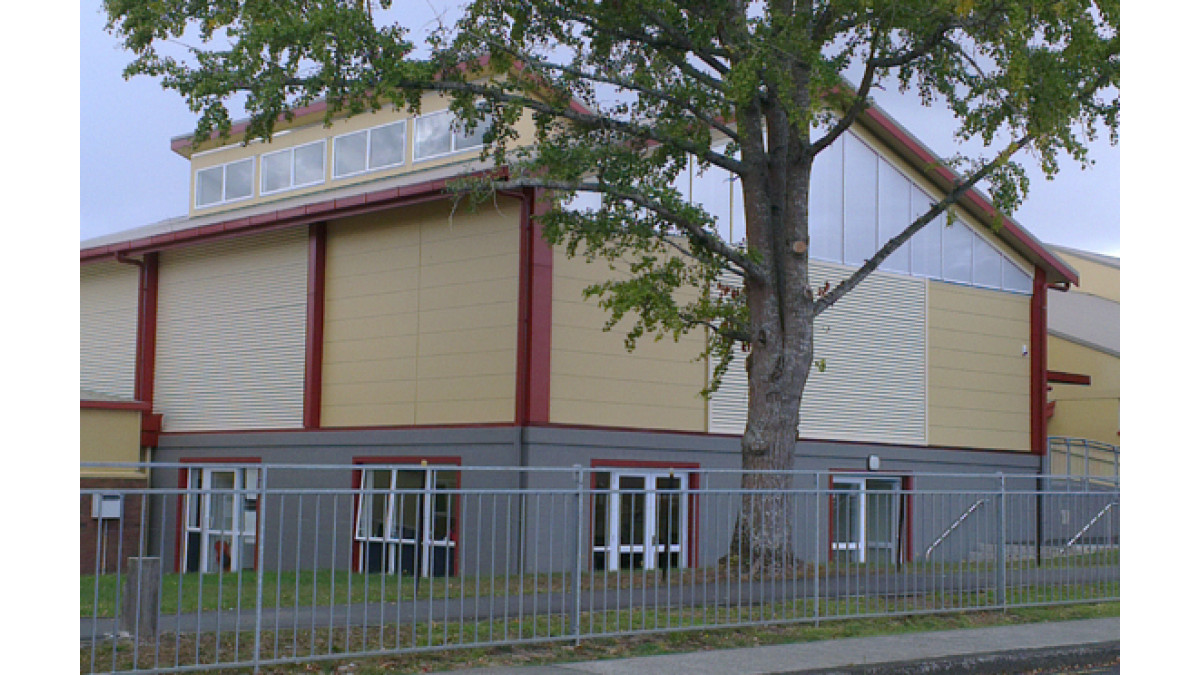

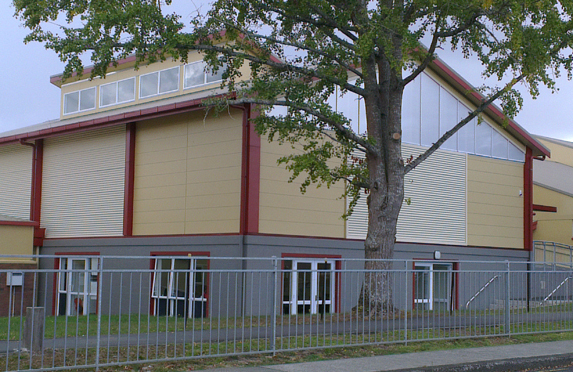

The resulting $880,000 building comprises two 160 sqm dance studios and a basement. It has been slotted between two existing buildings, one a 1960s gymnasium clad in iron and the other a 1980s classroom block clad in brick and fibrelight. Alan says because of these, the choice of cladding was imperative to the success of the project.

“The existing buildings had various claddings which would have been impossible to match. We were going to have to use a standalone material anyway, so decided to use something new and contemporary.”

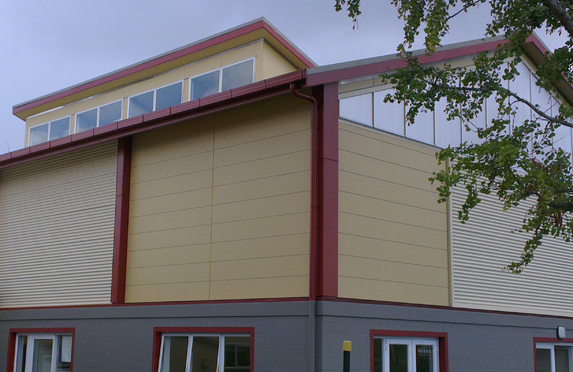

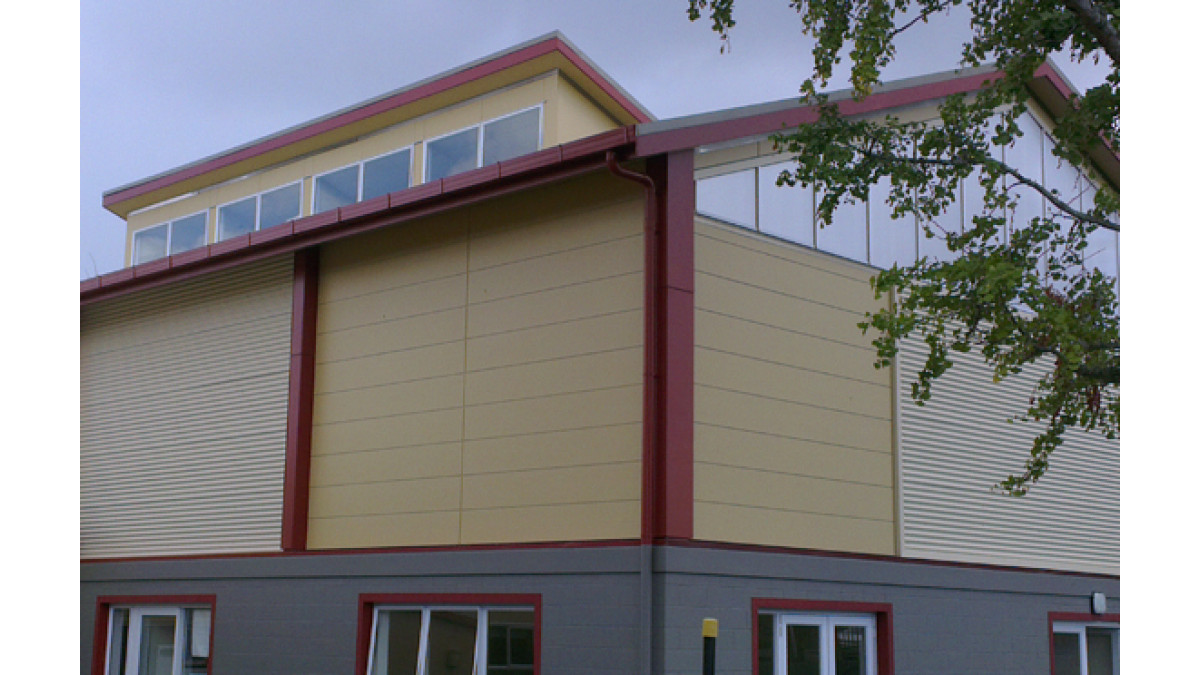

Alan chose the recently released Scyon Stria Cladding from James Hardie New Zealand. Stria is a wide cladding board with a 15mm horizontal groove that provides the classic appeal of decorative render and solid masonry.

“We were able to paint the boards to match the school colours and the coverage per unit is excellent. It looks good, too. It provides more aesthetic interest than just blank panels,” the architect says.

“The dance studios are on the first floor so out of reach of the normal wear and tear a school building may experience, but Stria is a good, solid material so I was confident it would wear well.”

Stria is made from Scyon, an advanced lightweight cement composite with heavy-duty performance. It is resistant to damage from fire, moisture and rot, and resists shrinking, swelling and cracking to hold paint longer than wood.

The boards are factory sealed and face primed, ready for installation upon delivery. It is easy to cut and can be gun nailed for quick installation. Alan says these features made it an ideal material for use in a school project.

“Stria has a timeless look that I could see being adaptable to different designs, from quite contemporary projects through to those which are reasonably traditional,” he says.

Stria Cladding

James Hardie

View Product

Stria™ Cladding is a wide format board that has the classic appeal of decorative render and solid masonry.

NZ Made

For use as an external wall cladding installed either horizontally or vertically in residential and light commercial:
- Feature walls
- Full cladding for new builds
- Cladding for additions and renovations
- Internal feature walls
- Ideal for overhangs, protective cantilevers and other architectural features
Designed to withstand harsh weather and coastal conditions
Can be painted any colour, even the darker shades

Feature walls
Full cladding for new builds
Cladding for additions and renovations
Internal feature walls
Ideal for overhangs, protective cantilevers and other architectural features

Corrosion Exposure Zone D

Specific Design Wind Zone

In the opinion of BRANZ, Stria™Cladding Horizontal, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™Cladding Horizontal meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Horizontal meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Horizontal meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Horizontal meets this requirement.

See BRANZ Appraisal No. 1224 for full information

In the opinion of BRANZ, Stria™ Cladding Vertical, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™ Cladding Vertical meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Vertical meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Vertical meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Vertical meets this requirement.

See BRANZ Appraisal No. 1225 for full information

The system if designed, used, installed and maintained in accordance with CodeMark number GM-CM30109 will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q).
Clause B2 DURABILITY: Performance B2.3.1(b) 15 years and B2.3.2.
Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.5, C3.7
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2, E2.3.5, E2.3.6 and E2.3.7
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

See CodeMark number GM-CM30109 for full information

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

Energy Efficiency

BRANZ Appraised

CodeMark
