Painting Plywood Dark Colours with CoreClad Primed

What is CoreClad Primed?

CoreClad Primed is a textured plywood cladding that is treated to the core and supplied with a premium acrylic primer. It offers superior strength, durability, and reliability.

Applications

CoreClad Primed has been designed for residential and light commercial applications. Is it suitable in all wind zones and exposure zones.

Key benefits

Uses a factory-applied premium acrylic primer which provides an optimal base coat for acrylic topcoat systems — supporting finish quality and long-term performance.
Eliminates the need for a primer coat to be applied once installed, saving time and money.
Face, edges, and bottom 150mm of the back of the sheet are fully primed, allowing for faster onsite installation.

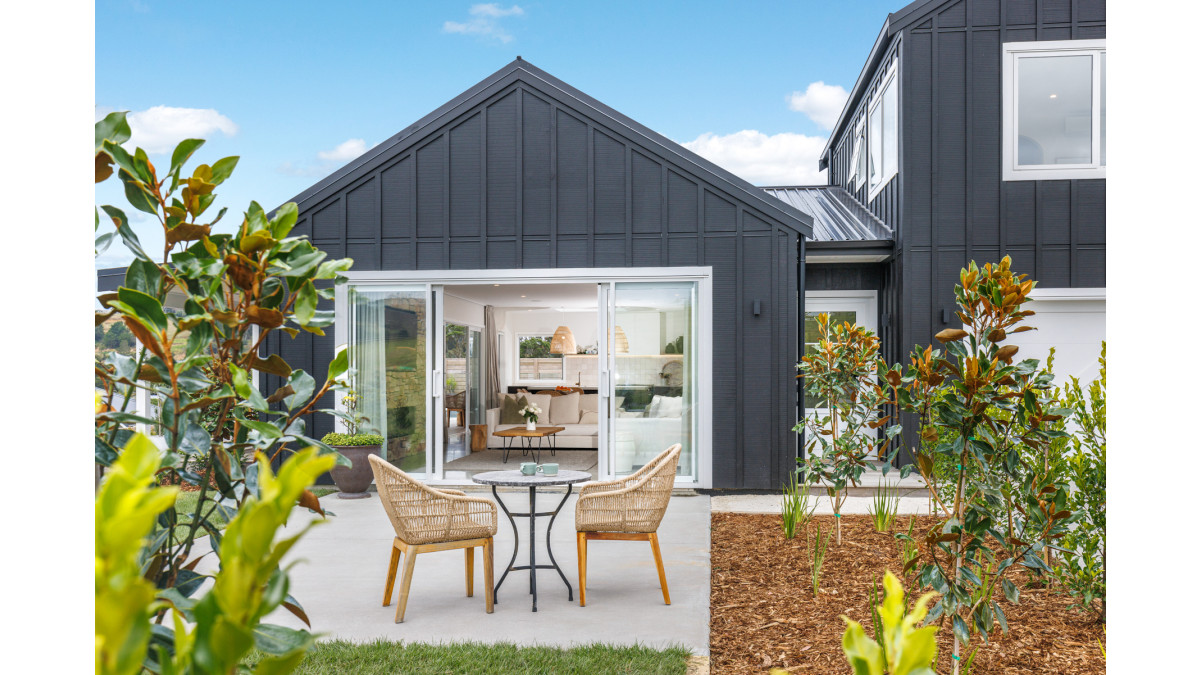

Specifying dark colours: How to maximise performance with CoreClad Primed

To ensure maximum product performance and longevity, particularly when using dark-coloured exterior cladding, it is critical that the following steps are followed:

CoreClad Primed must be used.
Use Dulux Weathershield Colourguard or Resene CoolColour for best results.
3 topcoats must be applied. Not only will your exterior cladding look better it will perform better too.
Carry out regular paint maintenance. The use of dark paint colours requires an increase in coating maintenance over the lifetime of the cladding.

For installation, detailing, and coating guidance, refer to the IBuilt CoreClad literature on the IBuilt website.

IBuilt CoreClad

New Zealand Wood Products Ltd

View Product

IBuilt CoreClad panels are manufactured from both Hoop Pine and Klinkii Pine, which have been grown from sustainably managed plantation forests.

CoreClad panels are for use as external cladding
In wind zones up to extra high, as defined in NZS 3604:2011 or to a design wind pressure (ULS) of 2.5kPa
In all corrosion zones as defined in NZS 3604:2011
In conjunction with a primary structure that complies with the NZ Building Code, or where the designer and/or installer has established that the existing structure is suitable for the intended building work
CoreClad may be direct fixed or installed over a drained, ventilated cavity

If designed, installed and maintained in accordance with all IBUILT requirements, CoreClad will comply with or contribute to compliance with the following performance claims:

B1 Structure: B1.3.1, B1.3.2, B1.3.3 (a, b, f, h, j, m, q), B1.3.4 (a, b, c, d, e)
Alternative Solution AS/NZS 2269:
- Plywood manufactured to AS/NZS 2269 is referenced in E2/AS1 for use as a rigid air barrier and external cladding. This implies that plywood to this standard will have the necessary structural integrity for those uses.

Plywood manufactured to AS/NZS 2269 is referenced in E2/AS1 for use as a rigid air barrier and external cladding. This implies that plywood to this standard will have the necessary structural integrity for those uses.

B2 Durability: B2.3.1(b), B2.3.1(b)
Verification Method:
- B2/VM1: cl1.3 Verification through comparison with a similar material
- AS/NZS1604.3, para 1.9 requires same characteristic values for penetration & retention as defined in NZS 3640:2003
- IVS test results show these values are met

B2/VM1: cl1.3 Verification through comparison with a similar material
AS/NZS1604.3, para 1.9 requires same characteristic values for penetration & retention as defined in NZS 3640:2003
IVS test results show these values are met

E2 External Moisture: E2.3.2, E2.3.5, E2.3.7 (a, b, c)
Acceptable Solution E2/AS1
- Installation to section 9.8
F2 Hazardous Building Materials: F2.3.1
Alternative Solution
- PNG Forest Products Treatment Protocol

Installation to section 9.8

PNG Forest Products Treatment Protocol

PASS

PEFC Certified
