KOROK Noise Control Systems Provide Targeted Acoustic Performance

Advanced noise control solutions for targeted acoustic performance

KOROK Noise Control Systems were initially developed to meet the demanding acoustic requirements of cinemas and terraced housing. Today, these solutions extend to a wide range of applications, providing exceptional noise management in high-traffic environments, multi-unit residential buildings, and specialised commercial spaces.

Why choose KOROK noise control systems?

Understanding that no two projects have identical acoustic needs, KOROK has engineered adaptable systems that address distinct sound transmission concerns. By studying the effects of various wall densities and configurations, they have created solutions that minimise sound bleed, enhance privacy, and optimise acoustic separation between spaces.

Key applications of noise control systems

Cinemas: KOROK's solutions prevent disruptive sound bleed between theatres, ensuring an immersive audio experience for every audience.
Terraced and multi-unit housing: Minimise noise transfer between units, creating a quieter and more comfortable living environment for residents.
Specialised commercial spaces: Whether in office environments, hospitality venues, or other high-traffic areas, KOROK's Noise Control Systems improve sound management, making shared and private spaces acoustically efficient.

KOROK Apartment Wall Solutions: A comprehensive approach to acoustic and fire protection

Beyond targeted noise control, KOROK delivers holistic fire and acoustic performance with its KOROK KIR high-performance intertenancy apartment wall systems. These systems are designed to seamlessly integrate lift cores, riser ducts, stair cores, hallways, and apartments, ensuring complete floor plate transitions while maintaining essential fire, seismic, and safety protection.

Simplify with KOROK: Combining performance and safety

KOROK’s intertenancy wall solutions eliminate complex build-ups while delivering superior fire protection, seismic deflection, passive safety, and acoustic efficiency. Whether you're designing multi-unit housing, commercial buildings, or specialised projects, KOROK provides a streamlined, high-performance solution to meet modern construction demands.

For more information on how KOROK can enhance your next project, visit korok.com.

Terraced Housing Intertenancy Wall System

KOROK

View Product

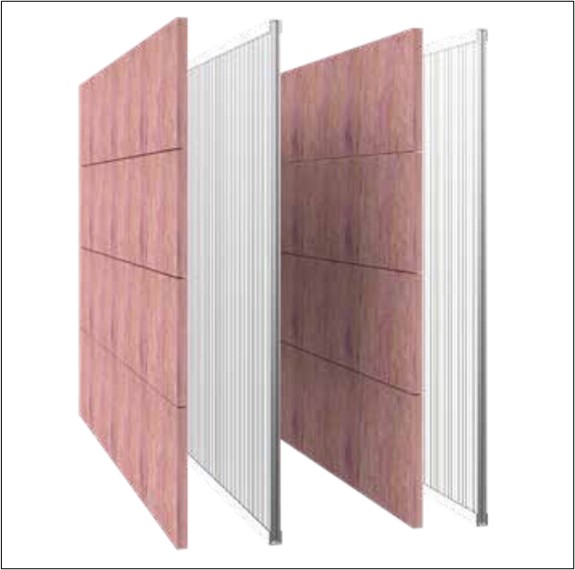

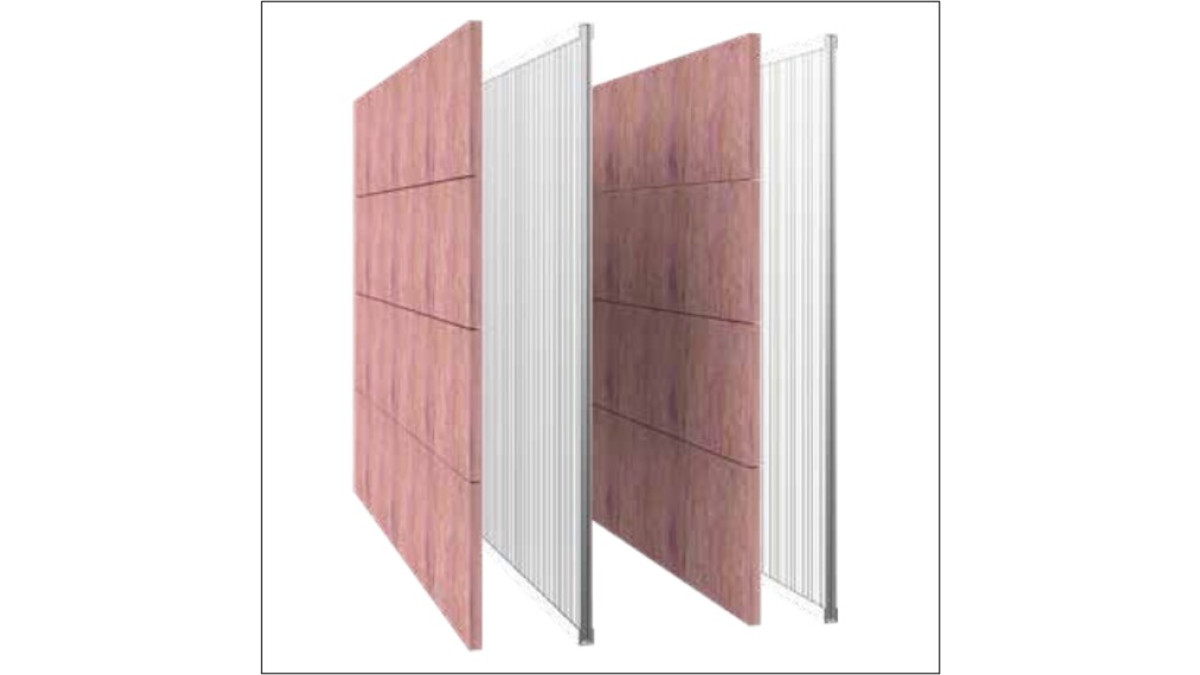

Manufactured from rolled steel and aerated concrete, KOROK fire and acoustic clip-together intertenancy wall systems are high performance and lightweight.

Declared LBC Red List Approved

NZ Made

Post-Consumer Recyclable Content

Fire ratings up to 120/120/120
Acoustic ratings up to STC 69

The KOROK 51mm Wall System and KOROK KIT Wall Systems are used to construct fire and acoustically rated walls and partitions within building envelopes.

The KOROK panels are made from aerated concrete encased in profiled galvanised steel sheet formwork and are non-loadbearing, whilst the structural elements of the wall system can be loadbearing.

BRANZ Appraisal 1059 [2019] Scope:

The KOROK 51mm Wall System and KOROK 51mm Wall System and KOROK KIT Wall Systems have been appraised for use as non-loadbearing fire and acoustically rated internally located walls and partitions for all buildings of all importance levels as defined by AS/NZS 1170
The KOROK KIT Wall System panels are installed in vertical orientation. For the intertenancy wall systems the panels are fixed to the timber or steel framing with aluminium brackets at the panel face or joints at maximum 3.5m intervals vertically and 0.6 m intervals horizontally. The total height of the KOROK panels in a single wall must not exceed 14m
For the KOROK 51 mm plain wall panel the maximum unsupported span for the panels between structural supports is 8m. The overall height or length of a KOROK 51mm plain wall will be determined by the structural support. When used as part of a fire rated system, the maximum unsupported span of the KOROK panels is 6m for vertical orientation and 4m for horizontal orientation. Greater spans are subject to specific engineering design and/or fire engineering assessment and are outside the scope of this Appraisal.
The KOROK 51mm Wall System and KOROK KIT Wall Systems have been appraised for use in intertenancy walls when used with the wall framing, wall insulation and wall lining specified in this Appraisal.

The NZBC sets out both the legal minimum sound transmission between tenancies (Clause G6) and minimum levels of fire resistance (Clauses C3 and C6). The KOROK Intertenancy Systems Manual provides guidance on the specification and construction of systems that will both meet and exceed those minimum levels. However, designers should consider the comfort of occupants when selecting a system that will satisfy the occupants’ expectations when using the space rather than the minimum required by law.

NZBC:

Clause B1: Structure — The KOROK Systems meet the requirements for loads arising from self-weight, earthquake, wind, impact and creep and shrinkage
Clause B2: Durability — Under normal conditions of dry internal use KOROK Intertenancy Systems have a serviceable life in excess of 50 years and satisfy the requirements of NZBC B2 Durability
Clause C3: Fire Affecting Areas Beyond the Source — KOROK Intertenancy Systems can be used to provide passive fire protection in accordance with the requirements of Clause C3
Clause C6: Structural Stability — Compliance with (NZBC) Clause C6 ‘ Structural Stability’. In order to satisfy the requirements of the New Zealand Building Code (clause 6) relating to Structural Stability designers must ensure that KOROK elements are supported by primary elements that have at least the same fire rating as the KOROK system that is used.
Where the primary elements supporting the KOROK system are outside the fire cell, there is no requirement to apply the same FRR as the KOROK system.
Notwithstanding, post fire stability requirements of the NZBC must also be satisfied
Clause G6: Airborne and Impact Sound — KOROK Intertenancy Systems, both meet and exceed the minimum requirements outlined in NZBC Clause G6. Consideration should be given to both the minimum requirements and the comfort of occupants.

BRANZ Appraised

Eco Choice Aotearoa

Intertenancy Apartment Systems

KOROK

View Product

Conventional framed wall systems rely on their linings to provide fire resistance and acoustic control performance.

Declared LBC Red List Approved

NZ Made

Post-Consumer Recyclable Content

Installed vertically
Fire ratings up to -/120/120
Acoustic ratings up to STC 68

Along with Terraced Housing Intertenancy, KOROK systems are suitable for:

Dividing walls for sheds, factories and warehouses
Cinema walls
Intertenancy walls for apartments, hotels and retirement complexes
Lift shaft, stair and duct walls
Acoustic barriers
External and boundary walls for sheds, factories and warehouses

KOROK systems are suitable for all areas of New Zealand.

The NZBC sets out both the legal minimum sound transmission between tenancies (Clause G6) and minimum levels of fire resistance (Clauses C3 and C6). The KOROK Intertenancy Systems Manual provides guidance on the specification and construction of systems that will both meet and exceed those minimum levels. However, designers should consider the comfort of occupants when selecting a system that will satisfy the occupants' expectations when using the space rather than the minimum required by law.

NZBC:

Clause B1: Structure — The KOROK Systems meet the requirements for loads arising from self-weight, earthquake, wind, impact and creep and shrinkage
Clause B2: Durability — Under normal conditions of dry internal use KOROK Intertenancy Systems have a serviceable life in excess of 50 years and satisfy the requirements of NZBC Clause B2 Durability
Clauses C3: Fire Affecting Areas Beyond the Source — KOROK Intertenancy Systems can be used to provide passive fire protection in accordance with the requirements of NZBC Clause 3: Spread of Fire
Clause C6: Structural Stability —Compliance with (NZBC) Clause C6 'Structural Stability'. In order to satisfy the requirements of the New Zealand Building Code (clause 6) relating to Structural Stability designers must ensure that KOROK elements are supported by primary elements that have at least the same fire rating as the KOROK system that is used
Where the primary elements supporting the KOROK system are outside the fire cell, there is no requirement to apply the same FRR as the KOROK system. Notwithstanding, post fire stability requirements of the NZBC must also be satisfied
Clause G6: Airborne and Impact Sound — KOROK Intertenancy Systems, both meet and exceed the minimum requirements outlined in NZBC Clause G6. Consideration should be given to both the minimum requirements and the comfort of occupants

BRANZ Appraised

Eco Choice Aotearoa
