Triboard Delivers Strength and Stability

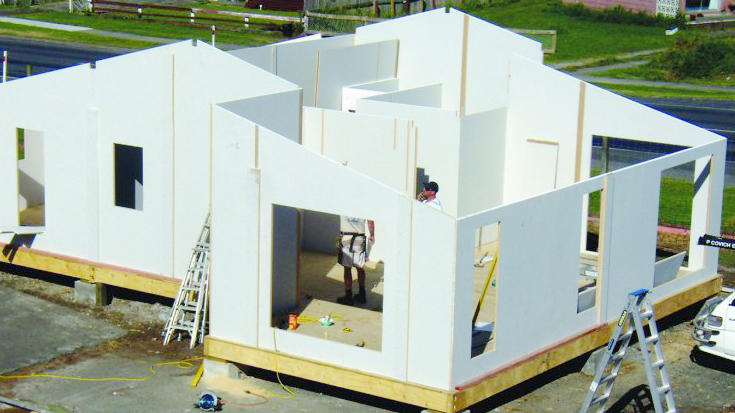

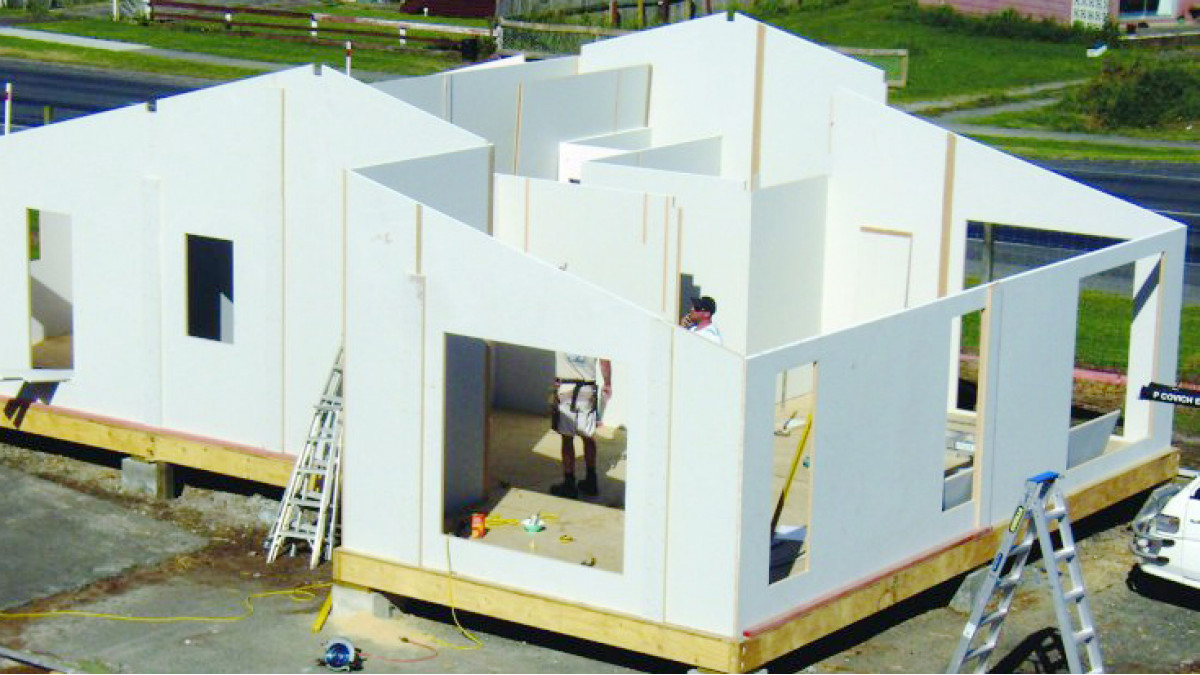

Triboard is a 3-layered wall panel and has a wood strand core sandwiched between an MDF outer skin. It is produced under strict quality controls and passes the most stringent building standards. A superior inner uniform strength throughout a dimensionally stable core provides excellent load bearing capabilities and stability when building with earthquake and adverse weather events in mind.

Triboard possesses a high in-plane rigidity required for earthquake and wind bracing resistance, its movement limited by the connections used. Sliding is prevented by connections at the floor and ceiling. Overturning is prevented by connections to abutting walls. Connection to other wall panels and the ceiling is by way of nails or screws. Connections to the floor are made with galvanised steel angles, nails, screws and cast-in floor framing anchors. The instructions in the Technical Literature for connection of Triboard wall panels to the rest of the structure must be followed carefully to ensure that all loads can be carried safely.

Triboard’s Inter–tenancy Wall System has been appraised by BRANZ — Appraisal No. 593 [2016] for use as load bearing or non load bearing walls, bracing panels, fire-rated and solid core doors and sound insulating internal walls. This Inter–tenancy Wall System is suitable for interfacing with traditional timber framing, light gauge steel frame construction in accordance with NZS 3604, non specific design and NZS 3603, specific design and with Triboard houses as defined by BRANZ No. 481 [2013].

Further technical information for Triboard in relation to bracing, installation guides, health and safety requirements are available on the Juken website.

Triboard — Construction Wall System

Juken New Zealand

View Product

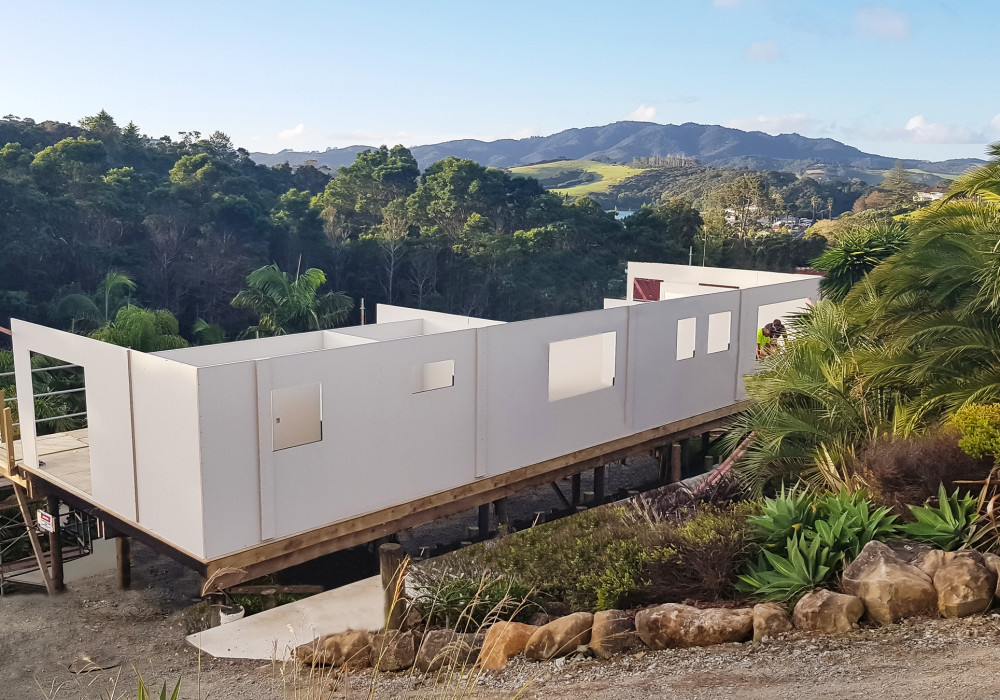

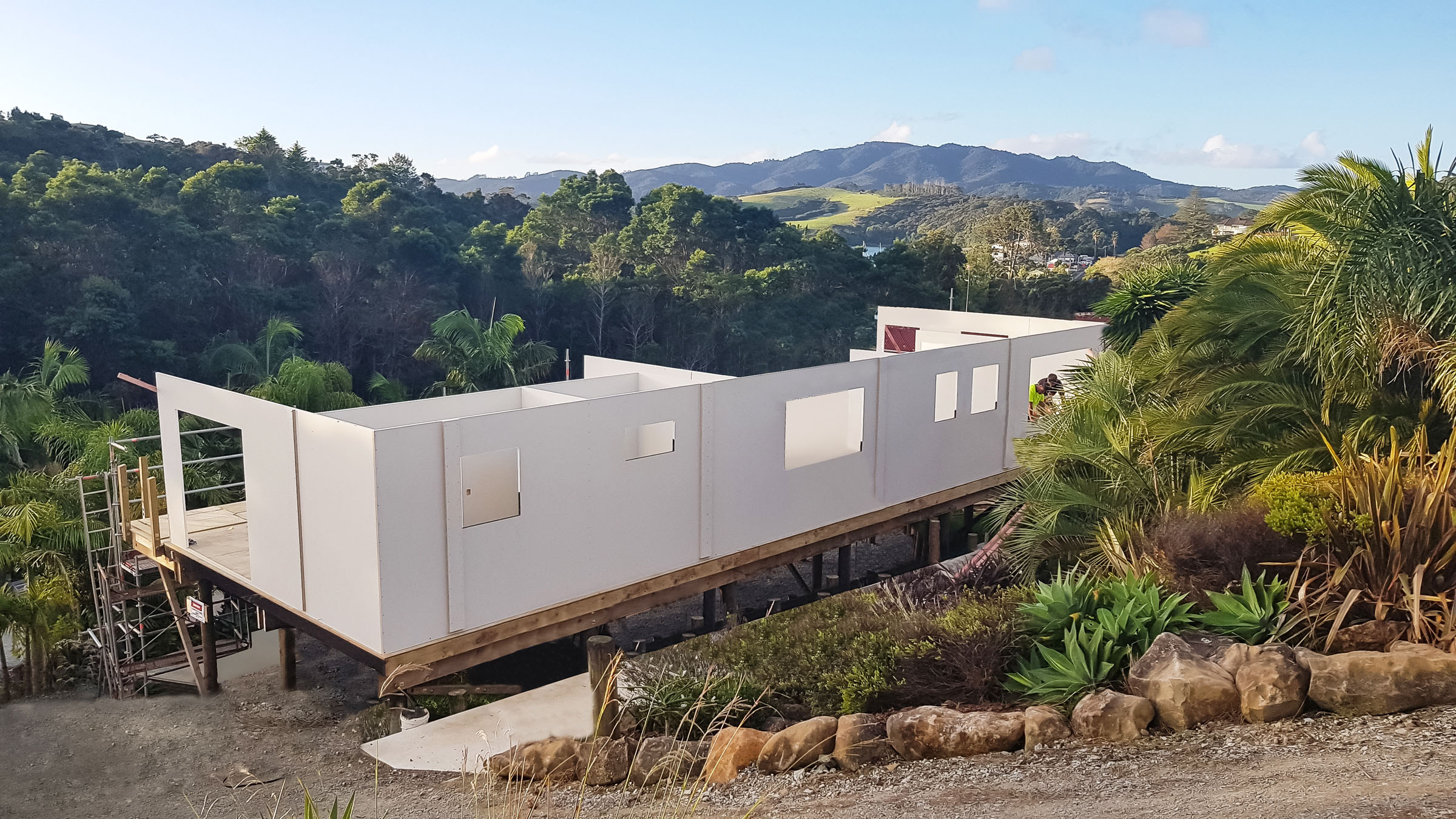

Triboard Construction Wall System is perfect for prefabricated housing, residential and commercial builds.

Innovative combination of smooth surfaces with inner strength makes Triboard ideal for a wide range of structural and non-structural applications.

Domestic, industrial and commercial walls and ceilings
Floors including access floors, mezzanine, warehouse/factory, and theatre or cinema floors
Solid-core doors
Partition systems
Domestic, industrial and commercial shelving
Bracing panels
Shop fittings, substrate for veneers and laminates, furniture components, school and commercial furniture
Fire door systems that significantly simplify the manufacturing process
Inter-tenancy Fire Rated and Acoustic Walling Systems

Triboard has been BRANZ appraised as a Construction System for use in single unit (detached) Risk Group SH housing which meets the scope of Clause 1.1.2 of NZS 3604 within the limitations listed below.

In the opinion of BRANZ, the Triboard Construction System comprising wall and ceiling panels and connections, if designed, used, installed and maintained in accordance with statements and conditions of the Appraisal, will meet the following provisions of the NZ Building Code:

Clause B1 Structure: B1.3.1, B1.3.2, B1.3.4
Clause B2 Durability: B2.3.1 (a)
Clause F2 Hazardous Building Materials: F2.3.1

Triboard meets Group 3 fire rating for internal surface finish.

Triboard — Intertenancy Wall System

Juken New Zealand

View Product

Triboard is a 3-layered panel with a wood strand core sandwiched between an MDF outer 'skin'.

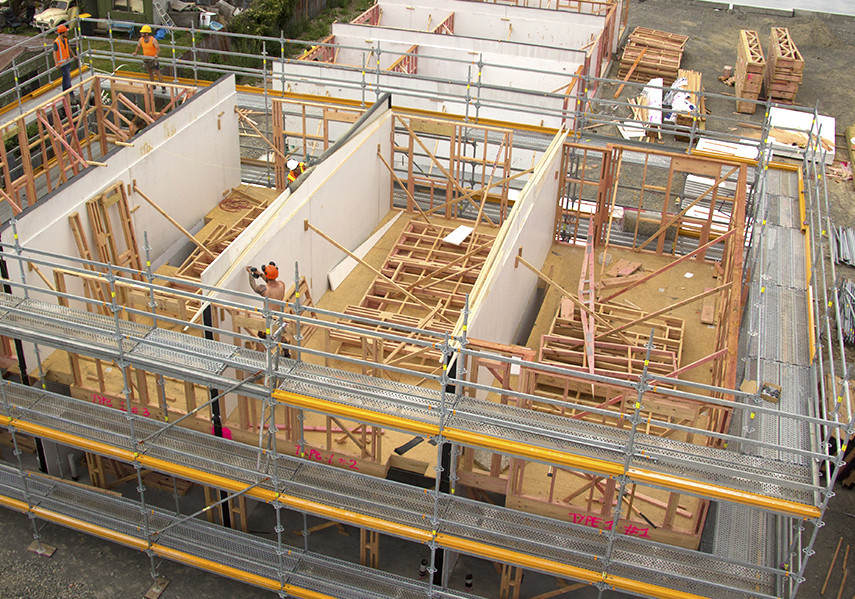

Triboard has been BRANZ appraised as an Inter-tenancy Wall System for use as load bearing or non-loading bearing, fire-rated and sound insulating internal walls.

Suitable for use when interfacing with traditional timber frame construction, light gauge steel frame construction, and with the Triboard Construction System.
Suitable for use as infill panels within buildings having concrete frames designed to NZS 3101.

In the opinion of BRANZ, the Triboard Inter-tenancy Wall System, if designed, used, installed and maintained in accordance with statements and conditions of the Appraisal, will meet the following provisions of the NZ Building Code:

Clause B1 Structure: B1.3.1, B1.3.2, B1.3.4
Clause B2 Durability: B2.3.1 (a)
Clause C3 Spread of Fire: C3.3.2
Clause F2 Hazardous Building Materials: F2.3.1
Clause G6 Airborne and Impact Sound: G6.3.1

Structure

Durability

Protection from Fire

Hazardous Building Materials

Airborne and Impact Sound

BRANZ Appraised
