Extreme Barriers — Framed Baluster
Description

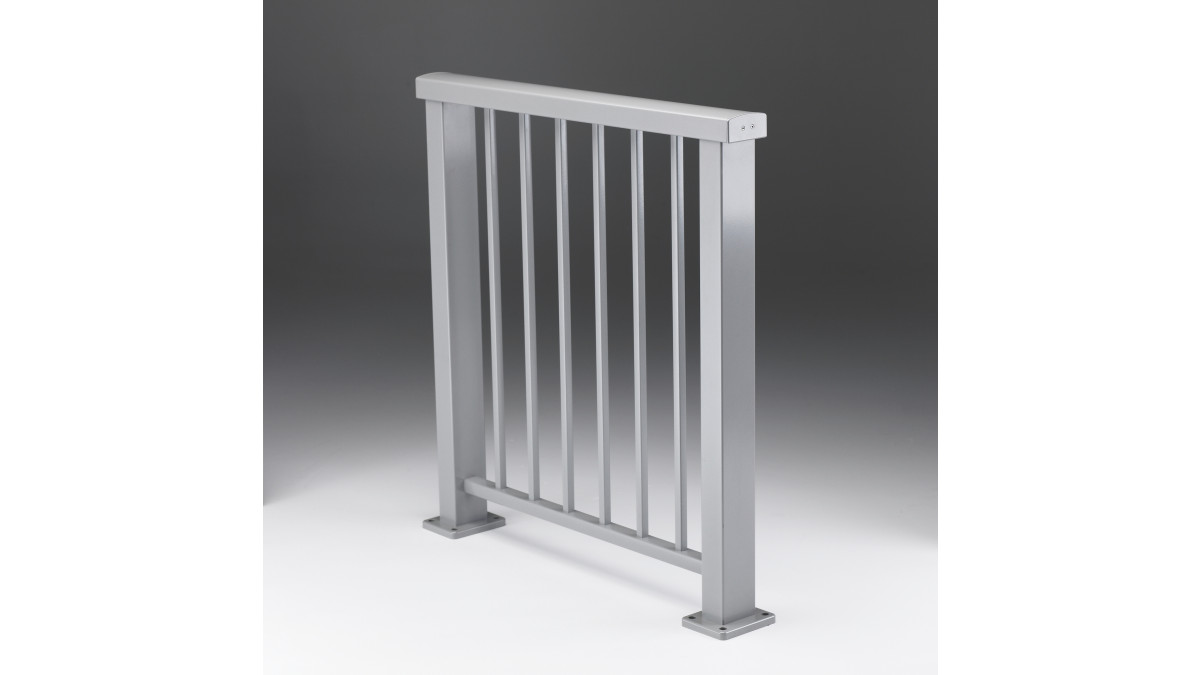

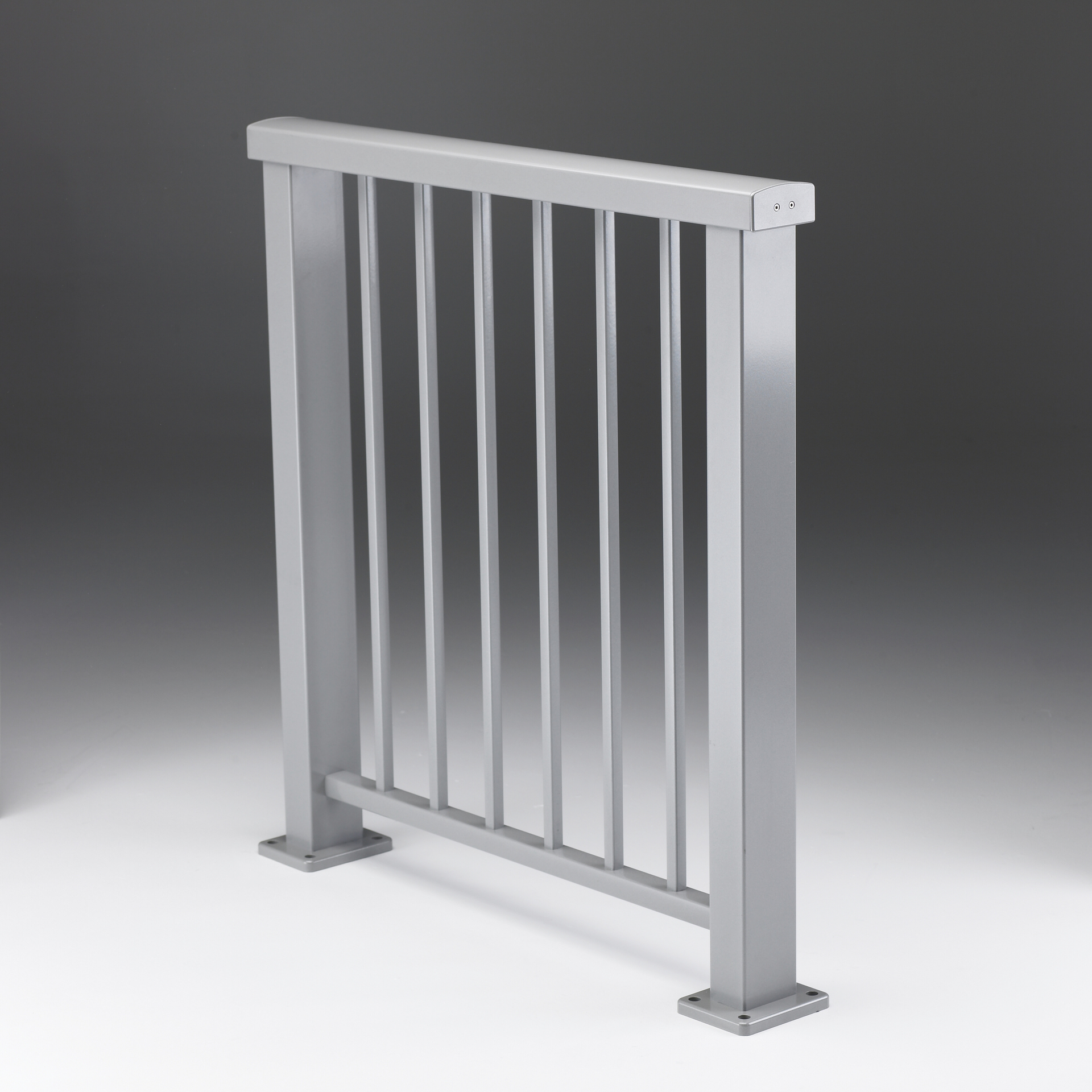

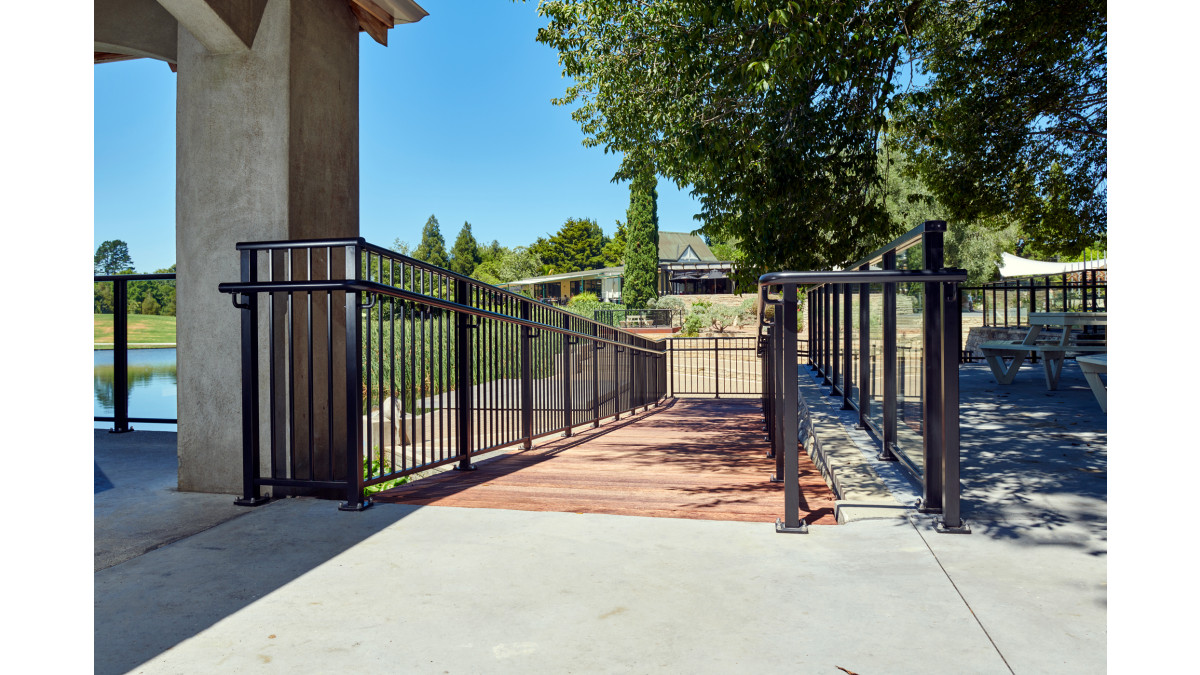

Unex’s Extreme Framed Baluster Barrier styles are a range of framed aluminium panels with vertical uprights, designed for crowd and public loadings C1/C2, C5 and D. This proprietary barrier system saves the cost and time associated with designing a one-off barrier to meet these crowd loads and it can also be finished in a range of colours.

Key Features
  • Standard specifications available for fixing to timber, steel and concrete
  • Specifications for non-standard situations may be provided by Unex Systems upon request
  • Two ranges available; X1500 Series based on a 70mm wide suite and X3000 Series based on a 90mm wide suite
  • Designed for standard heights of 1100mm and 1200mm from finished deck level
  • Wide range of finish options — can be powdercoated or anodised in all standard New Zealand colours
  • Screws together with minimal, if any, welds required
  • Made from 6000 series extruded aluminium alloys
  • Installed only by Authorised Fabricators, available nationwide
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Unex’s Extreme Barrier styles have two ranges — X1500 Series and X3000 Series.

  • X1500 Series is designed to meet classifications C1/C2 and D of AS/NZS 1170.1, which stipulates a 1.5kN/m load on the top edge — twice the load required on a typical residential application.
  • X3000 Series is designed to meet classifications C5 of AS/NZS 1170.1 which stipulates a 3.0kN/m load on the top edge — four times the load required on a typical residential application.

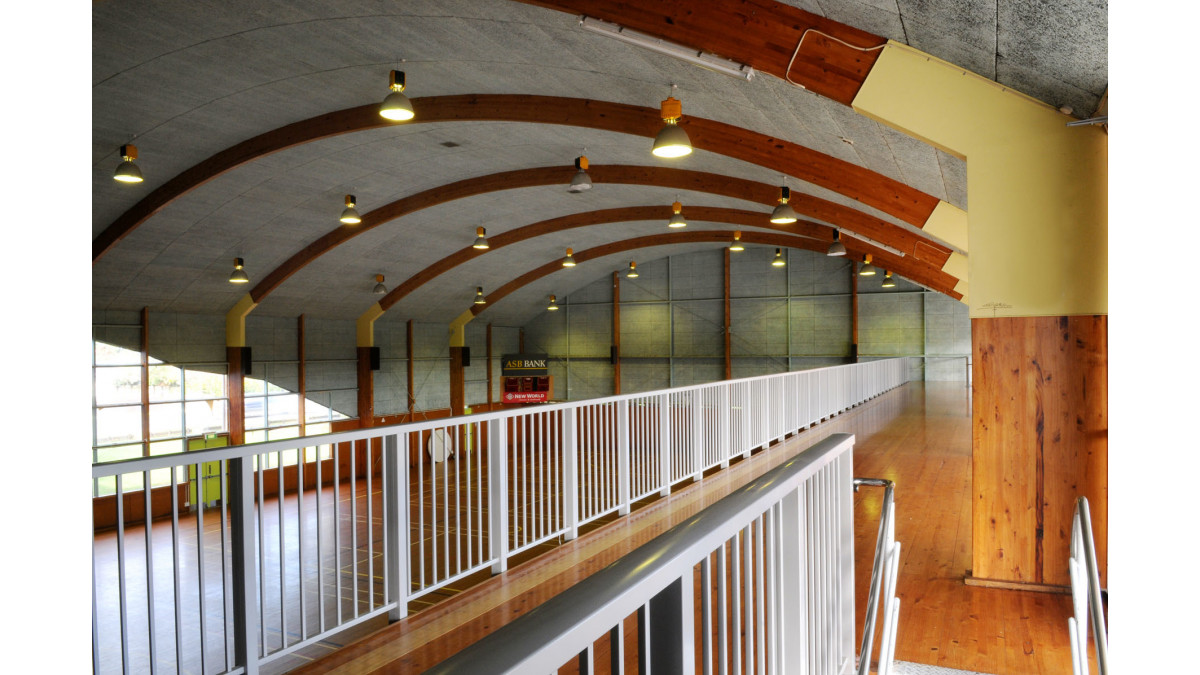

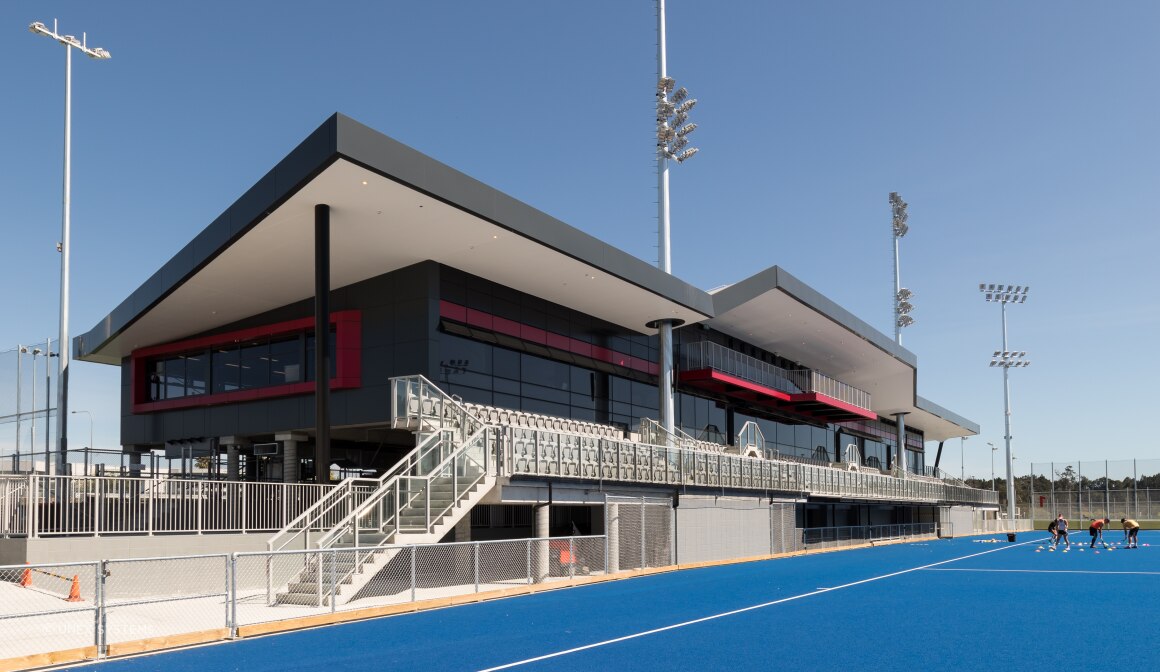

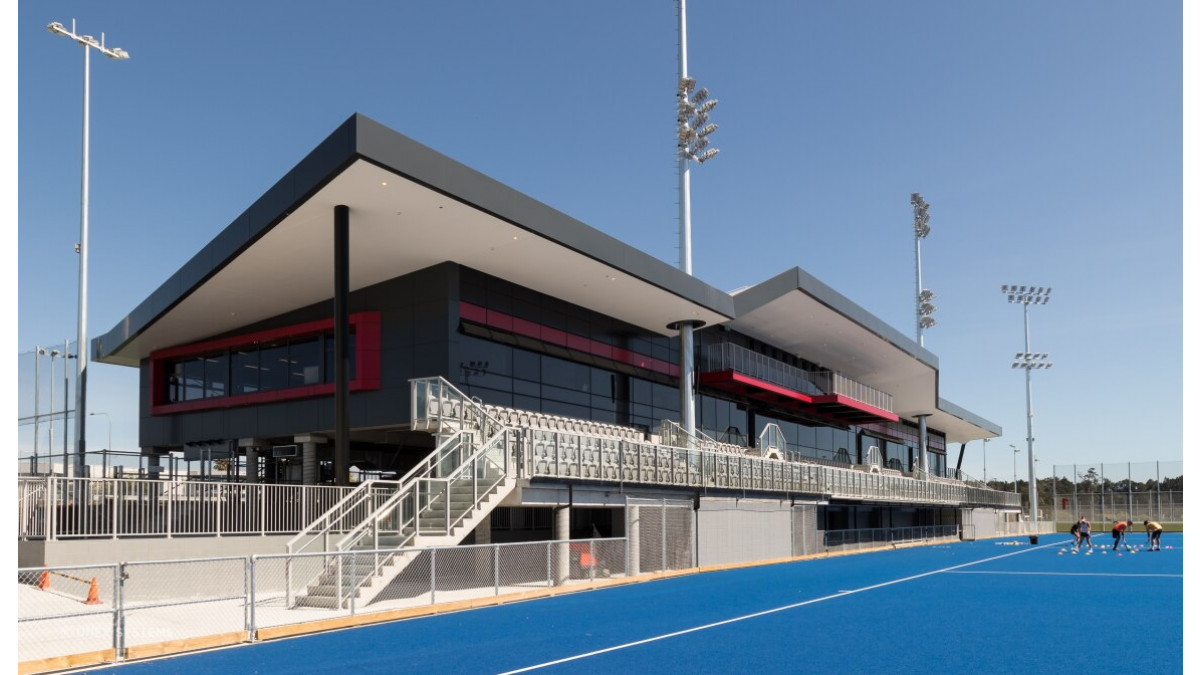

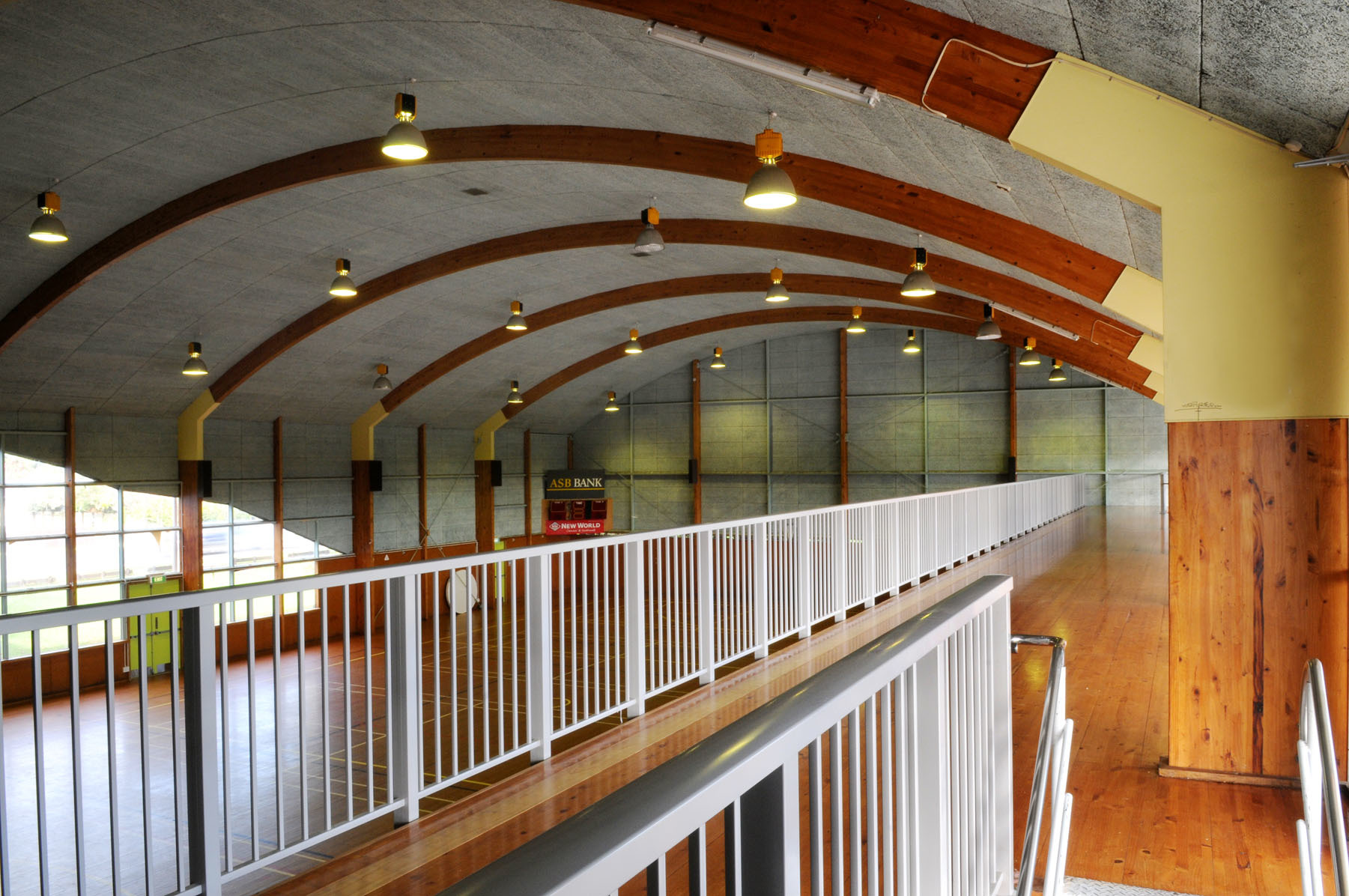

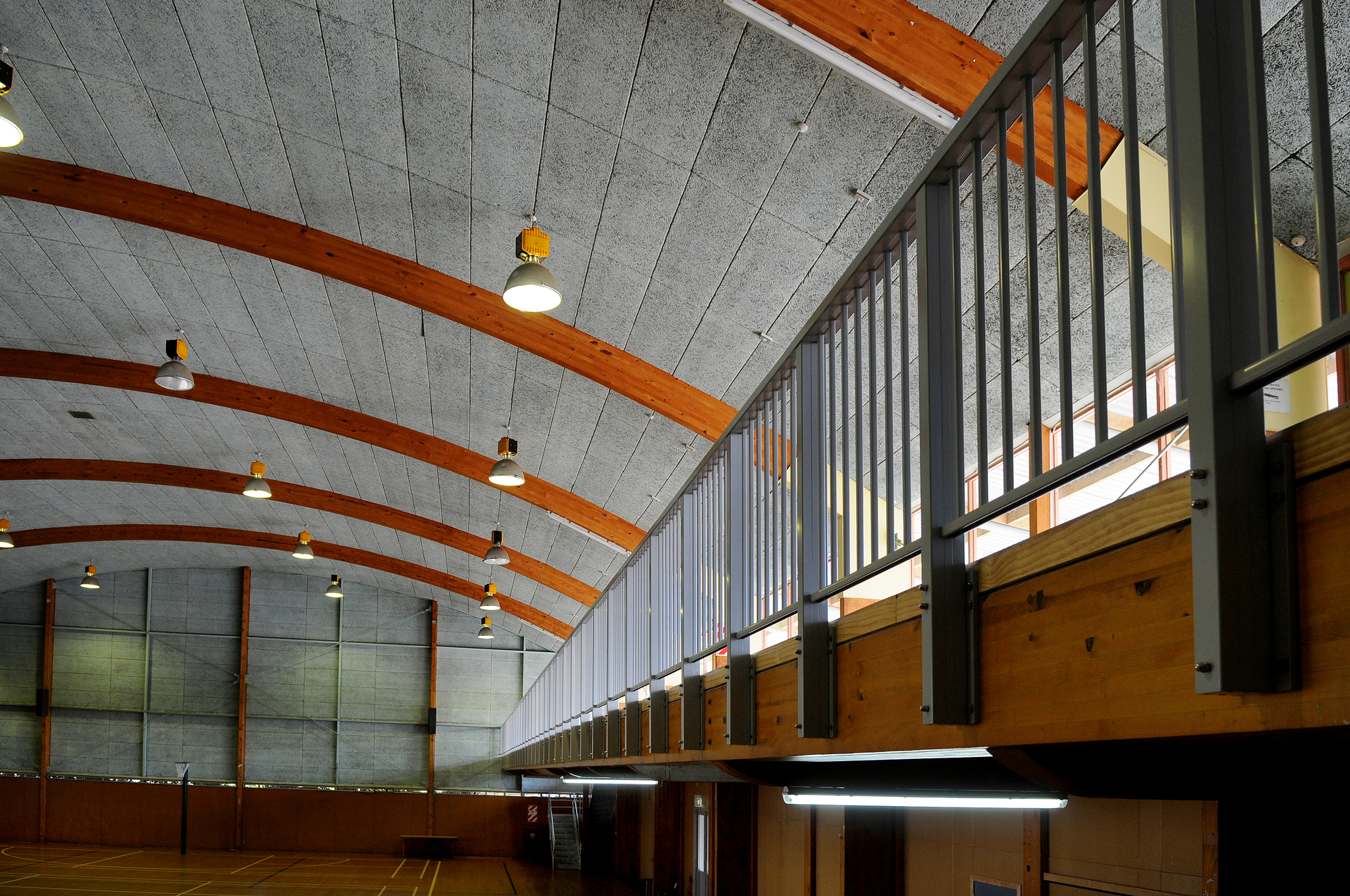

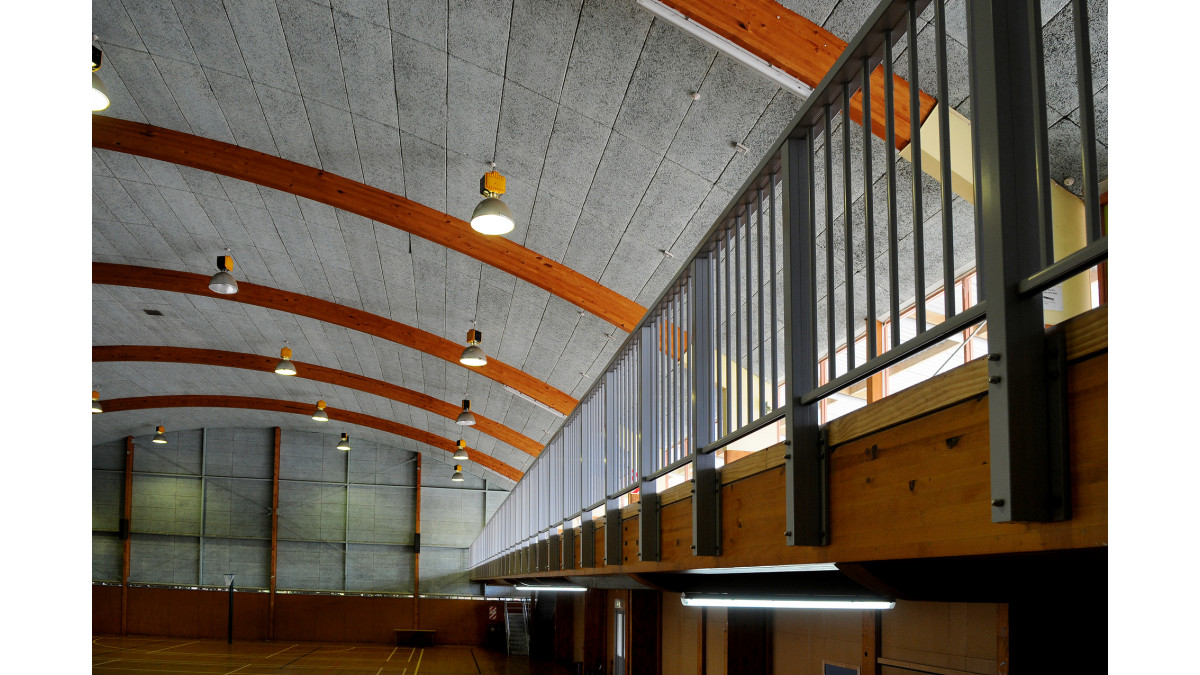

The Extreme Framed Baluster Barriers are typically used for, but not limited to:

  • Grandstands
  • Gymnasiums
  • Surf clubs
  • Shopping centres
  • Restaurants
  • Bars
  • Sports clubs
  • School halls
  • Cafes
  • Public pavilions

Extreme Barriers are also suited to other situations where large post spacings, a bulkier look, or additional height is required.

There is a wide range of fixing options available for both suits to fix to steel, timber and concrete applications. Site-specific specifications may also be provided upon request for those non-standard situations.

The standard powders used by Unex Systems (Interpon) can be used right down to sea level, provided the care and maintenance instructions are adhered to.

Limitations on Use

Unex's ‘Extreme Barriers’ Range is designed to meet the loading classifications of AS/NZS1170.1 of the New Zealand Building Code and is therefore not applicable to the requirements of the transport code. This design is not suitable for applications such as a vehicle barrier.

Typically Extreme Barriers are not suitable for top-mounting to timber.

For certain buildings, such as some industrial situations, a higher grade powder coat powder must be specified.

NZS 3604 Wind Zone Extra High suitable
Extra High Wind Zone
NZS 3604 Wind Zone High suitable
High Wind Zone
NZS 3604 Wind Zone Medium suitable
Medium Wind Zone
NZS 3604 Wind Zone Very High suitable
Very High WInd Zone
NZS 3604 Wind Zone Very High suitable
Very High Wind Zone
Statement of Building Code Compliance

UNEX has designed its Extreme Barriers range to comply with the B1, B2, F2, F4 and F9 requirements of the NZ Building Code and are suitable for occupancy types “C1/C2”, “C5” and “D” in accordance with AS/NZS 1170.1: 2002.

For more information, please refer to the “NZ Building Code Compliance” document (right).

Producer Statements for all standard specifications can be created online in the registered area of the UNEX website

For non-standard situations not covered by UNEX's specifications, a site-specific PS1 and specification may be prepared by UNEX upon request.



In-Service History

UNEX specialises in designing and manufacturing architectural balustrade systems throughout Australasia having done so since 1981.

These Extreme Barriers have been incorporated in Unex Systems’ range since 2012 — designed in response to the needs of the market place for pre-engineered barriers designed to meet the extremely heavy live load classes 'C1/C2', 'C5' and 'D' of AS/NZS1170.1:2002. It has since been used in a number of jobs right throughout New Zealand.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
F4 Safety from Falling compliant
Safety from Falling
F9 Restricting Access to Residential Pools compliant
Restricting Access to Residential Pools
Documents
UNEX Promotional Catalogue

ZUPPB

NZ Building Code Compliance
Maintenance Instructions
Warranty
Installation and Operation
UNEX Authorised Fabricators
Extreme Barriers Brochure
Colour Range
CAD/PDF Details

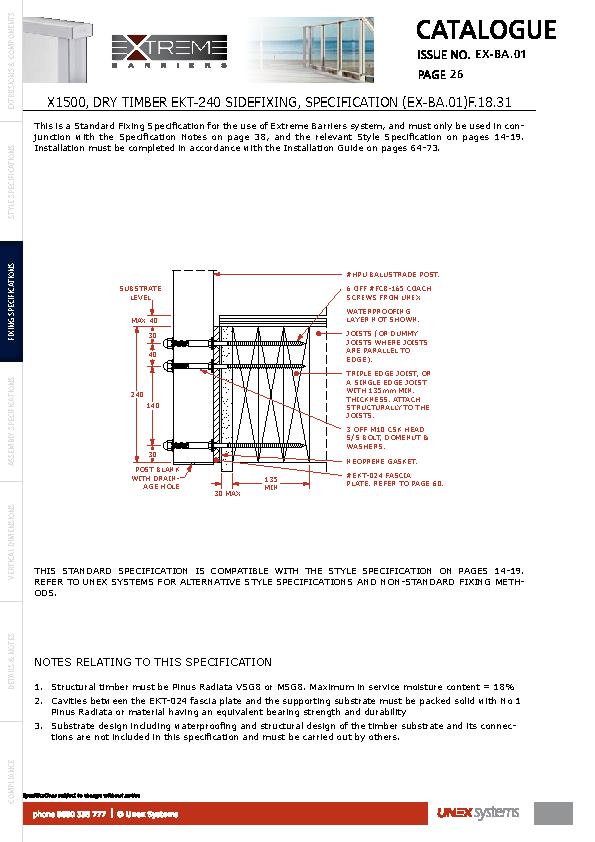

Dry Timber, Side Fixing - X1500

F.18.31

Dry Timber, Side Fixing - X3000

F.18.51

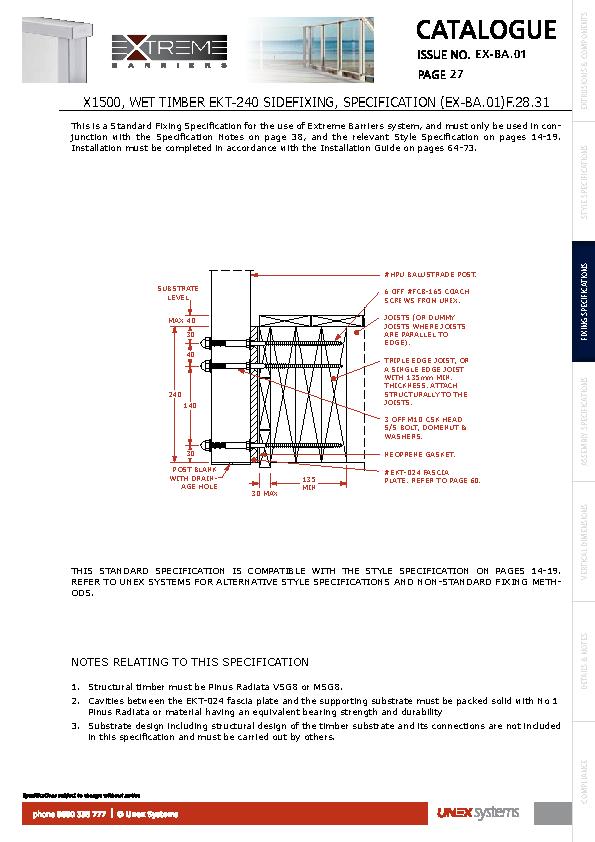

Wet Timber, Side Fixing - X1500

F.28.31

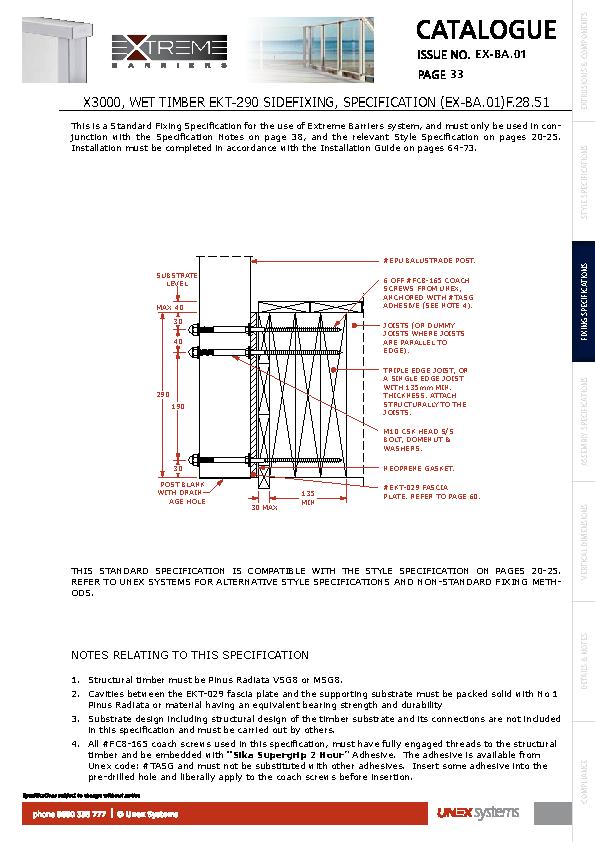

Wet Timber, Side Fixing - X3000

F.28.51

Concrete, Top Fixing - X1500

F.33.31

Concrete, Top Fixing - X3000

F.33.51

Concrete, Side Fixing - X1500

F.34.31

Concrete, Side Fixing - X3000

F.34.51

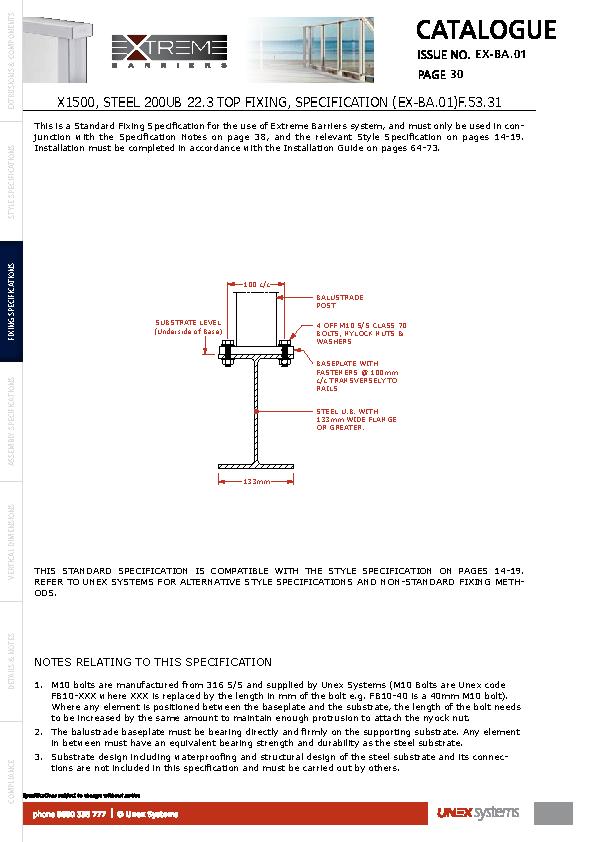

Steel 200UB, Top Fixing - X1500

F.53.31

Steel 310UB, Top Fixing - X3000

F.53.51

Steel 250 PFC, Side Fixing - X1500

F.54.31

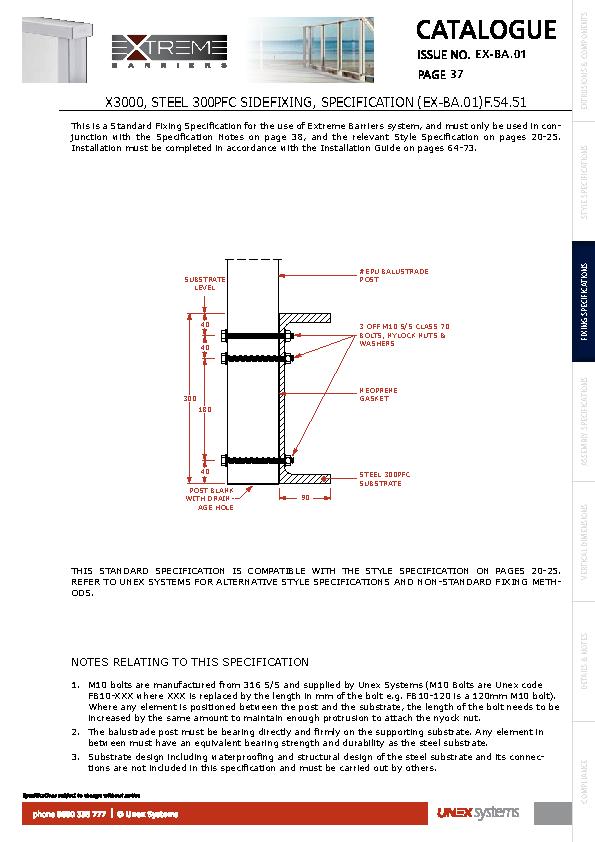

Steel 300 PFC, Side Fixing - X3000

F.54.51

Baluster, Side Mounted - X1500 Series

SS.01.31

Baluster, Side Mounted - X3000 Series

SS.01.51

Baluster, Top Mounted - X1500 Series

ST.01.31

Baluster, Top Mounted - X3000 Series

ST.01.51

UNEX Systems specialise in the design and manufacture of an innovative range of proprietary architectural barrier and screen solutions.

Product Enquiries

News from Unex Systems

Unex Balustrades at Matavai Resort, Niue
Compliance for Frameless Glass Balustrades with UNEX

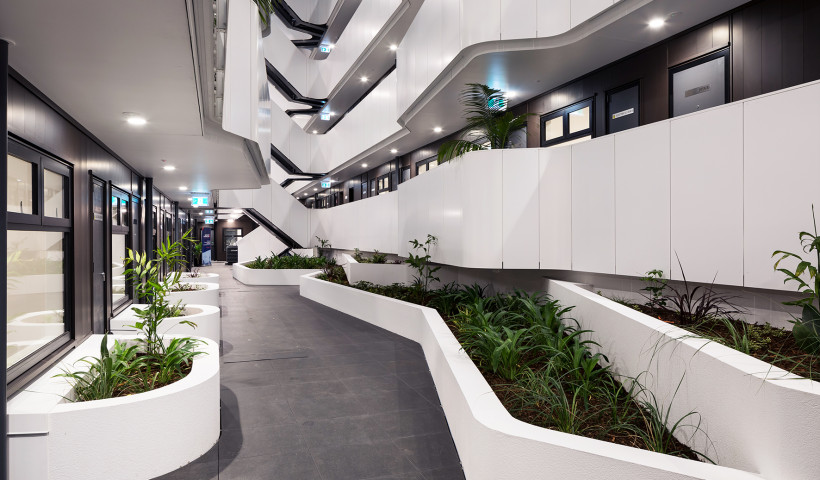

Innovative Balustrade Solution by UNEX for the Mount View Village
