Suitable for MDF and other wood composite panels in dry interior applications, including:

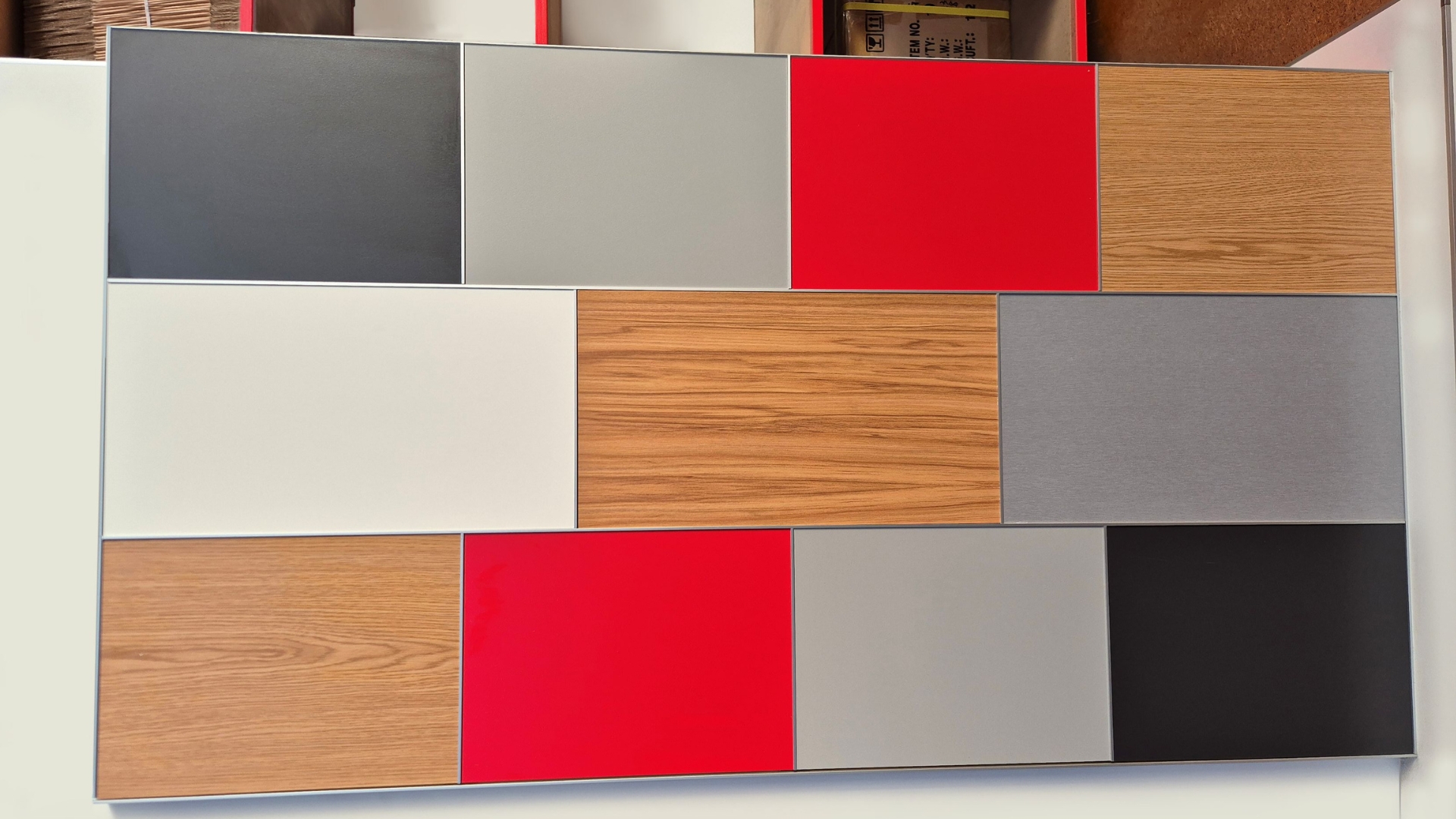

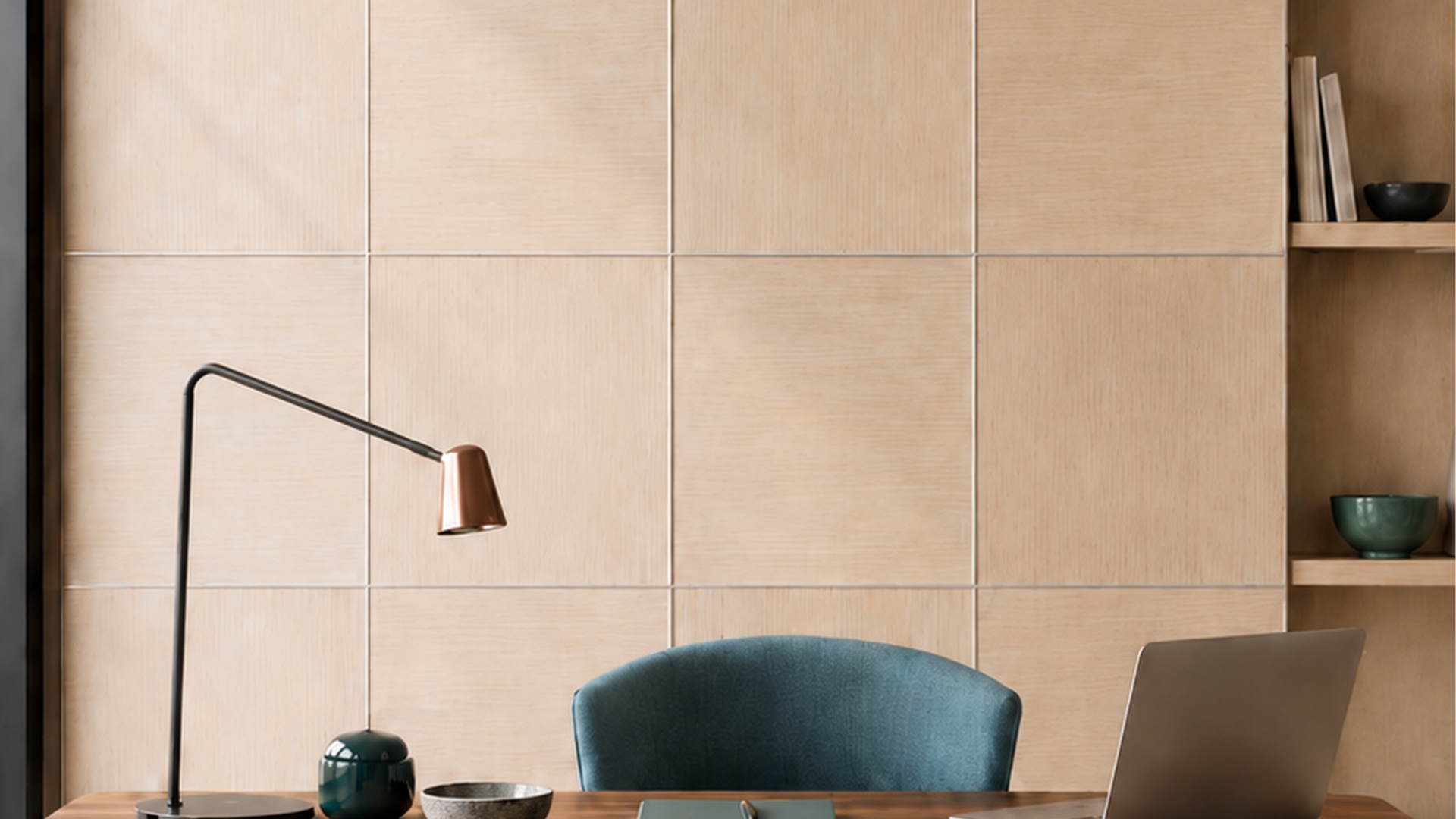

• Architectural wall panelling and feature walls, creating defined horizontal and vertical joints across large panelled surfaces.

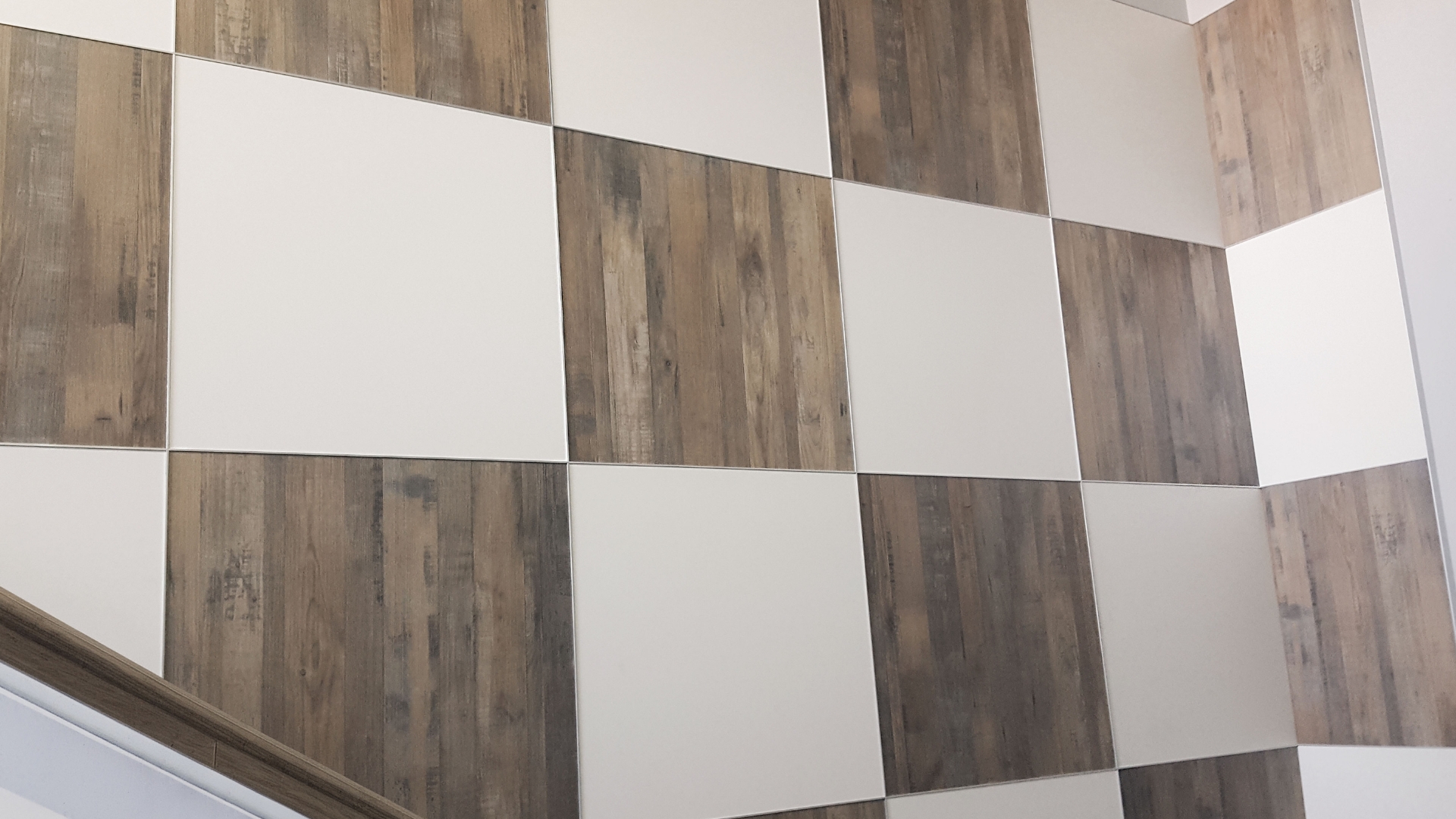

• Feature panel designs where joins are used to establish a consistent grid, pattern or expressed architectural detail.

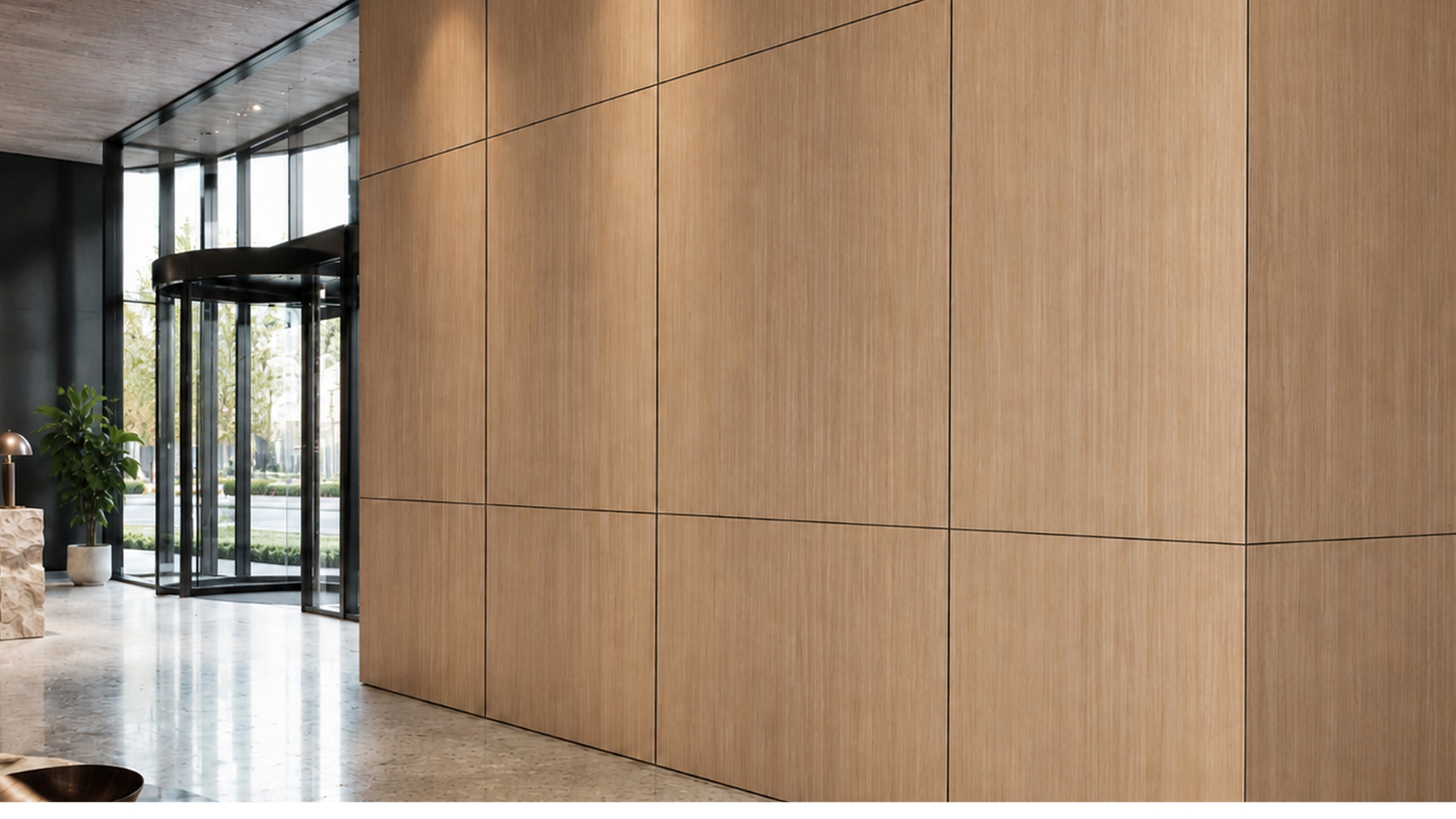

• Commercial interiors, reception areas, retail fit-outs, hospitality spaces and residential interiors requiring consistent panel detailing.
• Cabinetry, furniture and architectural joinery where adjoining flat panels require a defined, finished junction.
• Direct wall fixing of panels using MCLNWFJOIN, where the fixing is integrated into the visible join detail.

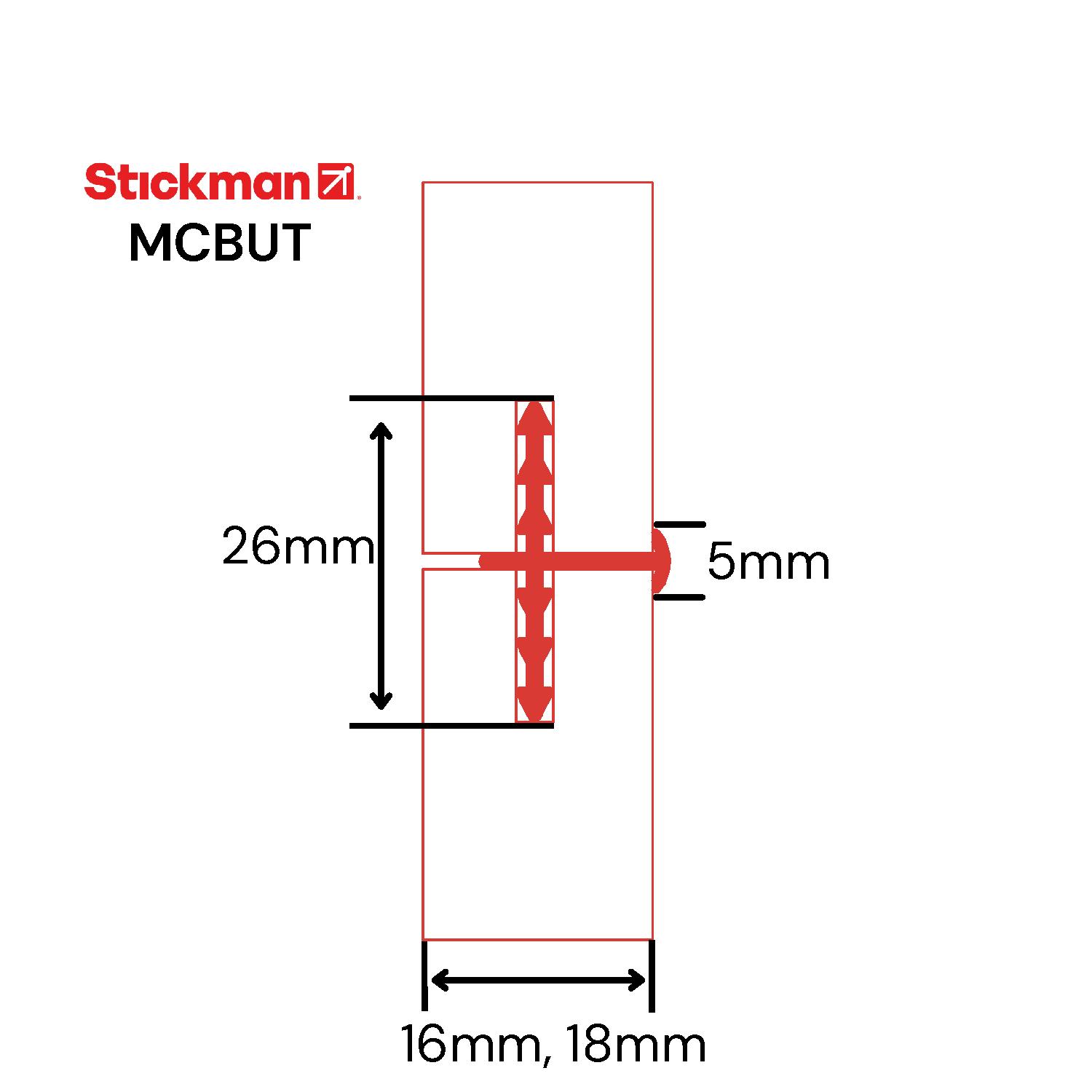

• Column cladding and tight internal junctions using legless butt join profiles.
• Projects requiring coordinated panel detailing, where Linear butt joins can be matched with compatible Stickman corner and capping profiles.

• Intended for dry interior applications. Suitability for exterior, wet-area or other demanding environments must be confirmed with Stickman.
• Profile selection must account for panel material, thickness, required joint appearance and installation method.

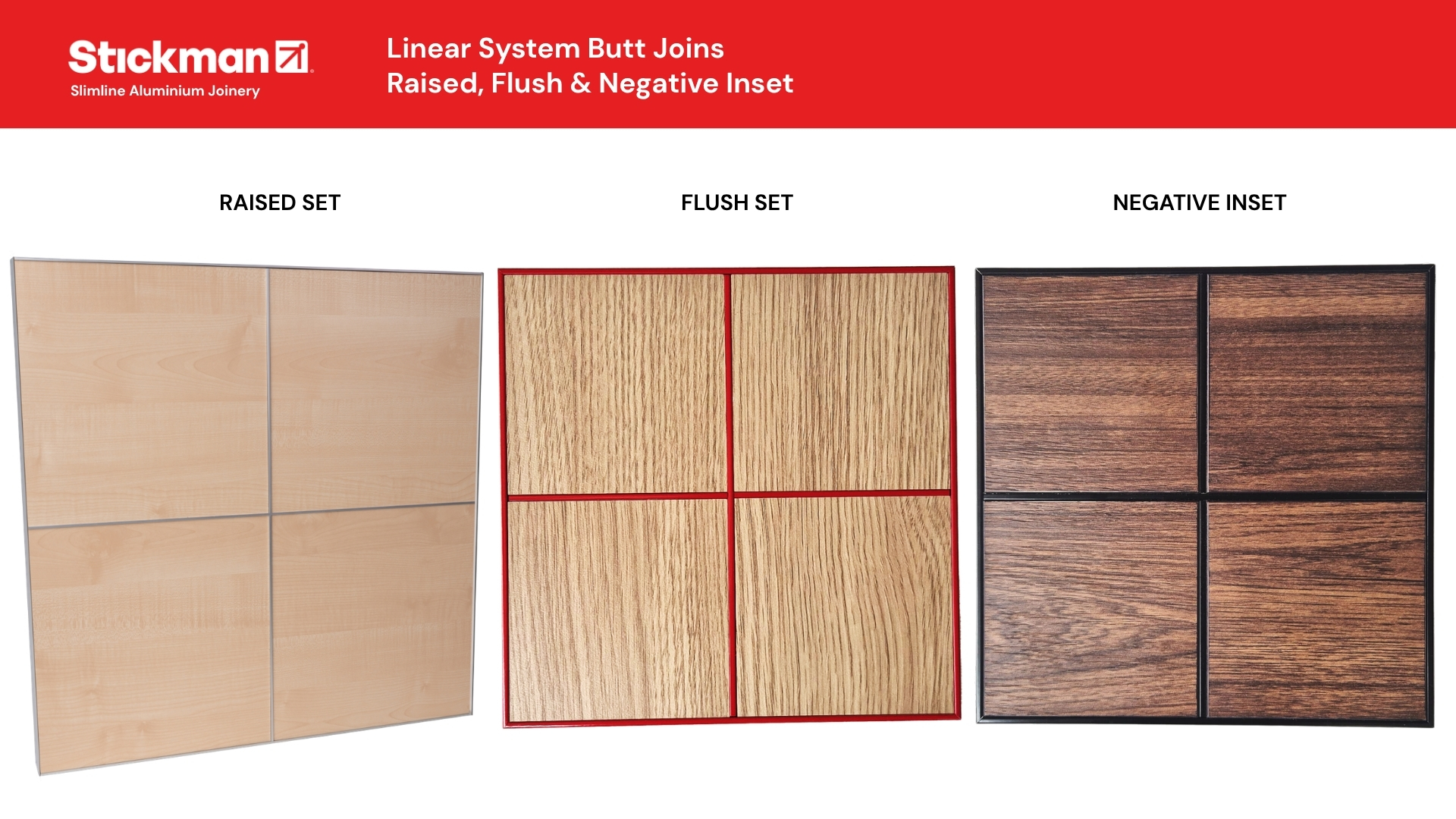

• Raised, flush and negative inset configurations are available on Linear profiles only. Refer to the individual drawings for compatible settings.

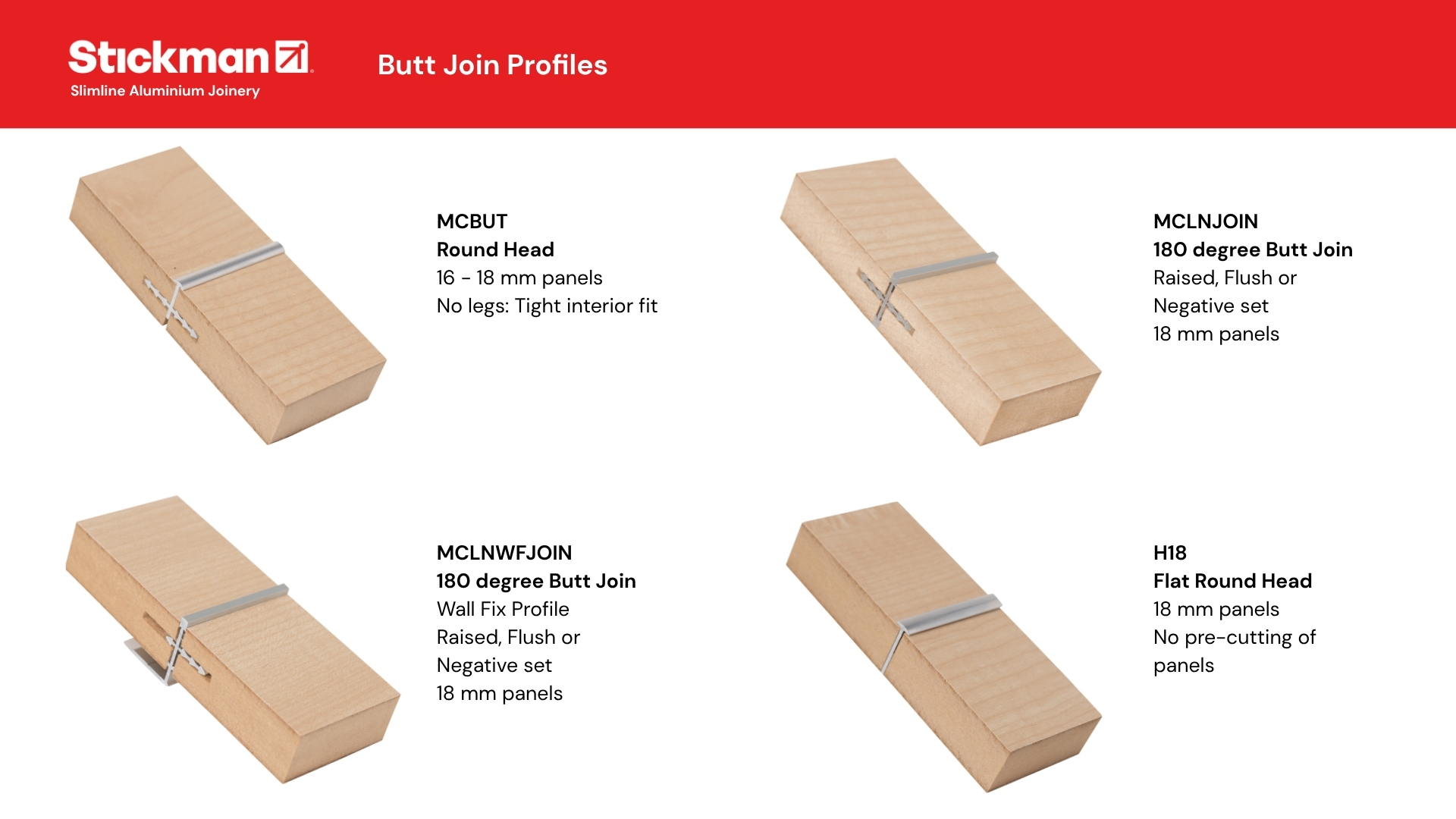

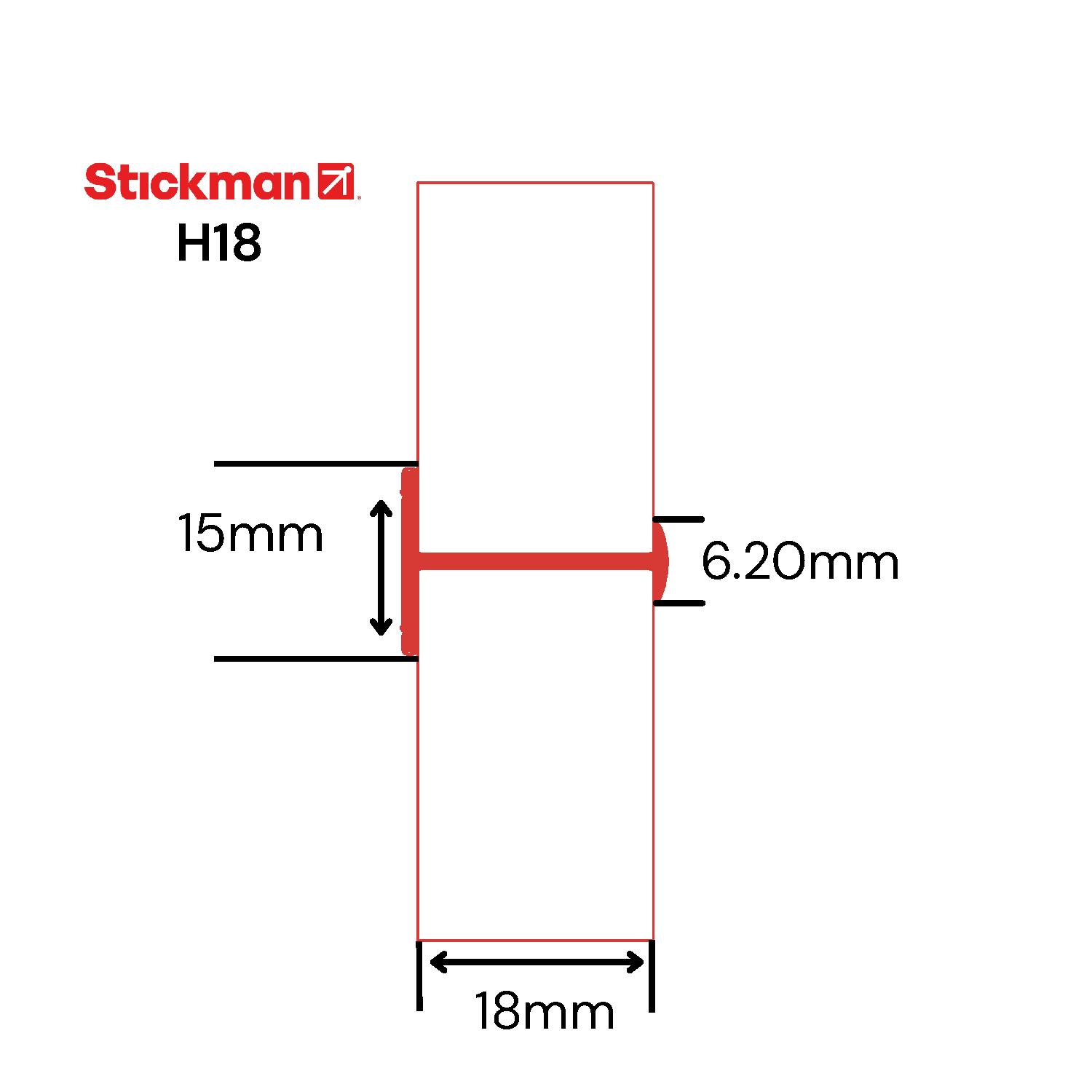

• Panel machining and preparation requirements vary between profiles. H18 allows joining without pre-cutting, while other profiles require appropriate panel preparation.
• Wall-fix applications require suitable fixing methods and substrates for the intended installation.
• Finish availability varies by profile. Confirm anodised or powder-coating requirements before specifying.
• Profiles must be installed in accordance with the relevant technical drawings and installation instructions.
