VT-HP High Performance Chemical Anchor
Simpson Strong-Tie
All products

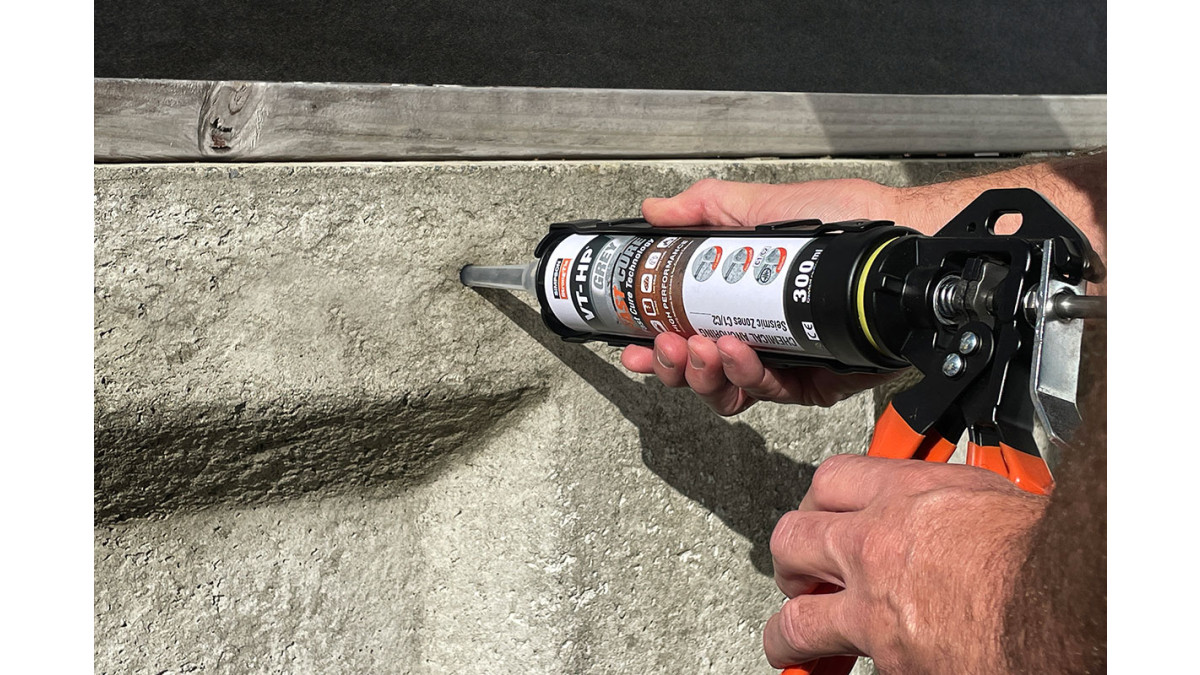

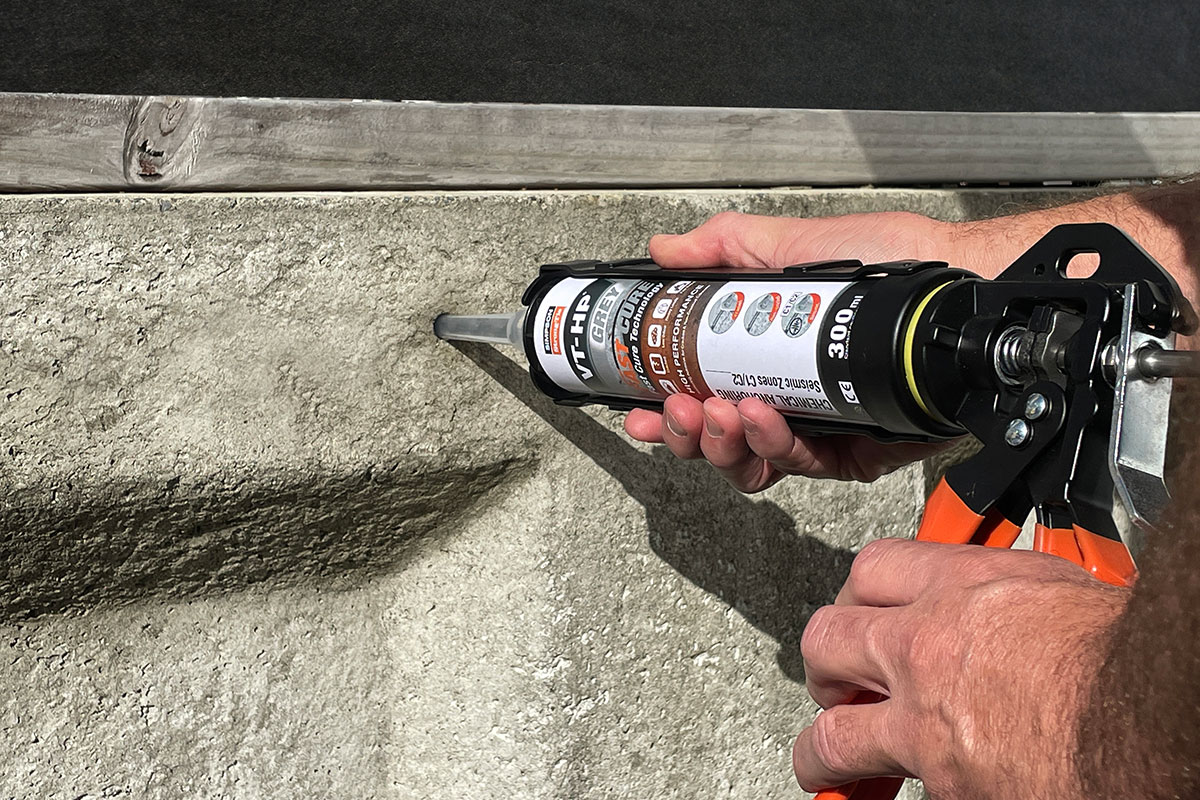

VT HP Application

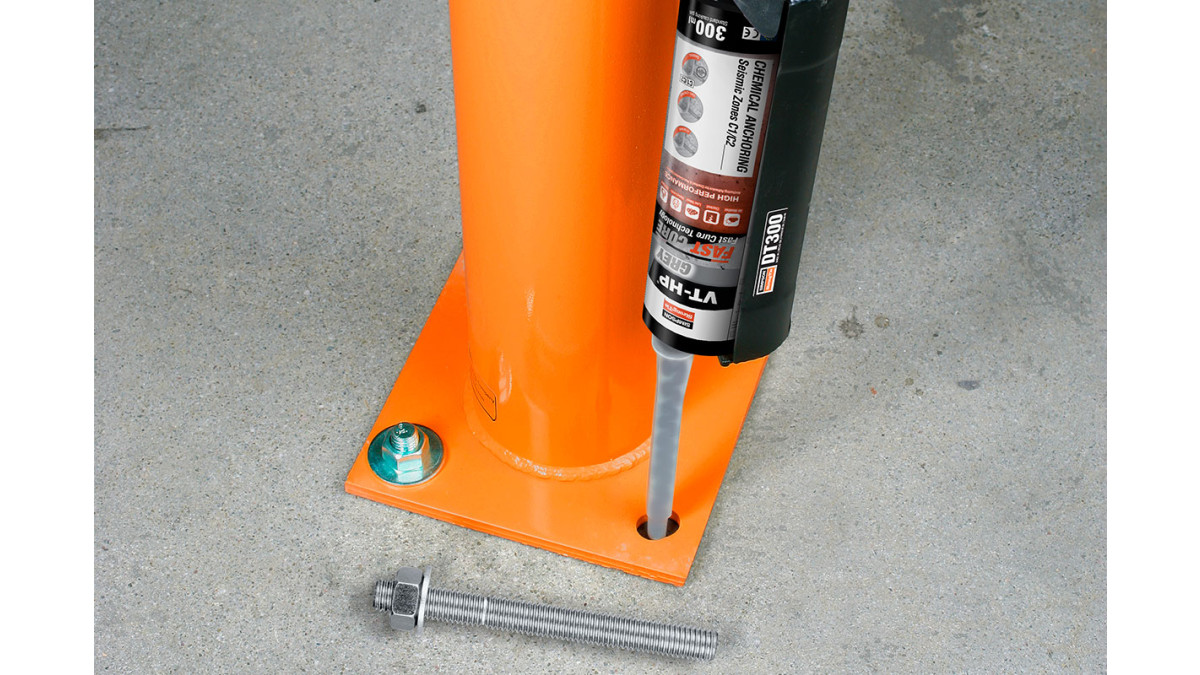

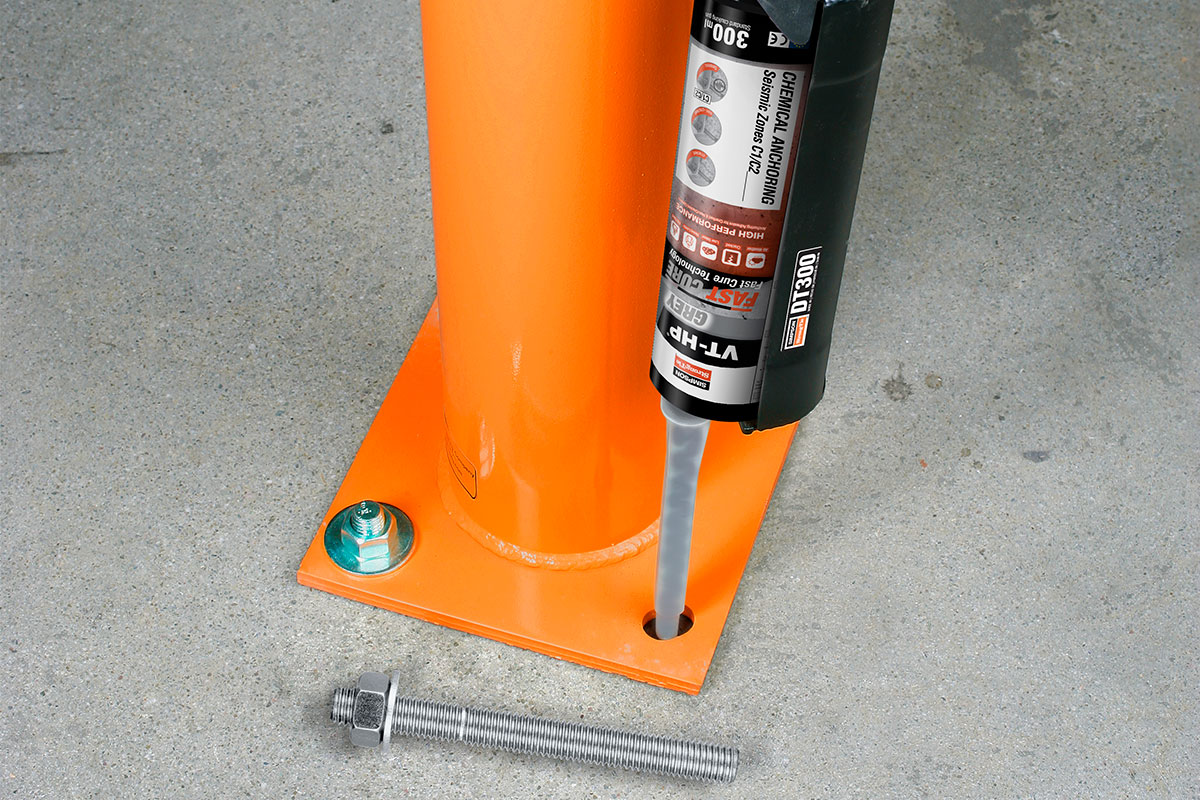

VT HP Application 02

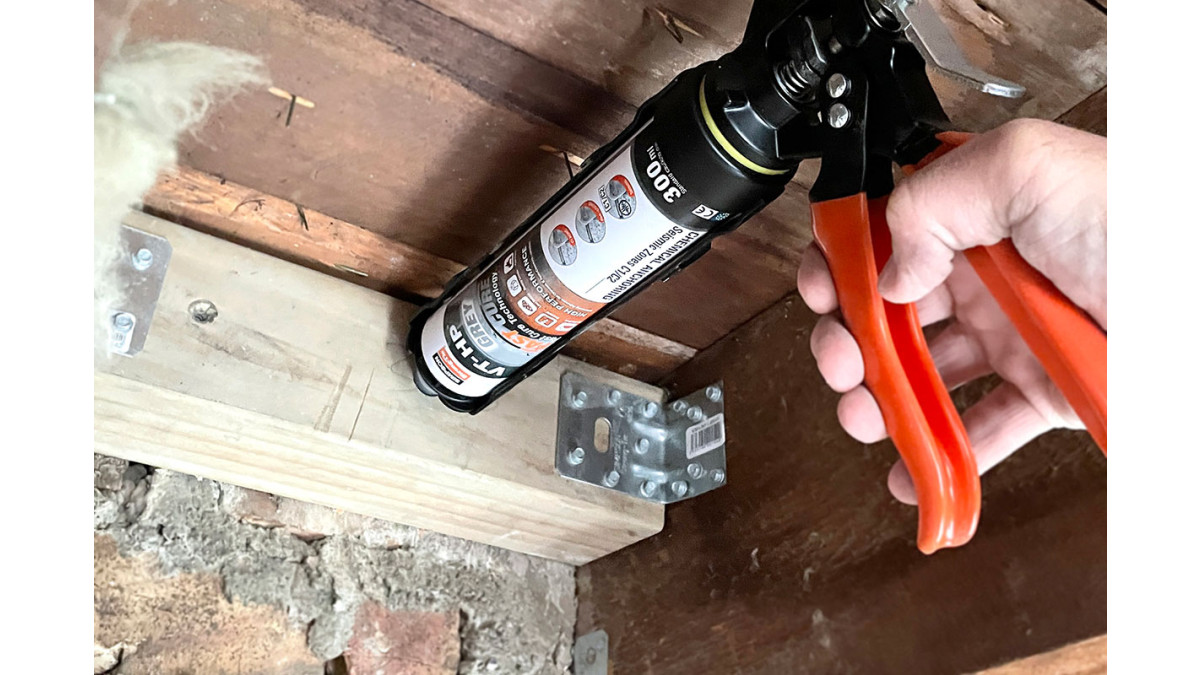

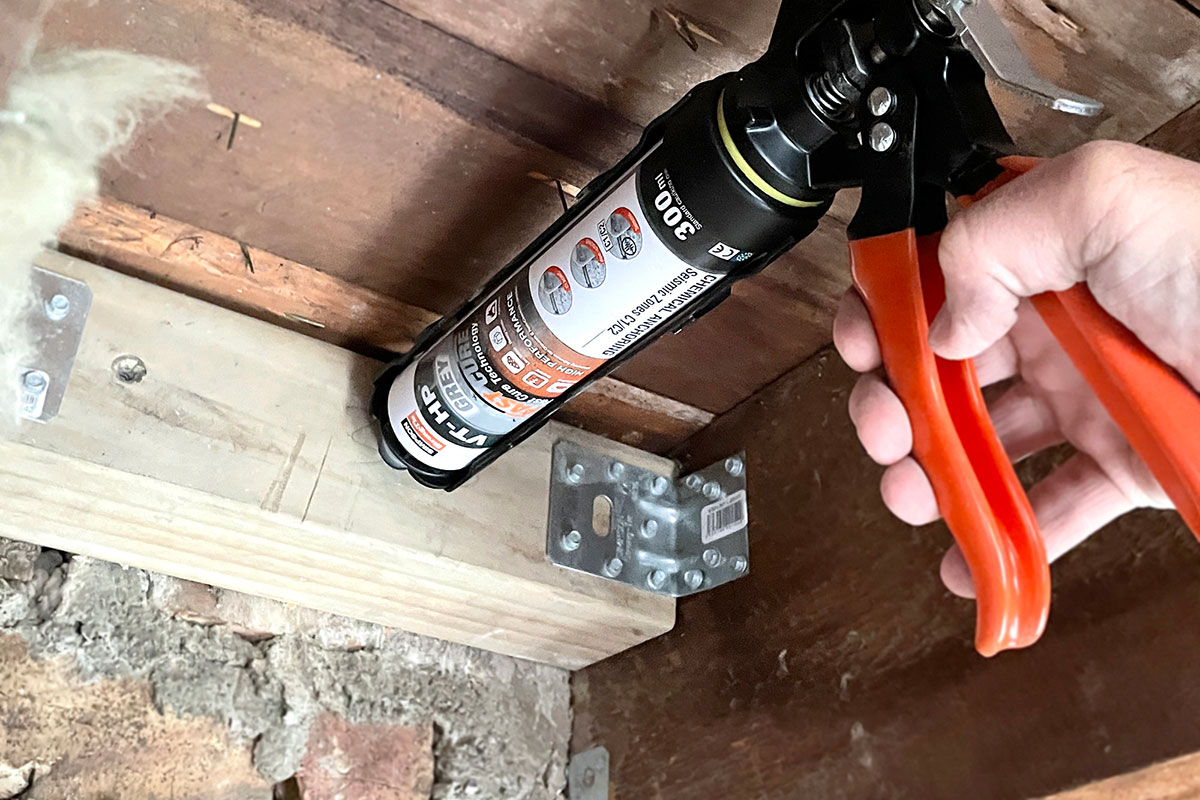

VT HP Application 04

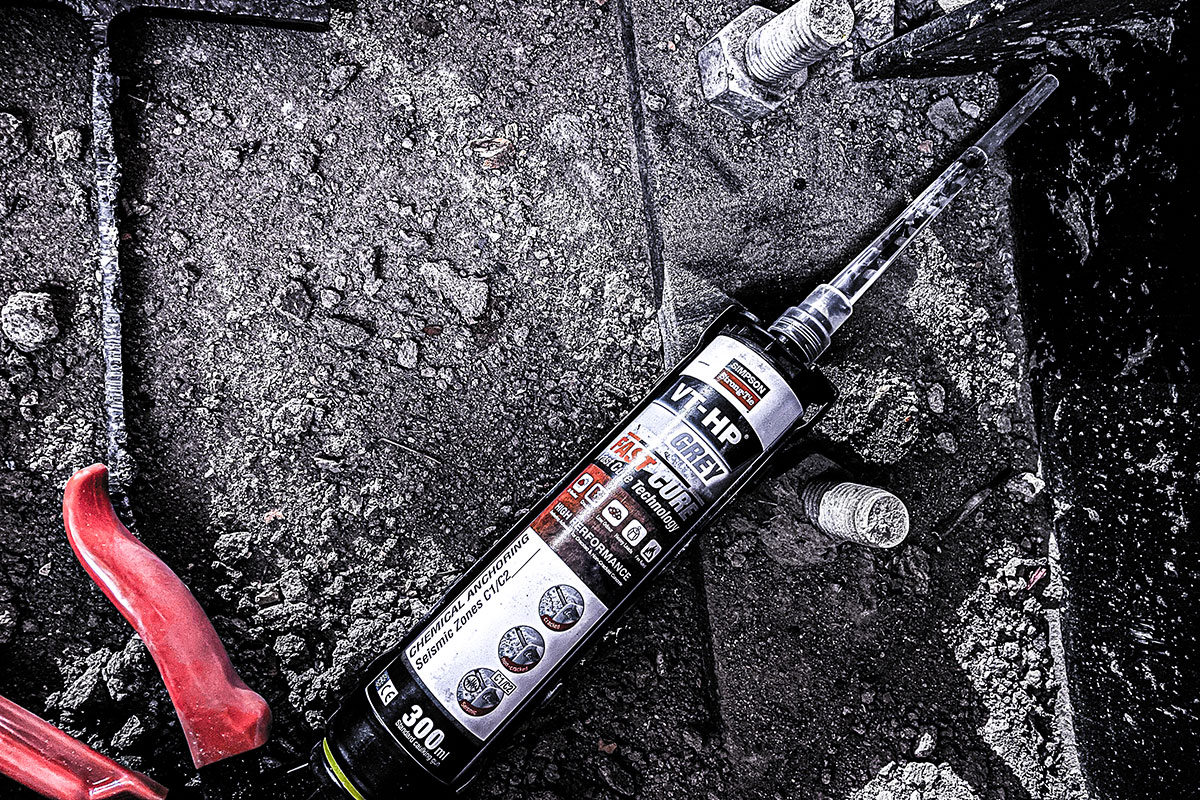

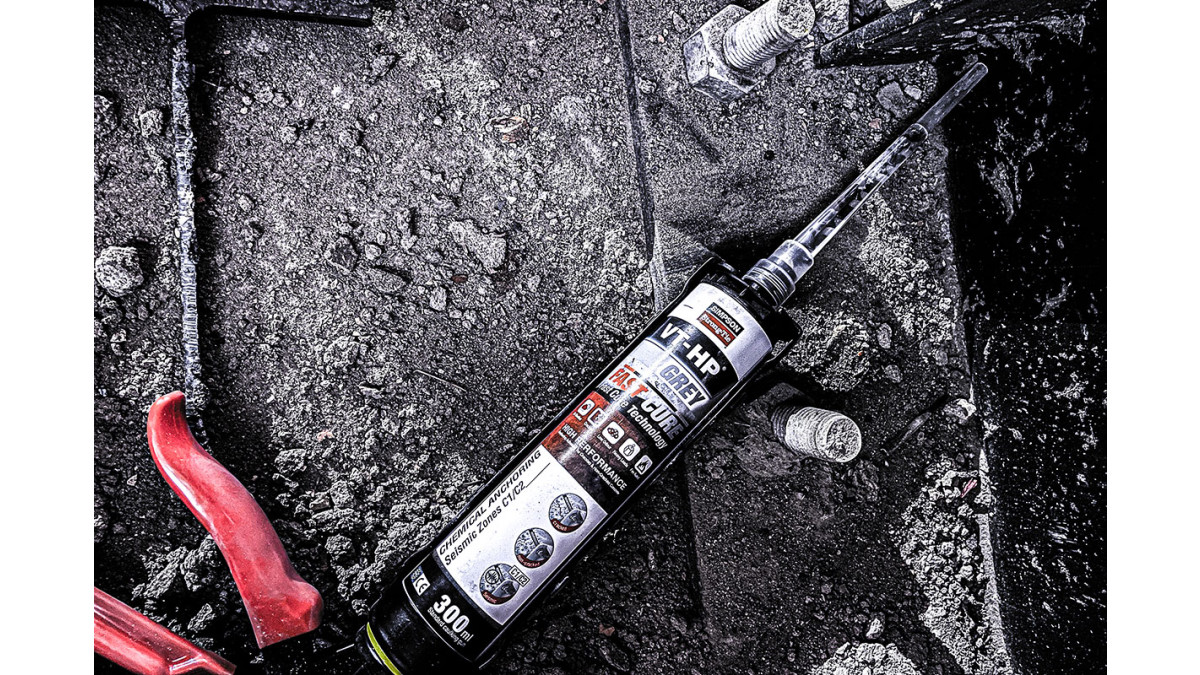

VT HP Application 05

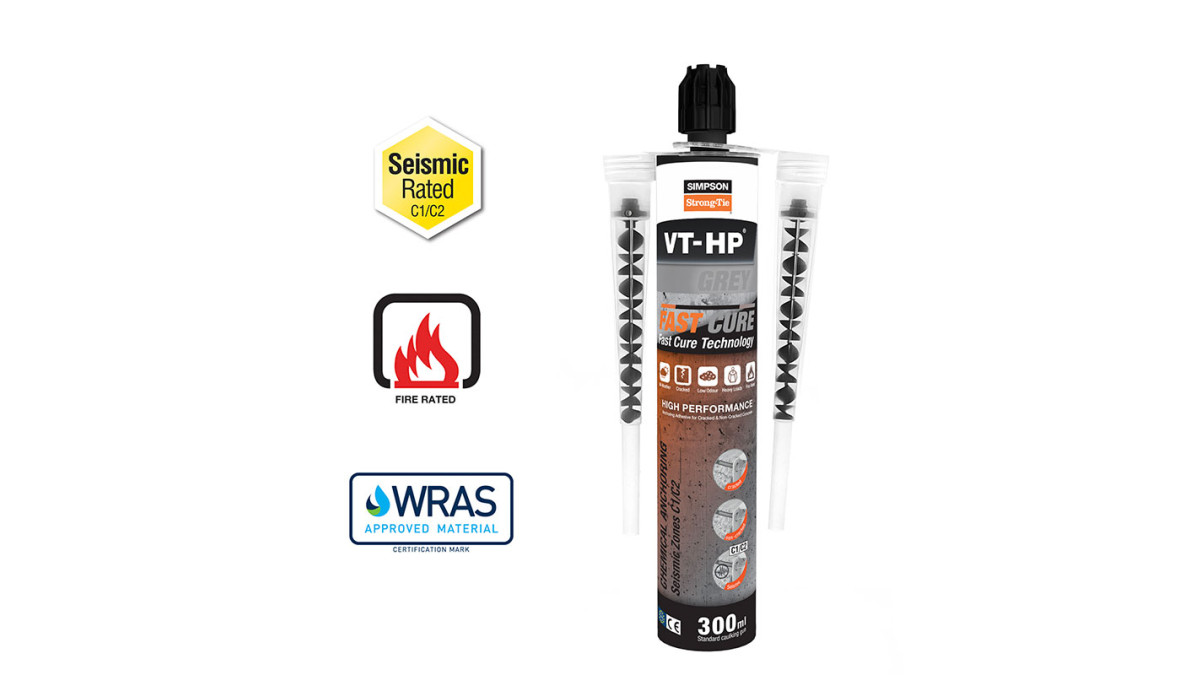

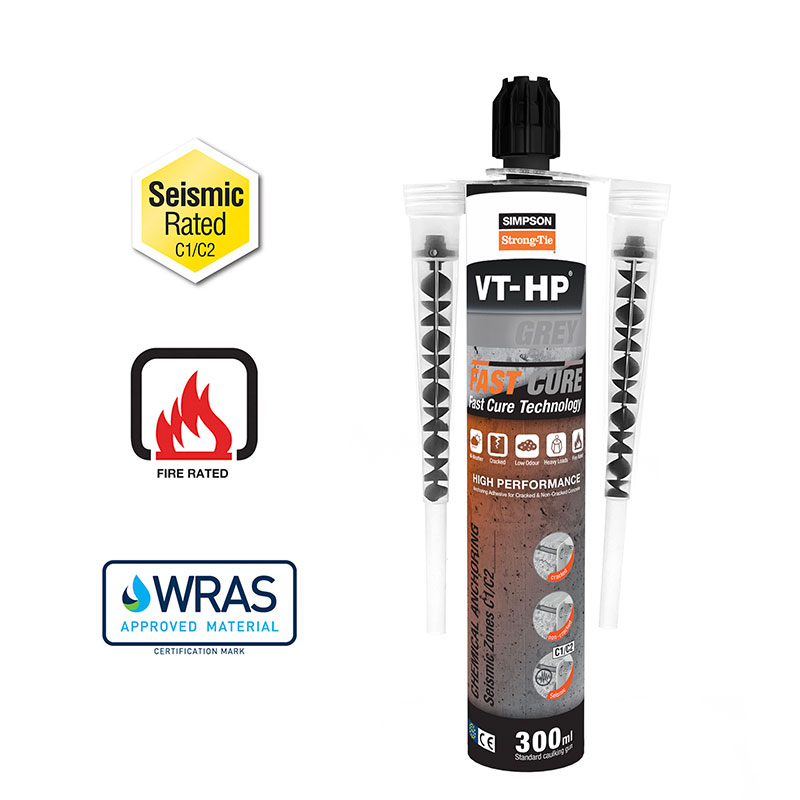

VT HP 01

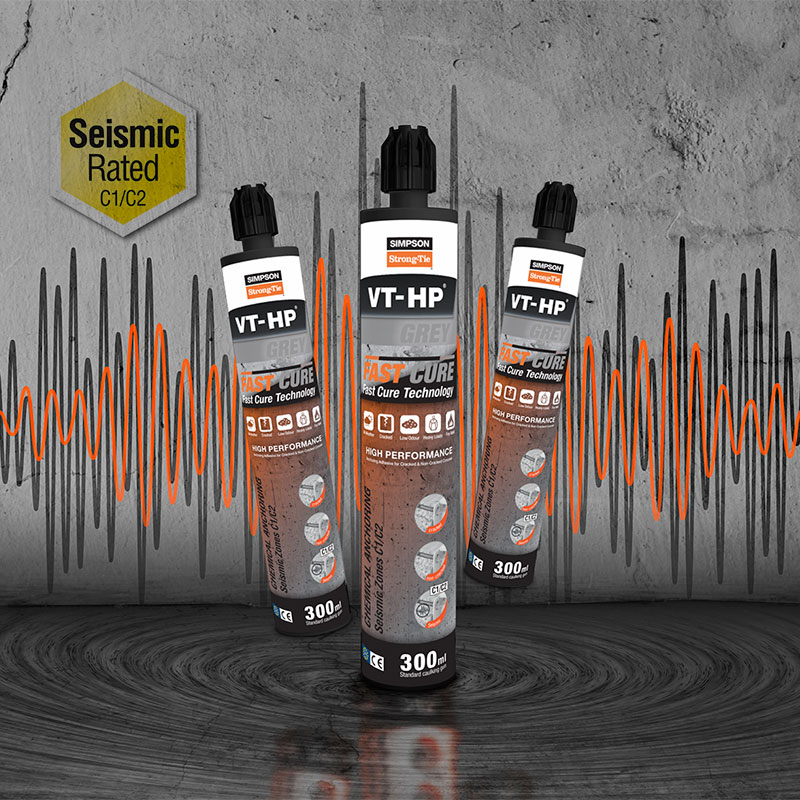

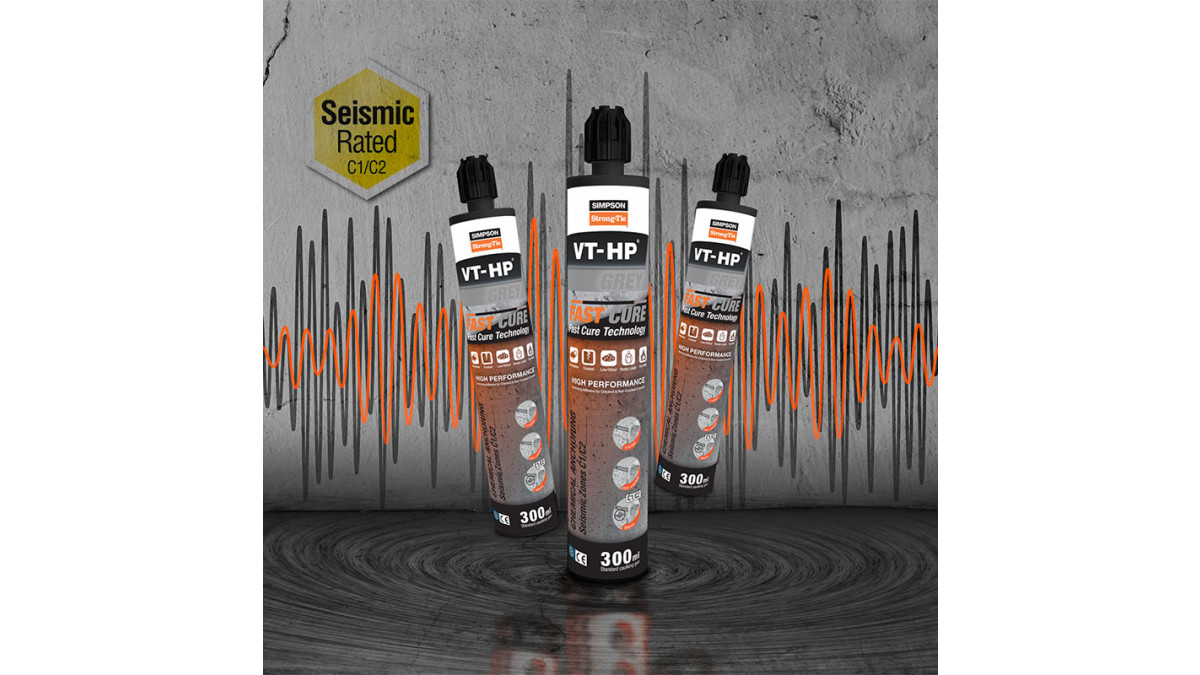

VT HP 02
Description

VT-HP® is a high-performance fast cure vinylester resin-based chemical anchor developed for anchoring applications in cracked and non-cracked concrete 20MPa to 50MPa and qualified for use in seismic regions (performance categories C1/C2).

Key Features
  • Suitable for use in cracked and non-cracked concrete M8 to M30 / rebar Ø8 to Ø32
  • Qualified for use in seismic performance categories C1 and C2
  • Styrene free, low odour for safe use in confined spaces — VOC Compliant (A+ rating)
  • Excellent for use in cold weather conditions or applications where fast cure is required
  • Superior sustained load performance at elevated temperatures
  • Can be used in dry and damp conditions, wet or flooded environments (not sea water)
  • Fire rated to R180

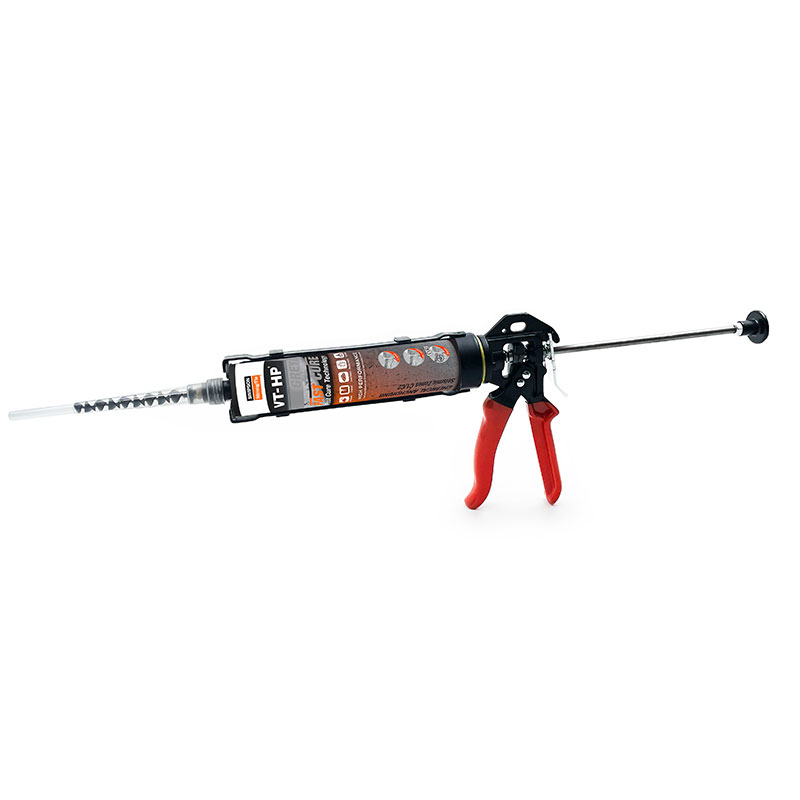

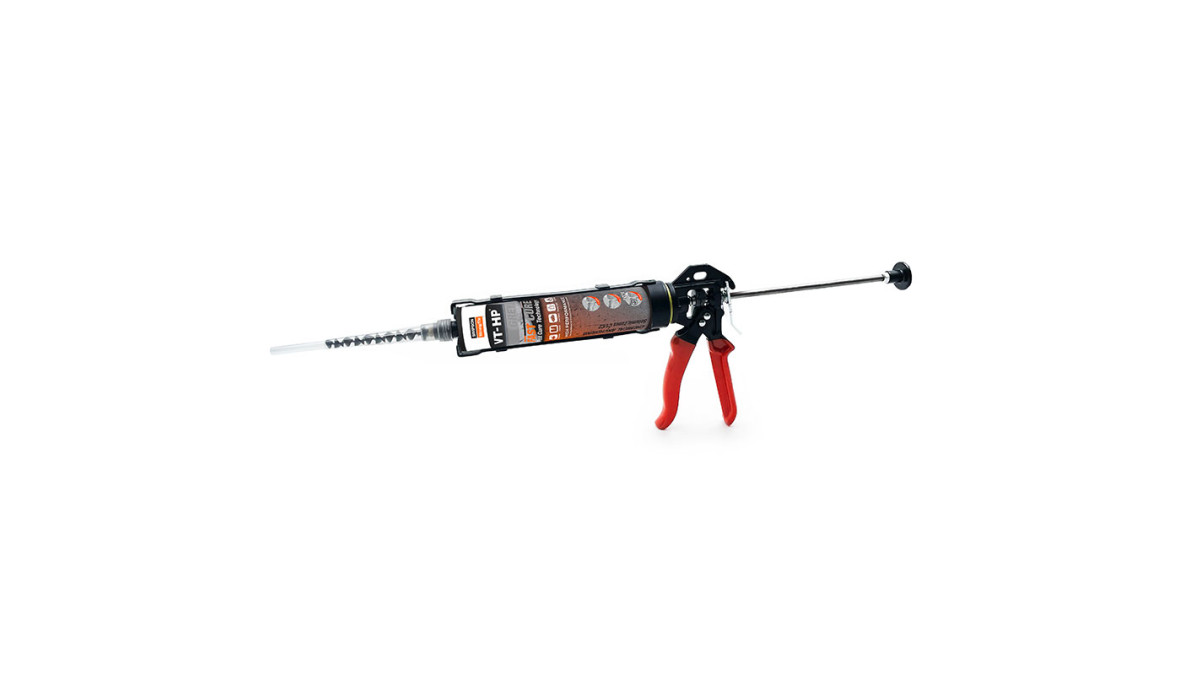

  • Fits 300ml standard caulking gun or DT300 by Simpson Strong-Tie, easy to dispense
Categories
Fasteners and Connectors
Ranges
Anchoring Systems
Scope of Use

Installation: Note — Refer to product label for hole and cartridge preparation, installation and technical data.

Applications:

  • Structural Steel
  • Steel Columns and Beams, Post Bases, Concrete Columns
  • Balcony Extensions
  • Post-installed rebar applications
  • Threaded Rod Anchoring
  • Facades, Safety Barriers
  • Fences, Gates, Industrial Garage and Warehouse applications
Other Performance Attributes
  • CE 1404
  • ETA-19/0419
  • ETA-19/0765
  • Fire Rated
  • WRAS Approved Material
B1 Structure compliant
Structure
B2 Durability compliant
Durability
Independent Assessment
Independent Assessment
Test Results
Test Results
  • News
Documents
Material Safety Data Sheet
pdf
Technical Data Sheet
pdf
DOP — CE Mark

e19-0765

pdf
Fire Report (R120)

EBB 170019_33en

pdf
Test Report ETA-19-0419 (Threaded Rod and Rebar Concrete C1)

ETA-19-0419

pdf
Test Report ETA-19-0765 (Threaded Rod Masonry C2)

ETA-19-0765

pdf
WARS Approval

1811580

pdf
Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-20

pdf
