TNT Titen Turbo Concrete and Masonry Screw
Description

The secret behind the performance of the Titen Turbo lies in special thread design that lowers driving torque while providing superior holding power. The revolutionary Torque Reduction Channel between the threads gives drilling dust a place to go, thereby virtually eliminating torque-related issues like binding, stripping and snapping. What this means is a screw that is easy and fast to install, and incredibly reliable in its performance.

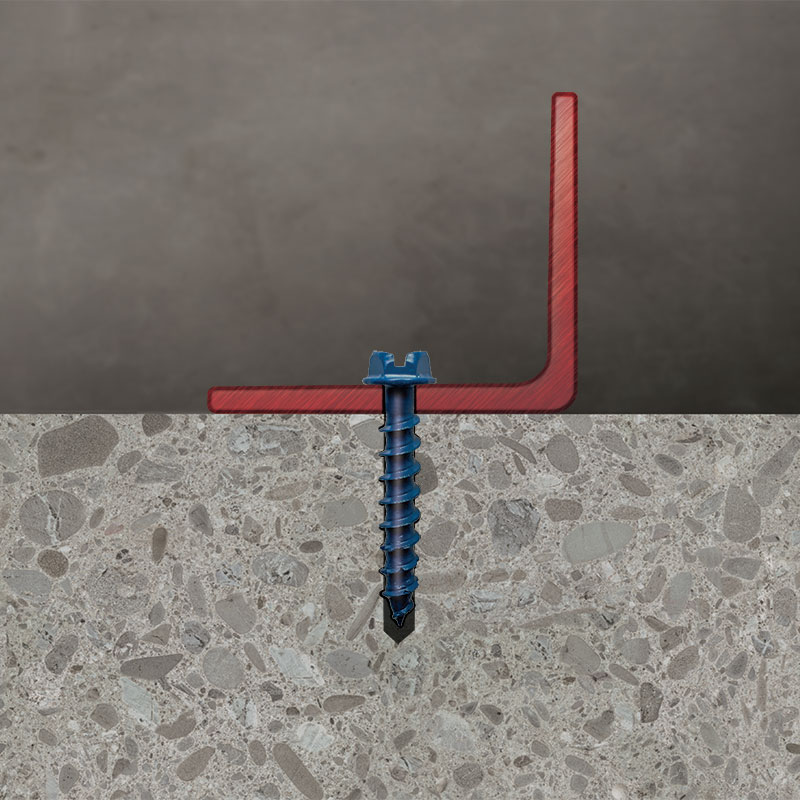

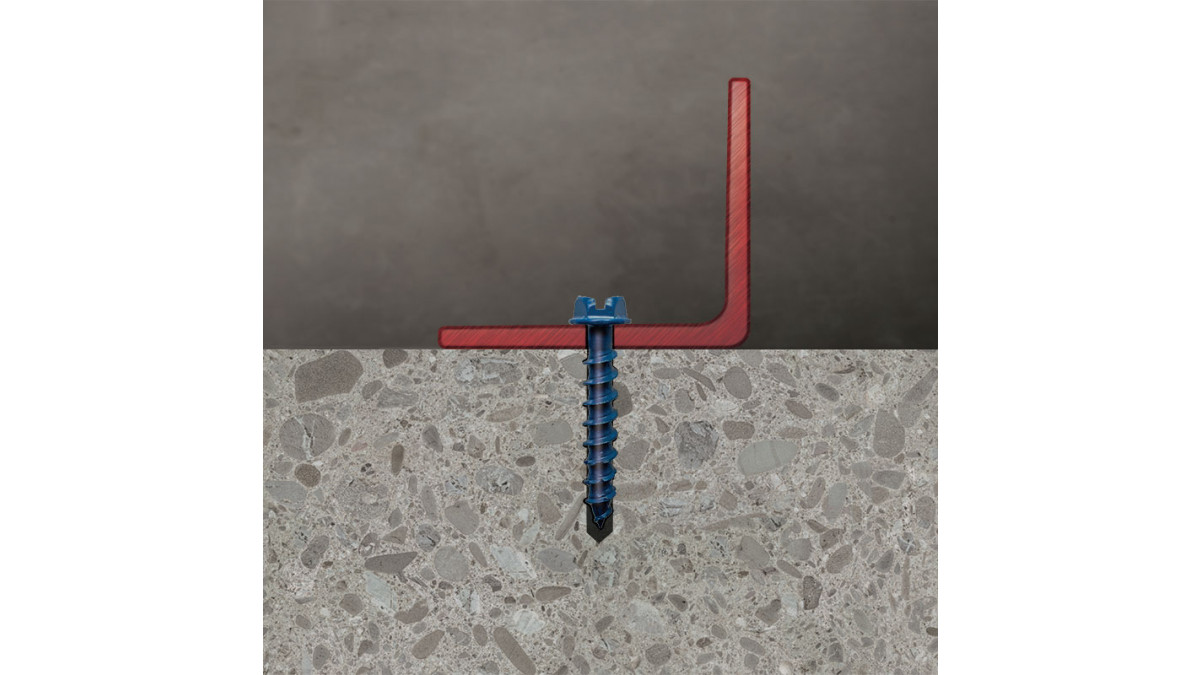

Titen screws are hardened screws for attaching all types of components to concrete and masonry. These fasteners are commonly used in applications such as attaching electrical boxes, light fixtures or window frames into concrete or masonry base materials.

Key Features
  • Easy, Fast, Reliable and Superior load performance
  • Smooth driving with less torque while providing superior holding power

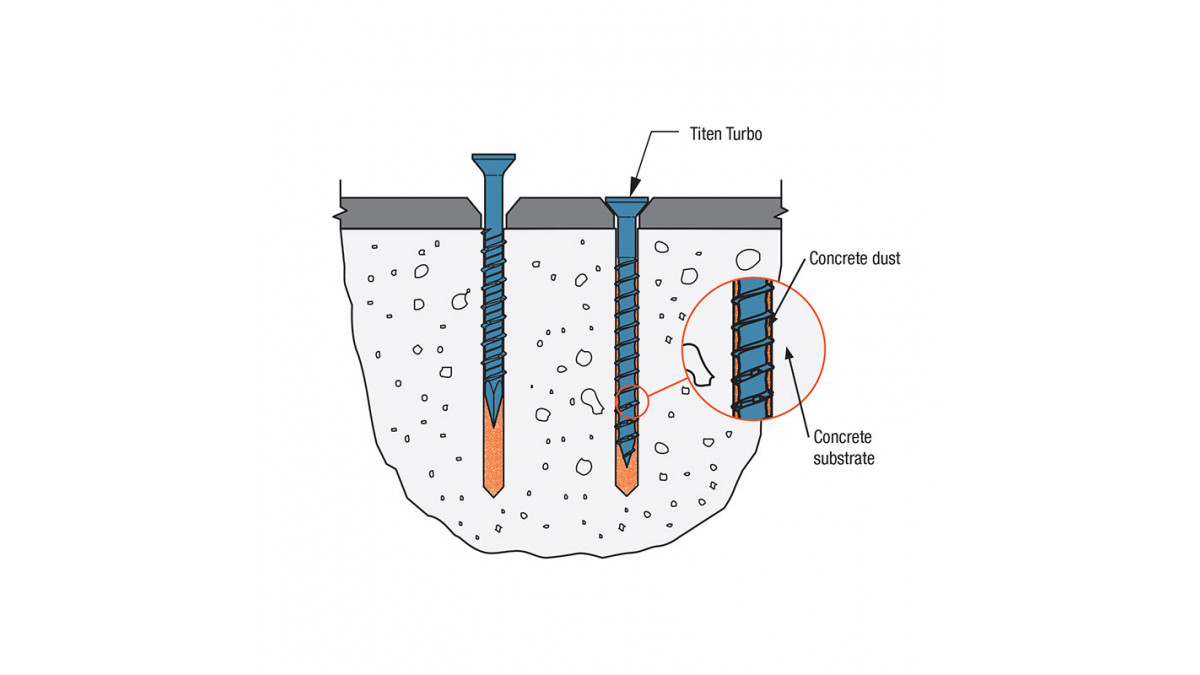

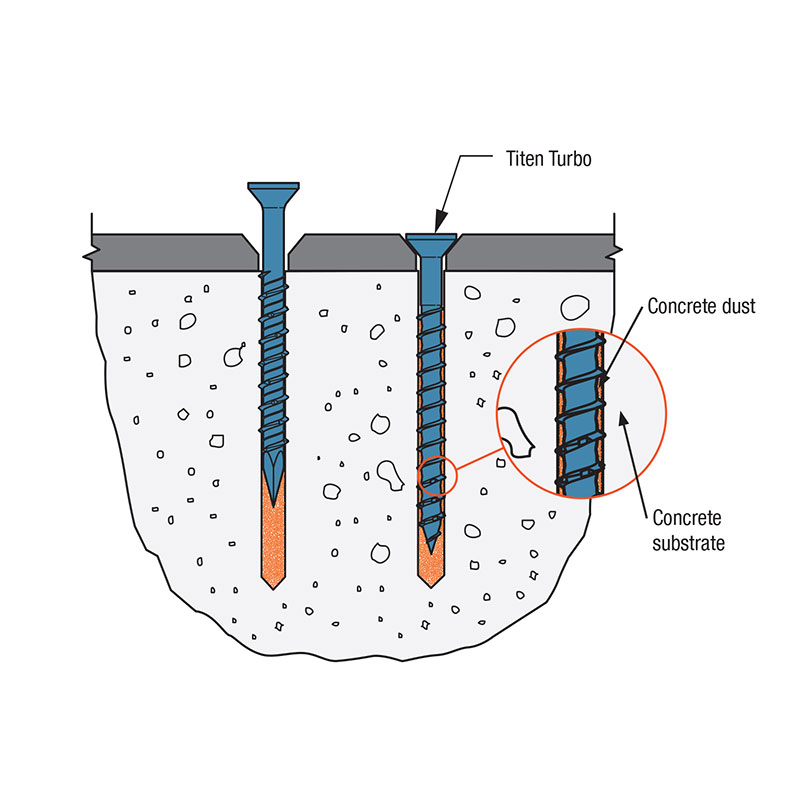

  • The revolutionary Torque Reduction Channel features a patented reverse thread design with dust channel that allows more space for dust

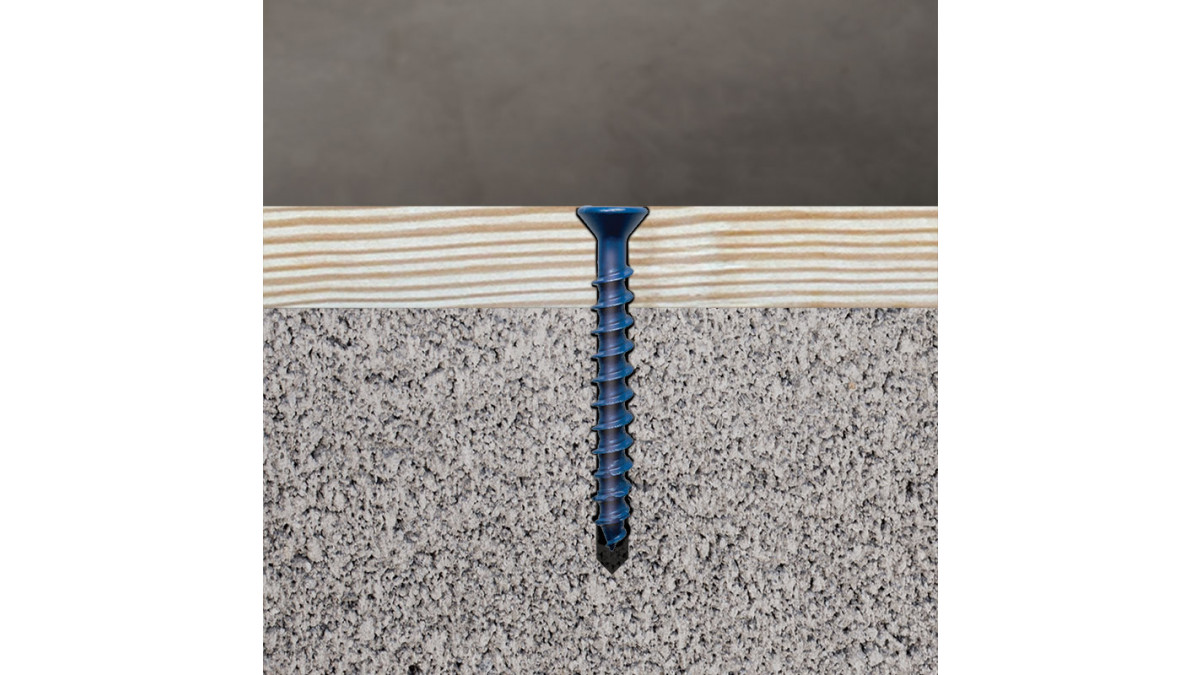

  • Sharp Point tip for easier starts when fastening Timber-to-Concrete or Timber-to-Timber
  • Installation without cleaning dust from predrilled holes
  • Superior load performance compared to leading competitors in the market
  • Availability with either a hex head or, for a smoother installed profile, a T30 6-lobe-drive countersunk head
  • No matched-tolerance bit required; use a standard ANSI drill bit for installation
  • Designed for installation with a cordless drill or impact driver
  • 6-lobe bit included in packaging for flat head version
  • Drill bit included with each box
Scope of Use

Suitable for concrete, brick, grout-filled CMU and hollow-block application:

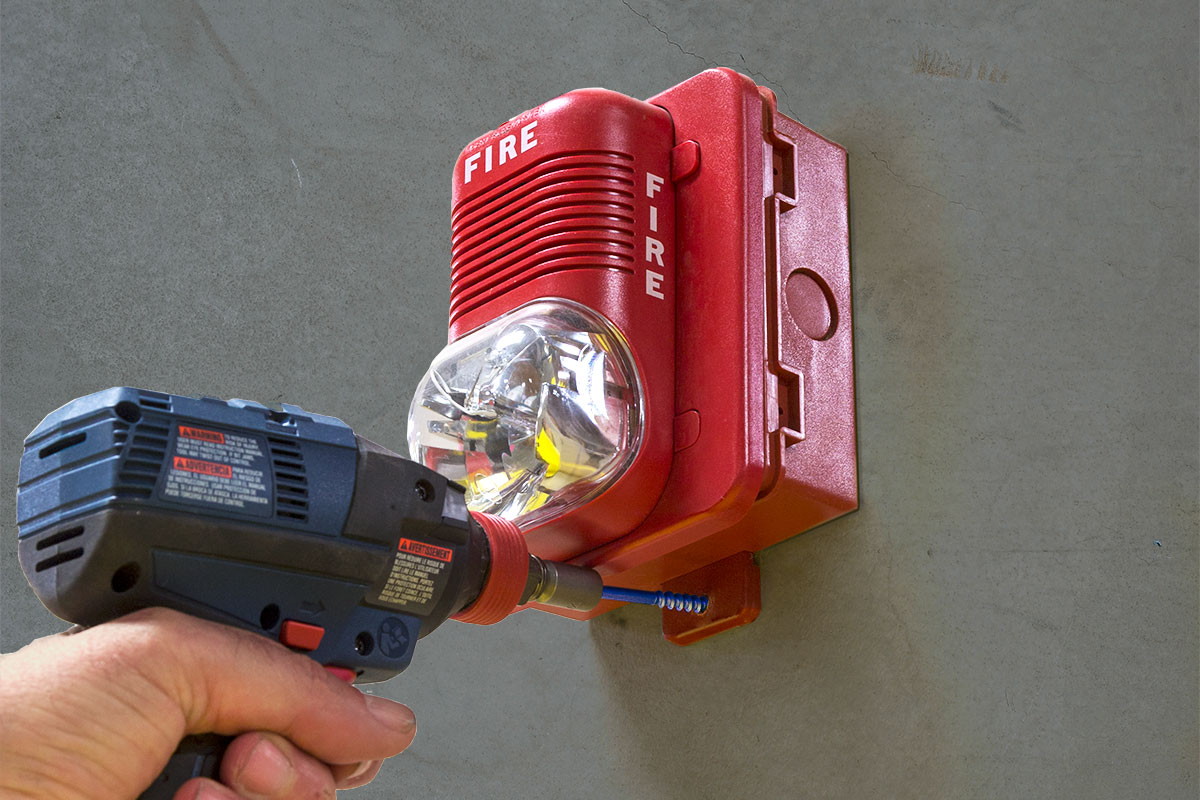

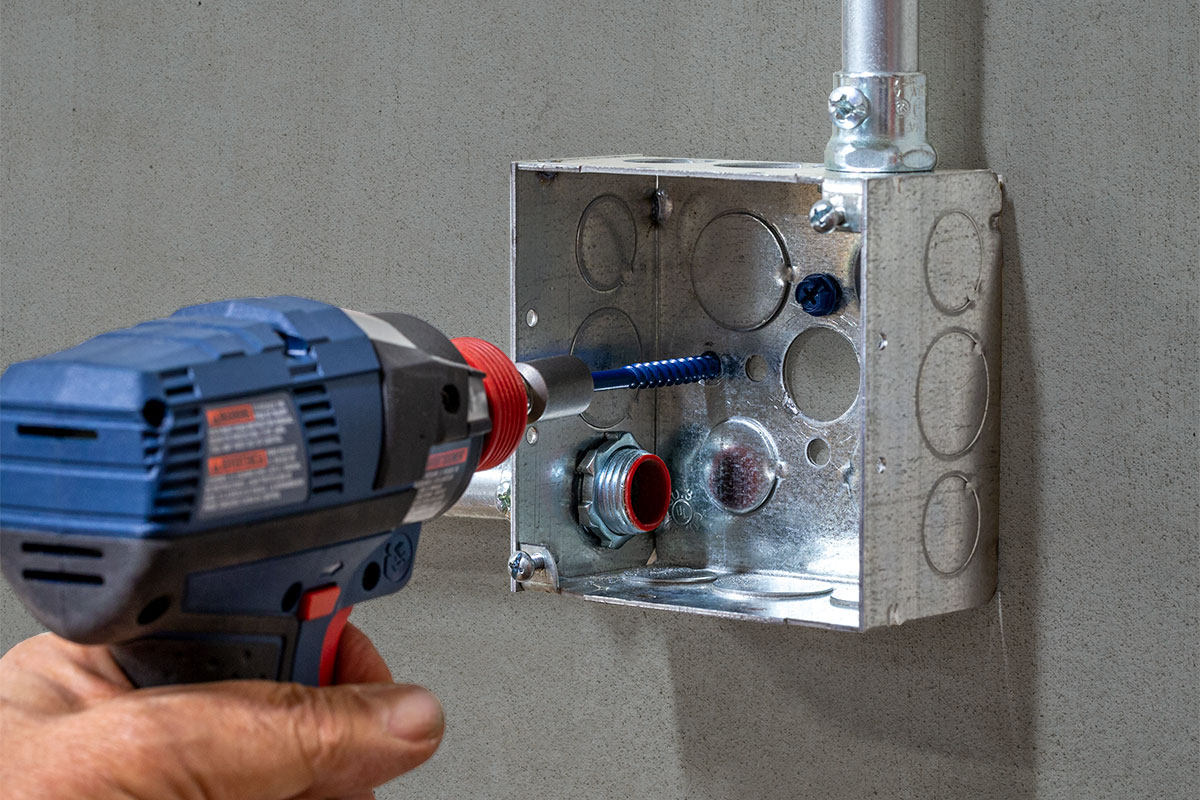

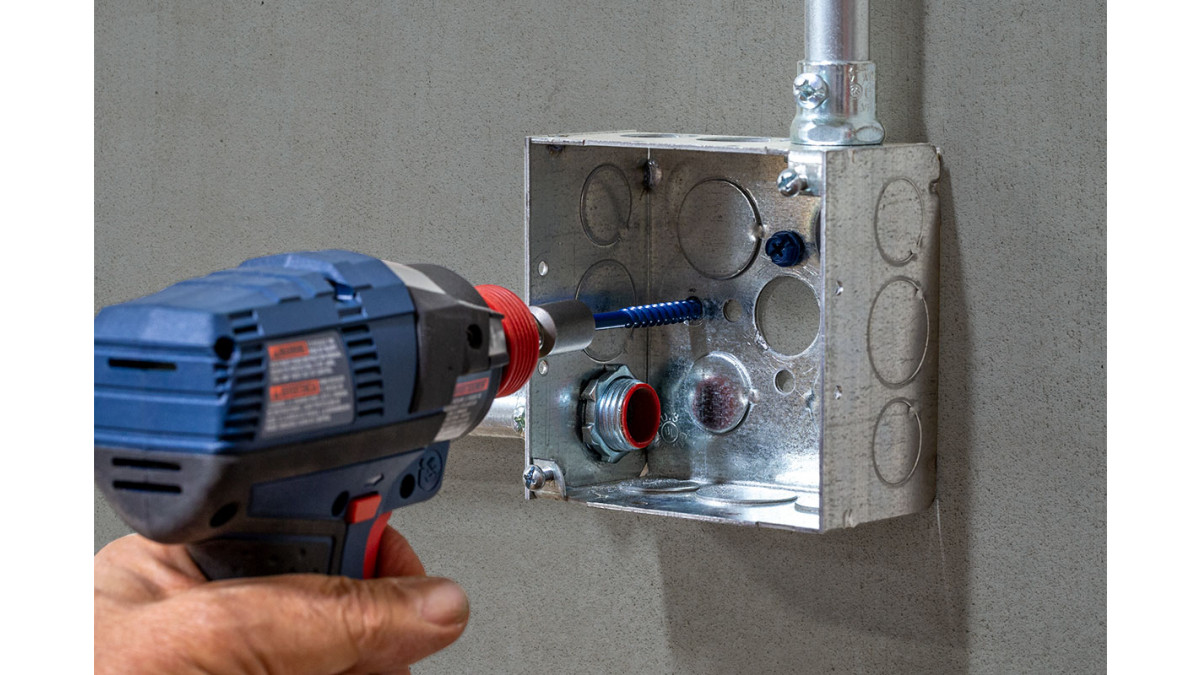

  • Electrical boxes

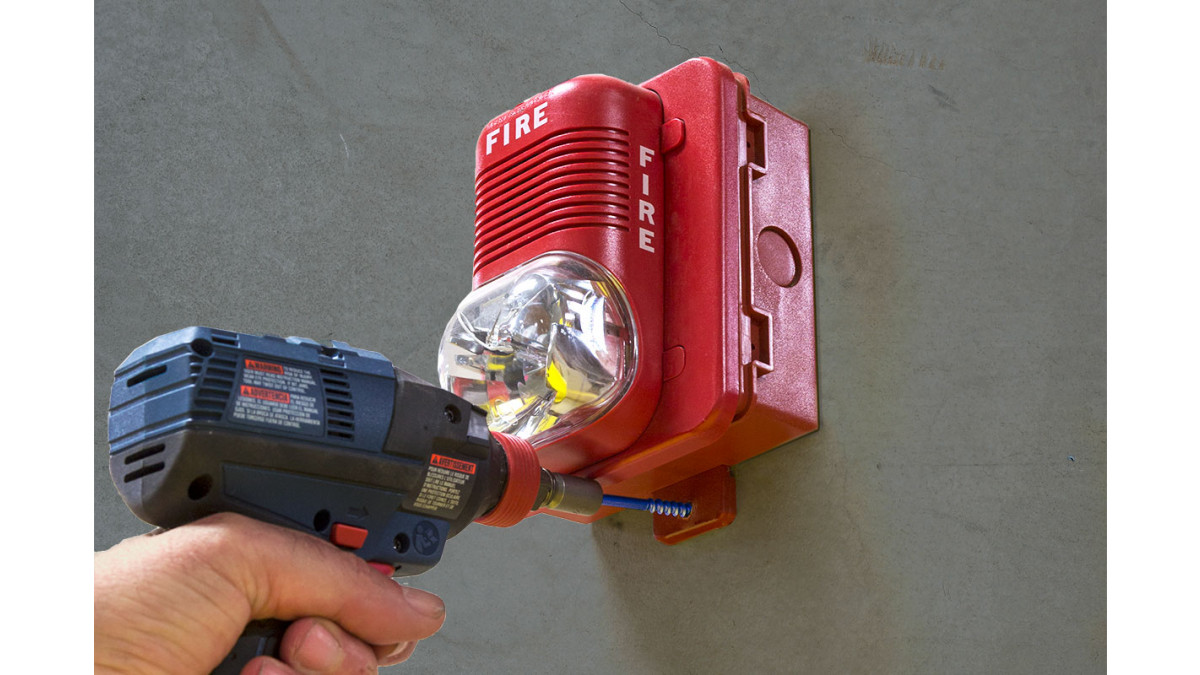

  • Light fixtures

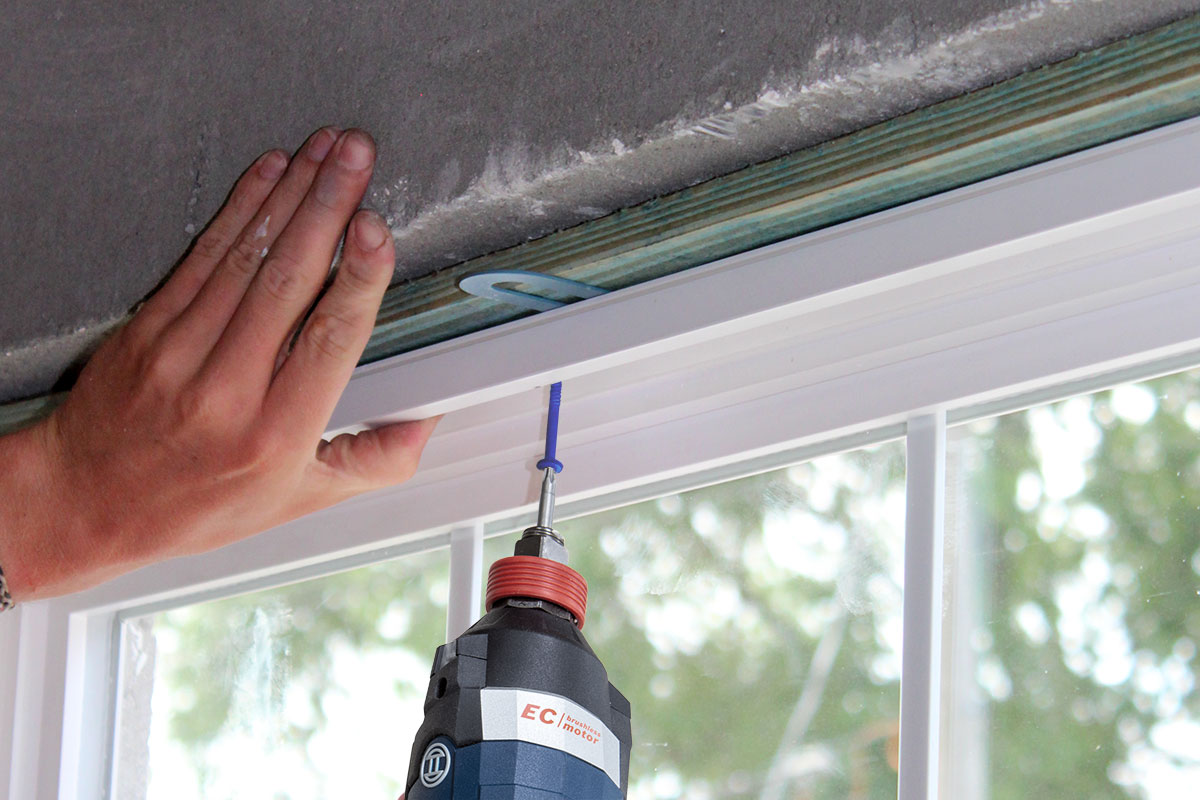

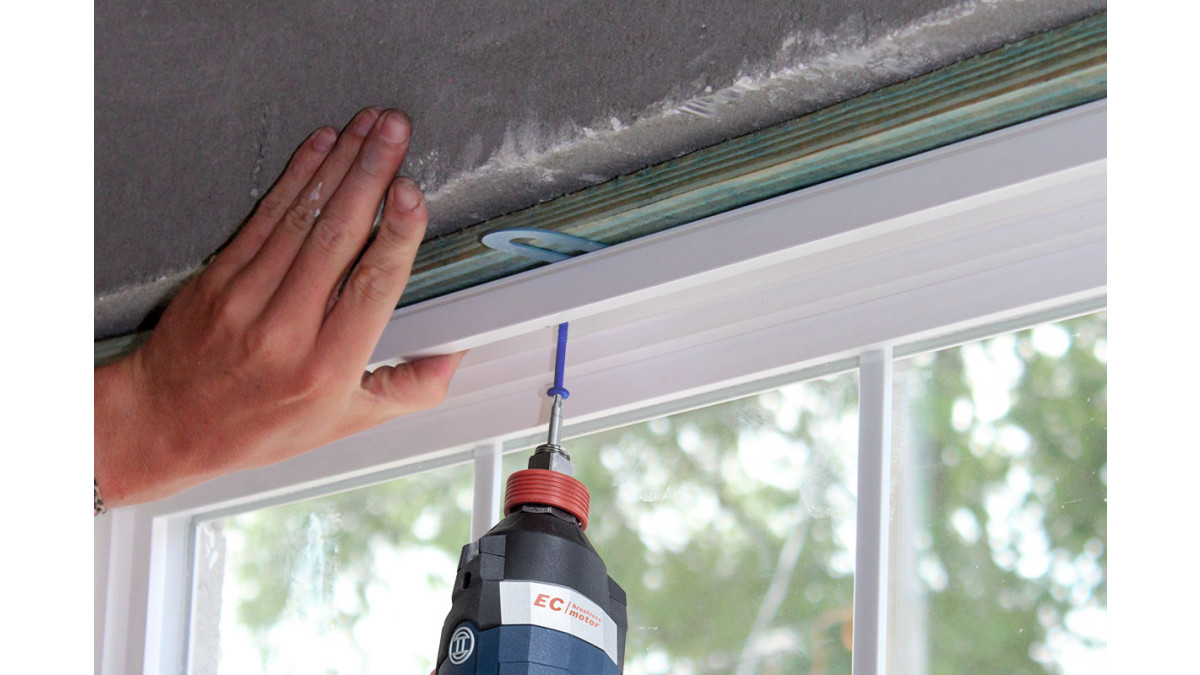

  • Window frames / thresholds

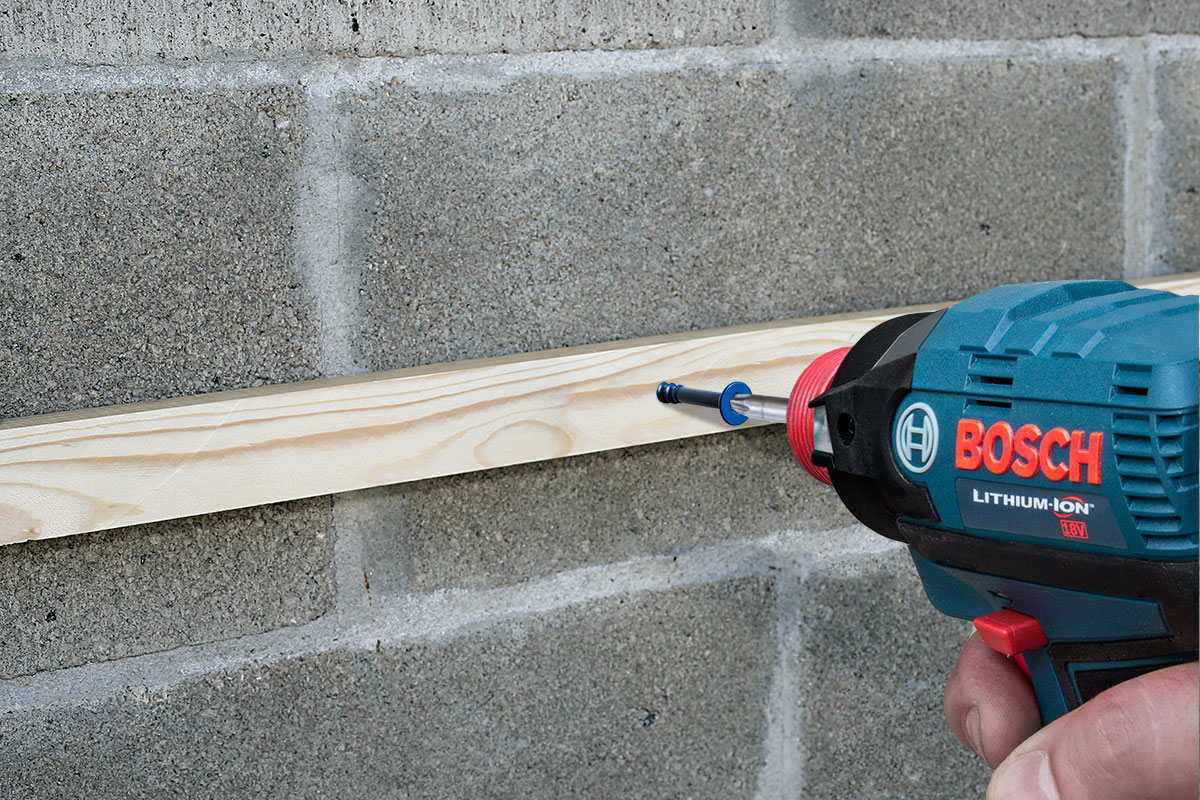

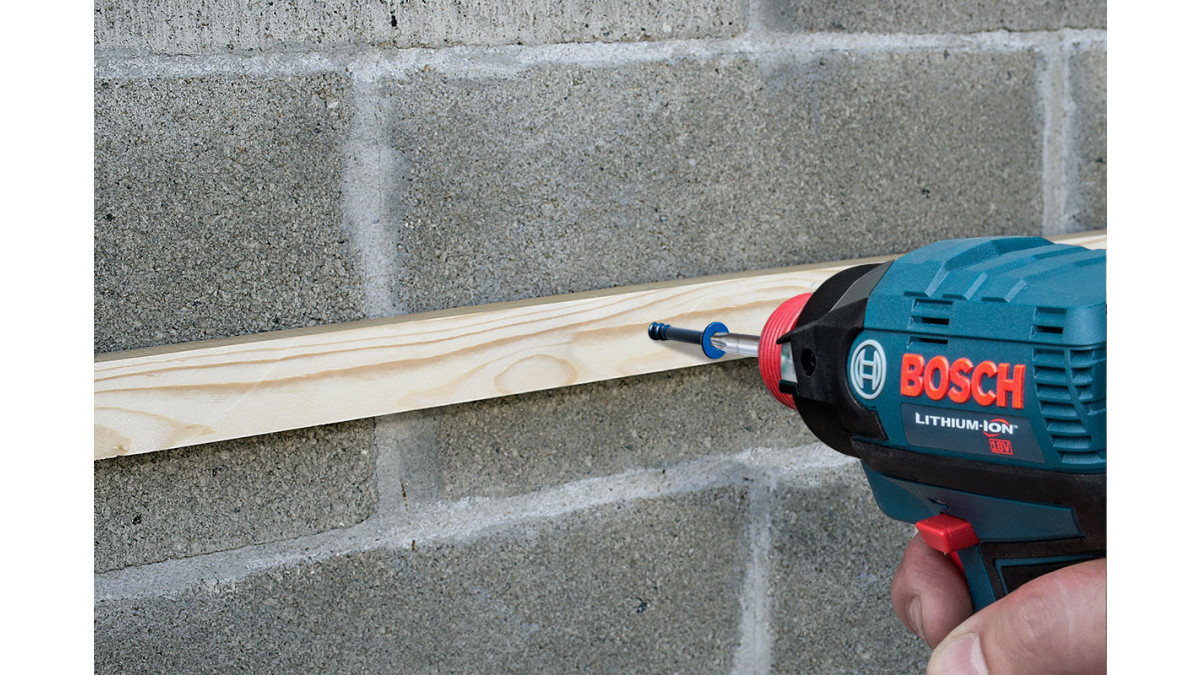

  • Timber strapping

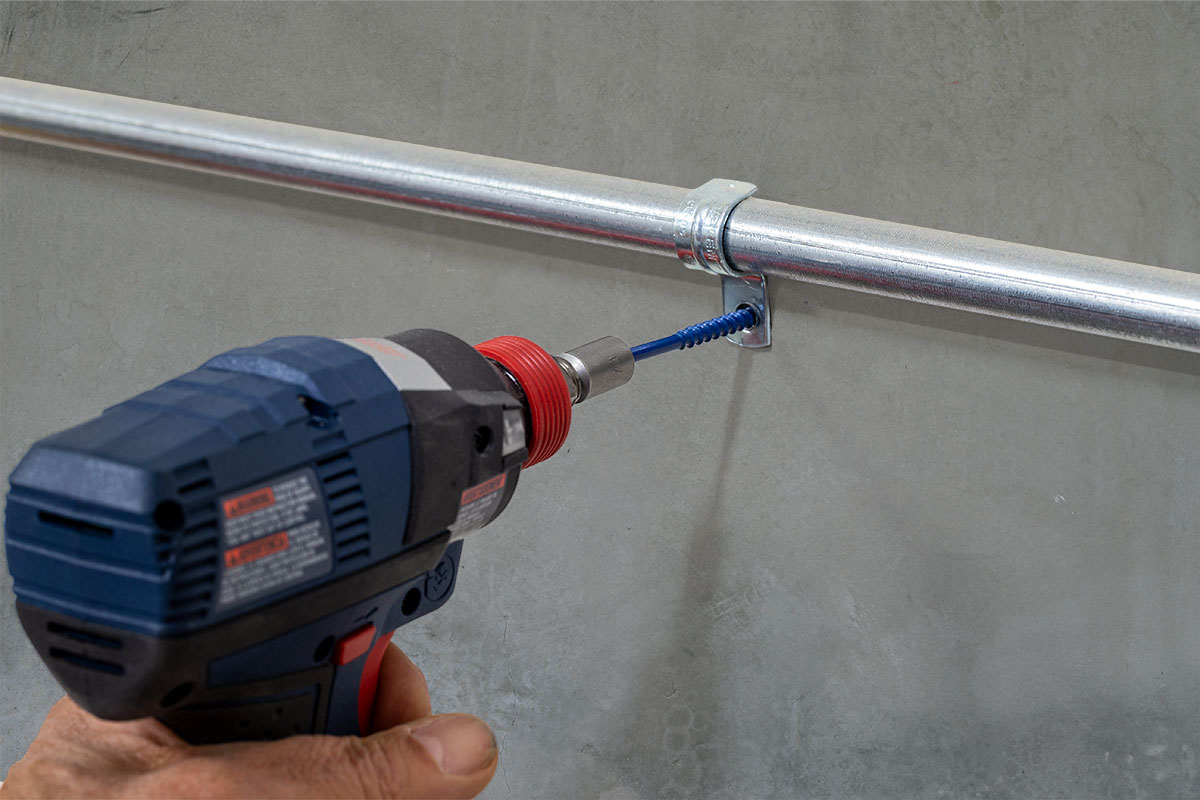

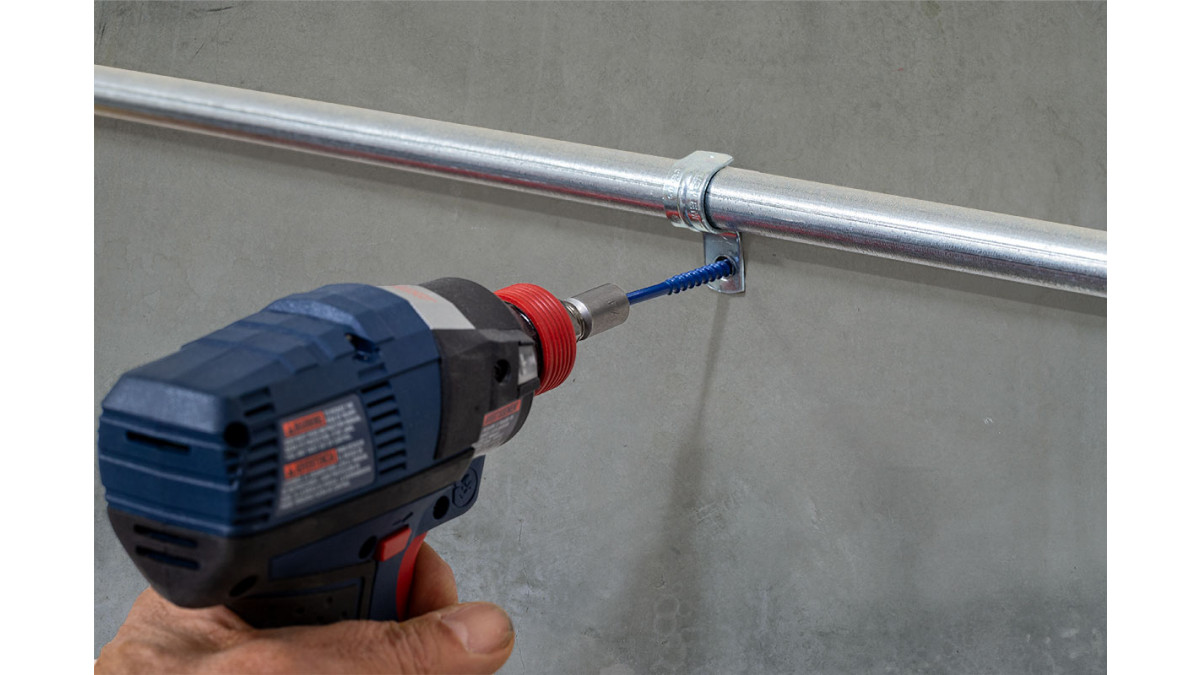

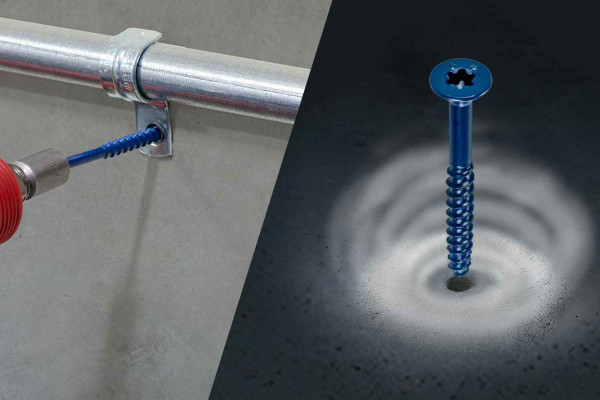

  • Pipe and cable clips
  • Basement furring / Framing to concrete
  • Shelf mounting to concrete/CMU
  • Handrails
Limitations on Use
  • Minimum embedment depth: 25mm
  • Maximum embedment depth: 38mm
B1 Structure compliant
Structure
B2 Durability compliant
Durability
Test Results
Test Results
Documents
Technical Data Sheet
IAPMO UES Evaluation Report

ER-0712

IAPMO UES Evaluation Report

ER 0716

Installation Guide
Flyer: Titen Turbo
Full Catalogue: Anchoring and Fastening Systems

2018

Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-20
