THDWH Titen HD Heavy Duty Screw Anchor with Washer Head
Simpson Strong-Tie
All products

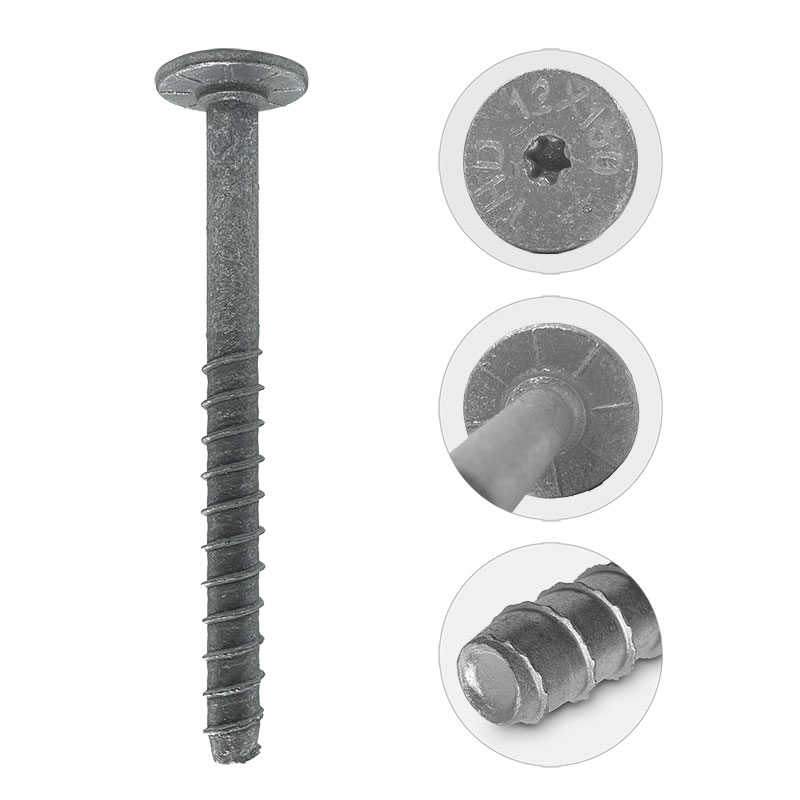

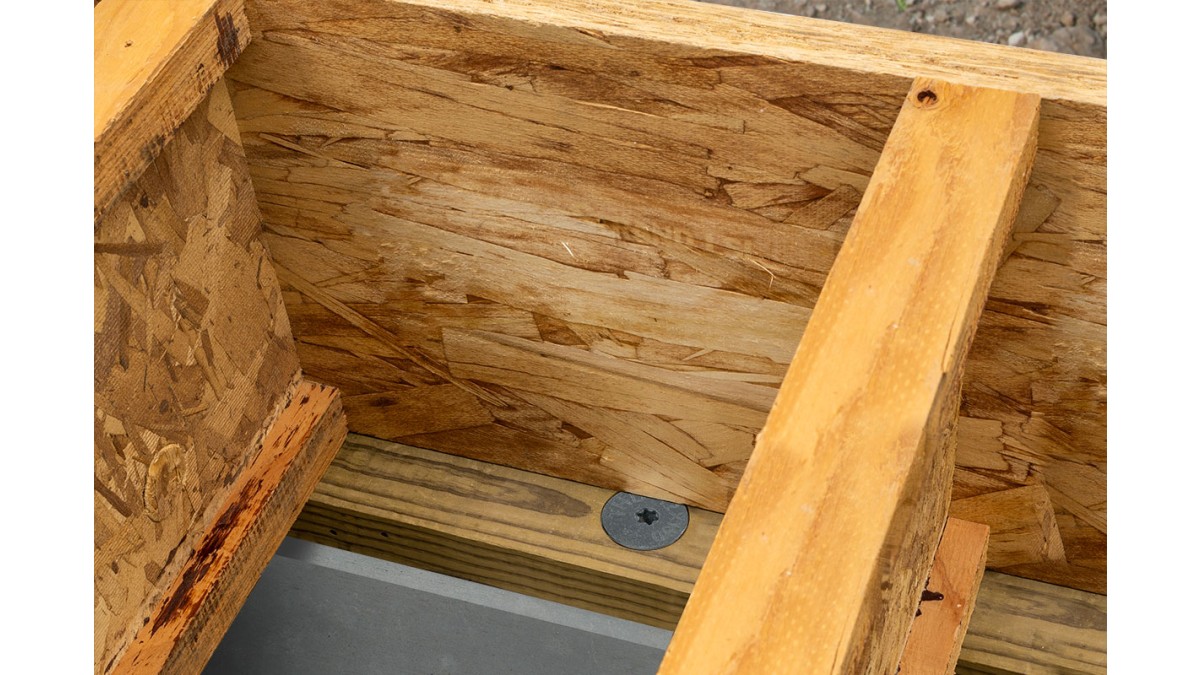

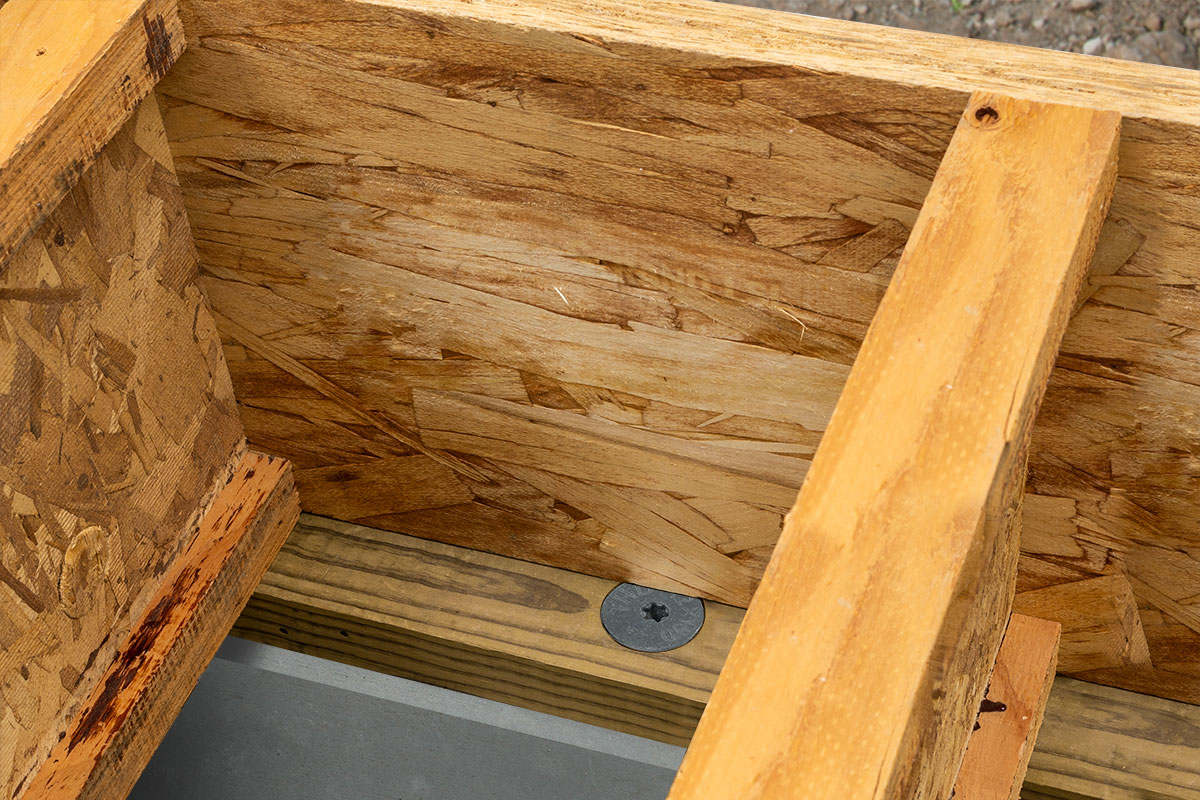

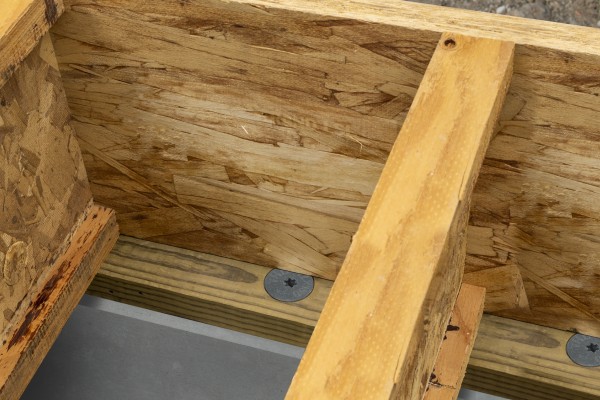

THD12150WHMG Application 02

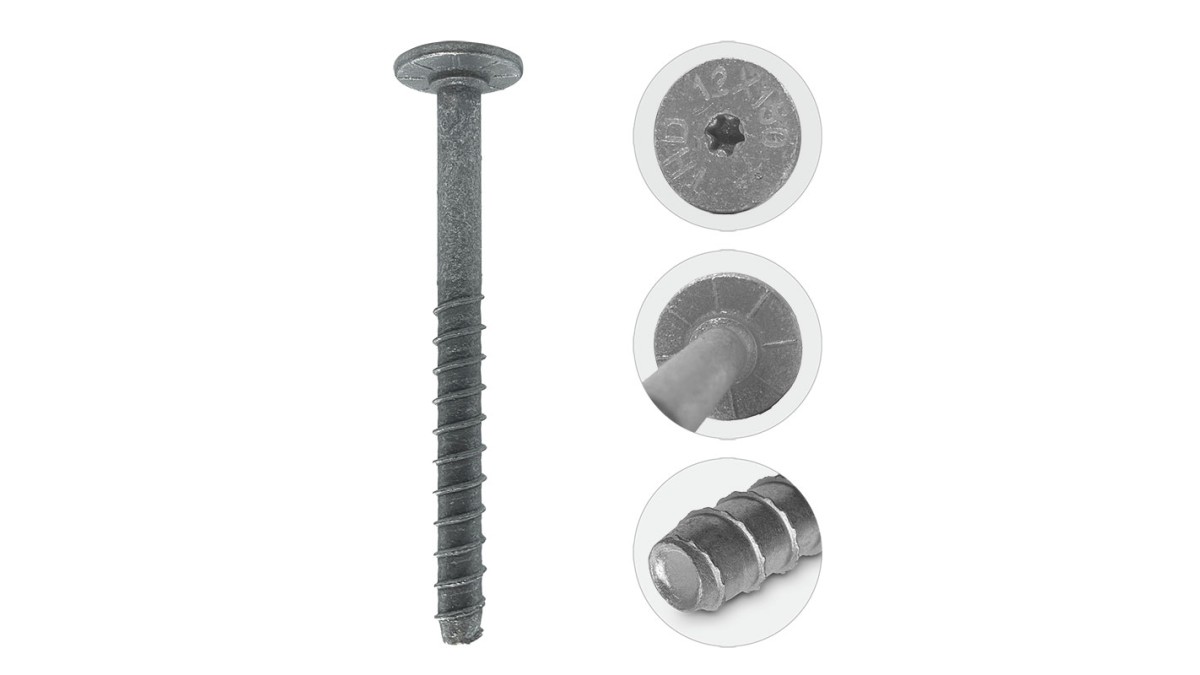

THD12150WHMG Group

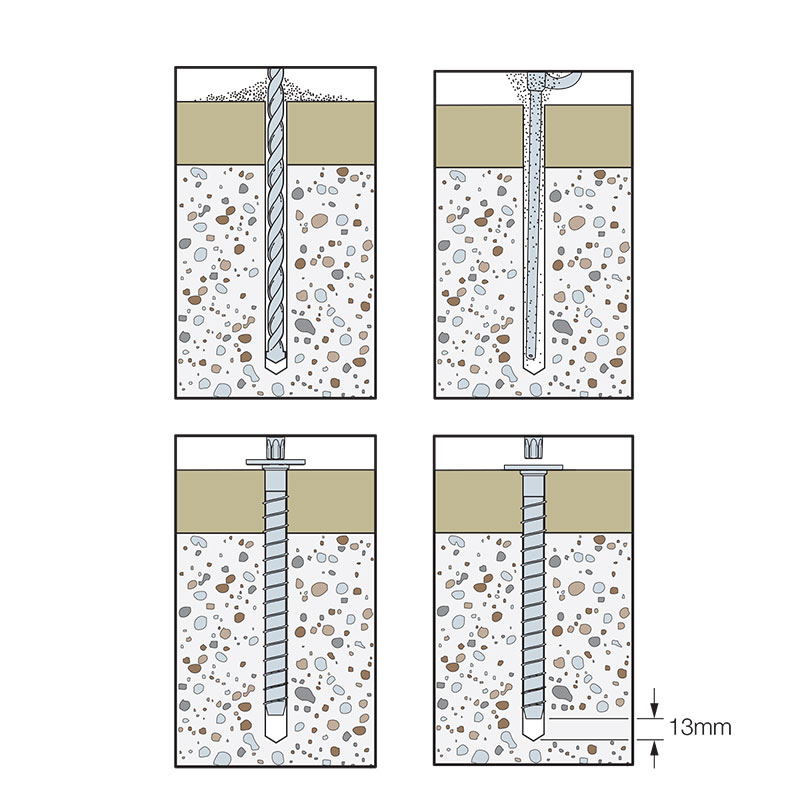

THD12150WHMG Installation

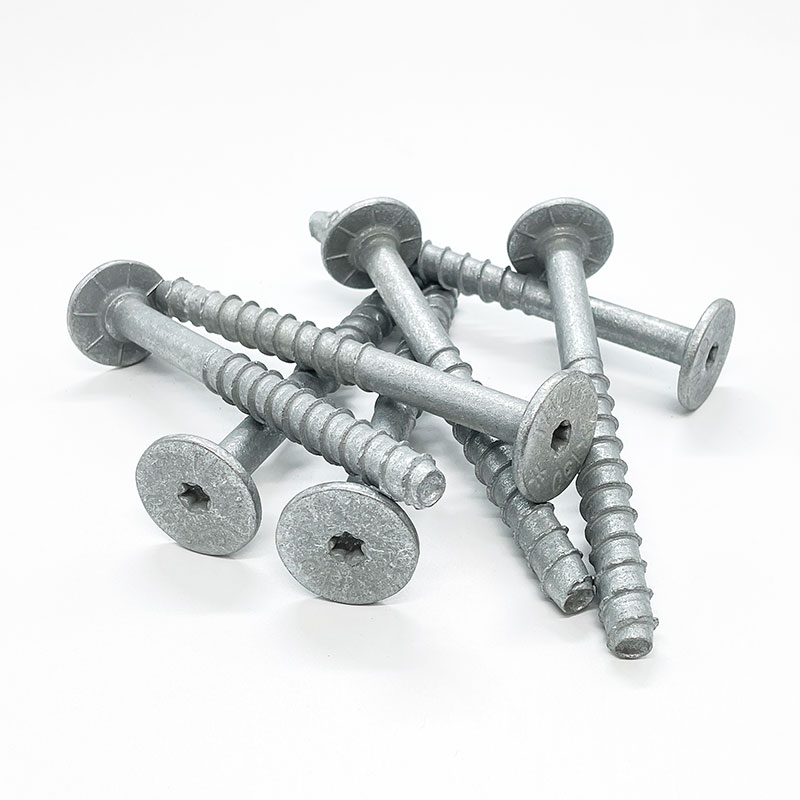

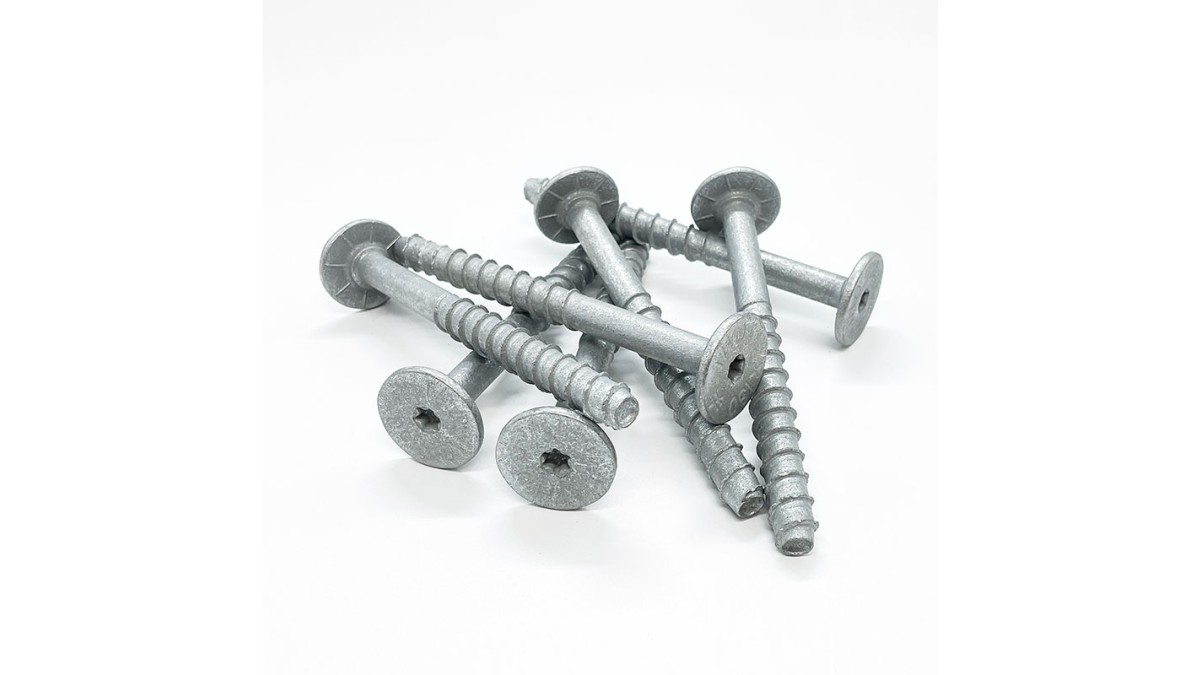

THDWH 01

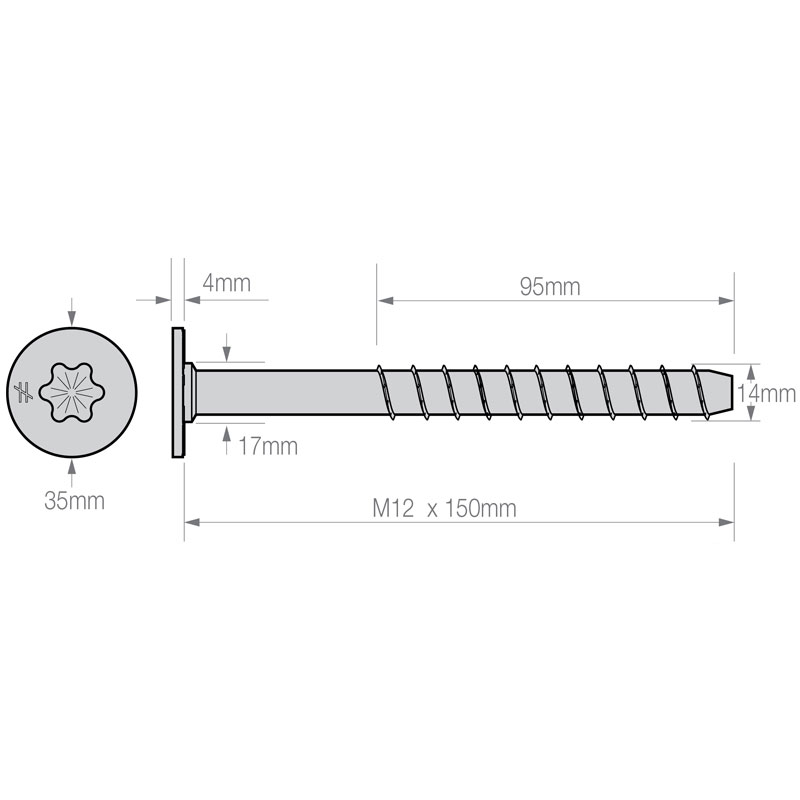

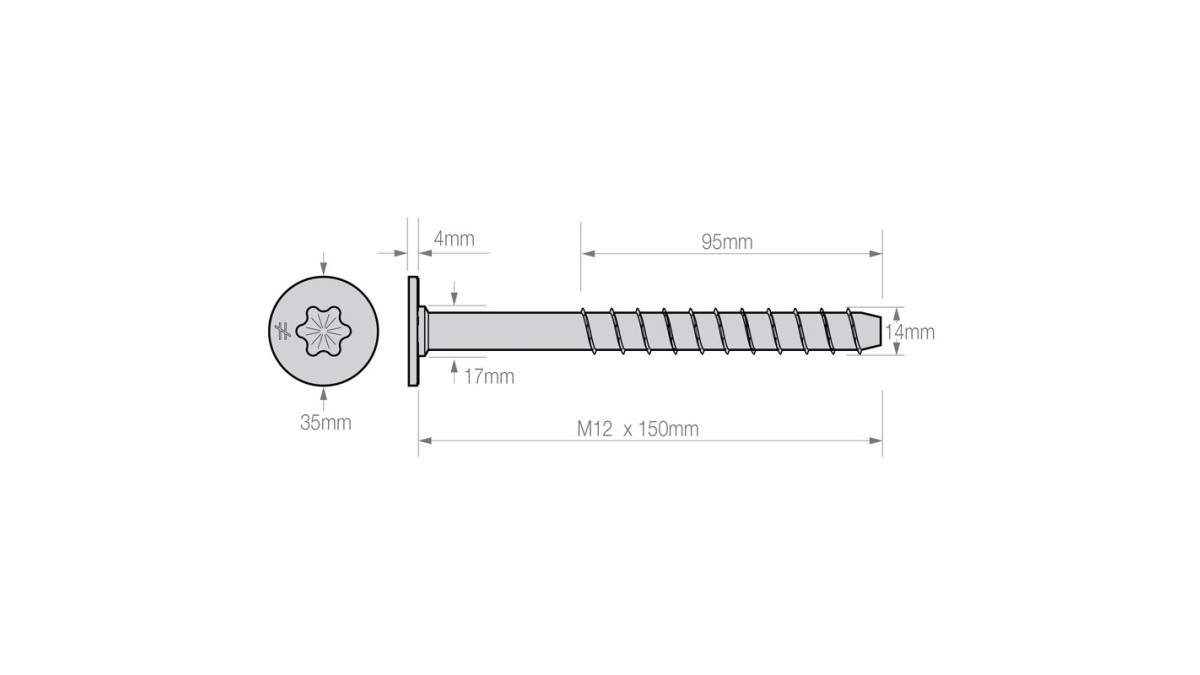

THDWH Illustration

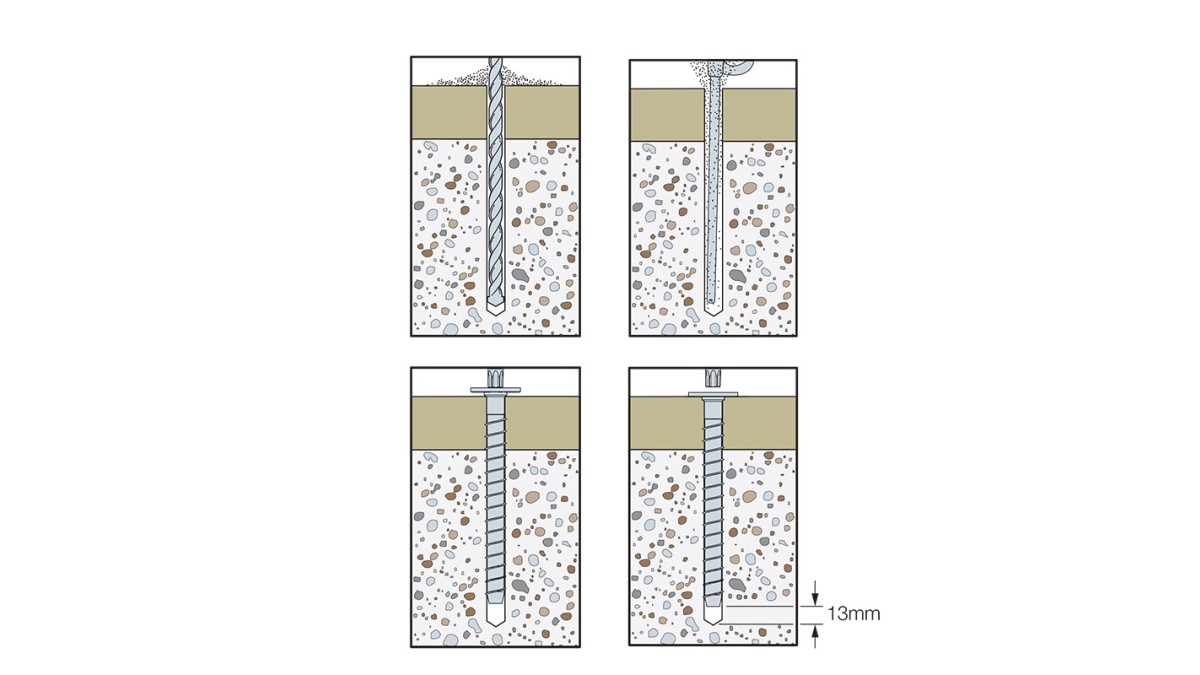

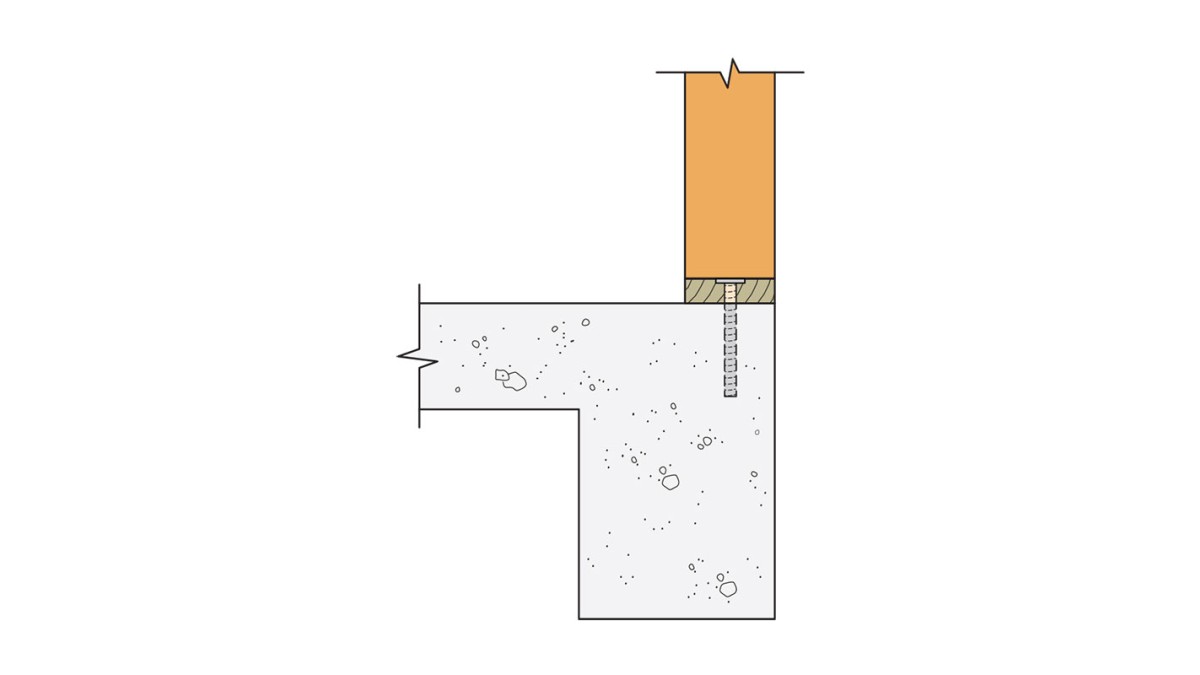

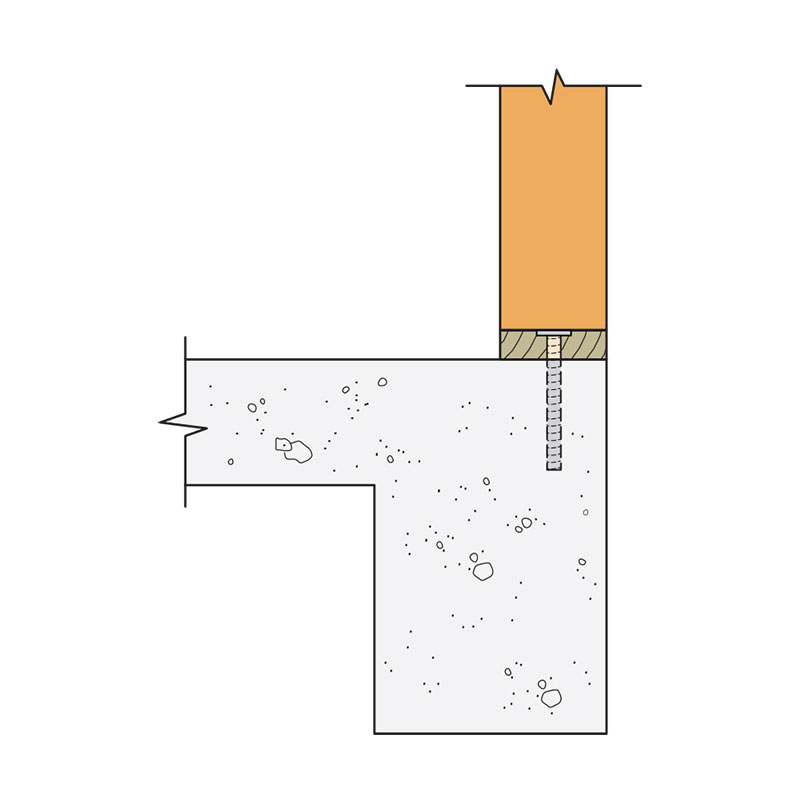

THDWH Installation
Description

The Titen HD Washer Head is a high-strength screw anchor for use in cracked and uncracked concrete, as well as masonry.

The washer-head design is commonly used where a minimal head profile is necessary. The 12mm x 150mm is suitable for use in sill/bottom plate applications, and the washer head's low installed profile means modular wall and floor systems can be installed on top with no need for notching the wall framing to accommodate the anchor.

Key Features
  • Designed for 12mm hole size to match the anchor size
  • No special drill bit required — designed to install using 12mm masonry drill bit
  • The anchor's 6-lobe drive eases driving and is less prone to stripping. For added convenience, a 1/2" socket adapter and two T-50 drive bits included in each box
  • Removable — ideal for temporary anchoring or applications where fixtures may need to be moved
  • Washer head allows screw anchor applications incompatible with a hex head
  • Available in M12 diameter
Categories
Fasteners and Connectors
Ranges
Anchoring Systems
Scope of Use
  • Bottom Plate Application
  • Structural Insulated Panel Systems (SIPS)
  • Fire Door Frame to Precast Concrete
  • Machinery and Equipment
  • Concrete Formwork and Bracing
  • Where low profile head is required
  • Applications for Screw Bolt, Screw Anchor, Expansion Anchor, Stud Anchor, Safety Anchor, Wedge Anchor, Sleeve Anchor
Statement of Building Code Compliance
  • The THD12150 Washer Head is an alternative fastening solution for proprietary fixed anchors for Bottom Plate applications. It meets* the requirements stated in NZS3604:2011 (7.5.12.3 /7.5.12.4)
  • BRANZ Appraisal 983 (2023) for applications related to bottom plate fixings and holdown applications per NZS 3604 using Titen HD
  • Code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete per ICC-ES ESR-2713

*NOTE: Based on third party testing without serviceability consideration — contact Simpson Strong-Tie for information on serviceability critical applications.

B1 Structure compliant
