Outdoor Accents Timber Connectors — Avant Collection
Simpson Strong-Tie
All products

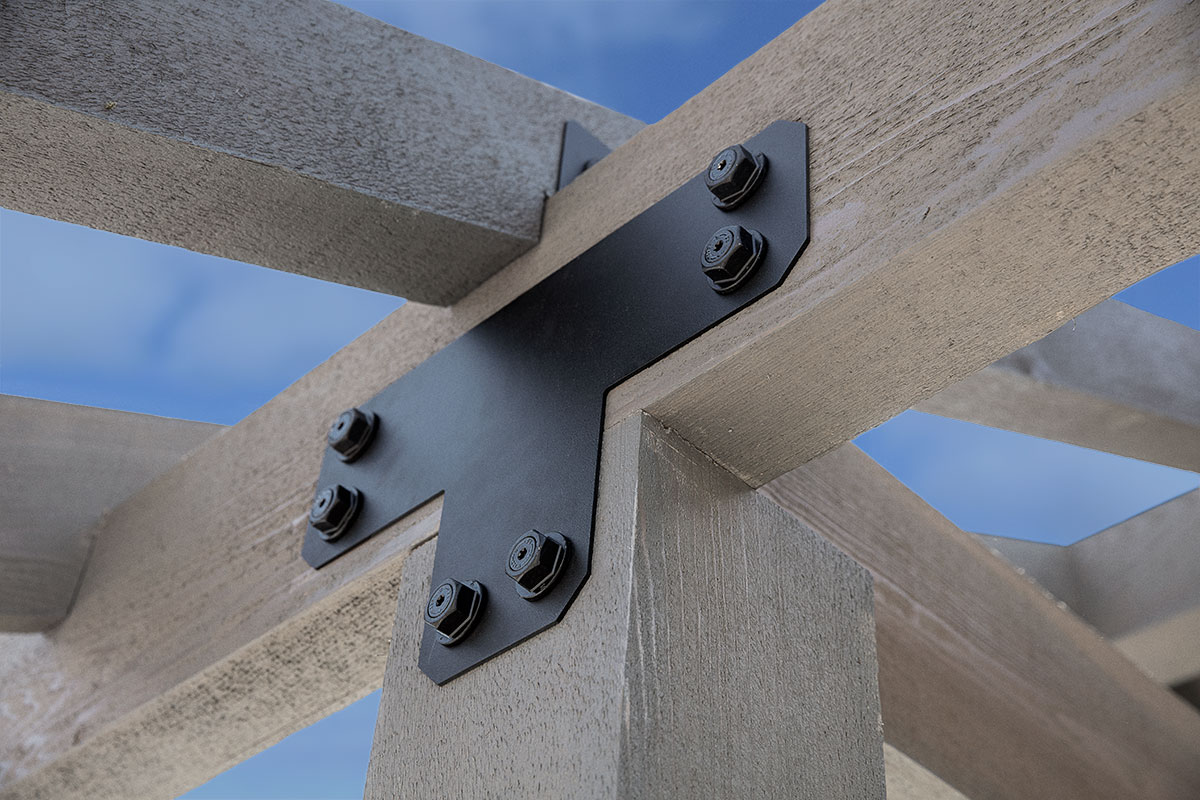

OA Avant Application 02
OA Avant Application 01

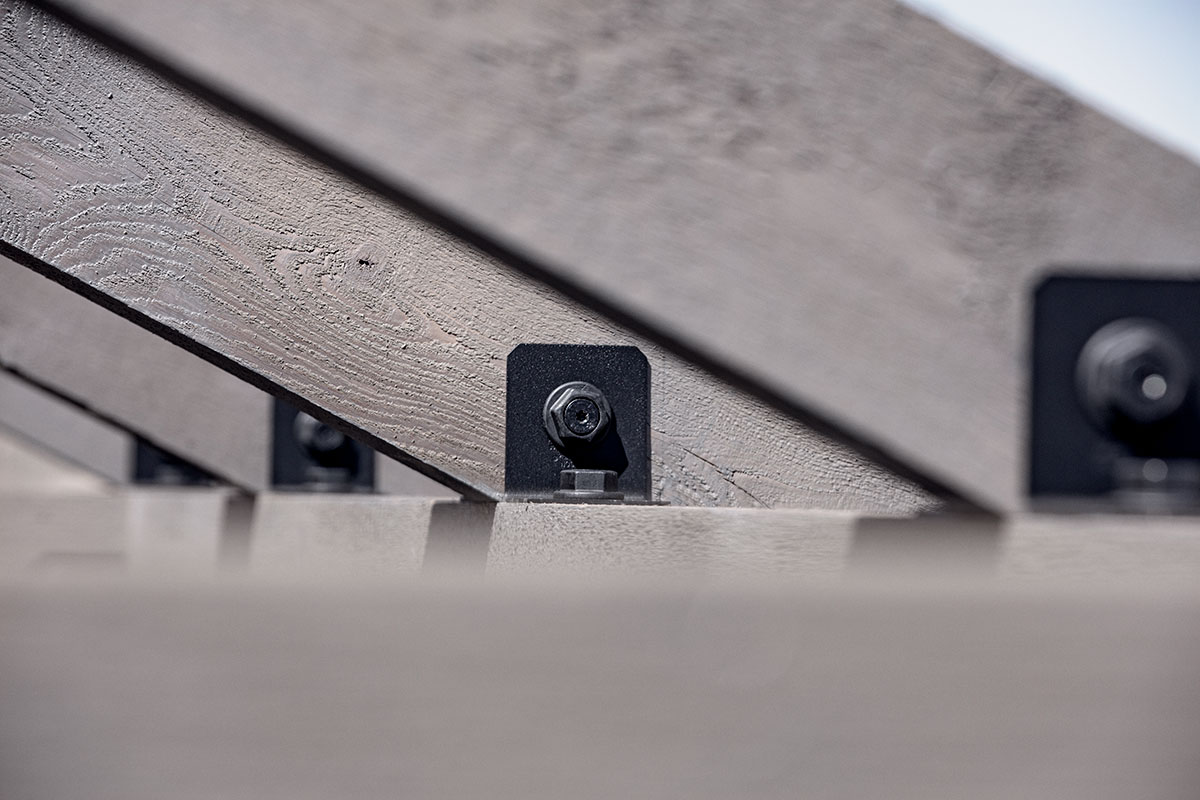

OA Avant Application 03
OA Avant Application 04
OA Avant Application 05
OA Avant Application 06
OA Avant Application 07
OA Avant Application 08
OA Avant Application 09
Description

The Outdoor Accents Avant Collection features straight edges and chamfered corners in a range of timber connectors for outdoor living structures such as pergolas. Avant's clean look complements nearly every design, and the black powdercoat and an innovative washer-and-fastener combo, brings both elegant design and structural strength to outdoor living areas.

Key Features

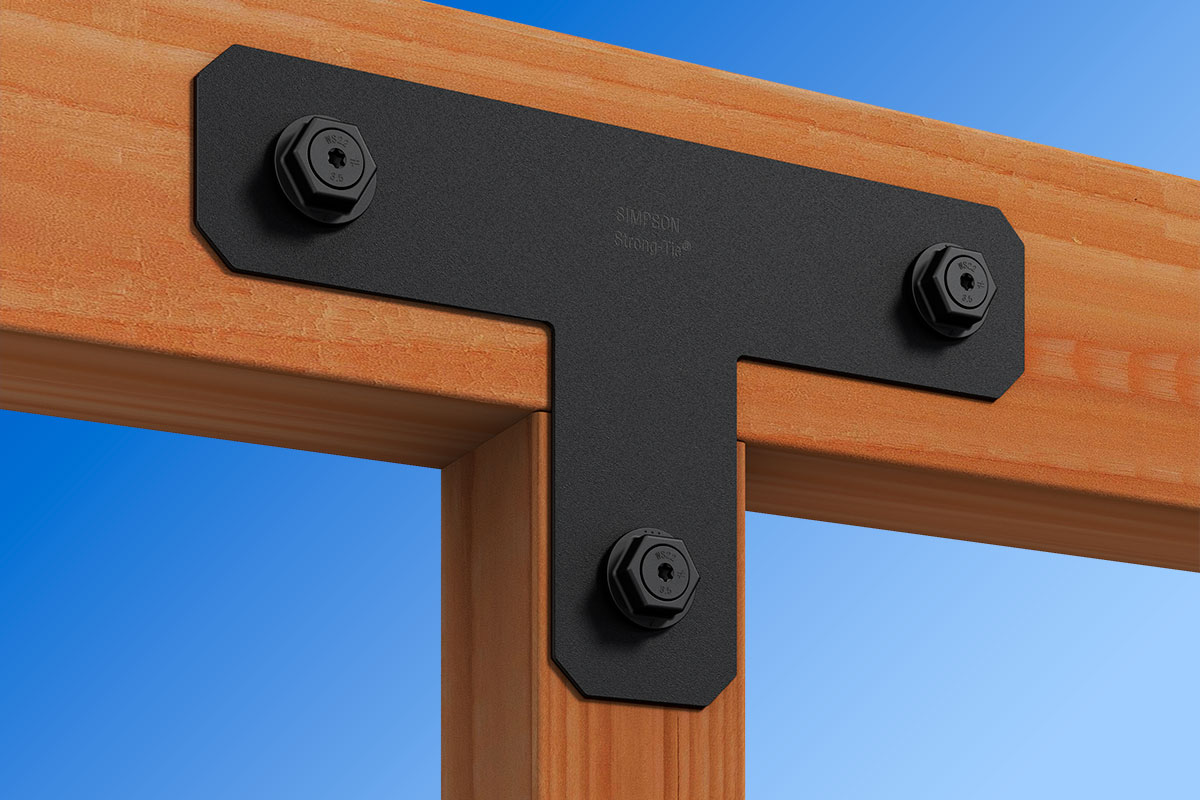

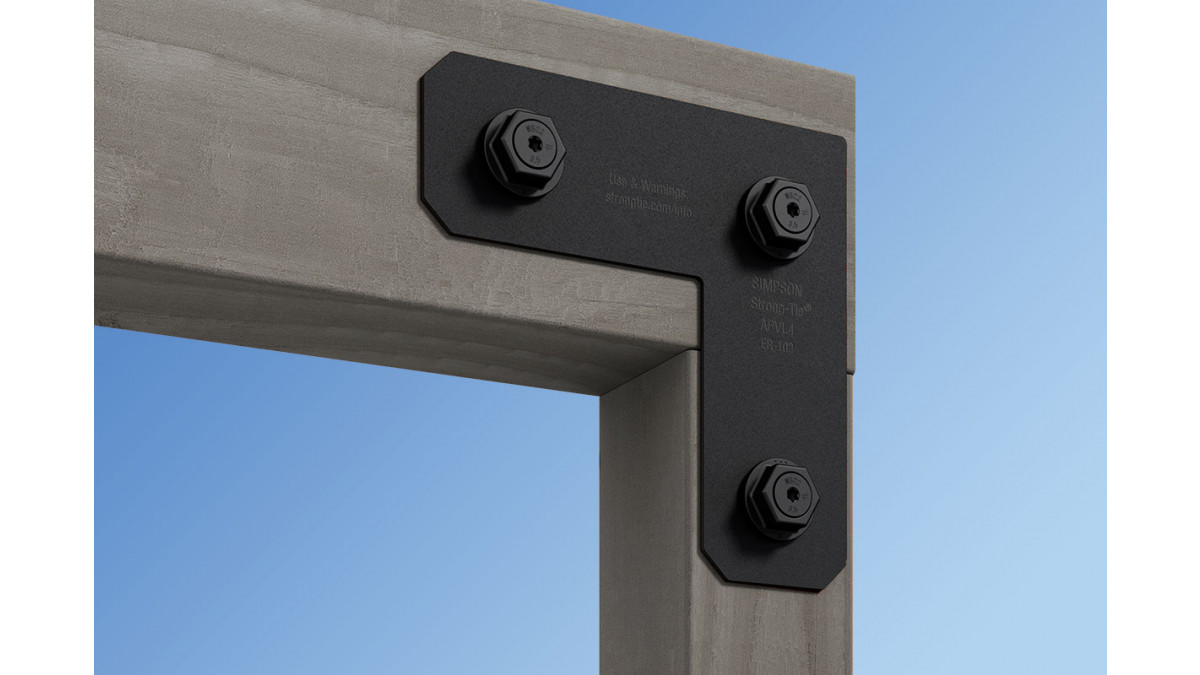

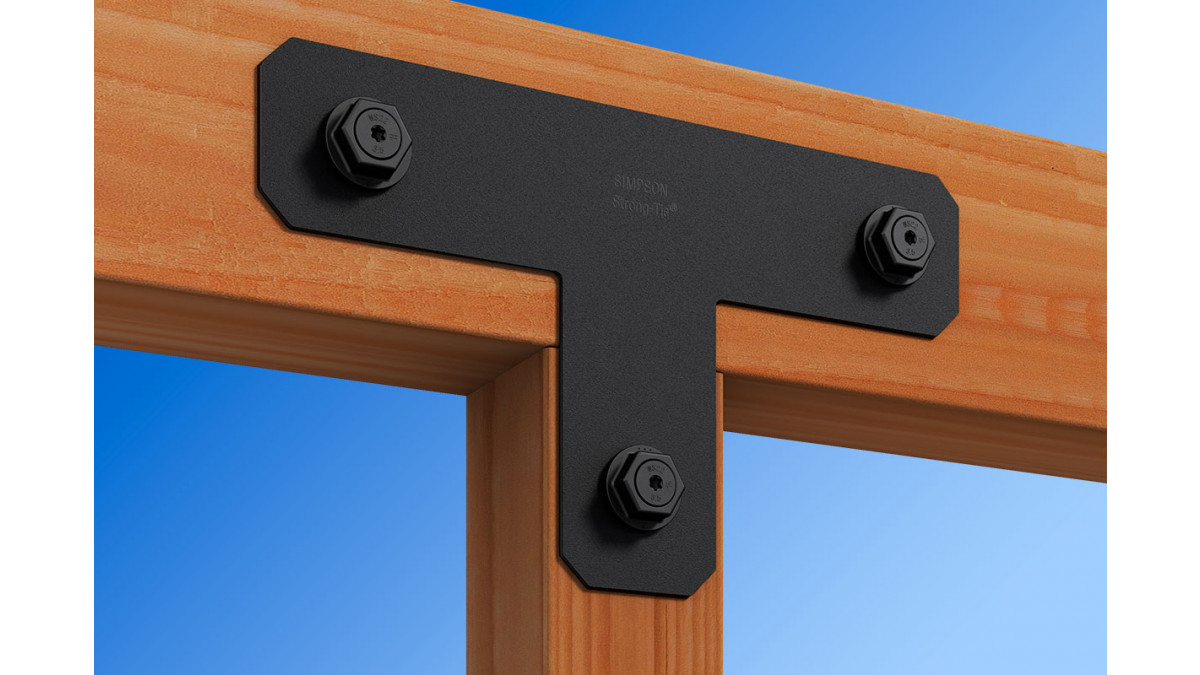

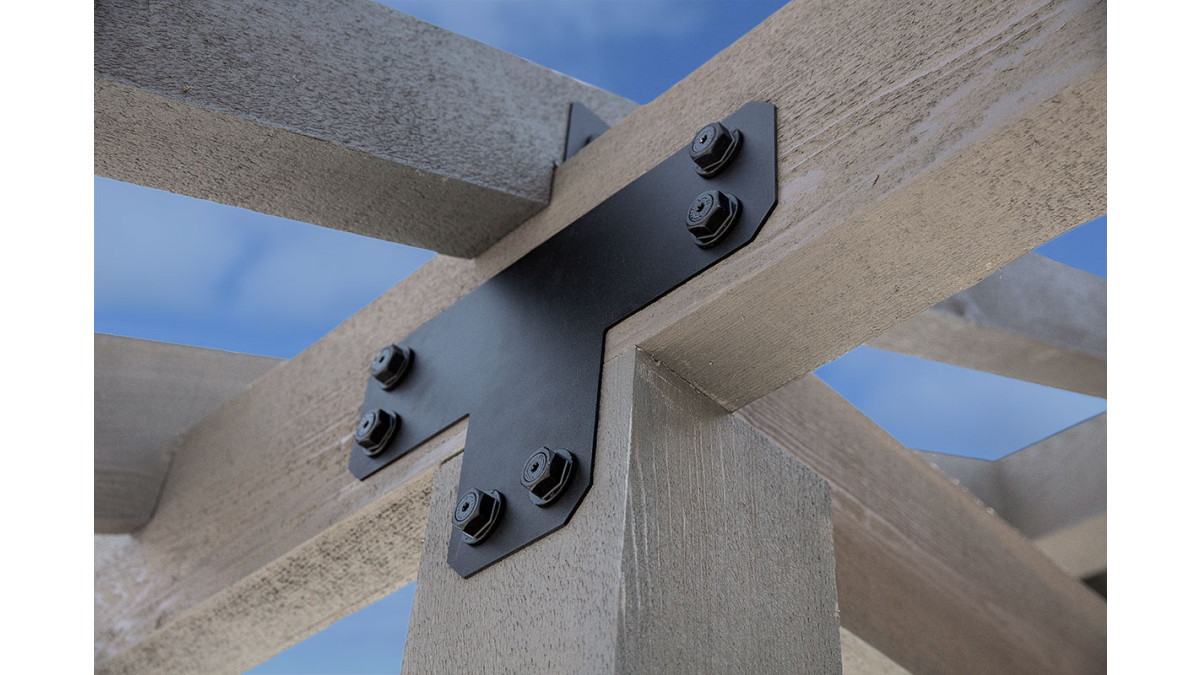

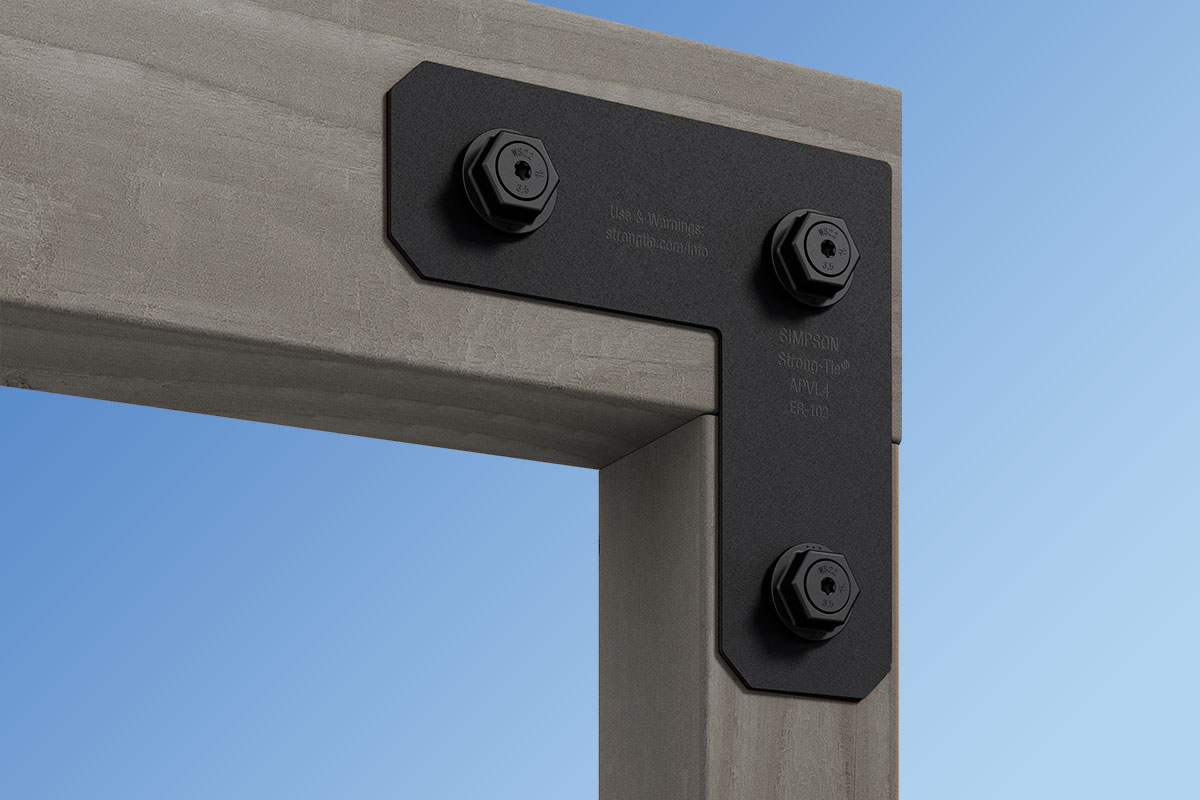

  • Flat T and L Strap ties, Bolt-like connectors bring decorative appeal and lateral strength to outdoor living area or even an indoor project
  • Flat Strap works for timber in both nominal and rough sizes. It can be used to connect two beams together or added to any project as a decorative accent

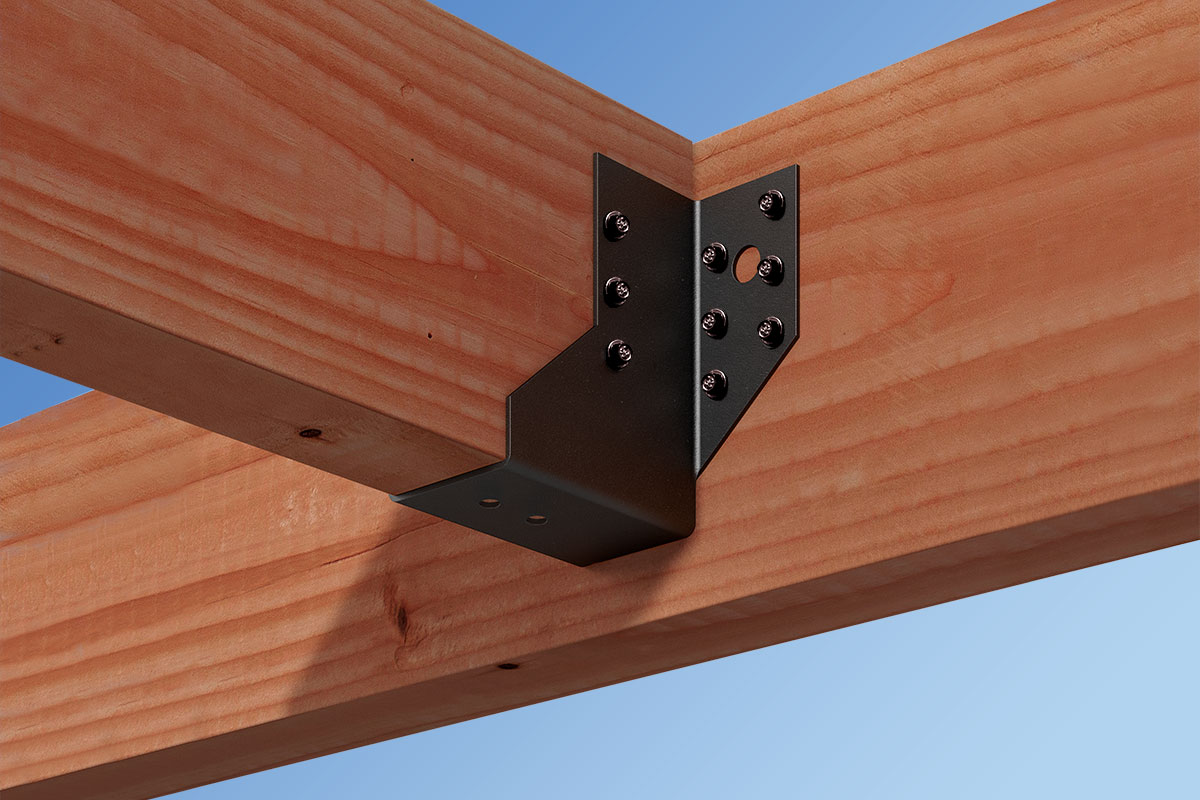

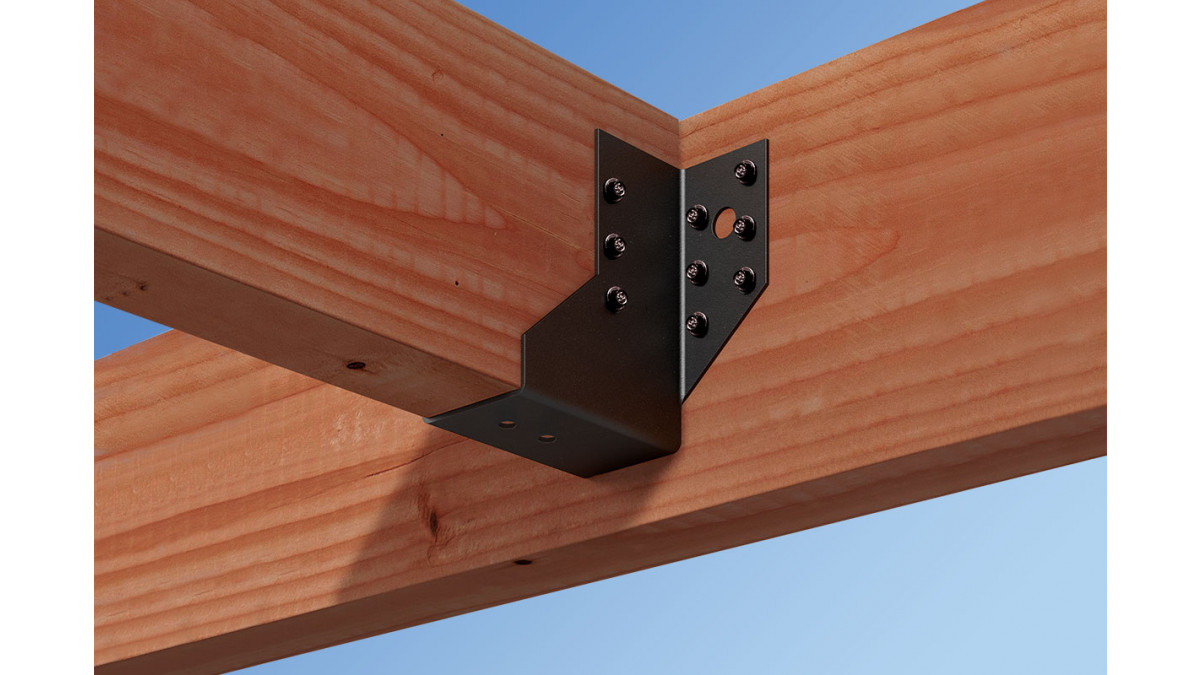

  • The SAE Face Fix Joist Hanger is a heavy-duty hanger suitable for 45mm joist. Big seat for joists provides greater strength support.
  • Concealed Joist Hanger is a face‑mounted concealed flange hanger solid timber sections. It provides cleaner lines for pergolas
  • Fastener and washer create decorative bolt-like connections but install with the ease of a screw and without pre-drilling

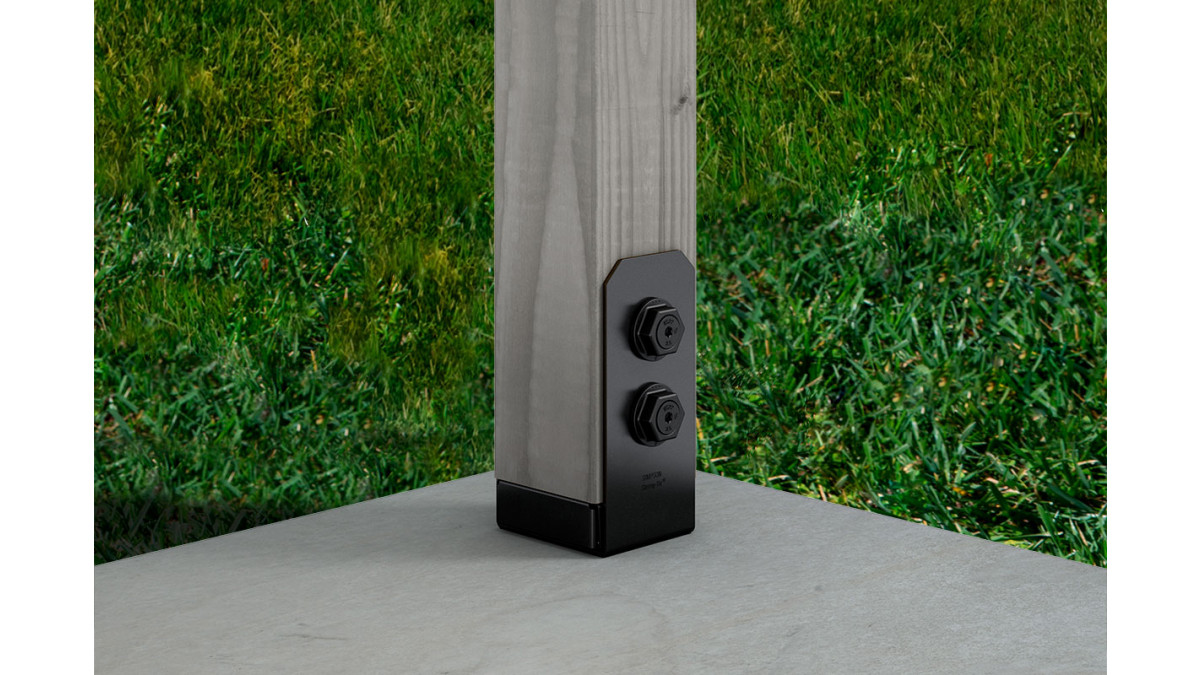

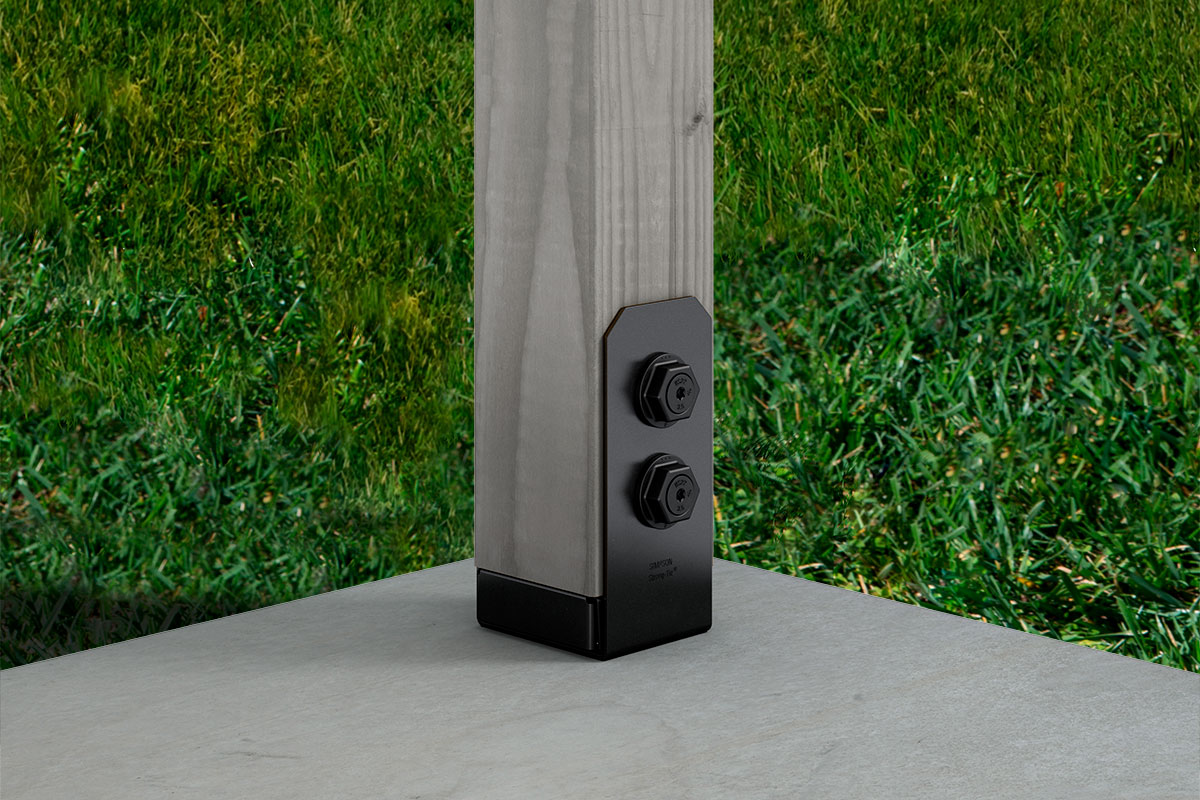

  • Post bases secure timber posts to concrete, while providing a 25mm standoff height to help prevent rot from standing water and ground moisture
  • All hardware has been structural strength tested and approved, and can be used to resist wind or seismic loads
  • Black Double-Barrier Coating offers premium look while providing a medium level of corrosion protection for many outdoor applications
  • Patent hex-head washer design facilitates easy installation
Categories
Fasteners and Connectors
Ranges
Outdoor Living Structures
Scope of Use
  • Decorative connectors for outdoor timber structures
  • Hardware accommodates 90mm timber sizes
  • Can be used to resist wind or seismic loads

Applications:

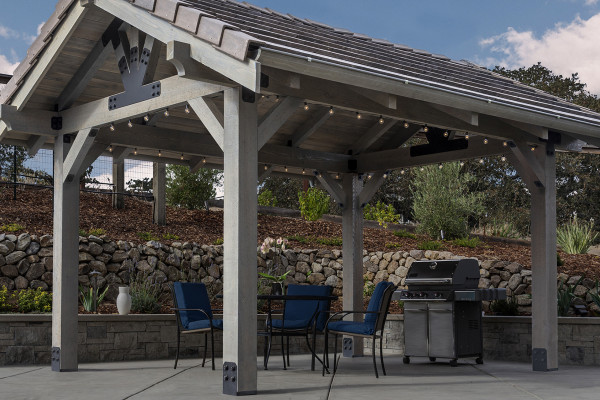

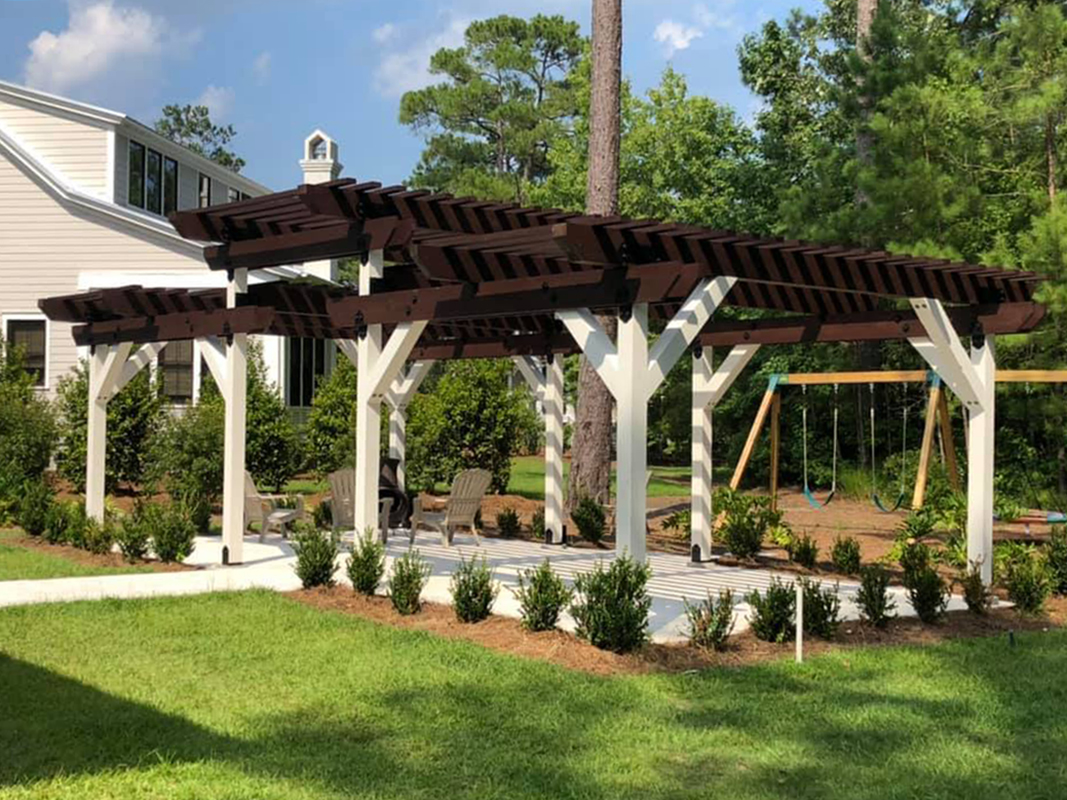

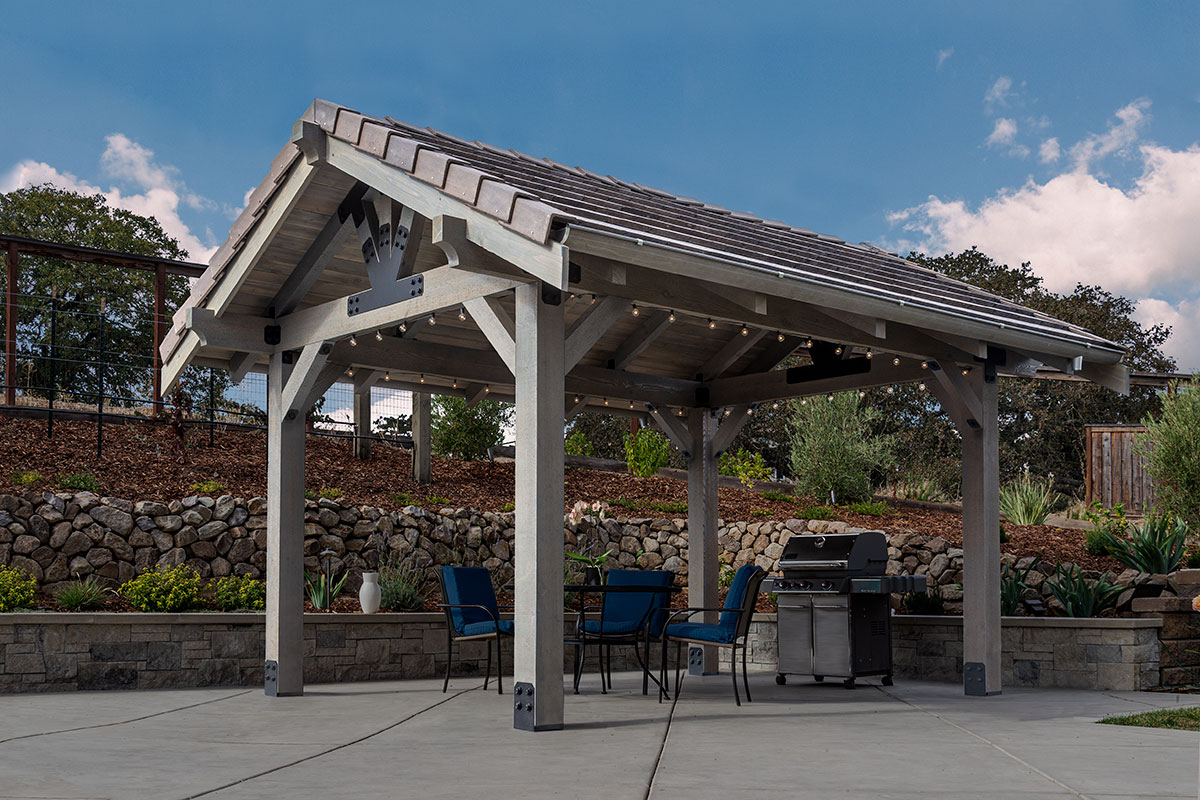

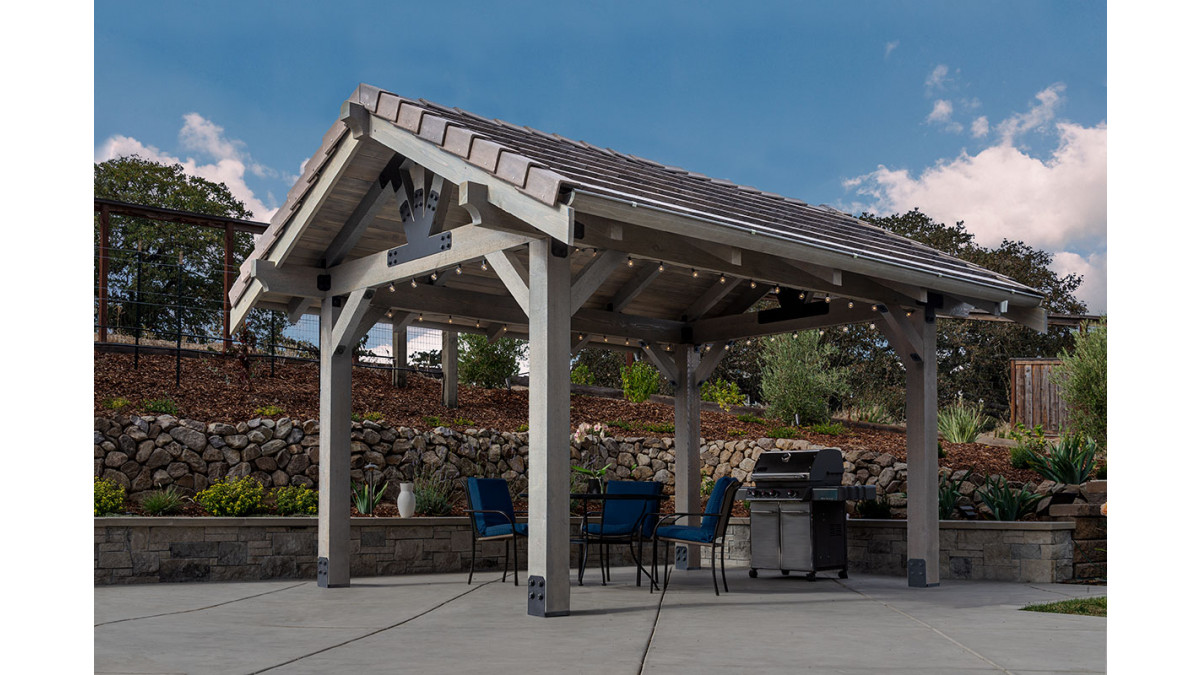

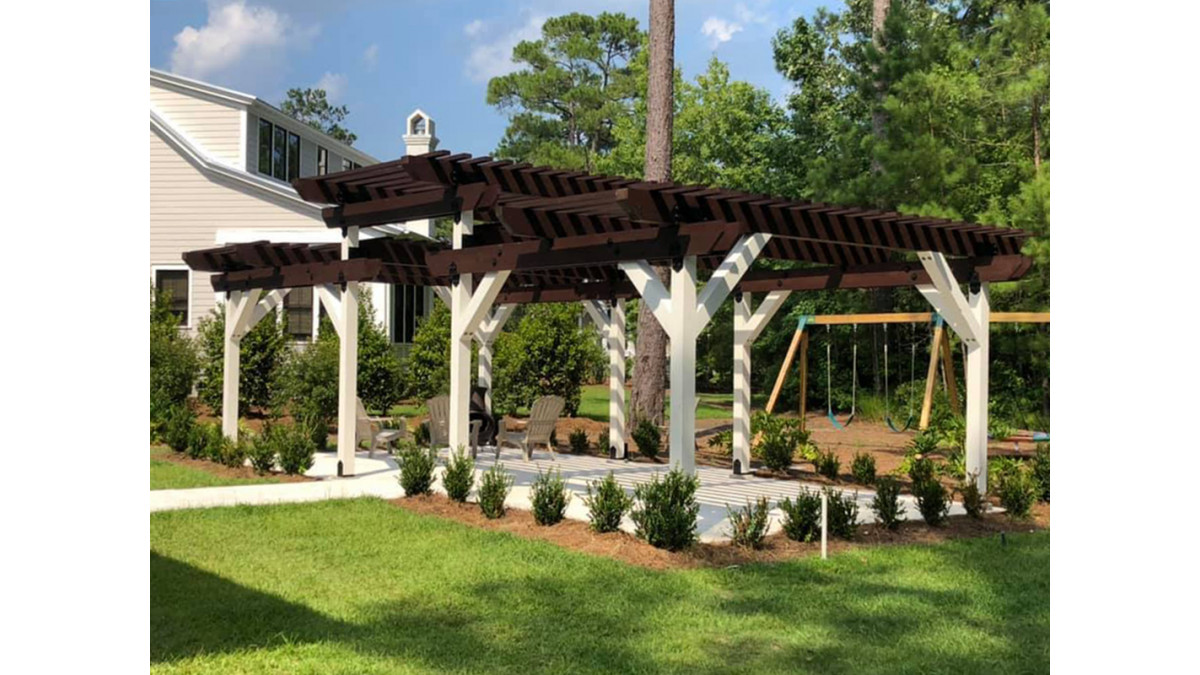

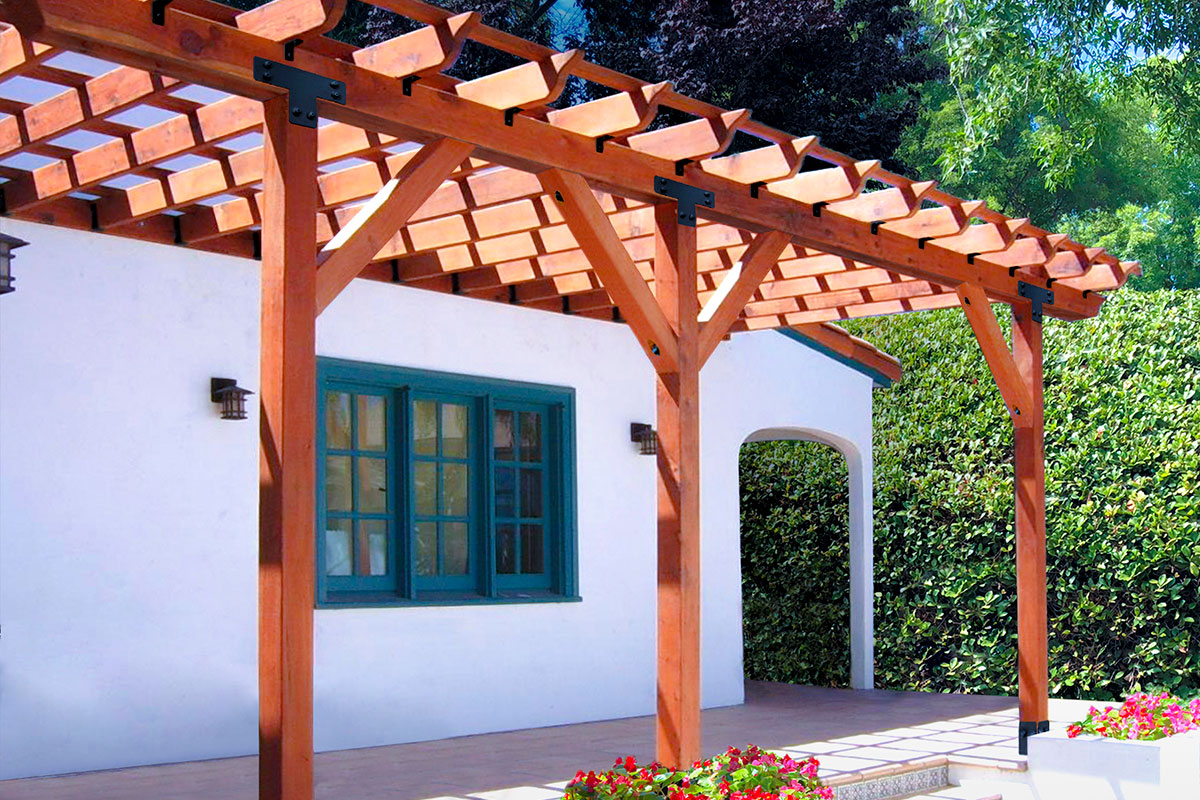

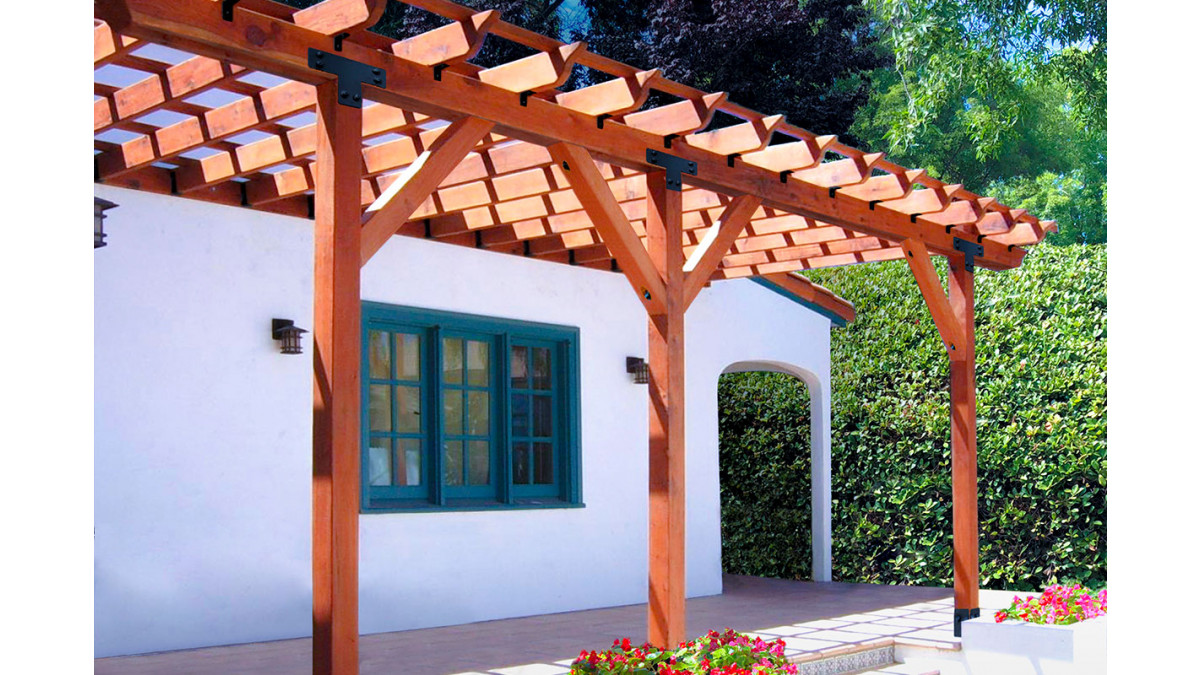

  • Pergolas, patio covers
  • Gazebos, arbours, garden arches, trellis
  • Outdoor living areas, decks and structures
Limitations on Use
  • Use all specified fasteners
Statement of Building Code Compliance
  • Outdoor Accents products are compliant with NZS 3604:2011.
Other Performance Attributes
  • All hardware has been structural strength tested and approved
  • Black Double-Barrier Coating provides medium level of corrosion protection
  • News
Documents
CAD Drawings
URL
Technical Data Sheet
pdf
IAPMO UES Evaluation Report

ER-0192

URL
IAPMO UES Evaluation Report

ER-0280

URL
ICC-ES Evaluation Report

ESR-3046

URL
Product Approval

FL10865

URL
Product Approval

FL13975

URL
Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-20

pdf
