Outdoor Accents Timber Connectors — Mission Collection
Simpson Strong-Tie
All products
Outdoor Application 14 2
Outdoor Application 09 2

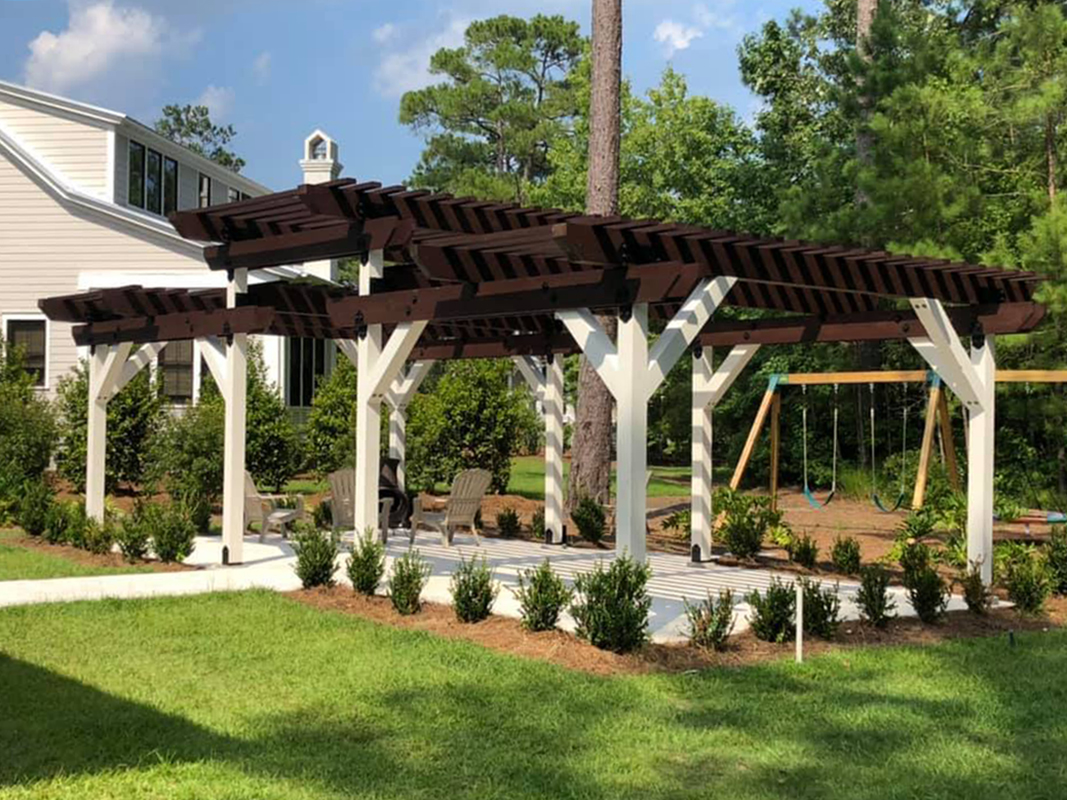

Outdoor Application 02 2
Outdoor Application 06

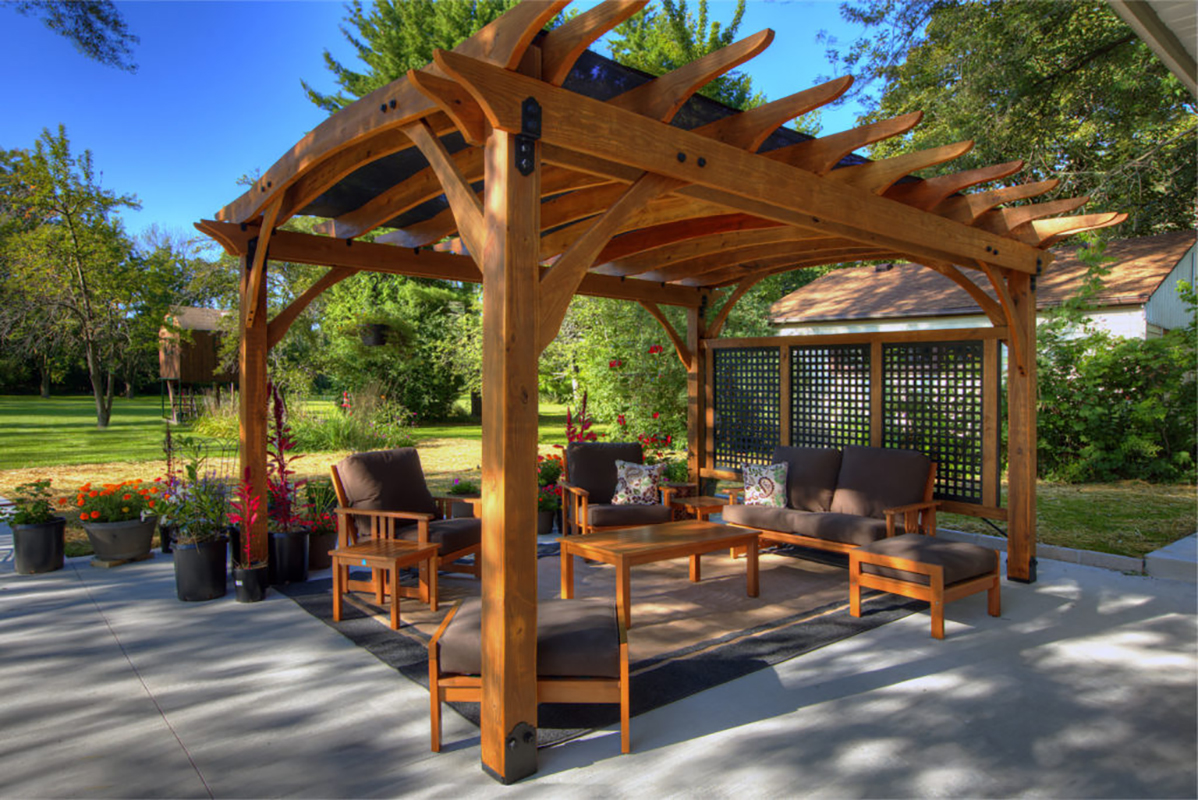

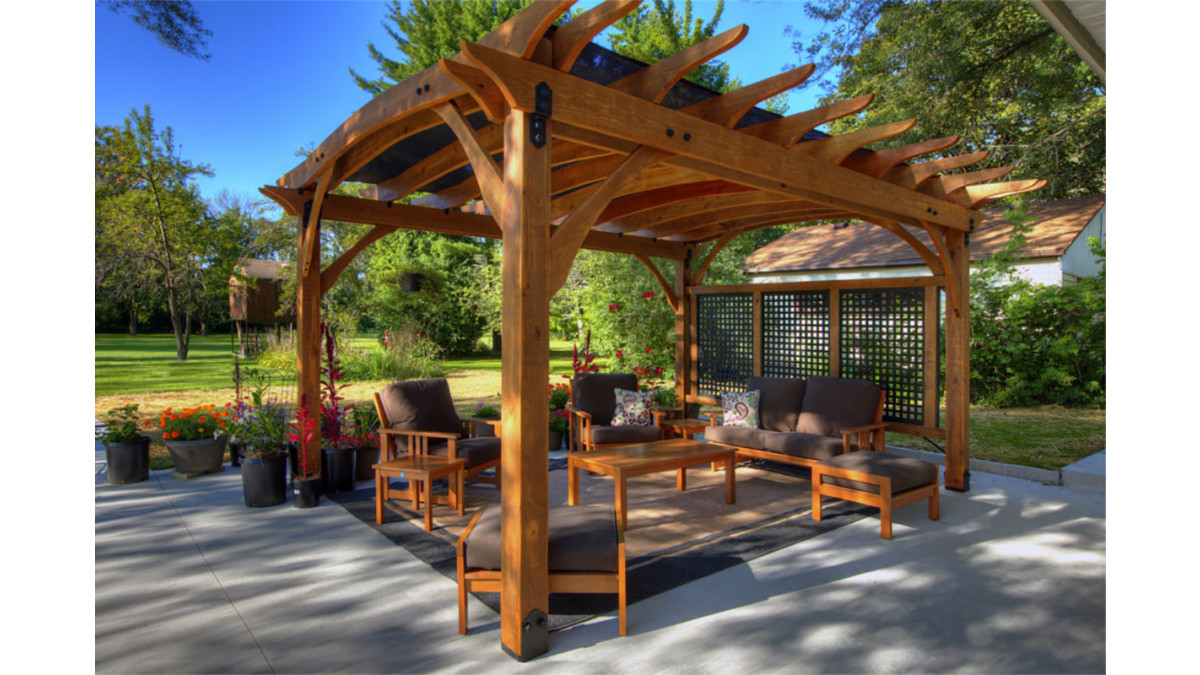

Outdoor Application 01

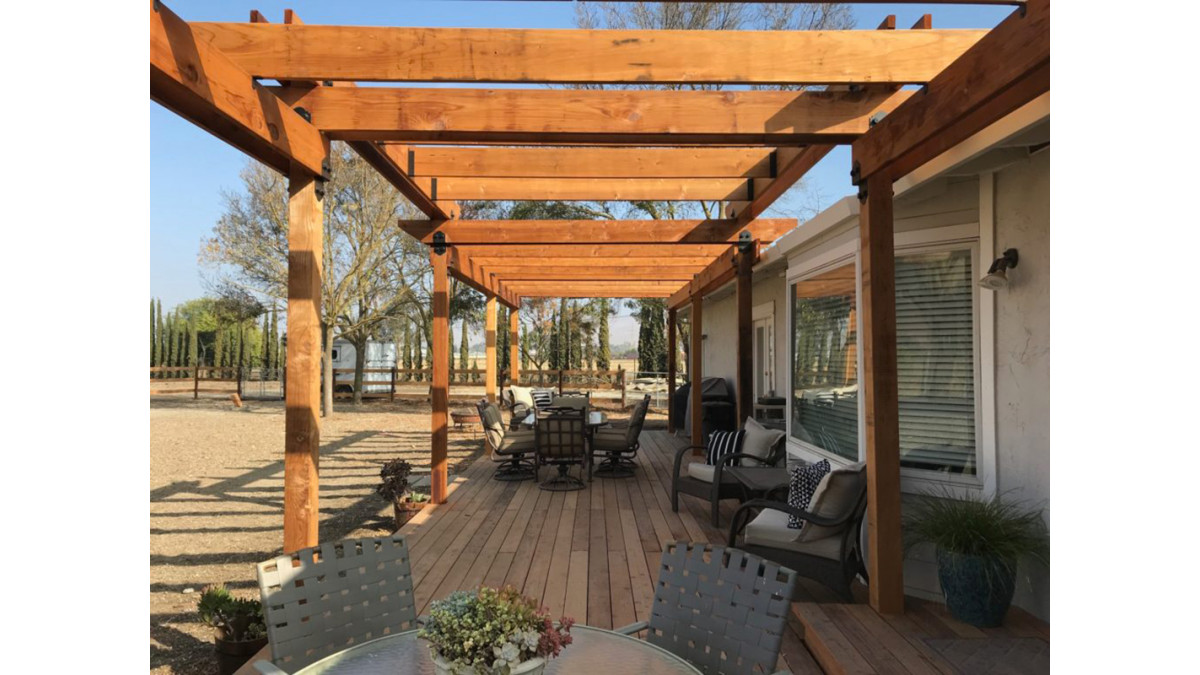

Outdoor Application 05

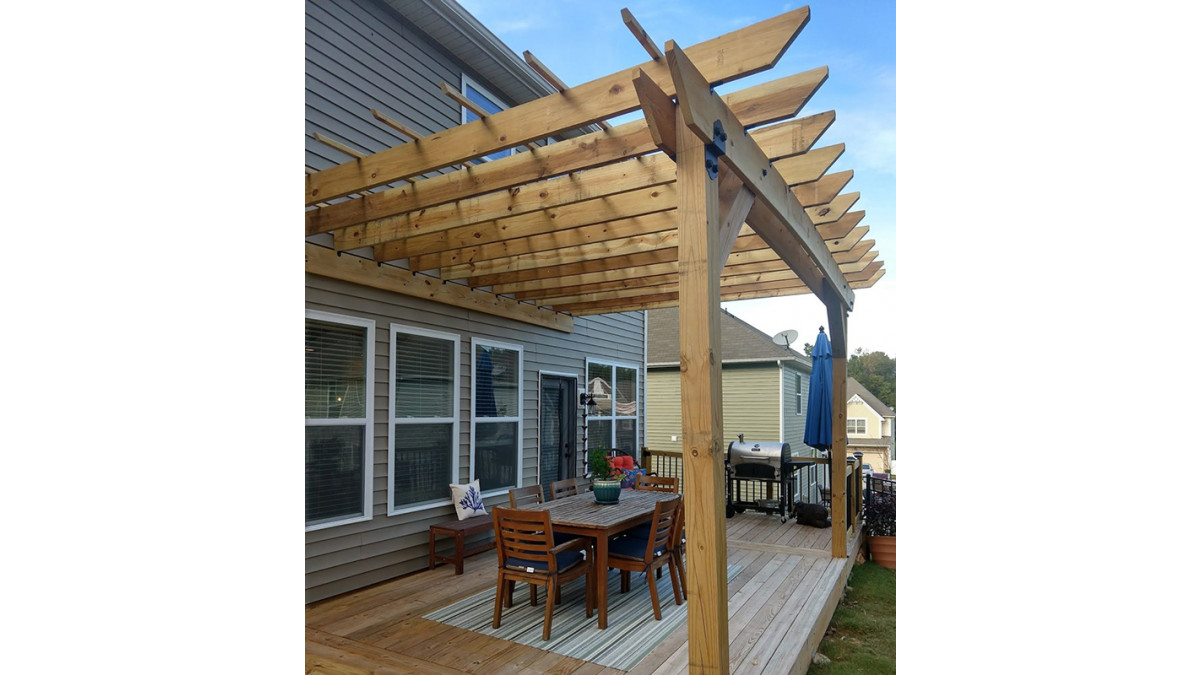

Outdoor Application 14
Outdoor Application 02
Outdoor Application 03

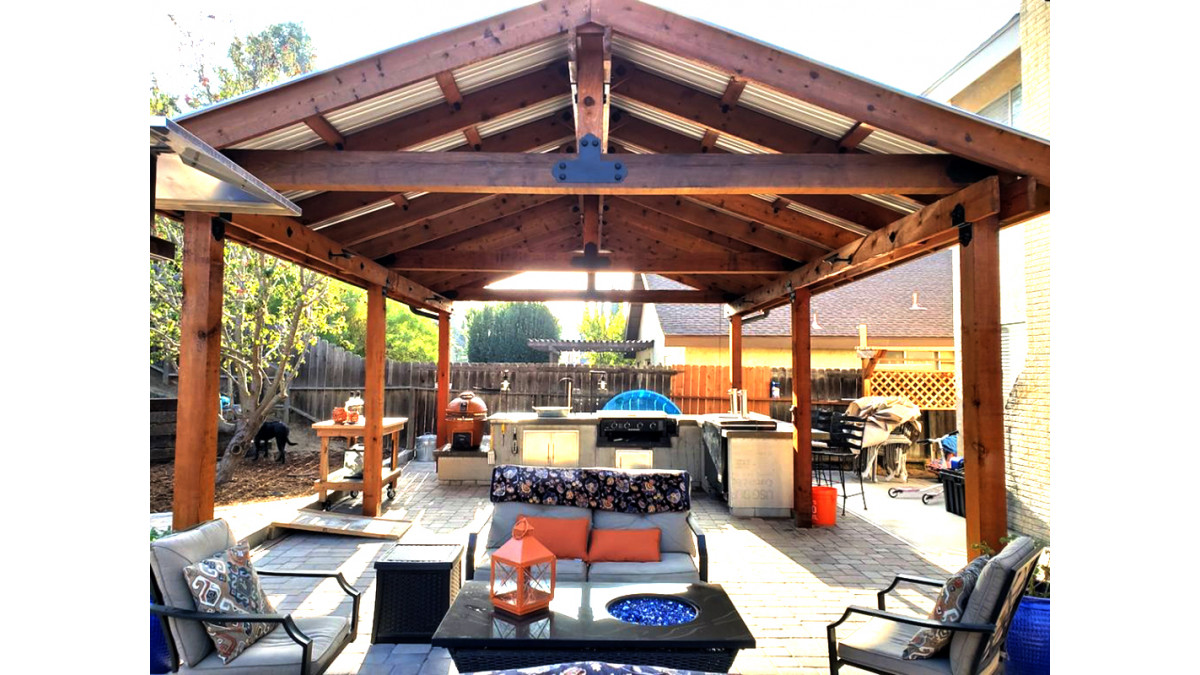

Outdoor Application 11

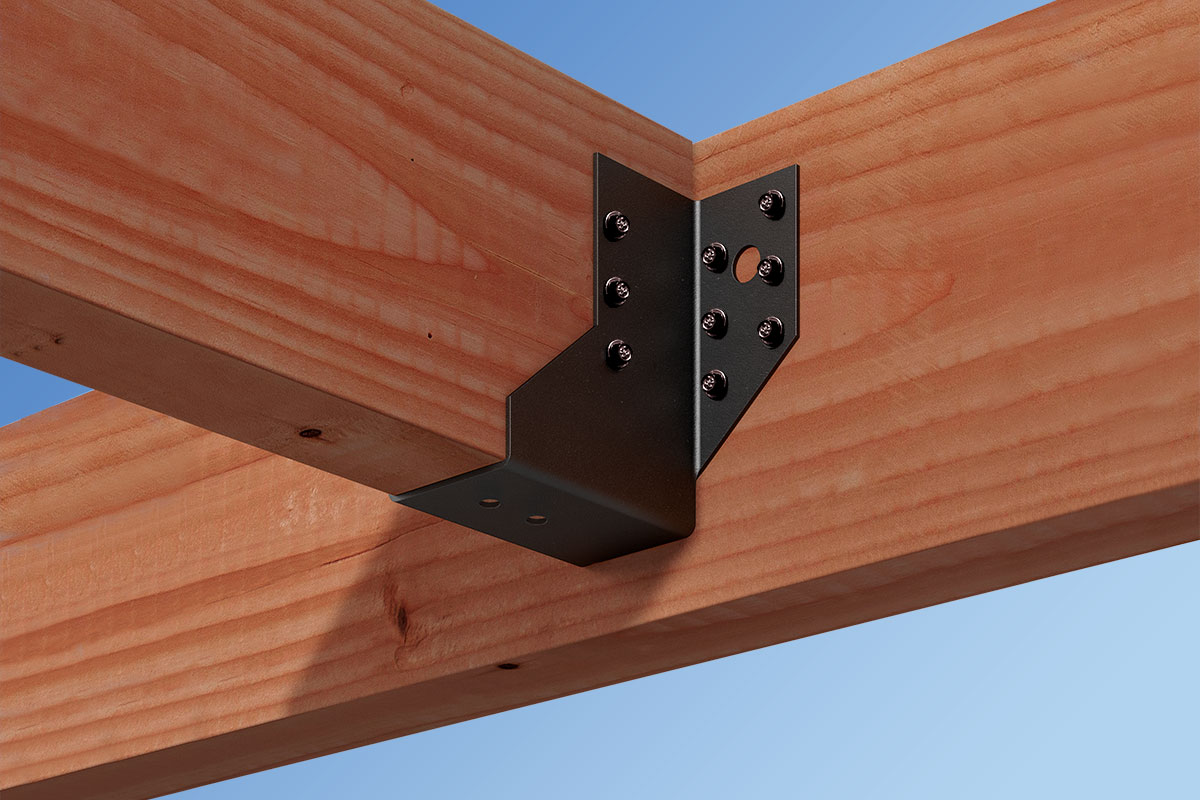

OA Avant Application 08
Description

Outdoor Accents is a complete line of decorative timber connectors and fasteners from Simpson Strong-Tie, bringing both design elegance and structural strength to outdoor living area projects.

This hardware accommodates 90mm and 140mm timber sizes, providing the flexibility needed when designing and building custom outdoor projects such as pergolas, patio covers and other top-supported structures.

Key Features

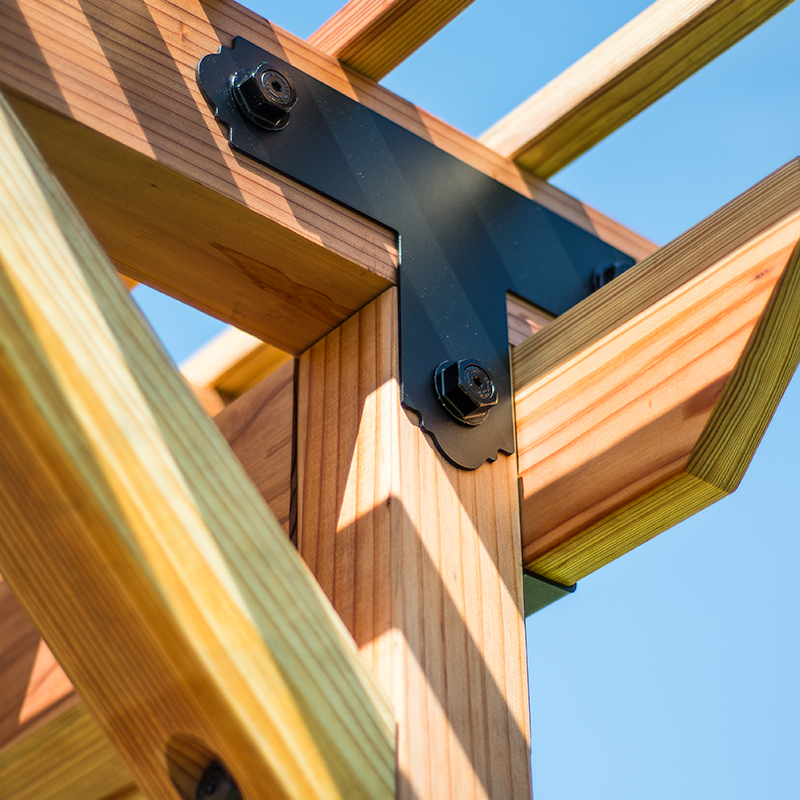

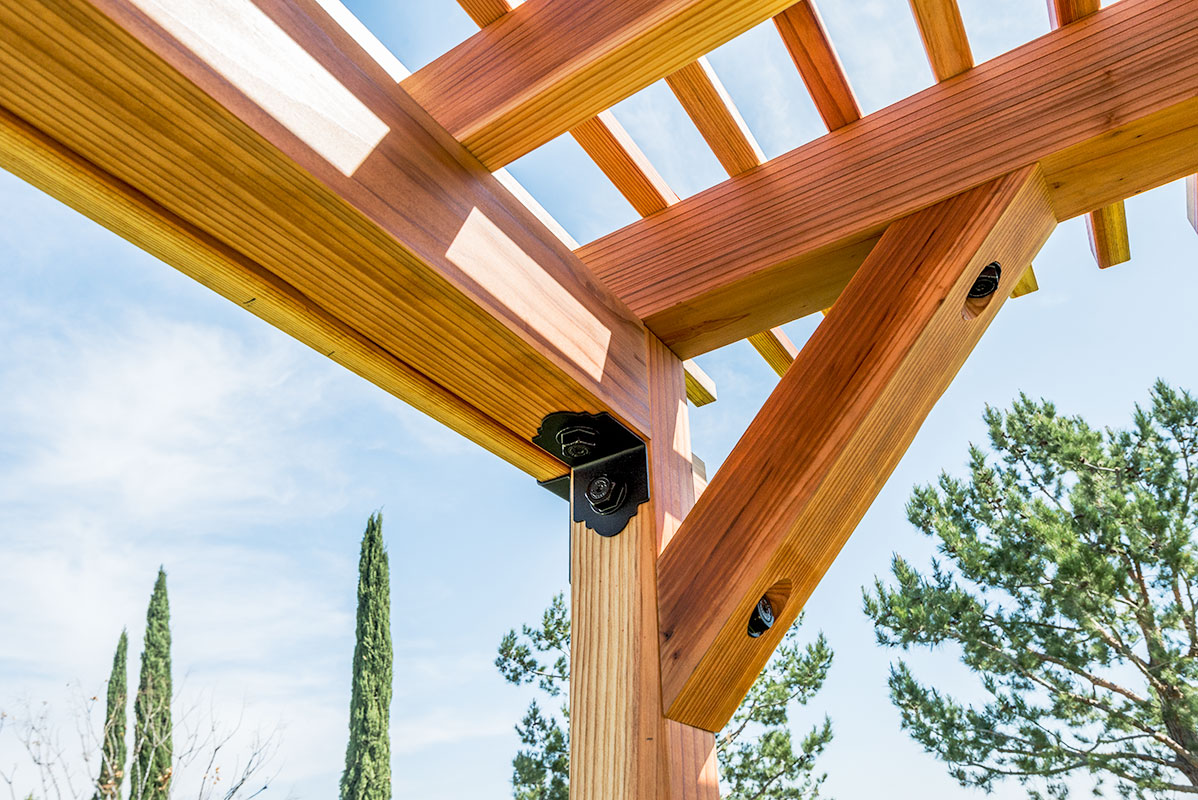

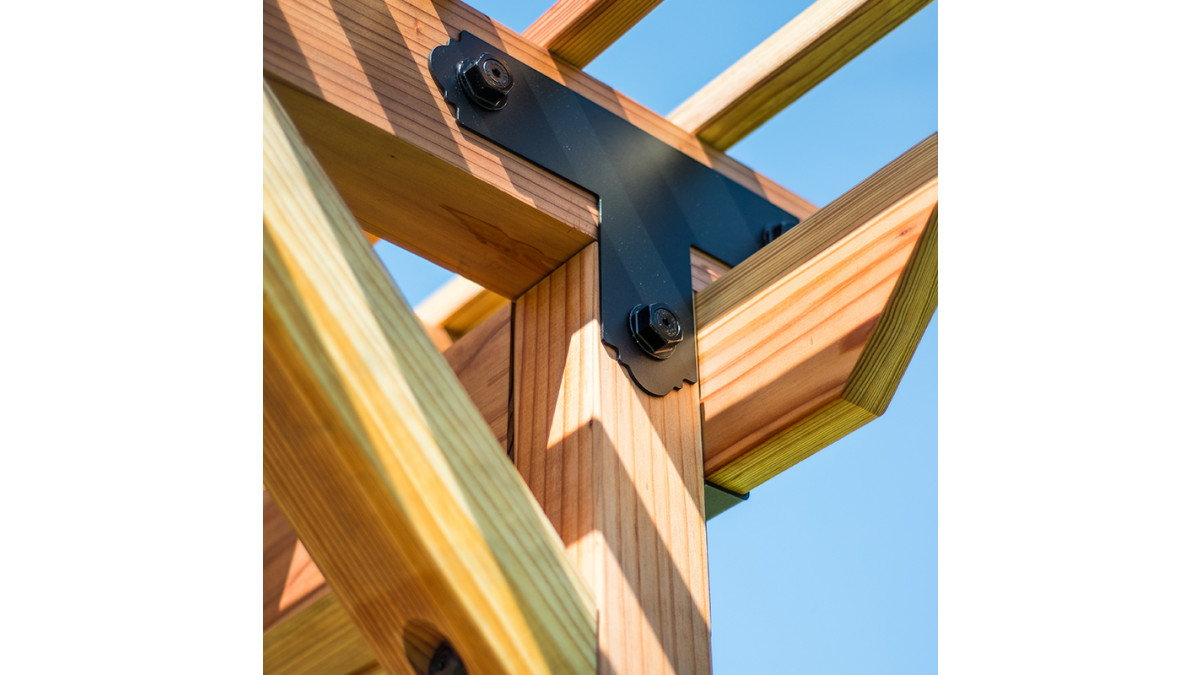

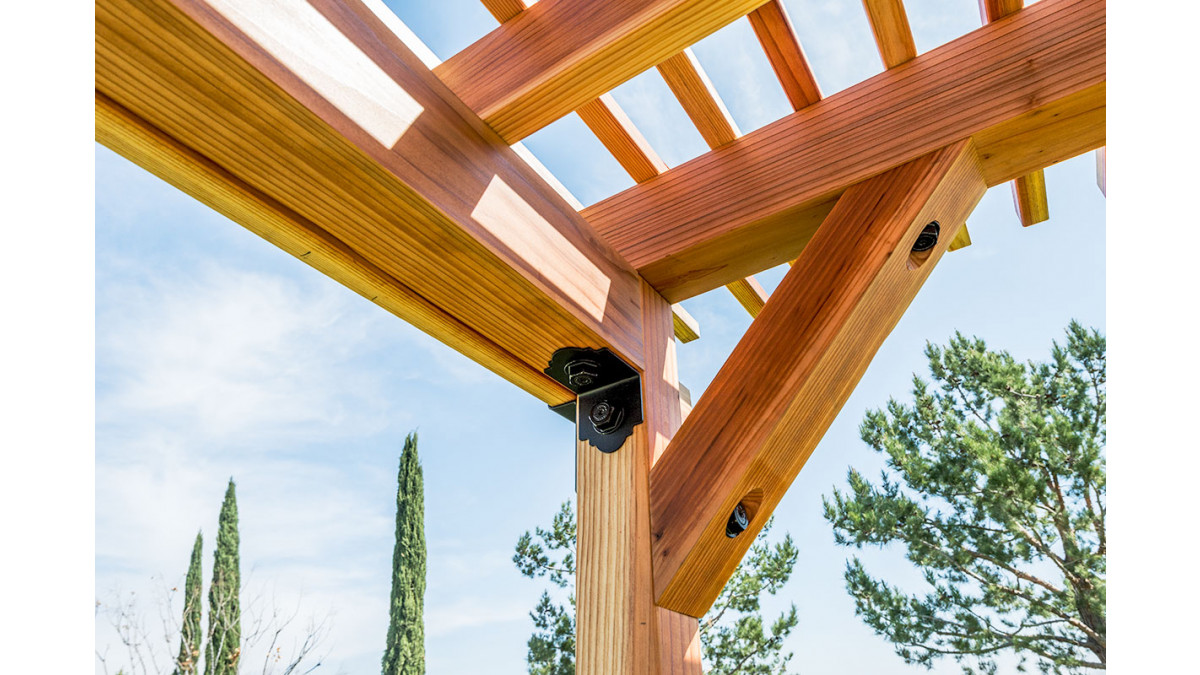

  • Flat T and L Strap ties, Bolt-like connectors bring decorative appeal and lateral strength to outdoor living area or even an indoor project
  • Flat Strap works for Timber in both nominal and rough sizes. It can be used to connect two beams together or added to any project as a decorative accent.

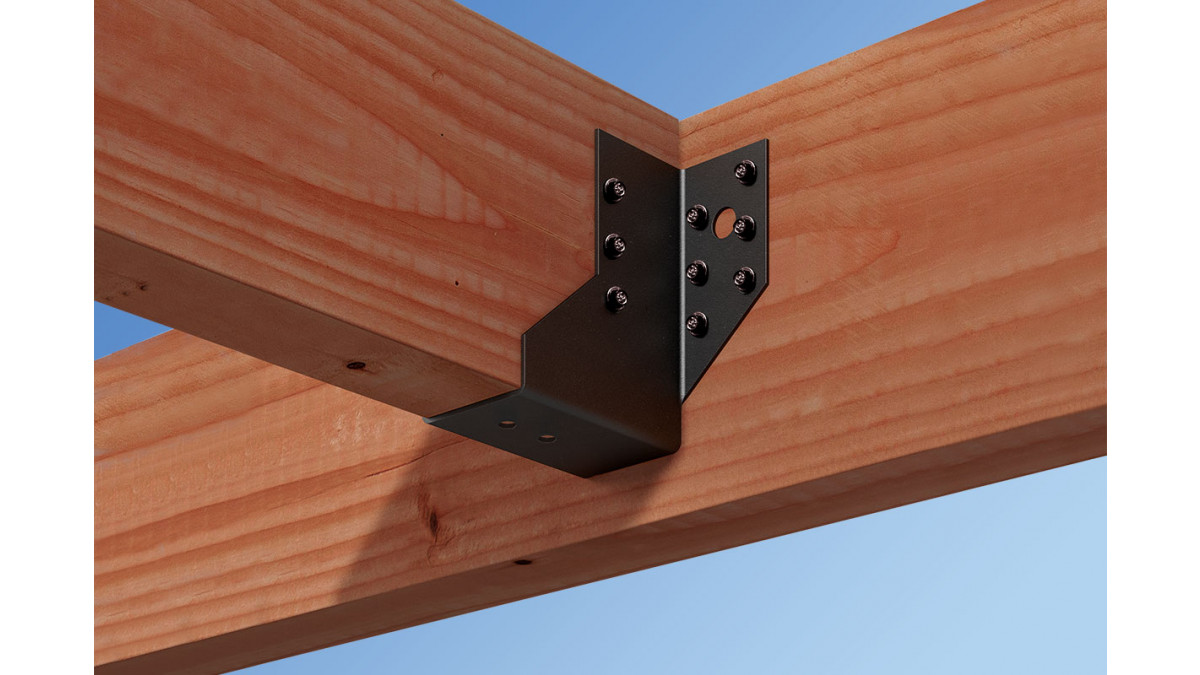

  • The SAE Face Fix Joist Hanger is a heavy-duty hanger suitable for 45mm joist. Big seat for joists provides greater strength support
  • Concealed Joist Hanger is a face‑mounted concealed flange hanger solid timber sections. It provides cleaner lines for pergolas
  • Fastener and washer create decorative bolt-like connections but install with the ease of a screw and without pre-drilling

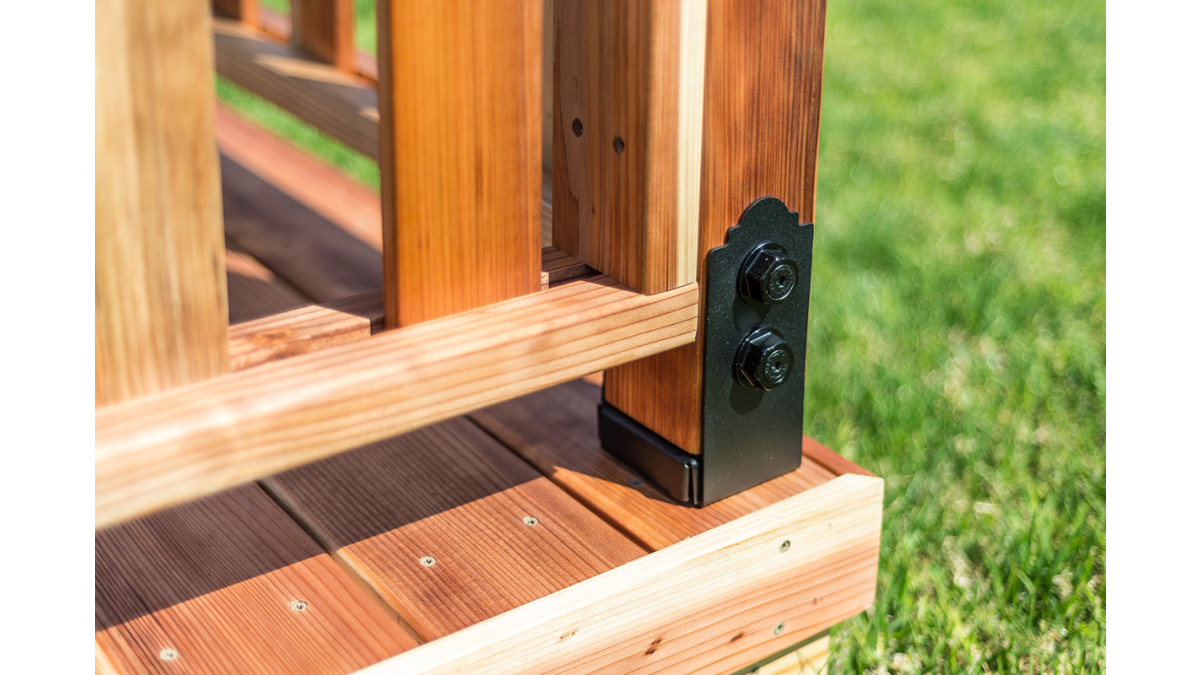

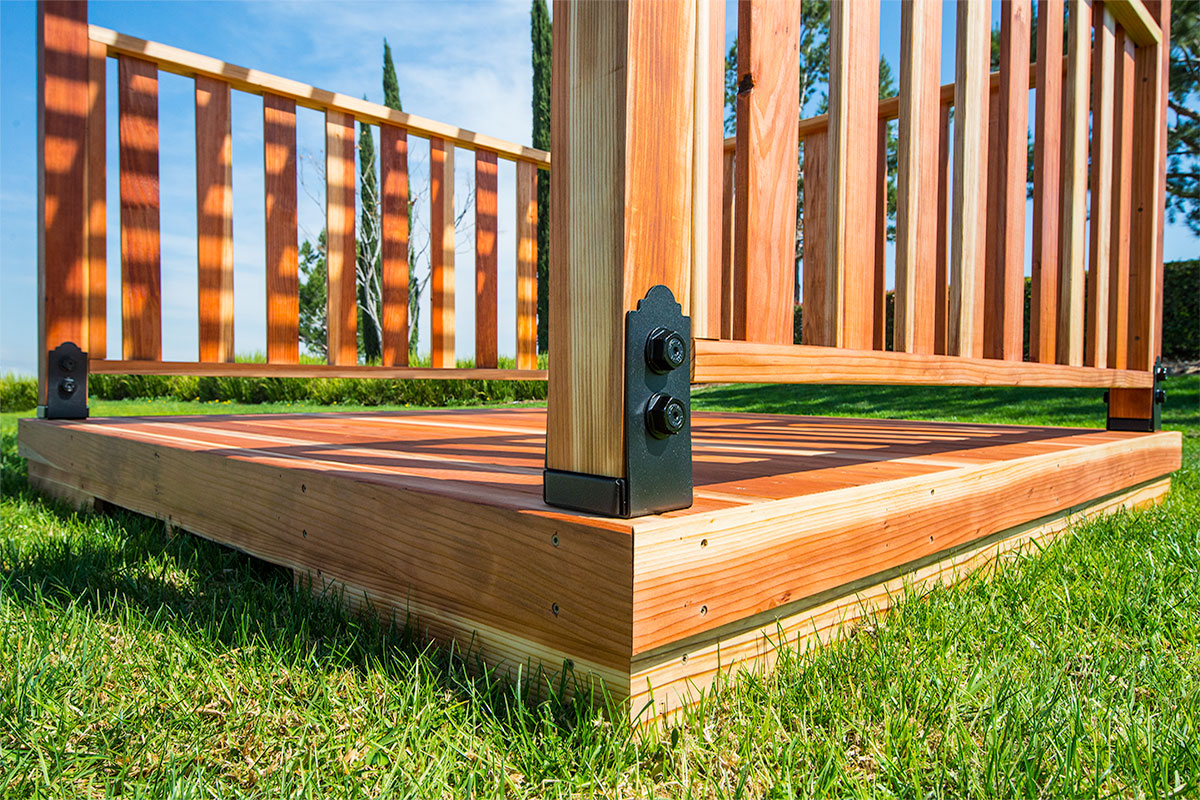

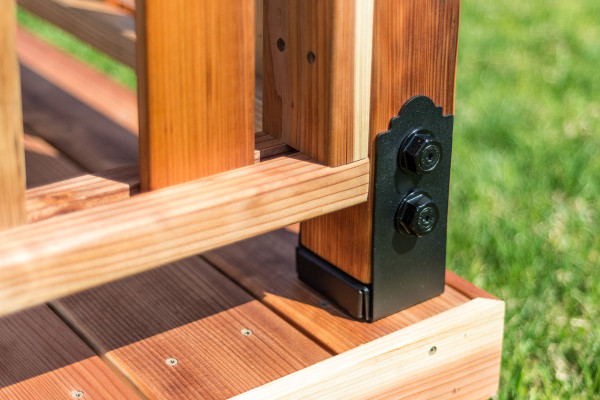

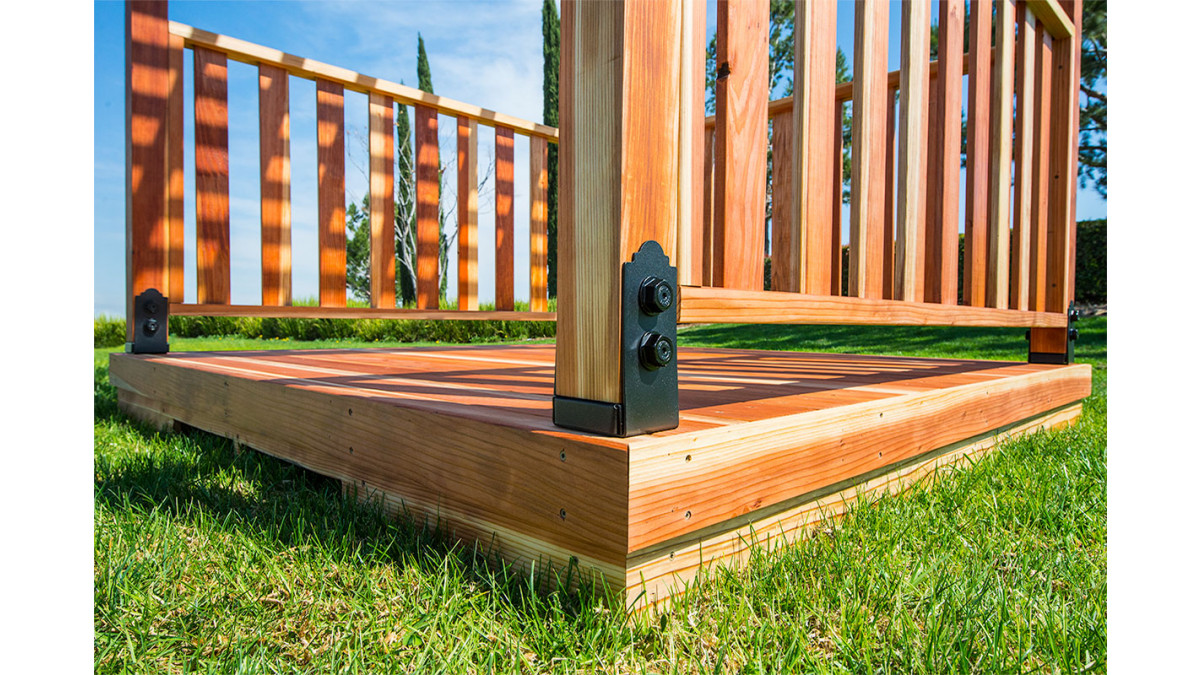

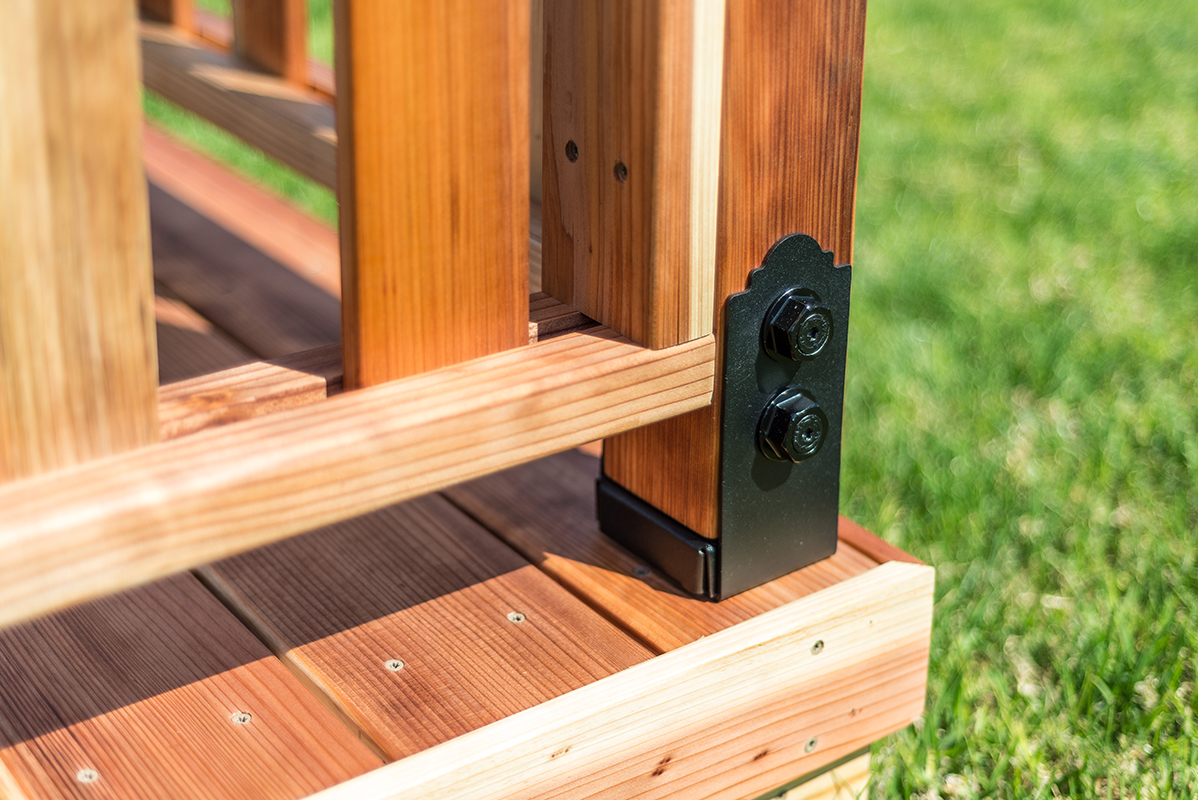

  • Post bases secure timber posts to concrete, while providing a 25mm standoff height to help prevent rot from standing water and ground moisture
  • All hardware has been structural strength tested and approved, and can be used to resist wind or seismic loads
  • Black Double-Barrier Coating offers premium look while providing a medium level of corrosion protection for many outdoor applications
  • Patent hex-head washer design facilitates easy installation
Categories
Fasteners and Connectors
Ranges
Outdoor Living Structures
Scope of Use
  • Decorative connectors for outdoor timber structures
  • Hardware accommodates 90mm and 140mm timber sizes
  • Can be used to resist wind or seismic loads

Applications:

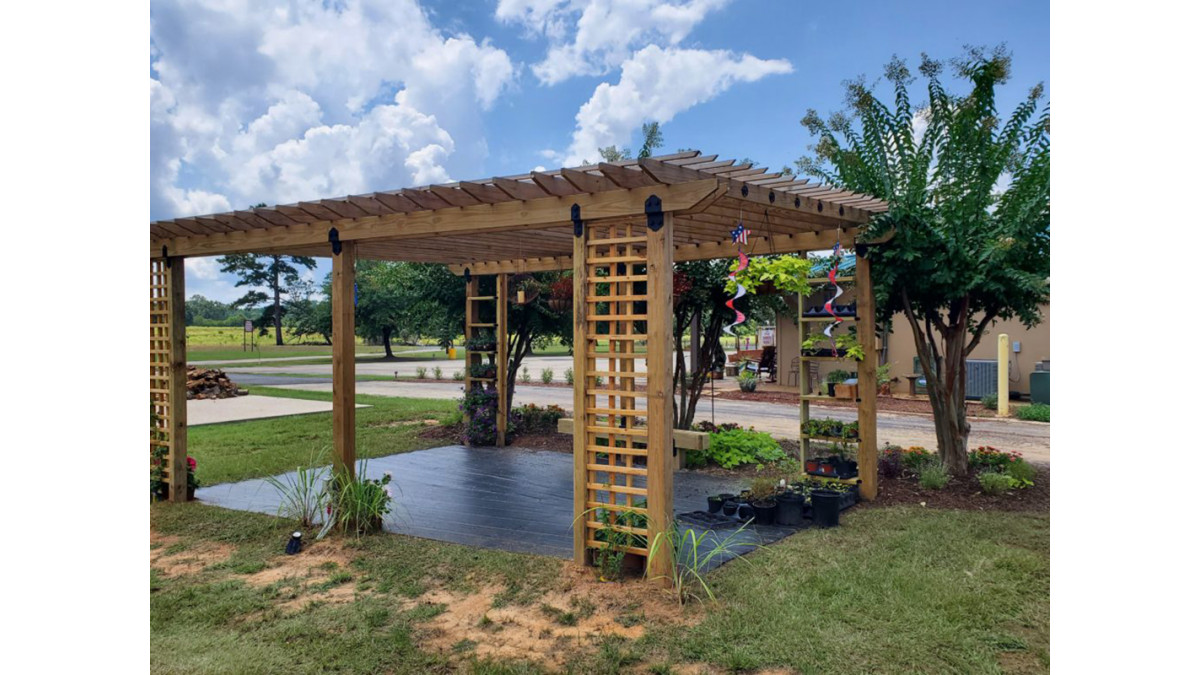

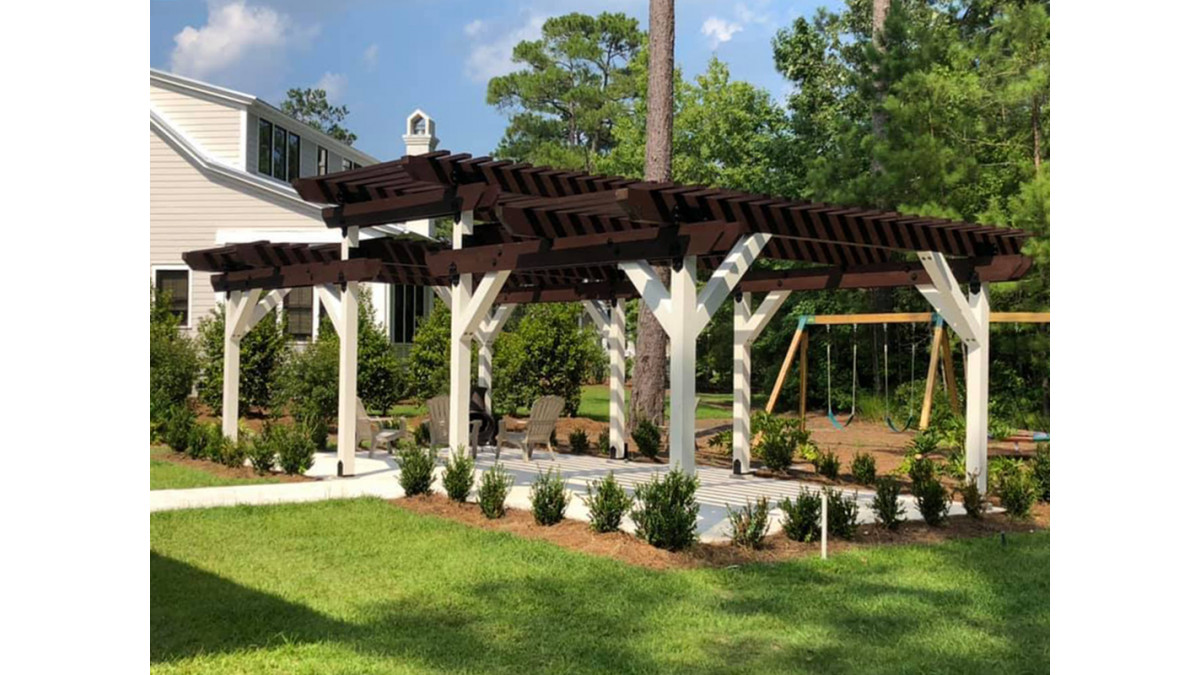

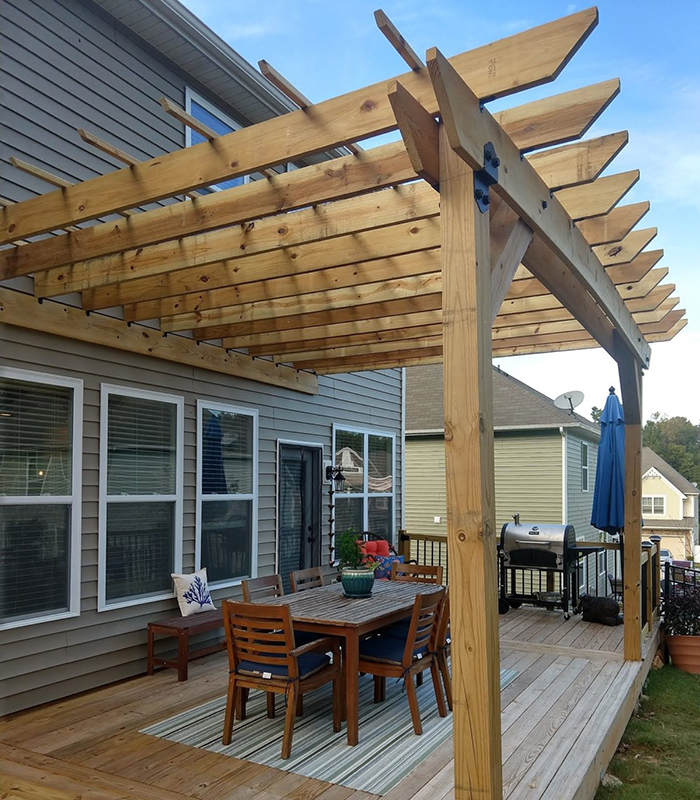

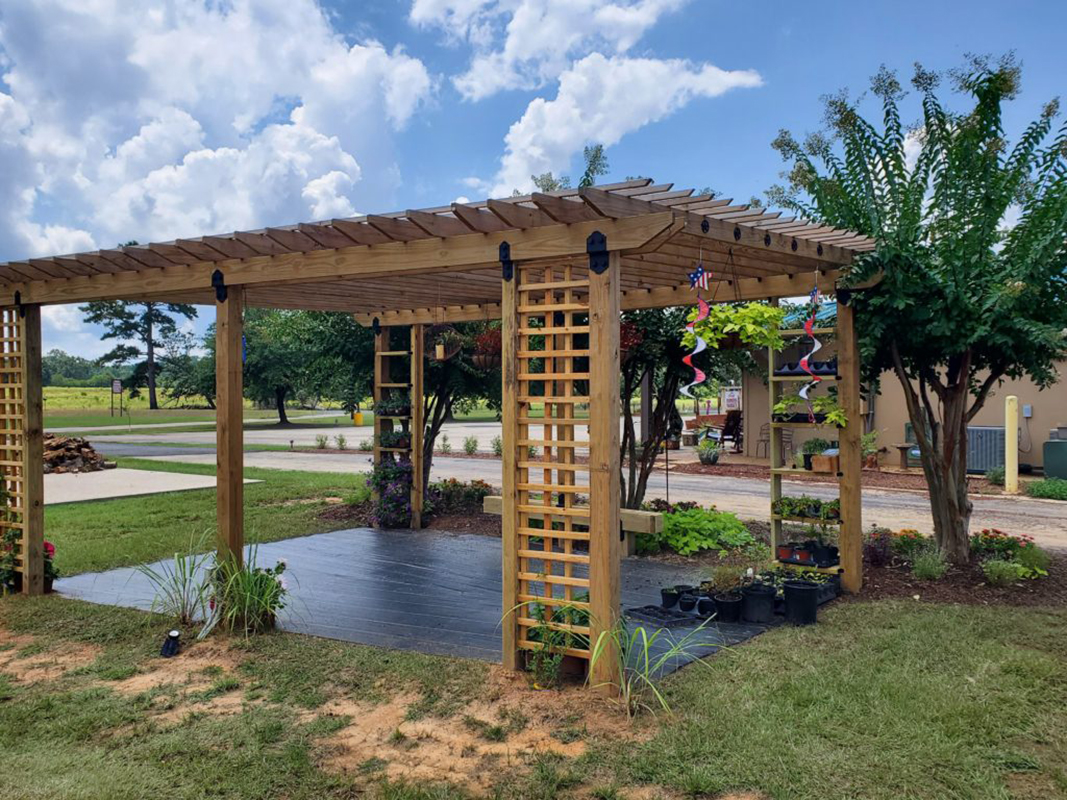

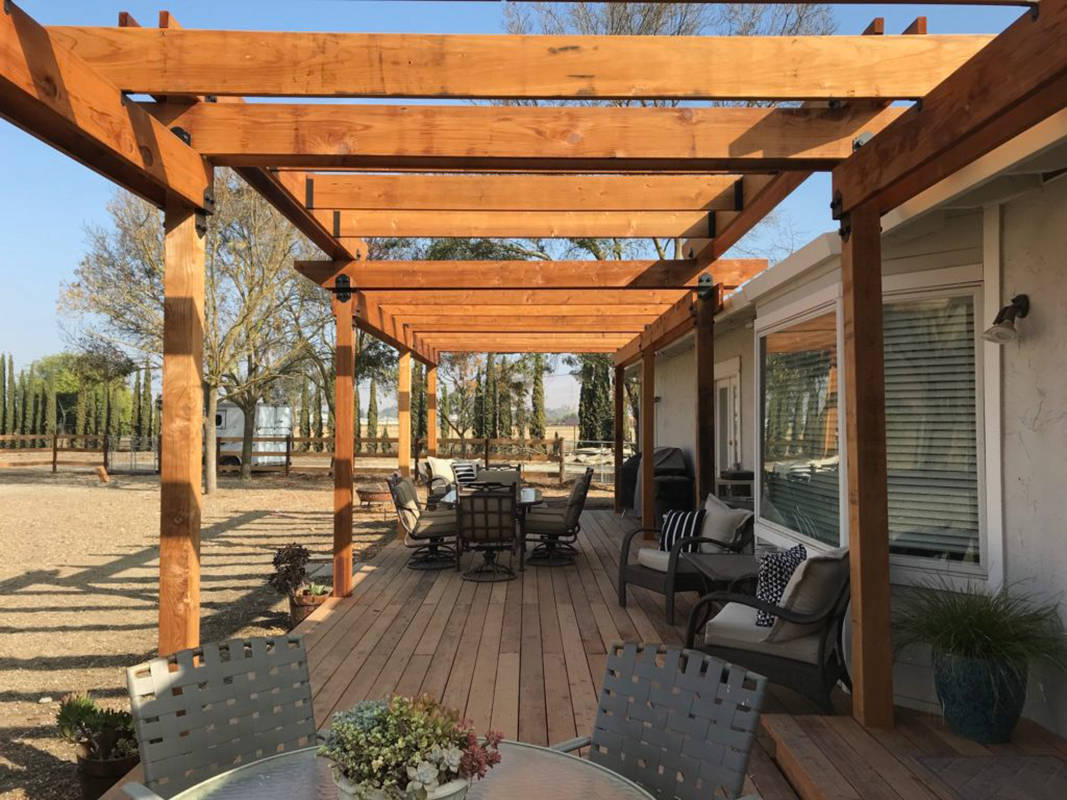

  • Pergolas, patio covers
  • Gazebos, arbours, garden arches, trellis

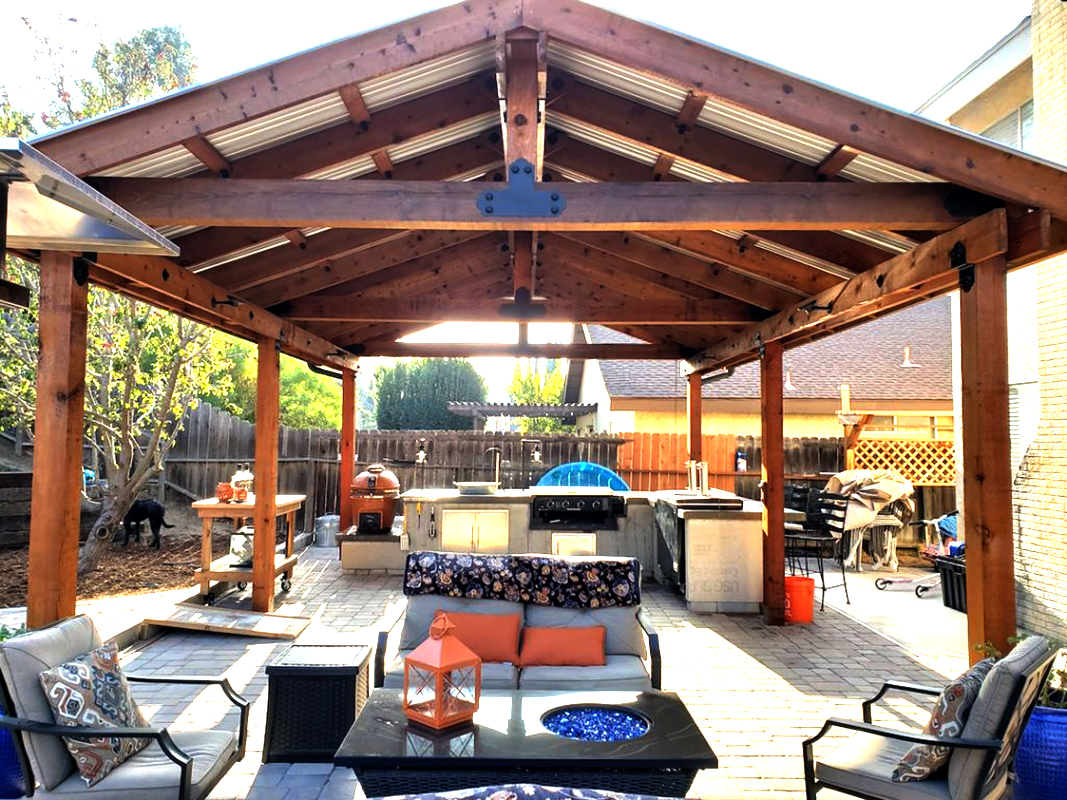

  • Outdoor living areas, decks and structures
Limitations on Use
  • Use all specified fasteners
Statement of Building Code Compliance
  • Outdoor Accents products are compliant with NZS 3604:2011.
Other Performance Attributes
  • All hardware has been structural strength tested and approved
  • Black Double-Barrier Coating provides medium level of corrosion protection
B1 Structure compliant
Structure
B2 Durability compliant
Durability
Independent Assessment
Independent Assessment
Test Results
Test Results
  • News
Documents
CAD Drawings
URL
Technical Data Sheet
pdf
IAPMO UES Evaluation Report

ER-0192

URL
IAPMO UES Evaluation Report

ER-0280

URL
Product Approval

FL10865

URL
Product Approval

FL13975

URL
Brochure
pdf
Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-20

pdf
