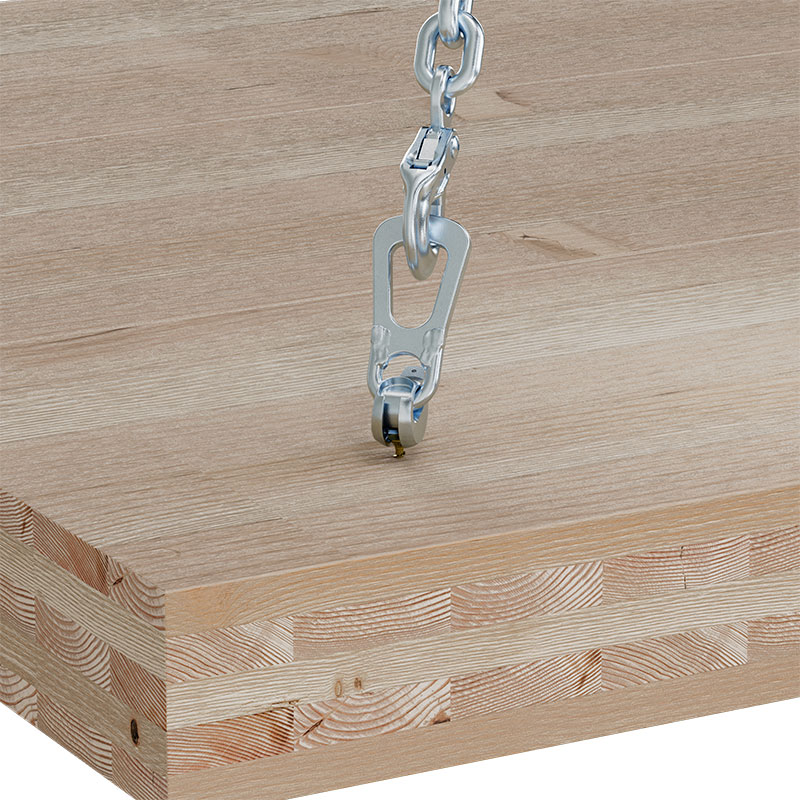

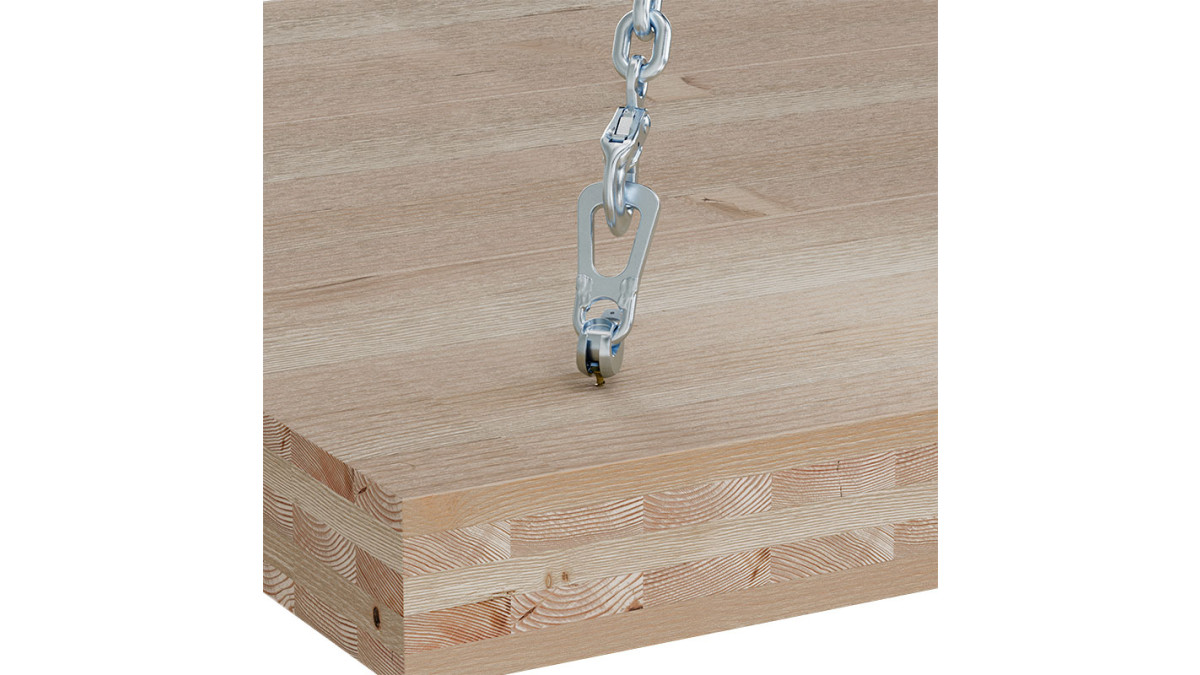

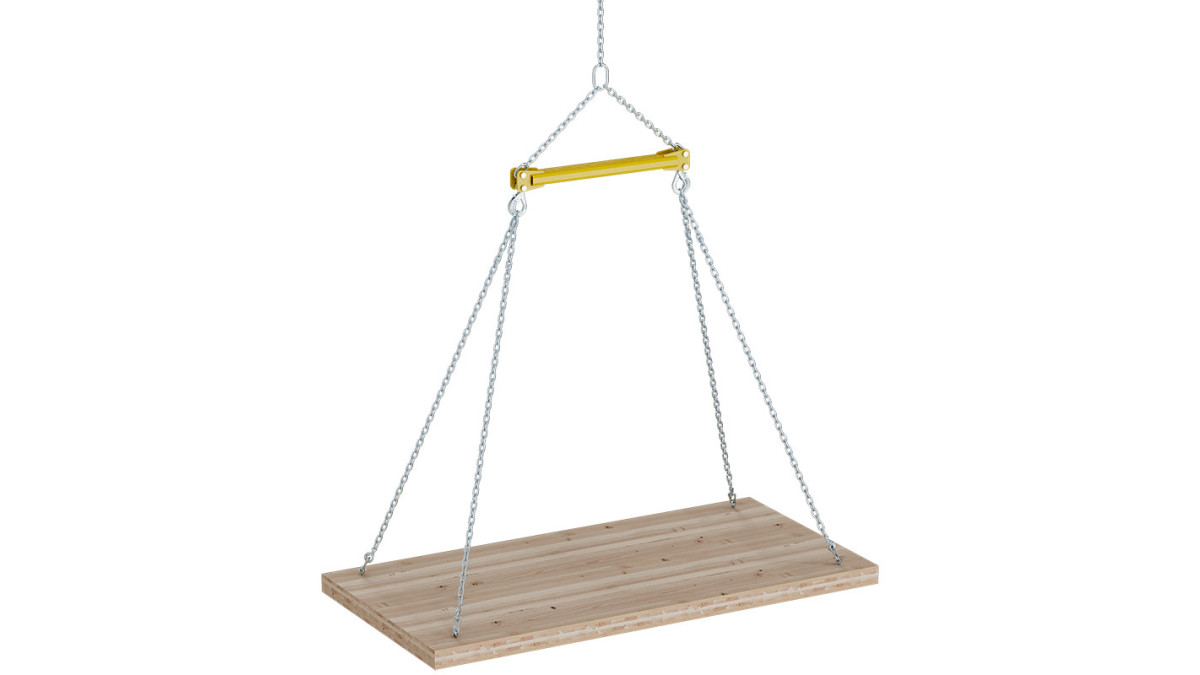

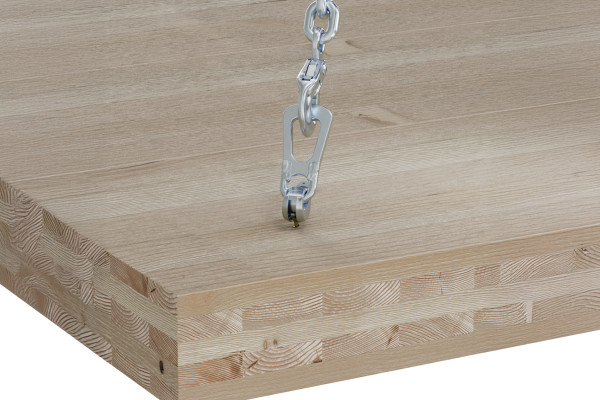

• Attaches to a single screw anchored into the mass timber element

Lifting Device Design and Installation:

• See Lifting Device Design Guide (TEB-C-LIFTING) for general notes and design considerations pertaining to lifting device design and the MTLD.
• Do not use the MTLD until you have read all warnings, disclaimers, instructions and information in TEB-C-LIFTING and T-MT-MTLDUSE.

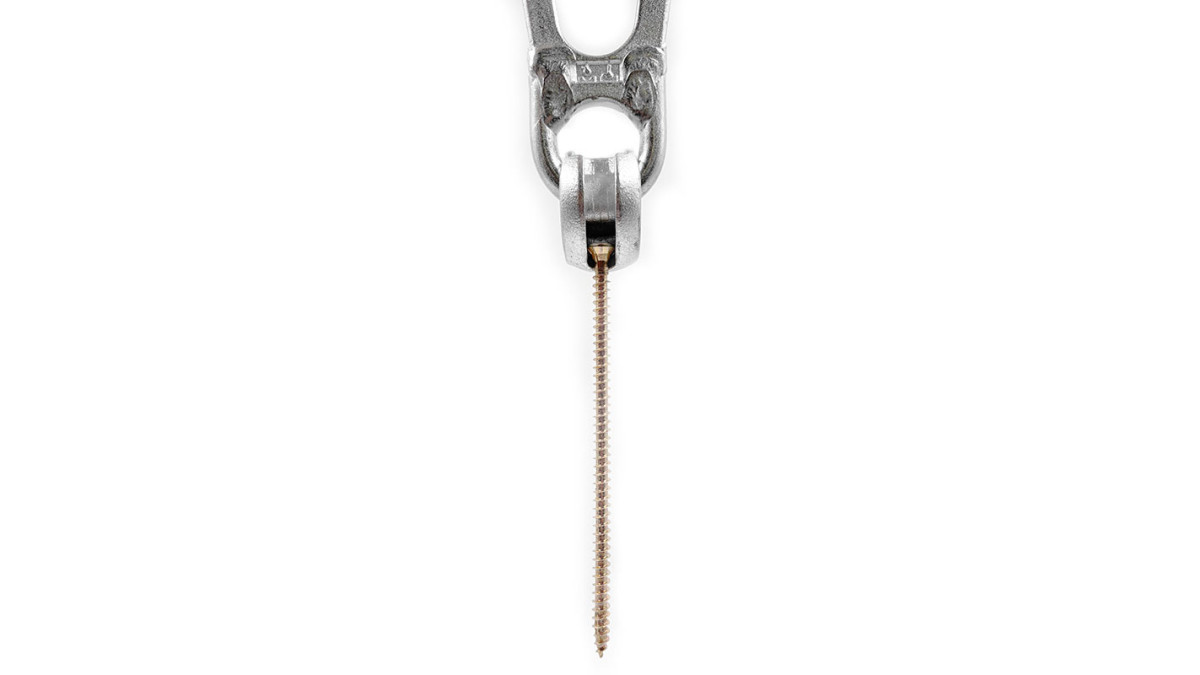

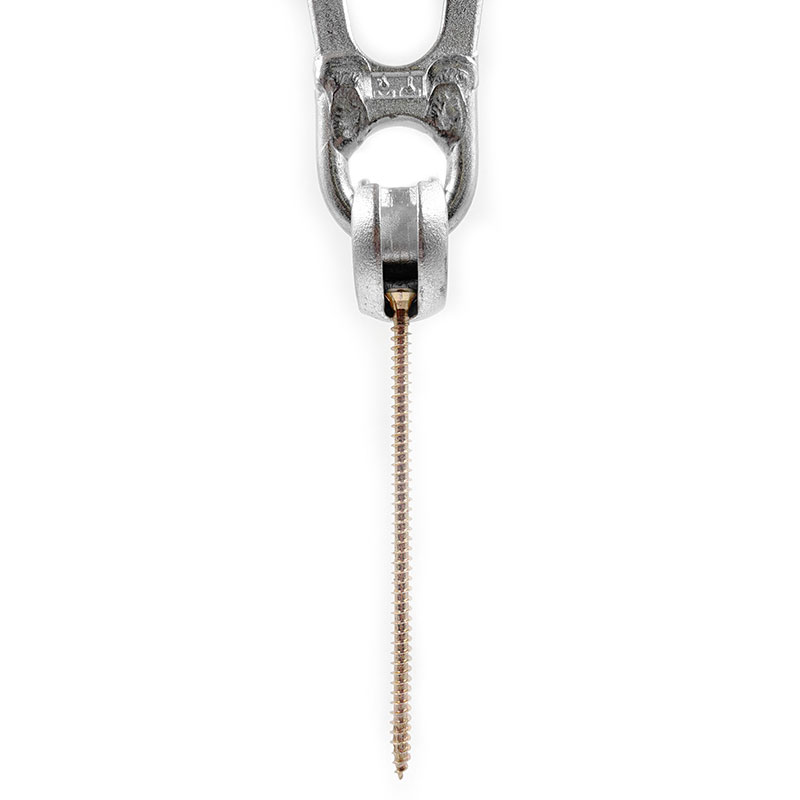

• A qualified design professional must specify screw - Options include Strong-Drive® ESCRFTC10.0x180, ESCRFTC10.0x220 & ESCRFTC10.0x240 (Note: Screw codes and sizes may vary from country to country). Screws may be installed with either drill or impact driver tools in accordance with L-F-MTINSTALL.

• Rated for loads up to 1.3t
• OSHA Section 1926.753(e)(2) compliant
