LUS Double Shear Joist Hanger
Simpson Strong-Tie
All products

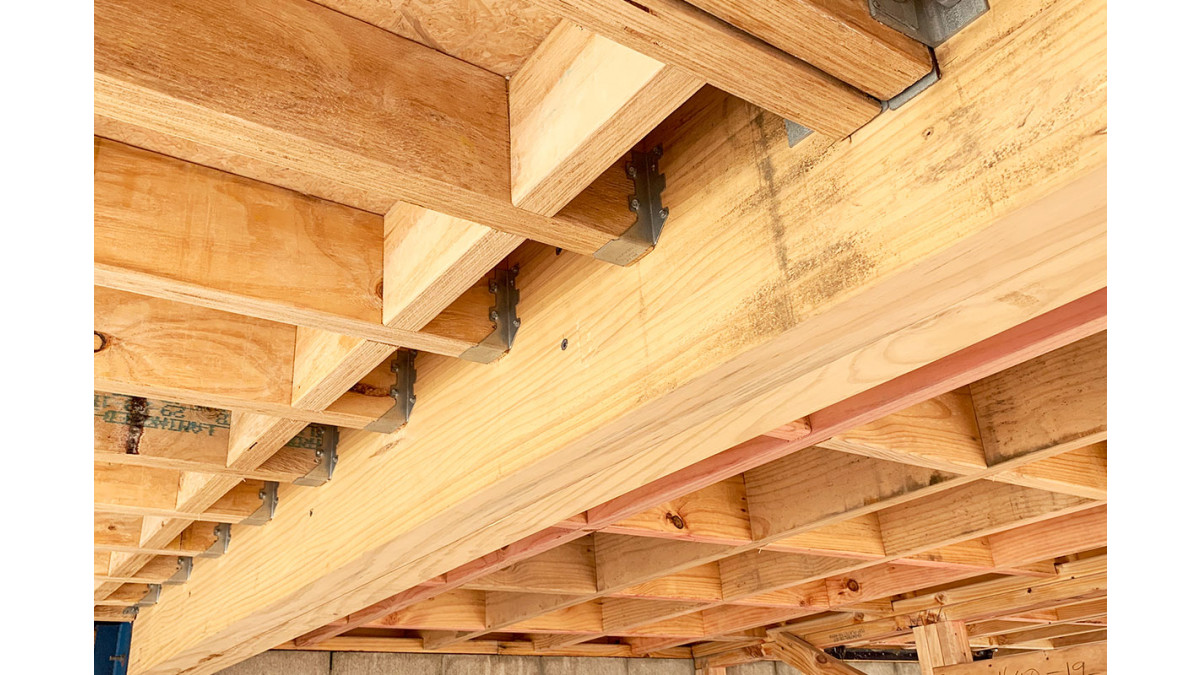

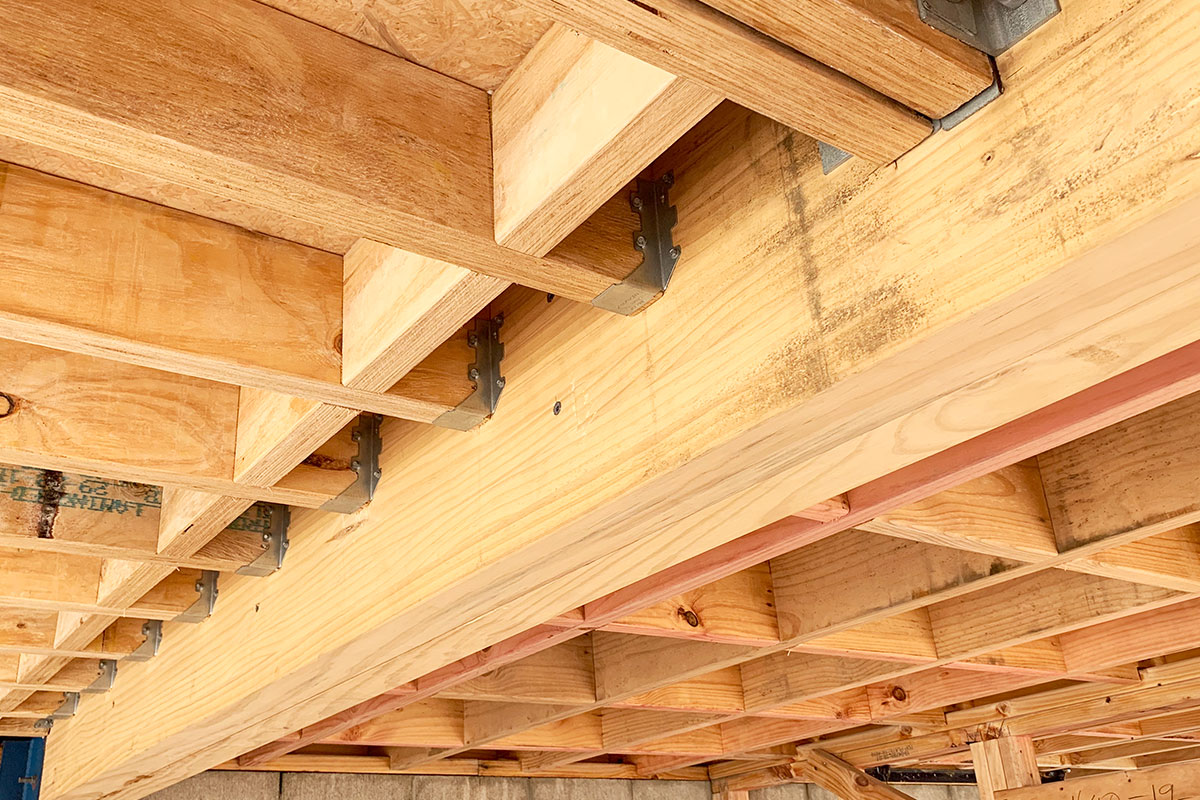

LUS46 Application 01 2

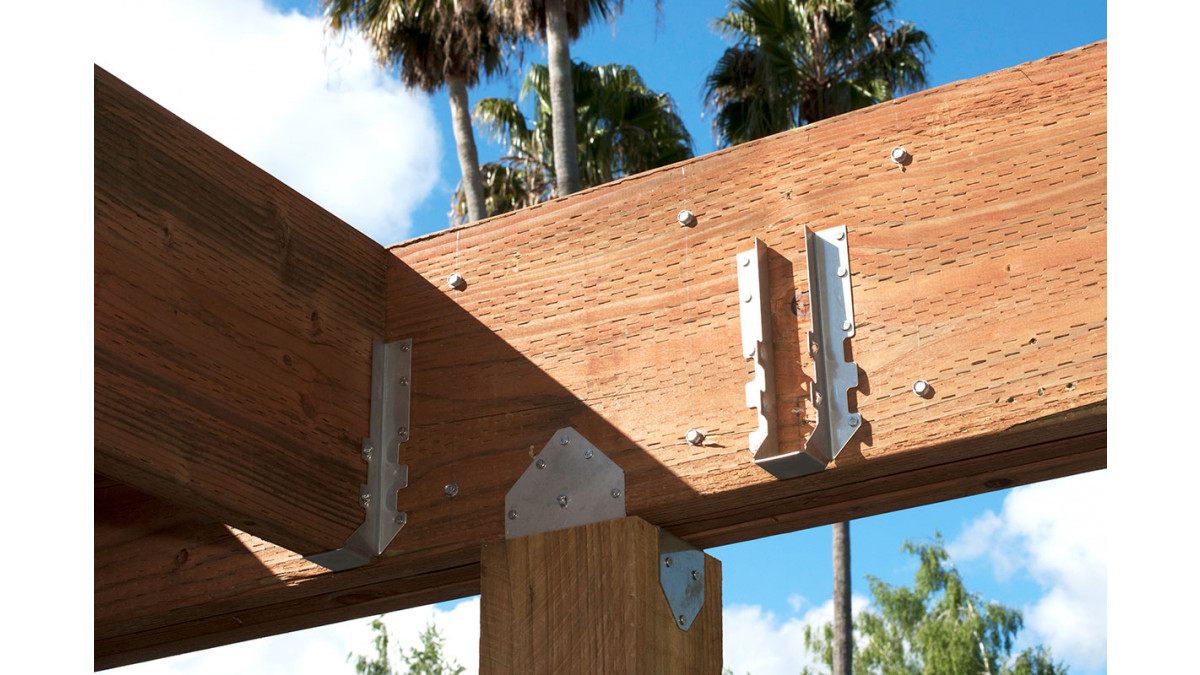

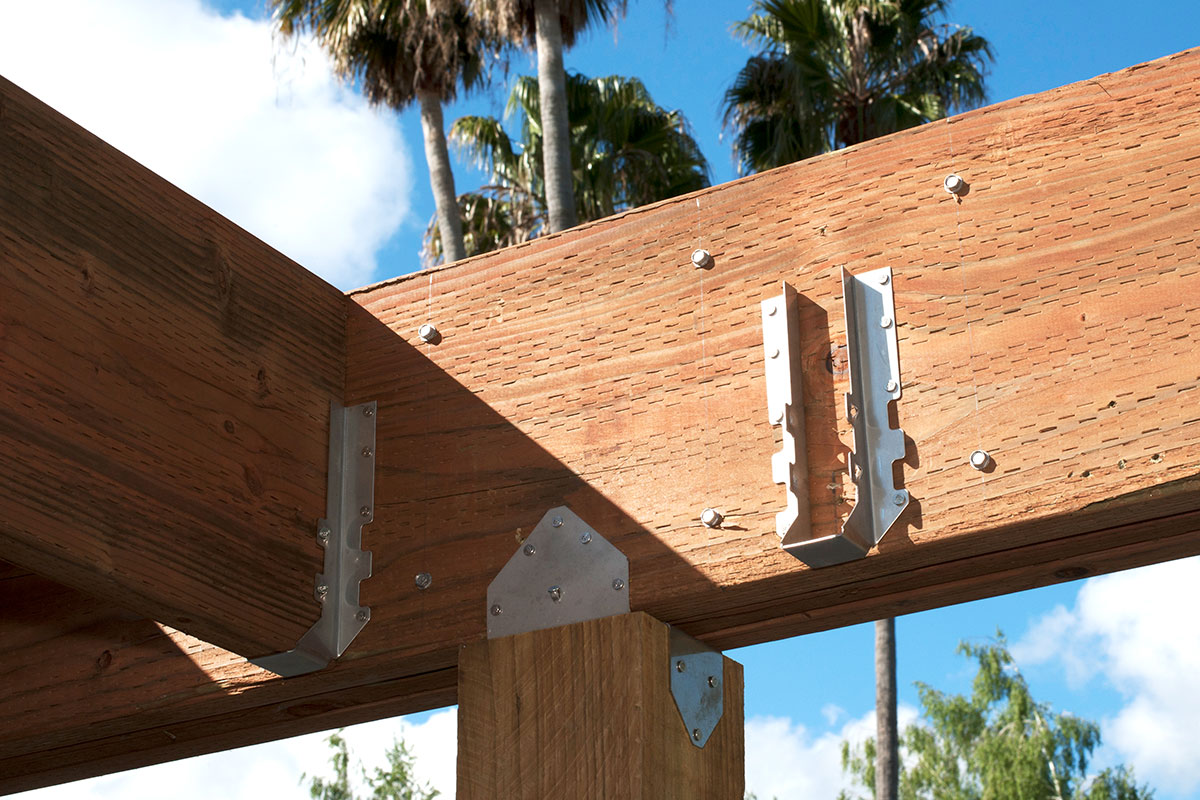

LUS46 Application 02

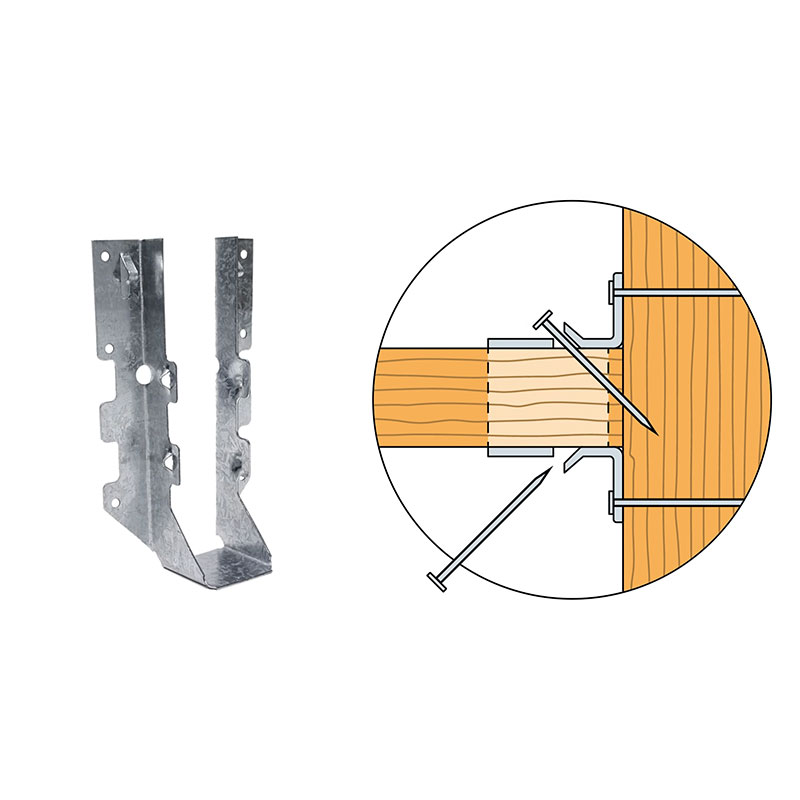

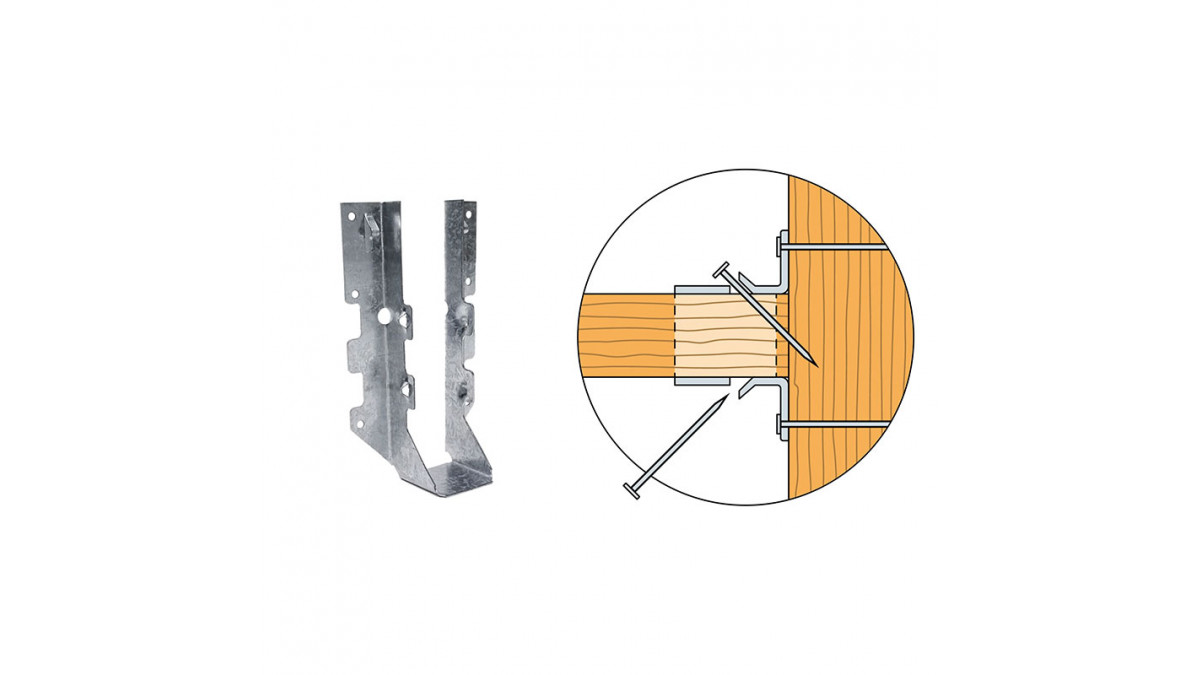

LUS Double Shear Nailing 2

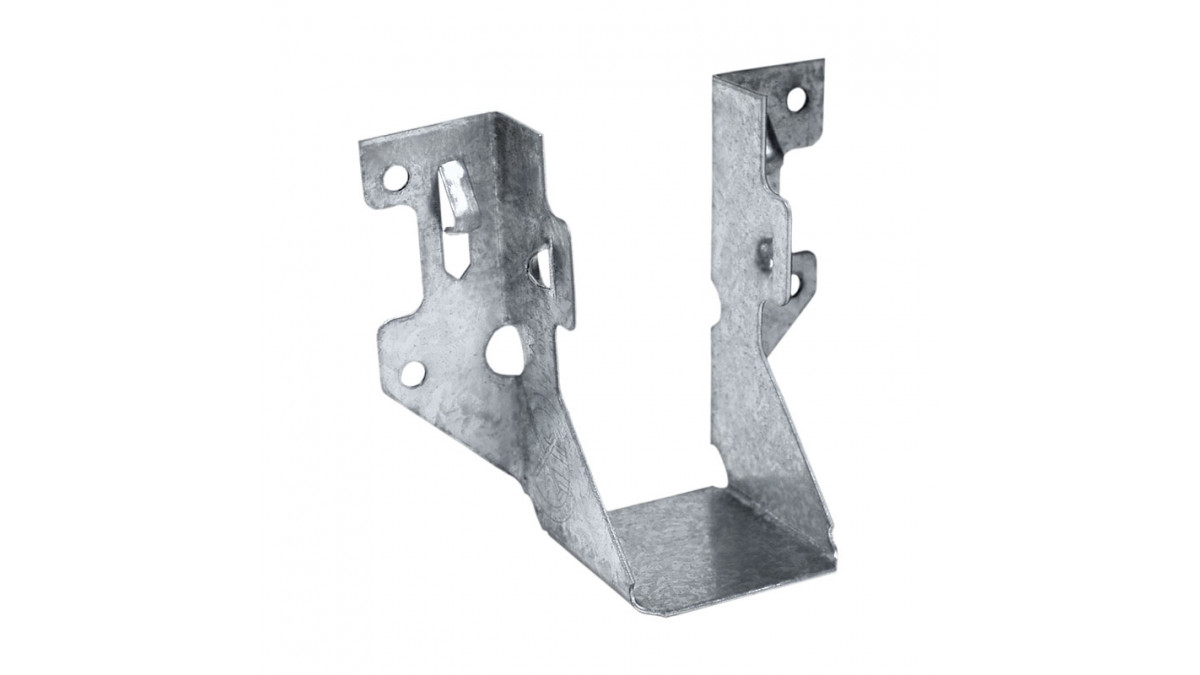

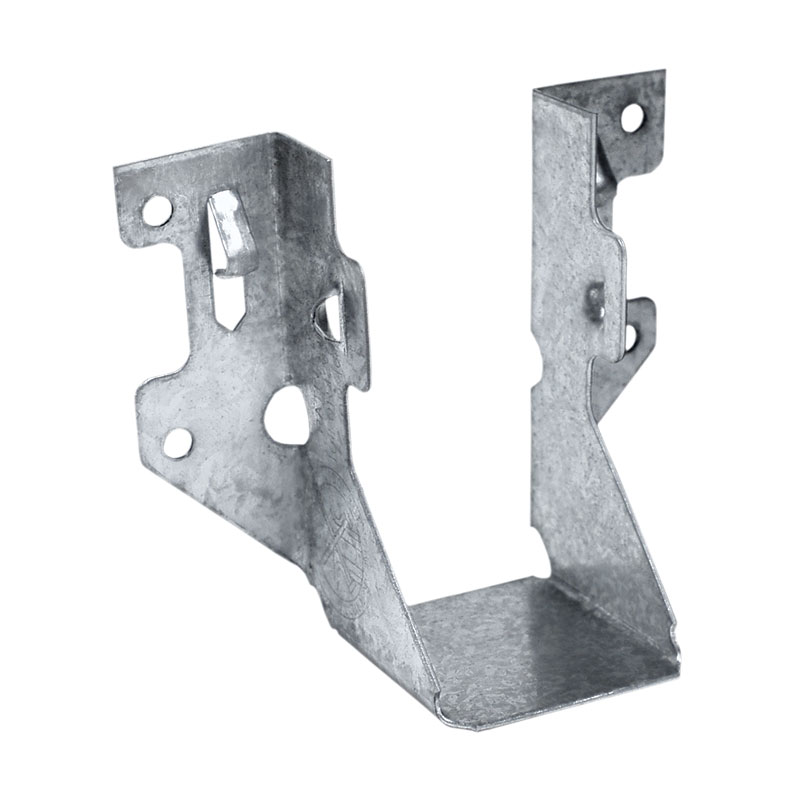

LUS46 77Z

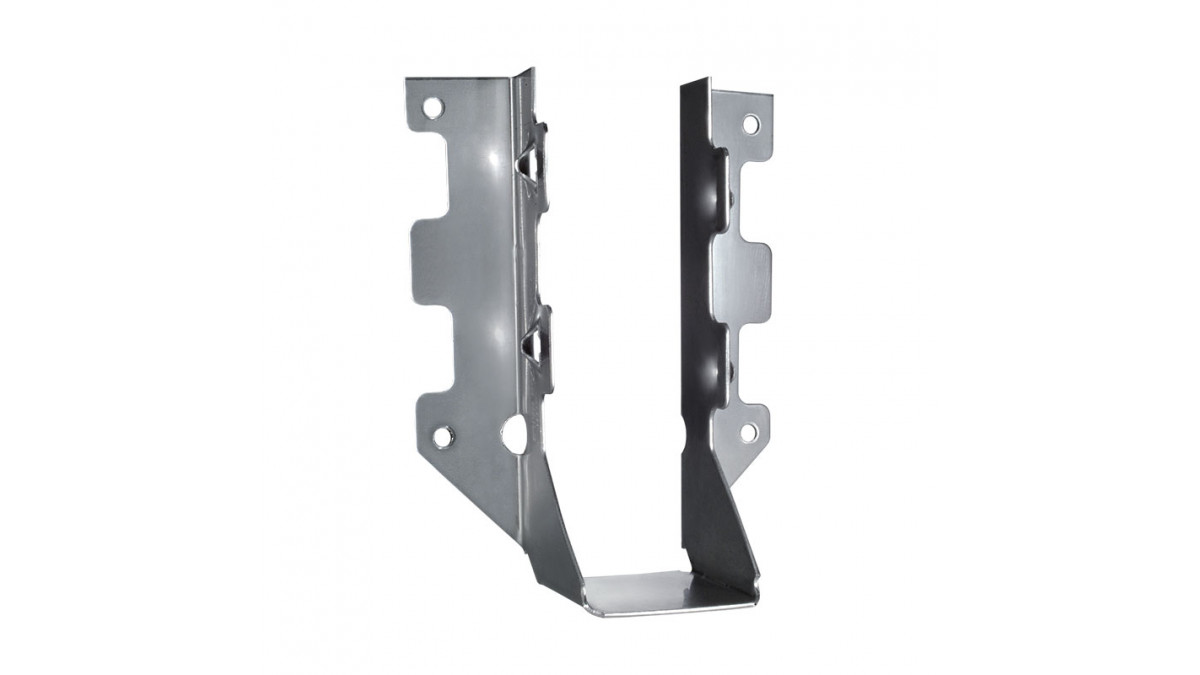

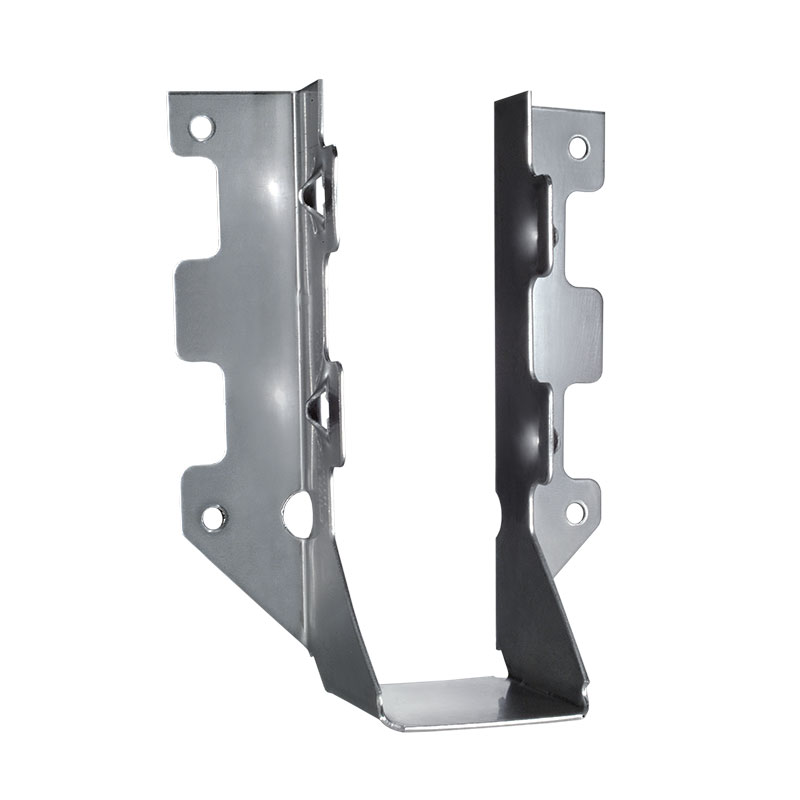

LUS46 118SS

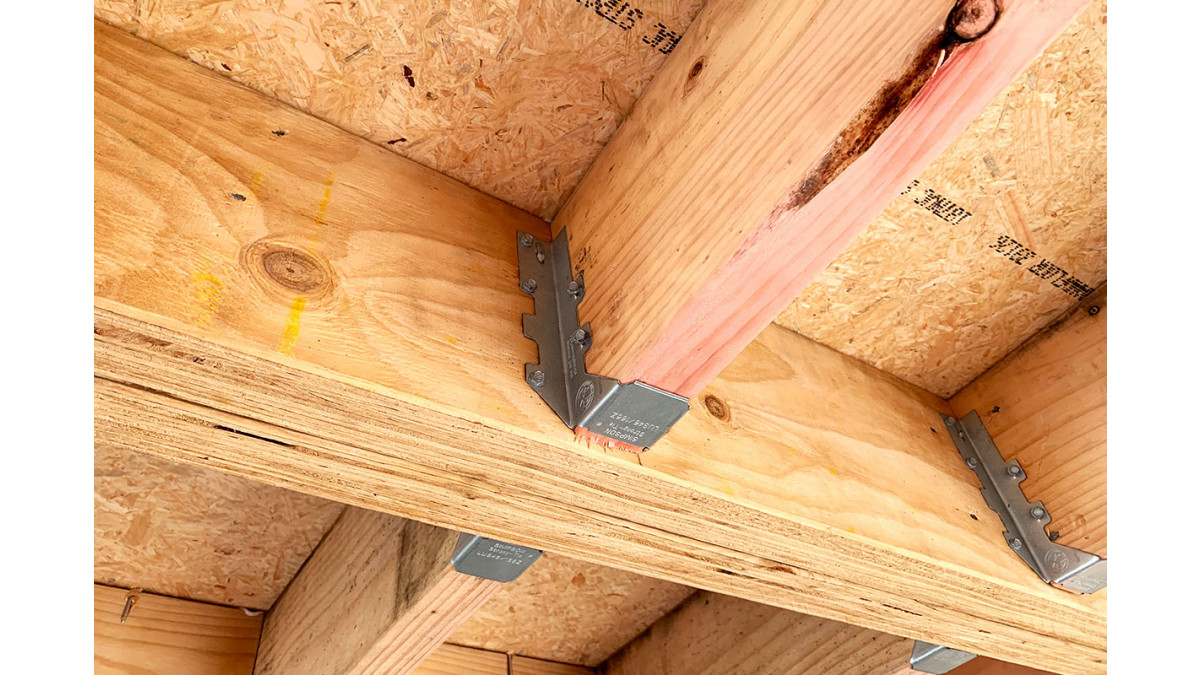

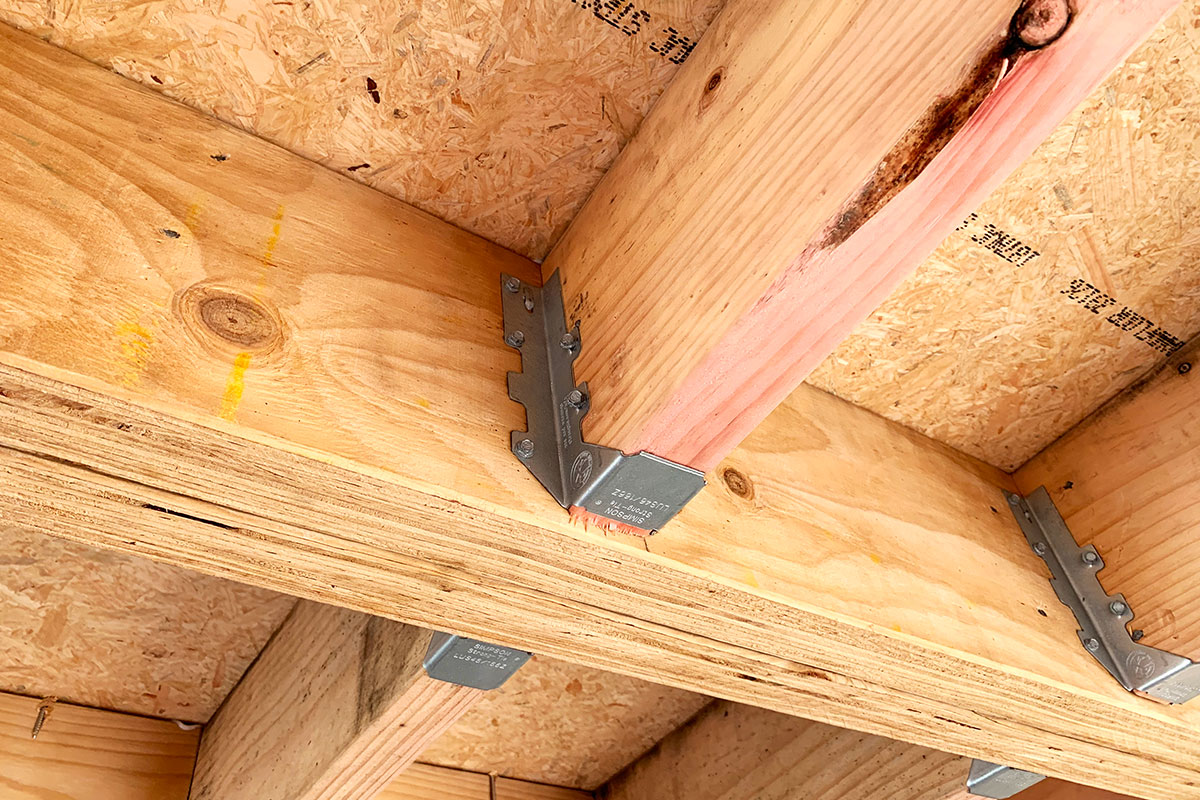

LUS46 Application 01
Description

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. The LUS Double Shear Joist Hanger values engineering at its finest. All hangers in the LUS series have Double-Shear Nailing. This innovation distributes the load through two points on each joist nail for greater strength. It also allows the use of fewer nails, faster installation, and the use of standard nails for all connections.

Key Features
  • Stamp of "Double-Shear Nailing" on the side
  • Patented double-shear nailing design ensures a strong, durable connection (US Patent 5,603,580)
  • Slit width dome guides the nail into the joist at a 45° angle
  • Speed Prongs help to temporarily position and secure the connector for easier and faster installation
  • Angled joist nailing easier in tight spaces
  • Designed for greater strength with fewer fasteners to install
  • The CCN64 Collated Connector Nailer is the perfect companion for the LUS and other Simpson Strong-Tie timber connectors to get the job done with ease and in less time
Categories
Fasteners and Connectors
Ranges
Structural Fasteners and Connectors
Scope of Use
  • Compatible with Strong-Drive® SD screws
  • Available in 316 Stainless Steel for outdoor structures and more corrosive environments such as coastal areas
  • Use SCNR stainless steel nails with LUS stainless steel hangers
Limitations on Use
  • Nails must be driven at a 45° angle through the joist or truss into the header to achieve the table loads
  • Do not bend or remove tabs
Statement of Building Code Compliance
  • LUS Double Shear Joist Hangers are compliant with NZS 3604:2011
B1 Structure compliant
Structure
B2 Durability compliant
Durability
Independent Assessment
Independent Assessment
Test Results
Test Results
  • News
Documents
CAD Drawings
URL
Technical Data Sheet
pdf
ICC-ES Evaluation Report

ESR-2552

URL
ICC-ES Evaluation Report

ESR-3096

URL
Product Approval

FL10655

URL
Installation Guide
pdf
Brochure
pdf
Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-20

pdf
