Heli‑Tie Helical Wall Tie
Description

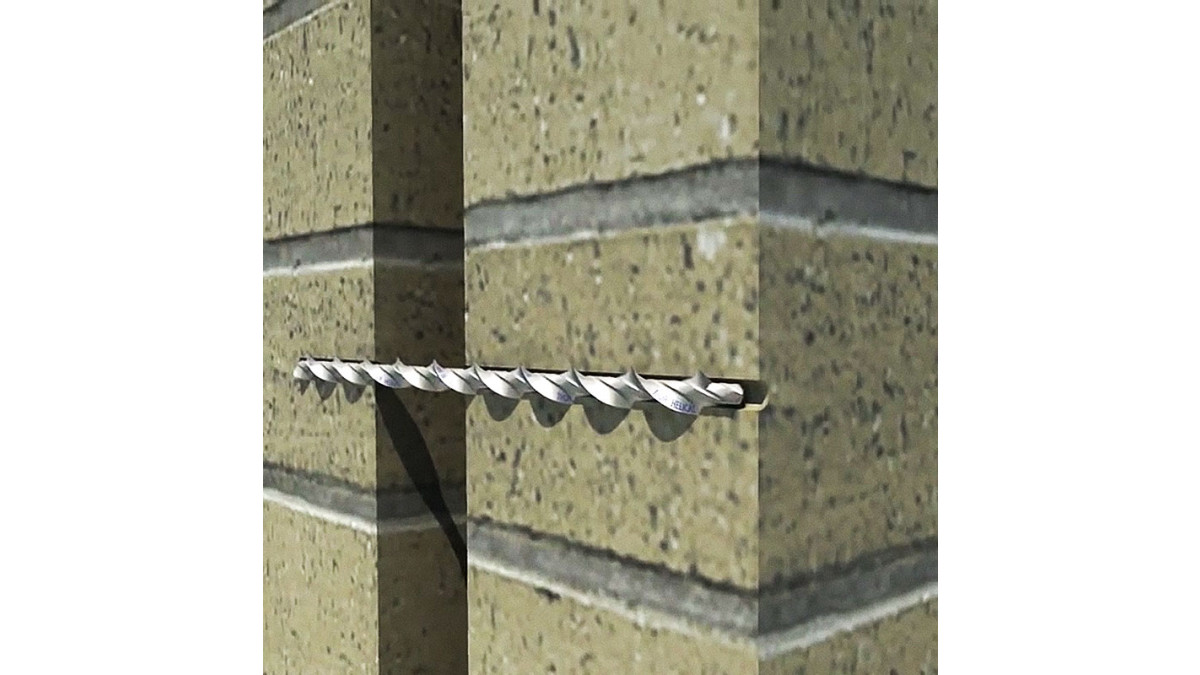

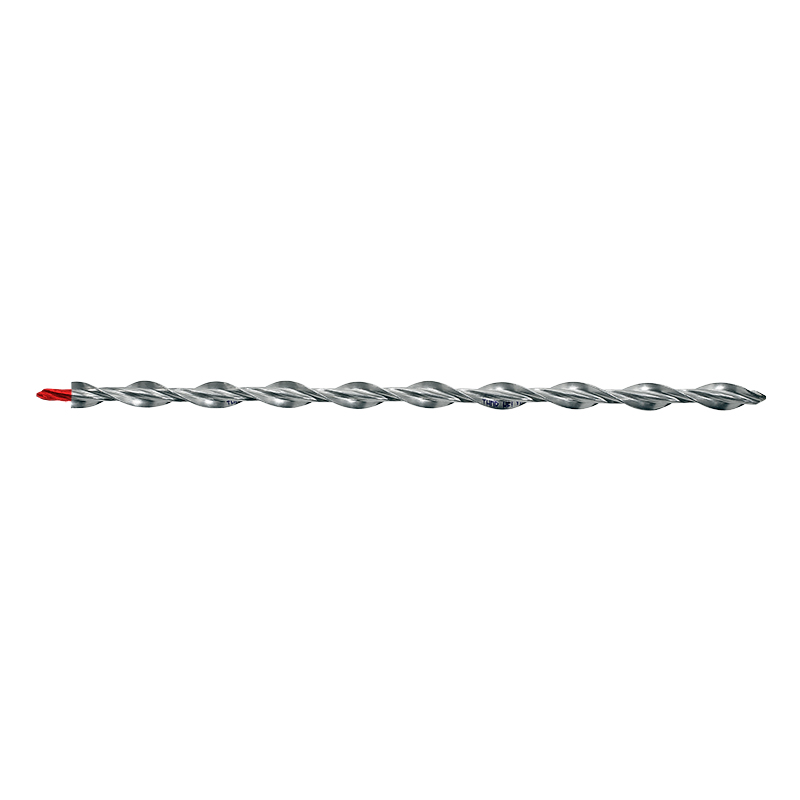

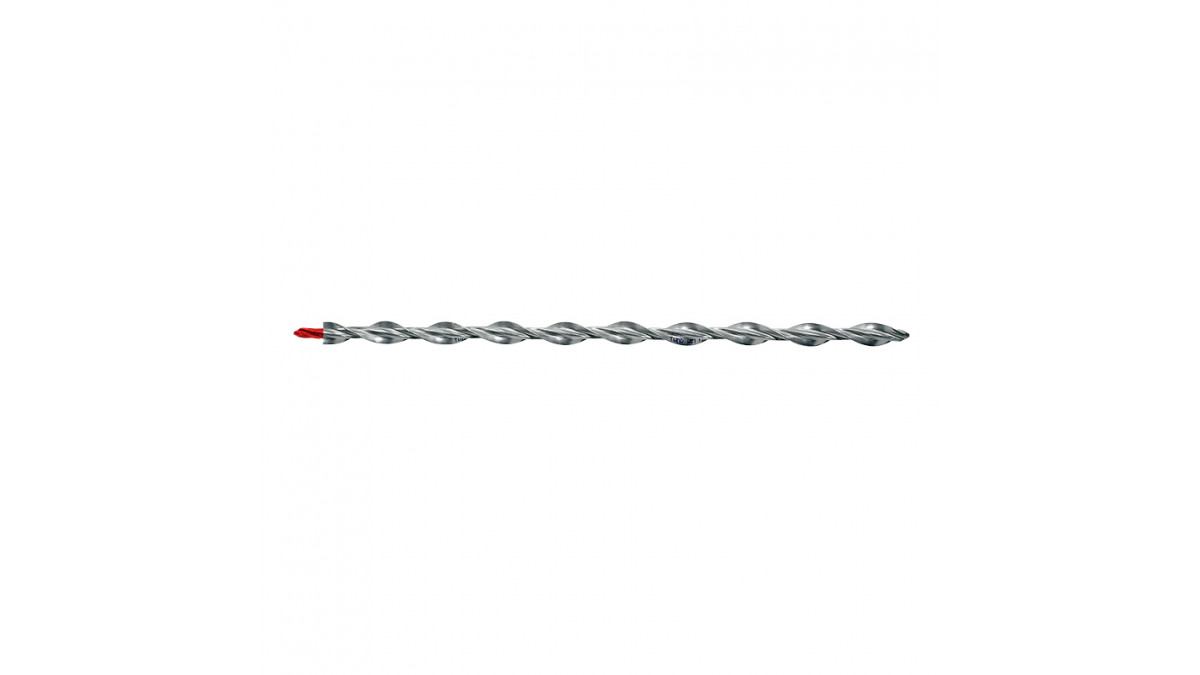

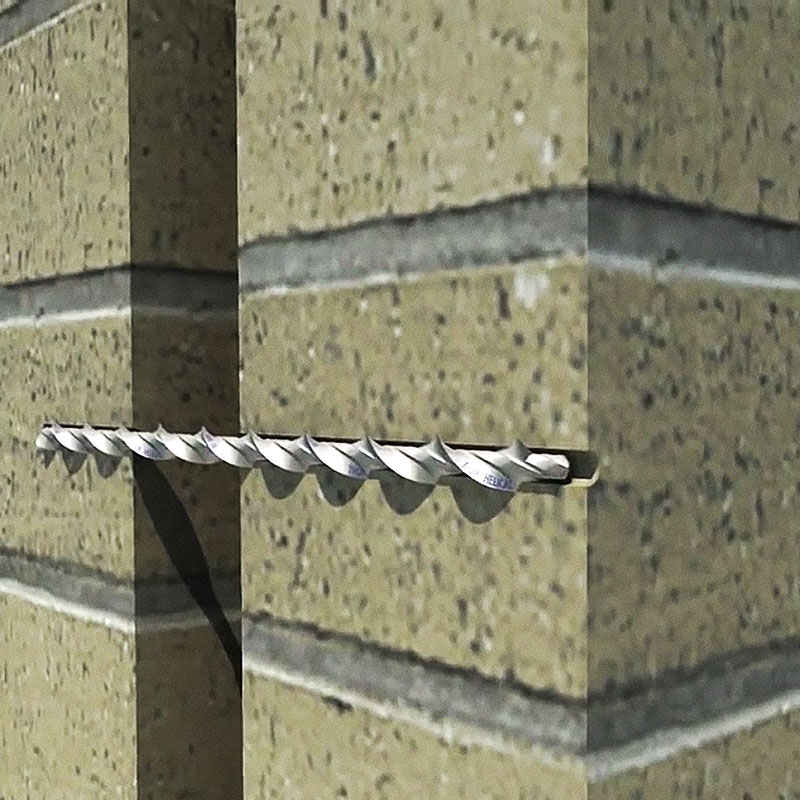

The Heli‑Tie Helical Wall Tie is used to anchor building facades to structural members or to stabilise multi-layer brick or masonry walls. The helical design enables the tie to be driven quickly and easily into a pre-drilled pilot hole (or embedded into mortar joints in new construction).

As it is driven, the fins of the tie undercut the masonry to provide an expansion-free anchorage that will withstand tension and compression loads.

Key Features
  • Can install in the face of brick or into the mortar bed joint
  • Installs quickly and easily
  • Provides an inconspicuous repair that helps preserve a building's appearance
  • 316 Stainless Steel offers superior corrosion resistance when wall cavity exposure exists
  • Patented manufacturing process enables easier driving and better interlock with the substrate
  • Batch number printed on each tie for easy identification and inspection

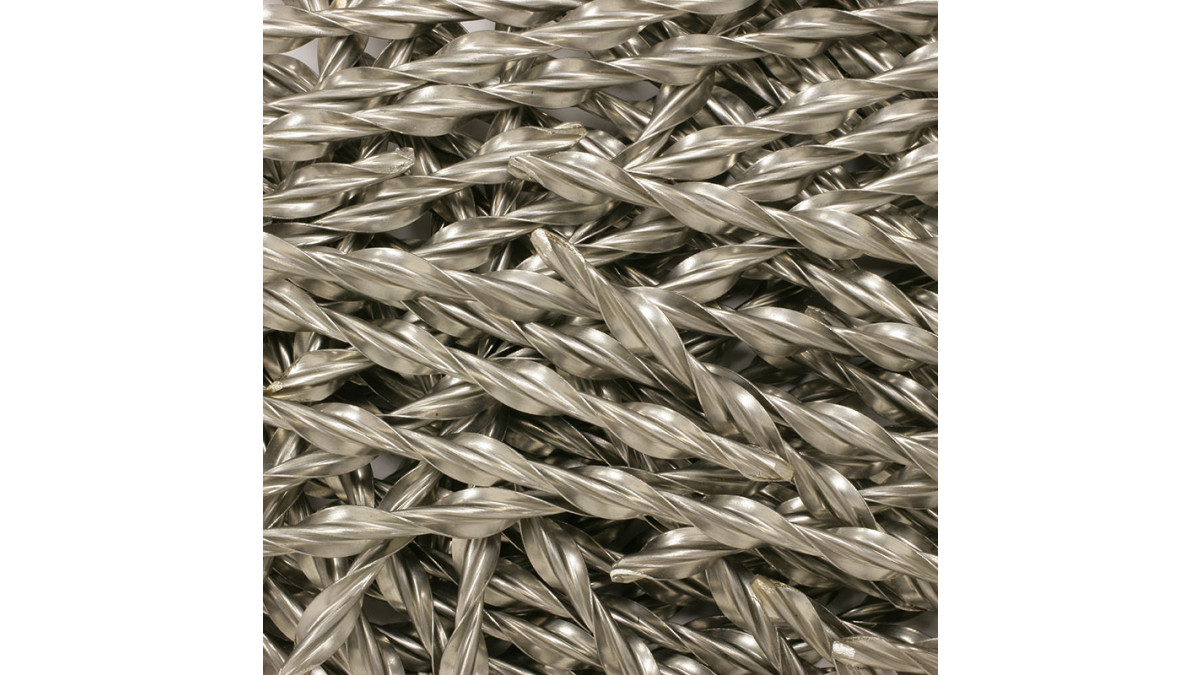

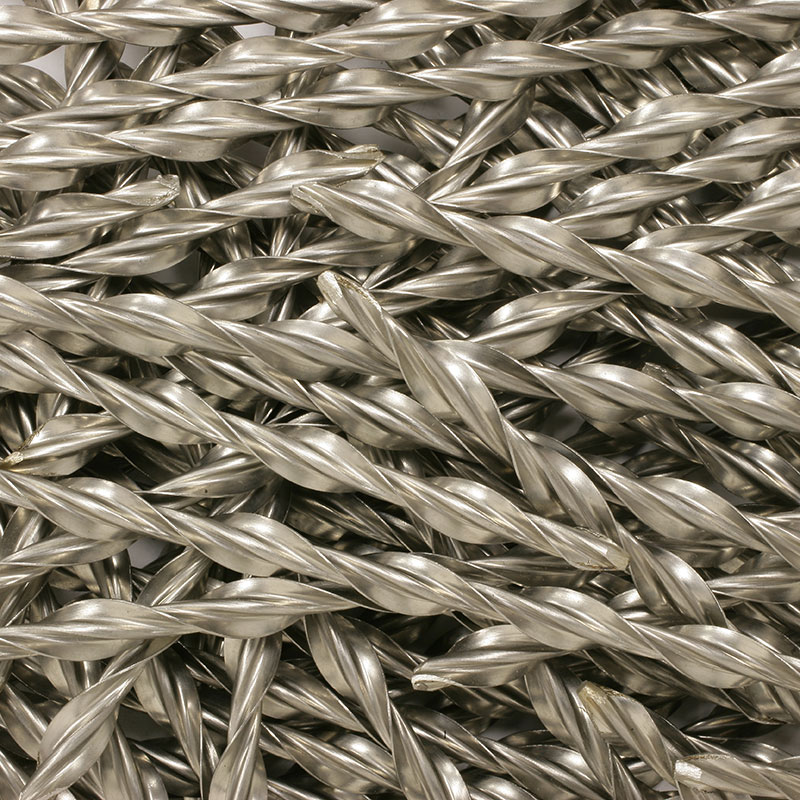

  • Available in pre-cut and a 10m roll
Scope of Use
  • Helical Wall Ties perform in concrete and masonry as well as timber and steel studs
  • Application: Repair of building facades

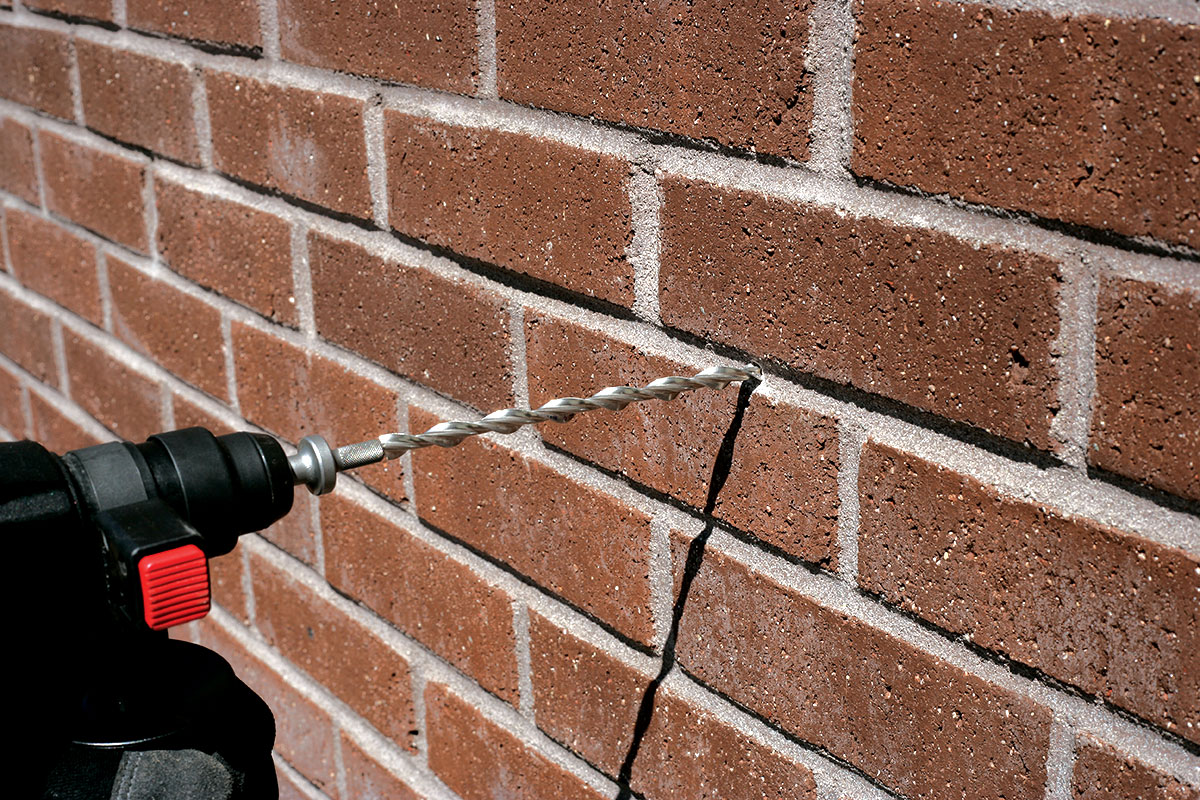

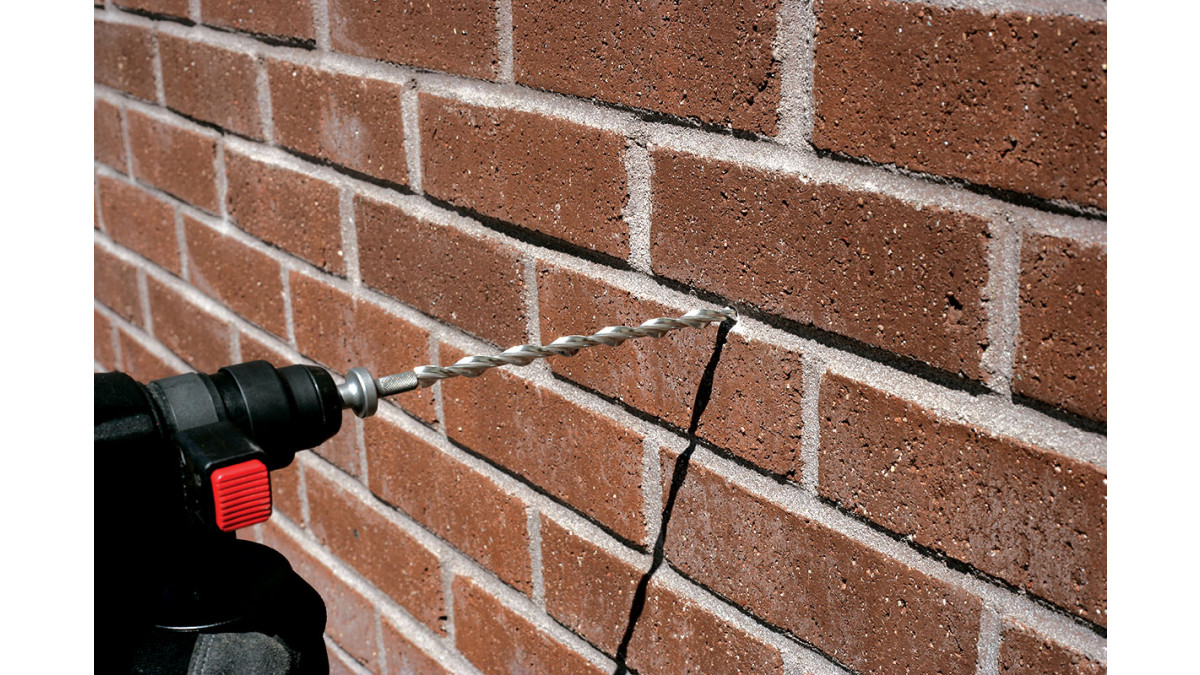

  • Installed using a proprietary setting tool that is used with an SDS-Plus shank rotohammer to drive and countersink the tie
Other Performance Attributes
  • 316 Stainless Steel offers superior corrosion resistance when wall cavity exposure exists
Documents
CAD Drawings
Technical Data Sheet
Installation Guide
Full Catalogue: Anchoring and Fastening Systems

2018

Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-20
