Heli‑Tie Helical Stitching Tie — Restoration & Repair
Description

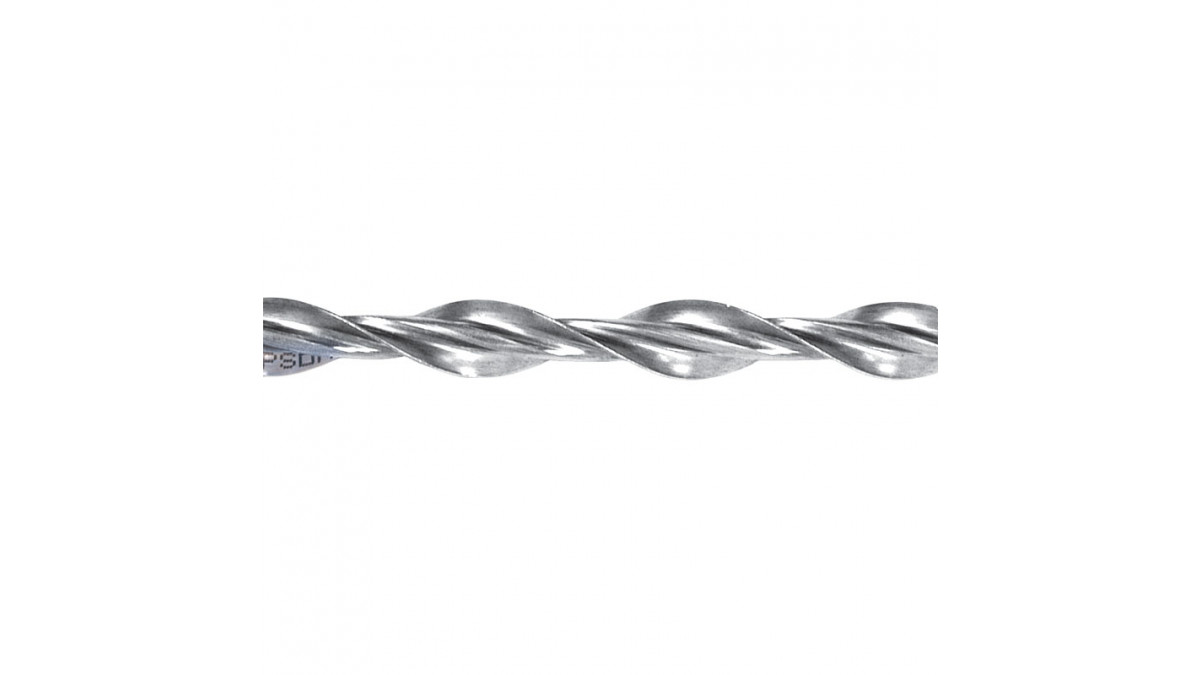

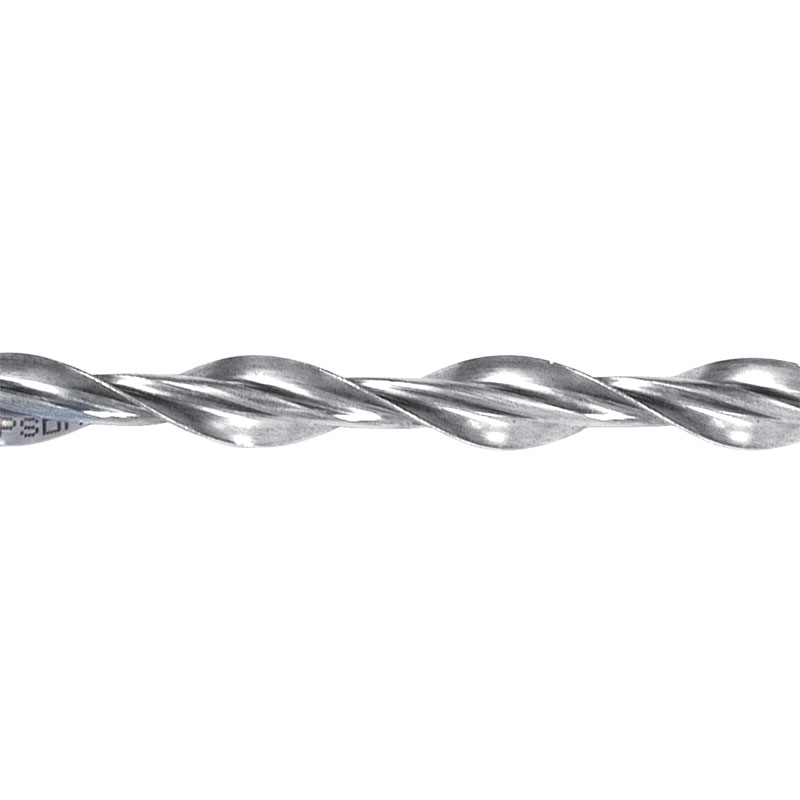

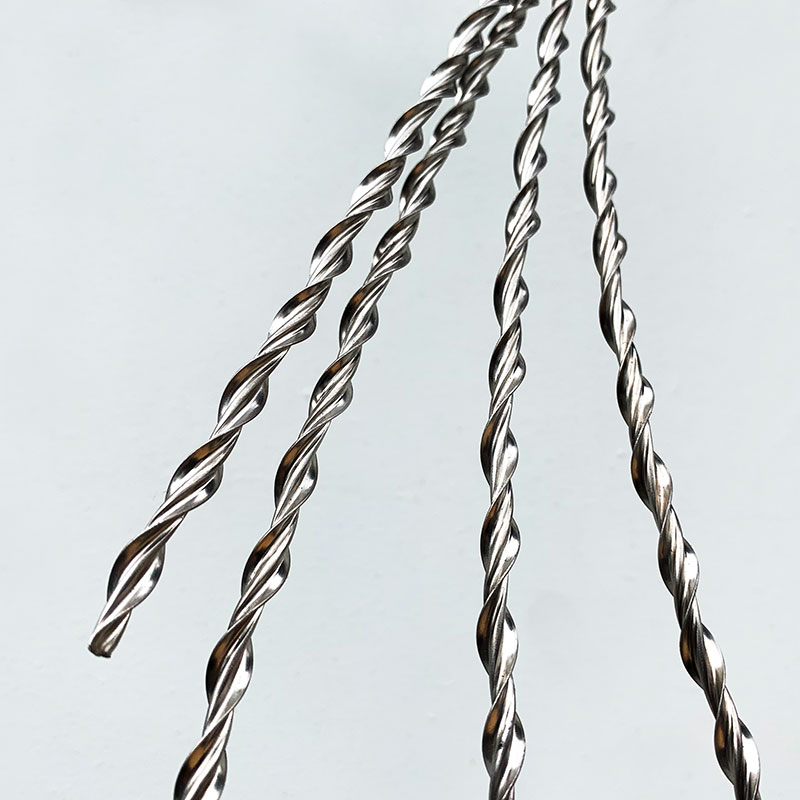

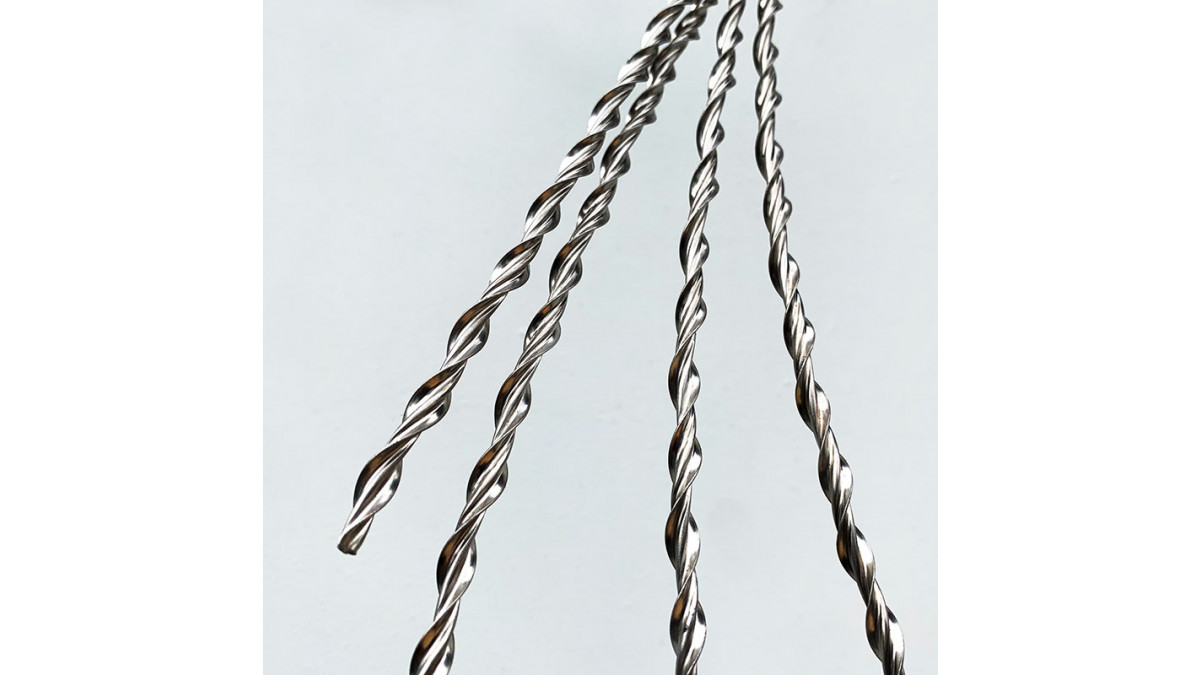

The Heli‑Tie Helical Stitching Tie provides a unique solution to the preservation, restoration or repair of damaged brick and masonry structures. Made of 304 stainless steel, the 6mm diameter tie is installed into the bed joint of damaged or cracked masonry courses using non-shrink repair grout or mortar.

The Heli‑Tie Helical Stitching features radial fins formed on the steel wire via cold rolling process, increasing the tensile strength of the tie.

Key Features
  • Helical design distributes loads uniformly over a large surface area
  • Installs into the mortar joint to provide an inconspicuous repair and preserve the appearance of the structure
  • 304 Stainless Steel offers excellent corrosion resistance to original reinforcement
  • Patented manufacturing process results in consistent, uniform helix configuration (US Patent 7,269,987)
  • Batch number printed on each tie for easy identification and inspection
Scope of Use

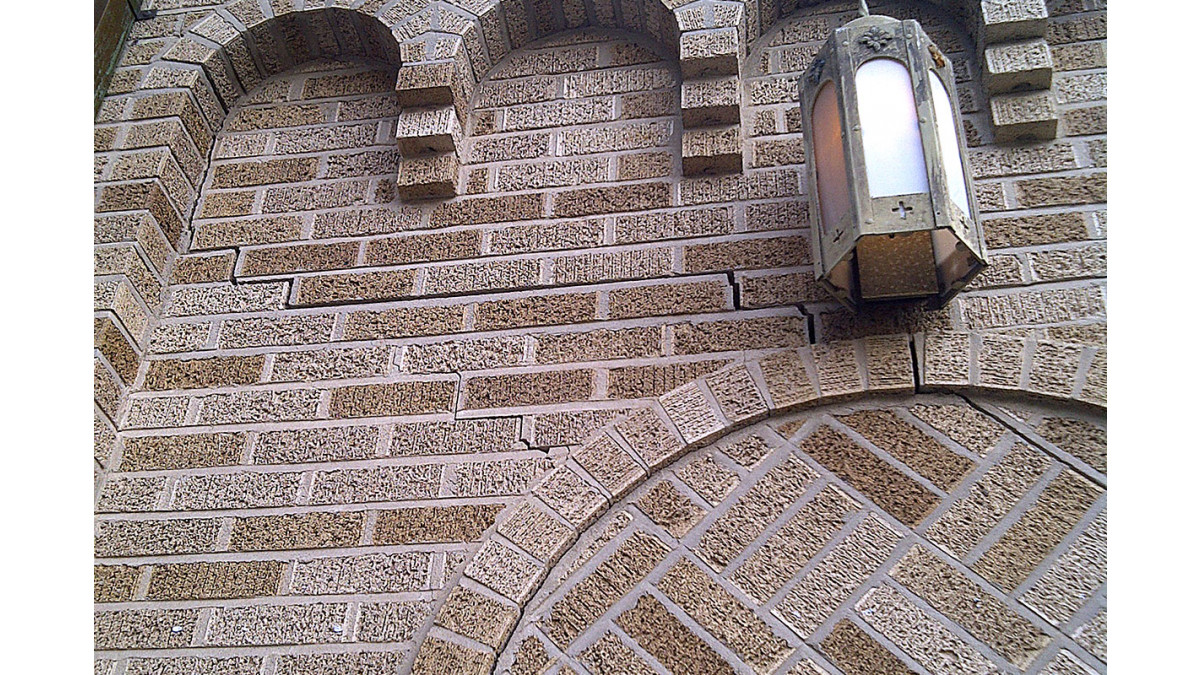

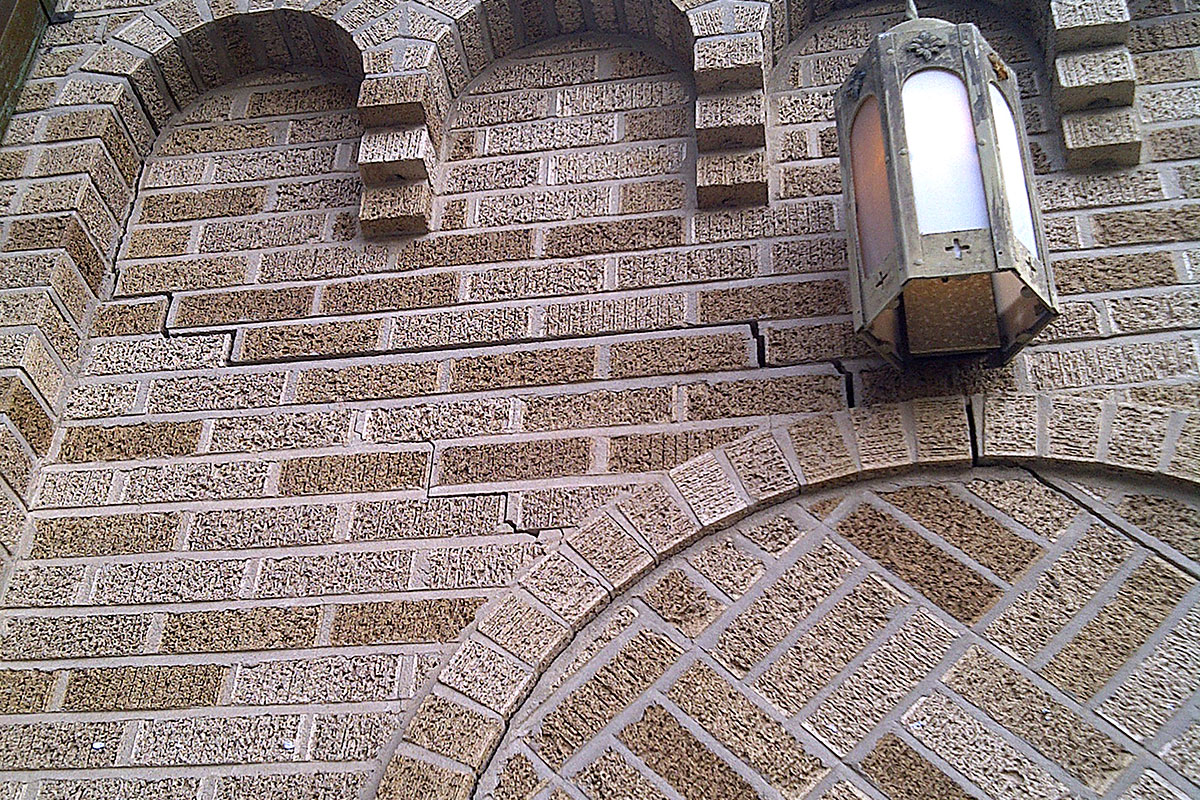

  • Applications: Repair of damaged brick and masonry structures
  • Installs into the mortar joint to provide an inconspicuous repair and preserve the appearance of the structure
Other Performance Attributes
  • Patented manufacturing process results in consistent, uniform helix configuration (US Patent 7,269,987)
  • 304 Stainless Steel offers excellent corrosion resistance to original reinforcement
Documents
CAD Drawings
Technical Data Sheet
Installation Guide
Full Catalogue: Anchoring and Fastening Systems

2018

Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-20

Technical Brochure
