Description

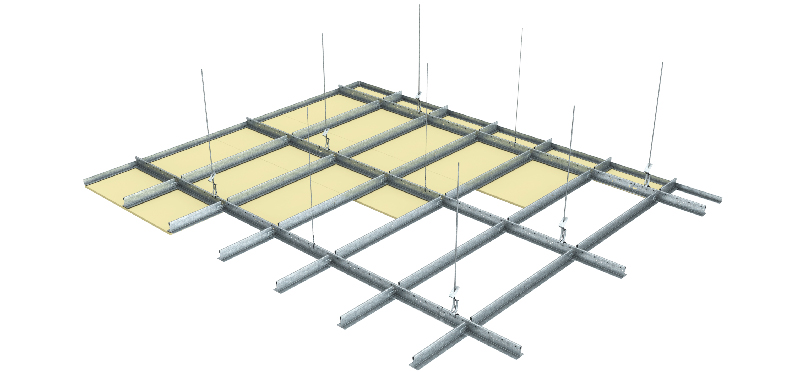

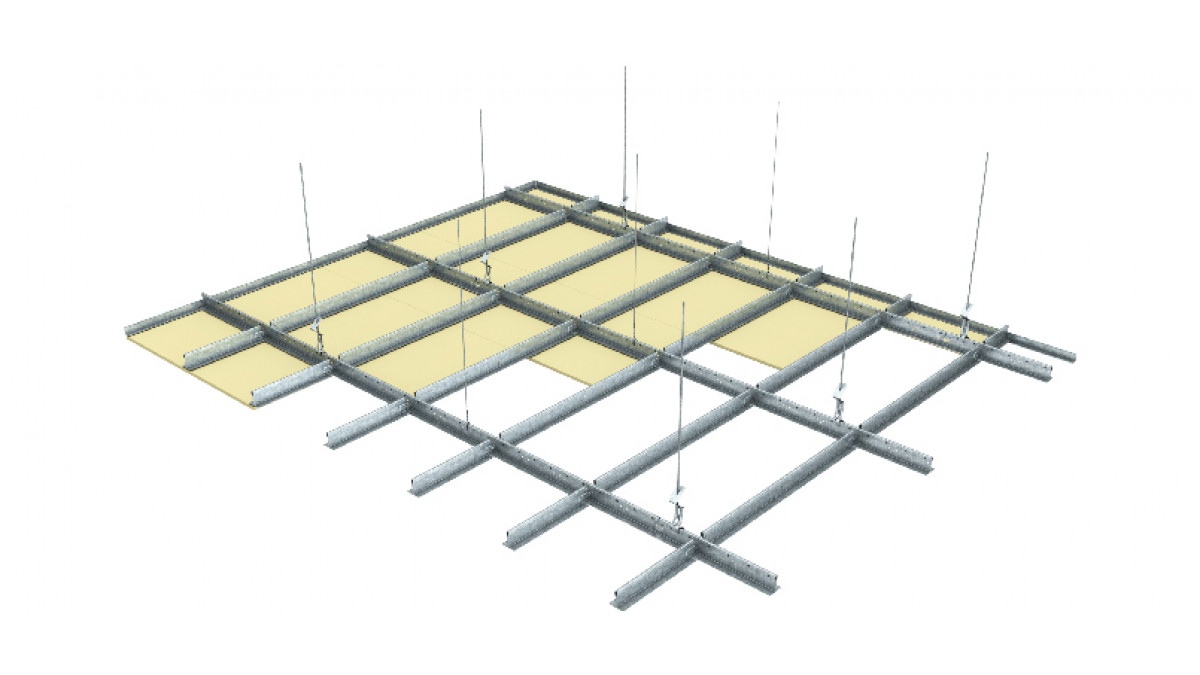

The Rondo XPRESS Drywall Grid Ceiling System is light-weight and simple to install. The Main Tee and Cross Tee connection uses the same patented QRC clip technology that is known and preferred by installers and found in the Rondo DONN Exposed Grid System.

With an ability to be used in acoustic, seismic and fire-rated applications, the Rondo XPRESS Drywall Grid System offers design flexibility for flush ceilings, bulkheads and boxed soffits.

Transitions between exposed and concealed grid ceilings are made possible with the Rondo XPRESS Drywall Grid Ceiling being fully compatible with the DONN Grid Ceilings.

Components:

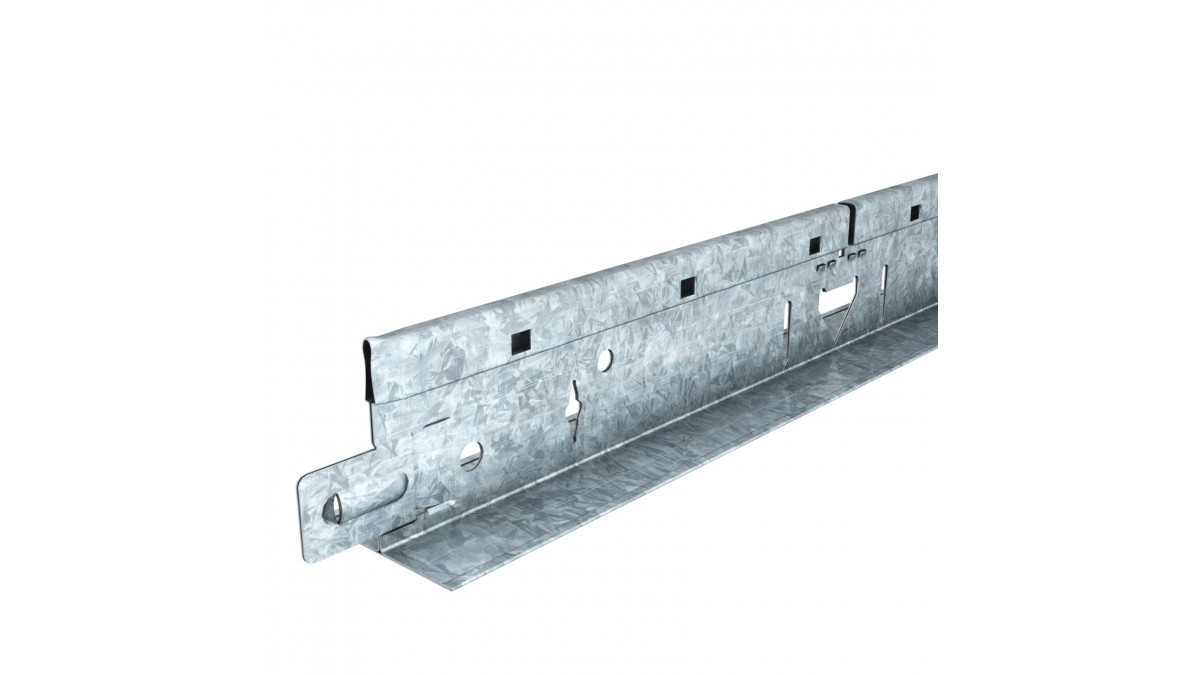

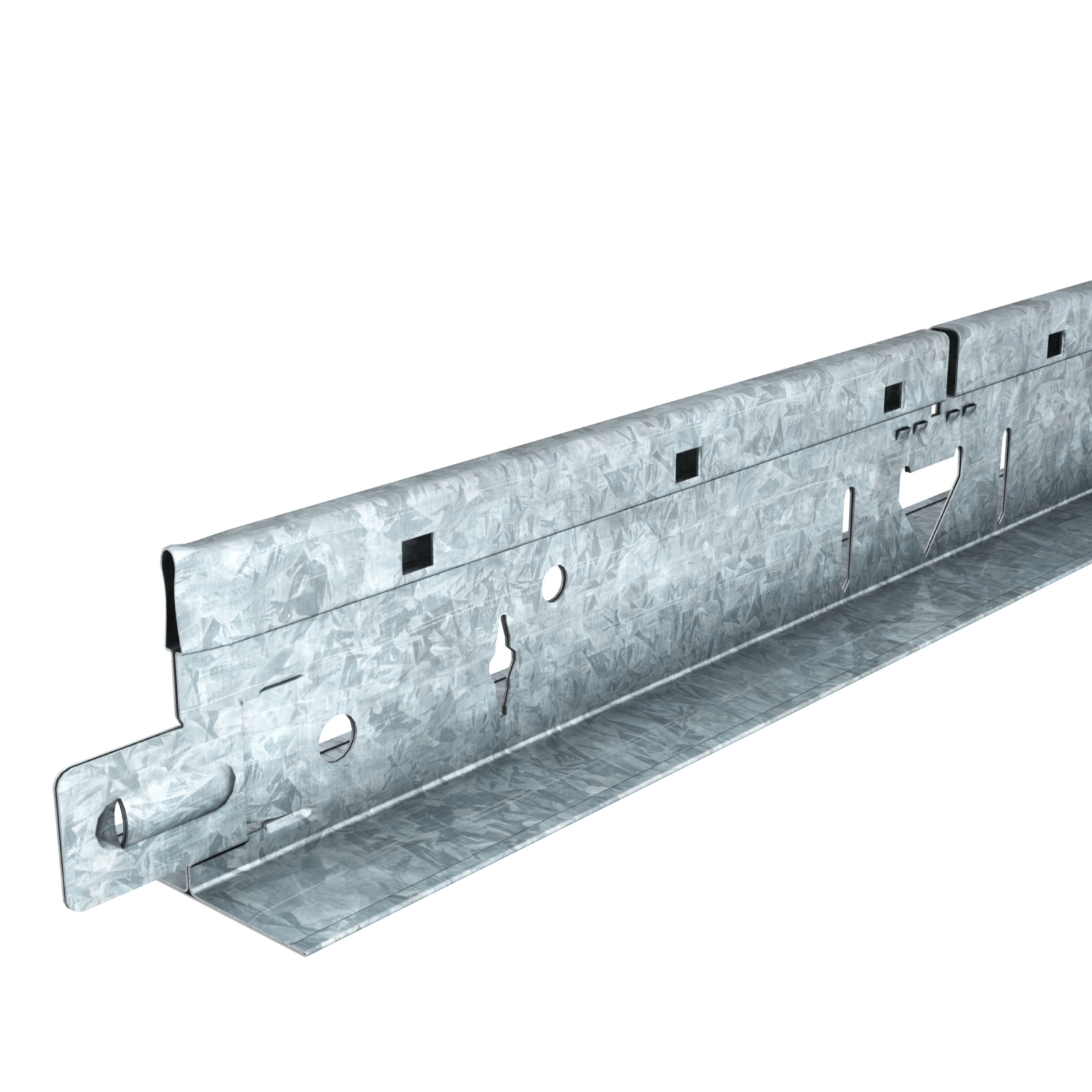

Main Tees

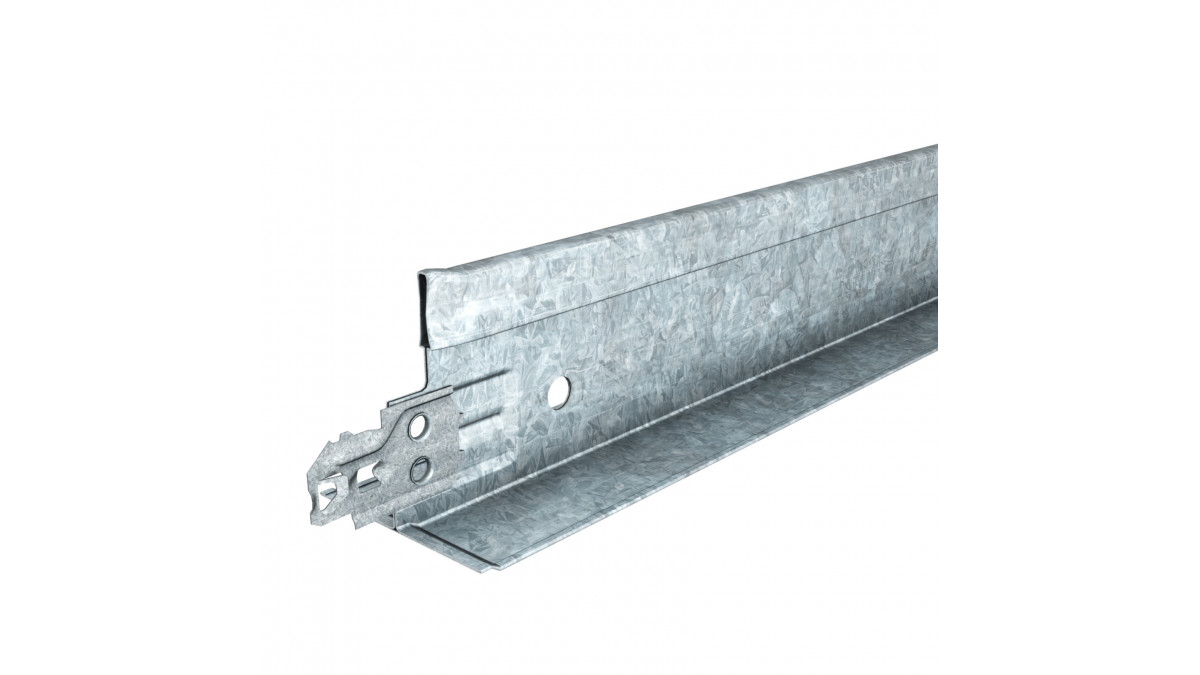

Cross Tees

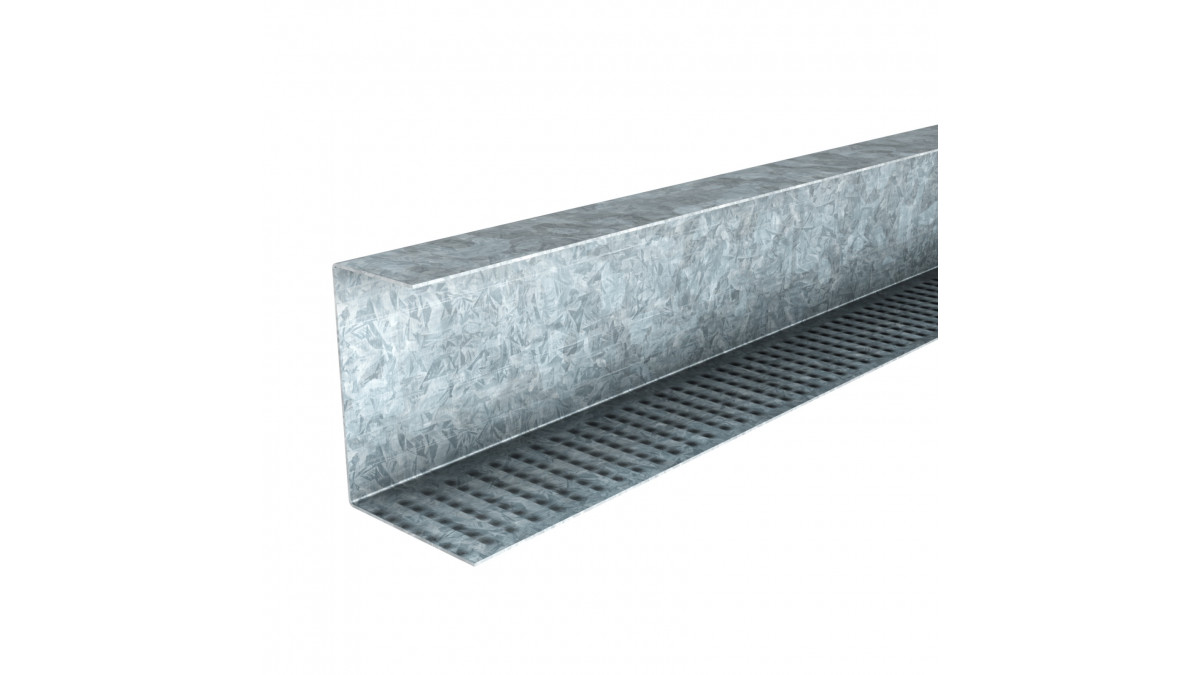

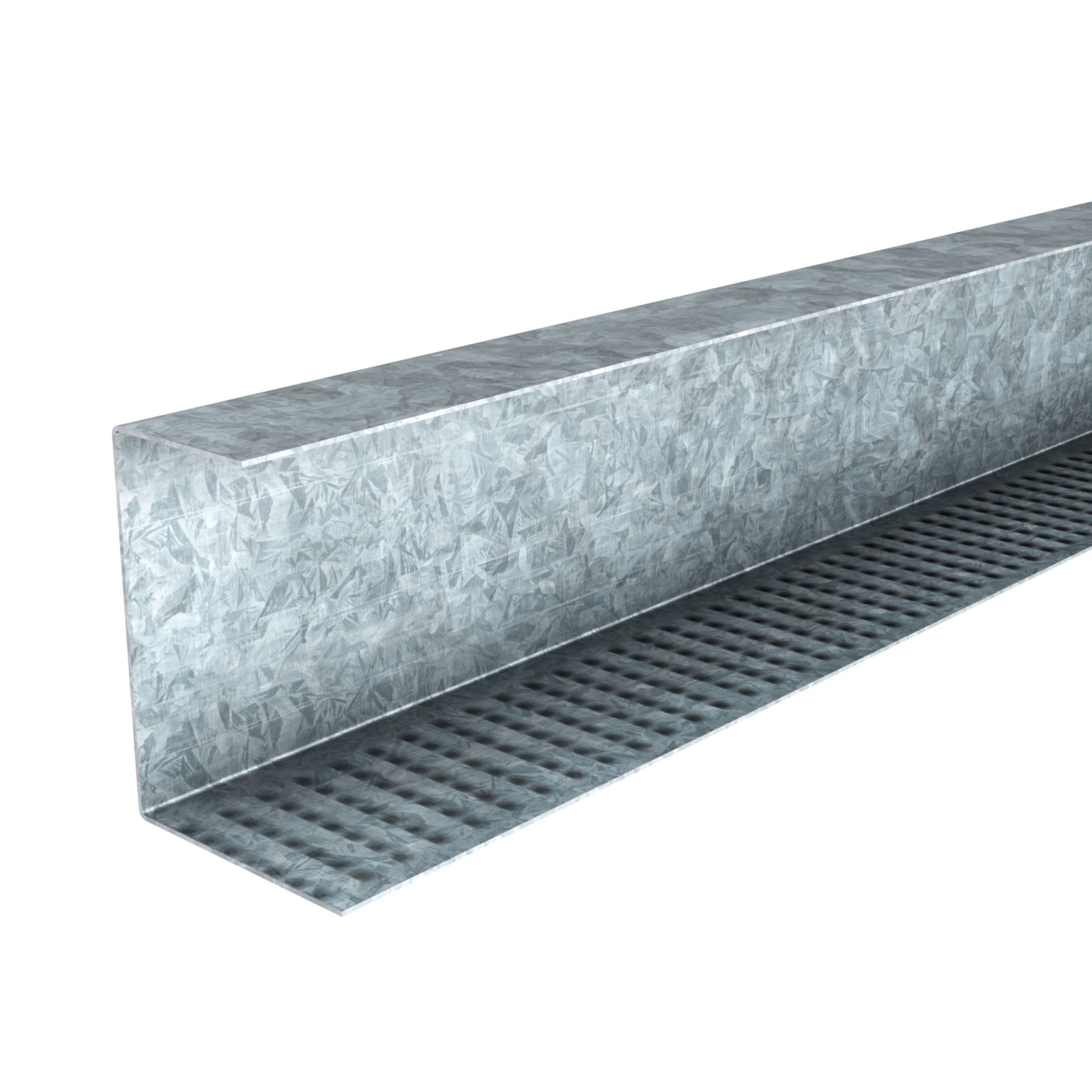

Wall Trims

Key Features

Surface Finish: Z275 galvanised
Easy integration with Rondo Exposed Grid Ceiling Systems
Accepts conventional light fixtures, air conditioning services and access panels
Main Tee and Cross Tee clips have a secure connection and are easy to remove and relocate
QRC Clip Technology

Scope of Use

Suitable for:
- Concealed ceiling systems
- Plasterboard, fibrous plaster and fibre cement linings
- Direct fix or fully suspended applications
- Seamless transitions from a concealed to exposed grid ceilings
- Bulkheads and boxed soffits
- Corridors, without the use of suspension hangers
- Fire-rated applications
- Seismic requirements
- Acoustic requirements
Integrates with Rondo DONN Exposed Grid Ceiling System allowing transitions between exposed and concealed grid ceilings

Limitations on Use

The Rondo XPRESS Drywall Grid is a non-trafficable ceiling system
Rondo recommends its products and systems are installed by a qualified tradesperson and according to the relevant codes and standards
In addition to the information in the DONN Design Manual professional advice should be sought

Fire Rating:

The Rondo XPRESS Drywall Grid Ceiling System has been tested and certified for varying Fire Resistant Ratings (FRR/FRL) but only with appropriate board manufacturer Fire Rated Gypsum Boards
Reference should be made to the board manufacturer for relevant test data information

Seismic Design:

Reference is made in this manual to seismic specific components and design criteria of the Rondo XPRESS System
For seismic specific project design specifications and full advice please contact Rondo Building Services direct

Statement of Building Code Compliance

Rondo Building Services uses the following Standards in its manufacturing, testing and marketing policies for compliance with the New Zealand Building Code:

AS/NZS 1170 Structural Design Actions
AS 1397 Continuous hot-dip metallic coated steel sheet and strip — Coatings of zinc and zinc alloyed with aluminium and magnesium
AS/NZS 2785 Suspended Ceilings, Design and Installation
AS/NZS 4600 Cold Formed Steel Structures Code
NZS 1170.5 Earthquake Loads
NZS 4219 Specification for Seismic Resistance of Engineered Systems in Buildings

NZBC:

B1/VM1 NZ Building Code Verification Method
B1/VM1 Clause 2
B2 Durability: Rondo XPRESS Drywall Grid System will have a minimum serviceable life of 15 years when installed in a dry, noncorrosive, interior installation
