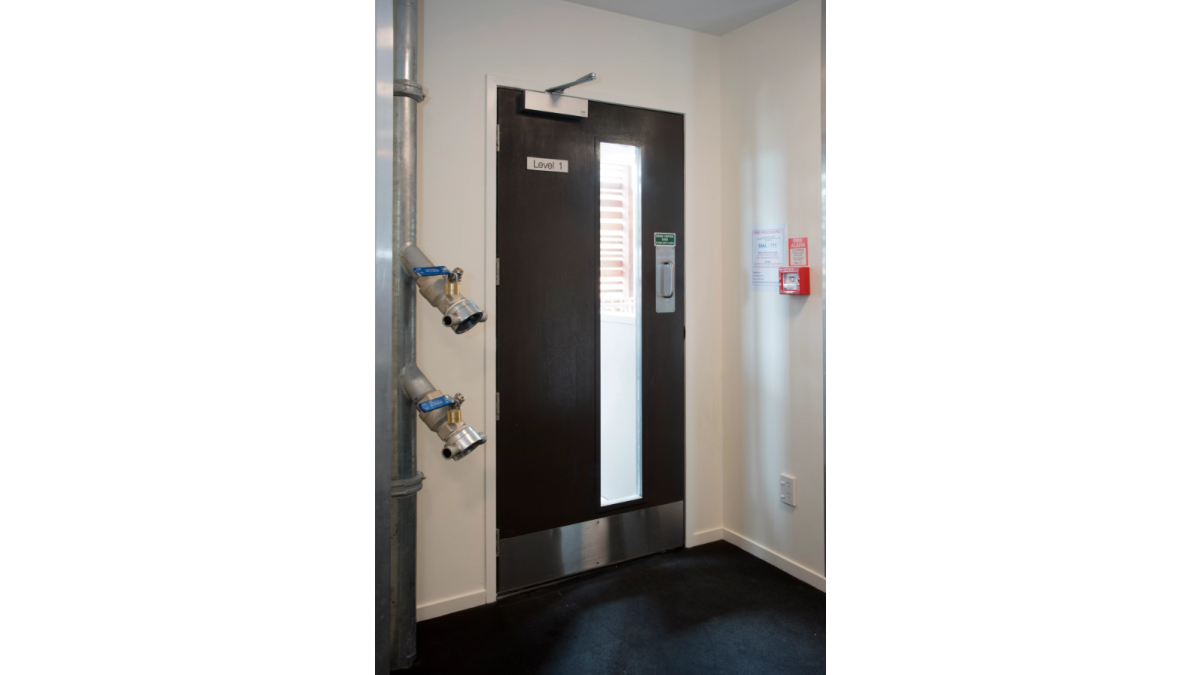

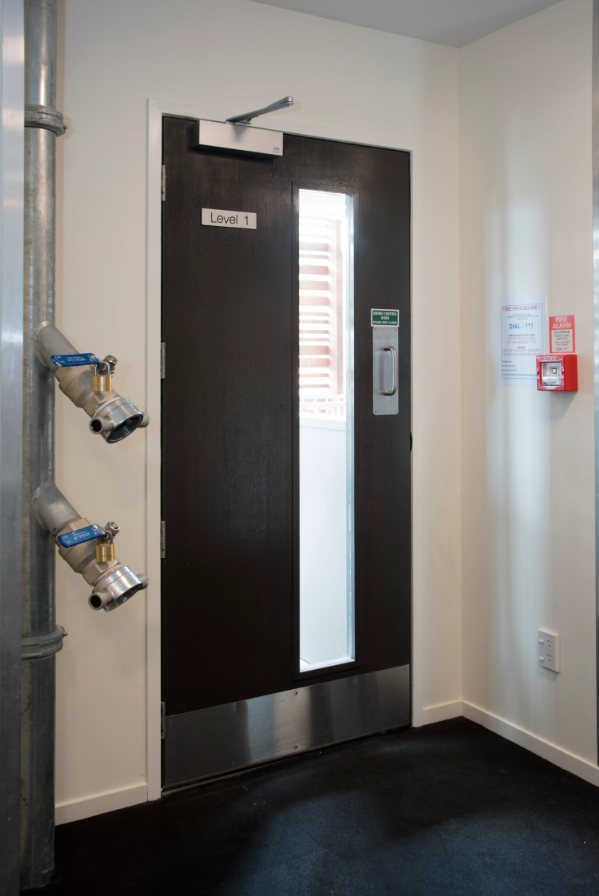

Pacific VP190DA Premium Double Action Fire Door
Description

Pacific Double Action door sets are 180°pivoting doors suitable for interior installation only. The door set configuration may be single leaf or pair, finished with a variety of facings and pivoted in a steel frame.

Bottom seals are not available with this door type.

Key Features
  • 120min fire rating
  • Single or pair
  • 4 facing options
  • 4 glass options
  • Compatible with timber stud, steel stid and masonry wall
  • Optional overpanels
  • Restaurant function available
  • Meets NZS4520.2010 standard
NZ Made
NZ Made
Scope of Use
  • The VP120-DA is a Pyropanel FR board Maxi door.
  • Pacific Double Action door sets are 180 degree pivoting doors suitable for interior installation only.
  • The door set configuration may be single leaf or pair, finished with a variety of facings and pivoted in a steel frame.
  • Bottom seals are not available with this door type.
  • The thickness of the VP120 DA SF door leaf is 48mm with an approximate leaf weight of 35kg/m².
Statement of Building Code Compliance
  • Meets NZS4520.2010 standard
Other Performance Attributes
  • This door leaf has a thermal insulation rating (R-value) of 0.692 Km²/W.
Documents
Data Sheet

6/24/25

Additional information

Pacific Doors specialise in the bespoke manufacture of high strength, performance door and window systems for fire, acoustic, security, hospital, ballistic and commercial purposes.
