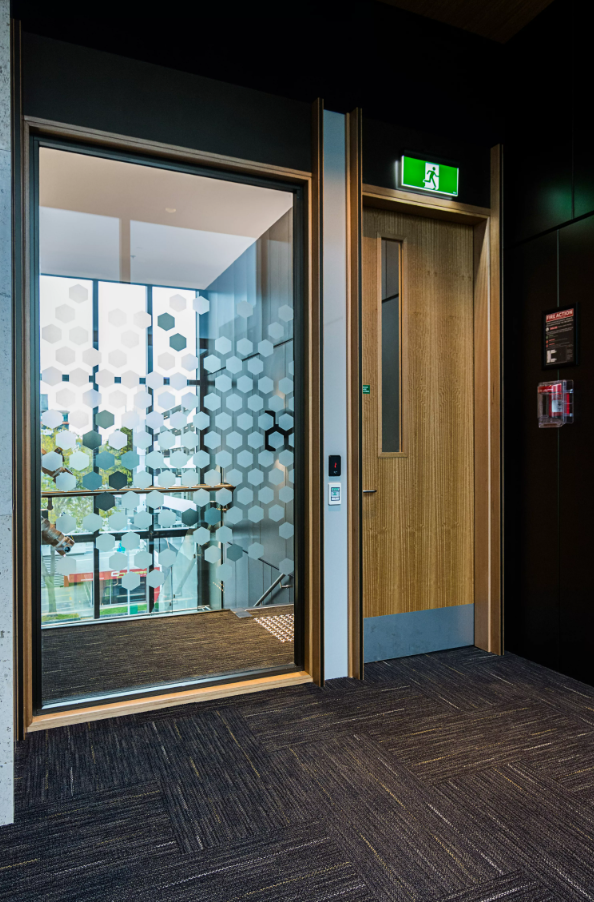

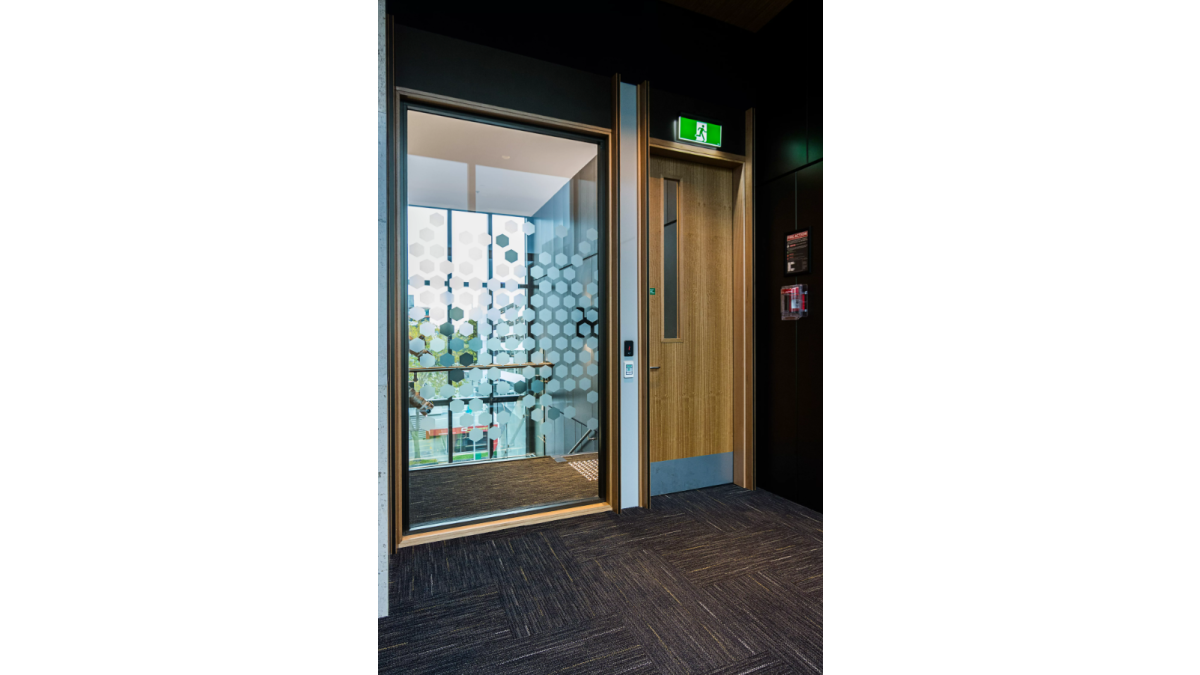

• The Pacific FW30 Fire Window is a glazing system with insulating glass that allows large sized glazing and timber detailing.
• Available in both timber and steel frames
• Suitable for interior use only
• Can be installed next to fire doors
• Compatible with timber stud, steel stud, and masonry wall
• Non-load bearing timber stud/GIB Board wall conforming to minimum specification GBT30 as listed in “GIB^® Fire Rated Systems 1997”.
• Non-load bearing steel stud partitions of minimum specification GBS90 (timber framed doors) or GBS60 (Steel framed doors) (Gib^® Fire Rated Systems 1997).
• Universal Wall systems GBUW30a or GBUW30b.
• Masonry or concrete construction.

• This window is not suited to exterior conditions.

• Complies with NZS 4232.2:1988 and meets NZBC C/AS2
• The glazing is a fire window system which is fire-resisting glazing as defined in the NZ Building Code Acceptable Solutions C/AS2 to C/AS6.

Exterior Situations

This window is not suited to exterior conditions.
