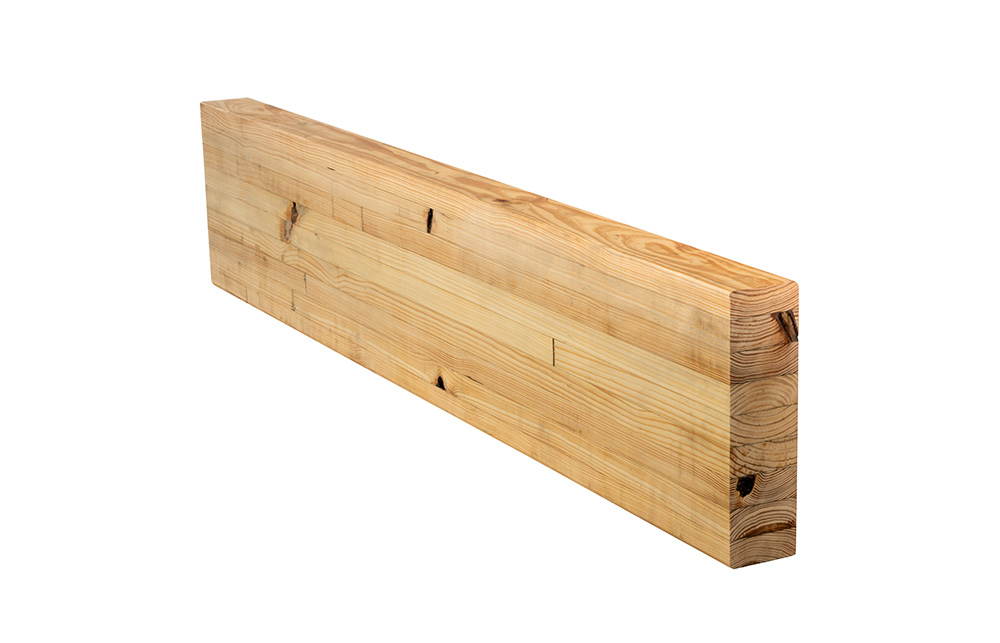

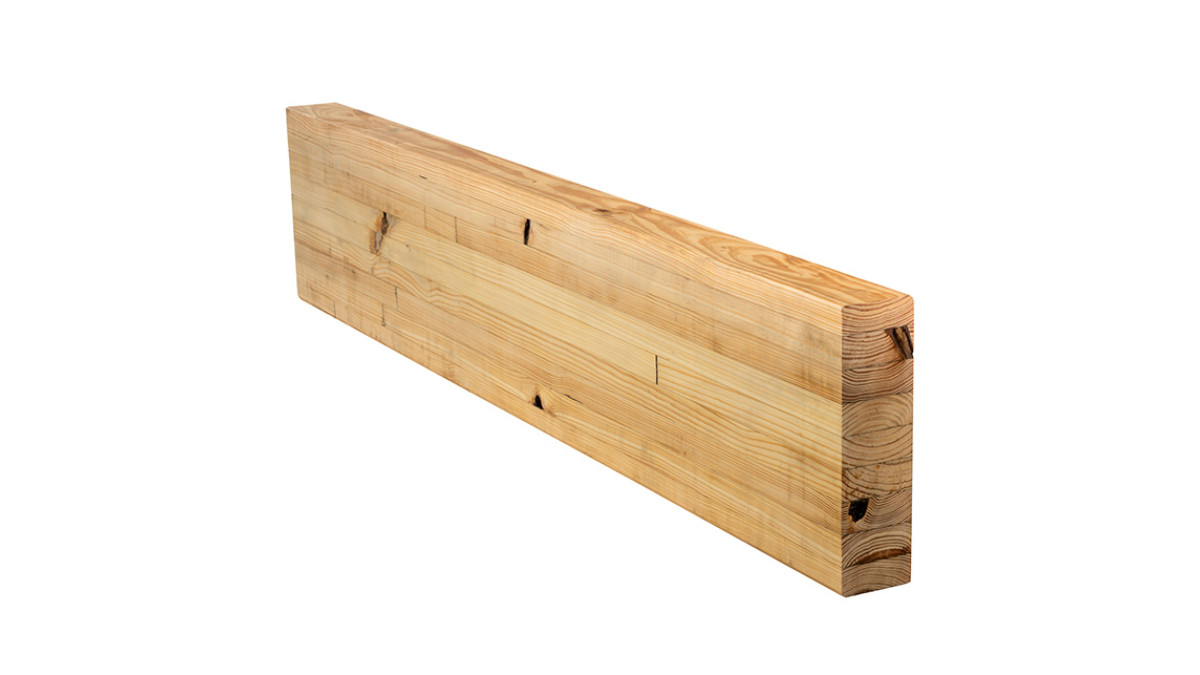

IBuilt Beam 16
Description

Beam 16 is manufactured with high grade plantation grown Slash Pine (Pinus Elliottii) in accordance with AS/NZS 1328.1:1998. Treated to H3.1 (LOSP) for internal structural applications. In-house strength testing is validated by EWPAA third-party compliance testing, and it also carries ‘S’ mark certification. Supplied precambered to a standard 600m radius.

Key Features
  • 88mm width
  • 200, 240, 300, 360, 400, 460mm depth,
  • Available in 600mm increments up to 10.8m long
  • Treated to H3.1 (LOSP) and available in a structural non-appearance grade,
  • PEFC (Programme for the Endorsement of Forest Certification) certified,
  • Manufactured to strict QA requirements from stress graded timber of known structural capacity,
  • Manufactured from kiln-dried timber and the lamination process makes it less prone to movement.
NZ-Owned Business
NZ-Owned Business
Limitations on Use
  • Beam 16 should not be used in weather-exposed situations
Statement of Building Code Compliance

 Beam 16 products are high grade glued-laminated timber beams formed from Australian pine.

  • All components are assembled using only durable, exterior grade adhesives that comply with Service Class 3 as per AS/NZS 4364-2010
  • The beams are specified as cambered (C) to 600 m radius
  • Beam 16 is available in a STR - Structural Grade/Appearance C in accordance with AS/NZS1328.1-1998.
  • Beam 16 is available treated to H3.1 (LOSP)
  • Hyne Timber’s Glue Laminated Timber (GLT) has been independently certified by Bureau Veritas, a JAS-ANZ accredited third-party Certification Body, under their ‘S’ Mark Product Certification Scheme. The 'S' Mark is an Australasian stamp of assurance, confirming to the design and construction industry that Hyne Timber’s GLT is audited and certified to the applicable Standard ‘AS/NZS 1328.1:1998, Glue Laminated Structural Timber.’
Other Performance Attributes

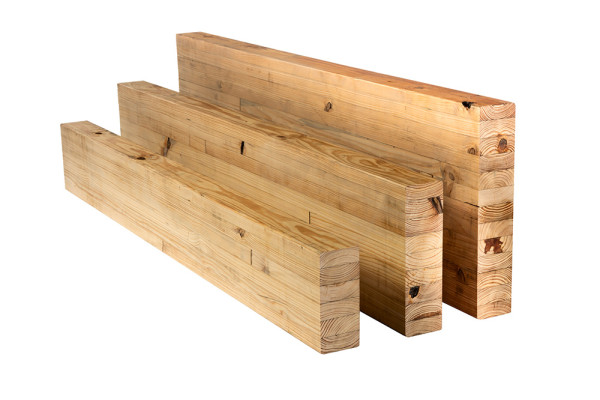

  • HYNE produce a range of Glued-laminated products (Glulam)
  • Glulam products are produced by finger jointing and gluing shorter and small cross section timber together to make a larger cross section final product
  • All HYNE Glued-laminated products are produced at the Maryborough Glulam plant (Australia) and are manufactured in accordance with AS/NZS 1328.1-1998
  • The site operates an AS4707-2006 Chain of Custody compliant management system that covers all laminated products produced at the site as well as holding ISO9001-2006 accreditation for its manufacturing systems
  • EWPAA certified
  • PEFC Chain of Custody
PEFC Certified
PEFC Certified
Documents
BPIR/PTS

19263 - 11/25

Beam 16 Camber Distance Chart

May 2025

Beam 16 Structural Properties

May 2025

Beam 16 Lintel Span Table

May 2025

Beam 16 to LVL16 Substitution Table

May 2025

Handling and Storage

11/2021

Beam 16 Flyer

May 2025

I-Built Midfloor Brochure

29/10/24

Additional Information

New Zealand Wood Products Ltd is a supplier of I-Built engineered timber, glulam, plywood and associated materials.
