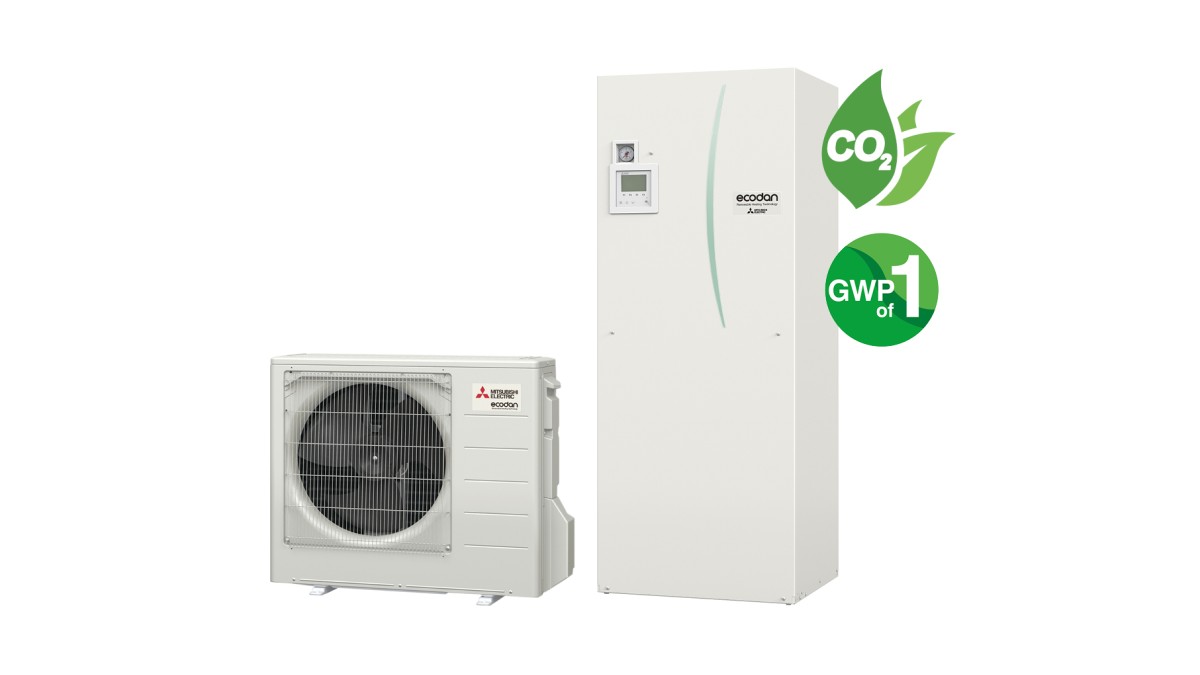

An all-in-one system for space heating and potable hot water or as a standalone potable hot water system, the QUHZ is ideal for residential homes requiring domestic hot water heating as well as space heating through:

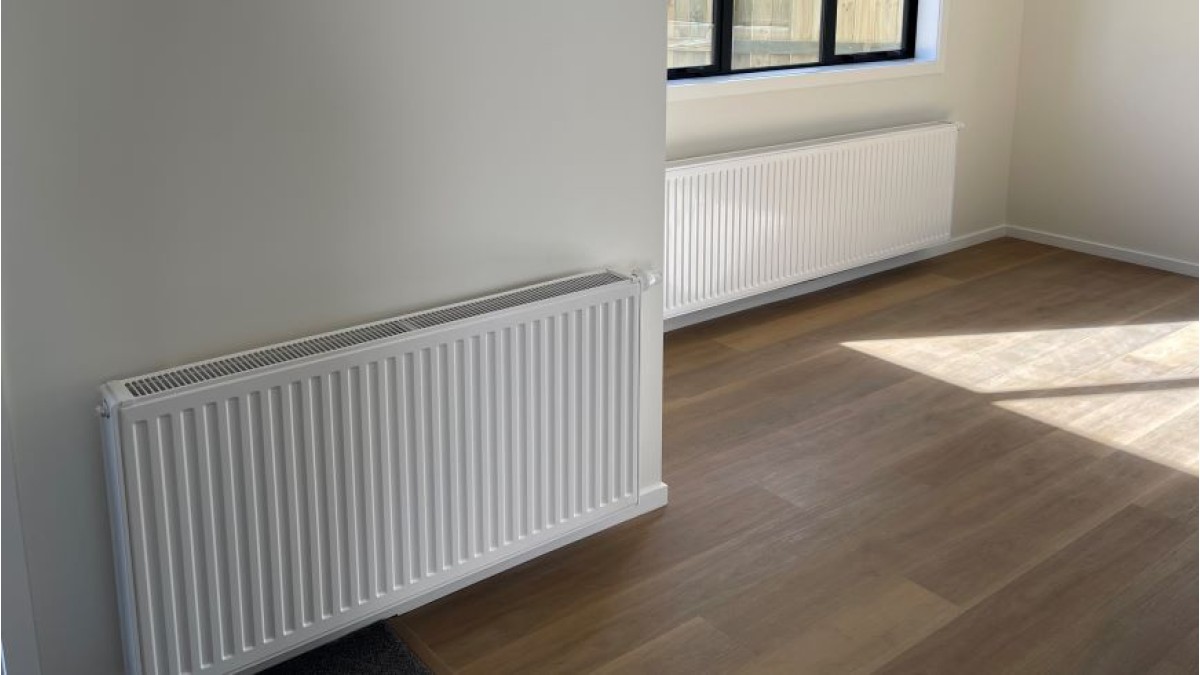

• Radiator Heating
• Underfloor Heating
• Fan Coils

The 5kw heating capacity lends its self to townhouses, apartments, passive houses or renovations looking for heating in a low energy loss building.

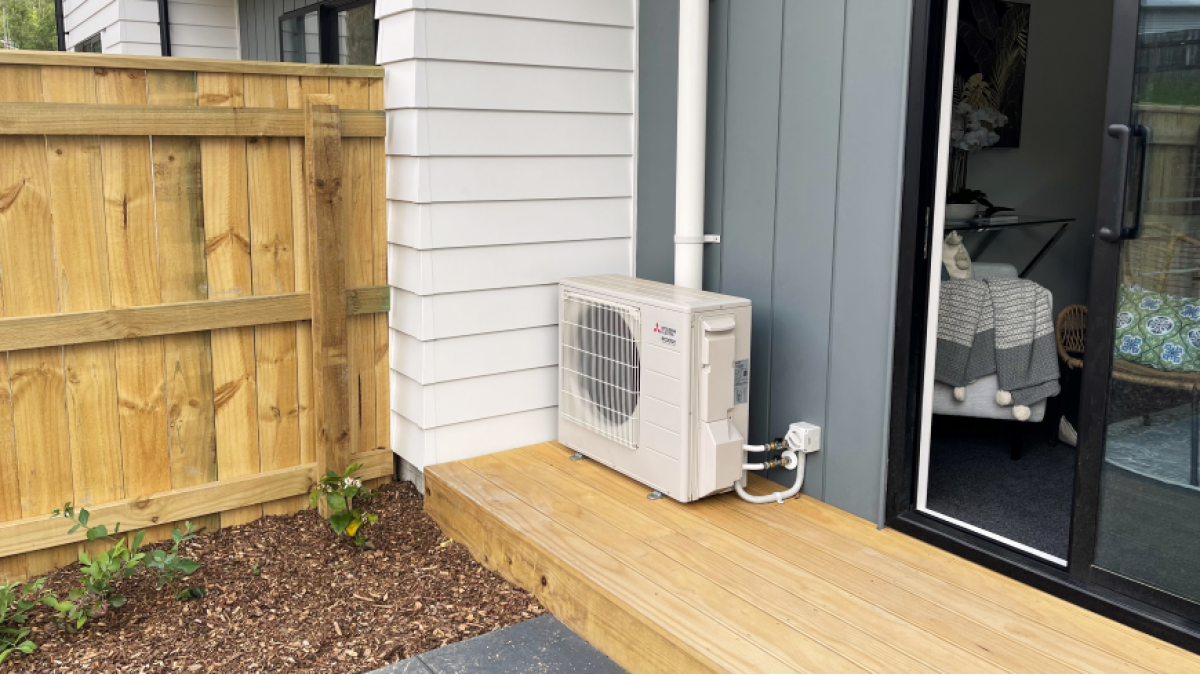

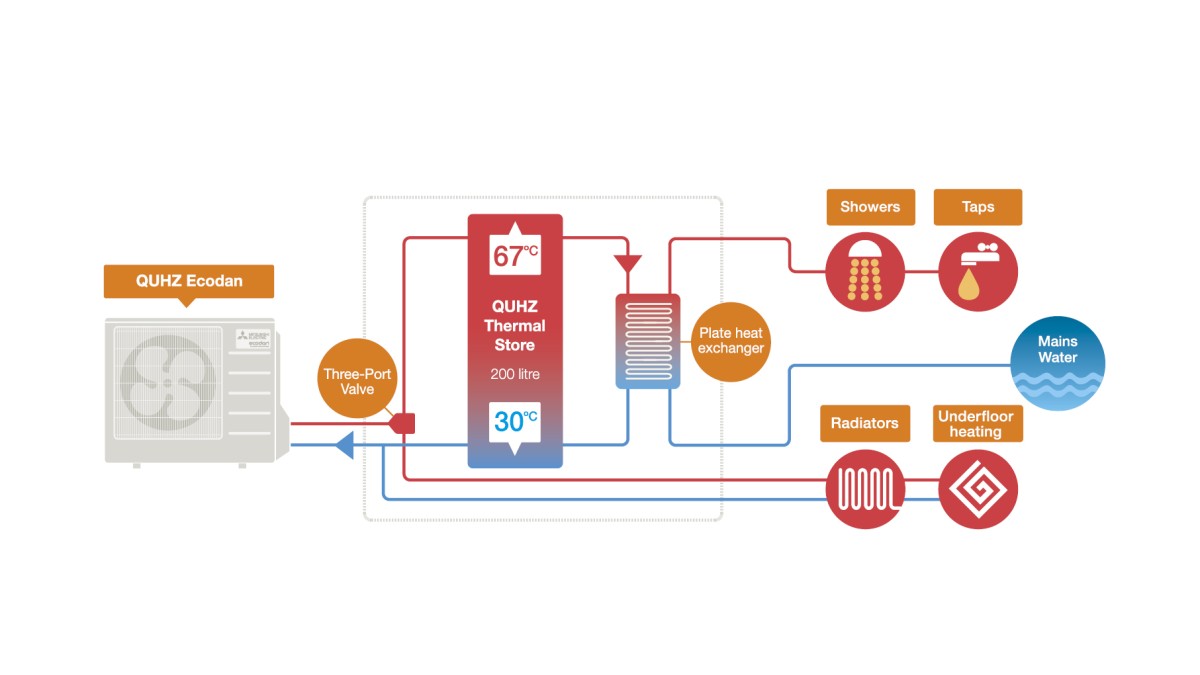

Consisting of an indoor thermal store and outdoor unit, the systems integration must be considered at the design phase so the unit can be installed and space is left to ensure the entire hydronic system can be installed with minimal impact to the home's function and aesthetic.

The QUHZ CO₂ Hot Water Heat Pump can also be installed as Domestic Hot Water (DHW) only, providing temperatures up to 70°C and can be retrofitted to an existing home.

It is recommended heat load calculations are completed to ensure system has adequate capacity for the installation (for other capacity options see the Ecodan Hot Water Heat Pump range). Mitsubishi Electric has a team ready to assist with calculations and design plans.

The product is not intended for large scale commercial heating application. Please refer to the Mitsubishi Electric QAHV CO₂ Hot Water Heat Pump for commercial potable hot water application.

The QUHZ complies with the latest requirements for electrical products sold in New Zealand.

The Ecodan Hot Water Heat Pump range has been sold in New Zealand for over 10 years and QUHZ units are operating throughout the country.

The Mitsubishi Electric Product Range has been exclusively distributed by 100% locally owned and operated Black Diamond Technologies Limited for over 40 years in New Zealand.

The QUHZ has been tested under BS EN 14511, and yields the following test results:

• A2W65: 3.89kW capacity and COP  of 2.57**
• A7W65: 4.61kW capacity and COP  of 3.31**
• A12W65: 5.15kW capacity and COP  of 3.9**

**Tested in accordance with BS EN 14511, water inlet temperature 20°C

Warranty

The Ecodan QUHZ CO₂ Hot Water Heat Pump comes with a full 5 year warranty as standard, subject to the following conditions:

• The Ecodan purchase and installation is registered with Black Diamond Technologies Limited (BDT).
• The Ecodan must be installed and commissioned by a trained BDT installer.
