• Domestic potable hot water heating for New Zealand residential homes.
• Suitable for new build and retrofit applications.

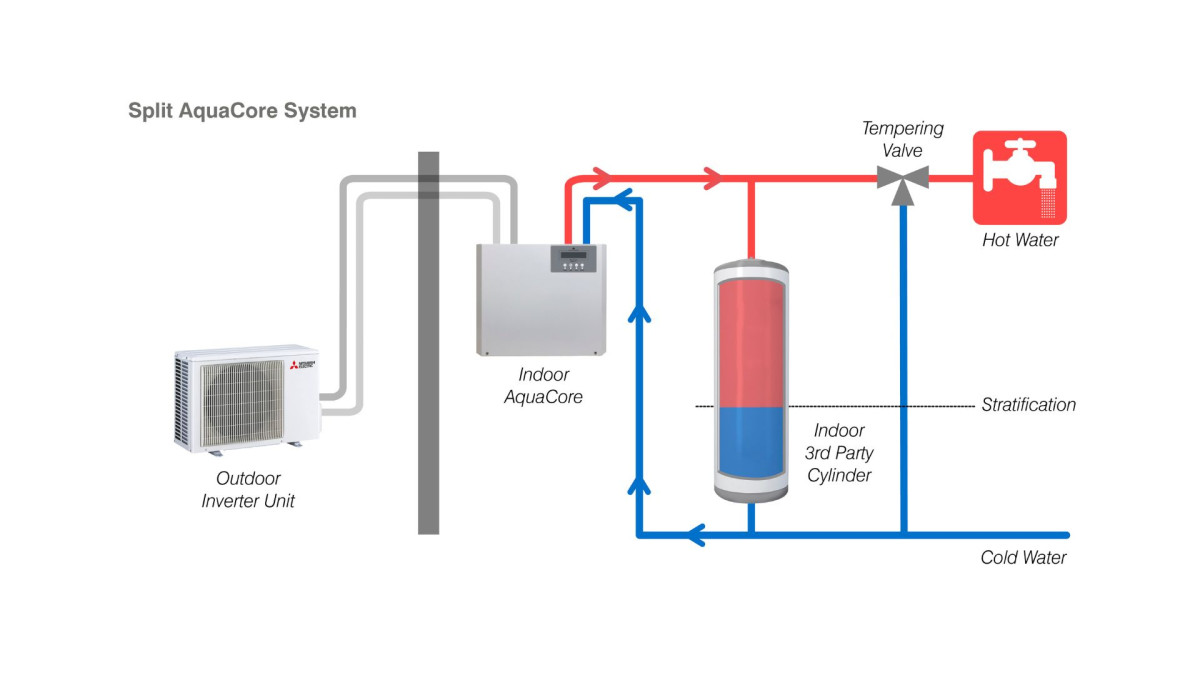

• Can be paired with many existing or new mains pressure hot water cylinders, provided the cylinder and system design meet AquaCore requirements.
• Suitable for homes looking to reduce reliance on traditional electric hot water heating or gas water heating.
• Designed for New Zealand climate conditions, including colder regions where outdoor temperatures can fall as low as -15°C.
• Suitable for households with high hot water demand, including families and larger homes.
• Can be used where homeowners want scheduled hot water operation, off-peak power optimisation or remote control via Wi-Fi Control.
• Intended to be installed by appropriately qualified plumbing, electrical and refrigeration professionals in accordance with all applicable New Zealand standards, regulations and codes.

• AquaCore must not be installed, serviced, altered, relocated or repaired by the homeowner or end user.
• Not suitable for installation by unqualified trades. Installation requires appropriately qualified plumbing, electrical and refrigeration professionals.
• Not suitable for cylinders that do not meet AquaCore water storage cylinder requirements, including suitable insulation, stratification and compatible water connections.
• The AquaCore unit is an indoor unit should not be installed outside unless with an IP rated rain proof cover.
• Refrigerant pipe length and height limits must be followed.
• Wi-Fi Control requires an ethernet connection from the AquaCore indoor unit to the home’s router.

When designed, installed and maintained in accordance with Black Diamond Technologies’ installation requirements, the AquaCore system supports compliance with relevant New Zealand Building Code performance requirements, including:

• NZBC Clause G12 Water Supplies — Supports the supply of heated potable water, including built-in mandatory legionella control operation. The AquaCore carries out a weekly deep disinfect cycle, activating the cylinder electric element as required to ensure tank temperature meets G12 compliance. Compliant with AS/NZS 4020:2018.

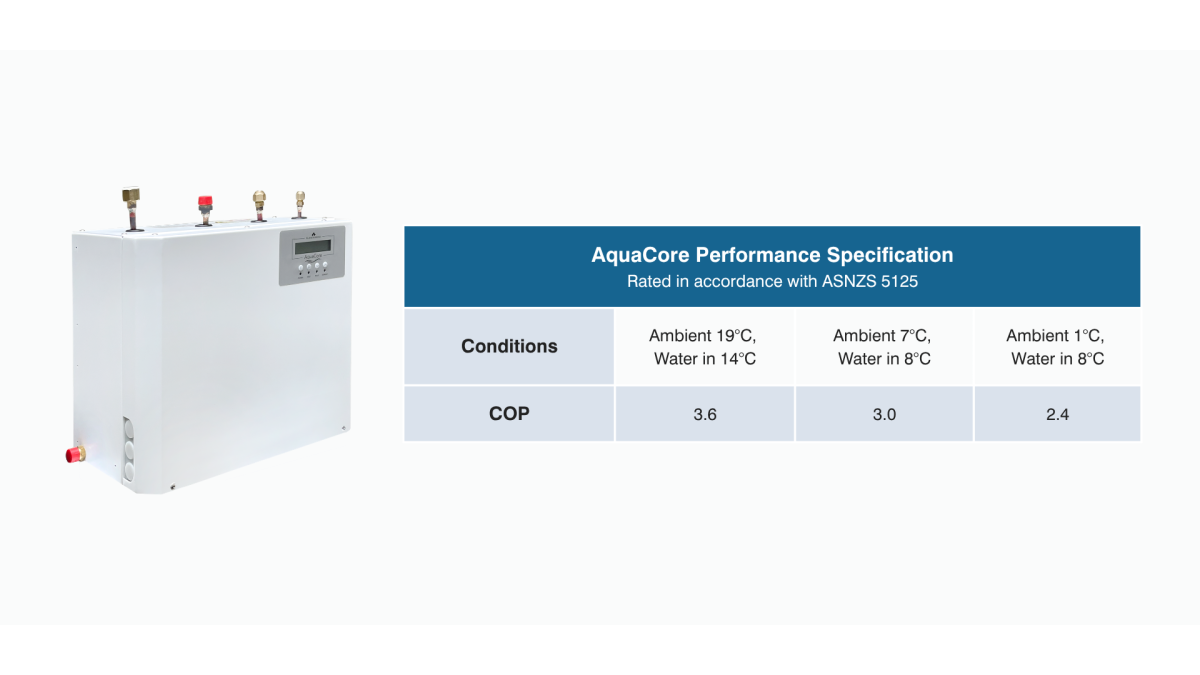

• NZBC Clause H1 Energy Efficiency — AquaCore supports more energy-efficient domestic hot water heating compared with traditional direct electric water heating, with a COP of up to 3.6 under rated conditions.

Note: Final compliance depends on the complete hot water system design, cylinder compatibility, installation quality and compliance with all applicable plumbing, electrical, refrigeration and building regulations.

AquaCore technology has been operating in New Zealand homes for over 12 years, with systems installed as far back as 2013 still operating successfully in the field.

Black Diamond Technologies Limited has operated in the New Zealand market for over 45 years and supports its products through a nationwide trained specialist installation network.

For every 1kW of electrical input energy, the Black Diamond AquaCore Hot Water Heat Pump absorbs freely available heat energy from the outdoor air to provide the home with approximately 3.6kW of heat output.

Compared to typical gas and direct electric heating systems that can have higher running costs with inefficient COPs as low as 0.82*1, Black Diamond AquaCore Hot Water Heat Pump provides a real energy efficient alternative.

*1 Based on manufacturer information for gas instant hot water heater (non-condensing).

Warranty

5 year comprehensive parts and labour warranty.
