StudLok Structural Fasteners
Description

MiTek StudLok structural fasteners have been specifically developed to provide easy alternative options for NZS 3604:2011, and form an integral part of the MiTek truss and frame design layout.

With four current size options for specific applications:

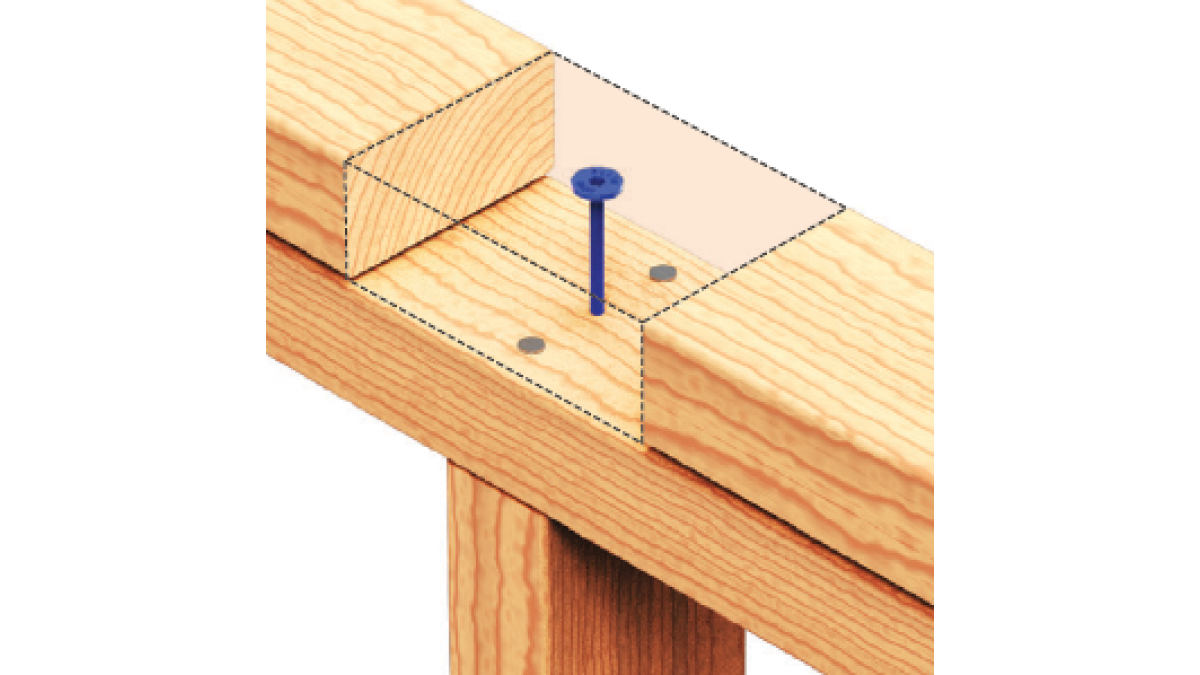

  • SL170 — Blue
    • For the builder to use on site when fixing top plate to studs as per section 8 NZS 3604:2011
    • This can also be installed by Accredit Mitek truss and frame manufacturers

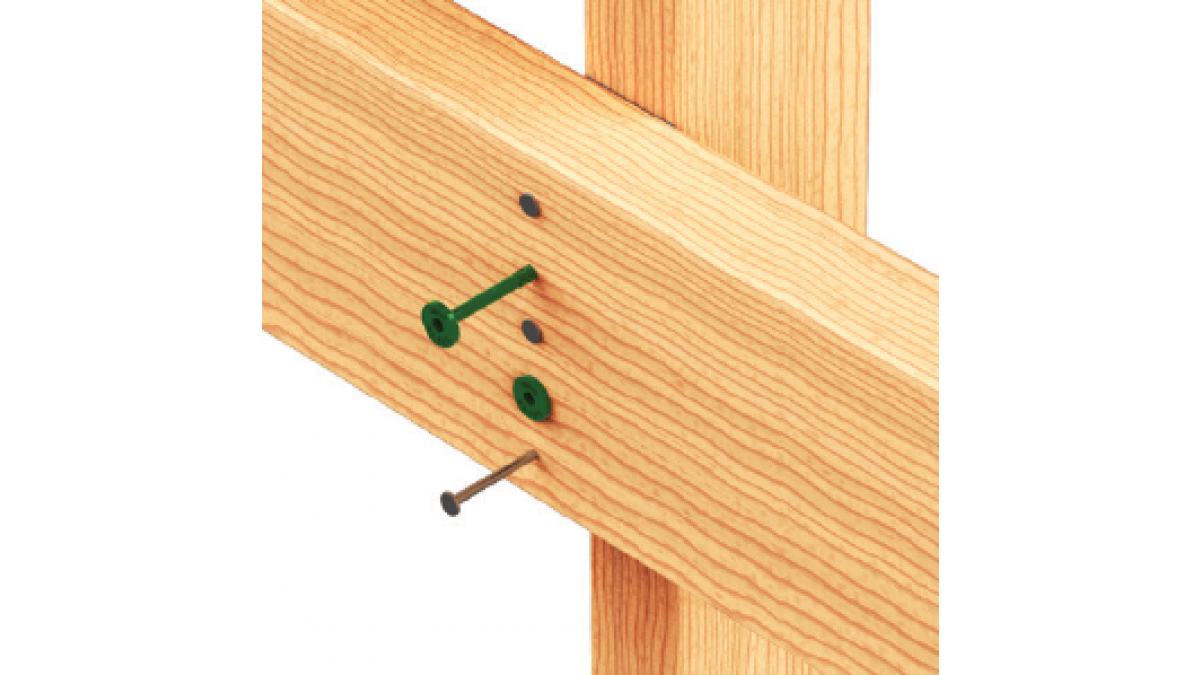

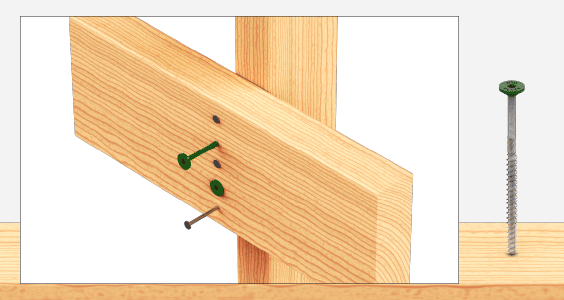

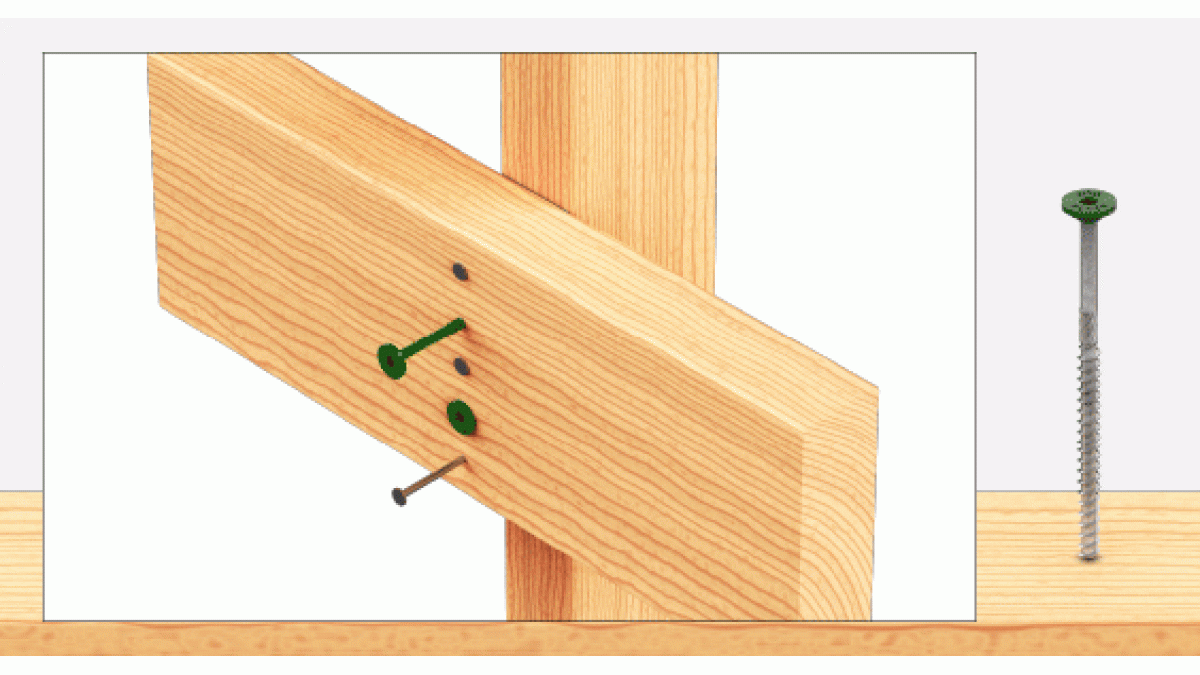

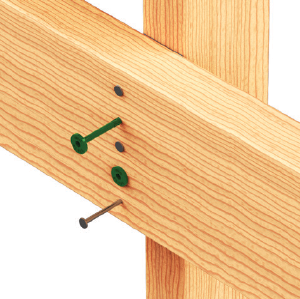

  • SL125 — Green
    • For the builder and suitable when fixing stringers to studs. For fixing details please refer to MiTek's stringer to stud fixing schedule

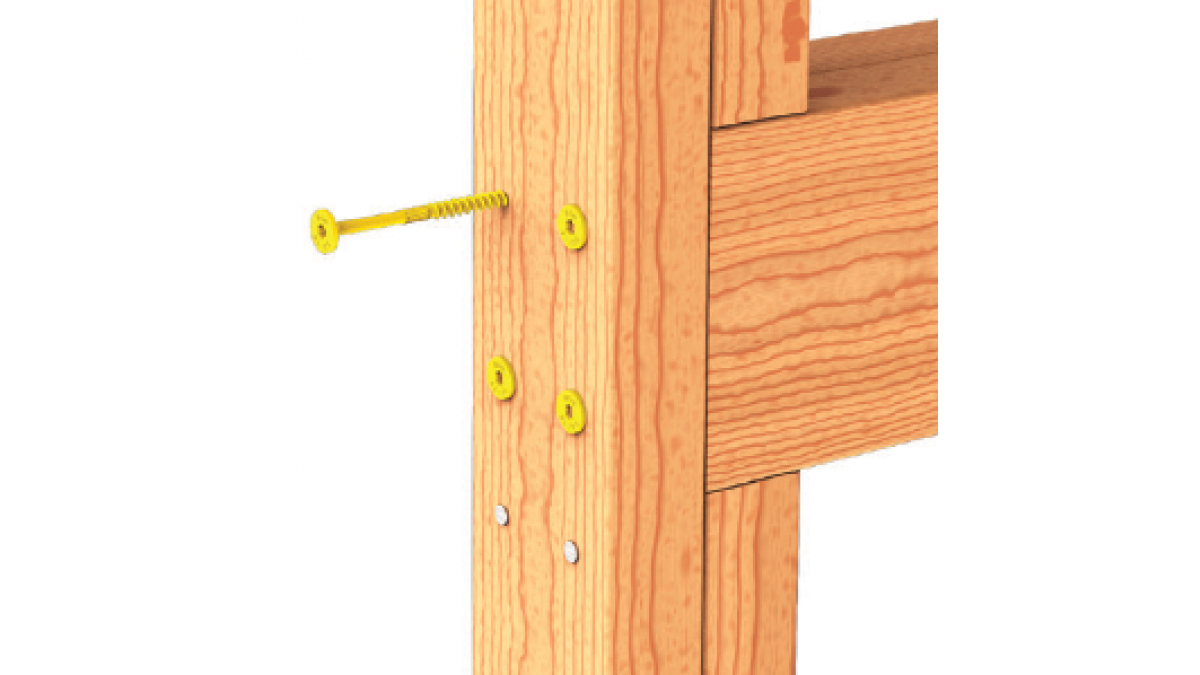

  • SL125 — Yellow
    • Installed by an Accredited MiTek fabricator as an alternative option for top plate to stud and lintel fixings

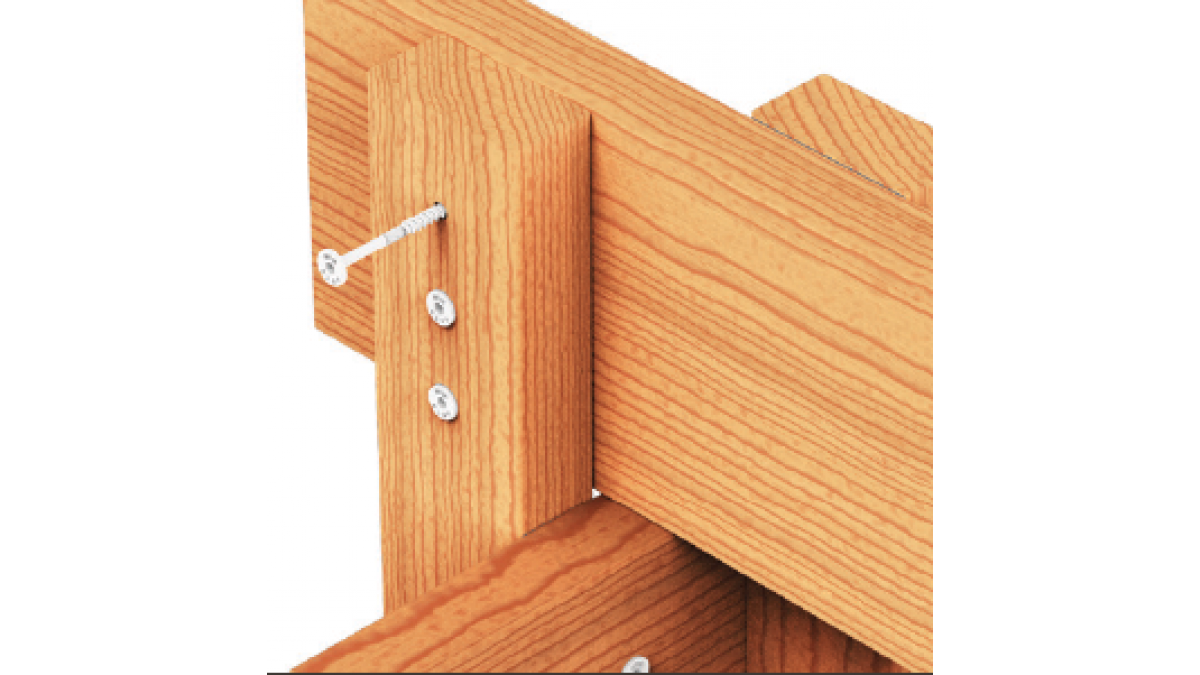

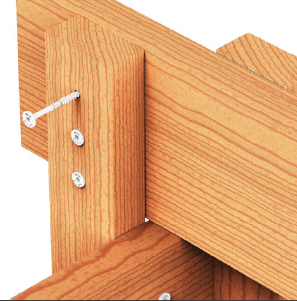

  • SL80 — White
    • For when purlins need to be on edge, or for providing a solutions to specific engineered design scabbing of trusses
Key Features
  • StudLok fasteners are specifically designed and engineered and by MiTek for New Zealand construction methods
  • SL125 and SL170 provide a flush and/or hidden fixing to provide a clean flush finish for claddings and linings
  • Four size options for specific applications
Scope of Use
  • For closed environments
  • SL125 Yellow and SL170 Blue provide a 4.7kN load
Statement of Building Code Compliance

All fasteneings comply with alternative options for NZ3604:2011 and cover B1 and B2 requirements for the New Zealand Building Code.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
Test Results
Test Results
Documents
Stud to Top Plate Fixing
StudLok Stringer to Stud Fixing
