Suitable for residential, multi-residential and commercial windows and doors requiring high solar control and a reflective architectural appearance.

SunX™ Reflect is particularly suited to:

• Projects requiring Metro’s highest level of solar control
• Buildings in warmer or highly sun exposed locations
• Large windows and glazed doors
• North, east and west facing elevations
• Rooms where overheating or glare may be a risk
• Projects requiring a reflective architectural appearance
• Applications where increased daytime privacy is preferred
• Double glazed window systems designed to meet H1 requirements
• Buildings within NZS 3604 wind zones up to and including Extra High, subject to appropriate glass and frame selection

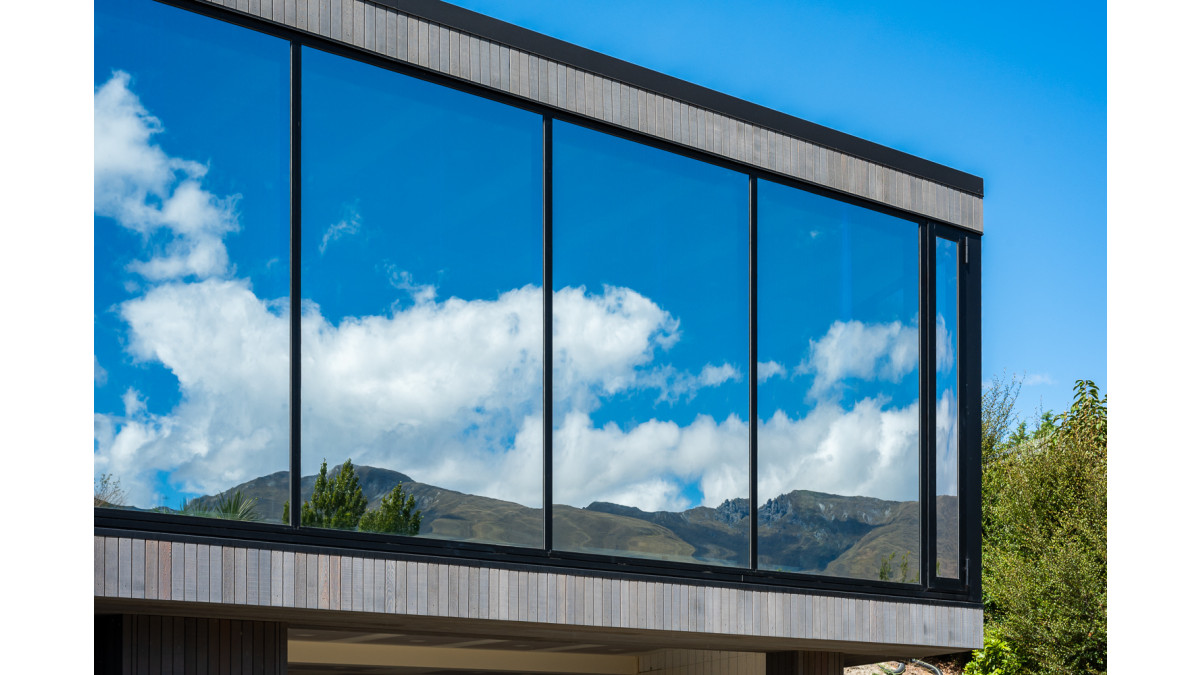

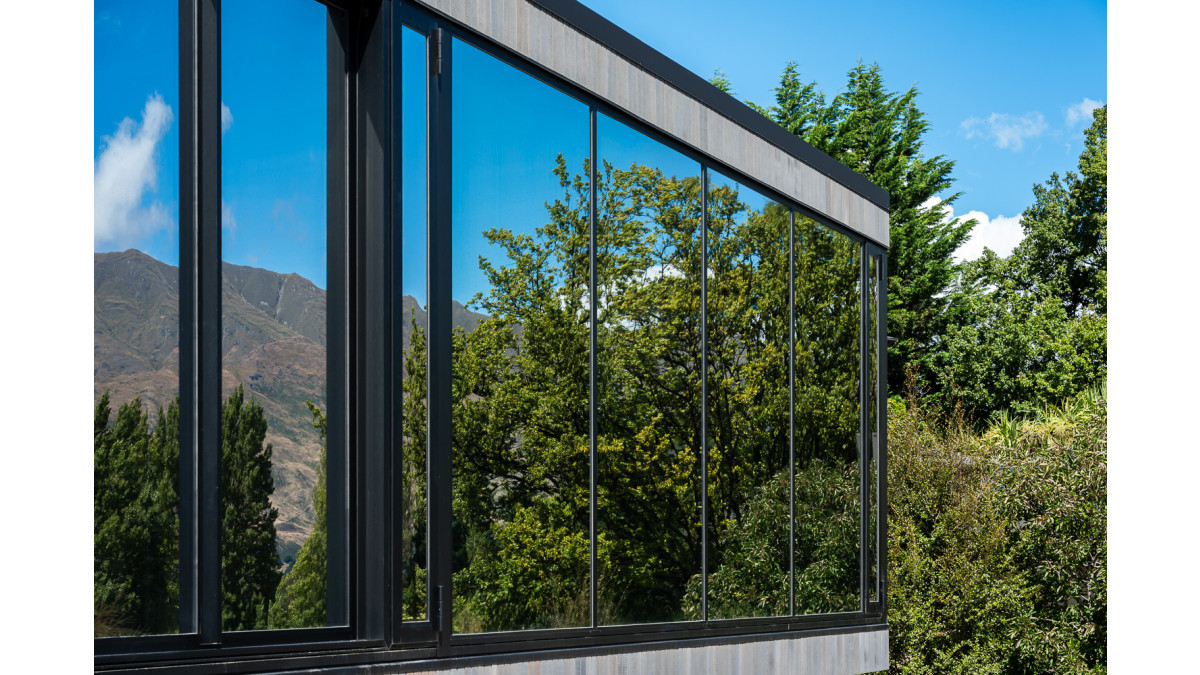

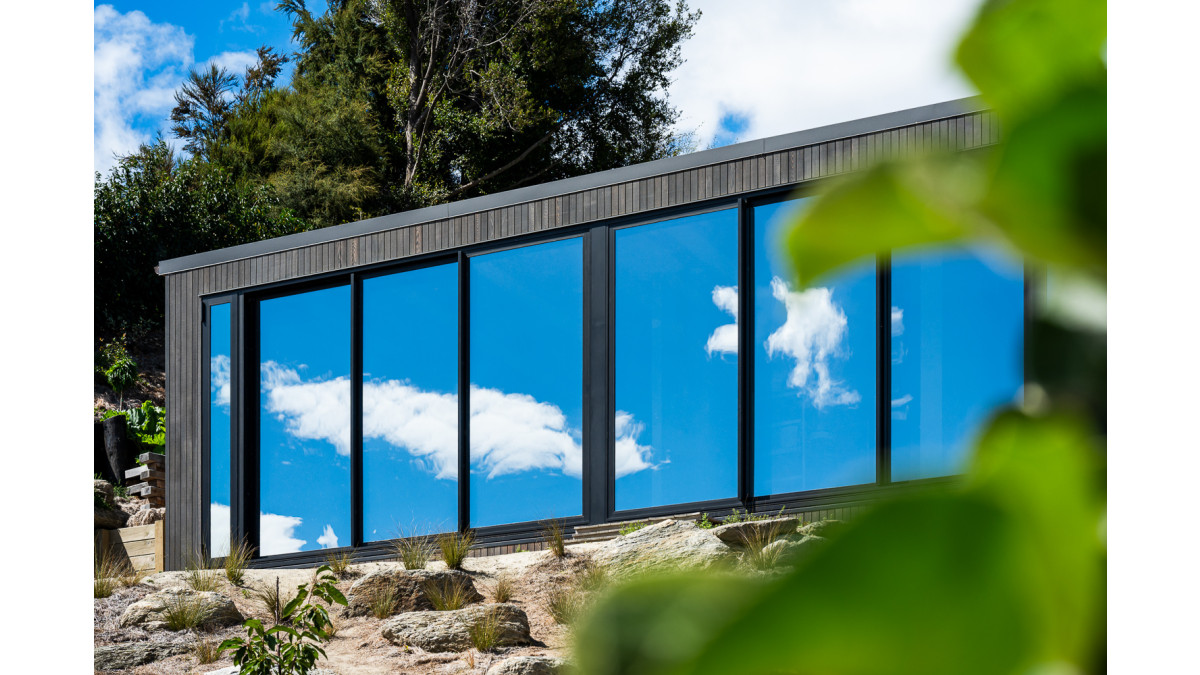

• SunX™ Reflect has a distinctive reflective appearance and lower visible light transmission than other Metro Low E options.
• The glass appearance should be reviewed as part of the complete façade design.
• The same glass should generally be used across adjacent windows and doors to maintain visual consistency.
• High solar control may reduce passive solar heating during cooler months.
• Must be glazed in accordance with Metro Performance Glass glazing instructions and to the current NZ building code.

When specified as part of an appropriately designed and installed window or door system, SunX™ Reflect Low-E Double Glazing complies with or can contribute to compliance with relevant provisions of the New Zealand Building Code, including:

• B1 Structure
• B2 Durability
• E2 External Moisture, as part of the complete window or door system
• F2 Hazardous Building Materials
• F4 Safety from Falling, where specifically designed for this purpose
• G7 Natural Light
• H1 Energy Efficiency

SunX™ Reflect is suitable for meeting H1 requirements across all New Zealand climate zones, subject to the selected spacer width, frame and complete window-system performance

Performance data is based on a nominal 4-14-4 double-glazed unit with argon gas and a thermal spacer:

• U-value, Ug centre of glass: 1.1 W/m²K
• Solar control, solar factor or g-value: 22%
• Visible light transmission (VLT): 31%
• Fading protection (Tdw-ISO): 0.27
• Appearance: Reflective silver
• Double glazed units are manufactured and tested in accordance with BS EN 1279
• Safety glass options are manufactured in accordance with AS/NZS 2208
• Glass selection and installation are undertaken with reference to NZS 4223

Warranty and maintenance

• 10 year double glazing warranty
• Refer to the attached Metro Performance Glass warranty document and registration link
• Maintain in accordance with the attached Metro Performance Glass care and maintenance guide

SunX™ Reflect Low E double glazing - performance data
