VelaSun® Outdoor Living System
Description

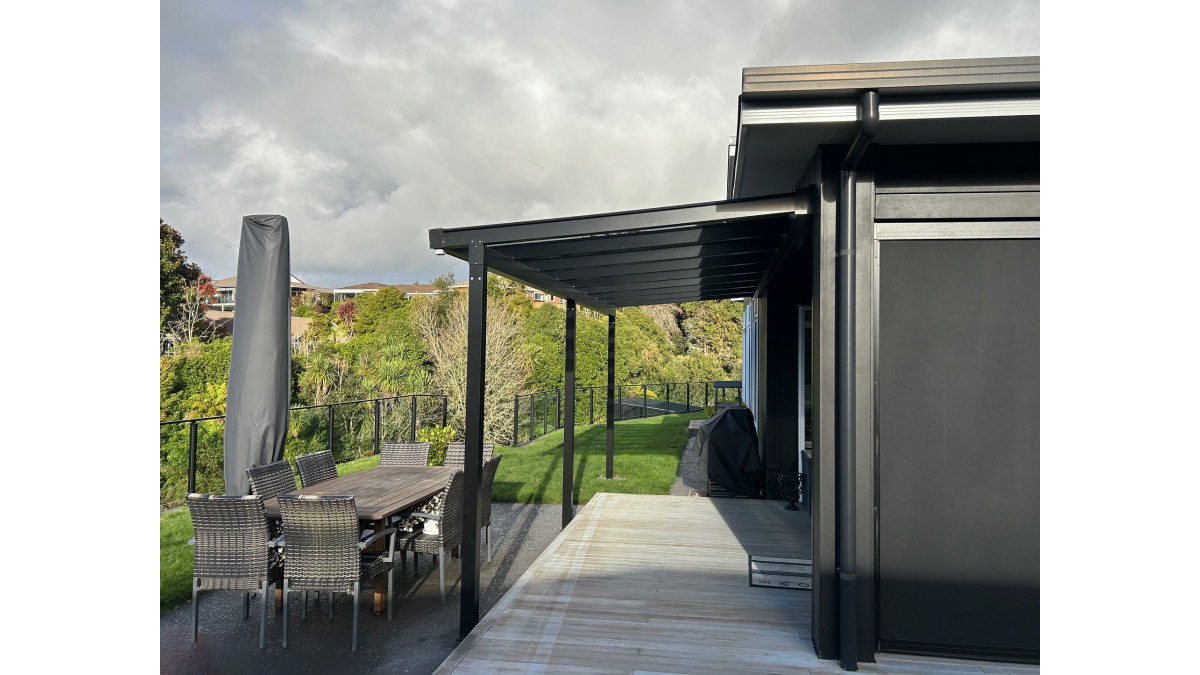

The VelaSun® Outdoor Living System is an ideal solution for extra outdoor shelter for the home.

An elegant Aluminium pergola system designed to shelter your outdoor entertainment area from harsh sun and rain. VelaSun® is a perfect fixed canopy for variable New Zealand conditions

Key Features
  • All weather protection
  • Durable extruded aluminium frame
  • Minimal maintenance
  • UV resistant polycarbonate roofing
  • Enhance outdoor spaces
  • Frame can be powder coated from a wide range of colours
  • Easy installation
  • Custom built
  • Optional extras like LED lighting available
  • 3 Configurations: 1. Open (no infill panels) 2. Louvre/Slat or Panel Infill 3. Grey Polycarbonate or Laminated Frosted Glass
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Custom made
  • Can be fixed onto many styles and shapes of homes
  • Fitted onto one wall. Minimum 2 legs required
  • Fitted onto two walls: Minimum 1 leg required
  • Available in the powder coat colour of choice
  • Optional extras such as integrated LED lights available
  • 3 Configurations: 1. Open (no infill panels) 2. Louvre/Slat or Panel Infill 3. Grey Polycarbonate or Laminated Frosted Glass

VelaSun Polycarbonate:

  • Max Depth 4.8m
  • Max Post spacing 3.6m
  • Max Width 12m
  • Max Height 2.9m
  • Nominal rafter spacing 800mm

VelaSun Glass:

  • Max Depth 4.0m
  • Max Post spacing 3.6m
  • Max Width 12m
  • Max Height 2.9m
  • Nominal rafter spacing 600mm

Roofless Pergola VelaSun:

  • Max Width 3.6m
  • Max Depth 3.6m
  • Max Height 2.9m
Limitations on Use
  • Juralco Velasun® configurations and sizes are affected by Wind Zone restrictions. For clarification refer to Configurations
  • Juralco Velasun® must be installed in accordance with the Juralco Product Manual
  • Any deviation from standard fabrication or installation must involve guidance from Juralco Aluminium Building Products Ltd (the manufacturer)
Statement of Building Code Compliance

The Juralco VelaSun® Outdoor Living System has been reviewed by Lautrec Technology Group Ltd, Engineers.

Suitable for NZS3604 Low, Medium, High, Very High and Extra High Wind Zones up to Design Wind pressure of 2.5kPa as noted in the Fabrication Manual, when attached to buildings within the scope of NZS3604

Other Performance Attributes
  • 5 year warranty for Juralco Outdoor Living System®, including automation
  • Dulux Duralloy Plus powder coating — 15 year warranty
  • Dulux Duratec powder coating — 25 year warranty
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Technical/Design Manual

6-24 v1

Brochure
